Agilent 16903A Data Sheet

Agilent 16900 Series Logic Analysis System Mainframes
Data Sheet
Conquer your toughest digital debug problems while staying within your budget
The Agilent 16900 Series modu­lar logic analysis mainframes deliver the performance you need to conquer your toughest digital debug problems. You get accurate and reliable measurements for today’s complex circuits, with expandability and performance headroom to cover future tech­nology trends. In addition, the intuitive user interface gives you the ultimate in productivity with­out sacrificing performance or capability. You get performance and intuitive usability at a price you can afford.
Expand your system as your needs evolve
Expandability is the key to the long-term value of the Agilent 16900 Series logic analysis sys­tems. Purchase the capability you need now, then expand as your needs evolve. Maximize main­frame usage by operating them separately, then connecting them together for complex, high-chan­nel-count, multiple-bus applica­tions. Whether you are doing sim­ple hardware debug, real-time analysis of instruction execution, hardware/software integration, signal-quality analysis or complex system validation, you have a sys­tem that meets each of your long­term digital measurement needs.
Spend more time designing and less time learning how to use your tools
If you want to focus on solving your digital debug problems, you need to be able to quickly master your debug tools. The 16900 Series logic analysis mainframes let you set up measurements easi­ly and navigate through your data quickly with an intuitive user interface and familiarity of Windows® XP Professional.

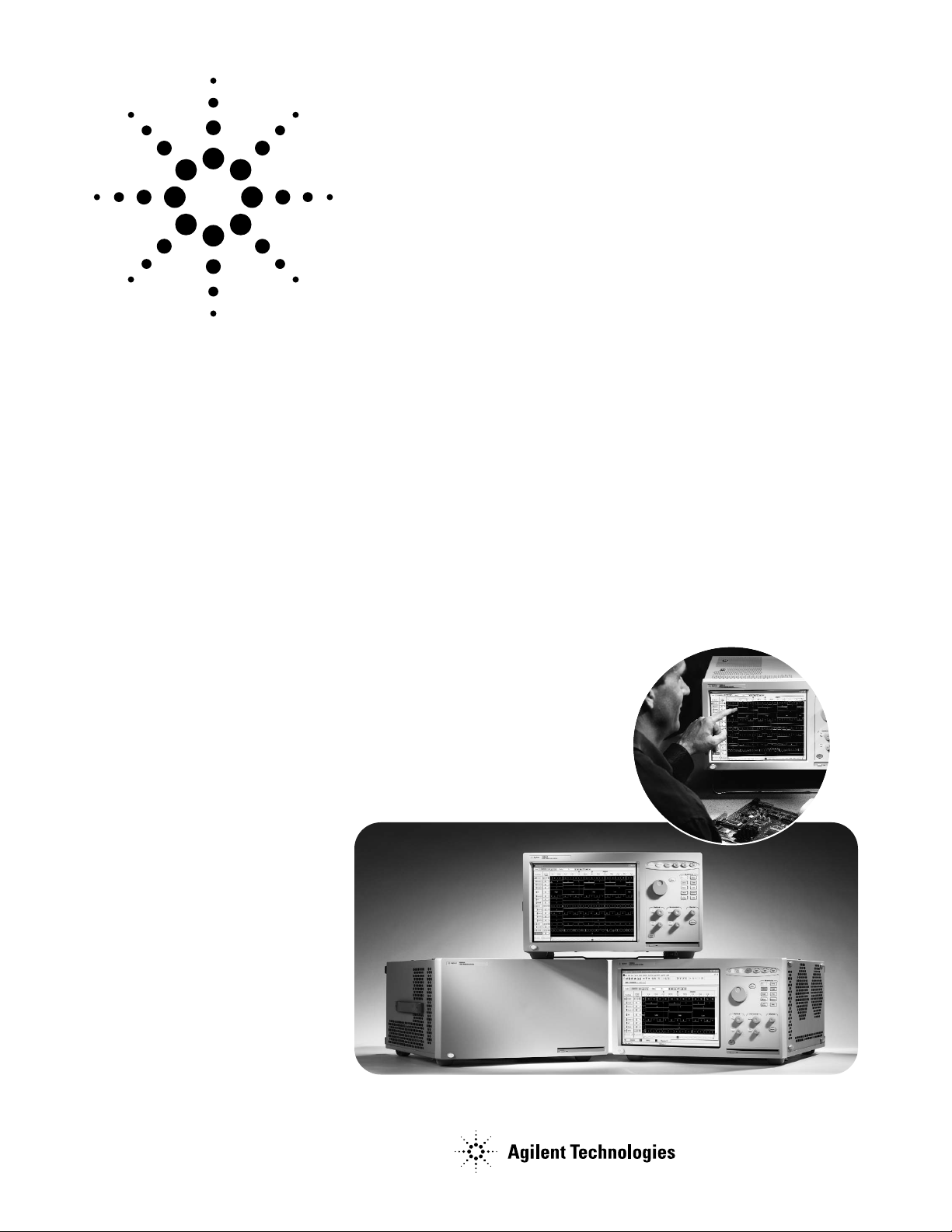

Figure 1. The Agilent 16900A, 16902A and 16903A modular logic analysis systems.
2
The flexibility you need to debug your design your way
Increase your productivity with a variety of operating modes that maximize your analyzer’s usage. Whether you work alone at a bench or with team members distributed around the world, the 16900 Series provides a use model that easily integrates into your debug environment.
Work at your bench — Operate the analyzer via touch screen, mouse or keyboard.
Expand view across multiple monitors — Get the most compre-
hensive view of your data with extended desktop viewing.
Remotely control and monitor the logic analyzer — Access a
remote logic analyzer via built-in Windows XP desktop sharing. Receive e-mail when the logic analyzer triggers.
Work offline — Increase equip­ment and team productivity. View and analyze captured data on a PC while the logic analyzer makes other measurements. Also, create setups for your next round of measurements.
Run automated tests — Execute a series of tests via the ASCII remote programming interface or Microsoft DCOM.
Offload data for custom analysis — Move data quickly over
the optional Gbit LAN connection to an external PC.
Figure 2. Get the most comprehensive view of your data with extended desktop viewing.
Combine mainframes to expand measurement capability — Use
mainframes individually, then connect them together when you need to analyze complex, multiple-bus problems.
Maximize system performance —
Augment the logic analyzer’s high performance with the latest PC or server technology to control the logic analyzer and analyze data.
Share information with others —
Save your results to shared drives.
Document your findings — Print screen shots to networked print­ers and cut and paste data into other software applications.
Comply with your company’s network standards — Add
anti-virus software to the open Windows XP Pro-based logic analyzer.
3
16900 Series mainframe — the power you need at a price you can afford
The mainframe you select is the foundation of your system. The Agilent 16900 Series includes a range of powerful logic analysis mainframes that deliver the per­formance you need at a price you can afford. You get accurate and reliable measurements, for today’s complex systems, plus expandabili­ty and performance headroom to cover future technology trends.
Key things to consider when selecting a 16900 Series mainframe:
Number of module slots — Determine the number of meas­urement modules required for your specific measurement need. Also consider having additional slots for future needs.
Multiframe Pro — 16900 Series mainframes can always be used as a standalone unit. In some instances your channel needs may surpass a single mainframe. For situations where you need to debug large, multiple-bus sys­tems, ensure that the mainframe you choose supports Multiframe Pro. Multiframe Pro allows you to connect multiple frames into one measurement system with a single interface control.
Display and resolution — If you prefer to operate the ana­lyzer directly from the front panel, select a mainframe with a large, built-in touch display. All 16900 Series mainframes can also be used with external monitors.
PCI expansion slots — Customize your logic analyzer peripherals by adding PCI cards for a specific capability like Gbit LAN or multiple monitor video.
Agilent 16900 Series Features
Modularity and Protect your long-term investment. Start with the capability Expandability you need now, then add measurement modules or expand
the number of frames in the system as your needs evolve.
Intuitive user interface Quickly master the logic analyzer due to the award winning
usability and familiarity of Windows XP Pro.
Hosted Power Mode and Achieve the ultimate in performance by hosting the logic Offline Analysis analyzer application software on your fastest server to remotely
control the logic analyzer and analyze data.
Open PC platform Accelerate your debugging process with an extensive range of
optional software analysis tools. Protect your data and make your logic analyzer compliant with your network environment with anti-virus software. Share your work and communicate results easily via LAN or USB flash drives
Full programmability Modify any measurement setting using COM via LAN.
Wide range of use models Increase your productivity and maximize your analyzer’s usage
by local or widely-distributed teams. (See page 2)
Table 2. Key features and benefits of Agilent 16900 Series logic analysis systems.
Select the 16900 Series mainframe that meets your requirements
Agilent model 16902A 16900A 16903A number
Number of 6 6 3 module slots
Multiframe Pro Yes Yes No
Display and Built-in color touch Uses external display. Built-in color touch resolution screen display, Supports up to four screen display,
12.1 inch at 800 x 600, external displays at 12.1 inch at 800 x 600, supports up to four up to 1600 x 1200 supports up to four external monitors at (with PCI video card) external monitors at up to 1600 x 1200 up to 1600 x 1200 (with PCI video card) (with PCI video card)
PCI expansion 1 full profile, 1 full profile, 1 full profile, slots 1 low profile 1 low profile 1 low profile
Table 1. Agilent modular 16900 Series mainframes.
4
Measurement Module Support
The 16900 Series supports the following measurement modules:
Timing/State Modules
• 16950A
• 16910A, 16911A
• 16760A
• 16753A, 16754A, 16755A, 16756A
• 16750A/B, 16751A/B, 16752A/B
• 16740A, 16741A, 16742A
Pattern Generator Module
• 16720A
Modular expandability protects your long-term investment
Configure a custom logic analysis system with analyzer modules to fit your performance and price needs. Protect your investment by upgrading memory depths or state speeds as your needs change.
Figure 4. Modularity provides configuration flexibility to meet your measurement needs—now and in the future.
Figure 3. Combine multiple acquisition modules when you need to measure across many channels.
Figure 5. Identify problem signals quickly by viewing eye diagrams across all buses and signals simultaneously.
Half channels Full channels
Max clock speed 300 MHz 180 MHz
Max memory depth 16 M Vectors 8 M Vectors
Channels per module 24 48
Max number of channels 120 240 per time base
Stimulus commands Initialize, Block, Repeat, and Break Macros
Logic levels supported 5 V TTL, 3 state TTL, 3 state CMOS, 3 state 3.3 V ECL,
5 V PECL, 3.3 V LVPECL, 3 state 2.5 V, 3 state 1.8 V, LVDS
1 Order at least one clock pod for each module used as a master and at least one data pod for every 8 output chan-
nels.
Table 3. Add a pattern generator module to drive down risk early in product development.
5
Choose the modules that meet your specific needs
Agilent model number 16910A
2,3
/16911A
2,3
16950A
2,3
16760A
2
Channels per module 102 /68 68 34
Max channels on a single 510/340 340 170 timebase and trigger
Memory depths 256 K: Opt 256 256 K: Opt 256 64 M
1 M: Opt 001 1 M: Opt 001 4 M: Opt 004 4 M: Opt 004 16 M: Opt 016 16 M: Opt 016 32 M: Opt 032 32 M: Opt 032
64 M: Opt 064
High speed timing rate
1
4 GHz (250 ps) with 64 K depth 4 GHz (250 ps) with 64 K depth
Max deep memory timing 1.0 GHz (1.0 ns)/ 1.2 GHz (833 ps)/ 800 MHz sample rate (full/half channel) 500 MHz (2.0 ns) 600 MHz (1.67 ns)
Transitional timing 500 MHz (2.0 ns) 600 MHz (1.67 ns) 400 MHz (2.5 ns)
Max state clock rate 250 MHz (Opt 250) 600 MHz 800 MHz
450 MHz (Opt 500)
Max state data rate 250 Mb/s (Opt 250) 800 Mb/s 1.5 Gb/s
500 Mb/s (Opt 500)
Voltage threshold ranges –5 V to 5 V –3 V to 5 V –3 V to 5 V
(10 mV increments) (10 mV increments) (10 mV increments)
Eye finder and eye scan support Yes Yes Yes
Supported signal types Single-ended Single-ended and differential Single-ended and differential
Probe compatibility 40-pin cable connector 90-pin cable connector 90-pin cable connector
1 All channels, all the time, simultaneous state and timing through same probe. 2 Probes are ordered separately. Please specify probes when ordering to ensure the correct connection between your logic analyzer and the device under test. 3 Specify desired memory depth, state clock and data rate using available options. Feature also available via software upgrade to existing module.
Table 4. Select the logic analyzer modules that best suit your requirements.
Headroom for your future needs (Extend the life of your equipment)
Easily upgrade your 16900 Series modules. “Turn on” additional memory depth and state speed when you need more. Purchase the capability you need now, then upgrade as your needs evolve.
16910A Upgrade max. state speed from 250 MHz to 450 MHz 16911A and max. data rate from 250 Mb/s to 500 Mb/s
Memory depth options 256 K,1 M, 4 M, 16 M or 32 M
16950A Memory depth options 256 K,1 M, 4 M, 16 M,
32 M or 64 M
6
Unleash the complementary power of a logic analyzer and an oscilloscope
Easily make time-correlated measurements between Agilent logic analyzers and oscilloscopes. The time-correlated logic analyzer and oscilloscope waveforms are integrated into a single logic ana­lyzer waveform display for easy viewing and analysis. You can also trigger the oscilloscope from the logic analyzer (or vice versa), automatically de-skew the track­ing between the two instruments.
Perform the following more effectively:
• Validate signal integrity
• Track down problems caused by signal integrity
• Validate correct operation of A/D and D/A converters
• Validate correct logical and timing relationships between the analog and digital portions of a design
Figure 5. Make time-correlated measurements between an Agilent logic analyzer and oscilloscope with the Agilent E5850 time-correlation fixture.
Feature Benefit
Automated setup Quickly get to your first measurement using the logic
analyzer’s help wizard for easy setup, regardless of which supported Agilent oscilloscope you connect to.
Integrated waveform Instantly validate the logical and timing relationships display between the analog and digital portions of your design. View
oscilloscope and logic analyzer waveforms integrated into a single logic analyzer waveform display.
Automatic measurement Save time and gain confidence in measurement results de-skew with measurements that are automatically de-skewed in time.
Cross trigger the logic Start your debug approach from either the analog or digital analyzer and oscilloscope domain with the flexibility to trigger the oscilloscope from the
logic analyzer (or vice versa).
Tracking markers Precisely relate information on the oscilloscope’s display to
the corresponding point in time on the logic analyzer display with tracking markers. The oscilloscope’s time markers automatically track adjustments of the logic analyzer’s global markers.
Table 5. Key features and benefits of integrating Agilent oscilloscope and logic analyzer capabilities.
Compatibility
Agilent logic analyzers 16900 Series modular logic analysis systems (ver 03.20 or higher)
1680 Series standalone logic analyzers (ver 03.20 or higher) 1690 Series PC-Hosted logic analyzers (ver 03.20 or higher)
Agilent oscilloscopes DSO80000 Series (ver 3.90 or higher)
Infiniium 54800 Series (ver 3.90 or higher) 6000 Series (ver 3.90 or higher)
Logic analyzer and oscilloscope connection
Number of oscilloscopes 1 connected to a logic analyzer
Logic analyzer LAN, trigger in, connections trigger out
Oscilloscope LAN, trigger in, connections trigger out
Table 6. Agilent logic analyzer and oscilloscope compatibility and connections.
7
Optional analysis and automated measurement packages
B4655A FPGA dynamic probe Gain unprecedented visibility into your FPGA’s internal activity. Make incremental real time
measurements in seconds without stopping the FPGA, changing the design or modifying design timing. Quickly set up the logic analyzer with automatic pin mapping and signal bus naming by leveraging work you did in your design environment. www.agilent.com/find/fpga
B4601C serial-to-parallel Eliminate the very tedious, time-consuming, and error-prone task of sifting through thousands of analysis package serial bits by looking at long vertical columns of captured 1’s and 0’s. The B4601C serial-to-parallel
analysis package is general-purpose software that allows easy viewing and analysis of serial data.
B4606A advanced customization Tailor the logic analyzer interface with a wide range of control, analysis and display capabilities environment - development and specific to your measurement application. Create integrated dialogs, graphical displays and analysis runtime package functions to quickly manipulate measurement data into a format that provides additional insight and
answers. www.agilent.com/find/logic-customview
B4607A advanced customization Run the macros and graphical views created with a B4606A development package or obtain and environment - runtime package run a variety of commonly requested tools from Agilent and it's partners to help customize your
measurement environment.
B4608A ASCII remote Remotely control a 16900-, 1680-, or 1690-Series logic analysis system by issuing ASCII commands. programming interface This interface is designed to be as similar as possible to the RPI on the 16700-Series logic analysis
system, so that you can reuse existing programs. Requires that either the B4606A or B4607A is enabled. You can also use the B4606A to customize and add RPI commands.
Microprocessors/ FPGAs I/O buses Memory buses Serial buses Graphics microcontrollers buses
AMD, Analog Devices, Xilinx Virtex 4, PCI, PCI-X, DDR1, DDR2, Fibre Channel, I
2
C, AGP2x, AGP4x, ARM, AT&T, Dallas, Virtex-II Pro series, PCI-Express, PC-100/133, IEEE-1394, AGP3.0, DEC, Freescale, Virtex-II series, Serial ATA GDDR3, Fully Buffered Serial ATA PCI-Express GTE, IBM, IDT, Infineon, Spartan-3 series (SATA 1 and 2), DIMM (FB-DIMM), (SATA 1 and 2), Intel, LSI Logic, McDonnell SCSI, Serial Rambus USB 2.0/1.1, Douglas, MIPS Motorola, Attached SCSI (SAS), PCI-Express, National, NEC, PACE, HyperTransport RS-232, CAN, PMC Sierra/QED, Rockwell, IEEE-488 Siemens, Texas Instruments, Toshiba, Zilog
Processor, bus and FPGA support
Agilent Technologies and our partners provide an extensive range of bus and processor analysis probes. They provide non-intrusive, full-speed, real-time analysis to accelerate your debugging process.
• Save time making bus- and processor-specific measure­ments with application specific analysis probes that quickly and reliably connect to your device under test.
• Display processor mnemonics or bus cycle decode.
• Get support for a comprehen­sive list of industry-standard processors and buses.
8
Standard data views
Waveform Integrated display of data as digital waveforms, analog waveforms
imported from an external oscilloscope, and/or as a chart of a bus’ values over time.
Listing Displays data as a state listing.
Compare Compares data from different acquisitions and highlights differences.
Source code Displays time-correlated source code and inverse assembly
simultaneously in a split display.
Define the trigger event by simply clicking on a line of source code.
Obtain source-code-level views of dynamically loaded software or code moved from ROM to RAM during a boot-up sequence using address offsets.
Requires access to source files via the LAN or instrument hard drive to provide source code correlation.
Source correlation does not require any modification or recompilation of your source code.
Eye Scan Displays eye diagrams across all buses and signals simultaneously,
allowing you to identify problem signals quickly.
Numeric bases for data display
Binary, hex, octal, decimal, signed decimal (two’s complement),ASCII, symbols, and proces­sor mnemonics
Symbolic support/object file format compatibility
Number of symbols/ranges — Unlimited (limited only by amount of virtual memory avail­able on 16900 Series mainframes)
IEEE-695, Aout, Omf86, Omf96, Omf386, Sysrof, ELF/DWARF1,* ELF/DWARF2*, ELF/Stabs1, ELF/Stabs2, ELF/Mdebug Stabs, TICOFF/COFF, TICOFF/Stabs
GPA (General Purpose ASCII)
User defined — specify a mnemonic for a given bit pattern for a label or bus
* Supports C++ name de-mangling
Available data/file formats
ala Contains information to reconstruct the display appearance, instrument
settings, and trace data (optional) that were present when the file was created.
xml Extensible markup language for configuration portability and programmability.
csv CSV (comma-separated values) format for transferring data to other
applications like Excel.
mfb Export logic analyzer data for post-processing. Mfb data can be parsed using
programming tools.
Standard analysis tools
Filter/colorize
Find (next/previous)
16900 Series mainframes characteristics
9
Operating system Microsoft Windows XP Professional
Processor Intel Pentium®III
Chipset Intel 815E
System memory 512 MB PC 133 SDRAM max
CD ROM 24x CD-R writing, 24x CD-RW writing, 8x CD ROM reading
Hard disk drive 80 GB
Installed on hard drive Operating system, latest revision of the logic analyzer
application software, optional application software ordered with the mainframe
Touch-screen LCD display Large 30.7-cm (12.1-in.) display makes is easy to view a large (16902A and 16903A) number of waveforms or states.
Front-panel hot keys Dedicated hot keys give instant access to the most (16902A and 16903A) frequently used menus, displays, and on-line help.
Front-panel knobs Dedicated knobs for horizontal and vertical scaling (16902A and 16903A) and scrolling
Keyboard and mouse PS/2 keyboard and mouse (shipped standard)
Built-in touch-screen display (16902A and 16903A)
Size 30.7 cm (12.1 in.) diagonal
Resolution 800 x 600
Simultaneous Front panel and external display can be used simultaneously display capability at 800 x 600 resolution.
External display Supports up to four external monitors at up to 1600x1200
(with PCI video card)
16900 Series PC characteristics
16900 Series instrument controls
16900 Series video display modes
Programmability
You can write programs to control the logic analyzer application from remote computers on the local area network using COM or ASCII.
The COM automation server is part of the logic analyzer applica­tion. This software allows you to write programs to control the logic analyzer. All measurement functionality is controllable via the COM interface.
The B4606A Remote Programming Interface (RPI) lets you remotely control a 16900­Series logic analysis system by issuing ASCII commands to the TCP socket on port 6500. This
Computer with
Windows 2000/XP
Logic analyzer
(16900/1680 Series)
or PC running Agilent
logic analyzer application
LAN connection
Distributed COM
Instrument COM
automation server
Figure 7. 16900 Series programming overview
interface is designed to be as sim­ilar as possible to the RPI on 16700-Series logic analysis sys­tems, so that you can reuse exist­ing programs.
The Remote Programming Interface works through the COM automation objects, methods, and properties provided for control-
ling the logic analyzer applica­tion. RPI commands are imple­mented as Visual Basic modules that execute COM automation commands, translate their results, and return proper values for the RPI. You can use the B4606A Advanced Customization Environment to customize and add RPI commands.
10
Display 15-pin VGA connector
Keyboard PS/2
Mouse PS/2
Parallel 25-pin D-sub
Serial 9-pin D-sub
PCI card expansion slots 1 full profile and 1 low profile
USB Two 1.1 ports
LAN 10/100Mb/s, Gbit (optional)
Connector RJ-45
Trigger In
Input Rising edge or falling edge
Action taken When received, the logic analyzer takes the actions
described in the trigger sequence step.
Input signal level ± 5 V max
Threshold level Selectable: ECL , LVPECL, LVTTL, PECL, TTL
User defined (± 5 V in 50 mV increments)
Minimum signal amplitude 200 mV
Connector BNC
Input resistance 4 k ohm nominal
Trigger Out
Trigger Rising edge or falling edge. OR of selected events that cause
Trigger Out (module trigger or flags)
Output signal VOH(output high level) 2.0 V min
VOL(output low level) 0.5 V max
Pulse width approx. 80-160 ns
Threshold level LVTTL (3.3 V logic)
Signal load 50 ohm (For good signal quality, the trigger out signal should
be terminated in 50 ohms to ground)
Connector BNC
Target control port
Number of signals 8
Output Disabled Tri-state, high-impedance Output Enabled TTL level with 1 high, 0 low
Toggle Flips the setting of the signal. If the signal is set
to 1, Toggle changes the signal to 0.
Pulse Flips the signal setting for one clock cycle which is
at least 16 ms. The pulse duration cannot be specified.
Levels 3.3 V (LVTTL) compatible
Connector 2 rows of 5 pins, 0.1-inch centers
Interface with external instrumentation
Trigger or arm external devices or receive signals that can be used to arm measurement mod­ules within the logic analyzer with Trigger In/Out.
Remote control or your device under test
Conveniently control your target remotely by using the target control port to activate reset or interrupt lines.
16900 Series interfaces
Peripheral interfaces
Connectivity interfaces
11
16900 Series physical characteristics
Dimensions
55.867 cm
________
21.995 in.
44.121 cm
________
17.371 in.
25.360 cm
________
9.984 in.
Figure 8. 16900A/16902A/16903A exterior dimensions
CD-RW
On/Off power switch
Power
16900A 115/230 V, 48 to 66 Hz, 1300 W max 16902A 115/230 V, 48 to 66 Hz, 1300 W max 16903A 115/230 V, 48 to 66 Hz, 900 W max
Weight*
Max Net Max Shipping
16900A 16 kg (35.2 lbs) 24.6 kg (54.2 lbs) 16902A 17.2 kg (37.8 lbs) 25.8 kg (56.8 lbs) 16903A 14.5 kg (32.0 lbs) 23.2 kg (51.0 lbs)
* Weight of modules ordered with mainframes will add 0.9 kg
(2.0 lb per module)
Instrument operating environment
Temperature • 0˚ C to 50˚ C (32˚ F to 122˚ F)
for 16903A
• 0˚ C to 40˚ C (32˚ F to 104˚ F) for 16900A and 16902A
Altitude To 3000m (10,000 ft) Humidity 8 to 80% relative humidity
at 40˚ C (104˚ F)
Figure 9. Agilent 16900A front panel
Figure 10. Agilent 16900A back panel
Low profile PCI card expansion slot
On/Off power switch
Full profile PCI card expansion slot
External display port
Parallel port
Serial port
Target control port
10/100 Base T LAN
USB ports (2)
Measurement module ejector latches
Clock in
Calibration
Trigger out
Trigger in
Keyboard
Mouse
A B
C D E F
Measurement module ejector latches
Multiframe Pro output
Multiframe Pro input
AC power
Six slots for measurement modules
12
Figure 14. Agilent 16903A back panel
16900 Series physical characteristics
Dimensions, continued
Low profile PCI card expansion slot
Full profile PCI card expansion slot
External display port
Parallel port
Serial port
10/100 Base T LAN
USB ports (2)
Measurement module ejector latches
Clock in
Calibration
Trigger out
Trigger in
Target control port
Keyboard
Mouse
Measurement module ejector latches
AC power
Figure 12. Agilent 16902A back panel
Low profile PCI card expansion slot
On/Off power switch
Full profile PCI card expansion slot
External display port
Parallel port
Serial port
Target control port
10/100 Base T LAN
USB ports (2)
Measurement module ejector latches
Clock in
Calibration
Trigger out
Trigger in
Keyboard
Mouse
A B
C D E F
Measurement module ejector latches
Multiframe Pro output
Multiframe Pro input
AC power
Six slots for measurement modules
A B
C
Three slots for measurement modules
Figure 13. Agilent 16903A front panel
On/Off power switch
12.1 inch built-in color LCD display with Touch Screen
General purpose knob Run/stop keys
File management keys
Shortcut keys
Global markers knob
CD-RW
Horizontal and vertical scaling/scrolling knobsTouch screen on/off
Figure 11. Agilent 16902A front panel
On/Off power switch
12.1 inch built-in color LCD display with Touch Screen
General purpose knob Run/stop keys
File management keys
Shortcut keys
Global markers knob
CD-RW
Horizontal and vertical scaling/scrolling knobsTouch screen on/off
13
Agilent 1184A Testmobile
The Agilent 1184A testmobile gives you a convenient means of organizing and transporting your logic analysis system mainframes and accessories.
The testmobile includes the following:
• Drawer for accessories (probes, cables, power cords)
• Keyboard tray with adjustable tilt and height
• Mouse extension on keyboard tray for either right or left hand operation
• Locking casters for stability on uneven surfaces
• Strap to stabilize the monitor
• Load limits: Top tray: 68.2 kg (150.0 lb.) Lower tray: 68.2 kg (150.0 lb.) Total: 136.4 kg (300.0 lb.)
Figure 15. Agilent 1184A testmobile cart.
Figure 16. Agilent 1184A testmobile cart dimensions.
Weight
Max Net Max Shipping
1184A 48.0 kg (106.0 lb) 59.0 kg (130.0 lbs)
Dimensions: mm (inches)
772.2
(30.4)
482.6 (19.0)
254
(10.0)
243.8 (9.6)
774.7 (30.5)
866.1 (34.1)
116.8 (4.6)
594.4 (23.4)
190.5 (7.5)
469.9 (18.5)
652.8 (25.7)
584.2
(23.0)
14
Stationary Shelf
This light-duty fixed shelf is designed to support the 16900 series frames. The shelf can be used in all standard Agilent racks. The stationary shelf is mounted securely into place using the supplied hardware and is designed to sit at the bottom of the EIA increment. Features of the stationary shelf include:
• Snap-in design for easy installation
• Smooth edges
Specifications
J1520AC J1526AC
Material Cold-rolled steel Cold-rolled steel
Weight 8 kg (17.6 lbs) 9.9 kg (22 lbs)
Color Quartz gray Quartz gray
Length 678 mm (26.7 in) 723.9 mm (28.5 in)
Height 44 mm (1.73 in) 44.5 mm (1.75 in)
Width 444 mm (17.5 in) 482.6 mm (19 in)
Load Capacity 68 kg (150 lbs) Capacity 68 kg (150 lbs)
Contains 1 stationary shelf 1 sliding shelf
2 rear brackets 2 rear brackets Mounting hardware 1 cable strap
Mounting hardware
Rack Accessories
Sliding Shelf
The sliding shelf provides a flat surface with full product accessi­bility. It can be used in all Agilent racks to support the 16900 series logic analysis systems. The shelf and slides are preassembled for easy installation. Features of the sliding shelf include:
• Snap-in design for easy installation
• Smooth edges
Consider purchasing the steel ballast (C2790AC) to use with the sliding shelf. The ballast provides anti-tip capability when the shelf is extended.
Figure 19. Sliding shelf (J1526AC)
Figure 18. Stationary shelf (J1520AC)
Figure 17. Sliding shelf installed in rack
15
Ordering Information
Agilent product number Description
16900A 6-Slot Logic Analysis System Mainframe
16902A 6-Slot Logic Analysis System Mainframe with Built-in Touch Display
16903A 3-Slot Logic Analysis System Mainframe with Built-in Touch Display
Each frame comes with one PS/2 keyboard, one PS/2 mouse, one ten-conductor flying lead cable for target control port, accessory pouch, and 1-year warranty standard.
Agilent product number or option number Description Ordering info
16900A-014 Gbit LAN card for 16900 Series mainframes Installed in mainframe. Must be ordered 16902A-014 (low profile, copper connection). at time of mainframe purchase 16903A-014
E5860A Gbit LAN card for 16900 Series mainframes Order for existing frames.
(low profile, copper connection). Customer installable.
E5861A Multiframe cable cable length Order 1 less than the number of
mainframes to be connected together
Related Agilent literature
Publication Description Agilent pub. number
Agilent Technologies 16900 Series Logic Analysis Systems Color Brochure 5989-0420EN
Agilent Technologies Timing and State Modules for the 16900 Series Data Sheet 5989-0422EN
Agilent Technologies FPGA Dynamic Probe Data Sheet 5989-0423EN
Probing Solutions for Agilent Technologies Logic Analyzers Catalog 5968-4632E
Processor and Bus Support for Agilent Technologies Logic Analyzers Configuration Guide 5966-4365E
For copies of this literature, contact your Agilent representative or visit
www.agilent.com/find/16900
Microsoft and Windows®are U.S. registered trademark of Microsoft Corporation. Pentium
®
is a U.S. registered trademark of Intel Corporation.
www.agilent.com
Agilent Technologies’ Test and Measurement Support, Services, and Assistance
Agilent Technologies aims to maximize the value you receive, while minimizing your risk and problems. We strive to ensure that you get the test and measurement capabilities you paid for and obtain the support you need. Our extensive support resources and services can help you choose the right Agilent products for your applications and apply them successfully. Every instrument and system we sell has a global warranty. Two concepts underlie Agilent's overall support policy: "Our Promise" and "Your Advantage."
Our Promise
Our Promise means your Agilent test and measurement equipment will meet its advertised performance and functionality. When you are choosing new equipment, we will help you with product information, including realistic performance specifications and practical recommendations from experienced test engineers. When you receive your new Agilent equipment, we can help verify that it works properly and help with initial product operation.
Your Advantage
Your Advantage means that Agilent offers a wide range of additional expert test and measurement services, which you can purchase according to your unique technical and business needs. Solve problems efficiently and gain a competitive edge by contracting with us for calibration, extra-cost upgrades, out-of-warranty repairs, and on-site education and training, as well as design, system integration, project management, and other professional engineering services. Experienced Agilent engineers and technicians worldwide can help you maximize your productivity, optimize the return on investment of your Agilent instruments and systems, and obtain dependable measurement accuracy for the life of those products.
For more information on Agilent Technologies’ products, applications or services, please contact your local Agilent office. The complete list is available at:
www.agilent.com/find/contactus
Phone or Fax United States:
(tel) 800 829 4444 (fax) 800 829 4433
Canada:
(tel) 877 894 4414 (fax) 800 746 4866
China:
(tel) 800 810 0189 (fax) 800 820 2816
Europe:
(tel) 31 20 547 2111
Japan:
(tel) (81) 426 56 7832 (fax) (81) 426 56 7840
Korea:
(tel) (080) 769 0800 (fax) (080) 769 0900
Latin America:
(tel) (305) 269 7500
Taiwan:
(tel) 0800 047 866 (fax) 0800 286 331
Other Asia Pacific Countries:
(tel) (65) 6375 8100 (fax) (65) 67556 0042 Email: tm_ap@agilent.com
Contacts revised: 1/12/05
Product specifications and descriptions in this document subject to change without notice.
© Agilent Technologies, Inc. 2005 Printed in USA April 20, 2005 5989-0421EN
www.agilent.com/find/emailupdates
Get the latest information on the products and applications you select.
Agilent T&M Software and Connectivity
Agilent's Test and Measurement software and connectivity products, solutions and developer network allows you to take time out of connecting your instruments to your computer with tools based on PC standards, so you can focus on your tasks, not on your connections. Visit www.agilent.com/find/connectivity for more information.
www.agilent.com/find/agilentdirect
Quickly choose and use your test equipment solutions with confidence.
Agilent Email Updates
Agilent Direct
Loading...
