Agilent 16900 Series
Logic Analysis System Mainframes
Data Sheet
Conquer your toughest digital
debug problems while staying
within your budget
The Agilent 16900 Series modular logic analysis mainframes
deliver the performance you need
to conquer your toughest digital
debug problems. You get accurate
and reliable measurements for
today’s complex circuits, with
expandability and performance
headroom to cover future technology trends. In addition, the
intuitive user interface gives you
the ultimate in productivity without sacrificing performance or
capability. You get performance
and intuitive usability at a price
you can afford.
Expand your system as your
needs evolve
Expandability is the key to the
long-term value of the Agilent
16900 Series logic analysis systems. Purchase the capability you
need now, then expand as your
needs evolve. Maximize mainframe usage by operating them
separately, then connecting them
together for complex, high-channel-count, multiple-bus applications. Whether you are doing simple hardware debug, real-time
analysis of instruction execution,
hardware/software integration,
signal-quality analysis or complex
system validation, you have a system that meets each of your longterm digital measurement needs.
Spend more time designing and less
time learning how to use your tools
If you want to focus on solving
your digital debug problems, you
need to be able to quickly master
your debug tools. The 16900
Series logic analysis mainframes
let you set up measurements easily and navigate through your data
quickly with an intuitive user
interface and familiarity of
Windows® XP Professional.
Figure 1. The Agilent 16901A, 16900A and 16902A modular logic analysis systems.
The flexibility you need to debug your
design your way
Increase your productivity with
a variety of operating modes that
maximize your analyzer’s usage.
Whether you work alone at a
bench or with team members
distributed around the world,
the 16900 Series provides a use
model that easily integrates into
your debug environment.
Work at your bench — Operate
the analyzer via touch screen,
mouse or keyboard.
Expand view across multiple
monitors — Get the most compre-
hensive view of your data with
extended desktop viewing.
Remotely control and monitor
the logic analyzer — Access a
remote logic analyzer via built-in
Windows XP desktop sharing.
Receive e-mail when the logic
analyzer triggers.
Work offline — Increase equipment and team productivity. View
and analyze captured data on a
PC while the logic analyzer makes
other measurements. Also, create
setups for your next round of
measurements.
Run automated tests — Execute
a series of tests via the ASCII
remote programming interface or
Microsoft DCOM.
Offload data for custom
analysis — Move data quickly over
the optional Gbit LAN connection
to an external PC.

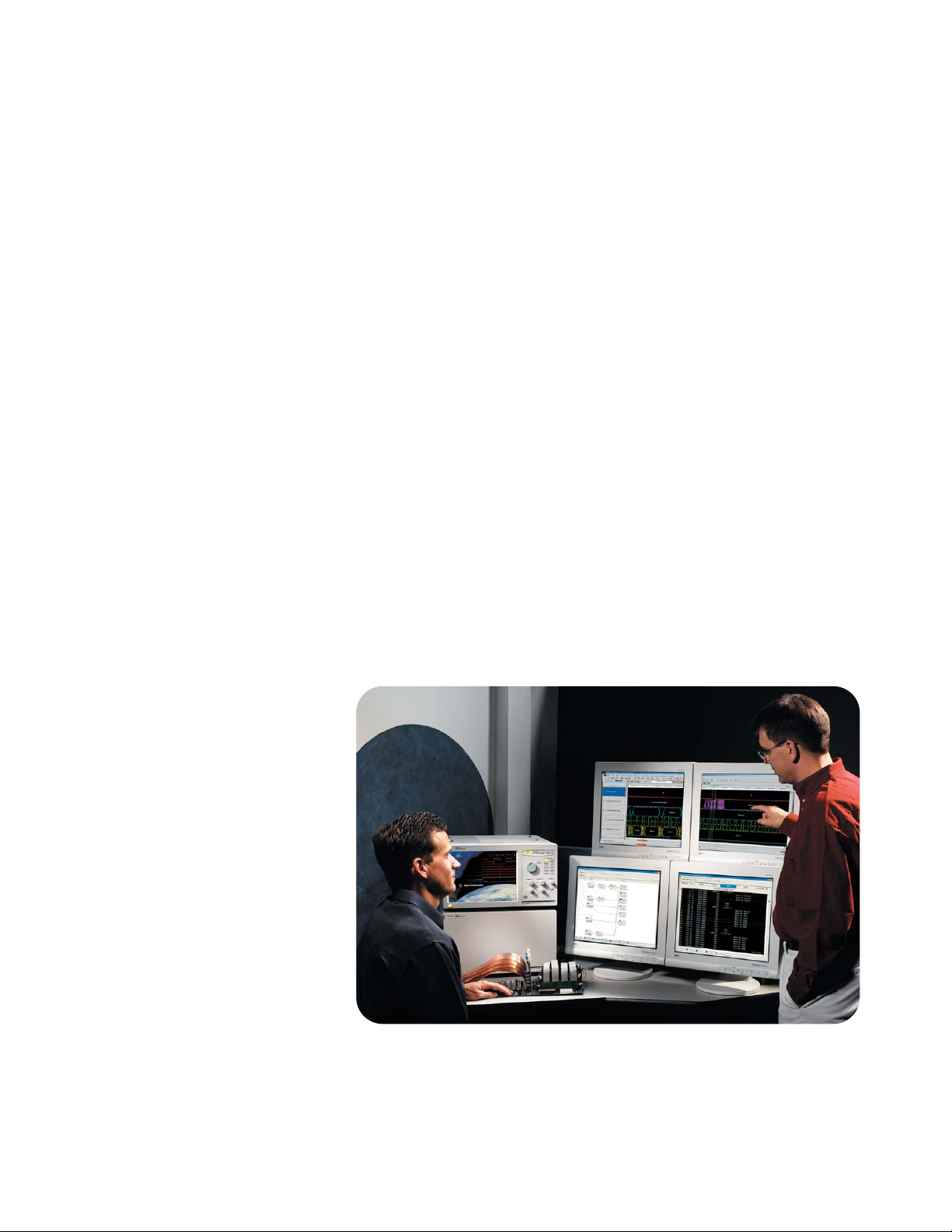

Figure 2. Get the most comprehensive view of your data with extended desktop viewing.
Combine mainframes to expand
measurement capability — Use
mainframes individually, then
connect them together when
you need to analyze complex,
multiple-bus problems.
Maximize system performance —
Augment the logic analyzer’s high
performance with the latest PC or
server technology to control the
logic analyzer and analyze data.
Share information with others —
Save your results to shared
drives.
Document your findings — Print
screen shots to networked printers and cut and paste data into
other software applications.
Comply with your company’s
network standards — Add
anti-virus software to the open
Windows XP Pro-based logic
analyzer.
2
16900 Series mainframe — the power
you need at a price you can afford
The mainframe you select is the
foundation of your system. The
Agilent 16900 Series includes a
range of powerful logic analysis
mainframes that deliver the performance you need at a price you
can afford. You get accurate and
reliable measurements, for today’s
complex systems, plus expandability and performance headroom to
cover future technology trends.
Key things to consider when selecting
a 16900 Series mainframe:
• Number of module slots —
Determine the number of measurement modules required for
your specific measurement need.
Also consider having additional
slots for future needs.
• Multiframe Pro — 16900 Series
mainframes can always be used
as a standalone unit. In some
instances your channel needs
may surpass a single mainframe.
Multiframe Pro allows you to
connect multiple frames into one
measurement system with a
single interface control.
• Display and resolution — If
you prefer to operate the analyzer directly from the front
panel, select a mainframe
with a large, built-in touch
display. All 16900 Series
mainframes can also be used
with external monitors.
• PCI expansion slots —
Customize your logic analyzer
peripherals by adding PCI cards
for a specific capability like multiple monitor video.
Agilent 16900 Series Features
Modularity and Protect your long-term investment. Start with the capability
Expandability you need now, then add measurement modules or expand
the number of frames in the system as your needs evolve.
Intuitive user interface Quickly master the logic analyzer due to the award winning
usability and familiarity of Windows XP Pro.
Hosted Power Mode and Achieve the ultimate in performance by hosting the logic
Offline Analysis analyzer application software on your fastest server to remotely
control the logic analyzer and analyze data.
Open PC platform Accelerate your debugging process with an extensive range of
optional software analysis tools. Protect your data and make
your logic analyzer compliant with your network environment
with anti-virus software. Share your work and communicate
results easily via LAN or USB flash drives
Full programmability Modify any measurement setting using COM via LAN.
Wide range of use models Increase your productivity and maximize your analyzer’s usage
by local or widely-distributed teams. (See page 2)
Table 2. Key features and benefits of Agilent 16900 Series logic analysis systems.
Select the 16900 Series mainframe that meets your requirements
Agilent model 16901A 16902A 16900A
number
Number of 2 6 6
module slots
Multiframe Pro Yes Yes Yes
Display and Built-in color touch Built-in color touch Uses external display.
resolution screen, 15 inch screen display, Supports up to four
(38.1 cm), 1024 x 768; 12.1 inch at 800 x 600, external displays at
supports up to four supports up to four up to 1600 x 1200
external monitors external monitors at (with PCI video card)
up to 1600 x 1200 up to 1600 x 1200
(with PCI video card)
PCI expansion 1 full profile 1 full profile, 1 full profile,
slots 1 low profile 1 low profile
Table 1. Agilent modular 16900 Series mainframes.
3
Measurement Module Support
The 16900 Series supports the
following measurement modules:
Timing/State Modules
• 16951B
• 16950B
• 16950A
• 16910A, 16911A
• 16760A
• 16753A, 16754A, 16755A,
16756A
• 16750A/B, 16751A/B,
16752A/B
• 16740A, 16741A, 16742A
Pattern Generator Module
• 16720A
Modular expandability protects your
long-term investment
Configure a custom logic
analysis system with analyzer
modules to fit your performance
and price needs. Protect your
investment by upgrading
memory depths or state
speeds as your needs change.
Figure 4. Modularity provides configuration flexibility to meet
your measurement needs—now and in the future.
Figure 3. Combine
multiple acquisition
modules when you
need to measure across
many channels.
Figure 5. Identify problem signals quickly by
viewing eye diagrams across all buses and
signals simultaneously.
Half channels Full channels
Max clock speed 300 MHz 180 MHz
Max memory depth 16 M Vectors 8 M Vectors
Channels per module 24 48
Max number of channels 120 240
per time base
Stimulus commands Initialize, Block, Repeat, and Break Macros
Logic levels supported 5 V TTL, 3 state TTL, 3 state CMOS, 3 state 3.3 V ECL,
5 V PECL, 3.3 V LVPECL, 3 state 2.5 V, 3 state 1.8 V, LVDS
1 Order at least one clock pod for each module used as a master and at least one data pod for every 8 output chan-
nels.
Table 3. Add a pattern generator module to drive down risk early in product development.
4
Choose the modules that meet your specific needs
Agilent model number 16910A
2,3
/16911A
2,3
16950B
2,3
/16951B
2
16760A
2
Channels per module 102 /68 68 34
Max channels on a single 510/340 340 170
timebase and trigger
Memory depths 256 K: Opt 256 16950B options: 64 M
1 M: Opt 001 1 M: Opt 001
4 M: Opt 004 4 M: Opt 004
16 M: Opt 016 16 M: Opt 016
32 M: Opt 032 32 M: Opt 032
64 M: Opt 064
16951B: 256 M
High speed timing rate
1
4 GHz (250 ps) with 64 K depth 4 GHz (250 ps) with 64 K depth
Max deep memory timing 1.0 GHz (1.0 ns)/ 1.2 GHz (833 ps)/ 800 MHz
sample rate (full/half channel) 500 MHz (2.0 ns) 600 MHz (1.67 ns)
Transitional timing 500 MHz (2.0 ns) 600 MHz (1.67 ns) 400 MHz (2.5 ns)
Max state clock rate 250 MHz (Opt 250) 667 MHz 800 MHz
450 MHz (Opt 500)
Max state data rate 250 Mb/s (Opt 250) 667 Mb/s (DDR) 1.5 Gb/s
500 Mb/s (Opt 500) 1066 Mb/s (Dual Sample)
Voltage threshold ranges –5 V to 5 V –3 V to 5 V –3 V to 5 V
(10 mV increments) (10 mV increments) (10 mV increments)
Eye finder and eye scan support Yes Yes Yes
Supported signal types Single-ended Single-ended and differential Single-ended and differential
Probe compatibility 40-pin cable connector 90-pin cable connector 90-pin cable connector
1 All channels, all the time, simultaneous state and timing through same probe.
2 Probes are ordered separately. Please specify probes when ordering to ensure the correct connection between your logic analyzer and the device under test.
3 Specify desired memory depth, state clock and data rate using available options. Feature also available via software upgrade to existing module.
Table 4. Select the logic analyzer modules that best suit your requirements.
5
16910A Upgrade max. state speed from 250 MHz to 450 MHz
16911A and max. data rate from 250 Mb/s to 500 Mb/s
Memory depth options 256 K,1 M, 4 M, 16 M or 32 M
16950A Memory depth options 256 K,1 M, 4 M, 16 M,
32 M or 64 M
16950B Memory depth options 1 M, 4 M, 16 M, 32 M or 64 M
6
Headroom for your future needs
(Extend the life of your equipment)
Easily upgrade your 16900 Series
modules. “Turn on” additional
memory depth and state speed
when you need more. Purchase
the capability you need now, then
upgrade as your needs evolve.
Module differences for the 16950
series modules
This table lists the key differences
for the 16950 series modules. All
other specifications and characteristics are the same.
16950 Series module connections:
• You can combine up to five
16951Bs in a multiple-card set.
The combined set will have
256 M memory depth across
all channels.
• You can combine up to five
16950Bs in a multiple-card set.
The combined set will default
to the lowest memory depth in
the set.
• You can combine any combination of 16753A, 16754A,
16755A, 16756A, and 16950As
in a multiple-card set. The
combined set will default to
the lowest memory depth in
the set.
16951B 16950B 16950A
State speed 667 MHz 667 MHz 600 MHz
Max data rate 667 Mb/s (DDR) 667 Mb/s (DDR) 600 Mb/s (DDR)
1066 Mb/s 1066 Mb/s 800 Mb/s
(Dual sample) (Dual sample) (Dual sample)
Memory depth 256 M 1 M to 64 M 256 K to 64 M
Minimum eye width 550 ps typical 550 ps typical 600 ps typical
in system under test
Minimum time between 1.50 ns 1.50 ns 1.67 ns
active clock edges (667 Mb/s (667 Mb/s (600 Mb/s
state mode) state mode) state mode)
Minimum state clock 1.50 ns 1.50 ns 1.67 ns
pulse width
Unleash the complementary
power of a logic analyzer and
an oscilloscope
Easily make time-correlated
measurements between Agilent
logic analyzers and oscilloscopes.
The time-correlated logic analyzer
and oscilloscope waveforms are
integrated into a single logic analyzer waveform display for easy
viewing and analysis. You can
also trigger the oscilloscope from
the logic analyzer (or vice versa),
automatically de-skew the tracking between the two instruments.
Perform the following more
effectively:
• Validate signal integrity
• Track down problems caused
by signal integrity
• Validate correct operation of
A/D and D/A converters
• Validate correct logical and
timing relationships between
the analog and digital portions
of a design
Figure 6. Make time-correlated measurements between an
Agilent logic analyzer and oscilloscope.
Feature Benefit
Automated setup Quickly get to your first measurement using the logic
analyzer’s help wizard for easy setup, regardless of which
supported Agilent oscilloscope you connect to.
Integrated waveform Instantly validate the logical and timing relationships
display between the analog and digital portions of your design. View
oscilloscope and logic analyzer waveforms integrated into a
single logic analyzer waveform display.
Automatic measurement Save time and gain confidence in measurement results
de-skew with measurements that are automatically de-skewed in time.
Cross trigger the logic Start your debug approach from either the analog or digital
analyzer and oscilloscope domain with the flexibility to trigger the oscilloscope from the
logic analyzer (or vice versa).
Tracking markers Precisely relate information on the oscilloscope’s display to
the corresponding point in time on the logic analyzer display
with tracking markers. The oscilloscope’s time markers
automatically track adjustments of the logic analyzer’s
global markers.
Sampling clock Maintain measurement accuracy even when viewing the
synchronization to waveforms at long delay settings. Synchronizing the sampling
10 MHz signal clocks of the logic analyzer and oscilloscope keeps the
measurement tightly time-correlated across the entire
acquisition.
Table 5. Key features and benefits of integrating Agilent oscilloscope and logic
analyzer capabilities.
View Scope connections and compatibility
Connections LAN for data transfer,
two BNCs for cross
triggering
Sample clock Oscilloscope 10 MHz
synchronization Clock BNC to logic
analyzer
Clock In BNC
Agilent logic 16900 Series, 16800 Series,
analyzer 1690 Series, 1680 Series
support
Agilent DSO80000 Series,
oscilloscope Infiniium 8000 Series,
support Infiniium 54800 Series,
6000 Series bench-top
portable
Table 6. Agilent logic analyzer and
oscilloscope compatibility and
connections.
7
8
Optional analysis packages for logic analyzers
B4655A FPGA dynamic Gain unprecedented visibility into your Xilinx or Altera FPGA’s internal activity. Make incremental
probe for Xilinx real-time measurements in seconds without stopping the FPGA, changing the design or modifying
B4656A FPGA dynamic design timing. Quickly set up the logic analyzer’s signal bus naming by leveraging work you did in
probe for Altera your design environment. www.agilent.com/find/fpga
89601A-200 and -300 digital Perform time-domain, spectrum, and modulation quality analysis on digital Baseband and IF signals.
vector signal analysis Both options are required to provide hardware and software connectivity for logic analyzers.
www.agilent.com/find/dvsa
B4602A signal extractor tool Extract and process signals from the logic analyzer data for output onto new buses/signals.
Analysis on the new buses/signals can be done within the logic analyzer or by other tools.
The tool is suited to:
• Extract I and Q data from serial data streams. The IQ data can be ported directly to the 89601A
software for physical layer test and analysis
• Create algorithms for use with Agilent's N5110B Baseband Studio
• Re-multiplex high-speed A/D digital data that has been de-multiplexed onto additional logic
analyzer channels due to high state speeds
• Includes sample DigRF algorithms for synchronization of signal extraction to any pattern in the
digital stream
B4601C serial-to-parallel Eliminate the tedious, time-consuming, and error-prone task of sifting through thousands of analysis
analysis package package serial bits by looking at long vertical columns of captured 1’s and 0’s. The B4601C
serial-to-parallel analysis package is general-purpose software that allows easy viewing and analysis
of serial data. www.agilent.com/find/logic-sw-apps
B4606A advanced customization Tailor your logic analyzer interface with a wide range of control, analysis and display capabilities
environment – development and specific to your measurement application. Create integrated dialogs, graphical displays and analysis
runtime package functions to quickly manipulate measurement data into a format that provides additional insight and
answers. www.agilent.com/find/logic-customview
B4607A advanced customization Run the macros and graphical views created with a B4606A development package or obtain and run a
environment – runtime package variety of commonly requested tools from Agilent and it’s partners to help customize your
measurement environment.
B4608A ASCII remote Remotely control a 16900-, 16800-, 1680-, or 1690-Series logic analysis system by issuing ASCII
programming interface commands. This interface is designed to be as similar as possible to the RPI on the 16700 Series logic
analysis system, so that you can reuse existing programs. Requires either B4606A or B4607A to be
enabled. You can also use the B4606A to customize and add RPI commands.
B4610A data import package Use the logic analyzer GUI to view data obtained from tools other than a logic analyzer.
B4630A MATLAB
®
connectivity Make an easy connection to MATLAB and transfer your logic analyzer measurement data for
and analysis package processing. Display the results on the logic analyzer in an XY scattergram chart.
Microprocessors/ FPGAs I/O buses Memory buses Serial buses Graphics
microcontrollers buses
AMD, Analog Devices, Xilinx: PCI, PCI-X
®
, DDR1, DDR2, Fibre Channel, I2C, AGP2x, AGP4x,
ARM, AT&T, Dallas, Virtex-5, Virtex 4, PCI Express
®
, PC-100/133, IEEE-1394, AGP3.0,
DEC, Freescale, Virtex-II Pro series, Serial ATA GDDR3, Fully Buffered Serial ATA PCI Express
GTE, IBM, IDT, Infineon, Virtex-II series, (SATA 1 and 2), DIMM (FB-DIMM), (SATA 1 and 2),
Intel, LSI Logic, Spartan-3 series SCSI, Serial Rambus USB 2.0/1.1,
McDonnell Douglas, Attached SCSI (SAS), PCI Express,
MIPS Motorola, Altera: HyperTransport RS-232, CAN,
National, NEC, PACE, Stratix II GX, SPI, SPI 4.2/PL4, IEEE-488, SPI,
PMC Sierra/QED, Stratix II, Stratix GX, Parallel Rapid IO, Serial Rapid IO
Rockwell, Siemens, Stratix, Cyclone II, Serial Rapid IO
Texas Instruments, Cyclone, Max II,
Toshiba, Zilog APEX 20K, APEX II,
Excalibur
Processor, bus and FPGA support
Agilent Technologies and our
partners provide an extensive
range of bus and processor
analysis probes. They provide
non-intrusive, full-speed,
real-time analysis to accelerate
your debugging process.
• Save time making bus- and
processor-specific measurements with application specific
analysis probes that quickly
and reliably connect to your
device under test.
• Display processor mnemonics
or bus cycle decode.
• Get support for a comprehensive list of industry-standard
processors and buses.
9
Data displays
Waveform Integrated display of data as digital waveforms, analog waveforms
imported from an external oscilloscope, and/or as a chart of a bus’
values over time.
Listing Displays data as a state listing.
Packet Viewer Displays summarized and detailed packet information simultaneously
within two panes. The window is automatically customized for the
protocol family being decoded. The upper packet summary pane
displays decoded packets and fields. The lower pane contains tabs for
viewing selected packet details, header, payload, and lane information.
VBA View The VbaView window works with the integrated Microsoft Visual Basic
for Applications (VBA) to provide custom data visualization charts.
Compare Compares data from different acquisitions and highlights differences.
Source code Displays time-correlated source code and inverse assembly
simultaneously in a split display.
Define the trigger event by simply clicking on a line of source code.
Obtain source-code-level views of dynamically loaded software or code
moved from ROM to RAM during a boot-up sequence using address
offsets.
Requires access to source files via the LAN or instrument hard drive to
provide source code correlation.
Source correlation does not require any modification or recompilation
of your source code.
Eye Scan Displays eye diagrams across all buses and signals simultaneously,
allowing you to identify problem signals quickly.
Numeric bases for data display
Binary, hex, octal, decimal, signed decimal (two’s complement),ASCII, symbols, and processor mnemonics
Symbolic support/object file format compatibility
Number of symbols/ranges — Unlimited (limited only by amount of virtual memory available on 16900 Series mainframes)
IEEE-695, Aout, Omf86, Omf96, Omf386, Sysrof, ELF/DWARF1,* ELF/DWARF2*, ELF/Stabs1,
ELF/Stabs2, ELF/Mdebug Stabs, TICOFF/COFF, TICOFF/Stabs
GPA (General Purpose ASCII)
User defined — specify a mnemonic for a given bit pattern for a label or bus
* Supports C++ name de-mangling
16900 Series mainframes
characteristics
10
11
Available configuration data/file formats
ala Contains information to reconstruct the display appearance, instrument
settings, and trace data (optional) that were present when the file was created.
xml Extensible markup language for configuration portability and programmability.
Available data import/export data/file formats
csv CSV (comma-separated values) format for transferring data to other
applications like Excel.
alb Export logic analyzer data for post-processing. Alb data can be parsed using
programming tools.
Standard analysis tools
Filter/colorize
Find (next/previous)
16900 Series mainframes
characteristics
Programmability
You can write programs to control
the logic analyzer application from
remote computers on the local
area network using COM or ASCII.
The COM automation server is
part of the logic analyzer application. This software allows you to
write programs to control the
logic analyzer. All measurement
functionality is controllable via
the COM interface.
The B4608A Remote
Programming Interface (RPI) lets
you remotely control a 16900Series logic analysis system by
issuing ASCII commands to the
TCP socket on port 6500. This
interface is designed to be as similar as possible to the RPI on
16700-Series logic analysis sys-
Figure 7. 16900 Series programming overview
tems, so that you can reuse existing programs. The B4608A
requires the Advanced
Customization Environment
Development (B4606A) or
Runtime (B4607A) package
to operate.
The Remote Programming
Interface works through the COM
automation objects, methods, and
properties provided for controlling the logic analyzer application. RPI commands are implemented as Visual Basic modules
that execute COM automation
commands, translate their
results, and return proper values
for the RPI. You can use the
B4606A Advanced Customization
Environment to customize and
add RPI commands.
Computer with
Windows 2000/XP
LAN connection
Distributed COM
Logic analyzer
(16900/16800/1680 Series)
or PC running Agilent
logic analyzer application
Instrument COM
automation server
12
16901A Instrument Characteristics
16901A PC characteristics
Operating system Microsoft Windows®XP Professional
Processor Intel Celeron™ 2.93 GHz
Chipset Intel 915G
System memory 1 GB SDRAM
Hard disk drive 80 GB (or higher)
Installed on hard drive Operating system, latest revision of the logic analyzer application software, optional application software
ordered with the logic analyzer
16901A instrument controls
LCD display Large 38.1-cm (15-in.) display makes is easy to view a large number of waveforms or states
Front-panel hot keys Dedicated hot keys for selecting run mode and disabling touch screen
Front-panel knob General-purpose knob adjusts viewing and measurement parameters
Keyboard and mouse PS/2 keyboard and mouse (shipped standard)
16901A video display modes
Touch-screen display Size 38.1 cm (15 in.) diagonal
Resolution 1024 x 768
External display Simultaneous Front panel and external display can be used simultaneously at 1024 x 768 resolution
display capability
Supports up to four external monitors at up to 1600x1200 (with PCI video card)
13
16901A Interfaces
Peripheral interfaces
Display 15-pin VGA connector
Keyboard PS/2
Mouse PS/2
Parallel 25-pin D-sub
Serial 9-pin D-sub
PCI card expansion slot 1 full profile
USB Six 2.0 ports, two in front, four in rear
Connectivity interfaces
LAN 10/100 Mb/s
Connector RJ-45
Interface with external instrumentation
Trigger or arm external devices or receive signals that can be used to arm measurement hardware within the logic analyzer with
Trigger In/Out
Trigger In
Input Rising edge or falling edge
Action taken When received, the logic analyzer takes the actions described in the trigger sequence step
Input signal level ± 5 V max
Threshold level Selectable: ECL , LVPECL, LVTTL, PECL, TTL
User defined (± 5 V in 50 mV increments)
Minimum signal amplitude 200 mV
Connector BNC
Input resistance 4 k ohm nominal
Trigger Out
Trigger Rising edge or falling edge. OR of selected events that cause Trigger Out (logic analyzer trigger or flags)
Output signal V
OH
(output high level) 2.0 V min
V
OL
(output low level) 0.5 V max
Pulse width approx. 80-160 ns
Threshold level LVTTL (3.3 V logic)
Signal load 50 ohm (For good signal quality, the trigger out signal should be terminated in 50 ohms to ground)
Connector BNC
14
Figure 10. 16901A back panel
Full profile PCI card
expansion slot
External display port
Parallel port
Serial port
10/100 Base T LAN
2.0 USB ports (4)
Clock in
Trigger out
Trigger in
Keyboard
Mouse
AC power
Figure 9. 16901A front panel
On/Off power switch
15 inch (38.1 cm)
built-in color
touch screen
display
General purpose knob
Run/stop keys
Touch screen on/off
16901A Physical Characteristics
Dimensions
Power
115/230 V, 48-66 Hz, 775 W max
Weight* Max net Max shipping
16901A 13.6 kg 20.4 kg
(30 lbs) (45 lbs)
* Weight of modules ordered with mainframe will add
0.9 kg (2.0 lb per module)
Instrument operating environment
Temperature 0˚C to 45˚C (32˚F to 113˚F)
Altitude To 3000 m (10,000 ft)
Humidity 8 to 80% relative humidity
at 40˚ C (104˚ F)
Figure 8. 16901A exterior dimensions
Figure 11. 16901A side view
361.49
(14.232)
Dimensions: mm (inches)
28.822
(11.347)
443.23
(17.450)
Two USB 2.0 ports
15
Operating system Microsoft Windows XP Professional
Processor Intel Pentium®III
Chipset Intel 815E
System memory 512 MB PC 133 SDRAM max
CD ROM 24x CD-R writing, 24x CD-RW writing, 8x CD ROM reading
Hard disk drive 80 GB
Installed on hard drive Operating system, latest revision of the logic analyzer
application software, optional application software ordered
with the mainframe
Touch-screen LCD display Large 30.7-cm (12.1-in.) display makes is easy to view a large
(16902A and 16903A) number of waveforms or states.
Front-panel hot keys Dedicated hot keys give instant access to the most
(16902A and 16903A) frequently used menus, displays, and on-line help.
Front-panel knobs Dedicated knobs for horizontal and vertical scaling
(16902A and 16903A) and scrolling
Keyboard and mouse PS/2 keyboard and mouse (shipped standard)
Built-in touch-screen display (16902A and 16903A)
Size 30.7 cm (12.1 in.) diagonal
Resolution 800 x 600
Simultaneous Front panel and external display can be used simultaneously
display capability at 800 x 600 resolution.
External display Supports up to four external monitors at up to 1600x1200
(with PCI video card)
16900A, 16902A and 16903A Series
PC characteristics
16900A, 16902A and 16903A Series
instrument controls
16902A and 16903A Series
video display modes
16
Display 15-pin VGA connector
Keyboard PS/2
Mouse PS/2
Parallel 25-pin D-sub
Serial 9-pin D-sub
PCI card expansion slots 1 full profile and 1 low profile
USB Two 1.1 ports
LAN 10/100Mb/s, Gbit (optional)
Connector RJ-45
Trigger In
Input Rising edge or falling edge
Action taken When received, the logic analyzer takes the actions
described in the trigger sequence step.
Input signal level ± 5 V max
Threshold level Selectable: ECL , LVPECL, LVTTL, PECL, TTL
User defined (± 5 V in 50 mV increments)
Minimum signal amplitude 200 mV
Connector BNC
Input resistance 4 k ohm nominal
Trigger Out
Trigger Rising edge or falling edge. OR of selected events that cause
Trigger Out (module trigger or flags)
Output signal VOH(output high level) 2.0 V min
VOL(output low level) 0.5 V max
Pulse width approx. 80-160 ns
Threshold level LVTTL (3.3 V logic)
Signal load 50 ohm (For good signal quality, the trigger out signal should
be terminated in 50 ohms to ground)
Connector BNC
Target control port
Number of signals 8
Output Disabled Tri-state, high-impedance
Output Enabled TTL level with 1 high, 0 low
Toggle Flips the setting of the signal. If the signal is set
to 1, Toggle changes the signal to 0.
Pulse Flips the signal setting for one clock cycle which is
at least 16 ms. The pulse duration cannot be specified.
Levels 3.3 V (LVTTL) compatible
Connector 2 rows of 5 pins, 0.1-inch centers
Interface with external
instrumentation
Trigger or arm external devices
or receive signals that can be
used to arm measurement modules within the logic analyzer
with Trigger In/Out.
Remote control or your device
under test
Conveniently control your target
remotely by using the target
control port to activate reset or
interrupt lines.
16900A, 16902A and 16903A
interfaces
Peripheral interfaces
Connectivity interfaces
17
16900A, 16902A and 16903A physical
characteristics
Dimensions
55.867 cm
________
21.995 in.
44.121 cm
________
17.371 in.
25.360 cm
________
9.984 in.
Figure 12. 16900A/16902A/16903A exterior dimensions
CD-RW
On/Off
power
switch
Power
16900A 115/230 V, 48 to 66 Hz, 1300 W max
16902A 115/230 V, 48 to 66 Hz, 1300 W max
16903A 115/230 V, 48 to 66 Hz, 900 W max
Weight*
Max Net Max Shipping
16900A 16 kg (35.2 lbs) 24.6 kg (54.2 lbs)
16902A 17.2 kg (37.8 lbs) 25.8 kg (56.8 lbs)
16903A 14.5 kg (32.0 lbs) 23.2 kg (51.0 lbs)
* Weight of modules ordered with mainframes will add 0.9 kg
(2.0 lb per module)
Instrument operating environment
Temperature • 0˚ C to 50˚ C (32˚ F to 122˚ F)
for 16903A
• 0˚ C to 40˚ C (32˚ F to 104˚ F)
for 16900A and 16902A
Altitude To 3000m (10,000 ft)
Humidity 8 to 80% relative humidity
at 40˚ C (104˚ F)
Figure 13. Agilent 16900A front panel
Figure 14. Agilent 16900A back panel
Low profile PCI card
expansion slot
On/Off power switch
Full profile PCI card
expansion slot
External display port
Parallel
port
Serial
port
Target
control port
10/100 Base T LAN
USB ports (2)
Measurement module
ejector latches
Clock in
Calibration
Trigger out
Trigger in
Keyboard
Mouse
A
B
C
D
E
F
Measurement
module ejector
latches
Multiframe
Pro output
Multiframe
Pro input
AC power
Six slots for
measurement
modules
18
Figure 18. Agilent 16903A back panel
16900A, 16902A and 16903A
physical characteristics
Dimensions, continued
Low profile PCI card
expansion slot
Full profile PCI card
expansion slot
External display port
Parallel port
Serial port
10/100
Base T LAN
USB ports (2)
Measurement module
ejector latches
Clock in
Calibration
Trigger out
Trigger in
Target
control port
Keyboard
Mouse
Measurement
module ejector
latches
AC power
Figure 16. Agilent 16902A back panel
Low profile PCI card
expansion slot
On/Off power switch
Full profile PCI card
expansion slot
External display port
Parallel
port
Serial
port
Target
control port
10/100 Base T LAN
USB ports (2)
Measurement module
ejector latches
Clock in
Calibration
Trigger out
Trigger in
Keyboard
Mouse
A
B
C
D
E
F
Measurement
module ejector
latches
Multiframe
Pro output
Multiframe
Pro input
AC power
Six slots for
measurement
modules
A
B
C
Three slots for
measurement
modules
Figure 17. Agilent 16903A front panel
On/Off
power
switch
12.1 inch built-in
color LCD display
with Touch Screen
General purpose knob Run/stop keys
File management keys
Shortcut
keys
Global
markers knob
CD-RW
Horizontal and vertical scaling/scrolling knobsTouch screen on/off
Figure 15. Agilent 16902A front panel
On/Off
power
switch
12.1 inch built-in
color LCD display
with Touch Screen
General purpose knob Run/stop keys
File management keys
Shortcut
keys
Global
markers knob
CD-RW
Horizontal and vertical scaling/scrolling knobsTouch screen on/off
19
Agilent 1184A Testmobile
The Agilent 1184A testmobile
gives you a convenient means of
organizing and transporting your
logic analysis system mainframes
and accessories.
The testmobile includes the
following:
• Drawer for accessories
(probes, cables, power cords)
• Keyboard tray with adjustable
tilt and height
• Mouse extension on keyboard
tray for either right or left
hand operation
• Locking casters for stability on
uneven surfaces
• Strap to stabilize the monitor
• Load limits: Top tray: 68.2 kg
(150.0 lb.) Lower tray: 68.2 kg
(150.0 lb.) Total: 136.4 kg
(300.0 lb.)

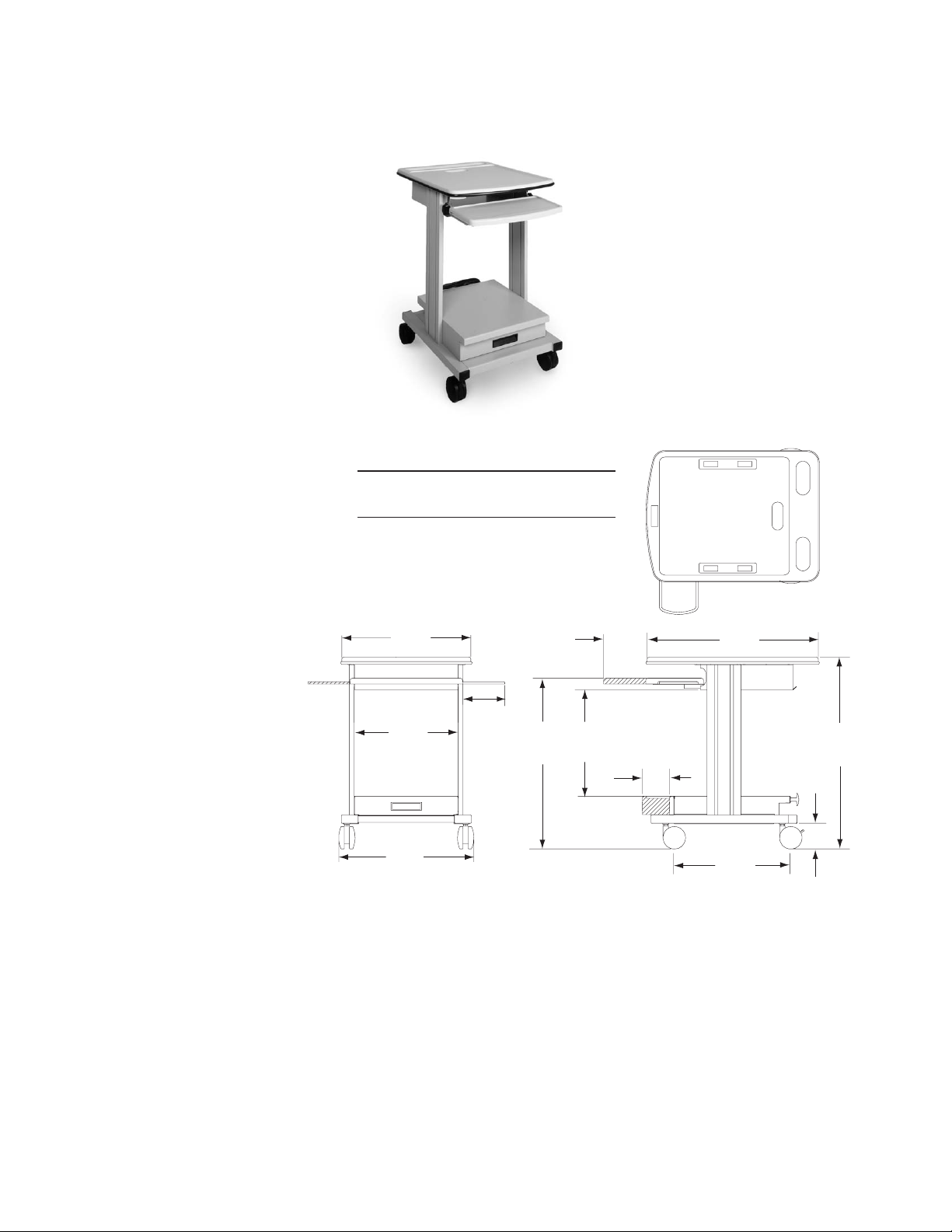

Figure 19. Agilent 1184A testmobile cart.
Figure 20. Agilent 1184A testmobile cart dimensions.
Weight
Max Net Max Shipping
1184A 48.0 kg (106.0 lb) 59.0 kg (130.0 lbs)
Dimensions: mm (inches)
772.2
(30.4)
482.6
(19.0)
254
(10.0)
243.8
(9.6)
774.7
(30.5)
866.1
(34.1)
116.8
(4.6)
594.4
(23.4)
190.5
(7.5)
469.9
(18.5)
652.8
(25.7)
584.2
(23.0)
20
Stationary Shelf
This light-duty fixed shelf is
designed to support the 16900
series frames. The shelf can be
used in all standard Agilent
racks. The stationary shelf is
mounted securely into place
using the supplied hardware and
is designed to sit at the bottom of
the EIA increment. Features of
the stationary shelf include:
• Snap-in design for easy
installation
• Smooth edges
Specifications
J1520AC J1526AC
Material Cold-rolled steel Cold-rolled steel
Weight 8 kg (17.6 lbs) 9.9 kg (22 lbs)
Color Quartz gray Quartz gray
Length 678 mm (26.7 in) 723.9 mm (28.5 in)
Height 44 mm (1.73 in) 44.5 mm (1.75 in)
Width 444 mm (17.5 in) 482.6 mm (19 in)
Load Capacity 68 kg (150 lbs) Capacity 68 kg (150 lbs)
Contains 1 stationary shelf 1 sliding shelf
2 rear brackets 2 rear brackets
Mounting hardware 1 cable strap
Mounting hardware
Rack Accessories
Sliding Shelf
The sliding shelf provides a flat
surface with full product accessibility. It can be used in all Agilent
racks to support the 16900 series
logic analysis systems. The shelf
and slides are preassembled for
easy installation. Features of the
sliding shelf include:
• Snap-in design for easy
installation
• Smooth edges
Consider purchasing the steel
ballast (C2790AC) to use with the
sliding shelf. The ballast provides
anti-tip capability when the shelf
is extended.
Figure 23. Sliding shelf (J1526AC)
Figure 22. Stationary shelf (J1520AC)
Figure 21. Sliding shelf installed in rack
21
Ordering Information
Agilent
product number Description
16900A 6-Slot Logic Analysis System Mainframe
16901A 2-Slot Logic Analysis System Mainframe with Built-in 15" (38.1 cm) Touch Display
16902A 6-Slot Logic Analysis System Mainframe with Built-in Touch Display
16903A 3-Slot Logic Analysis System Mainframe with Built-in Touch Display
Each frame comes with one PS/2 keyboard, one PS/2 mouse, and 1-year warranty standard. The 16900A, 16902A and 16903A also come
with one ten conductor flying lead cable for the target control port.
Agilent product
number or
option number Description Ordering info
16900A-014 Gbit LAN card (low profile, copper connection) Installed in mainframe. Must be ordered
16902A-014 at time of mainframe purchase
16903A-014
E5860A Gbit LAN card (low profile, copper connection) Order for existing 16900A, 16902A, or 16903A frames.
Customer installable.
E5861A Multiframe cable cable length Order 1 less than the number of
mainframes to be connected together
Related literature
Publication title Publication type Publication number
Agilent Technologies Timing and State Modules Data Sheet 5989-0422EN
for the 16900 Series Logic Analysis System
Agilent Technologies 16800 Series Portable Brochure 5989-5062EN
Logic Analyzers
Agilent Technologies 16800 Series Portable Data Sheet 5989-5063EN
Logic Analyzers
Agilent Technologies FPGA Dynamic Probe Data Sheet 5989-0423EN
for Xilinx
Agilent Technologies FPGA Dynamic Probe Data Sheet 5989-5595EN
for Altera
Probing Solutions for Agilent Technologies Catalog 5968-4632E
Logic Analyzers
Application Support for Agilent Logic Analyzers Configuration Guide 5966-4365E
Innovative Digital Debug Solutions CD CD-ROM 5980-0941EN
with Videos
For copies of this literature, contact your Agilent representative or visit
www.agilent.com/find/logic
www.agilent.com/find/open
Agilent Open simplifies the process of
connecting and programming test systems
to help engineers design, validate and
manufacture electronic products. Agilent
offers open connectivity for a broad range
of system-ready instruments, open industry
software, PC-standard I/O and global
support, which are combined to more easily
integrate test system development.
Microsoft and Windows are U.S. registered
trademarks of Microsoft Corporation.
Pentium is a U.S. registered trademark of
Intel Corporation.
MATLAB
®
is a U.S. registered trademark of
The MathWorks, Inc.
PCI-X and PCI Express are registered
trademarks of PCI-SIG.
www.agilent.com
For more information on Agilent
Technologies’ products, applications
or services, please contact your local
Agilent office. The complete list is
available at:
www.agilent.com/find/contactus
Phone or Fax
United States:
(tel) 800 829 4444
(fax) 800 829 4433
Canada:
(tel) 877 894 4414
(fax) 800 746 4866
China:
(tel) 800 810 0189
(fax) 800 820 2816
Europe:
(tel) 31 20 547 2111
Japan:
(tel) (81) 426 56 7832
(fax) (81) 426 56 7840
Korea:
(tel) (080) 769 0800
(fax) (080) 769 0900
Latin America:
(tel) (305) 269 7500
Taiwan:
(tel) 0800 047 866
(fax) 0800 286 331
Other Asia Pacific Countries:
(tel) (65) 6375 8100
(fax) (65) 6755 0042
Email: tm_ap@agilent.com
Revised: 09/14/06
Product specifications and descriptions
in this document subject to change
without notice.
© Agilent Technologies, Inc. 2007
Printed in USA, November 1, 2007
5989-7584EN
www.agilent.com/find/emailupdates
Get the latest information on the products
and applications you select.
www.agilent.com/find/quick
Quickly choose and use your test
equipment solutions with confidence.
Agilent Email Updates
Remove all doubt
Our repair and calibration services will get
your equipment back to you, performing
like new, when promised. You will get full
value out of your Agilent equipment
throughout its lifetime. Your equipment
will be serviced by Agilent-trained
technicians using the latest factory
calibration procedures, automated repair
diagnostics and genuine parts. You will
always have the utmost confidence in
your measurements.
Agilent offers a wide range of additional
expert test and measurement services for
your equipment, including initial start-up
assistance onsite education and training,
as well as design, system integration,
and project management.
For more information on repair and
calibration services, go to
www.agilent.com/find/removealldoubt
Agilent Direct
Agilent
Open
Loading...
