The HP 1660C/CS/CP-Series
Benchtop Logic Analyzers
Technical Data
Get to the root cause of
problems quickly.
Identifying the cause of problems in
embedded microprocessor system
designs can be difficult. The
HP 1660C/CS/CP-series benchtop
logic analyzers have the features to
help the design team troubleshoot
hardware and find software defects
quickly . Team members can verify
critical hardware timing relationships, view processor mnemonics,
make analog parametric measurements, or functionally test their digital design with stimulus.
An optional LAN interface enables
software designers to capture a realtime microprocessor trace and timecorrelate it to source code in C++ or
other high-level languages on a PC
or workstation. For time-correlation
of source code, order the HP B3740A
Software Analysis package.
Oscilloscope Key Specifications
and Characteristics
____________________________________
Model Number HP 1660CS, HP 1661CS,
HP 1662CS & HP 1663CS
_______________________________________
Channels 2
_______________________________________
Maximum Sample 1 GSa/s per channel
Rate
_______________________________________
Bandwidth dc to 250 MHz
(dc coupled)
_______________________________________
Rise Time 1.4 ns
_______________________________________
Vertical Resolution 8 bits
_______________________________________
Memory Depth per 8k samples
Channel
_______________________________________
Logic Analyzer Key Specifications and Characteristics
_______________________________________________________________________
HP Model Number 1660C/CS/CP 1661C/CS/CP 1662C/CS/CP 1663C/CS/CP 1664A
________________________________________________________________________________
State and Timing 136 102 68 34 34
Channels
________________________________________________________________________________
Timing Analysis Conventional: 250 MHz all channels, 500 MHz half channels
Transitional: 125 MHz all channels, 250 MHz half channels
Glitch: 125 MHz half channels
________________________________________________________________________________
State Analysis Speed 100 MHz, all channels 50 MHz
________________________________________________________________________________
State Clocks/Qualifiers 6 6 4 2 2
________________________________________________________________________________
Memory Depth 4K per channel, 8K in half-channel modes
per Channel
________________________________________________________________________________
LAN Port Standard for CP Model, Option 015 for C/CS model N/A
________________________________________________________________________________
Pattern Generator Key Specifications and Characteristics
________________________________________________________________________________
HP Model Number 1660CP, 1661CP, 1662CP, 1663CP
________________________________________________________________________________
Maximum Clock Speed 200 MHz 100 MHz 50 MHz
________________________________________________________________________________
Number of Data Channels 16 32 32
________________________________________________________________________________
Memory Depth, in vectors 258,048 258,048 258,048
________________________________________________________________________________
“IF” Command No No Yes
________________________________________________________________________________
The combination of 100-MHz state,
500-MHz timing, 2-channel 250-MHz
BW scope, or 32-channel
200 M Vector/sec pattern generator,
internal hard disk drive, and LAN
make the HP 1660C/CS/CP-series
benchtop logic analyzers especially
well suited to finding problems at
the integration stage of prototype
hardware and software.
[1]
• The internal hard disk drive provides
quick storage and retrieval of files.
[1]
• 3.5-inch high-density flexible disk
drive supports both DOS and LIF
formats.
• LAN interface enables access to the
logic analyzer files via FTP or NFS.
Use X11 windows and display the
logic analyzer user interface on a PC
or workstation.
[1]
• The HP 1660C/CS/CP-series operating
system includes System Performance
Analysis (SPA). SPA provides state
histograms, state overview , and time
interval analysis.
• The HP E2450A Symbolic Download
Utility is included with the
HP 1660C/CS/CP-series. This utility
provides the capability to extract
symbolic information from popular
object module formats.
• Store data as ASCII files and screen
images in TIFF, PCX, and EPS
(encapsulated PostScript™) formats.
• New graphical trigger macros make
trigger setup easier.
• Centronics, RS-232 and HP-IB communications ports make connecting
to other devices easier than ever. All
of these come standard on all
HP 1660C/CS/CP-series models.
• Standard DIN mouse and keyboard
connectors. A mouse ships with
every HP 1660C/CS/CP-series.
[1]
[1] Please refer to HP 1664A Product
Specifications and Characteristics on page 9.
PostScript™ is a trademark of Adobe
Systems Incorporated.
This literature was published years prior to the establishment of Agilent Technologies as a company independent from Hewlett-Packard
and describes products or services now available through Agilent. It may also refer to products/services no longer supported by Agilent.
We regret any inconvenience caused by obsolete information. For the latest information on Agilent’s test and measurement products go to:
www.agilent.com/find/products
Or in the US, call Agilent Technologies at 1-800-452-4844 (8am–8pm EST)
Discontinued Product— Support Information Only
HP 1660C/CS/CPSeries GeneralProduct Information
_________________________
Human Interface
_________________________
Front Panel A knob and keypads
make up the front-
panel human interface.
Keys include control,
menu, display navigation, and alpha-numeric entry functions.
_________________________
Mouse A DIN mouse is
shipped as standard
equipment. It provides
full instrument control.
Knob functionality is
replicated by holding
down the right button
and moving the mouse
left or right.
[1]
_________________________
Keyboard The logic analyzer can
also be operated using
a DIN keyboard. Order
the HP Logic Analyzer
Keyboard Kit, model
number HP E2427B.
[1]
_________________________
Input/Output, Control,
and Printing
_________________________
I/O Ports All units ship with a
Centronics parallel
printer port, RS-232,
and HP-IB as standard
equipment.
[1]
_________________________
LAN Interface An Ethernet LAN inter-
face is available as
option 015. The LAN
interface comes with
both Ethertwist and
ThinLan connectors.
The LAN supports FTP
and PC/NFS connection protocols. It also
works with X11 windows packages.
[1][2]
_________________________
Program- Each instrument is fully
mability programmable from a
computer via HP-IB
and RS-232 connections. This feature is
standard on all models.
_________________________
HP Printer Printers which use the
Support HP Printer Control
Language (PCL) and
have a parallel
Centronics, RS-232 or
HP-IB interface are
supported:
HP DeskJet, LaserJet,
QuietJet, PaintJet, and
ThinkJet models
_________________________
_________________________
Alternate The Epson FX80, LX80
Printer and MX80 printers with
Supported an RS-232 or Centronics
interface are supported
in the Epson 8-bit
graphics mode.
_________________________
Hard Copy Screen images can be
Output printed in black and
white from all menus
using the
Print
field.
State or timing listings
can be also be printed
in full or part (starting
from center screen)
using the
Print All
selection.
_________________________
Mass Storage Files
and Software
_________________________
Updating the The operating system
Operating resides in Flash ROM
System and can be updated
from the flexible disk
drive or from the
internal hard disk
drive. The HP 1664A
boots from disk and
requires only a disk
change to update the
operating system.
_________________________
Mass Storage Supported by an inter-
nal hard disk drive and
by a 1.44 Mbyte, 3.5inch flexible disk drive.
Supports DOS and LIF
formats.
[1]
_________________________
Screen Image An image file of any
Files display screencan be
stored to disk via the
display's
Print
field.
Black & white TIFF,
Grayscale TIFF, PCX,
Encapsulated
PostScript™ (EPS), and
gray-scale TIFF file formats are available.
_________________________
ASCII Data State or timing listings
Files can be stored as ASCII
files on a disk via the
display's
Print
field.
These files are equivalent in character width
and line length to hardcopy listings printed via
the
Print All
selection.
_________________________
Configuration Logic analyzer and
and Data Files oscilloscope files
that include configura-
tion and data information (if present) are
encoded in a binary
format. They can be
stored to or loaded
from the hard disk drive
or a flexible disk.
[1]
_________________________
Recording of Binary format
Acquisition configuration/data files
and Storage are stored with the
Times time of acquisition and
the time of storage for
all models except the
HP 1664A, which does
not have a real-time
clock.
_________________________
Acquisition Arming
_________________________
Initiation Arming is started by
Run, Group Run,
or the
Port In BNC.
_________________________
Cross Arming Analyzer machines
and the oscilloscope
can cross-arm each
other.
[1]
_________________________
Output An output signal is
provided at the Port
Out BNC.
_________________________
Port In/Out
_________________________
PORT IN Port In is a standard
Signal and BNC connection.
Connection The input operates at
TTL logic signal levels.
Rising edges are valid
input signals.
_________________________
PORT OUT Port Out is a standard
Signal and BNC connection
Connection with TTL logic
signal levels. A rising
edge is asserted as a
valid output.
_________________________
Skew Adjustment
and Arming Times
_________________________
Skew Correction factors for
Adjustment nominal skew between
displayed timing and
oscilloscope signals
are built into the operating system.
Additional correction
for unit-by-unit variation can be made using
the
Skew
field. An
entered skew value
affects the next (not
the present) acquisition
display.
_________________________
2
[1] Please refer to HP 1664A Product Specifications
and Characteristics on page 9.
[2] LAN interface is standard for the HP 1660CP-series,
optional for the HP 1660C/CS-series.
_________________________
PORT IN 15 ns typical delay
Arms Logic from signal input to a
Analyzer
[3]
don't care
logic
analyzer trigger .
_________________________
PORT IN 40 ns typical delay
Arms from signal input to an
Oscilloscope
immediate
oscilloscope
trigger; not available
when oscilloscope is in
time-qualified pattern
triggering mode.
_________________________
Logic 120 ns typical delay
Analyzer from logic analyzer
Arms PORT trigger to signal
OUT
[3]
output.
_________________________
Oscilloscope 60 ns typical delay from
Arms PORT oscilloscope trigger to
OUT signal output.
_________________________
Operating Environment
_________________________
Power 115 Vac or 230 Vac,
–22% to +10%, single
phase, 48-66 Hz, 320 VA
max
_________________________
Temperature Instrument, 0° to 50°C
(+32°to 122°F). Disk
media, 10°to 40°C
(+50°to 104°F). Probes
and cables, 0°to 65°C
(+32°to 149°F)
_________________________
Humidity Instrument, up to 95%,
relative humidity at
+40°C (+140°F). Disk
media and hard drive,
8% to 85% relative
humidity.
_________________________
Altitude To 3,048 m (10,000 ft)
[1]
_________________________
Vibration: Random vibrations
Operating 5–500 Hz,
10 minute per axis,
~ 0.3 g (rms).
_________________________
Vibration: Random vibrations
Non Operating5–500 Hz,10 minutes per
axis,~ 2.41 g (rms); and
swept sine resonant
search, 5–500 Hz,
0.75 g (0-peak),
5 minute resonant dwell
@ 4 resonances per
axis.
_________________________
_________________________
Physical Factors
_________________________
Weight 28.6 lbs. (13 kg)
[1]
_________________________

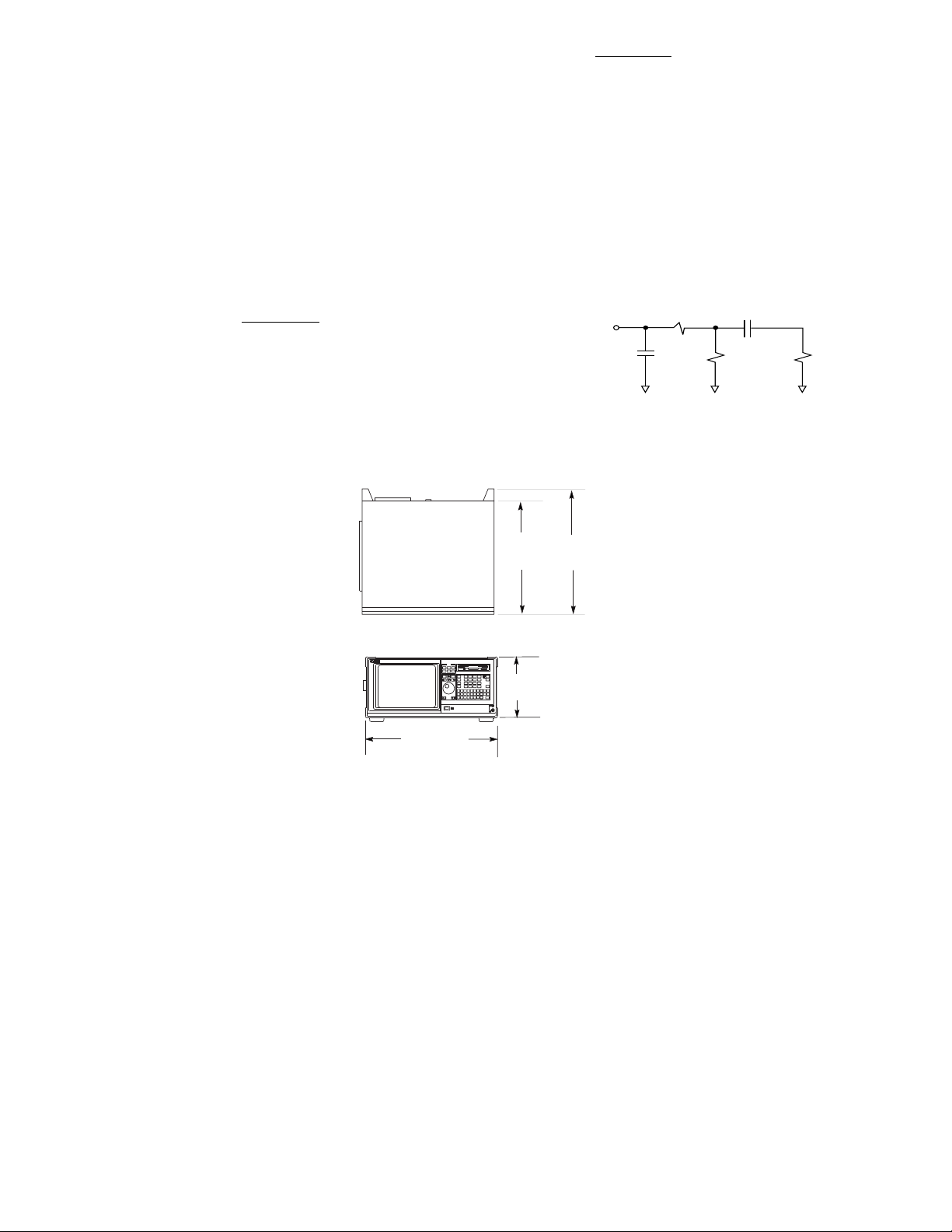

Dimensions See figure 1
_________________________
Safety IEC 348/ HD 401,
UL 1244, and
CSA Standard C22.2
No. 231 (series M-89)
_________________________
EMC
CISPR 11:1990/EN 55011 (1991):
Group 1 Class A
IEC 801-2:1991/EN 50082-1 (1992):
4kV CD, 8 kV AD
IEC 801-3:1984/EN 50082-1 (1992): 3 V/m
IEC 801-4:1988/EN 50082-1 (1992): 1kV
_________________________
_________________________
Logic Analyzer Probes
_________________________
Input 100 kΩ ±2%
Resistance
_________________________
Input approx. 8 pF
Capacitance (see figure 2)
_________________________
Figure 2
_________________________
Minimum 500 mV peak-to-peak
Input Voltage
Swing
_________________________
Minimum 250 mV or 30% of input
Input amplitude, whichever is
Overdrive greater
_________________________
Threshold –6.0 V to +6.0 V in 50-mV
Range increments
_________________________
Threshold Threshold levels may be
Setting defined for pods
(17-channel groups) on
an individual basis
_________________________
Threshold ± (100 mV +3% of
Accuracy* threshold setting)
_________________________
Input ± 10 V about the
Dynamic threshold
Range
_________________________
Maximum ± 40 V peak
Input Voltage
_________________________
+5 V 1/3 amp maximum
Accessory per pod
Current
_________________________
Channel Each group of 34
Assignment channels (a pod pair)
can be assigned to
Analyzer 1, Analyzer 2
or remain unassigned.
_________________________
HP 1660C/CS/CP-Series
Logic Analyzer Specifications
and Characteristics
[1] Please refer to HP 1664A product specifications
and characteristics on page 9.
[3] Time may vary depending upon the mode of logic
analyzer operation.
* Warranted specification.
3
17.3 inches
(440 mm)
8.1 in.
(205 mm)
13.0 in.
(330 mm)
14.5 in.
(367 mm)
Figure 1
RT= 250Ω
High Frequency Model for Probe Inputs
RIN= 100kΩCTG= 1 pF Z0=
150Ω
C
COMP
= 7.5 pF
Weight 28.6 lbs (13 kg)
______________________________
State Analysis
_________________________
Maximum 100 MHz all models
State except HP 1664A,
Speed* which is 50 MHz
_________________________
Channel HP 1660C, CS, CP 136/68
Count
[4]
HP 1661C, CS, CP 102/51
HP 1662C, CS, CP 68/34
HP 1663C, CS, CP 34/17
HP 1664A 34/17
_________________________
Memory 4096/8192 samples
Depth per
Channel
[4]
_________________________
State Clocks
HP 1660C, CS, CP 6 clocks
HP 1661C, CS, CP 6 clocks
HP 1662C, CS, CP 4 clocks
HP 1663C, CS, CP 2 clocks
HP 1664A 2 clocks
Clocks can be used by
either one or two state
analyzers at any time,
except for the 1663C,
1663CS, 1663CP and
1664A models, which
can have only one
state or timing analyzer .
Clock edges can be
ORed together and
operate in single
phase, two-phase
demultiplexing, or twophase mixed mode.
Clock edge is
selectable as positive,
negative, or both edges
for each clock.
_________________________
State Clock The high or low of up to
Qualifier 4 of the 6 clocks can be
ANDed or ORed with
the clock specification.
_________________________
Setup/Hold*
[5]
one clock, 3.5/0 ns to 0/3.5 ns
one edge (in 0.5 ns increments)
one clock, 4.0/0 ns to 0/4.0 ns
both edges (in 0.5 ns increments)
multi-clock, 4.5/0 ns to 0/4.5 ns
multi-edge (in 0.5 ns increments)
_________________________
Minimum 3.5 ns
State Clock
Pulse Width*
[5]
_________________________
Minimum 10.0 ns
Master to
Master
Clock Time*
[5]
_________________________
_________________________
Minimum 10.0 ns
Slave to
Slave
Clock Time
[5]
_________________________
Minimum 0.0 ns
Master to
Slave
Clock Time
[5]
_________________________
Minimum 4.0 ns
Slave to Master
Clock Time
[5]
_________________________
Clock 4.0/0 ns (fixed)
Qualifiers
Setup/Hold
[5]
_________________________
State Counts the number of
T agging
[6]
qualified states
between each stored
state. Measurement
can be shown relative
to the previous state or
relative to trigger . Max.
count is 4.29 ×109.
State Tag 0 to 4.29 × 10
9
Count
State Tag 1 count
Resolution
_________________________
Time Measures the time
T agging
[6]
between stored states,
relative to either the
previous state or to the
trigger . Max. time
between states is
34.4 sec. Min. time
between states is 8 ns.
Time Tag 8 ns to 34.4 seconds
Value ±(8 ns + 0.01% of time
tag value)
Time Tag 8 ns or 0.1%
Resolution (whichever is greater)
_________________________
Timing Analysis
_________________________
Conventional Data stored at selected
Timing sample rate across all
timing channels.
Maximum 250 MHz / 500 MHz
Timing
Speed
[4]
Channel HP 1660C, CS, CP 136/68
Count
[4]
HP 1661C, CS, CP102/51
HP 1662C, CS, CP 68/34
HP 1663C, CS, CP 34/17
HP 1664A 34/17
Sample 4 ns/2 ns minimum,
Period
[4]
8.38 ms maximum
Memory 4096/8192 samples
Depth per
Channel
[4]
Time Covered Sample period ×
by Data memory depth
16.3 µs min,
34.4 sec/68.6 sec max
_________________________
Transitional Sample is stored in
Timing acquisition memory
only when the data
changes. A time tag
stored with each
sample allows reconstruction of waveform
display. Time covered
by a full memory
acquisition varies with
the number of pattern
changes in the data.
Maximum 125 MHz/250 MHz
Timing
Speed
[4]
Channel HP 1660C, CS, CP, 136/68
Count
[4]
HP 1661C,CS, CP102/51
HP 1662C,CS, CP 68/34
HP 1663C,CS, CP 34/17
HP 1664A 34/17
Sample 8 ns/4 ns
Period
[4]
Time Covered 16.3 µs minimum,
by Data
[4]
9.7 hrs./6.5 hrs.
maximum
Maximum 34.4 s
Time
Between
Transitions
Number of 1023-2047/682-4094
Captured Depending on input
T ransitions
[4]
signals
_________________________
4
[4] Full Channel /Half Channel Modes
[5] Specified for an input signal VH= – 0.9V , VL = – 1.7V,
slew rate = 1V/ns, and threshold = –1.3V
[6] Time or-state-tagging (Count Time or Count State)
is available in the full-channel state mode. There is
no speed penalty for tag use. Memory is halved
when time or state tags are used unless a pod pair
(34-channel group) remains unassigned in the
Configuration menu.
* Warranted specification.
_________________________
Greater than Sample period 2-8 ns:
Duration 8 ns to 8.389 ms.
(timing only) Accuracy is –2 ns to
+10 ns
Sample period > 8 ns:
(1 to 220) ×sample
period. Accuracy is
–2 ns + sample period
+ 2 ns ± 0.01%
_________________________
Less than Sample period 2-8 ns:
Duration 8 ns to 8.389 ms.
(timing only) Accuracy is –2 ns to
+10 ns.
Sample period > 8 ns:
(1 to 220) ×sample
period.
Accuracy is 2 ns +
sample period – 2 ns ±
0.01%
_________________________
Qualifier A user-specified term
that can be any state,
no state, any recognizer ,
(pattern, ranges or
edge/glitch), any timer ,
or the logical combination (NOT, AND, NAND,
OR, NOR, XOR, NXOR) of
the recognizers and
timers.
_________________________
Branching Each sequence level
has a branching qualifier . When satisfied, the
analyzer will branch to
the sequence level
specified.
_________________________
_________________________
Glitch Data sample and glitch
Capture information is stored
Mode every sample period
Maximum 125 MHz
Timing Speed
Channel HP 1660C ,CS, CP 68
Count HP 1661C, CS, CP 51
HP 1662C, CS, CP 34
HP 1663C, CS, CP 17
HP 1664A 17
Sample 8 ns minimum, 8.38 ms
Period maximum
Minimum 3.5 ns
Glitch Width*
Maximum Sample Period – 1 ns
Glitch Width
Memory 2048 samples
Depth per
Channel
Time Covered Sample Period × 2048:
by Data 16.3 µs minimum,
17.1 sec maximum
_________________________
Time Interval Accuracy
_________________________
Sample ± 0.01%
Period
Accuracy
_________________________
Channel-to- 2 ns typical,
Channel Skew3 ns maximum
_________________________
Time Interval ± (Sample Period
Accuracy Accuracy + channel-to-
channel skew + 0.01%
of time interval reading)
_________________________
Maximum Sample Period 2-8 ns :
Delay 8.389 ms
After Sample Period > 8 ns:
Triggering 1,048,575 ×sample
period
_________________________
Trigger Specifications
_________________________
Trigger Trigger setups can be
Macros selected from a catego-
rized list of trigger
macros. Each macro is
shown in graphical
form and has a written
description. Macros
can be chained together to create a custom
trigger sequence.
_________________________
_________________________
Pattern Each recognizer is the
Recognizers AND combination of bit
(0,1, or X) patterns in
each label.
Pattern 10
Recognizers
Pattern Width HP 1660C, CS, CP136/68
(in channels)
[4]
HP 1661C, CS, CP102/51
HP 1662C, CS, CP 68/34
HP 1663C, CS, CP 34/17
HP 1664A 34/17
_________________________
Minimum 250 MHz and 500 MHz
Pattern Timing Modes: 13 ns +
and Range channel-to-channel
Recognizer skew
Pulse Width ≤ 125 MHz Timing
Modes : 1 sample period
+ 1 ns + channel-tochannel skew + 0.01%
_________________________
Range Recognize data which is
Recognizers numerically between or
on two specified patterns (ANDed combination of zeros and/or
ones).
Range 2
Recognizers
Range Width 32 channels
_________________________
Edge/Glitch Trigger on glitch or
Recognizers edge on any channel.
Edge can be specified
as rising, falling or
either.
Edge/Glitch 2 (in timing mode only)
Recognizers
Edge/Glitch HP 1660C, CS, CP136/68
Width (in HP 1661C, CS, CP102/51
channels)
[4]
HP 1662C, CS, CP 68/34
HP 1663C, CS, CP 34/17
HP 1664A 34/17
Edge/Glitch Sample Period 2-8 ns:
Recovery Time28 ns
Sample Period > 8 ns:
20 ns + sample period
_________________________
5
[4] Full Channel /Half Channel Modes
* Warranted specification
_________________________
Occurrence Sequence qualifier may
Counters be specified to occur up
to 1,048,575 times before
advancing to the next
level. Each sequence
level has its own
counter .
Maximum 1,048,575
Occurrence
Count
_________________________
Storage Each sequence level
Qualification has a storage qualifier
(state only) that specifies the states
that are to be stored.
_________________________
Maximum 125 MHz
Sequencer
Speed
State 12
Sequence
Levels
Timing 10
Sequence
Levels
_________________________
Timers Timers may be Started,
Paused, or Continued at
entry into any sequence
level after the first.
Timers 2
Timer Range 400 ns to 500 seconds
Timer 16 ns or 0.1% whichever
Resolution is greater
Timer ± 32 ns or ± 0.1%,
Accuracy whichever is greater
Timer 70 ns
Recovery Time
_________________________
Data In to 110 ns typical
T rigger Out
BNC Port
_________________________
_________________________
Acquisition, Measurement
and Display Functions
_________________________
Arming Each analyzer can be
armed by the Run key,
the other analyzer , the
oscilloscope (CS models
only), the pattern generator (CP Models only) or
the Port In.
[1]
_________________________
Run Starts acquisition of
data in specified trace
mode.
_________________________
Stop In single trace mode or
the first run of a repetitive acquisition, Stop
halts acquisition and
displays the current
acquisition data. For
subsequent runs in
repetitive mode, Stop
halts acquisition of
data and does not
change current display.
_________________________
Trace Mode Single mode acquires
data once per trace
specification; repetitive
mode repeats single
mode acquisitions until
Stop is pressed or until
pattern time interval or
compare stop criteria
are met.
_________________________
Trigger Displayed as a vertical
dashed line in the
timing waveform, state
waveform and X-Y
chart displays and as
line 0 in the state listing
and state compare displays.
_________________________
Activity Provided in the
Indicators Configuration, State
Format, and Timing
Format menus for monitoring device-undertest activity while setting up the analyzer.
_________________________
_________________________
Labels Channels may be
grouped together and
given a 6-character
name called a
label
. Up
to 126 labels in each
analyzer may be
assigned with up to 32
channels per label.
Trigger terms may be
given an 8-character
name.
_________________________
Measurement Functions
_________________________
Markers Two markers (x and o)
are shown as dashed
lines in the display.
_________________________
Time The x and o markers
Intervals measure the time
interval between events
occurring on one or
more waveforms or
states (available in state
when time tagging is on).
_________________________
Delta States The x and o markers
measure the number of
tagged states between
any two states (state
only).
_________________________
Patterns The x or o marker can
be used to locate the
nth occurrence of a
specified pattern
before or after trigger,
or after the beginning
of data. The o marker
can also find the nth
occurrence of a pattern
before or after the x
marker.
_________________________
Statistics x to o marker statistics
are calculated for
repetitive acquisitions.
Patterns must be specified for both markers,
and statistics are kept
only when both patterns can be found in
an acquisition.
Statistics are minimum
x to o time, maximum x
to o time, average x to
o time, and ratio of
valid runs to total runs.
_________________________
6
1] Please refer to HP 1664A Product Specifications
and Characteristics on page 9.
_________________________
Compare Performs post-process
Mode ing bit-by-bit
Functions comparison of the
acquired state data and
Compare Image data.
Compare Created by copying a
Image state acquisition into
the compare image
buffer. Allows editing of
any bit in the Compare
Image to a 1, X or O.
Compare Each channel (column)
Image in the Compare Image
Boundaries can be enabled or dis-
abled via bit masks in
the Compare Image.
Upper and lower ranges
of states (rows) in the
compare image can be
specified. Any data bits
that do not fall within
the enabled channels
and the specified range
are not compared.
Stop Repetitive acquisitions
Measurement may be halted when
the comparison
between the current
state acquisition and the
current Compare Image
is equal or not equal.
_________________________
Compare Reference Listing
Mode display shows the
Displays Compare Image and
bit masks; Difference
Listing display highlights
differences between
the current state
acquisition and the
Compare Image.
_________________________
Data Entry/Display
_________________________
Display State Listing, State
Modes Waveforms, State Chart,
State Compare Listing,
Compare Difference
Listing, Timing
Waveforms, Timing
Listing, interleaved timecorrelated listing of two
state analyzers (time
tags on), and time-correlated State Listing with
Timing Waveforms on
the same display.
_________________________
_________________________
State X-Y Plots value of a speci-
Chart Display fied label (on y-axis)
versus states or another
label (on x-axis). Both
axes can be scaled.
Markers Correlated to State
Listing, State Compare,
and State Waveform
displays. Available as
pattern, time, or statistics (with time counting)
and states (with state
counting on).
Accumulate Chart display is not
erased between successive acquisitions.
_________________________
State Displays state
Waveform acquisitions
Display in waveform format.
States/div. 1 to 1000 states.
Delay – 8191 to + 8192 states.
Accumulate Waveform display is not
erased between successive acquisitions.
Overlay Multiple channels can
Mode be displayed on one
waveform display line.
Displayed 24 lines maximum on
Waveforms one screen. Up to 96
lines may be specified
and scrolled through.
_________________________
Timing Displays timing
Waveform acquisition in wave-
Display form format.
Sec/div 1 ns to 1000 s; 0.01%
resolution.
Delay – 2,500 s to + 2,500 s
Accumulate Waveform display is
not erased between
successive acquisitions.
Overlay Mode Multiple channels can
be displayed on one
waveform display line.
When waveform size
set to large, the value
represented by each
waveform is displayed
inside the waveform in
the selected base.
Displayed 24 lines maximum on
Waveforms one screen. Up to 96
lines may be specified
and scrolled through.
_________________________
System SPA includes state
Performance histogram, state
Analysis overview and time
interval measurements
to aid in the software
optimization process.
These tools provide a
statistical overview of
your synchronous
design.
_________________________
Bases Binary, Octal, Decimal,
Hexadecimal, ASCII
(display only), Userdefined symbols, two's
complement.
_________________________
Symbols
Pattern User can define a
Symbols mnemonic for the spe-
cific bit pattern of a
label. When data display
is SYMBOL, mnemonic is
displayed where the bit
pattern occurs.
Range User can define a
Symbols mnemonic covering a
range of values. When
data display is SYMBOL,
values within the specified range are displayed
as mnemonic + offset
from base of range.
Number of 1000 maximum.
Symbols
_________________________
7
______________________________
Time-Qualified T riggers on the exiting
Pattern edge of a pattern which
meets the user-specified duration criterion.
Greater than, less than,
or within range duration criterion can be
used. Duration range is
20 ns to 160 ns. Recovery time after valid patterns with invalid duration is <12 ns.
Events Delay Triggers on the nth
edge or pattern as
specified by the user .
Time-qualification is
applied only to the 1st
of n patterns.
______________________________
Auto-T rigger Self-triggers if no trig-
ger condition is found
~ 50 ms after arming.
______________________________
Measurement Functions
______________________________
Time Markers Two markers (x and o)
measure time intervals
manually, or automatically with statistics.
______________________________
Voltage Two markers (a and b)
Markers measure voltage and
voltage differences.
______________________________
Automatic Period, frequency,
Measurementsrise time, fall time,
+width, –width, peakto-peak voltage, overshoot, and undershoot.
______________________________
__________________________________
General Information
______________________________
Model HP 1660CS, 1661CS,
Numbers 1662CS, 1663CS
______________________________
Number of 2
Channels
______________________________
Maximum 1 GSa/s per channel
Sample Rate
______________________________
Bandwidth dc to 250 MHz
[7] [11]
(real time, dc coupled)
______________________________
Rise Time 1.4 ns
[8] [11]
______________________________
Vertical 8 bits
Resolution
______________________________
Memory Depth8k samples
______________________________
Oscilloscope Probing
______________________________
Input Coupling1 MΩ: ac,dc
50 Ω: dc only
______________________________
Input R
[11]
1MΩ±1%
50Ω±1%
______________________________
Input C ~ 7pF
______________________________
Probes Two HP 10430A probes;
Included 10:1, 1 MΩ6.5 pF
______________________________
Vertical (at BNC)
______________________________
Maximum 1 MΩ : ±250 V
Safe Input 50 Ω : 5 V rms
Voltage
______________________________
Vertical 1 MΩ: ±250 V
Sensitivity (ac + dc, <10 kHz)
Range 50 Ω: 5 V rms
(1:1 Probe)
______________________________
Probe Factors Any integer ratio from
1:1 to 1000:1
______________________________
Vertical (dc) ± 1.25% of full scale
Gain
Accuracy
[9]
______________________________
dc Offset ±2V to ±250V
Range (depending on the
(1:1 probe) vertical sensitivity)
______________________________
dc Offset ± [1.0% of channel
Accuracy
[11]
offset
+ 2.0% of full scale]
______________________________
Voltage ± [1.25% of full scale
Measurement + offset accuracy
Accuracy
[11]
+ 0.016 V/div]
______________________________
Channel-to- dc to 50 MHz – 40 dB
Channel 50 MHz to 250 MHz
Isolation – 30 dB
______________________________
__________________________________
Horizontal
______________________________
Time Base 1 ns/div to 5 s/div
Range
______________________________
Time Base 20 ps ±[(0.005% of ∆t)
Resolution + (2 × 10
– 6
× delay
setting) + 150 ps]
______________________________
Maximum – 4 µs to – 40 s
Negative (depending on the
Acquisition sample rate)
Delay
______________________________
Maximum 16.7 ms to 2.5 ks
Positive (depending on
Acquisition sample rate)
Delay
______________________________
Time Inter val ±[(0.005% of ∆t)
Measurement + (2×10
– 6
× delay
Accuracy setting)+ 150 ps]
[10] [11]
______________________________
Oscilloscope Triggering
______________________________
Trigger Level Bounded within chan-
Range nel display window
______________________________
Trigger dc to 50 MHz:
Sensitivity
[11]
0.063 × Full Scale
50 MHz to 250 MHz:
0.125 × Full Scale
______________________________
Trigger Modes
Immediate Triggers immediately
after arming condition is
met. (Arming condition
is Run, Group Run,
cross arming signal, or
Port In BNC signal).
Edge Triggers on rising or
falling edge from channel 1 or 2.
Pattern Triggers on entering or
exiting logical pattern
specified across channels 1 or 2. Each channel can be specified as
high (H), low (L), or don't
care (X) with respect to
the level settings in the
edge trigger menu.
Patterns must be
>1.75 ns in duration to
be recognized.
______________________________
HP 1660CS-Series
Oscilloscope
Specifications and
Characteristics [1]
[7] Upper bandwidth reduces by 2.5 MHz for every
degree C above 35°C.
[8] Rise time calculated as tr =
0.35
bandwidth
[9] Vertical gain accuracy decreases 0.08% per
degree C from software calibration temperature.
[10] Specification applies at the maximum sampling
rate. At lower rates, replace 150 ps in the formula
with ( 0.15 × sample interval) where sample interval is defined as 1/sample rate.
[11] Specifications (valid within ± 10°C of auto-calibra-
tion temperature)
8
HP 1660CP-Series Pattern
Generator Characteristics
Maximum memory depth 258,048 vectors
Number of output channels at 100 MHz to 200 MHz clock 16
Number of output channels at ≤100 MHz clock 32
Maximum number of “IF Condition” blocks at ≤50 MHz clock 1
Maximum number of different macros 100
Maximum number of lines in a macro 1024
Maximum number of parameters in a macro 10
Maximum number of macro invocations 1,000
Maximum loop count in a repeat loop 20,000
Maximum number of repeat loop invocations 1,000
Maximum number of Wait event patterns 4
Number of input lines to define a wait pattern 3
Maximum width of a label 32 bits
Maximum number of labels 126
Lead Set Characteristics
HP 10474A 8-channel probe lead set Provides most cost effective lead set for the
HP 1660CP-series clock and data pods. Grabbers are
not included.
HP 10347A 8-channel probe lead set Provides 50 Ω coaxial lead set for unterminated signals,
required for HP 10465A ECL Data Pod (unterminated).
Grabbers are not included.
Data Pod Characteristics
HP 10461A TTL DATA POD
Output type 10H125 with 100 Ωseries
Maximum clock 200 MHz
Skew (note 1) typical < 2 ns; worst case = 4 ns
Recommended lead set HP 10474A
HP 10462A 3-STATE TTL/CMOS DATA POD
Output type 74ACT11244 with 100 Ωseries; 10H125 on non 3-state channel 7 (note 2)
3-state enable negative true, 100 KΩ to GND, enabled on no connect
Maximum clock 100 MHz
Skew (note 1) typical < 4 ns; worst case = 12 ns
Recommended lead set HP 10474A
9
ECL/TTL
100 Ω
10H125
100 Ω
74ACT11244
______________________________
The HP 1664A Specifications
and Characteristics
______________________________
The HP 1664A is a low cost version of
the HP 1660C/CS/CP-series logic analyzer family. The HP 1664A has some
specifications and characteristics that
are different from the HP 1660C/CS/CPseries logic analyzers.
The HP 1664A:
• Supports a maximum of 50 MHz state
acquisition
• Supports all modes of timing analysis
• Weight 26 pounds (11.8 kg)
• Altitude To 15,000 ft (4,752 m)
• Boots from the floppy disk drive—it
does not have flash ROM
• It cannot be upgraded to include an
oscilloscope or pattern generator
• Channel count upgrades are not
available
• The mouse and keyboard connectors
are HP HIL standard
• For the optional keyboard order
HP E2427A
• It cannot be upgraded to a C model
• It does not support the HP B3740A
software analyzer software
• It does not support the HP E2450A
Symbol Download Utility
• It does not support the software performance analysis software
• It does not have a hard disk drive
• It cannot have a LAN port added
Clock Pod Characteristics
10460A TTL CLOCK POD
Clock output type 10H125 with 47 Ω
series; true & inverted
Clock output rate 100 MHz maximum
Clock out delay 11ns maximum in 9
steps
Clock input type TTL – 10H124
Clock input rate dc to 100 MHz
Pattern input type TTL – 10H124
(no connect is logic 1)
Clock-in to clock-out approximately 30 ns
Pattern-in to recognition approx. 15 ns + 1 clk
period
Recommended lead set HP 10474A
10463A ECL CLOCK POD
Clock output type 10H116 differential
unterminated; and
differential with 330 Ω
to –5.2V and 47 Ω
series
Clock output rate 200 MHz maximum
Clock out delay 11 ns maximum in 9
steps
Clock input type ECL – 10H116 with
50 KΩ to –5.2v
Clock input rate dc to 200 MHz
Pattern input type ECL–10H116 with
50 KΩ no connect is
logic 0)
Clock-in to clock-out approximately 30 ns
Pattern-in to recognition approx. 15 ns + 1 clk
period
Recommended lead set HP 10474A
HP 10464A ECL DATA POD (TERMINATED)
Output type 10H115 with 330 Ωpulldown, 47 Ω series
Maximum clock 200 MHz
Skew (note 1) typical < 1 ns; worst case = 2 ns
Recommended lead set HP 10474A
HP 10465A ECL DATA POD (UNTERMINATED)
Output type 10H115 (no termination)
Maximum clock 200 MHz
Skew (note 1) typical < 1 ns; worst case = 2 ns
Recommended lead set HP 10347A
HP 10466A 3-STATE TTL/3.3 VOLT DATA POD
Output type 74LVT244 with 100 Ω series; 10H125 on non 3-state channel 7 (note 2)
3-state enable negative true, 100 KΩ to GND, enabled on no connect
Maximum clock 200 MHz
Skew (note 1) typical < 3 ns; worst case = 7 ns
Recommended lead set HP 10474A
Note 1: Typical skew measurements made at pod connector with approximately 10 pF/50 KΩload to GND;
worst case skew numbers are a calculation of worst case conditions through circuits. Both numbers
apply to any channel within a single or multiple module system.
Note 2: Channel 7 on the 3-state pods has been brought out in parallel as a non 3-state signal. By looping
this output back into the 3-state enable line, the channel can be used as a 3-state enable.
Data Cable Characteristics Without a Data Pod
The HP 1660CP data cables without a data pod provide an ECL terminated (1 KΩ to –5.2V) differential signal (from a type 10E156 or 10E154 driver). These are usable when received by a differential
receiver, preferably with a 100 Ωtermination across the lines. These signals should not be used
single ended due to the slow fall time and shifted voltage threshold (they are not ECL compatible).
47 Ω
10H115
– 5.2 V
330 Ω
10H115
100 Ω
74LVT244
47Ω
CLKout
10H125
WAIT
10H124
CLKin
10H116
–5.2 V
VBB
50 kΩ
CLKin
10H116
–5.2 V
330 Ω
47 Ω
CLKout
10
HP 1660CP DATA CABLE OUTPUT
–5.2 V
1 kΩ
1 kΩ
Differential
Output
10E156
or
10E154
–5.2 V
HP 1660C/CS/CP-Series
Ordering Information
HP 1660C/CS/CP Series Benchtop Logic Analyzers
__________________________________________________________________________________________________
HP 1660C 136-Channel 100-MHz State/500-MHz Timing
__________________________________________________________________________________________________________________________
HP 1660CS 136-Channel 100-MHz State/500-MHz Timing with Integrated 2-Channel 1-GSa/s Oscilloscope
__________________________________________________________________________________________________________________________
HP 1660CP 136-Channel 100-MHz State/500-MHz Timing with Integrated 32-Channel 200MVectors /sec Pattern Generator and Ethernet LAN
[13]
__________________________________________________________________________________________________________________________
HP 1661C 102-Channel 100-MHz State/500-MHz Timing
__________________________________________________________________________________________________________________________
HP 1661CS 102-Channel 100-MHz State/500-MHz Timing with Integrated 2-Channel 1-GSa/s Oscilloscope
__________________________________________________________________________________________________________________________
HP 1661CP 102-Channel 100-MHz State/500-MHz Timing with Integrated 32-Channel 200MVectors /sec Pattern Generator and Ethernet LAN
[13]
__________________________________________________________________________________________________________________________
HP 1662C 68-Channel 100-MHz State/500-MHz Timing
__________________________________________________________________________________________________________________________
HP 1662CS 68-Channel 100-MHz State/500-MHz Timing with Integrated 2-Channel 1-GSa/s Oscilloscope
__________________________________________________________________________________________________________________________
HP 1662CP 68-Channel 100-MHz State/500-MHz Timing with Integrated 32-Channel 200MVectors /sec Pattern Generator and Ethernet LAN
[13]
__________________________________________________________________________________________________________________________
HP 1663C 34-Channel 100-MHz State/500-MHz Timing
__________________________________________________________________________________________________________________________
HP 1663CS 34-Channel 100-MHz State/500-MHz Timing with Integrated 2-Channel 1-GSa/s Oscilloscope
__________________________________________________________________________________________________________________________
HP 1663CP 34-Channel 100-MHz State/500-MHz Timing with Integrated 32-Channel 200MVectors /sec Pattern Generator and Ethernet LAN
[13]
__________________________________________________________________________________________________________________________
HP 1664A 34-Channel 50-MHz State/500-MHz Timing
__________________________________________________________________________________________________________________________
11
[12] Upgrade includes cost of installation at a Hewlett-
Packard Service Center. Upgrade is not customer
installable.
[13] Ethernet LAN interface is included standard on the
HP1660CP-series and HP 1670D-series models.
LAN is optional on the HP 1660C-series and
HP 1660CS-series. LAN is not available on the
HP 1664A.
† Channel count upgrades do not apply to the
HP 1664A.
Logic Analyzer Probes
________________________________________________________________
Every HP 1660-Series logic analyzer ships standard with a complete probe kit that contains all of the
acquisition cables (p/n 01660-61605), lead sets (01650-61608), grabbers (5090-4356) and other accessories that you require for general purpose logic analysis. The HP 1660CP-Series requires the appropriate clock and data pods to be ordered as options as noted below.
Additional HP 1660C/CS/CP Series Product Options
________________________________________________________________
Option 015 Ethernet LAN interface
[13]
Option 0B1 Extra User Manual
Option OB3 Add Service Manual
Option OBF Add Programming Manual
Option 908 Rack Mount Kit
Option UK9 Front Panel Cover
Option W30 3-Year extended repair service
Option W50 5-Year extended repair service
________________________________________________________________
HP 1660CP Series Required Product Options
________________________________________________________________
Option 011 TTL Clock Pod and Lead Set (1 ea 10460A + 1 ea 10474A)
Option 012 3-state TTL/3.3V Data Pod and Lead Set (1 ea 10466A + 1 ea 10474A)
Option 013 3-state TTL/CMOS Data Pod and Lead Set (1 ea 10462A + 1 ea 10474A)
Option 014 TTL Data Pod and Lead Set (1 ea 10461A + 1 ea 10474A)
Option 021 ECL Clock Pod and Lead Set (1 ea 10463A + 1 ea 10474A)
Option 022 ECL (terminated) Data Pod and Lead Set (1 ea 10464A + 1 ea 10474A)
Option 023 ECL (unterminated) Data Pod and Lead Set (1 ea 10465A + 1 ea 10347A)
________________________________________________________________
Note: For the pattern generator of HP 1660CP-series, please order at least one clock pod and at least one
data pod for every eight (8) output channels from the above options or accessories listed on page 12.
HP 1660C/CS/CP Series Upgrades
________________________________________________________________
HP E2460CS [12] Upgrade to add two-channel 1-GSa/s, 250-MHz BW oscilloscope to any of the
HP 1660CS series (oscilloscope upgrade does not apply to HP 1660A-series)
_________________________________________________________________________________
HP E2495A [12] Upgrade to add 32-channel, 200 M Vectors/sec pattern generator (this
upgrade does not apply to the HP 1660CS-series and HP 1664A)
_________________________________________________________________________________
HP E2427B Add keyboard with DIN connector (PC style)
_________________________________________________________________________________
HP E2427A Add keyboard with HIL connector (HP 1664A only)
_________________________________________________________________________________
HP E2472A [12] Upgrade to add LAN capability to HP 1660C/CS series (this upgrade does not
apply to the HP 1664A)
_________________________________________________________________________________
HP E2460B†[12] Upgrades HP 1661C/CS to 136-channel HP 1660C/CS model, option 001
upgrades channel count of HP 1662C/CS to 1660C/CS, option 002 upgrades
channel count of HP 1663C/CS to 1660C/CS
_________________________________________________________________________________
HP E2461B†[12] Upgrades HP 1662C/CS to 102-channel 1661C/CS model, option 001 upgrades
channel count of 1663C/CS to 1661C/CS
_________________________________________________________________________________
HP E2462B†[12] Upgrades HP 1663C/CS to 64-channel 1662C/CS model
_________________________________________________________________________________
HP E2469A [12] Upgrade HP 1660A/AS series to HP 1660C/CS series (includes LAN capabili-
ty—do not order additional HP E2472A)
_________________________________________________________________________________
Accessory Software
______________________________
HP B3740A Software Analyzer
Opt AJ4 IBM, 3.5" Media/Documentation
Opt AAY HP 9000 Series 700
Media/Documentation
Opt AAV SUN (Solaris and SUN OS)
Media/Documentation
Opt UDY IBM Single User License
Opt UBY HP 9000 Series 700 Single User
License
Opt UBK SUN (Solaris and SUN 0S) Single
User License
______________________________________
HP 10391B Inverse Assembler
Development Package
______________________________________
State/Timing Analyzer Probes & Lead Sets
________________________________________________________________
HP 5959-9333 Five grey probe leads for HP 1660X-Series
________________________________________________________________________________
HP 5959-9334 Five short ground leads for HP 1660X-Series
________________________________________________________________________________
HP 5959-9335 Five long ground leads for all state and timing
________________________________________________________________________________
HP 01650-61608 16-Channel probe lead set for state and timing analyzers
________________________________________________________________________________
HP 01650-63203 Termination adaptor for state and timing analyzers
________________________________________________________________________________
HP 1810-1278 9-Channel IC termination (DIP)
________________________________________________________________________________
HP 1810-1588 Termination IC SIP
________________________________________________________________________________
HP 1251-8106 2 × 10, 0. 1-inch center header (Similar to 3M p/n 2520-6002)
________________________________________________________________________________
HP 5090-4356 Surface-mount grabbers (package of 20)
________________________________________________________________________________
HP 5959-0288 Throughhole grabbers (package of 20)
________________________________________________________________________________
Other Accessories for HP Logic Analyzers
________________________________________________________________________________
HP 1180B Testmobile for HP 1660-series
________________________________________________________________________________
HP 92199B Power strip
________________________________________________________________________________
HP 5041-9456 Front cover for HP 1660-series
________________________________________________________________________________
HP 5062-7379 Rack mount kit for HP 1660 Series
________________________________________________________________________________
Oscilloscope Probes and Accessories
[1]
________________________________________________________________________________
HP 10433A 10:1, 10 MΩ, 10 pF mini-probe, 2 m
________________________________________________________________________________
HP 10437A 1:1, 50 Ω mini-probe, 2 m
________________________________________________________________________________
HP 10439A 1:1, 1 MΩ, 64 pF mini-probe, 2 m
________________________________________________________________________________
HP 10440A 100:1, 10 MΩ 2.5 pF mini-probe, 2 m
________________________________________________________________________________
HP 10441A 10:1, 10 MΩ, 9 pF mini-probe, 2 m
________________________________________________________________________________
HP 1145A Dual 10:1, 1.6pF, 1 MΩactive probe
________________________________________________________________________________
Pattern Generator Accessories
_______________________________________________________________________________
HP 10460A TTL Clock Pod for the HP 1660CP-series
_______________________________________________________________________________
HP 10461A 8-channel TTL Data Pod for the HP 1660CP-series
_______________________________________________________________________________
HP 10462A 8-channel 3-state TTL/CMOS Data Pod for the HP 1660CP-series
_______________________________________________________________________________
HP 10463A ECL Clock Pod for the HP 1660CP-series
_______________________________________________________________________________
HP 10464A 8-channel ECL (terminated) Data Pod for the HP 1660CP-series
_______________________________________________________________________________
HP 10465A 8-channel ECL (unterminated) Data Pod for the HP 1660CP-series
(use HP 10347A lead set)
_______________________________________________________________________________
HP 10466A 8-channel 3-state TTL/3.3V Data Pod for the HP 1660CP-series
_______________________________________________________________________________
HP 10474A 8-channel Probe Lead Set for the HP 1660CP-series
_______________________________________________________________________________
HP 10347A 8-channel (50-ohm Coaxial) Probe Lead Set
_______________________________________________________________________________
Related HP Literature
_______________________________________________________________________________
Title Publication Description HP Pub. Number
_______________________________________________________________________________
HP 1660C/CS-Series and HP 1670D-Series
Color Brochure 5964-3665E
Logic Analyzers
_______________________________________________________________________________
The HP 1660CP-Series Logic Analyzers With
Color Photo Card 5966-1490E
Integrated 32-Channel 200 mVectors/Sec
Pattern Generator
_______________________________________________________________________________
The HP 1670-Series Benchtop Logic Analyzers
Technical Specifications 5964-3666E
_______________________________________________________________________________
Introduction to the HP 1660C/CS and
Video (NTSC) 5965-7501EUS
1670D-Series Logic Analyzers
Video (PAL) 5965-7501E
_______________________________________________________________________________
Warranty Information
All Hewlett-Packard products described in this document are warranted against defects in material and workmanship for a period of one year from date of shipment. Option W03 provides a threemonth on-site warranty in lieu of the standard one-year return-to-HP warranty. Three-year and
five-year return-to-HP repair services are also available. Refer to individual product manuals for
detailed descriptions and terms of warranty.
For more information about
Hewlett-Packard test & measurement
products, applications, services, and
for a current sales office listing, visit
our web sites:
http://www.hp.com/go/tmdir
http://www.hp.com/go/logicanalyzer
http://www.hp.com/go/emulator
You can also contact one of the following centers and ask for a test and measurement sales representative.
United States:
Hewlett-Packard Company
Test and Measurement Call Center
P.O. Box 4026
Englewood, CO 80155-4026
1 800 452 4844
Canada:
Hewlett-Packard Canada Ltd.
5150 Spectrum Way
Mississauga, Ontario
L4W 5G1
(905) 206 4725
Europe:
Hewlett-Packard
European Marketing Centre
P.O. Box 999
1180 AZ Amstelveen
The Netherlands
(31 20) 547 9900
Japan:
Hewlett-Packard Japan Ltd.
Measurement Assistance Center
9-1, Takakura-Cho, Hachioji-Shi,
Tokyo 192, Japan
Tel: (81) 426 56 7832
Fax: (81) 426 56-7840
Latin America:
Hewlett-Packard
Latin American Region Headquarters
5200 Blue Lagoon Drive
9th Floor
Miami, Florida 33126
U.S.A.
Tel: (305) 267 4245
(305) 267-4220
Fax: (305) 267-4288
Australia/New Zealand:
Hewlett-Packard Australia Ltd.
31-41 Joseph Street
Blackburn, Victoria 3130
Australia
1 800 629 485 (Australia)
0800 738 378 (New Zealand)
Fax: (61 3) 9210 5489
Asia Pacific:
Hewlett-Packard Asia Pacific Ltd
17-21/F Shell Tower, Times Square,
1 Matheson Street, Causeway Bay,
Hong Kong
Tel: (852) 2599 7777
Fax: (852) 2506 9285
Copyright ©
Hewlett-Packard Company 1997
Technical information in this
document is subject to change
without notice.
5964-3664E 12/97
Printed in the U.S.A.
Additional Ordering Information
[1] Please refer to HP 1664A Product Specifications and Characteristics on page 9.
Loading...
