Agilent 1161A Data Sheet

Agilent Technologies
Infiniium Oscilloscope Probes and Accessories

Data Sheet

Tools to get your job done faster

• Probes

• Accessories

• Input devices

2

The 1160 Family of Miniature Passive Probes

Rugged, general purpose probes for
Agilent Infiniium Oscilloscopes

Before we developed the 1160 family of
miniature probes, we conducted
intensive market research. We used
focus groups, surveys, and interviews
to ask engineers about their
frustrations with probing. We heard
that probes often slip off the test point
being probed and short to adjacent
leads. We heard that a variety of
ground accessories are needed to
connect to different points. And we
were told that reliability is always a
concern. We used this feedback to
guide our development team as we
built the 1160 family of miniature
probes.

No-slip browser

We developed a
new browser
with a crown
point that digs
in to solder,
and won't slip.
Install the
browser over
the probe tip,
and probe
about the
board while
debugging
your circuit.
The pogo pin allows hand movement
without losing contact.

A variety of grounding accessories

The 1160 family probes come with an
alligator lead for general purpose
probing, 4 spring grounds for high
frequency measurements, a socketed
ground lead and SMD clips for probing
50 mil SMD. Also included is a dual
lead adapter so that both the probe tip
and ground can be connected to SMD
devices. For connection to 0.5mm-

0.8mm devices order the optional
10467-687010 0.5mm IC clips.

Reliability

The 1160 family probes are built and
tested for high reliability. The cable has
a Kevlar

®

strengthener for added pull
strength. The general purpose
retractable hook tip has a durable
music wire hook. And probe tips are
replaceable.

Miniature size

To miniaturize the probe, unscrew the
handle and pull it back on the cable.
The miniature probe has a narrow,
sharp tip that is excellent for probing
SMD.

AutoProbe Interface Compatible

The 1160 family probes are compatible
with the AutoProbe Interface, which
completely configures the Agilent
Infiniium Oscilloscope for the probe.
The snap-on BNC connector makes it
easy to attach the probe to the scope.

Browser crown point

1160 probes and accessories

3

Specifications for Agilent Technologies
1160 Family of Miniature Passive Probes

Compatibility

Scope Probe

54810A 1160A, 1162A, 1163A, 1164A
54815A 1160A, 1162A, 1163A, 1164A
54820A 1160A, 1162A, 1163A, 1164A
54825A 1160A, 1162A, 1163A, 1164A
54845A 1161A, 1162A, 1163A

Characteristics

Approximate Propagation Delay

6.7 ns

Maximum Input Voltage

300 V (dc + peak ac), CAT II

Safety

Meets IEC1010-2-31

Pull Strength (BNC to barrel)

≥12 lb static pull

Net Weight

2.6 oz

Environmental Characteristics

Temperature (Operating)

0° C to +55° C

Humidity (Operating)

Up to 95% relative humidity at 40° C

Altitude (Operating)

Up to 4,600 meters (15,000 ft.)

Shock 50 g (400 g tip only)

Ordering Information

1160A 10:1, 10 MΩ, 1.5 m, . . . .$235.00 ea.

miniature passive probe

1161A 10:1, 10 MΩ, 1.5 m, . . . .$235.00 ea.

miniature passive probe

1162A 1:1, 1.5 m, . . . . . . . . . . . .$143.00 ea.

miniature passive probe

1163A 10:1, 500 Ω, low C, . . . . .$235.00 ea.

1.5 m, miniature passive probe

1164A 10:1, 10 MΩ, 2 m, . . . . .$235.00 ea.

miniature passive probe
Each 1160 family probe includes:
1 probe assembly,
1 general-purpose retractable hook tip,
1 browser,
2 barrel insulators,
4 spring grounds,
1 alligator ground lead,
1 socketed ground lead,
1 dual lead adapter,
2 SMD grabbers,
1 spare browser pogo pin,
1 spare probe tip, and 1 screw driver,
1 users’ reference and a three-year
warranty.

E9639A Probe tip to 5mm . . . . . . .$40.00 ea.

socket adapter

5063-2143 Probe tip to BNC (m) . .$12.00 ea.

Available Accessories

10467-68701 0.5 mm IC clips . . .$168.00 ea.

for connection to SMD with
lead spacings of .5mm (.020")
to .8mm (.032")

Replacement Parts

5063-2135 General purpose

retractable hook tip, Qty 2

5063-2140 Alligator ground lead, Qty 2
5063-2120 Socketed ground lead, Qty 1
5063-2115 Browser, Qty 1
5063-2147 Dual lead adapter, Qty 1
5063-2149 SMD clips, Qty 5
01160-68701 Accessory kit

(includes 4 spring grounds,
4 browser pogo pins,
4 barrel insulators,
1 screw driver)

5063-2136 1160A probe tip, Qty 5
5063-2137 1161A probe tip, Qty 5
5063-2138 1162A probe tip, Qty 5
5063-2139 1163A probe tip, Qty 5

Model Type of Probe System Division Input R Input C Scope Compensation Length
Number Bandwidth Ratio Input R Range

(scope +probe)

1160A High Impedance, 500 MHz 10:1 10 MΩ 9 pF 1 MΩ 6 - 9 pF 1.5 m

Passive

1161A High ImpeSce, 500 MHz 10:1 10 MΩ 10 pF 1 MΩ 12 - 14 pF 1.5 m

Passive

1162A High Impedance, 25 MHz 1:1 1 MΩ 50 pF + scope 1 MΩ n/a 1.5 m

Passive capacitance

1163A 500 ΩResistive Divider 1.5 GHz 10:1 500 Ω 1.5 pF 50 Ω n/a 1.5 m

with 54845A

1164A High Impedance, 500 MHz 10:1 10 MΩ 10 pF 1 Ω 6 - 9 pF 2.0 m

Passive

1160 Family Selection Guide

Small, easy-to-connect probes
for Agilent Infiniium Oscilloscopes

As ICs and components continue to
shrink in size, probing has become
increasingly difficult. Developed for
easy connection to fine-pitch ICs,
surface mount components and dense
circuit boards, the 1170 family of low
mass passive probes makes the job of
probing and connecting less frustrating.
With an exceptionally small, light probe
tip (<1 gram), these passive probes
provide the same high-performance
and reliability you've come to expect
from Agilent's high-performance
passive probes. Add an ultra-thin,
flexible cable, and the 1170 probes are
not only easy to connect, they stay put
on the test point.

Easy to connect, Easy to hold

You'd think a probe this small would be
hard to hold, but the 1170-family of
probes plug in to a browser accessory
that makes them as easy to hold as a
conventional probe. This patented
browser concept utilizes a crown point
pogo pin that digs in to solder and
absorbs small hand movement, so
doesn't slip. When used in conjunction
with the Wedge, the 1170 probes
provide a reliable hands-free solution
for probing 0.5-mm and 0.65-mm IC
packages and the probe tip also
connect directly to board headers.

Low capacitive loading

Typical passive probes feature a 10:1
division ratio and a tip capacitance of
approximately 10 pF or more. In sharp
contrast, the 1172A and 1173A's 20:1
division ratio provides a low tip
capacitance of less than 5 pF making
these passive probes much better
suited for the fast rise times of today's
ICs.

Complements your
standard passive probe

The 1170 probes' low mass and
size, combined with the flexibility
provided by the no-slip browser and
the Wedge (see page 14) make it the
ideal supplement to your standard
passive probe. And that can really ease
fine pitch frustrations. The 1170 family
of probes include IC clips, miniature
socketed leads and a complete
selection of probing and grounding
accessories.

E2652A and E2653A
Fine-Pitch Probing Kits

A complete solution, a bargain price!

The fine-pitch probing kits take
the 1170-family of probes and add
the most useful fine-pitch probing
accessories to give you a versatile
and complete probing solution.
Each kit include 2 1170-family
probes and its’ accessories, 2 of
the 0.5 mm Wedge probe adapters,
4 of our 0.5 mm IC clips and
10 standard IC clips. All for a
price substantially less than
the individual parts.

4

The 1170 Family of Low Mass Passive Probes and Fine-Pitch Probing Kits

Compatibility

Scope Probe

54810A 1170A, 1172A
54815A 1170A, 1172A
54820A 1170A, 1172A
54825A 1170A, 1172A
54845A 1171A, 1173A

Characteristics

Approximate Propagation Delay

7 ns, 6.5, 6.0, 5.5

Maximum Input Voltage

40V (dc + peak ac), CAT I

Safety

Meets IEC1010-2-31

Pull Strength (BNC to probe tipl)

≤12 lb static pull

Net Weight

2.6 oz

Probe Tip Weight

< 1 gram

Environmental Characteristics

Temperature (Operating)

0° C to +55° C

Humidity (Operating)

Up to 95% relative humidity at 40° C

Altitude (Operating)

Up to 4,600 meters (15,000 ft.)

Shock

50 g (400 g tip only)

Ordering Information

Low Mass Passive Probes

1170A 10:1, 10 MΩ , 1.5 m, . . .$235.00 ea.

low mass passive probe

1171A 10:1, 10 MΩ , 1.4 m, . . .$235.00 ea.

low mass passive probe

1172A 20:1, 10 MΩ , 1.3 m, . . .$235.00 ea.

low mass passive probe

1173A 20:1, 10 MΩ , 1.2 m, . . .$235.00 ea.

low mass passive probe
Each 1170A family probe includes:
1 probe assembly,
1 browser, 2 probe pins,
2 pogo pins, 2 IC clips,
1 screwdriver,
1 alligator ground,
1 socketed ground,
1 walking stick ground,
1 ground extender and a user's guide.

Fine Pitch Probing Kits

E2652A Fine-pitch probing kit . .$500.00 ea.

for 54810/15/20/25A

E2653A Fine-pitch probing kit . .$500.00 ea.

for 54845A

Each kit includes:

2 1172A (E2652A) or
1173A (E2653A) low mass probes
and their accessories,
2 x 0.5 mm Wedge Probe Adapters,
4 x 0.5 mm IC clips, 10 x std IC clips.

Fine Pitch IC Probing Accessories

E2613B Wedge probe adapter, . . $79.00 ea.

5mm, 3-signal, Qty 2

E2614A Wedge probe adapter, . . $79.00 ea

5mm, .8-signal, Qty 1

E2615B Wedge probe adapter, . . $79.00 ea.

65mm, 3-signal, Qty 2

E2616A Wedge probe adapter, . . $79.00 ea.

65mm, 8-signal, Qty 1

10467-68701 0.5mm IC clips . . .$168.00 ea.

for surface SMT parts with leg
spacing of .5mm (.020") to
.8mm (0.32 "), Qty 4

Other Accessories

E9638A Probe tip to . . . . . . . . . . .$20.00 ea.

BNC (m) adapter

Replacement Parts

E2642A Accessory replacement . $75.00 ea.

kit

5

1170 Family Selection Guide

Model Type of Probe System Division Input R Input C Scope Compensation Length
Number Bandwidth Ratio Input R Range

(scope +probe)

1170A High Impedance, 500 MHz 10:1 10 MΩ 9pF 1 M 6 - 9 pF 1.5 m

Passive

1171A High Impedance, 500 MHz 10:1 10 MΩ 10 pF 1 M 12 - 14 pF 1.4 m

Passive

1172A High Impedance, 500 MHz 20:1 10 MΩ < 5 pF 1 M 6 - 9 pF 1.3 m

Passive

1173A High Impedance, 500 MHz 20:1 10 MΩ < 5 pF 1 M 12 - 14 pF 1.2 m

Passive

Nonintrusive, reliable probing provides
faithful reproduction of signals

The 1152A’s bandwidth, superior
accuracy, and reliability make it an
ideal companion for the 54845A

1.5 GHz bandwidth oscilloscope.

Nonintrusive

The low input capacitance of the
active probe eliminates distortion
caused by excessive loading.
As frequency increases, probe tip
capacitance decreases the impedance

of the probe by Xc = 1/(2π fC), resulting

in measurement error, depending on
the source impedance of the output
device. The 1152A’s low tip capacitance
becomes a distinct advantage as
frequency increases.

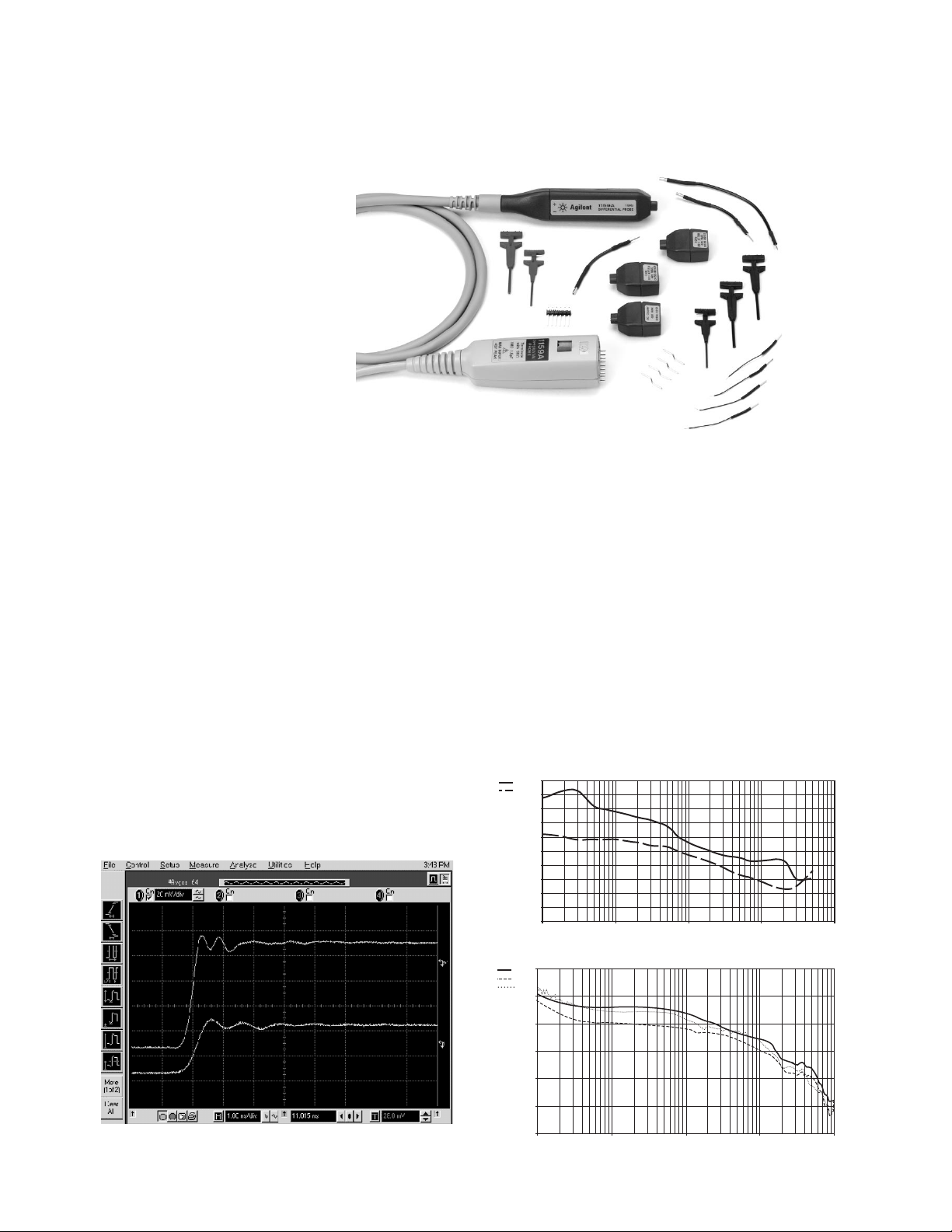

Compare Active and Passive Probe
Performance

See how the 1152A active probe

compares to a 50 Ω coaxial cable and

an 1161A passive probe when probing
a 1 ns edge. The higher bandwidth and
nonintrusiveness of the active probe
result in faithful reproduction of the
signal.

6

Agilent 1152A 2.5 GHz Active Probe for Infiniium Oscilloscopes

Agilent 1152A probe and accessories

Faithful Reproduction of high frequency edges… even with no ground lead

50 Ω cable

1152A probe
1161A probe

50 Ω cable

1152A probe
1152A probe with no
ground lead

See how well the 1152A reproduces this 600 ps edge - even with no ground lead attached.

Faithful reproduction

• 2.5-GHz bandwidth

• 140-ps rise time

• 1% long-term flatness

• ±0.5% dc gain accuracy

The 1152A active probe offers digital
designers 2.5 GHz of bandwidth for
extending measurement response,
along with 140-ps rise time for accurate
measurement of fast signals. Adding 1%
long-term flatness, and ±0.5% dc gain
accuracy, results in a clearer
representation of the input signal than
ever before possible.

Superior reliability

• 200-Vac max input tolerance

• ±12-kV ESD tolerance

• Pliable, replaceable probe tips

• ±5-V dc + peak ac

The 1152A’s microcircuits are
protected by their ability to withstand
damage from high-input voltage, ESD
pulses, and shock to the probe tips.
The 1152A’s probe tips are rigid enough
for probing, yet pliable enough to bend
if dropped, protecting the microcircuits
from damage. In addition, the probe
tips are easy and inexpensive to
replace. You’ll appreciate the reliability
and ruggedness of the 1152A.

AutoProbe Interface Compatible

The 1152A is compatible with the
AutoProbe Interface which completely
configures the Infiniium Oscilloscope
for the probe. The interface recognizes
the probe, and automatically sets up

the proper power, 50 Ω impedance and

offset range.

Characteristics

Bandwidth (-3dB)*

>2.5 GHz

System Bandwidth with 54845A

1.3 GHz with 54810A/15A/20A/25A
500 MHz

Risetime (10% to 90%)

<140 ps calculated from tr =
(0.35/bandwidth)

Attenuation Factor*

10:1

dc Input Resistance*

100 kΩ±1%

dc Gain Accuracy*

±0.5% (with 50 ± 0.1 Ω load)

Input Capacitance

0.6 pF (typical)

Flatness (with input edge ≥170 ps)

< 3 ns from rising edge

±6%

> 3 ns from rising edge

±1%

Dynamic Range (< 1.5% gain compression)

±5 V dc + peak ac

dc Offset Accuracy

±1% of offset ±1 mV

Offset Adjustment Range

±20 V at the probe tip

Offset Gain

4.6 V/mA

RMS Output Noise (dc to 2.5 GHz with input

loaded in 50 Ω)

< 300 µV

Propagation Delay

7.5 ns (approximately)

Maximum Input Voltage

±40 V (dc + peak ac (< 20 MHz)),
CAT I

ESD Tolerance (150 Ω/150 pF)

±12 kV

Power Requirements from AutoProbe Interface

+12 V @ 5 mA max

-12 V @ 95 mV max
+4 V @ 90 mA max

Net Weight

4.9 oz

Safety

Meets IEC1010-2-31

Environmental Characteristics

Temperature (Operating)

0° C to +55° C

Humidity (Operating)

Up to 95% relative humidity at 40° C

* Denotes specified parameters. All others are

characteristics.

Ordering Information

1152A Active Probe . . . . . . . . .$2,450.00 ea.

Each 1152A includes:

1 walking stick ground (5960-2491),
5 single-contact sockets (1251-5185),
1, 2-inch ground wire, attachable to

walking stick 01650-82103),

1, 4-inch alligator ground wire,

attachable to probe tip ground

(01123-61302),
1 standard replacement tip (54701-26101),
2 sharp probe tips (5081-7734),

1 200-Ω signal lead (54701-81301),

1 User and Service Guide,
and a one-year warranty.

7

High-bandwidth probing for differential
signals

• dc to 200-MHz bandwidth

• AutoProbe Interface compatible

• ±200 V (dc + peak ac) maximum
allowable input without attenuators

• 3000:1 CMRR at 1 MHz

• Low frequency reject

• Superior tolerance to ESD

• Low dc thermal drift

• Rugged construction

• Easy-to-attach, snap-on BNC

The Agilent 1153A is a 1:1 FET
differential probe with 200 MHz
bandwidth and 3000:1 CMRR (Common
Mode Rejection Ratio) at 1 MHz. The

probe has an input resistance of 1 MΩ

and low input capacitance of 7 pF to
minimize circuit loading.

AutoProbe Interface Compatible

The 1153A is compatible with the
Agilent AutoProbe Interface
which completely configures the
Agilent Infiniium Oscilloscope for the
probe. The probe interface recognizes
the probe and automatically sets up
the proper power, coupling modes,

50 Ω impedance and offset range.

Reliability

The 1153A is designed for reliability
through use of over-voltage protection
circuitry which decreases the probe’s
susceptibility to damage from
electrostatic discharge and other
accidental exposure to excessive
voltage.

We also designed the 1153A to be
rugged. We paid special attention to
isolating critical parts from shock.
With a shell molded of tough ABS­polycarbonate, the 1153A is built for
long life and dependability.

Low dc Thermal Drift

The probe’s dual-path amplifier design
provides superior dc stability by
reducing dc drift to less than 50 µV dc
per °C.

Attenuators, ac Coupling

Two attenuators, 10:1 and 100:1,
are provided to expand the dynamic
range of the inputs up to ±30 V. It also
comes with an ac coupling adapter for
those cases where input dc voltage
level prevents you from using low
frequency reject.

Low Frequency Reject

Lf reject, like ac coupling, blocks the dc
component in a signal without
degrading low-frequency CMRR, which
occurs when you use blocking
capacitors to accomplish ac coupling
(see the graph above).

8

A great combination of high CMRR, high input voltage and 200-MHz bandwidth

1153A probe and accessories

10000:1

DC/Lf Reject
Typical:

DC/Lf Reject
Minimum:

10:1 attenuator
100:1 attenuator

AC Coupler

5000:1
2000:1
1000:1

100:1

10:1

3:1

1:1

10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz 10 MHz 100 MHz

Characteristics

Bandwidth (-3dB)*

dc to 200 MHz1

System Bandwidth 54800 Family

200 MHz

Risetime

1.75 ns calculated from tr =
(0.35/bandwidth)

dc Gain Accuracy*

2%(with 50 ± 0.1 Ω load)

dc Attenuator Accuracy

2%

Linear Differential Input Range

±0.3 V (1:1) ;
±3.0 V (10:1)
±30 V (100:1)

dc Offset

±18 V (1:1);
±180 V (10:1)
±500 V (100:1)

Common Mode Operating Range

dc: ±18 V (1:1); ±180 V (10:1)

±500 V (100:1)

dc to 30 Hz:

linearly decreased to 30 Hz value.

30 Hz to 200 MHz:

±0.5 V (1:1);
±5 V (10:1);
±50 V (100:1)
(voltages are peak voltage)

Maximum Allowable Input Voltage*

200 V (dc + peak ac) CAT I, 1:1
500 V (dc + peak ac) CAT I,
with attenuators common or
differential modes

Input Coupling

dc, lf reject, and ac.
Ac coupling is provided via an
adapter that attaches to the probe.
Lf reject response (-3dB) is
selectable independent of
attenuators at 1.7 Hz (LFR1) and

0.14 Hz (LFR2)

CMRR*

See graph on previous page

ac Coupling

15 Hz (1:1); 1.5 Hz (10:1)
Low-Frequency Response (-3dB)
w/ac coupling adapter and input

1.5 Hz (100:1) coupling set to dc

dc Thermal Drift

≤50 µV dc/°C

Input RC R C

1:1 1 MΩ 7 pF
10:1 9 MΩ 3.5 pF
100:1 10 MΩ 2.0 pF

Output Termination Impedance

50 Ω

Power Requirements from the AutoProbe
Interface

+12 V @ 33 mA max

-12 V @ 16 mA max
+6 V @ 80 mA max

-6 V @ 130 mA max

Safety

Meets IEC 1010-2-31

Environmental Characteristics

Temperature
Operating 0° C to +55° C
Non-operating

-40° C to +70° C

Humidity
Operating 95% relative humidity at 40° C
Non-operating

90% relative humidity at 65° C

Altitude
Operating up to 4,600 m (15,000 ft)
Non-operating

up to 15,300 m (50,000 ft)

* Denotes specified parameters. All others are
characteristics.

1 For maximum signal fidelity, above 100 MHz, limit
probe output into

50 Ω to ≤ 300 mV peak to peak.

Ordering Information

1153A Differential probe . . . . .$1,810.00 ea.

Each 1153A includes:
2 voltage attenuators,
10:1 and 100:1,
ac coupling adapter,
5 probe leads,
2 probe clips,
Operating and Service Manual,
calibration adapter,
ground lead,
and one-year warranty.

Accessories

5959-9335 Long (5.5”) test lead, .$29.40 ea.

Qty. 5

5090-4356 SMD clips, Qty. 20 . . . $35.70 ea.
10467-68701 0.5 mm IC clips . .$168.00 ea.

for surface SMT parts with
leg spacing of 0.5mm (.020”)
to 0.8mm (.032”), Qty. 4

9

High-bandwidth probing for differential
signals

• Choice of models: 1 GHz and
500 MHz with 10X gain

• 1:1 attenuation for low amplitudeV
signals

• External attenuators and ac coupler

• Small size and rugged construction

• Autoprobe Interface compatible

The Agilent 1154A and 1159A high­bandwidth differential probes help you
get a better look at the small, fast
signals prevalent in today's designs.
The 1159A gives you 1 GHz bandwidth
and 1:1 attenuation, making it ideal for
fast, low-voltage signals. The 500-MHz
1154A gives you the added flexibility of
10X gain and 10:1 attenuation for a
broader range of applications.

Agilent 1154A 500-MHz Differential Probe

This high-performance general-purpose
probe has a great combination of
bandwidth and features to help you get
your job done. You'll appreciate its
versatility, with selectable 10X gain and
10:1 attenuation built directly into the
probe, as well as a 10:1 external
attenuator for a maximum of 100:1
attentuation. This 500-MHz probe also
features external ac coupling to
eliminate dc for simplified
measurement of ac voltages.

Agilent 1159A 1-GHz Differential Probe

You don’t have to attenuate the signal
when you're looking at high-speed, low­level signals with the 1159A differential
probe. Because it's a 1:1 probe, the
1159A has TEN times the gain of a
typical 10:1 active or passive probe.
That makes it an essential tool for
dealing with today's fast, low-voltage
differential logic.

This probe is the best choice for
viewing differential clocks and other
low-voltage, high-bandwidth
differential signals. The isolation
provided by the differential probe
makes it easier to characterize these
signals, so finding noise spikes, ground

noise problems and cross coupling is
easier than ever before.

Both probes connect directly to the
Agilent Wedge probe adapter (see
page 14) to make probing fine-pitch
devices easier and more reliable than
ever.

AutoProbe Interface Compatible

Both probes are compatible with the
Agilent AutoProbe Interface, which
completely configures your Infiniium
oscilloscope for the probes. The probe
interface recognizes the probe and
automatically sets up the proper power,

50 Ω impedance, and probe control on

the scope (i.e. Coupling, Offset, internally
selectable attenuation and gain).

Agilent Technologies 1154A and 1159A
500-MHz and 1-GHz Differential Probes

See how well the 1159A differential probe displays this 40 mV signal,
compared to a typical passive probe.

1154A Typical CMRR

10

1159A Typical CMRR

100

/1
/10

90

80

70

60

50

40

CMRR (dB)

30

20

10

0

0.1 1.0 10.0 100.0 1000.0

60

/1
/10
/20

50

Frequency (MHz)

40

30

CMRR (dB)

20

10

0

0.1 1.0 10.0 100.0 1000.0

Frequency (MHz)

Typical Characteristics

1154A 500-MHz probe

Electrical Characteristics

Probe Bandwidth (-3dB)

dc to >500MHz

Rise time

Probe only. 10:1 attenuation.

< 700 ps

Probe only. 1:1*

< 875 ps

Input resistance

Each side to ground

1 MΩ

Input Capacitance

Between inputs10:1*

< 1.6 pF

Between inputs 1:1*

< 3.1 pF

Each side to ground 10:1*

< 3 pF

Each side to ground 1:1*

< 6 pF

Gain and Attenuation

Internal 10X, 1:1, 10:1
External 10:1

Linear Differential Input Range

10x >± 40 mV
1:1 >± 400 mV
10:1 >± 4 V
100:1 >± 40 V

Common Mode Operating Range

1:1 ± 4.2 V
10:1 and 100:1

± 42 V

Maximum allowable input voltage

42 V (dc + peak ac)

Offset

1:1 0.4 V
10:1 4 V
100:1 40 V

Input Coupling

dc
ac coupling provided by external
adapter LF cutoff frequency at

16 Hz
CMRR See graph on previous page.
Output termination impedance

50 Ω

Safety

Meets IEC 1010-2-31

Typical Characteristics

1159A 1-GHz probe

Electrical Characteristics

Probe Bandwidth (-3dB)

Dc to 1GHz

Rise time

Probe only. 1:1*

< 350 ps

Input resistance

Each side to ground

1 MΩ

Input Capacitance

Between inputs 1:1*

< 0.85 pF

Each side to ground 1:1*

< 1.5 pF

Gain and Attenuation

External 10:1; 20:1

Linear Differential Input Range

1:1 >± 400 mV
10:1 >± 4 V
20:1 >± 8 V

Common Mode Operating Range

1:1 ± 4.2 V
10:1; 20:1

± 42 V

Maximum allowable input voltage

42 V (dc + peak ac)

Offset

1:1 0.4 V
10:1 4 V
20:1 8 V
100:1 N/A

Input Coupling

dc
ac coupling provided by external

adapter

LF cutoff frequency at 16 Hz

CMRR

See graph on previous page.

Output termination impedance

50 Ω

Safety

Meets IEC 1010-2-31

Environmental Characteristics

Temperature

Operating

0°C to +50°C

Non Operating

– 40°C to +70°C

Humidity

Operating

80% relative humidity

Non-operating

80% relative humidity at 65°C

Altitude

Operating

Up to 4600 m (15,000 ft)

Non-Operating

Up to 15,300 m (50,000 ft)

Ordering Information

1154A 500 MHz . . . . . . . . . . . .$2,800.00 ea.

Differential probe includes:
10:1 attenuator, ac coupler,
offset pins, ground leads,
SMT leads, wire leads, IC clips.

1159A 1 GHz Differential probe .$3,800.00 ea.

Includes10:1 and 20:1 attenuator,
ac coupler, offset pins,
ground leads, SMT leads,
wire leads and IC clips.

Accessories

01154-82101

1154A/1159A ac coupler

01154-82102

1154A 10:1 attenuator

01159-82104

1159A 10:1 attenuator

01159-82105

1159A 20:1 attenuator

01154-60004 connector kit

contains:
1 header,
4 offset pins,
2 0.5 and
3 0.8 mm ic clips,
1 ground wire,
4 smt leads,
1 wire lead

11

*No external attenuator

• Small and light probe tip

(< 1 gram)

• < 2pF input capacitance and 1 MΩ

impedance

• 750 MHz bandwidth

• 2 channels

• Autoprobe interface

Small, low mass probe tip
for surface mount devices

Talk about big performance in a small
package! The two-channel 1155A low­mass active probe for Infiniium
oscilloscopes combines a probe tip that
weighs less than 1 gram with the
superior performance of an active
probe. It's a powerful combination
ideal for attaching to fine-pitch ICs and
probing surface mount components.

More power to you

The 1155A probe couples high band
width (750 MHz), low input
capacitance (2 pF), and high resistance

(1 MΩ). It's a combination superior to

passive divider probes with higher
input capacitance, because it provides
minimal circuit loading at high and low
frequencies.

Includes the Agilent Wedge.
Provides hands-free probing.

The 1155A comes complete with the
Wedge Probe Adapter for hands-free
probing of 0.5 mm ICs. The Wedge
provides accurate, mechanically
noninvasive and reliable electrical
contact with little chance of shorting.
It's easy to insert and it stays put.

The 1155A Low Mass Active Probe

Typical Input Impedance vs. Frequency

10k 100k 1M 10M 100M 1G

Frequency (Hz)

1M

100k

10k

1k

100

1155 A

1160A

12

Characteristics

Bandwidth (-3dB)

dc to ≥750 MHz

System Bandwidth with 54800 Family

750 MHz

Risetime

≤470 ps

Attenuation Factor

10:1 ± 3%

dc Input Resistance

1 MΩ± 2%

Input Capacitance

2 pF (typical)

Flatness

Less than ± 10% for first 6ns, ± 4%
from 6ns to 20 µs, ± 1.5% thereafter

Input Dynamic Range

0 to 6.0 V

Maximum Input Voltage

±40 V (dc + peak ac), CAT I

Environmental Characteristics

Temperature (Operating)

0° C to +55° C

Humidity (Operating)

Up to 95% relative humidity at 40° C

* Denotes specified parameters.

All others are characteristics.

Ordering Information

Fine Pitch IC Probing Accessories
1155A Low mass, 2-channel . . .$995.00 ea.

active probe. Each includes:
4 probe pins,
5 SMT clips,
2 flexible leads,
2 spacing ground adapters,
2 red and black SMT leads,
1 BNC-to-probe tip adapters,
2 0.5 mm Wedge Probe adapters

E2613B Wedge probe adapter, . .$79.00 ea.

.5mm, 3-signal, Qty 2.

E2614A Wedge probe adapter, . .$79.00 ea.

.5mm, 8-signal, Qty 1

E2615B Wedge probe adapter, . .$79.00 ea.

.65mm, 3-signal, Qty 2

E2616A Wedge probe adapter, . .$79.00 ea.

.65mm, 8-signal, Qty 1

10467-68701 0.5mm IC clips . . .$139.00 ea.

for surface SMT parts with
leg spacing of .5mm
(.020") to .8mm (0.32 "), Qty 4

Other Accessories

E9638A Probe tip to BNC (m) . . . .$20.00 ea.

adapter

13

• Easy connection to surface mount

IC’s

• Safe, with no chance of shorting

• Mechanically non-invasive contact

• 3, 8 and 16-signal versions

• Supports 0.5mm and 0.65 mm TQFP

and PQFP packages

Make the inaccessible accessible with
this non-invasive, problem-free probing
solution

If you've ever tried to probe a surface
mount component, you've probably
experienced one or more of the
following frustrating situations:
Accidentally shorting IC pins together;
electrical and/or mechanical problems
with soldering small wires onto leads;
and/or holding multiple probes and
trying to use your scope at the same
time. The Agilent Wedge Probe Adapter
provides a solution to these
frustrations.

Problem-free probing

There's no need to worry about
accidentally shorting IC pins together
on a delicate component –or worse yet
on an irreplaceable prototype. The
Wedge is easy to insert and it stays put.
There's no need to solder small wires
onto leads. The Wedge is mechanically
non-invasive, so you won't damage the
legs of the IC. Instead, you'll have easy
access to hard-to-reach components.
And that makes testing them hassle­free.

Electrical reliability

The Wedge makes two contact points
with each leg of the IC. This redundant
physical connection increases the
electrical reliability of the connection.
In the Wedge’s low capacitance and
inductance provides superior
performance to many other
alternatives.

Making the inaccessible accessible

The Wedge easily attaches to Infiniium
probes. It connects directly to the
1155A and the 1170A-family of low
mass probes and the dual lead adapter
provided with the 1160A-family of
miniature passive probes.

For more information on how the
Wedge Probe Adapter works with your
Infiniium scope, please refer to
application note 5966-4179.

Characteristics

Operating Voltage

<40 V dc + peak ac

Operating Current

0.5 A maximum

Capacitance Between Contacts

2 pF (typical)(4.3 pf at 1 MHz,
E2643/44A)

Self-Inductance

15 nH (typical)(37 nH at 1 MHz,
E2643/44A)

Contact Resistance

<0.1 Ohm

Ordering Information

Wedge Probe Adapter

E2613B 0.5 mm, 3 signal, . . . . . .$79.00 ea.

qty 2

E2614A 0.5 mm, 8 signal, . . . . . .$79.00 ea.

qty 1

E2615B 0.65 mm, 3 signal, . . . . .$79.00 ea.

qty 2

E2616A 0.65 mm, 8 signal, . . . . .$79.00 ea.

qty 1

E2643A 0.5 mm, 16 signal, . . . .$125.00 ea.

qty 1

E2644A 0.65 mm, 16 signal, . . .$125.00 ea.

qty 1

Each Wedge includes: 1 user's guide and
1 magnifying lens

Accessories

The 1160-family of oscilloscope probes come
with a dual lead adapter. Additional adapters
can be ordered. Use the 5063-2147 dual lead
adapter for 116x probe family.

14

Agilent Wedge Probe Adapter

10467-68701 0.5 mm IC Clips

• Smallest IC clips in the industry to

date

• Probe PQFP and SOIC SMT packages

from 0.5 mm to 0.8 mm (0.020" to

0.032") lead pitch

• Thin clip body allows many IC clips

to be mounted side-by-side

The 0.5 mm IC clips easily attaches to
Infiniium probes. They connect directly
to the 1155A and the 1170A-family of
low mass probes and the dual lead
adapter provided with the 1160A-family
of miniature passive probes.

10467-68701 Characteristics

Length

31.75 mm (1.25 in.)

Tip diameter

.75 mm (.029 in.)

Pin diameter

.75 mm (.029 in.)

BNC Adapters and
Feedthrough terminations

Not all BNC adapters and feedthrough
terminations are the same and making
a bad choice can have a big impact on
your measurement. That’s why
adapters and connectors are the choice
of many professionals the world over
who demand excellence in their
measurement set up.

Ordering Information

10467-68701 0.5 mm IC clips, . .$168.00 ea.

pkg of 4

Feedthrough terminations

10100C BNC (m) to BNC (f) 50 Ohm high

performance feedthrough

11094B BNC (m) to BNC (f) 75 Ohm

feedthrough

BNC to BNC adapters (50 Ohm)

E9620A BNC (m) to BNC (f) Ohm .$14.00 ea.

right angle

E9622A BNC (f) to BNC (f) Ohm . . .$6.50 ea.
E9624A BNC (m) to BNC (m) Ohm .$10.50 ea.

E9625A Tee BNC (m) (f) (f) . . . . . .$12.00 ea.

BNC to BNC adapters (75 Ohm)

E9628A BNC (f) to BNC (f) . . . . . . .$13.25 ea.

E9629A BNC (m) to BNC (m) . . . . .$17.00 ea.

Between series adapters (50 Ohm)

E9621A Type N (f) to BNC (m) . . .$13.25 ea.
E9623A Type N (m) to BNC (m) . . .$14.75 ea.
E9635A Type N (m) to BNC (f) . . .$14.25 ea.

E9631A SMA (m) to BNC (f) . . . . . .$40.00 ea.

E9632A SMA (f) to BNC (m) . . . . .$45.00 ea.

E9633A SMA (m) to BNC (m) . . . .$45.00 ea.

E9634A SMA (f) (gold plated) . . . .$36.00 ea.

to BNC (m)

E9636A SMC (m) to BNC (m) . . .$135.00 ea.

E9626A SMC (f) to BNC (f) . . . . . .$30.00 ea.

E9627A Banana (f) to BNC (m) . . .$55.00 ea.

E9637A BNC (f) to . . . . . . . . . . . . .$19.50 ea.

dual banana (m)

15

0.5 mm IC clips
General Purpose BNC Adapters and Feedthrough Terminations

Typical BNC Connector Impedance

Impedance

Frequency

100kHz 1 Mhz 10 MHz 100 MHz 750 MHz

Accuracy:

1 MHz to 100 MHz: 50Ω/75Ω ± 1%
100 MHz to 300 MHz: 50Ω/75Ω± 3%
300 MHz to 500 MHz: 50Ω/75Ω± 5%

75Ω
50Ω

E2611A Clip-on Trackball

If you don't have the benchspace for a
standard mouse, a clip-on trackball is
available for Infiniium. The trackball
clips into holes on the instrument.
The driver for the clip-on trackball is
pre-installed.

E2610A Keyboard

The E2610A is the keyboard included
with Agilent Infiniium Oscilloscopes.
The small size of this keyboard
occupies less space on your bench or
test cart and it fits neatly into the
Infiniium accessory pouch.

E2612A Touchpad

The E2612A Touchpad has a touch
surface that gives you complete control
of your scope with just the tip of your
finger. The driver for the Touchpad is
pre-installed.

Ordering Information

E2611A Clip-on Trackball . . . . . . . .$59.00 ea.

E2610A Keyboard . . . . . . . . . . . . . .$49.00 ea.

E2612A Touchpad . . . . . . . . . . . . .$77.00 ea.

16

Input devices for Agilent Infiniium Oscilloscopes

E2609A Rackmount Kit

The rackmount kit provides a
support shelf and hardware for
mounting Infiniium into EIA standard
[19-in (487-mm)] rack cabinets. When
installed, the instrument occupies 5
vertical increments [8.75 in (222 mm)].

1182B Testmobile

The 1182A is a testmobile for use with
Agilent Infiniium Oscilloscopes. Large,
easy-to-maneuver wheels let you move
your scope with ease from place to
place. Supports monitor and printer
with sliding drawer for accessories.

1184A Testmobile

Made tough for years of sturdy
performance, the 1184A Testmobile
features large wheels that get you
where you want to go in no time - with
no tipping. Includes bottom drawer for
accessories, slide-out mouse tray for
right- or left-handed operation, and
support for monitor and printer.

E2617A Transit Case

The E2617A Infiniium Oscilloscope
Transit Case is one heavy-duty, hard
cover carrying case. Ideal for
transporting oscilloscopes away from
the lab, it's constructed from rugged
A.B.S. with rubber-grip, steel handles
and steel latches. Pull-out handles and
smooth-rolling wheels make moving
your instrument easy. The case can
also be padlocked (not included).

Ordering Information

Rackmount Kit

E2609A Rackmount kit . . . . . . . . .$425.00 ea.

Each kit includes: a support shelf,
2 rackmount rails,
1 Touchpad (E2612A),
2 brackets, hardware,
and a user's reference.

Rackmount Accessories

1494-0015 Rackmount slide kit . .$120.00 ea.

Testmobile

1182B Testmobile . . . . . . . . . . . .$575.00 ea.

1184A Testmobile . . . . . . . . . . .$1,000.00 ea.

Testmobile Accessories

35181H Printer/plotter stand . . . .$125.00 ea.

35181K Work surface . . . . . . . . .$125.00 ea.

(550 x 305 mm)

35181E Antistatic mat for 35181D .$75.00 ea.

35181J 89 mm (3.5 in) high . . . .$150.00 ea.

Storage drawer, support shelf

35181M 133 mm (5.25 in) high . .$175.00 ea.

Storage drawer, support shelf

92199B Power strip (U.S.) . . . . . . .$36.00 ea.

(5 receptacles)

92199E Power strip (IEC 320) . . . . .$45.00 ea.

(4 receptacles)

International use of 92199E requires one or
more of the cable assemblies below:

8120-1575 Cable, 762 mm (30 in) $12.00 ea.
8120-2191 Cable, 1.5 m (60 in) . .$12.00 ea.

with right angle plug

5181-8707 IEC-320 Male . . . . . .$12.00 ea.

Power cable adapter

Transit Case

E2617A Infiniium transit case . . .$450.00 ea.

17

Rack or Pack Your Agilent Infiniium Oscilloscopes.

1184A Testmobile

2609A Rackmount Kit

1144A 800-MHz Active probe . . .$730.00 ea.

Request Technical Data Sheet
5091-7935

(requires 1142A . . . . . . . . . . .$852.00 ea.

power supply)

01144-61604 Probe power . . . . . .$42.00 ea.

extender (required when using
more than 2 1144A active probes)

1146A Oscilloscope AC/DC . . . .$407.00 ea.

current probe
Request Technical Data Sheet
5965-5689

10076A 250 MHz, 100:1, 4 kV . .$200.00 ea.

passive probe

18

Other Probes Compatible
with Agilent Infiniium Oscilloscopes

19

Ordering Information www.agilent.com

1-800-452-4844

Call the measurement experts at
Agilent Technologies

For more information on Agilent
Infiniium oscilloscopes, the Infiniium
Communication Mask Testing option,
“VoiceControl option, Software and
Hardware upgrades, Agilent Infiniium
probes and accessories, or other Test
and Measurement products, call today
to talk to a knowledgeable engineer
about your particular application.
Or visit our website at:

www.agilent.com/find/infiniium2

Additional Publications

Here are some additional Infiniium
publications you may want to request:

Agilent Infiniium Product Brochure
5968-3831EUS

Agilent Infiniium Technical Data Sheet
5968-8496EUS

Agilent Infiniium Communication Mask
Test Option Technical Data Sheet
5968-6659EUS

Agilent Infiniium VoiceControl
Data Sheet
5968-7590EUS

Agilent Infiniium Software and
Hardware Upgrades Data Sheet
5968-8496EUS

You can request these by calling
1-800-452-4844, or view and download
them from the Infiniium web site at:

www.agilent.com/find/infiniium2

Data subject to change.
Windows is a registered trademark of
Microsoft Corporation.
© Agilent Technologies 2000
Printed in the U.S.A. 2/00
5968-7141EUS
