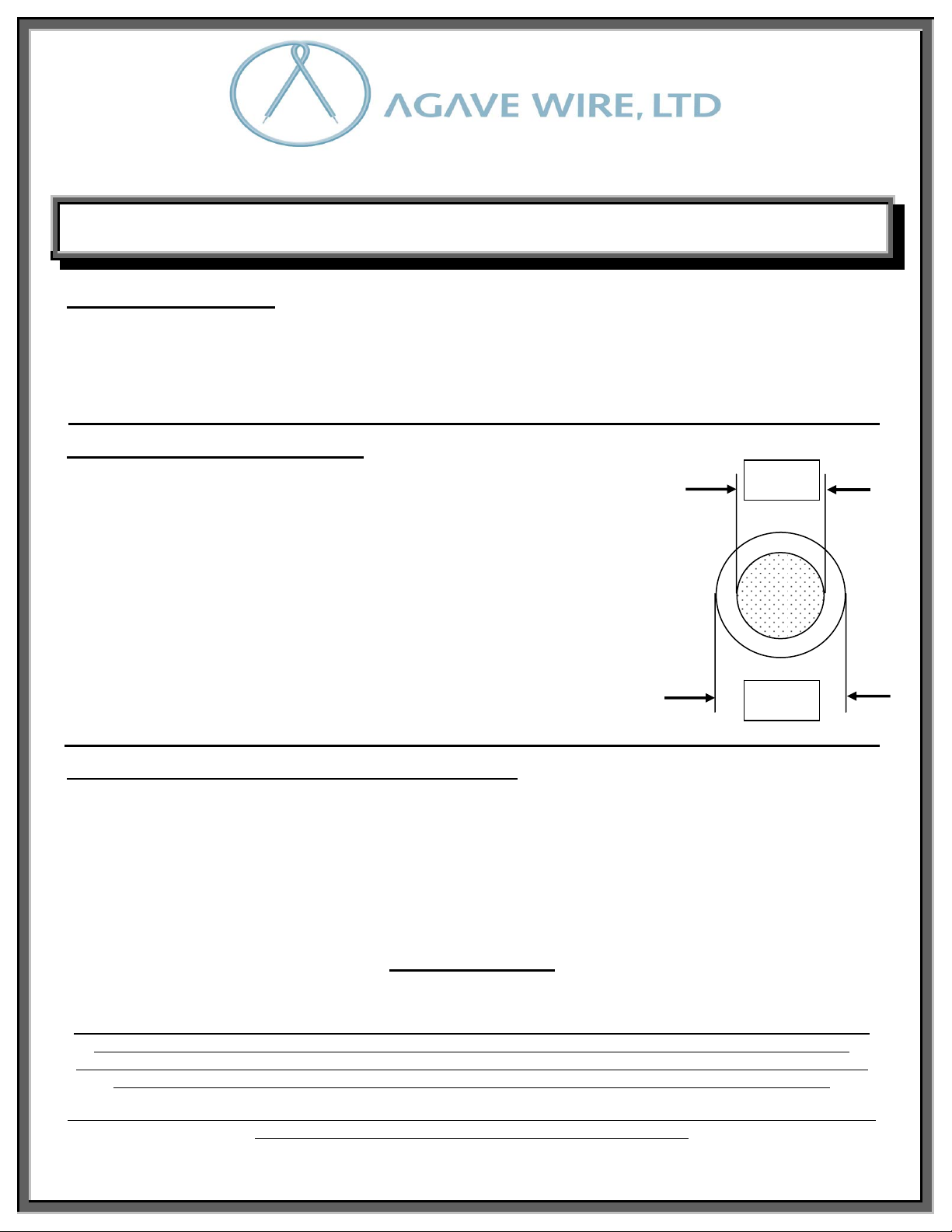

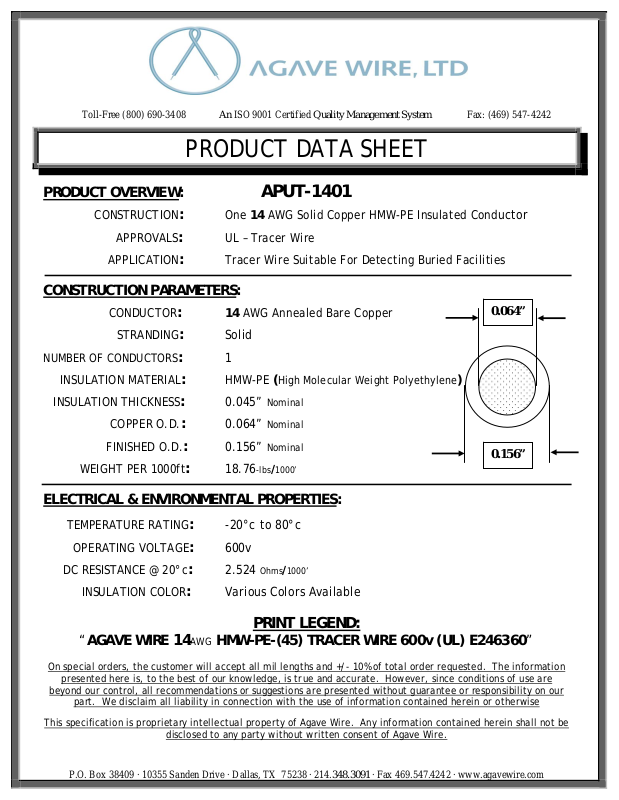

PRODUCT DATA SHEET
PRODUCT OVERVIEW:
CONSTRUCTION
APPROVALS
:
:
One 14 AWG Solid Copper HMW-PE Insulated Cond
UL – Tracer Wire
APUT-1401
APPLICATION: Tracer Wire Suitable For Detecting Buried Facilities
CONSTRUCTION PARAMETERS:
CONDUCTOR: 14 AWG Annealed Bare Copper
NUMBER OF CONDUCTORS
INSULATION MATERIAL
INSULATION THICKNESS
WEIGHT PER 1000ft
STRANDING
COPPER O.D.
FINISHED O.D.
:
:
:
:
:
:
:
Solid
1
HMW-PE
0.045”
0.064”
0.156”
18.76
(
High Molecular Weight Polyethylene)
Nominal
Nominal
Nominal
-lbs/1000’
0.064”
0.156”
ELECTRICAL & ENVIRONMENTAL PROPERTIES:
TEMPERATURE RATING
OPERATING VOLTAGE
DC RESISTANCE @ 20°c:
INSULATION COLOR
:
:
:
-20°c to 80°c
600v
2.524
Ohms/1000’
Various Colors Available
PRINT LEGEND:
uctor
“AGAVE WIRE
On special orders, the customer will accept all mil lengths and +/- 10% of total order requested. The information
presented here is, to the best of our knowledge, is true and accurate. However, since conditions of use are
beyond our control, all recommendations or suggestions are presented without guarantee or responsibility on our
part. We disclaim all liability in connection with the use of information contained herein or otherwise
This specification is proprietary intellectual property of Agave Wire. Any information contained herein shall not be
P.O. Box 38409 · 10355 Sanden Drive · Dallas, TX 75238 · 214.348.3091 · Fax 469.547.4242 · www.agavewire.com
14
AWG HMW-PE-(45) TRACER WIRE 600v (UL) E246360”
disclosed to any party without written consent of Agave Wire.
