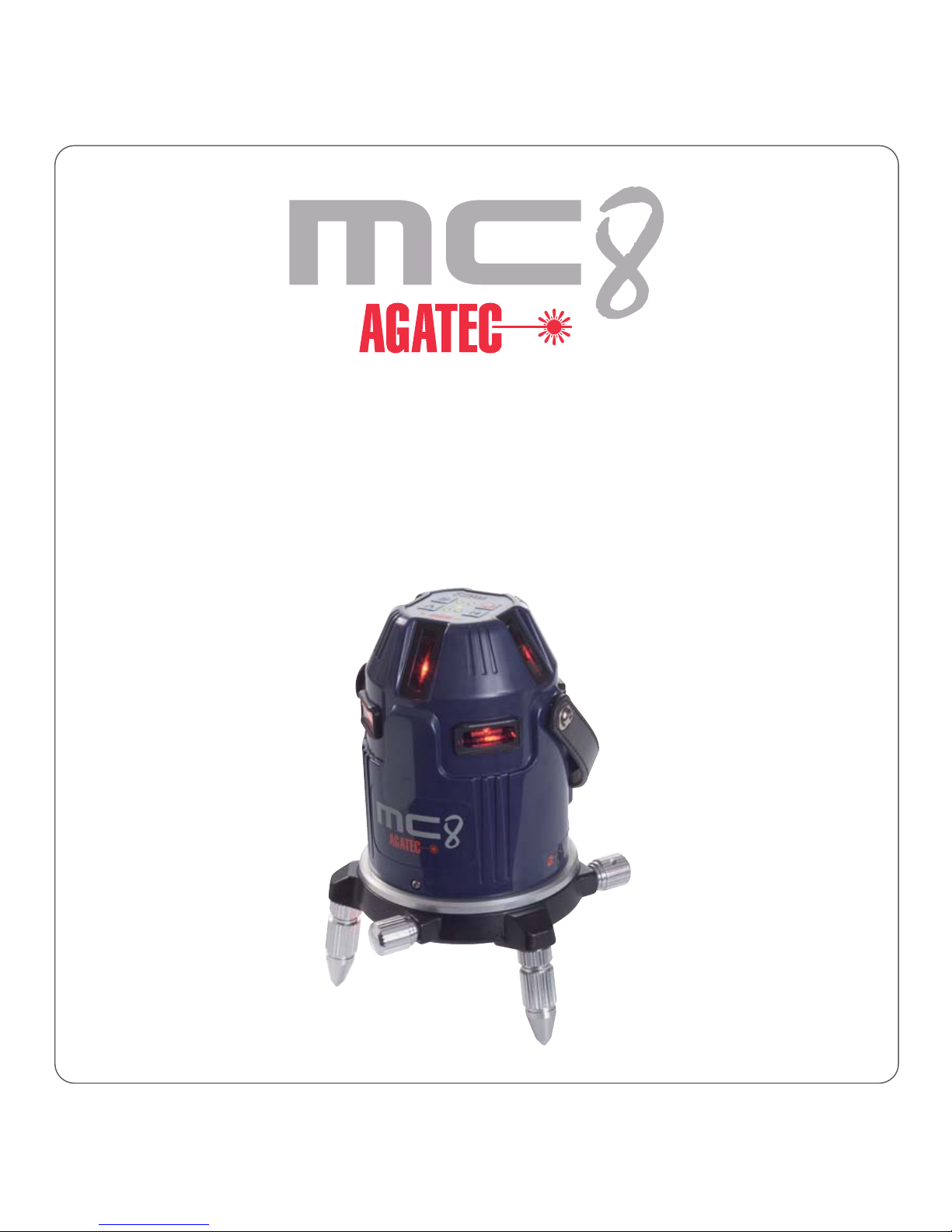

Page 1
Automatic Laser
Page 2
2
General description 3
Case
Control panel
Laser receiver
First steps
Horizontal alignment
Vertical alignment
Plumb beam
Safety directions 8
General
Limits of Use
Responsibilities
Hazards of Use
Laser Classification
Accuracy control
Warranty 14
Technical data 15
Table of contents
Page 3
3
EN
Congratulations!
On choosing this Agatec instrument. You will know, of course, that the name Agatec is synonymous
with high quality, accurate measuring instruments. With the input from professional end users, we
are able to produce cutting-edge, user-friendly equipment.
Agatec MC8
An extremely accurate, professional mains-powered laser whose extra powerful laser diodes provide
ultra-visible beams. Automatic levelling using electronically controlled motors.
Electronic spirit levels guarantee superior stability and extremely precise levelling.

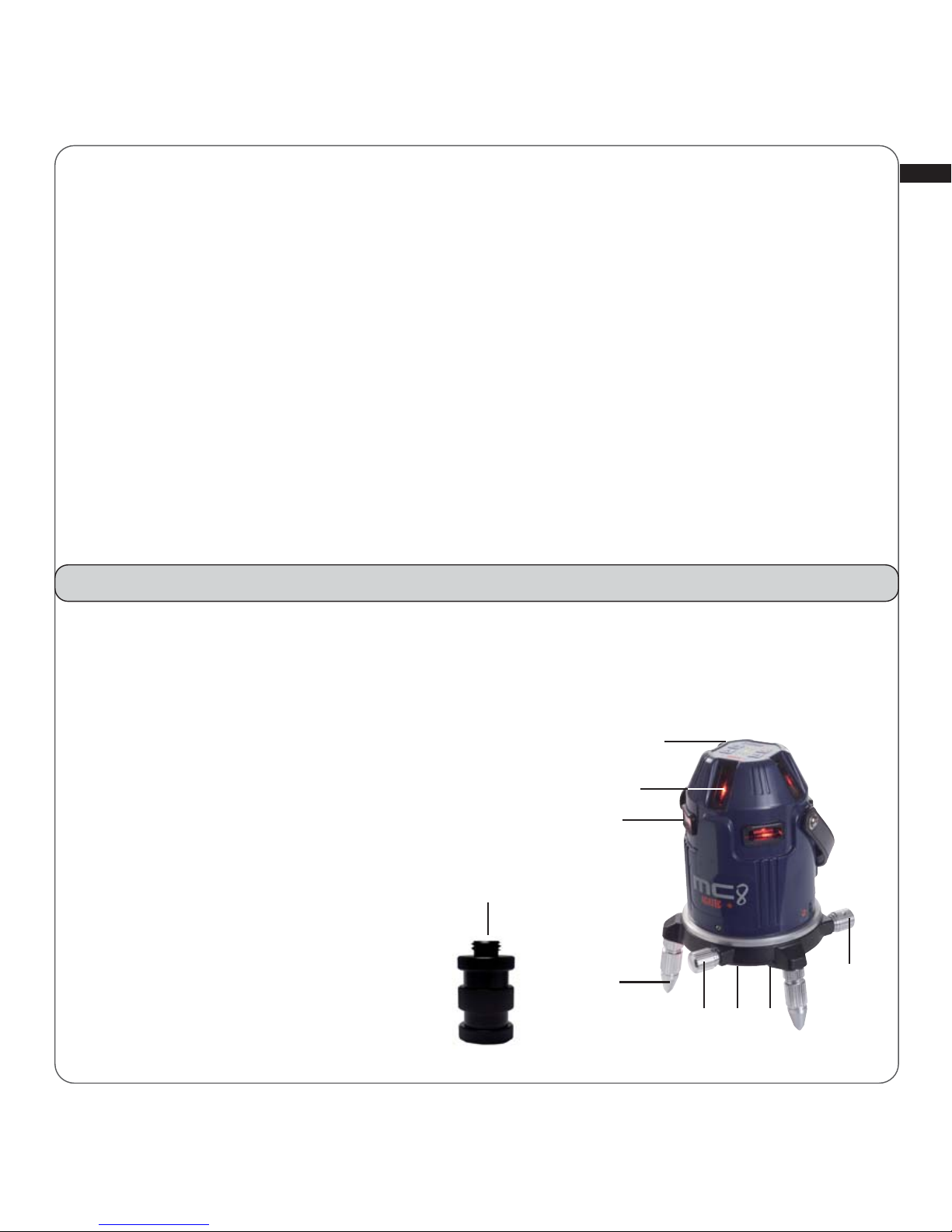

Case
1. vertical laser exit
2. horizontal laser exit
3. rotating case
4. fine adjustment
5. feet
6. plumb beam
7. 5/8 threaded tripod adaptor fitting
8. Tripod adaptor
General description
1
2
5
4
467
8
3
Page 4
4

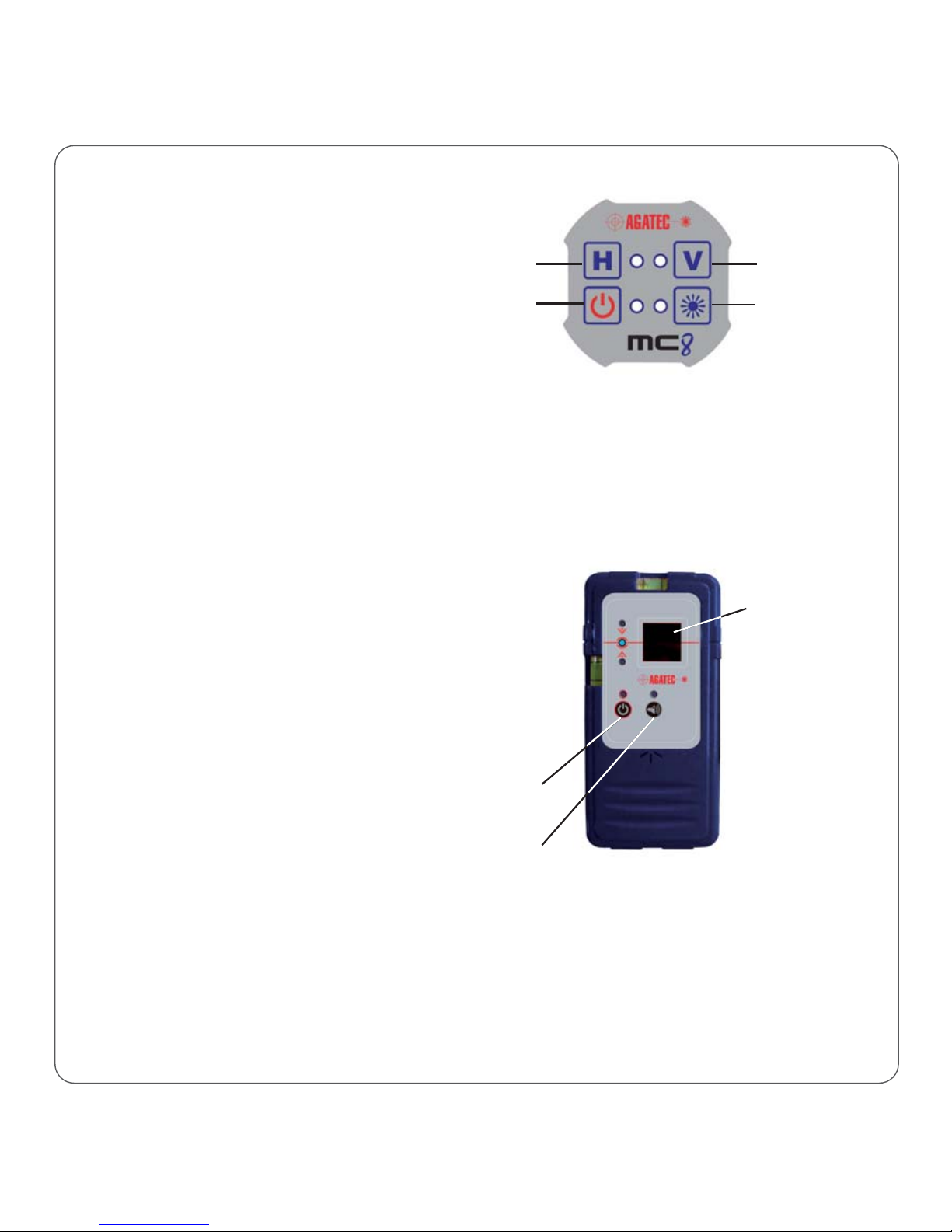

Laser receiver
(optional)
13. on-off switch
14. on-off audible signal
15. receive area
9
11
12
10
Control panel
9. on-off switch
10. vertical laser lines
11. horizontal laser lines
12. outdoor = manual receiver mode
13
14
15
Page 5
5
EN
IMPORTANT!
Before using the instrument, carefully read the instructions for use. Keep the instructions in a safe place for
future reference if required.
1. Whether on or off, keep the instrument out of reach of children.
2. This equipment is a high quality precision instrument which must be handled with care.
3. Take care to avoid jolts and vibration.
4. Always replace the instrument in its carrying case after use.
5. Make sure that the carrying case and the instrument are dry; if not, condensation may occur
inside the instrument.
6. Make sure that the windows are clean, and use only an appropriate cleansing product and soft cloth.
7. Always use the locking device during transportation.
8. Check the accuracy of the instrument regularly, especially at the start of important surveying
operations. You are solely responsible for the accuracy of your work.
9. Do not use any optical instrument such as a magnifying glass to set the laser beam, and pay
attention to reflective objects to avoid damage to the eye.
10. Locate the laser in such a way that it is not possible for any person to observe the laser beam,
whether intentionally or otherwise.
11. Under no circumstances should the instrument be taken apart - this may result in exposure to
powerful laser radiation.
12. The instrument should only be used for the projection of laser lines.
13. Do not use the instrument in wet conditions or near flammable materials.
14. Technical alterations or modifications to the instrument may be made without notice.
15. The manufacturer's responsibility shall in no case exceed the value of the costs of repair or
replacement of the instrument
16. Respect the environment, and do NOT discard the instrument or batteries (including
rechargeables) in the rubbish bin. Dispose of them at a recycling centre.
Page 6
6
First steps
• Remove any protective plastic film where applied.
• Charge the rechargeable batteries using the battery charger.
• The indicator lights come on when the charger is connected to the mains supply.
These go out when the batteries have been charged.
• NB: always use rechargeable batteries in the charger.
• Open the battery compartment and insert the batteries observing the polarity indicated.
• Then switch on the instrument; the power indicator remains continuously lit. If the batteries are
nearly exhausted, the power indicator will flash.
• Take care not to place the instrument at too great an angle (less than 4°). If the slope of the
instrument should exceed 4°, the lasers will flash automatically or will go out.
• Use the adjustable feet or place the support such that the level indicatoris continuously lit for 10
seconds, and the laser beams no longer flash.
• NB: this instrument may also be used with a mains adaptor to operate directly from mains power.
Make sure that the mains cable does not lie in the road (damage caused by a fall).
Horizontal alignment
• Once the instrument is within its levelling range, then the laser lines are automatically level.
• The horizontal lines may be turned on or off using button "H".
• If possible, it is recommended that the horizontal line should be placed at working height.
This will improve the quality of your work.
• NB: cross and line lasers can only be used on supports of adjustable height, such as tescopic
and rod supports.
• Before placing the instrument on a support, the support adaptor should be mounted on the
instrument. Only use supports with a 5/8 screw thread.
• Important: to a large extent, choice of support will determine how easy the
instrument is to use.
• If the workplace is very brightly lit, when working out of doors for example, it may be necessary
to use the laser receiver.
Page 7
7
EN
Vertical alignment
• Once the instrument is within its levelling range, the vertical laser lines may be turned on using
button "V". These are mutually at 90°.
• Owing to the automatic levelling, the laser lines are correctly level and are perpendicular to the
horizontal laser line.
• The rotatable case and fine adjustment may be used for positioning the vertical line.
• The fine adjustment enables the laser beam to be located quickly and accurately onto your marker
at large distances
• Owing to the powerful laser diode and projection at an obtuse angle, the laser beam is visible
behind the instrument and a laser cross appears on the ceiling. The lower the instrument is located,
the nearer it is to the wall, and the longer the laser beam. E.g. for placing of walls.
• If the workplace is very brightly lit, when working out of doors, for example, it may be necessary
to use the laser receiver.
Plumb beam
• The plumb point is visible as soon as a vertical laser is turned on.
• Use the plumb point as an aid in simpler positioning of the vertical laser beam under certain
circumstances or for tracing perpendicular angles.
• For example: if a parallel line needs to be projected onto the wall or onto the ceiling.
Start by placing the instrument with its plumb point above the first marker; then rotate the vertical
line as far as marker no. 2, using the fine adjustment for faster and simpler setting.
• The plumb point is level with the laser cross vertical on the ceiling. This position is ideal for
adjustment of squaring points or for tracing out on the walls.
Page 8
8
GENERAL
Description
The following directions should enable the person responsible for the product, and the person who
actually uses the equipment, to anticipate and avoid operational hazards.
The person responsible for the product must ensure that all users
understand these directions and adhere to them.
Adverse Use
• Use of the product without instruction.
• Use outside of the intended limits.
• Disabling safety systems.
• Removal of hazard notices.
• Opening the product using tools, for example screw- driver, unless this is specifically permitted for
certain functions.
• Modification or conversion of the product.
• Use after misappropriation.
• Use of products with obviously recognizable damages or defects.
• Use with accessories from other manufacturers without the prior explicit approval of Agatec.
• Inadequate safeguards at the work site, for example when using on or near roads.
• Deliberate dazzling of third parties.
• Controlling of machines, moving objects or similar monitoring application without additional
control and safety installations.
WARNING
Adverse use can lead to injury, malfunction and damage. It is the task of the person responsible for
the equipment to inform the user about hazards and how to counteract them.
The product is not to be operated until the user has been instructed on how to work with it.
Safety directions
Page 9
9
EN
LIMITS OF USE
Environment
Suitable for use in an atmosphere appropriate for permanent human habitation: not suitable for use in
aggressive or explosive environments.
DANGER
Local safety authorities and safety experts must be contacted before working in hazardous areas,
or in close proximity to electrical installations or similar situations by the person in charge of the product.
RESPONSIBILITIES
Manufacturer of the product
Agatec SAS, 21, boulevard Littré, F-78600 Le Mesnil Le Roi, hereinafter referred to as Agatec, is
responsible for supplying the product, including the user manual and original accessories, in a
completely safe condition.
Manufacturers of non Agatec accessories
The manufacturers of non Agatec accessories for the product are responsible for developing,
implementing and communicating safety concepts for their products, and are also responsible for
the effective- ness of those safety concepts in combination with the Agatec product.
Person in charge of the product
The person in charge of the product has the following duties
• To understand the safety instructions on the product and the instructions in the user manual.
• To be familiar with local regulations relating to safety and accident prevention.
• To inform Agatec immediately if the product and the application becomes unsafe.
WARNING
The person responsible for the product must ensure that it is used in accordance with the instructions.
This person is also accountable for the training and the deployment of personnel who use the
product and for the safety of the equipment in use.
Page 10
10
HAZARDS OF USE
WARNING
The absence of instruction, or the inadequate imparting of instruction, can lead to incorrect or
adverse use, and can give rise to accidents with far-reaching human, material, financial and
environmental conse- quences.
Precautions:
All users must follow the safety directions given by the manufacturer and the directions of the person
respon- sible for the product.
CAUTION
Watch out for erroneous measurement results if the product has been dropped or has been misused,
modified, stored for long periods or transported.
Precautions:
Periodically carry out test measurements and perform the field adjustments indicated in the user
manual, particularly after the product has been subjected to abnormal use and before and after
important measurements.
WARNING
If the product is used with accessories, for example masts, staffs, poles, you may increase the risk of
being struck by lightning.
Precautions:
Do not use the product in a thunderstorm.
WARNING
Inadequate securing of the working site can lead to dangerous situations, for example in traffic,
on building sites, and at industrial installations.
Precautions:
Always ensure that the working site is adequately secured. Adhere to the regulations governing
safety and accident prevention and road traffic.
CAUTION
If the accessories used with the product are not properly secured and the product is subjected to
mechanical shock, for example blows or falling, the product may be damaged or people may
sustain injury.
Page 11
11
EN
Precautions:
When setting-up the product, make sure that the accessories are correctly adapted, fitted, secured,
and locked in position. Avoid subjecting the product to mechanical stress.
CAUTION
During the transport, shipping or disposal of batteries it is possible for inappropriate mechanical
influences to constitute a fire hazard.
Precautions:
Before shipping the product or disposing of it, discharge the batteries by running the product until
they are flat. When transporting or shipping batteries, the person in charge of the product must
ensure that the applicable national and international rules and regulations are observed.
Before transportation or shipping contact your local passenger or freight transport company.
WARNING
High mechanical stress, high ambient tempera- tures or immersion into fluids can cause leackage,
fire or explosions of the batteries.
Precautions:
Protect the batteries from mechanical influences and high ambient temperatures. Do not drop or
immerse batteries into fluids.
WARNING
Short circuited battery terminals can overheat and cause injury or fire, for example by storing or
transporting in pockets if battery terminals come in contact with jewellery, keys, metallized paper or
other metals.
Precautions:
Make sure that the battery terminals do not come into contact with metallic objects.
CAUTION
During the operation of the product there is a hazard of
squeezing extremities by moving parts.
Precautions:
Keep extremities in a safe distance from the moving parts.
WARNING
If the product is improperly disposed of, the following can happen:
• If polymer parts are burnt, poisonous gases are produced which may impair health.
Page 12
• If batteries are damaged or are heated strongly, they can explode and cause poisoning,
burning, corrosion or environmental contamination.
• By disposing of the product irresponsibly you may enable unauthorized persons to use it in
contravention of the regulations, exposing themselves and third parties to the risk of severe injury and
rendering the environment liable to contamination.
Precautions:
The product must not be disposed with household waste. Dispose of the product
appropriately in accordance with the national regulations in force in your country.

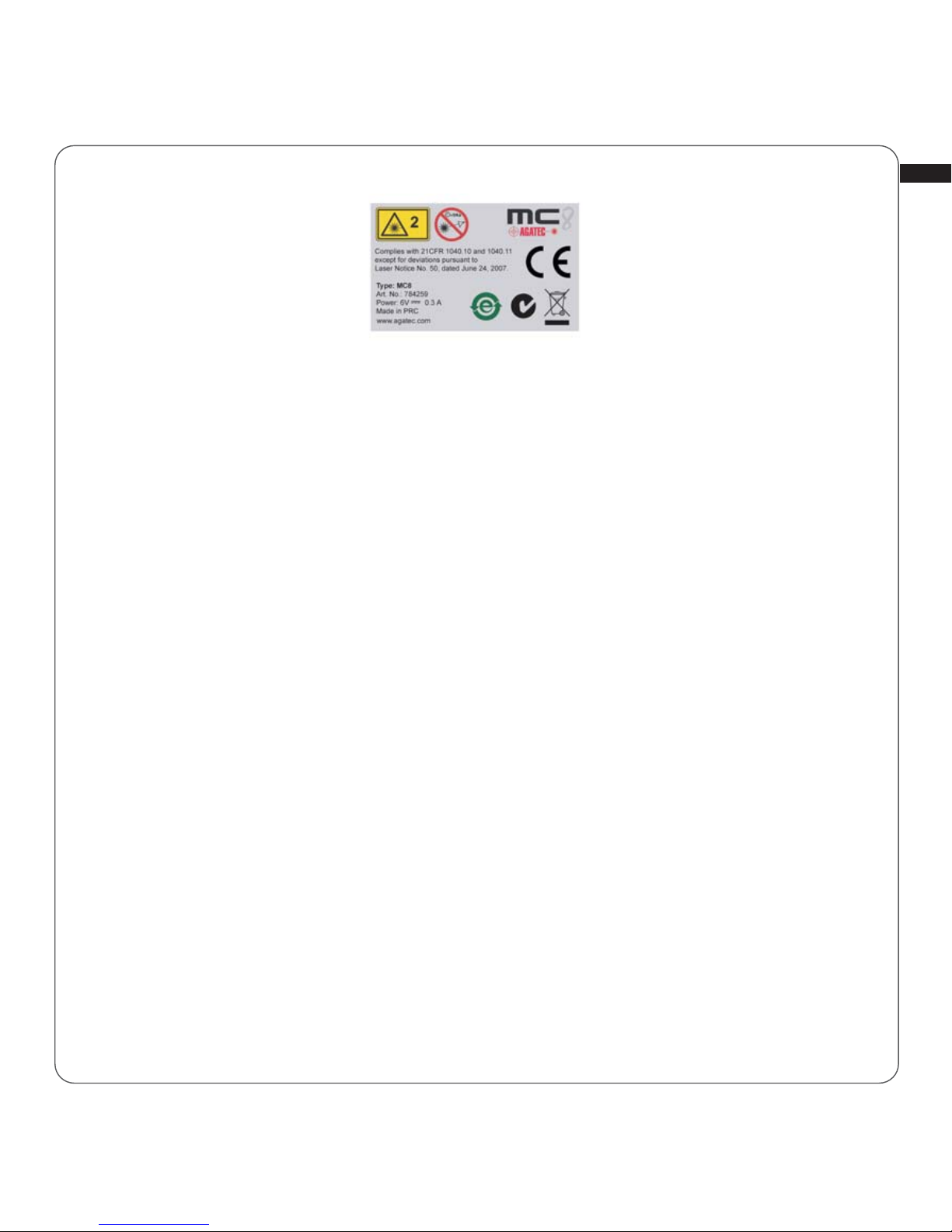

LASER CLASSIFICATION
General
The following directions (in accordance with the state of the art - international standard IEC 60825-1
(2007-03) and IEC TR 60825-14 (2004-02)) provide instruction and training information to the
person responsible for the product and the person who actually uses the equipment, to anticipate
and avoid operational hazards.
The person responsible for the product must ensure that all users understand these directions and
adhere to them.
Products classified as laser class 1, class 2 and class 3R do not require
• laser safety officer involvement,
• protective clothes and eyewear,
• special warning signs in the laser working area if used and operated as defined in this user
manual due to the low eye hazard level.
Products classified as laser class 2 or class 3R may cause
dazzle, flash blindness and afterimages, particularly under low ambient light conditions.
12
Page 13
13
EN
ACCURACY CONTROL
Horizontal levelling control
1. Choose a room ±10 m long
2. Place the instrument next to wall no. 1.
3. Turn on the instrument and allow it to level itself.
4. Mark the horizontal line in the middle of the cross on wall no 1.
5. Turn the instrument through 180° and mark the laser beam in the middle of the cross on wall no. 2.
6. Bring the instrument as close as possible to wall No. 2.
7. Adjust the height of the laser such that the laser cross is centred on the marker on wall No. 2.
8. Then rotate the instrument through 180° and note the difference between the centre of the laser cross
and the marker on wall no. 1.
9. This difference should not exceed 2 mm.
10. NB: The tolerance depends on the distance between the walls for which the monitoring test has
been carried out. This distance should be multiplied by 2. Hence, if the instrument has an accuracy
of 2 mm / 10 m, then in our example the calculation is 10 m distance x 2 = 20 m. The tolerance is
4 mm / 20 m.
Page 14
14
Monitoring the horizontal laser line
1. Place the instrument approximately 6 m from a wall.
2. Turn on the instrument and allow it to level itself.
3. Mark the centre of the laser cross.
4. Rotate the horizontal laser line 2.5 m to the left or to the right.
5. Note the tolerance between the marker and the position of the laser line.
6. This should be 1 mm in our example.
Monitoring the vertical laser line
1. Place the instrument approximately 5 m from a wall.
2. Suspend a 2 m long plumb-line opposite the wall.
3. Turn on the instrument and allow it to level itself.
4. Place the vertical laser line on the plumb-line
5. This should be 1 mm in our example.
NB: If your instrument does not reach the required tolerance, it should be returned to your service centre
or to your reseller for service. Repairs carried out by unauthorised personnel will automatically invalidate
the guarantee.
This product is subject to the terms and conditions set out in the International Limited Warranty which you
can download from the Agatec home page at www.agatec.com or collect from your Agatec distributor.
The foregoing warranty is exclusive and is in lieu of all other warranties, terms or conditions, express or
implied, either in fact or by operation of law, statutory or otherwise, including warranties, terms or
conditions of merchantability, fitness for a particular purpose, satisfactory quality and non-infringement,
all of which are expressly disclaimed.
Warranty
Page 15
15
EN
Laser wavelength 635 nm
Class II <1 mW
Accuracy ± 1 mm/10 m
Levelling range ± 4°
Levelling Electronically controlled motors
Housing rotatable over 360° with fine adjustment
Period of use 6 hours or continuous with mains
adaptor
Electrical power supply 4 AA rechargeables
Dimensions 220 mm x 120 mm
Mass 1.6 kg
IP rating IP 54
Operating range ± 15 m (± 50 m)
(laser receiver)
Technical data
Loading...
