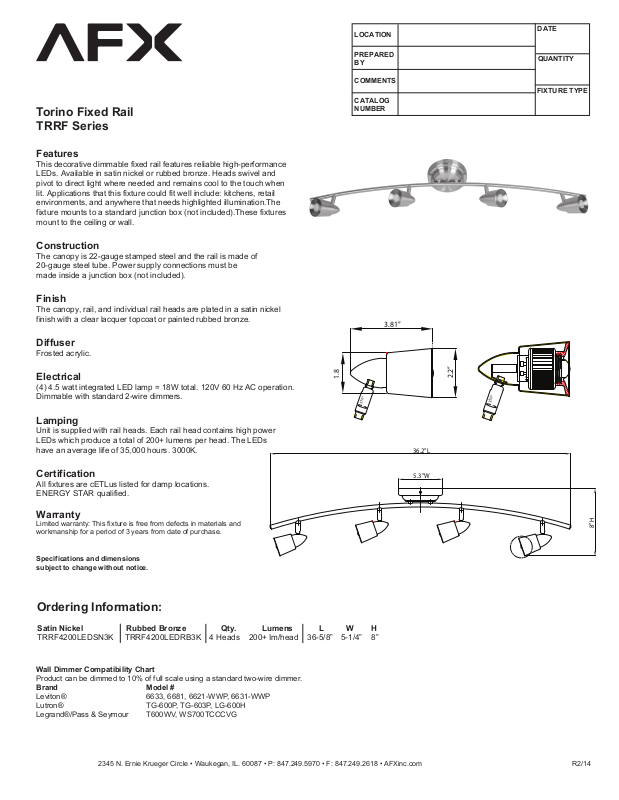

AFX TRRF User Manual

LOCATION

DATE

Torino Fixed Rail
TRRF Series

Features

This decorative dimmable fixed rail features reliable high-performance
LEDs. Available in satin nickel or rubbed bronze. Heads swivel and
pivot to direct light where needed and remains cool to the touch when
lit. Applications that this fixture could fit well include: kitchens, retail
environments, and anywhere that needs highlighted illumination.The
fixture mounts to a standard junction box (not included).These fixtures
mount to the ceiling or wall.

Construction

The canopy is 22-gauge stamped steel and the rail is made of
20-gauge steel tube. Power supply connections must be
made inside a junction box (not included).

Finish

The canopy, rail, and individual rail heads are plated in a satin nickel
finish with a clear lacquer topcoat or painted rubbed bronze.

Diffuser

Frosted acrylic.

PREPARED
BY

COMMENTS

CATALOG
NUMBER

3.81”

QUANTITY

FIXTURE TYPE

Electrical

(4) 4.5 watt integrated LED lamp = 18W total. 120V 60 Hz AC operation.
Dimmable with standard 2-wire dimmers.

1.8

350°

Lamping

Unit is supplied with rail heads. Each rail head contains high power
LEDs which produce a total of 200+ lumens per head. The LEDs
have an average life of 35,000 hours. 3000K.

Certification

All fixtures are cETLus listed for damp locations.
ENERGY STAR qualified.

36.2” L

5.3” W

Warranty

Limited warranty: This fixture is free from defects in materials and
workmanship for a period of 3 years from date of purchase.

Specifications and dimensions
subject to change without notice.

Ordering Information:

Satin Nickel Rubbed Bronze Qty. Lumens L W H

TRRF4200LEDSN3K TRRF4200LEDRB3K 4 Heads 200+ Im/head 36-5/8” 5-1/4” 8”

Wall Dimmer Compatibility Chart

Product can be dimmed to 10% of full scale using a standard two-wire dimmer.

Brand Model #

Leviton® 6633, 6681, 6621-WWP, 6631-WWP
Lutron® TG-600P, TG-603P, LG-600H
Legrand®/Pass & Seymour T600WV, WS700TCCCVG

2.2”

350°

8” H

2345 N. Ernie Krueger Circle • Waukegan, IL. 60087 • P: 847.249.5970 • F: 847.249.2618 • AFXinc.com R2/14
