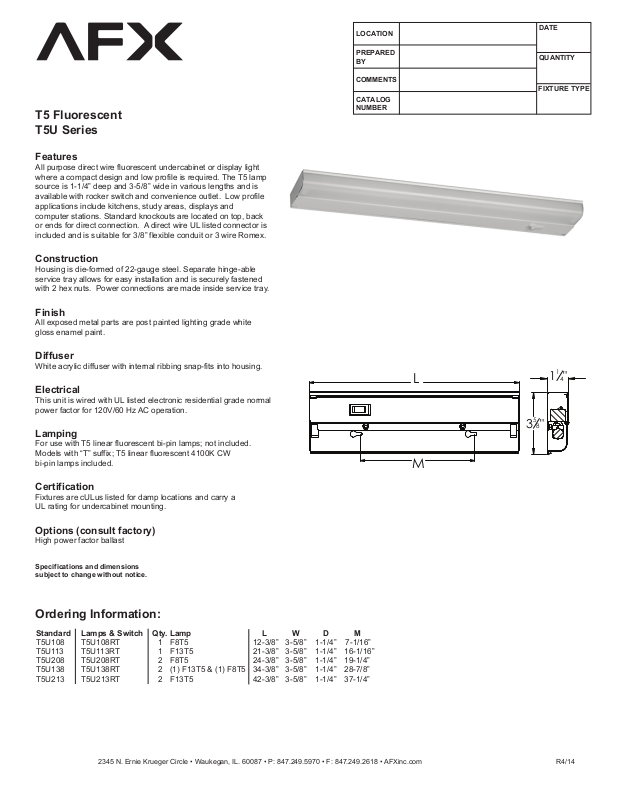

T5 Fluorescent
T5U Series

Features

All purpose direct wire fluorescent undercabinet or display light
where a compact design and low profile is required. The T5 lamp
source is 1-1/4” deep and 3-5/8” wide in various lengths and is
available with rocker switch and convenience outlet. Low profile
applications include kitchens, study areas, displays and
computer stations. Standard knockouts are located on top, back
or ends for direct connection. A direct wire UL listed connector is
included and is suitable for 3/8” flexible conduit or 3 wire Romex.

Construction

Housing is die-formed of 22-gauge steel. Separate hinge-able
service tray allows for easy installation and is securely fastened
with 2 hex nuts. Power connections are made inside service tray.

Finish

All exposed metal parts are post painted lighting grade white
gloss enamel paint.

Diffuser

White acrylic diffuser with internal ribbing snap-fits into housing.

Electrical

This unit is wired with UL listed electronic residential grade normal
power factor for 120V/60 Hz AC operation.

Lamping

For use with T5 linear fluorescent bi-pin lamps; not included.
Models with “T” suffix; T5 linear fluorescent 4100K CW
bi-pin lamps included.

PREPARED
BY

COMMENTS

CATALOG
NUMBER

L

M

QUANTITY

FIXTURE TYPE

1

5

"

3

8

1

"

4

Certification

Fixtures are cULus listed for damp locations and carry a
UL rating for undercabinet mounting.

Options (consult factory)

High power factor ballast

Specifications and dimensions
subject to change without notice.

Ordering Information:

Standard Lamps & Switch Qty. Lamp L W D M

T5U108 T5U108RT 1 F8T5 12-3/8” 3-5/8” 1-1/4” 7-1/16”
T5U113 T5U113RT 1 F13T5 21-3/8” 3-5/8” 1-1/4” 16-1/16”
T5U208 T5U208RT 2 F8T5 24-3/8” 3-5/8” 1-1/4” 19-1/4”
T5U138 T5U138RT 2 (1) F13T5 & (1) F8T5 34-3/8” 3-5/8” 1-1/4” 28-7/8”
T5U213 T5U213RT 2 F13T5 42-3/8” 3-5/8” 1-1/4” 37-1/4”

2345 N. Ernie Krueger Circle • Waukegan, IL. 60087 • P: 847.249.5970 • F: 847.249.2618 • AFXinc.com R4/14
