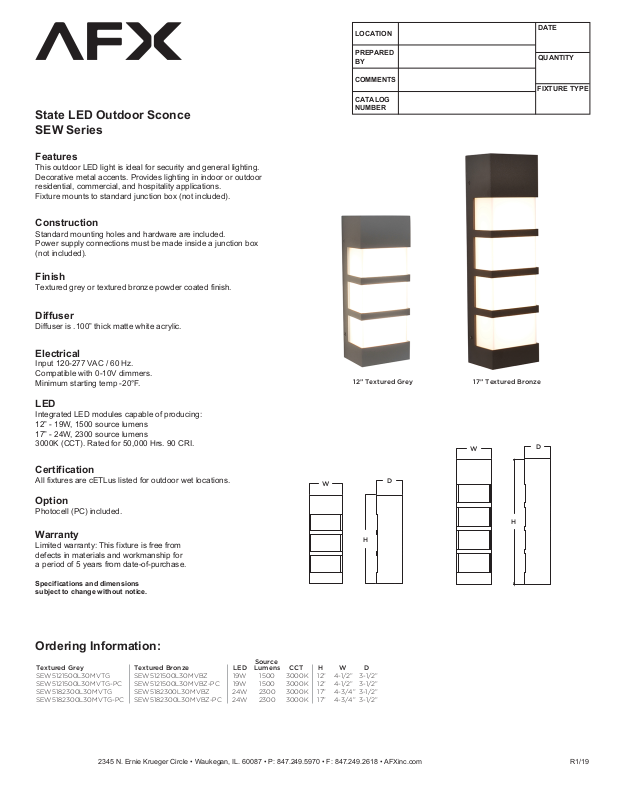

State LED Outdoor Sconce
SEW Series

Features

This outdoor LED light is ideal for security and general lighting.
Decorative metal accents. Provides lighting in indoor or outdoor
residential, commercial, and hospitality applications.
Fixture mounts to standard junction box (not included).

Construction

Standard mounting holes and hardware are included.
Power supply connections must be made inside a junction box
(not included).

Finish

Textured grey or textured bronze powder coated finish.

Diffuser

Diffuser is .100” thick matte white acrylic.

PREPARED
BY

COMMENTS

CATALOG
NUMBER

QUANTITY

FIXTURE TYPE

Electrical

Input 120-277 VAC / 60 Hz.
Compatible with 0-10V dimmers.
Minimum starting temp -20°F.

LED

Integrated LED modules capable of producing:
12” - 19W, 1500 source lumens
17” - 24W, 2300 source lumens
3000K (CCT). Rated for 50,000 Hrs. 90 CRI.

Certification

All fixtures are cETLus listed for outdoor wet locations.

Option

Photocell (PC) included.

Warranty

Limited warranty: This fixture is free from
defects in materials and workmanship for
a period of 5 years from date-of-purchase.

Specifications and dimensions
subject to change without notice.

W

H

17” Textured Bronze12” Textured Grey

W

D

H

D

Ordering Information:

Textured Grey LED Lumens CCT H W D

SEW5121500L30MVTG 19W 1500 3000K 12” 4-1/2” 3-1/2”
SEW5121500L30MVTG-PC 19W 1500 3000K 12” 4-1/2” 3-1/2”
SEW5182300L30MVTG 24W 2300 3000K 17” 4-3/4” 3-1/2”
SEW5182300L30MVTG-PC 24W 2300 3000K 17” 4-3/4” 3-1/2”

2345 N. Ernie Krueger Circle • Waukegan, IL. 60087 • P: 847.249.5970 • F: 847.249.2618 • AFXinc.com R1/19

Textured Bronze

SEW5121500L30MVBZ
SEW5121500L30MVBZ-PC
SEW5182300L30MVBZ
SEW5182300L30MVBZ-PC
