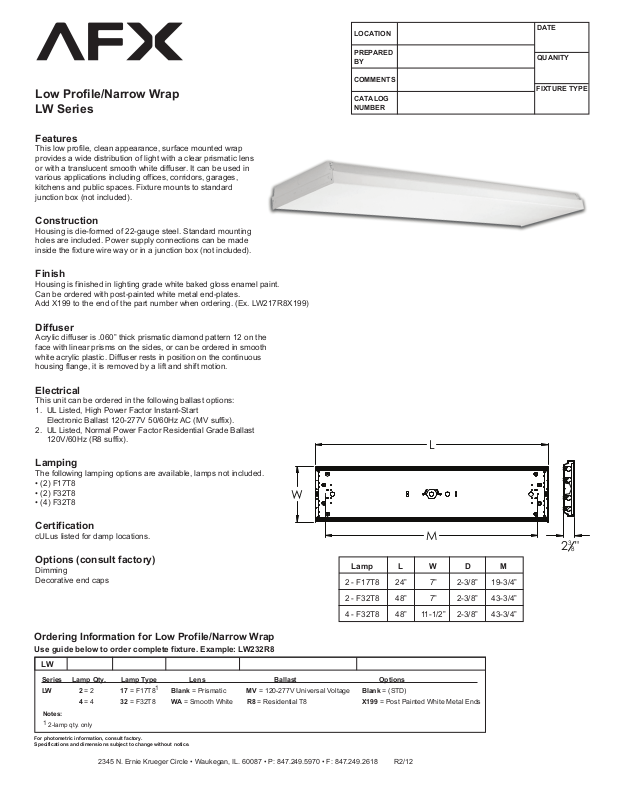

Low Profile/Narrow Wrap
LW Series

Features

This low profile, clean appearance, surface mounted wrap
provides a wide distribution of light with a clear prismatic lens
or with a translucent smooth white diffuser. It can be used in
various applications including offices, corridors, garages,
kitchens and public spaces. Fixture mounts to standard
junction box (not included).

Construction

Housing is die-formed of 22-gauge steel. Standard mounting
holes are included. Power supply connections can be made
inside the fixture wire way or in a junction box (not included).

Finish

Housing is finished in lighting grade white baked gloss enamel paint.
Can be ordered with post-painted white metal end-plates.
Add X199 to the end of the part number when ordering. (Ex. LW217R8X199)

Diffuser

Acrylic diffuser is .060” thick prismatic diamond pattern 12 on the
face with linear prisms on the sides, or can be ordered in smooth
white acrylic plastic. Diffuser rests in position on the continuous
housing flange, it is removed by a lift and shift motion.

PREPARED
BY

COMMENTS

CATALOG
NUMBER

QUANITY

FIXTURE TYPE

Electrical

This unit can be ordered in the following ballast options:

1. UL Listed, High Power Factor Instant-Start
Electronic Ballast 120-277V 50/60Hz AC (MV suffix).

2. UL Listed, Normal Power Factor Residential Grade Ballast
120V/60Hz (R8 suffix).

L

Lamping

The following lamping options are available, lamps not included.

• (2) F17T8

• (2) F32T8

• (4) F32T8

W

Certification

cULus listed for damp locations.

Options (consult factory)

Dimming
Decorative end caps

Lamp L W D M

2 - F17T8 24” 7” 2-3/8” 19-3/4”

2 - F32T8 48” 7” 2-3/8” 43-3/4”

4 - F32T8 48” 11-1/2” 2-3/8” 43-3/4”

M

3

2

"

8

Ordering Information for Low Profile/Narrow Wrap

Use guide below to order complete fixture. Example: LW232R8

LW

Series Lamp Qty. Lamp Type Lens Ballast Options

LW 2 = 2 17 = F17T81 Blank = Prismatic MV = 120-277V Universal Voltage Blank = (STD)

4 = 4 32 = F32T8 WA = Smooth White R8 = Residential T8 X199 = Post Painted White Metal Ends

Notes:

1

2-lamp qty. only

For photometric information, consult factory.
Specifications and dimensions subject to change without notice.
