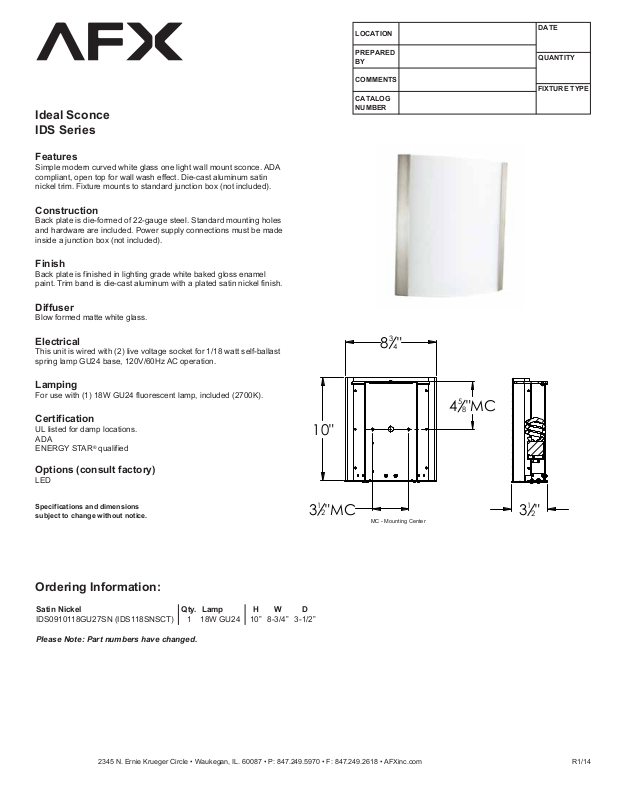

Ideal Sconce
IDS Series

Features

Simple modern curved white glass one light wall mount sconce. ADA
compliant, open top for wall wash effect. Die-cast aluminum satin
nickel trim. Fixture mounts to standard junction box (not included).

Construction

Back plate is die-formed of 22-gauge steel. Standard mounting holes
and hardware are included. Power supply connections must be made
inside a junction box (not included).

Finish

Back plate is finished in lighting grade white baked gloss enamel
paint. Trim band is die-cast aluminum with a plated satin nickel finish.

Diffuser

Blow formed matte white glass.

Electrical

This unit is wired with (2) live voltage socket for 1/18 watt self-ballast
spring lamp GU24 base, 120V/60Hz AC operation.

PREPARED
BY

COMMENTS

CATALOG
NUMBER

3

8

QUANTITY

FIXTURE TYPE

"

4

Lamping

For use with (1) 18W GU24 fluorescent lamp, included (2700K).

4

5

"MC

8

Certification

UL listed for damp locations.
ADA
ENERGY STAR

®

qualified

10"

Options (consult factory)

LED

Specifications and dimensions
subject to change without notice.

3

1

"MC

2

MC - Mounting Center

Ordering Information:

Satin Nickel Qty. Lamp H W D

IDS0910118GU27SN (IDS118SNSCT) 1 18W GU24 10” 8-3/4” 3-1/2”

Please Note: Part numbers have changed.

3

1

"

2

2345 N. Ernie Krueger Circle • Waukegan, IL. 60087 • P: 847.249.5970 • F: 847.249.2618 • AFXinc.com R1/14
