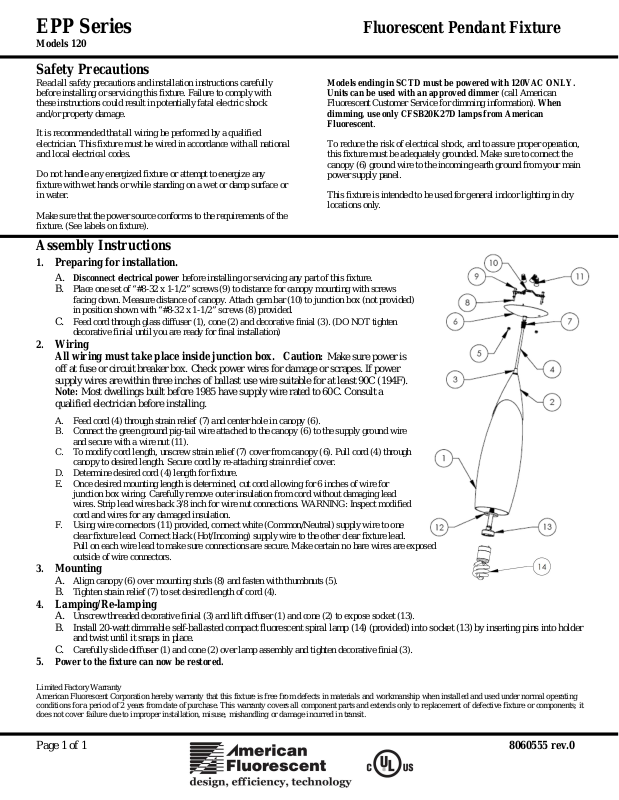

AFX EPP118PCEC User Manual

EPP Series Fluorescent Pendant Fixture

Models 120

Safety Precautions

Read all safety precautions and installation instructions carefully
before installing or servicing this fixture. Failure to comply with
these instructions could result in potentially fatal electric shock
and/or property damage.

It is recommended that all wiring be performed by a qualified
electrician. This fixture must be wired in accordance with all national
and local electrical codes.

Do not handle any energized fixture or attempt to energize any
fixture with wet hands or while standing on a wet or damp surface or
in water.

Make sure that the power source conforms to the requirements of the
fixture. (See labels on fixture).

Assembly Instructions

1. Preparing for installation.

A. Disconnect electrical power before installing or servicing any part of this fixture.
B. Place one set of “#8-32 x 1-1/2” screws (9) to distance for canopy mounting with screws

facing down. Measure distance of canopy. Attach gem bar (10) to junction box (not provided)
in position shown with “#8-32 x 1-1/2” screws (8) provided.

C. Feed cord through glass diffuser (1), cone (2) and decorative finial (3). (DO NOT tighten

decorative finial until you are ready for final installation)

2. Wiring

All wiring must take place inside junction box. Caution: Make sure power is

off at fuse or circuit breaker box. Check power wires for damage or scrapes. If power
supply wires are within three inches of ballast use wire suitable for at least 90C (194F).
Note: Most dwellings built before 1985 have supply wire rated to 60C. Consult a
qualified electrician before installing.

A. Feed cord (4) through strain relief (7) and center hole in canopy (6).
B. Connect the green ground pig-tail wire attached to the canopy (6) to the supply ground wire

and secure with a wire nut (11).

C. To modify cord length, unscrew strain relief (7) cover from canopy (6). Pull cord (4) through

canopy to desired length. Secure cord by re-attaching strain relief cover.

D. Determine desired cord (4) length for fixture.
E. Once desired mounting length is determined, cut cord allowing for 6 inches of wire for

junction box wiring. Carefully remove outer insulation from cord without damaging lead
wires. Strip lead wires back 3/8 inch for wire nut connections. WARNING: Inspect modified
cord and wires for any damaged insulation.

F. Using wire connectors (11) provided, connect white (Common/Neutral) supply wire to one

clear fixture lead. Connect black (Hot/Incoming) supply wire to the other clear fixture lead.
Pull on each wire lead to make sure connections are secure. Make certain no bare wires are exposed
outside of wire connectors.

3. Mounting

A. Align canopy (6) over mounting studs (8) and fasten with thumbnuts (5).
B. Tighten strain relief (7) to set desired length of cord (4).

4. Lamping/Re-lamping

A. Unscrew threaded decorative finial (3) and lift diffuser (1) and cone (2) to expose socket (13).
B. Install 20-watt dimmable self-ballasted compact fluorescent spiral lamp (14) (provided) into socket (13) by inserting pins into holder

and twist until it snaps in place.

C. Carefully slide diffuser (1) and cone (2) over lamp assembly and tighten decorative finial (3).

5. Power to the fixture can now be restored.

Limited Factory Warranty
American Fluorescent Corporation hereby warranty that this fixture is free from defects in materials and workmanship when installed and used under normal operating
conditions for a period of 2 years from date of purchase. This warranty covers all component parts and extends only to replacement of defective fixture or components; it
does not cover failure due to improper installation, misuse, mishandling or damage incurred in transit.

Models ending in SCTD must be powered with 120VAC ONLY.
Units can be used with an approved dimmer (call American
Fluorescent Customer Service for dimming information). When
dimming, use only CFSB20K27D lamps from American
Fluorescent.

To reduce the risk of electrical shock, and to assure proper operation,
this fixture must be adequately grounded. Make sure to connect the
canopy (6) ground wire to the incoming earth ground from your main
power supply panel.

This fixture is intended to be used for general indoor lighting in dry
locations only.

Page 1 of 1 8060555 rev.0
