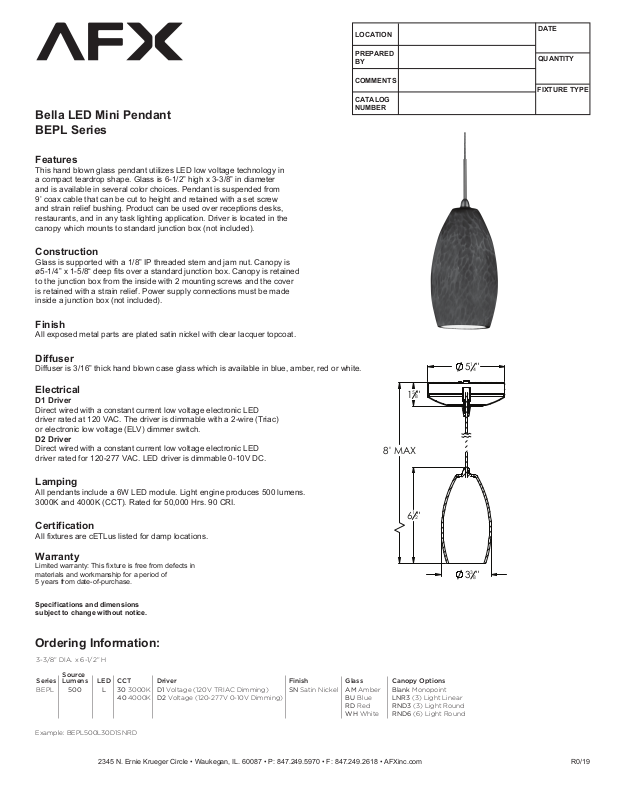

Bella LED Mini Pendant
BEPL Series
Features
This hand blown glass pendant utilizes LED low voltage technology in
a compact teardrop shape. Glass is 6-1/2” high x 3-3/8” in diameter
and is available in several color choices. Pendant is suspended from
9’ coax cable that can be cut to height and retained with a set screw
and strain relief bushing. Product can be used over receptions desks,
restaurants, and in any task lighting application. Driver is located in the
canopy which mounts to standard junction box (not included).
Construction
Glass is supported with a 1/8” IP threaded stem and jam nut. Canopy is
ø5-1/4” x 1-5/8“ deep fits over a standard junction box. Canopy is retained
to the junction box from the inside with 2 mounting screws and the cover
is retained with a strain relief. Power supply connections must be made
inside a junction box (not included).
Finish
All exposed metal parts are plated satin nickel with clear lacquer topcoat.
QUANTITY
FIXTURE TYPE
Diffuser
Diffuser is 3/16” thick hand blown case glass which is available in blue, amber, red or white.
Electrical
D1 Driver
5
1
"
8
1
5
"
4
Direct wired with a constant current low voltage electronic LED
driver rated at 120 VAC. The driver is dimmable with a 2-wire (Triac)
or electronic low voltage (ELV) dimmer switch.
D2 Driver
Direct wired with a constant current low voltage electronic LED
driver rated for 120-277 VAC. LED driver is dimmable 0-10V DC.
8' MAX
Lamping
All pendants include a 6W LED module. Light engine produces 500 lumens.
3000K and 4000K (CCT). Rated for 50,000 Hrs. 90 CRI.
1
6
"
2
Certification
All fixtures are cETLus listed for damp locations.
Warranty
Limited warranty: This fixture is free from defects in
materials and workmanship for a period of
5 years from date-of-purchase.
Specifications and dimensions
subject to change without notice.
3
3
"
8
Ordering Information:
3-3/8” DIA. x 6-1/2” H
Source
Series Lumens LED CCT Driver Finish Glass Canopy Options
BEPL 500 L 30 3000K D1 Voltage (120V TRIAC Dimming) SN Satin Nickel AM Amber Blank Monopoint
D2 Voltage (120-277V 0-10V Dimming) BU Blue LNR3 (3) Light Linear
RD Red RND3 (3) Light Round
WH White RND6 (6) Light Round
Example: BEPL500L30D1SNRD
40 4000K
2345 N. Ernie Krueger Circle • Waukegan, IL. 60087 • P: 847.249.5970 • F: 847.249.2618 • AFXinc.com R0/19
