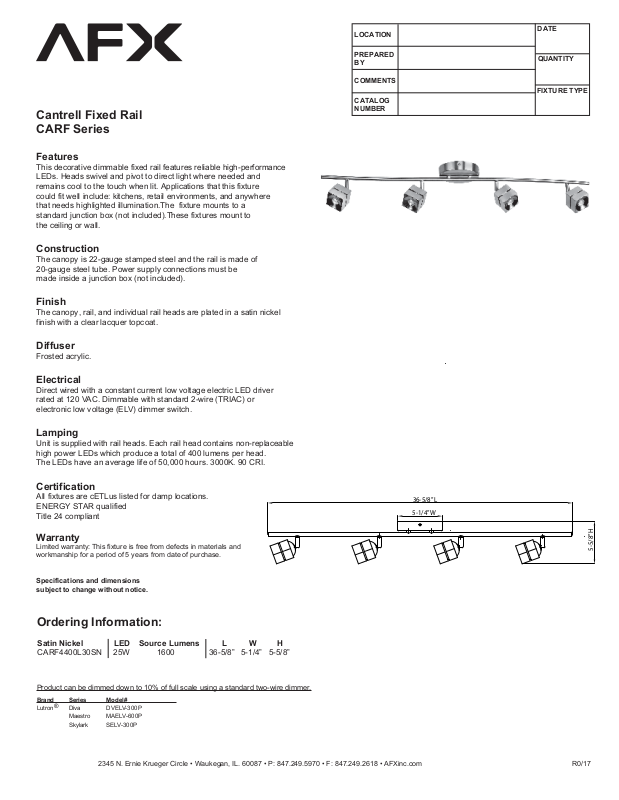

Cantrell Fixed Rail
CARF Series
Features
This decorative dimmable fixed rail features reliable high-performance
LEDs. Heads swivel and pivot to direct light where needed and
remains cool to the touch when lit. Applications that this fixture
could fit well include: kitchens, retail environments, and anywhere
that needs highlighted illumination.The fixture mounts to a
standard junction box (not included).These fixtures mount to
the ceiling or wall.
Construction
The canopy is 22-gauge stamped steel and the rail is made of
20-gauge steel tube. Power supply connections must be
made inside a junction box (not included).
Finish
The canopy, rail, and individual rail heads are plated in a satin nickel
finish with a clear lacquer topcoat.
Diffuser
Frosted acrylic.
PREPARED
BY
COMMENTS
CATALOG
NUMBER
QUANTITY
FIXTURE TYPE
Electrical
Direct wired with a constant current low voltage electric LED driver
rated at 120 VAC. Dimmable with standard 2-wire (TRIAC) or
electronic low voltage (ELV) dimmer switch.
Lamping
Unit is supplied with rail heads. Each rail head contains non-replaceable
high power LEDs which produce a total of 400 lumens per head.
The LEDs have an average life of 50,000 hours. 3000K. 90 CRI.
Certification
All fixtures are cETLus listed for damp locations.
ENERGY STAR qualified
Title 24 compliant
Warranty
Limited warranty: This fixture is free from defects in materials and
workmanship for a period of 5 years from date of purchase.
Specifications and dimensions
subject to change without notice.
Ordering Information:
Satin Nickel LED Source Lumens L W H
CARF4400L30SN 25W 1600 36-5/8” 5-1/4” 5-5/8”
36-5/8” L
5-1/4” W
5-5/8” H
Product can be dimmed down to 10% of full scale using a standard two-wire dimmer.
Brand Series Model#
Lutron® Diva DVELV-300P
Maestro MAELV-600P
Skylark SELV-300P
2345 N. Ernie Krueger Circle • Waukegan, IL. 60087 • P: 847.249.5970 • F: 847.249.2618 • AFXinc.com R0/17
