LOCATION
DATE

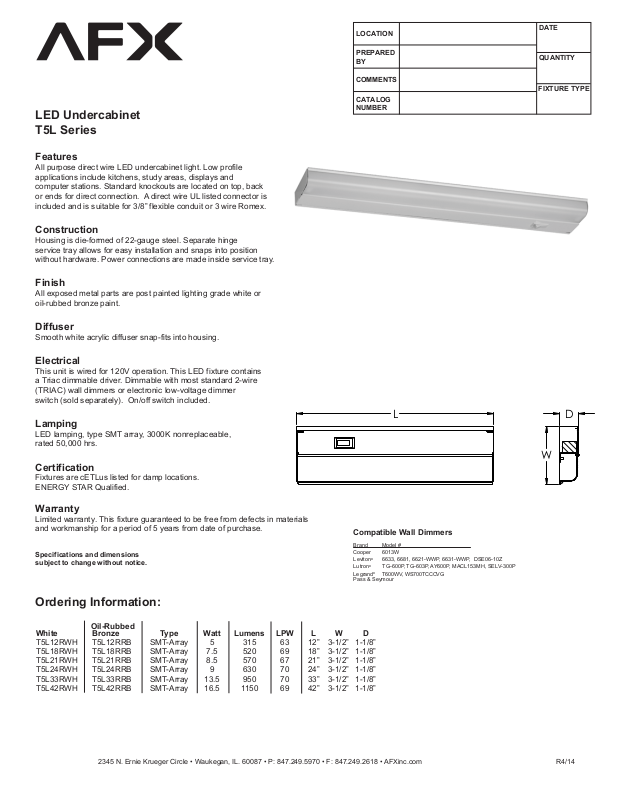

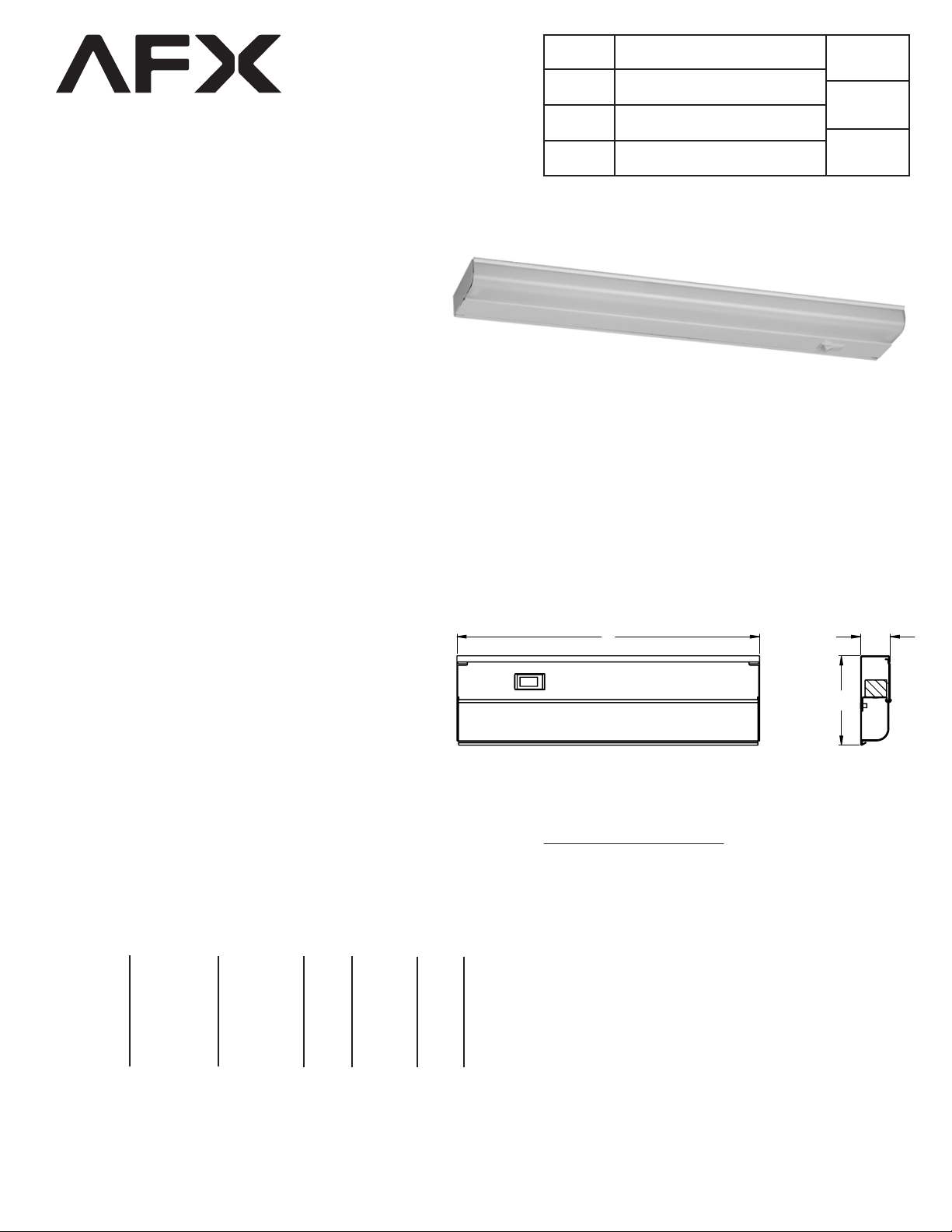

LED Undercabinet
T5L Series
Features
All purpose direct wire LED undercabinet light. Low profile
applications include kitchens, study areas, displays and
computer stations. Standard knockouts are located on top, back
or ends for direct connection. A direct wire UL listed connector is
included and is suitable for 3/8” flexible conduit or 3 wire Romex.
Construction
Housing is die-formed of 22-gauge steel. Separate hinge
service tray allows for easy installation and snaps into position
without hardware. Power connections are made inside service tray.
Finish
All exposed metal parts are post painted lighting grade white or
oil-rubbed bronze paint.
Diffuser
Smooth white acrylic diffuser snap-fits into housing.
PREPARED
BY
COMMENTS
CATALOG
NUMBER
QUANTITY
FIXTURE TYPE
Electrical
This unit is wired for 120V operation. This LED fixture contains
a Triac dimmable driver. Dimmable with most standard 2-wire
(TRIAC) wall dimmers or electronic low-voltage dimmer
switch (sold separately).
On/off switch included.
L
D
Lamping
LED lamping, type SMT array, 3000K nonreplaceable,
rated 50,000 hrs.
W
Certification
Fixtures are cETLus listed for damp locations.
ENERGY STAR Qualified.
Warranty
Limited warranty. This fixture guaranteed to be free from defects in materials
and workmanship for a period of 5 years from date of purchase.
Specifications and dimensions
subject to change without notice.
Compatible Wall Dimmers
Brand Model #
Cooper 6013W
®
Leviton
6633, 6681, 6621-WWP, 6631-WWP, DSE06-10Z
®
Lutron
TG-600P, TG-603P, AY600P, MACL153MH, SELV-300P
®
T600WV, WS700TCCCVG
Legrand
Pass & Seymour
Ordering Information:
White Bronze Type Watt Lumens LPW L W D
T5L12RWH T5L12RRB SMT-Array 5 315 63 12” 3-1/2” 1-1/8”
T5L18RWH T5L18RRB SMT-Array 7.5 520 69 18” 3-1/2” 1-1/8”
T5L21RWH T5L21RRB SMT-Array 8.5 570 67 21” 3-1/2” 1-1/8”
T5L24RWH T5L24RRB SMT-Array 9 630 70 24” 3-1/2” 1-1/8”
T5L33RWH T5L33RRB SMT-Array 13.5 950 70 33” 3-1/2” 1-1/8”
T5L42RWH T5L42RRB SMT-Array 16.5 1150 69 42” 3-1/2” 1-1/8”
Oil-Rubbed
2345 N. Ernie Krueger Circle • Waukegan, IL. 60087 • P: 847.249.5970 • F: 847.249.2618 • AFXinc.com R4/14
