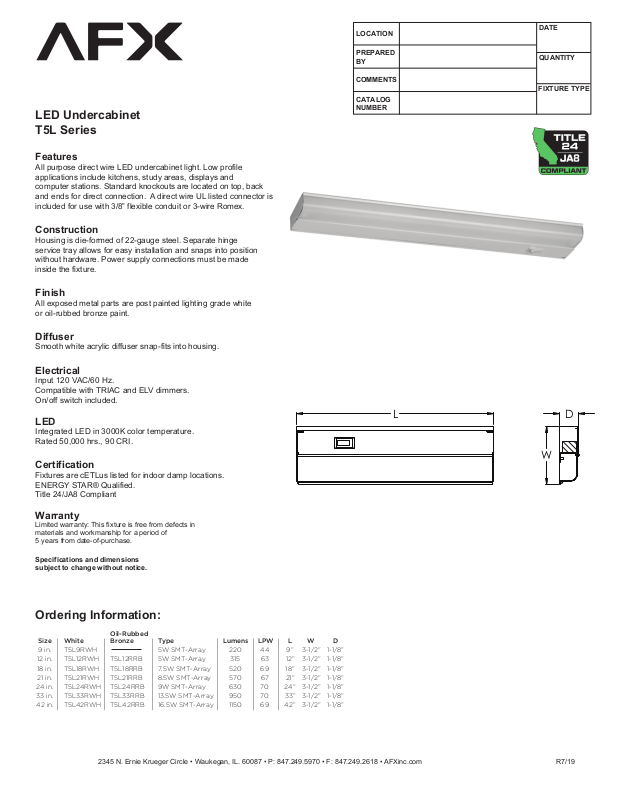

LED Undercabinet
T5L Series
Features
All purpose direct wire LED undercabinet light. Low profile
applications include kitchens, study areas, displays and
computer stations. Standard knockouts are located on top, back
and ends for direct connection. A direct wire UL listed connector is
included for use with 3/8” flexible conduit or 3-wire Romex.
Construction
Housing is die-formed of 22-gauge steel. Separate hinge
service tray allows for easy installation and snaps into position
without hardware. Power supply connections must be made
inside the fixture.
Finish
All exposed metal parts are post painted lighting grade white
or oil-rubbed bronze paint.
Diffuser
Smooth white acrylic diffuser snap-fits into housing.
PREPARED
BY
COMMENTS
CATALOG
NUMBER
QUANTITY
FIXTURE TYPE
Electrical
Input 120 VAC/60 Hz.
Compatible with TRIAC and ELV dimmers.
On/off switch included.
LED
Integrated LED in 3000K color temperature.
Rated 50,000 hrs., 90 CRI.
Certification
Fixtures are cETLus listed for indoor damp locations.
ENERGY STAR® Qualified.
Title 24/JA8 Compliant
Warranty
Limited warranty: This fixture is free from defects in
materials and workmanship for a period of
5 years from date-of-purchase.
Specifications and dimensions
subject to change without notice.
Ordering Information:
Size White Bronze Type Lumens LPW L W D
T5L9RWH 5W SMT-Array 220 44 9” 3-1/2” 1-1/8”
12 in. T5L12RWH T5L12RRB 5W SMT-Array 315 63 12” 3-1/2” 1-1/8”
18 in. T5L18RWH T5L18RRB 7.5W SMT-Array 520 69 18” 3-1/2” 1-1/8”
21 in. T5L21RWH T5L21RRB 8.5W SMT-Array 570 67 21” 3-1/2” 1-1/8”
24 in. T5L24RWH T5L24RRB 9W SMT-Array 630 70 24” 3-1/2” 1-1/8”
33 in. T5L33RWH T5L33RRB 13.5W SMT-Array 950 70 33” 3-1/2” 1-1/8”
T5L42RWH T5L42RRB 16.5W SMT-Array 1150 69 42” 3-1/2” 1-1/8”
L
D
W
