Page 1
LOCATION
DATE

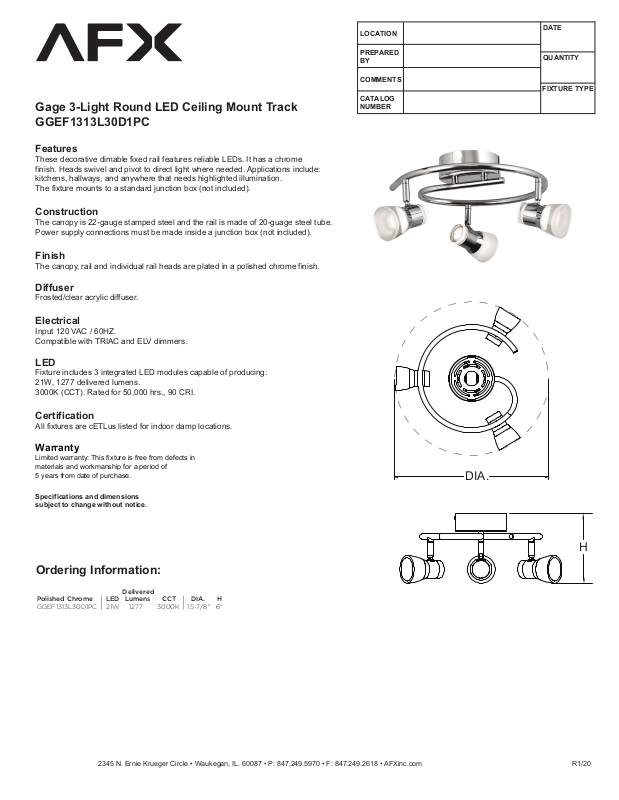

Gage 3-Light Round LED Ceiling Mount Track
GGEF1313L30D1PC
Features
These decorative dimable fixed rail features reliable LEDs. It has a chrome
finish. Heads swivel and pivot to direct light where needed. Applications include:
kitchens, hallways, and anywhere that needs highlighted illumination.
The fixture mounts to a standard junction box (not included).
Construction
The canopy is 22-gauge stamped steel and the rail is made of 20-guage steel tube.
Power supply connections must be made inside a junction box (not included).
Finish
The canopy, rail and individual rail heads are plated in a polished chrome finish.
Diffuser
Frosted/clear acrylic diffuser.
Electrical
Input 120 VAC / 60HZ.
Compatible with TRIAC and ELV dimmers.
LED
Fixture includes 3 integrated LED modules capable of producing:
21W, 1277 delivered lumens.
3000K (CCT). Rated for 50,000 hrs., 90 CRI.
PREPARED
BY
COMMENTS
CATALOG
NUMBER
QUANTITY
FIXTURE TYPE
Certification
All fixtures are cETLus listed for indoor damp locations.
Warranty
Limited warranty: This fixture is free from defects in
materials and workmanship for a period of
5 years from date of purchase.
Specifications and dimensions
subject to change without notice.
Ordering Information:
Polished Chrome LED Lumens CCT DIA. H
GGEF1313L30D1PC 21W 1277 3000K 15-7/8" 6"
Delivered
DIA.
H
2345 N. Ernie Krueger Circle • Waukegan, IL. 60087 • P: 847.249.5970 • F: 847.249.2618 • AFXinc.com R1/20
