Project
Fixture Type

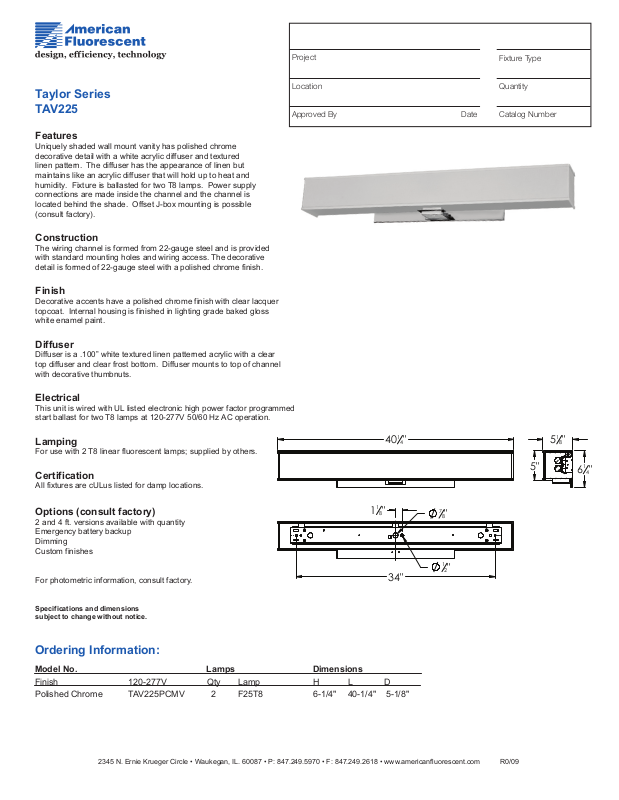

Taylor Series
TAV225
Features
Uniquely shaded wall mount vanity has polished chrome
decorative detail with a white acrylic diffuser and textured
linen pattern. The diffuser has the appearance of linen but
maintains like an acrylic diffuser that will hold up to heat and
humidity. Fixture is ballasted for two T8 lamps. Power supply
connections are made inside the channel and the channel is
located behind the shade. Offset J-box mounting is possible
(consult factory).
Construction
The wiring channel is formed from 22-gauge steel and is provided
with standard mounting holes and wiring access. The decorative
detail is formed of 22-gauge steel with a polished chrome finish.
Finish
Decorative accents have a polished chrome finish with clear lacquer
topcoat. Internal housing is finished in lighting grade baked gloss
white enamel paint.
Diffuser
Diffuser is a .100” white textured linen patterned acrylic with a clear
top diffuser and clear frost bottom. Diffuser mounts to top of channel
with decorative thumbnuts.
Electrical
This unit is wired with UL listed electronic high power factor programmed
start ballast for two T8 lamps at 120-277V 50/60 Hz AC operation.
Lamping
For use with 2 T8 linear fluorescent lamps; supplied by others.
Certification
All fixtures are cULus listed for damp locations.
Location
Approved By Date
1
40
"
4
Quantity
Catalog Number
1
"
5
8
5"
1
6
"
4
1
1
"
Options (consult factory)
2 and 4 ft. versions available with quantity
Emergency battery backup
Dimming
Custom finishes
For photometric information, consult factory.
Specifications and dimensions
subject to change without notice.
8
34"
7
"
8
1
"
2
Ordering Information:
Model No. Lamps Dimensions
Finish 120-277V Qty Lamp H L D
Polished Chrome TAV225PCMV 2 F25T8 6-1/4" 40-1/4" 5-1/8"
2345 N. Ernie Krueger Circle • Waukegan, IL. 60087 • P: 847.249.5970 • F: 847.249.2618 • www.americanfluorescent.com R0/09
