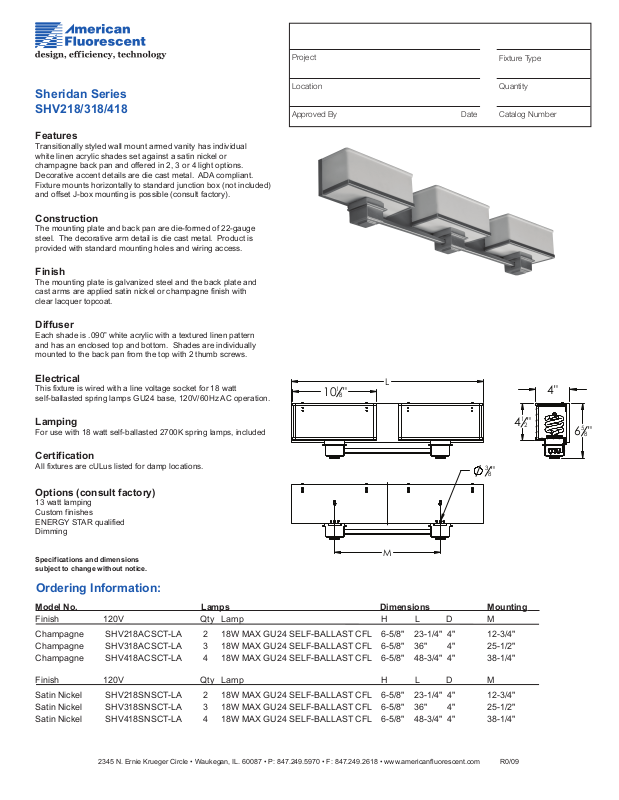

Page 1
Project
Fixture Type
Sheridan Series
SHV218/318/418
Features
Transitionally styled wall mount armed vanity has individual
white linen acrylic shades set against a satin nickel or
champagne back pan and offered in 2, 3 or 4 light options.
Decorative accent details are die cast metal. ADA compliant.
Fixture mounts horizontally to standard junction box (not included)
and offset J-box mounting is possible (consult factory).
Construction
The mounting plate and back pan are die-formed of 22-gauge
steel. The decorative arm detail is die cast metal. Product is
provided with standard mounting holes and wiring access.
Finish
The mounting plate is galvanized steel and the back plate and
cast arms are applied satin nickel or champagne finish with
clear lacquer topcoat.
Diffuser
Each shade is .090” white acrylic with a textured linen pattern
and has an enclosed top and bottom. Shades are individually
mounted to the back pan from the top with 2 thumb screws.
Electrical
This fixture is wired with a line voltage socket for 18 watt
self-ballasted spring lamps GU24 base, 120V/60Hz AC operation.
Lamping
For use with 18 watt self-ballasted 2700K spring lamps, included
Location
Approved By Date
L
10
1
"
8
Quantity
Catalog Number
4"
1
4
"
2
5
"
6
8
Certification
All fixtures are cULus listed for damp locations.
3
"
8
Options (consult factory)
13 watt lamping
Custom finishes
ENERGY STAR qualified
Dimming

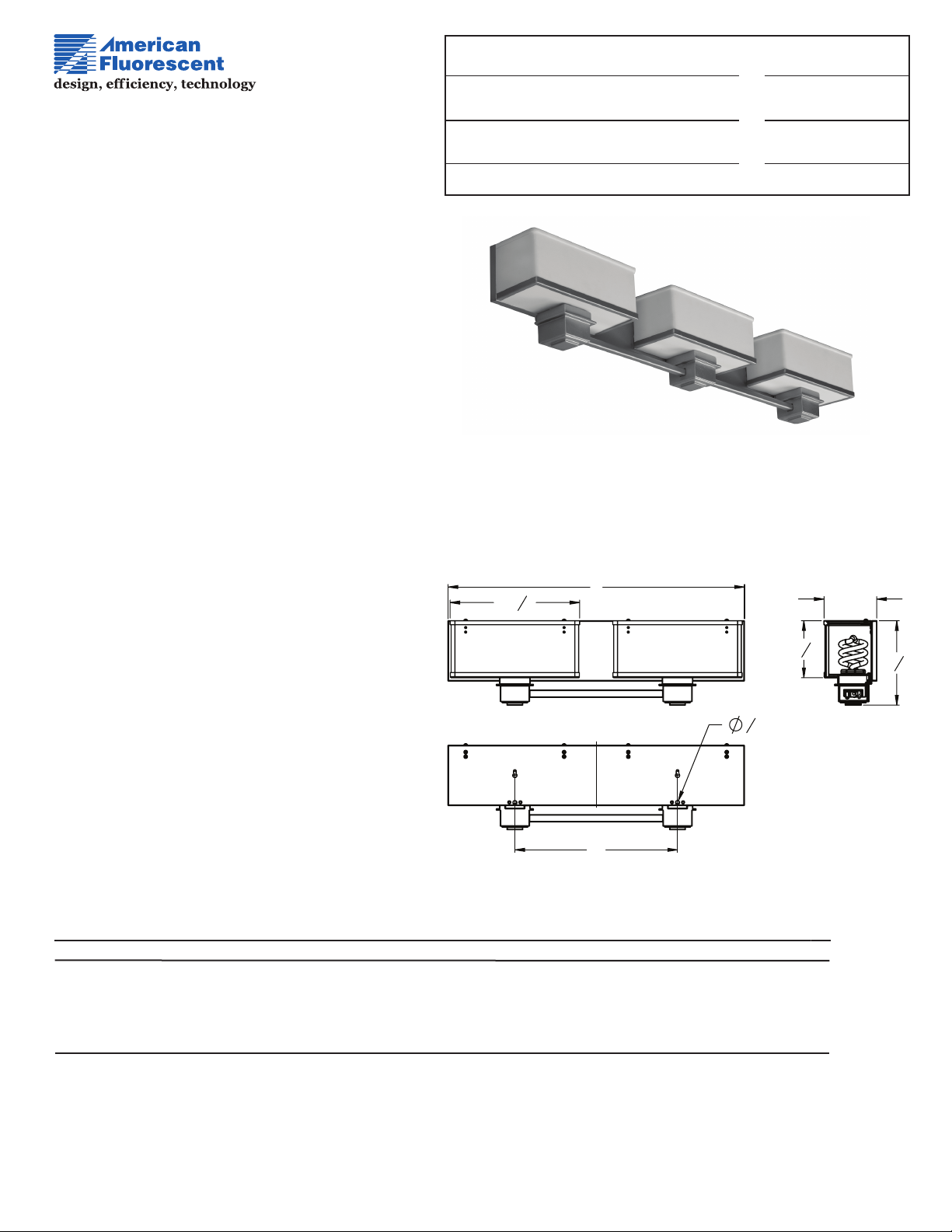

Specifications and dimensions
subject to change without notice.
M
Ordering Information:
Model No. Lamps Dimensions Mounting
Finish 120V Qty Lamp H L D M
Champagne SHV218ACSCT-LA 2 18W MAX GU24 SELF-BALLAST CFL 6-5/8" 23-1/4" 4" 12-3/4"
Champagne SHV318ACSCT-LA 3 18W MAX GU24 SELF-BALLAST CFL 6-5/8" 36" 4" 25-1/2"
Champagne SHV418ACSCT-LA 4 18W MAX GU24 SELF-BALLAST CFL 6-5/8" 48-3/4" 4" 38-1/4"
Finish 120V Qty Lamp H L D M
Satin Nickel SHV218SNSCT-LA 2 18W MAX GU24 SELF-BALLAST CFL 6-5/8" 23-1/4" 4" 12-3/4"
Satin Nickel SHV318SNSCT-LA 3 18W MAX GU24 SELF-BALLAST CFL 6-5/8" 36" 4" 25-1/2"
Satin Nickel SHV418SNSCT-LA 4 18W MAX GU24 SELF-BALLAST CFL 6-5/8" 48-3/4" 4" 38-1/4"
2345 N. Ernie Krueger Circle • Waukegan, IL. 60087 • P: 847.249.5970 • F: 847.249.2618 • www.americanfluorescent.com R0/09
Page 2
SHV Series
y

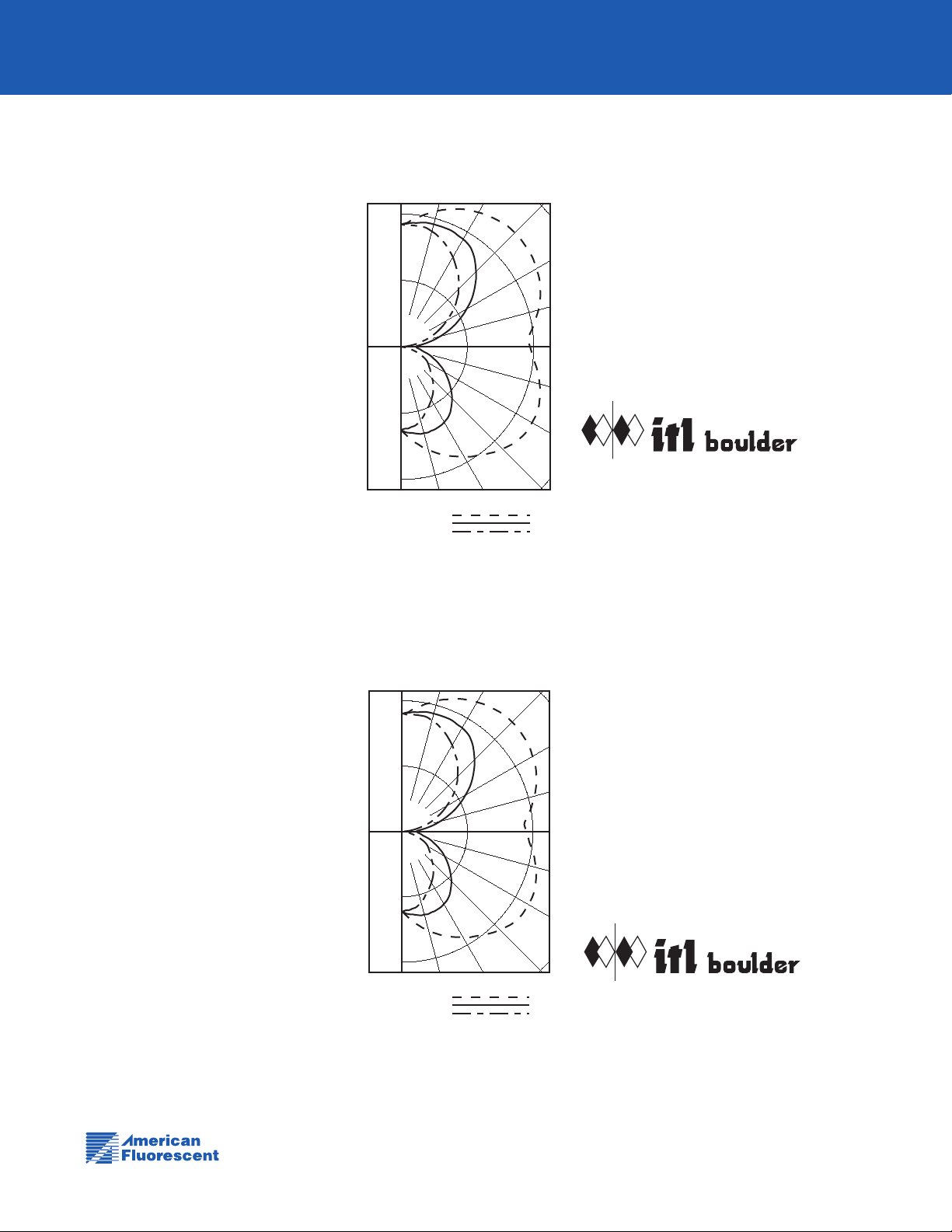

Photometric Information:
SHV318ACSCT-LA/SHV318SNSCT-LA
CANDELA DISTRIBUTION FLUX
0.0 45.0 90.0 135.0 180.0
0 138 138 138 138 138
5 151 150 143 140 136 14
15 177 174 148 139 126 43
25 200 194 147 128 109 72
35 220 208 139 111 93 97
45 239 218 120 93 73 115
55 251 223 96 71 57 123
65 250 221 71 51 42 124
75 238 209 47 33 19 114
85 220 192 28 16 2 99
90 213 186 25 15 2
95 213 188 32 23 9 102
105 236 212 68 56 40 129
115 254 233 107 92 73 151
125 264 248 145 127 106 160
135 267 256 176 157 135 154
145 262 254 201 182 160 134
155 251 245 209 199 182 101
165 233 230 210 207 198 61
175 211 210 206 204 202 20
180 203 203 203 203 203
ZONAL LUMEN SUMMARY
ZONE LUMENS %LAMP %FIXT
0- 30 130 3.6 7.2
0- 40 227 6.3 12.5
0- 60 465 12.9 25.7
0- 90 802 22.3 44.2
90-120 381 10.6 21.0
90-130 541 15.0 29.8
90-150 829 23.0 45.7
90-180 1011 28.1 55.8
0-180 1813 50.4 100.0
TOTAL LUMINAIRE EFFICIENCY = 50.4 %
CIE TYPE - DIRECT-INDIRECT
PLANE : 0-DEG 90-DEG 180-DEG
SPACING CRITERIA : 2.3 1.5 1.1
180˚ 165˚ 150˚ 135˚
220
110
110
220
0˚ 15˚ 30˚ 45˚
LEGEND:
0-deg:
90-deg:
180-deg:
COEFFICIENTS OF UTILIZATION - ZONAL CAVITY METHOD
EFFECTIVE FLOOR CAVITY REFLECTANCE 0.20
RC 80 70 50
RW 70 50 30 10 70 50 30 10 50 30 10
0 53 53 53 53 49 49 49 49 40 40 40
1 47 45 42 40 43 41 38 37 33 32 30
2 42 38 34 31 39 35 32 29 28 26 24
3 38 33 29 26 35 30 26 24 25 22 20
4 35 29 25 21 32 26 23 20 22 19 16
5 32 26 21 18 29 23 19 16 19 16 14
6 29 23 18 15 26 21 17 14 17 14 12
7 27 20 16 13 24 19 15 12 15 12 10
8 25 18 14 11 23 17 13 11 14 11 9
9 23 17 13 10 21 15 12 9 13 10 8
10 22 15 11 9 20 14 11 8 12 9 7
120˚
105˚
90˚
90˚
75˚
60˚
THE LIGHT CENTER OF THE INDUSTRY SINCE 1955
Report # ITL61480
SHV418ACSCT-LA/SHV418SNSCT-LA
CANDELA DISTRIBUTION FLUX
0.0 45.0 90.0 135.0 180.0
0 184 184 184 184 184
5 201 200 191 187 181 18
15 236 232 197 185 168 58
25 267 259 196 171 145 97
35 293 277 185 148 124 130
45 319 291 160 124 97 153
55 335 297 128 95 76 165
65 333 295 95 68 56 165
75 317 279 63 44 25 151
85 293 256 37 21 3 132
90 284 248 33 20 3
95 284 251 43 31 12 136
105 315 283 91 75 53 172
115 339 311 143 123 97 201
125 352 331 193 169 141 213
135 356 341 235 209 180 206
145 349 339 268 243 213 178
155 335 327 279 265 243 135
165 311 307 280 276 264 82
175 281 280 275 272 269 26
180 271 271 271 271 271
ZONAL LUMEN SUMMARY
ZONE LUMENS %LAMP %FIXT
0- 30 173 3.6 7.2
0- 40 303 6.3 12.5
0- 60 620 12.9 25.7
0- 90 1069 22.3 44.2
90-120 508 10.6 21.0
90-130 721 15.0 29.8
90-150 1106 23.0 45.7
90-180 1348 28.1 55.8
0-180 2418 50.4 100.0
TOTAL LUMINAIRE EFFICIENCY = 50.4 %
CIE TYPE - DIRECT-INDIRECT
PLANE : 0-DEG 90-DEG 180-DEG
SPACING CRITERIA : 2.3 1.5 1.1
180˚ 165˚ 150˚ 135˚
300
150
150
300
0˚ 15˚ 30˚ 45˚
LEGEND:
0-deg:
90-deg:
180-deg:
COEFFICIENTS OF UTILIZATION - ZONAL CAVITY METHOD
EFFECTIVE FLOOR CAVITY REFLECTANCE 0.20
RC 80 70 50
RW 70 50 30 10 70 50 30 10 50 30 10
0 53 53 53 53 49 49 49 49 40 40 40
1 47 45 42 40 43 41 39 37 33 32 30
2 42 38 35 31 39 35 32 29 28 26 24
3 38 33 29 26 35 30 26 24 25 22 20
4 35 29 25 21 32 26 23 20 22 19 16
5 32 26 21 18 29 23 19 16 19 16 14
6 29 23 18 15 26 21 17 14 17 14 12
7 27 20 16 13 24 19 15 12 15 12 10
8 25 18 14 12 23 17 13 11 14 11 9
9 23 17 13 10 21 15 12 9 13 10 8
10 22 15 11 9 20 14 11 8 12 9 7
120˚
105˚
90˚
90˚
75˚
60˚
THE LIGHT CENTER OF THE INDUSTRY SINCE 1955
Report # ITL61488
design, eff iciency, technolog
