LOCATION
DATE

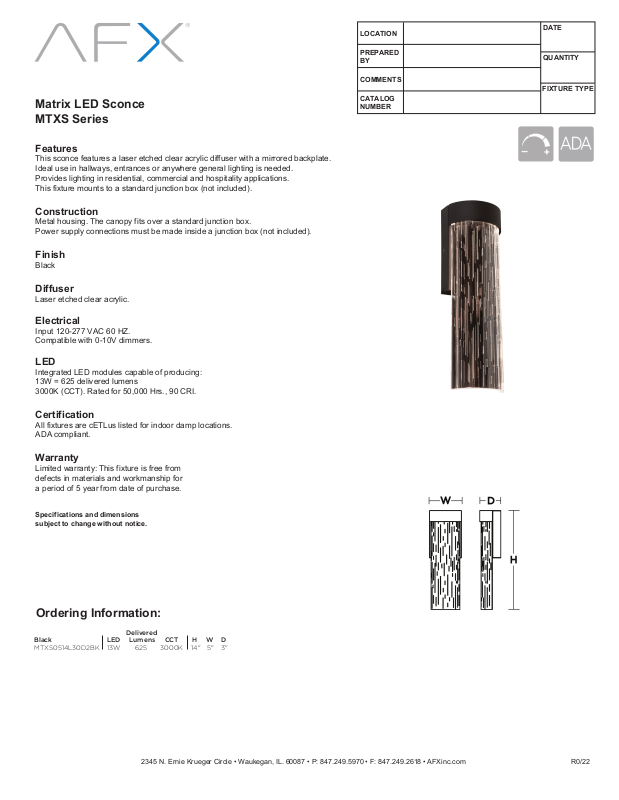

Matrix LED Sconce
MTXS Series
Features
This sconce features a laser etched clear acrylic diffuser with a mirrored backplate.
Ideal use in hallways, entrances or anywhere general lighting is needed.
Provides lighting in residential, commercial and hospitality applications.
This fixture mounts to a standard junction box (not included).
Construction
Metal housing. The canopy fits over a standard junction box.
Power supply connections must be made inside a junction box (not included).
Finish
Black
Diffuser
Laser etched clear acrylic.
Electrical
Input 120-277 VAC 60 HZ.
Compatible with 0-10V dimmers.
LED
Integrated LED modules capable of producing:
13W = 625 delivered lumens
3000K (CCT). Rated for 50,000 Hrs., 90 CRI.
PREPARED
BY
COMMENTS
CATALOG
NUMBER
QUANTITY
FIXTURE TYPE
Certification
All fixtures are cETLus listed for indoor damp locations.
ADA compliant.
Warranty
Limited warranty: This fixture is free from
defects in materials and workmanship for
a period of 5 year from date of purchase.
Specifications and dimensions
subject to change without notice.
Ordering Information:
Black LED W DH
MTXS0514L30D2BK 14"
13W
Delivered
Lumens
625
CCT
3000K
5"
3"
2345 N. Ernie Krueger Circle • Waukegan, IL. 60087 • P: 847.249.5970 • F: 847.249.2618 • AFXinc.com R0/22
