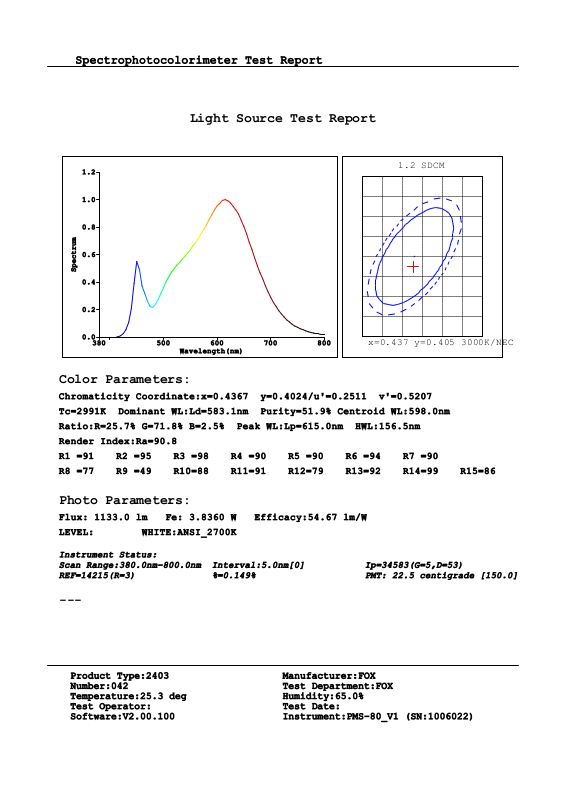

Spectrophotocolorimeter Test Report
Light Source Test Report
1.2
1.0
0.8
0.6
Spectrum
0.4
0.2
0.0
380 500 600 700 800
Wavelength(nm)
1.2 SDCM
x=0.437 y=0.405 3000K/NEC
Color Parameters:
Chromaticity Coordinate:x=0.4367 y=0.4024/u'=0.2511 v'=0.5207
Tc=2991K Dominant WL:Ld=583.1nm Purity=51.9% Centroid WL:598.0nm
Ratio:R=25.7% G=71.8% B=2.5% Peak WL:Lp=615.0nm HWL:156.5nm
Render Index:Ra=90.8
R1 =91 R2 =95 R3 =98 R4 =90 R5 =90 R6 =94 R7 =90
R8 =77 R9 =49 R10=88 R11=91 R12=79 R13=92 R14=99 R15=86
Photo Parameters:
Flux: 1133.0 lm Fe: 3.8360 W Efficacy:54.67 lm/W
LEVEL: WHITE:ANSI_2700K
Instrument Status:
Scan Range:380.0nm-800.0nm Interval:5.0nm[0] Ip=34583(G=5,D=53)
REF=14215(R=3) %=0.149% PMT: 22.5 centigrade [150.0]
---
Product Type:2403 Manufacturer:FOX
Number:042 Test Department:FOX
Temperature:25.3 deg Humidity:65.0%
Test Operator: Test Date:
Software:V2.00.100 Instrument:PMS-80_V1 (SN:1006022)
