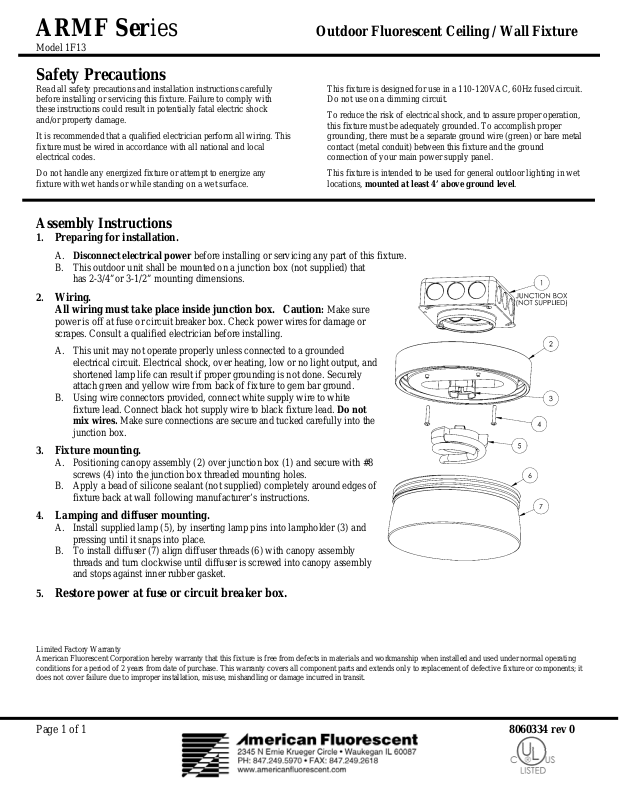

AFX ARMF1F13RBECT User Manual

ARMF Series Outdoor Fluorescent Ceiling / Wall Fixture

Model 1F13

Safety Precautions

Read all safety precautions and installation instructions carefully
before installing or servicing this fixture. Failure to comply with
these instructions could result in potentially fatal electric shock
and/or property damage.

It is recommended that a qualified electrician perform all wiring. This
fixture must be wired in accordance with all national and local
electrical codes.

Do not handle any energized fixture or attempt to energize any
fixture with wet hands or while standing on a wet surface.

Assembly Instructions

1. Preparing for installation.

A. Disconnect electrical power before installing or servicing any part of this fixture.
B. This outdoor unit shall be mounted on a junction box (not supplied) that

2. Wiring.

has 2-3/4”or 3-1/2” mounting dimensions.

All wiring must take place inside junction box. Caution: Make sure

power is off at fuse or circuit breaker box. Check power wires for damage or
scrapes. Consult a qualified electrician before installing.

This fixture is designed for use in a 110-120VAC, 60Hz fused circuit.
Do not use on a dimming circuit.

To reduce the risk of electrical shock, and to assure proper operation,
this fixture must be adequately grounded. To accomplish proper
grounding, there must be a separate ground wire (green) or bare metal
contact (metal conduit) between this fixture and the ground
connection of your main power supply panel.

This fixture is intended to be used for general outdoor lighting in wet
locations, mounted at least 4’ above ground level.

A. This unit may not operate properly unless connected to a grounded

electrical circuit. Electrical shock, over heating, low or no light output, and
shortened lamp life can result if proper grounding is not done. Securely
attach green and yellow wire from back of fixture to gem bar ground.

B. Using wire connectors provided, connect white supply wire to white

fixture lead. Connect black hot supply wire to black fixture lead. Do not
mix wires. Make sure connections are secure and tucked carefully into the
junction box.

3. Fixture mounting.

A. Positioning canopy assembly (2) over junction box (1) and secure with #8

screws (4) into the junction box threaded mounting holes.

B. Apply a bead of silicone sealant (not supplied) completely around edges of

fixture back at wall following manufacturer’s instructions.

4. Lamping and diffuser mounting.

A. Install supplied lamp (5), by inserting lamp pins into lampholder (3) and

pressing until it snaps into place.

B. To install diffuser (7) align diffuser threads (6) with canopy assembly

threads and turn clockwise until diffuser is screwed into canopy assembly
and stops against inner rubber gasket.

5. Restore power at fuse or circuit breaker box.

Limited Factory Warranty
American Fluorescent Corporation hereby warranty that this fixture is free from defects in materials and workmanship when installed and used under normal operating
conditions for a period of 2 years from date of purchase. This warranty covers all component parts and extends only to replacement of defective fixture or components; it
does not cover failure due to improper installation, misuse, mishandling or damage incurred in transit.

Page 1 of 1 8060334 rev 0
