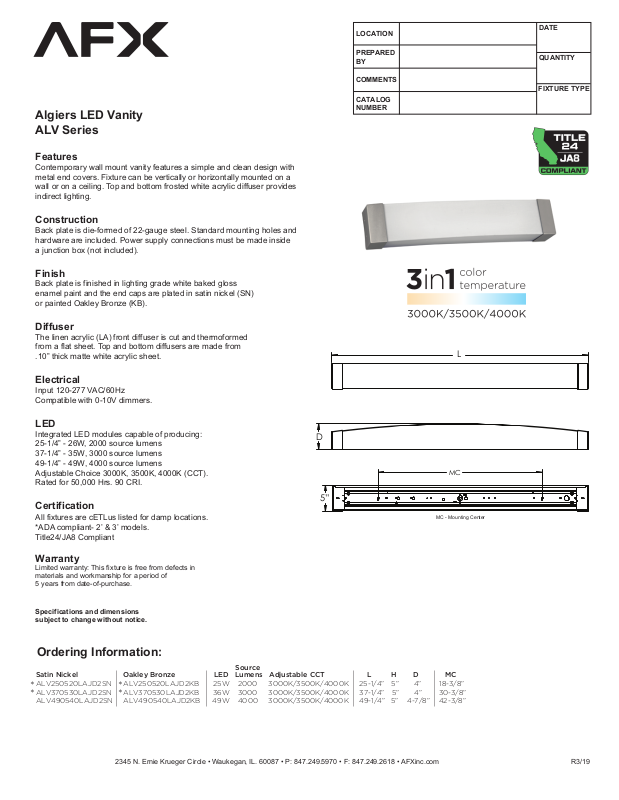

AFX ALV User Manual
LOCATION
DATE
Algiers LED Vanity
ALV Series
Features
Contemporary wall mount vanity features a simple and clean design with
metal end covers. Fixture can be vertically or horizontally mounted on a
wall or on a ceiling. Top and bottom frosted white acrylic diffuser provides
indirect lighting.
Construction
Back plate is die-formed of 22-gauge steel. Standard mounting holes and
hardware are included. Power supply connections must be made inside
a junction box (not included).
Finish
Back plate is finished in lighting grade white baked gloss
enamel paint and the end caps are plated in satin nickel (SN)
or painted Oakley Bronze (KB).
Diffuser
The linen acrylic (LA) front diffuser is cut and thermoformed
from a flat sheet. Top and bottom diffusers are made from
.10” thick matte white acrylic sheet.
PREPARED
BY
COMMENTS
CATALOG
NUMBER
QUANTITY
FIXTURE TYPE
L
Electrical
Input 120-277 VAC/60Hz
Compatible with 0-10V dimmers.
LED
Integrated LED modules capable of producing:
25-1/4” - 26W, 2000 source lumens
37-1/4” - 35W, 3000 source lumens
49-1/4” - 49W, 4000 source lumens
Adjustable Choice 3000K, 3500K, 4000K (CCT).
Rated for 50,000 Hrs. 90 CRI.
D
MC
5”
Certification
All fixtures are cETLus listed for damp locations.
*ADA compliant- 2’ & 3’ models.
Title24/JA8 Compliant
MC - Mounting Center
Warranty
Limited warranty: This fixture is free from defects in
materials and workmanship for a period of
5 years from date-of-purchase.
Specifications and dimensions
subject to change without notice.
Ordering Information:
Satin Nickel Oakley Bronze LED Lumens Adjustable CCT L H D MC
ALV250520LAJD2SN ALV250520LAJD2KB 25W 2000 3000K/3500K/4000K 25-1/4” 5” 4” 18-3/8”
*
ALV370530LAJD2SN ALV370530LAJD2KB 36W 3000 3000K/3500K/4000K 37-1/4” 5” 4” 30-3/8”
*
ALV490540LAJD2SN ALV490540LAJD2KB 49W 4000 3000K/3500K/4000K 49-1/4” 5” 4-7/8” 42-3/8”
*
*
Source
2345 N. Ernie Krueger Circle • Waukegan, IL. 60087 • P: 847.249.5970 • F: 847.249.2618 • AFXinc.com R3/19
