Model: ABF 110 L5 Series
4” Duct
Static Pressure (inches w.g.)
0.1
0.25
Air Volume (CFM)
110
88.3
Noise (sones)
0.9
1.0
Power Consumption (Watts)
25.6
23.7
Energy Efficiency (CFM/Watts)
4.4
3.73
Speed (RPM)
1080
N/A
ENERGY STAR rated
Yes
Grille Dimensions
13” x 13”
Model
Qty
Comments
Project
Location
Architect
Engineer
Contractor
Submitted by
Date

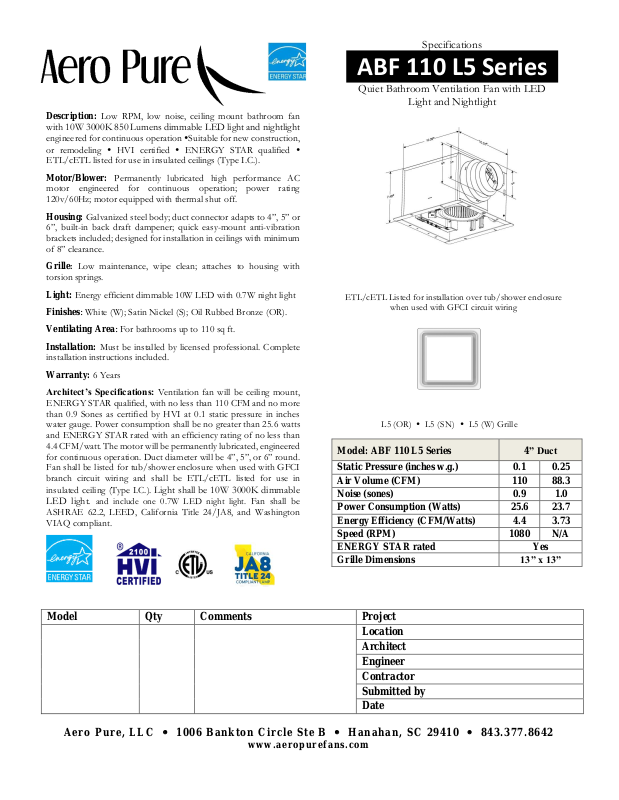

Specifications
ABF 110 L5 Series
Quiet Bathroom Ventilation Fan with LED
Light and Nightlight
ETL/cETL Listed for installation over tub/shower enclosure
when used with GFCI circuit wiring
Description: Low RPM, low noise, ceiling mount bathroom fan
with 10W 3000K 850 Lumens dimmable LED light and nightlight
engineered for continuous operation Suitable for new construction,
or remodeling HVI certified ENERGY STAR qualified
ETL/cETL listed for use in insulated ceilings (Type I.C.).
Motor/Blower: Permanently lubricated high performance AC
motor engineered for continuous operation; power rating
120v/60Hz; motor equipped with thermal shut off.
Housing: Galvanized steel body; duct connector adapts to 4”, 5” or
6”, built-in back draft dampener; quick easy-mount anti-vibration
brackets included; designed for installation in ceilings with minimum
of 8” clearance.
Grille: Low maintenance, wipe clean; attaches to housing with
torsion springs.
Light: Energy efficient dimmable 10W LED with 0.7W night light
Finishes: White (W); Satin Nickel (S); Oil Rubbed Bronze (OR).
Ventilating Area: For bathrooms up to 110 sq ft.
Installation: Must be installed by licensed professional. Complete
installation instructions included.
Warranty: 6 Years
Architect’s Specifications: Ventilation fan will be ceiling mount,
ENERGY STAR qualified, with no less than 110 CFM and no more
than 0.9 Sones as certified by HVI at 0.1 static pressure in inches
water gauge. Power consumption shall be no greater than 25.6 watts
and ENERGY STAR rated with an efficiency rating of no less than
4.4 CFM/watt. The motor will be permanently lubricated, engineered
for continuous operation. Duct diameter will be 4”, 5”, or 6” round.
Fan shall be listed for tub/shower enclosure when used with GFCI
branch circuit wiring and shall be ETL/cETL listed for use in
insulated ceiling (Type I.C.). Light shall be 10W 3000K dimmable
LED light. and include one 0.7W LED night light. Fan shall be
ASHRAE 62.2, LEED, California Title 24/JA8, and Washington
VIAQ compliant.
Aero Pure, LLC 1006 Bankton Circle Ste B Hanahan, SC 29410 843.377.8642
www.aeropurefans.com
L5 (OR) L5 (SN) L5 (W) Grille
