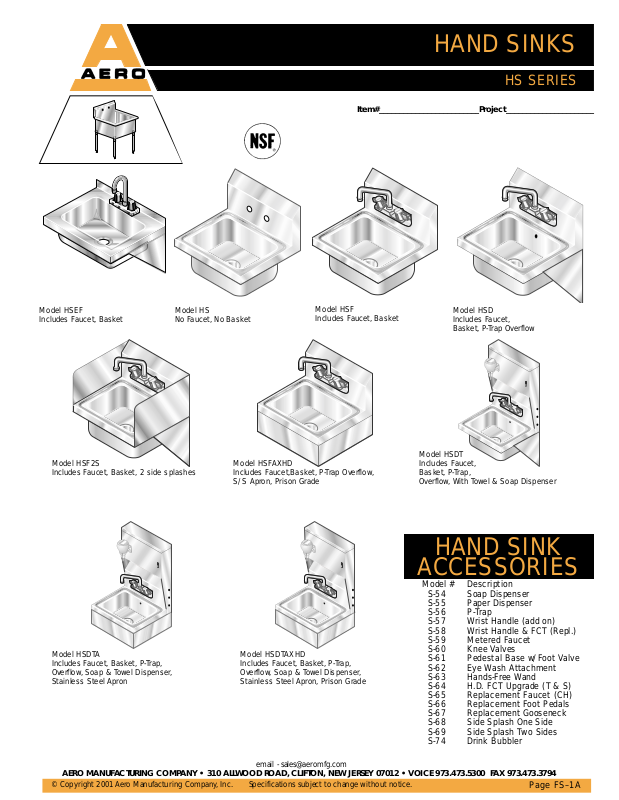

Page 1
HAND SINKS
HS SERIES
Item#_________________________Project______________________
Model HSEF
Includes Faucet, Basket
Model HSF2S
Includes Faucet, Basket, 2 side splashes
Model HSDTA
Includes Faucet, Basket, P-Trap,
Overflow, Soap & Towel Dispenser,
Stainless Steel Apron
Model HS
No Faucet, No Basket
Model HSFAXHD
Includes Faucet,Basket, P-Trap Overflow,
S/S Apron, Prison Grade
Model HSDTAXHD
Includes Faucet, Basket, P-Trap,
Overflow, Soap & Towel Dispenser,
Stainless Steel Apron, Prison Grade
Model HSF
Includes Faucet, Basket
Model HSD
Includes Faucet,
Basket, P-Trap Overflow
Model HSDT
Includes Faucet,
Basket, P-Trap,
Overflow, With Towel & Soap Dispenser
HAND SINK
ACCESSORIES
Model # Description
S-54 Soap Dispenser
S-55 Paper Dispenser
S-56 P-Trap
S-57 Wrist Handle (add on)
S-58 Wrist Handle & FCT (Repl.)
S-59 Metered Faucet
S-60 Knee Valves
S-61 Pedestal Base w/Foot Valve
S-62 Eye Wash Attachment
S-63 Hands-Free Wand
S-64 H.D. FCT Upgrade (T & S)
S-65 Replacement Faucet (CH)
S-66 Replacement Foot Pedals
S-67 Replacement Gooseneck
S-68 Side Splash One Side
S-69 Side Splash Two Sides
S-74 Drink Bubbler
AERO MANUFACTURING COMPANY • 310 ALLWOOD ROAD, CLIFTON, NEW JERSEY 07012 • VOICE 973.473.5300 FAX 973.473.3794
© Copyright 2001 Aero Manufacturing Company,Inc. Specifications subject to change without notice.
email - [email protected]
Specifications subject to change without notice.
Page FS–1A
Page 2
DIMENSIONAL SPECIFICATIONS
HAND SINKS
Model HSEF
BOWL BOWL UNIT UNIT Model # Ship Cubic
Width Length Width Length Weight Feet
10 14 14 18 HSEF 9 2
10 14 15 17 HS 12 2
10 14 15 17 HSF 14 2
10 14 15 17 HSD 15 2
10 14 15 17 HSF2S 15 2
Model HS
BOWL BOWL UNIT UNIT Model # Ship Cubic
Width Length Width Length Weight Feet
10 14 15 17 HSFAXHD 30 2
10 14 15 17 HSDT 35 2
10 14 15 17 HSDTA 35 2
10 14 15 17 HSDTAXHD 35 2
Model HSF
Model HSD
Model HSF2S Model HSFAXHD
Model HSDT
HAND SINK
ACCESSORIES
Model # Description
S-54 Soap Dispenser
S-55 Paper Dispenser
S-56 P-Trap
S-57 Wrist Handle (add on)
S-58 Wrist Handle & FCT (Repl.)
S-59 Metered Faucet
S-60 Knee Valves
S-61 Pedestal Base w/Foot Valve
S-62 Eye Wash Attachment
S-63 Hands-Free Wand
S-64 H.D. FCT Upgrade (T & S)
S-65 Replacement Faucet (CH)
S-66 Replacement Foot Pedals
S-67 Replacement Gooseneck
S-68 Side Splash One Side
Model HSDTA Model HSDTAXHD
All dimensions are typical (tol.±1⁄2"). • For Accessories and Options see pages FS-7A,FS-7B.
AERO MANUFACTURING COMPANY • 310 ALLWOOD ROAD, CLIFTON, NEW JERSEY 07012 • VOICE 973.473.5300 FAX 973.473.3794
© Copyright 2001 Aero Manufacturing Company,Inc. Specifications subject to change without notice.
email - [email protected]
S-69 Side Splash Two Sides
S-74 Drink Bubbler
Page FS–1B
