Atom AP30 Hardware User Guide

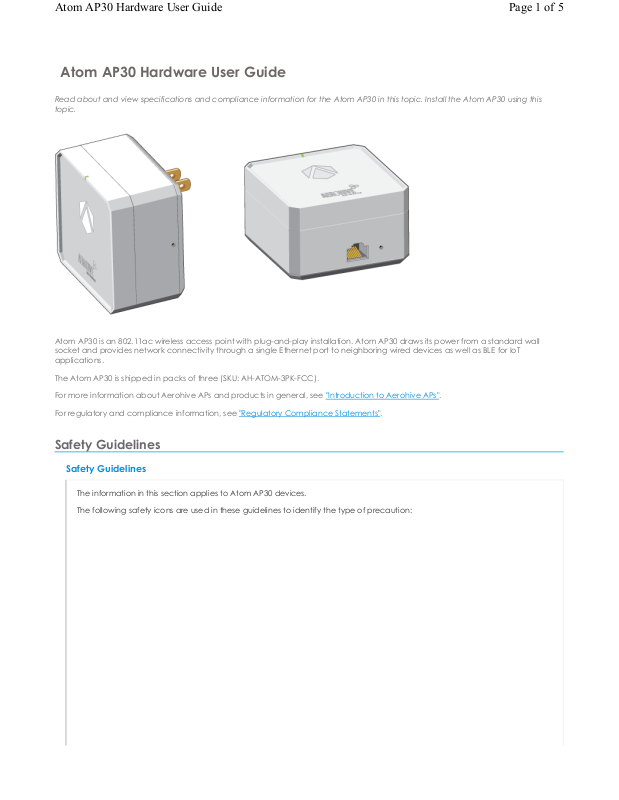

Read about and view specifications and compliance information for the Atom AP30 in this topic. Install the Atom AP30 using this topic.
Atom AP30 is an 802.11ac wireless access point with plug-and-play installation. Atom AP30 draws its power from a standard wall socket and provides network connectivity through a single Ethernet port to neighboring wired devices as well as BLE for IoT applications.
The Atom AP30 is shipped in packs of three (SKU: AH-ATOM-3PK-FCC).
For more information about Aerohive APs and products in general, see "Introduction to Aerohive APs".
Safety Guidelines
Safety Guidelines
The information in this section applies to Atom AP30 devices.
The following safety icons are used in these guidelines to identify the type of precaution:
This icon indicates a general caution. Failure to comply with a caution notification can result in damage to
g
o
e
equipment.
This icon indicates an electrical caution. Failure to comply with an electrical notification can result in serious injury or death, and extensive damage to equipment.
This icon indicates a laser caution. Failure to comply with a laser caution can result in serious injury.
The following table lists the safety precautions you should follow when installing your Atom AP30 devices.
Aerohive devices must be installed by a professional installer who is certified to install these types of devices and to ensure that they are properly grounded and meet applicable local and national electrical codes.
These devices are intended for indoor use only.
Do not install the device in an environment where the operating ambient temperature might exceed the recommended ranges.
Page 2 of 5Atom AP30 Hardware User Guid
For products available in the USA/Canada market, for the 2.4 GHz band, only channels 1-11 can be operated. Selection of other channels is not possible.
Changes or modifications made to this device that are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Use only attachments and accessories specified by Aerohive.
These devices are not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or with lack of experience of knowledge unless they are given supervision or instruction concernin ensure that they do not play with the devices.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when electronic components are improperly handled and can result in complete or intermittent failures. Be sure to follow ESD-prevention procedures when handling electronic components and equipment.
To meet federal radiation exposure requirements, these devices should be installed at a minimum distance 8" (20 cm) from people or animals.
use of the devices by a person who is responsible for their safety. Children should be supervised
Install the Atom AP30
To install the Atom AP30, simply plug it into a standard wall outlet. The device can also be installed using a security bracket (ordered separately). For more information, contact your Aerohive representative.
The Atom AP30 shipping carton contains the following items:
• Three Atom AP30 devices
• Read Me card

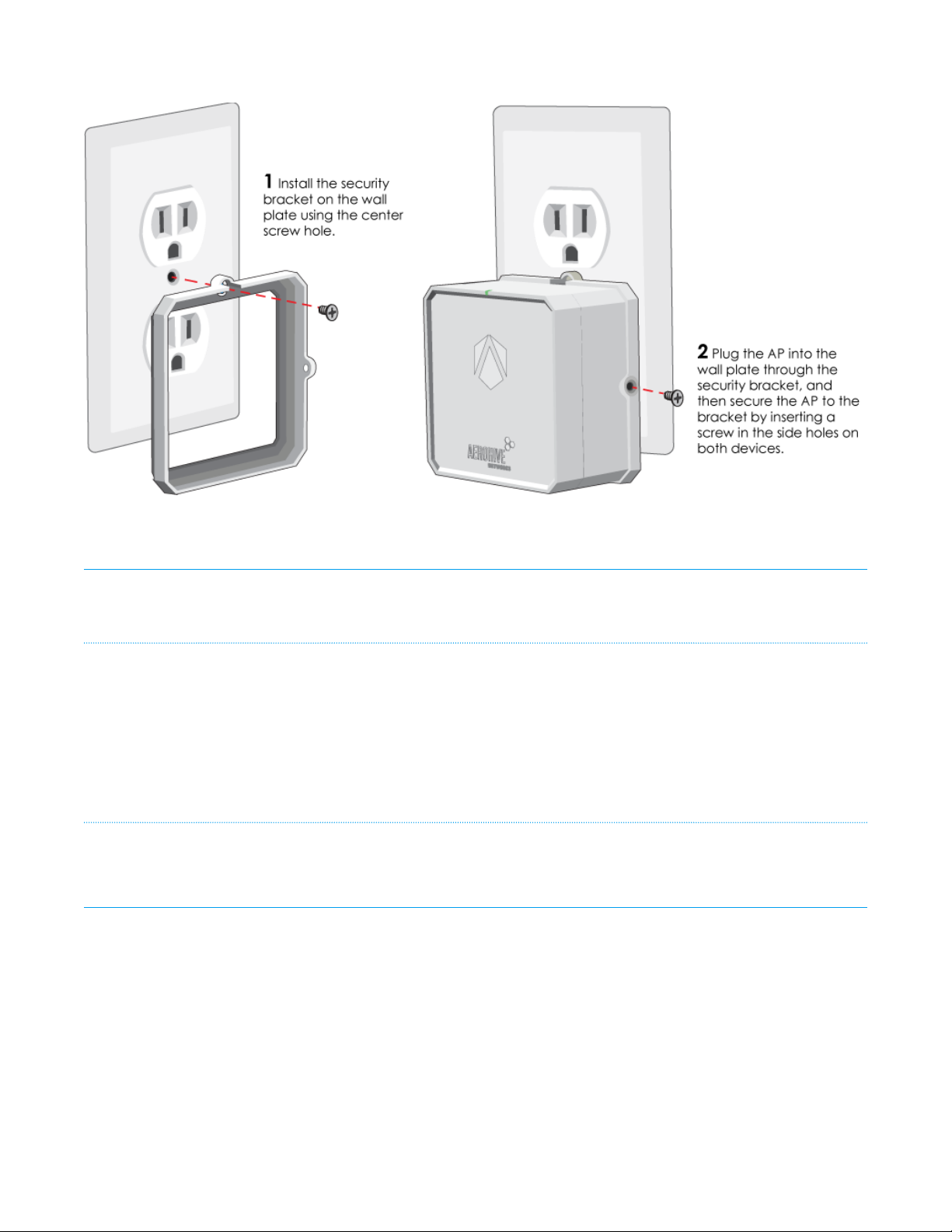

To install your Atom AP30, if you plan to secure the device, first install the security bracket (SKU AH-ATOM-BRKT) in the wall socket. Then install the AP into the security bracket as shown below, and plug the device into the wall socket. If you do not plan to secure the device, simply plug it directly into the wall socket.
The Atom AP30 automatically looks for neighboring APs with which to form a mesh. You can also configure the Ethernet port for bridge mode, and use it to connect a wired device, such as a printer or projector, to your network.
Make sure the Aerohive logo is upright. Plugging the device in upside down will impact performance.
