AeraMax PRO AM IV User Manual

CUSTOMER SERVICE & SUPPORT

www.fellowes.com

U.S.: 1-800-955-0959 Canada: 1-800-665-4339 Mexico: 001-800-514-9057

AeraMax® Pro AM IV and AM4 PC

Air Purier | Puricateur d’air | Puricador de aire

Brands

1789 Norwood Avenue, Itasca, Illinois 60143 • 1-800-955-0959 • www.fellowes.com

PLEASE READ THESE INSTRUCTIONS BEFORE USE. DO NOT DISCARD: KEEP FOR FUTURE REFERENCE.

VEUILLEZ LIRE CES INSTRUCTIONS AVANT D’UTILISER L’APPAREIL. NE PAS JETER : CONSERVER AFIN DE CONSULTER LES DIRECTIVES ULTÉRIEUREMENT, EN CAS DE BESOIN.

LEA ESTAS INSTRUCCIONES ANTES DEL USO. NO LAS DESECHE: CONSÉRVELAS PARA REFERENCIA FUTURA.

ENGLISH

PACKAGING CONTENTS

*For a copy of the manual please visit www.aeramaxpro.com

SAFETY INSTRUCTIONS/WARNING

Thank you for purchasing the AeraMax Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain this product. Protect yourself and others by

observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage. Retain instructions for future reference.

IMPORTANT CAUTIONS AND INSTRUCTIONS FOR USING AIR PURIFIER:

WARNING: Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire:

• Do not use this air purifier as sole protection against harmful pollutants.

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.

• Installation work and electrical wiring must be done by qualified person(s). All electrical installation work must be conducted and carried out in accordance with all federal, state and local codes and regulations.

• Before servicing or cleaning the unit, switch power off at service panel. Lock service panel, or affix a warning tag, to prevent power from being switched back on accidentally.

• The AeraMax

• Use only the electrical power (voltage and frequency) specified for the model air purifier being installed.

• Do not obstruct the air inlet or air outlet of the air purifier.

PRO air quality control system must be grounded.

PRO AM IV.

• When drilling into mounting surface, do not damage electrical wiring and other hidden utilities.

• Do not use unit without filters installed.

• Do not wash and reuse any of the filters.

• Do not use attachments or filters other than AeraMax

PRO brand, as

unit will not function.

• Do not spray aerosols on, or into the unit.

• Do not use detergent to clean the unit.

• Do not insert fingers, liquids, or foreign objects into the air intake or outlet.

• Do not use the unit for anything other than air purification.

• AeraMax® PRO Air Quality Control System

• True HEPA Filter with AeraSafe™ Antimicrobial Treatment (2 filters)

• Activated Carbon Filter w/Pre-Filter (2 of each filter)

• Keys for Locking Front Panel (2)

• Mounting Template

• Pan Head Phillips Screws - M6 x 50mm (4)

• Drywall Anchors - 10mm OD (4)

• Registration information

PRODUCT SPECIFICATIONS

AeraMax® PRO AM IV

Dimensions (H x W x D) 19.6 x 34.7 x 9 inches / 49.7 x 88.1 x 22.8 cm Weight of System (including filters) 33.3 lbs. / 15.1 kg Power Requirements 120V, 60Hz, 2A Power Consumption (5 fan speeds) 8, 12, 18, 35, 166 watt Air Delivery (5 fan speeds) 153, 186, 224, 280, 440 CFM Decibels 42, 44, 51, 53, 68 dB Display Capacitive Touch, Internal Access Only Sensors EnviroSmart™ Sensor Controlled Operation Modes 2 Primary modes - Normal Mode and Quiet Mode

Supplied Filters

Cleaning System

Color

REPLACEMENT FILTERS

HEPA True HEPA filter replacement with AeraSafe™ treatment. Average filter life 2 years: 9416601 – 2 pack Carbon Granular activated carbon replacement filter with pre-filter. Average filter life 6 months: 9416501 – 4 pack

2 True HEPA Filters with AeraSafe™ Antimicrobial Treatment with an estimated average filter life of 1 year, 2 Activated Carbon Filters with Pre-Filter, estimated average filter life 6 months.

High Efficiency Particulate Air (HEPA) filter rated efficiency of 99.97% of airborne particulate at 0.3 microns. Carbon Filter adsorbs odor and volatile organic compounds, PlasmaTRUE™ bipolar ionizer.

• Stainless (item# 9416301),

• White (item# 9446201),

• Graphite (item #9446301),

• Custom finish available, call for more details

LIMITED PRODUCT WARRANTY

Limited Warranty: Fellowes, Inc. (“Fellowes”) warrants the AeraMax® PRO air quality control system (the “Product”) to be free of defects in material and workmanship for the time periods as set forth below.

· For PC units only: The particle counters and display screen for a period of three (3) years from the date of original purchase of the Product.

· For standard and PC units: All other parts for a period of five (5) years from the date of original purchase of the Product. In the event that the Product is installed into new construction, the warranty period shall commence on the date of the occupancy permit or one year after the date of purchase,

whichever is earlier. If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes’ option and expense, of the defective part. This warranty does not cover damage caused by use of non-Fellowes approved filters or failure to follow the recommended replacement schedule. This warranty does not apply in cases of abuse, mishandling, failure to comply with product usage standards, operation using an improper power supply (other than listed on the label), or unauthorized repair. Fellowes reserves the right to charge the consumers for any additional costs incurred by Fellowes to provide parts or services outside of the country where the Product was initially sold by an authorized reseller. This warranty does not cover replaceable filters. In the event that the Product is not readily accessible to Fellowes designated service personnel, Fellowes reserves the right to supply customer with replacement parts or Product in full satisfaction of its obligations under this warranty and any service obligations. ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE. In no event shall Fellowes be liable for any consequential, incidental, indirect or special damages. This warranty gives you specific legal rights. The duration, terms, and conditions of this warranty are valid worldwide, except where different limitations, restrictions, or conditions may be required by local laws.

For additional replacement filter and accessory information please visit: www.aeramaxpro.com

INFORMATION TO THE USER

This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in an installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna

- Increase the separation between the equipment and receiver

- Connect the equipment on a circuit different from that to which the receiver is connected.

- Consult the dealer or experienced radio/TV technician for help.

WARNING: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment

and warranty.

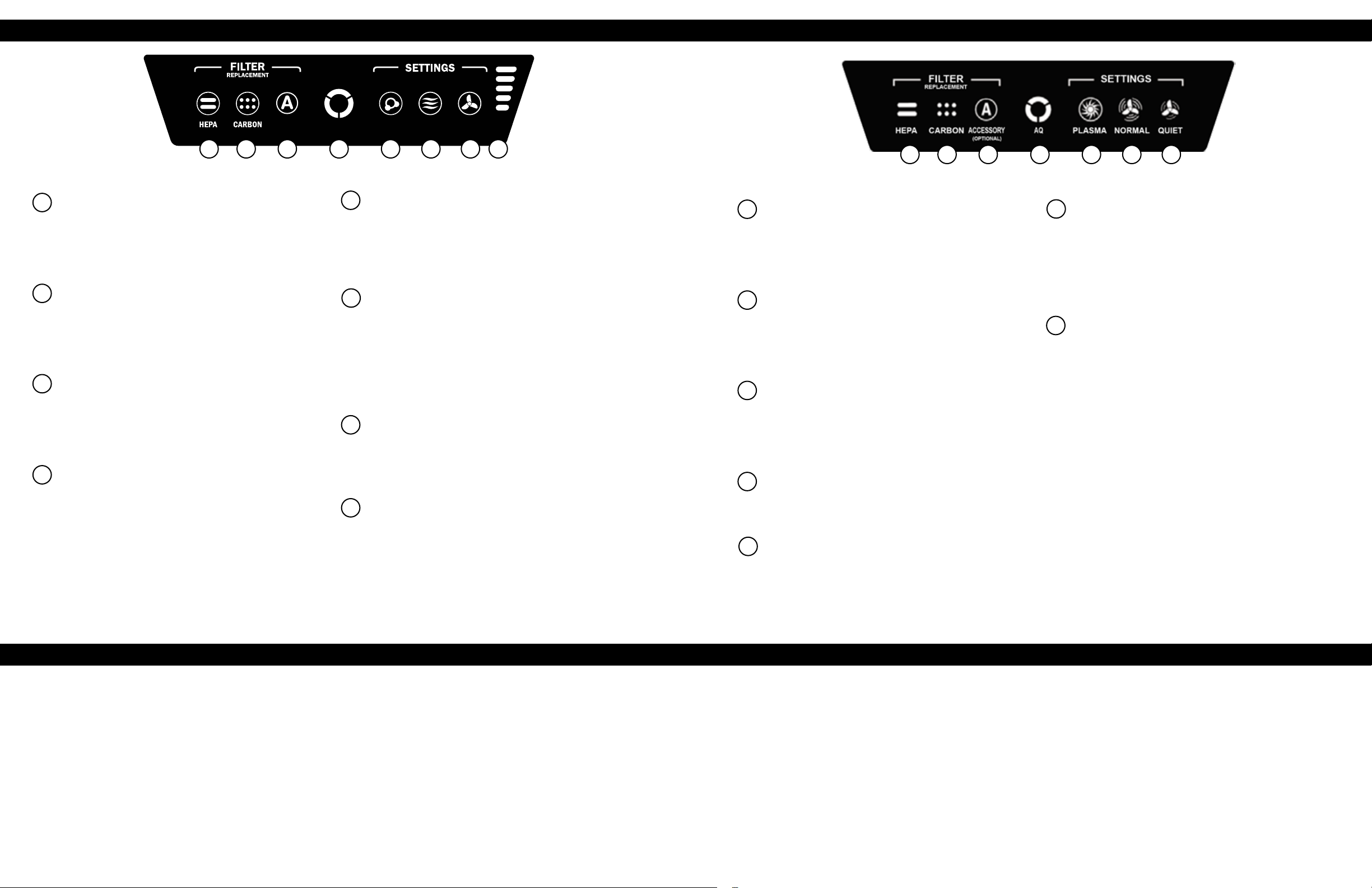

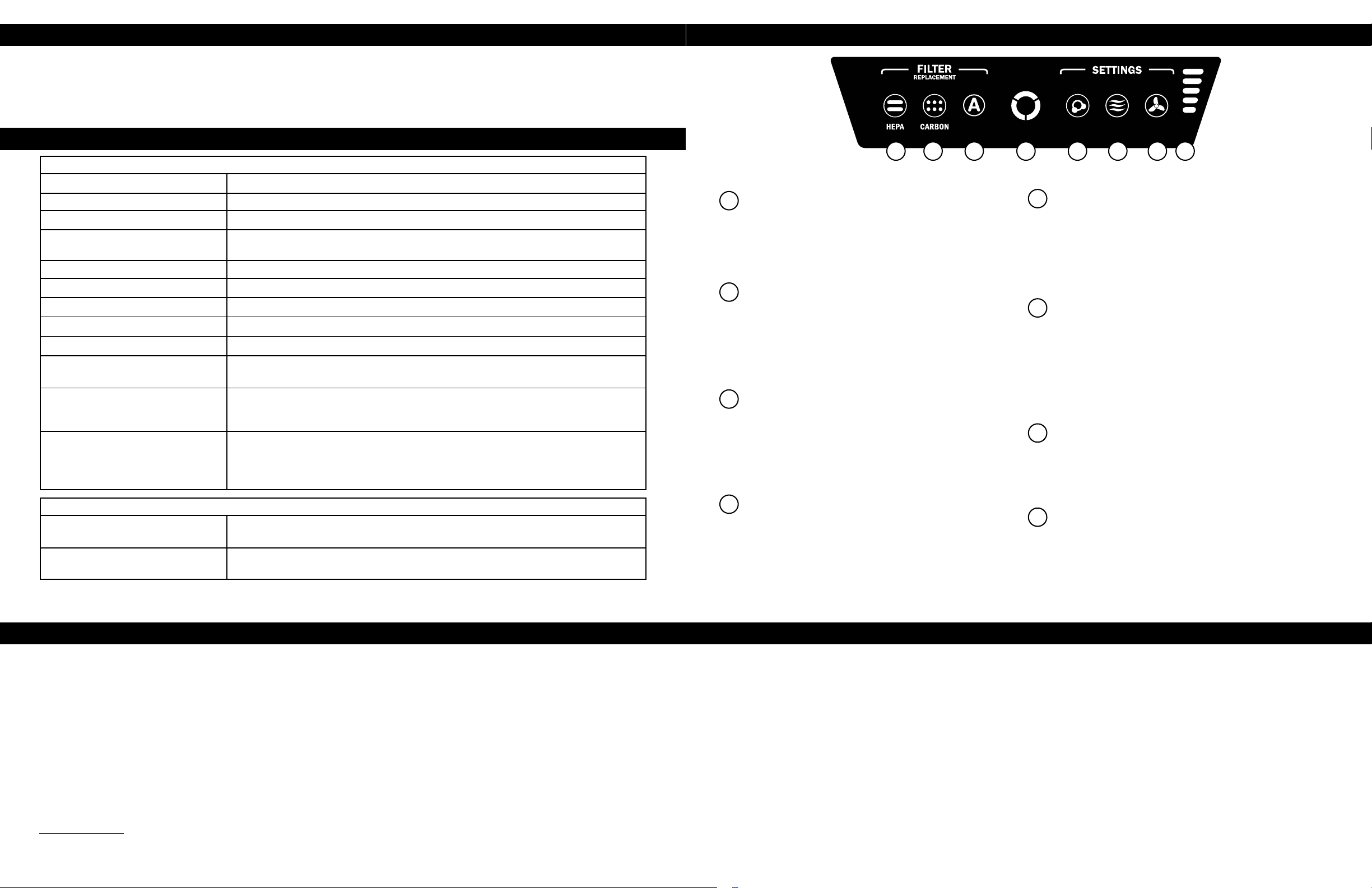

AM-PRO UI & INDICATOR LAYOUT

PROJECT: DATE: REV: AUTHOR:

COPERFIELD 03-AUG-16 X4 M. GARTZ

DISPLAY PANEL AM4 PC

DISPLAY PANEL AMIV

1 2 3 4 5 6 7 8

NOTE: after the unit is turned on the “AQ” light will flash for a few minutes while the system self-calibrates.

HEPA FILTER REPLACEMENT INDICATOR – This indicator will show

its status when the access panel is open or closed. If the light is red this indicates the filter needs replacing. The replacement period will vary depending on the filters used, hours of use, air quality, and rate of air flow. For filter replacement indicator descriptions see FILTER REPLACEMENT INDICATORS section.

CARBON FILTER REPLACEMENT INDICATOR – This indicator will

show its status when the access panel is open or closed. If the light is red this indicates the filter needs replacing. The replacement period will vary depending on the filters used, hours of use, air quality, and rate of air flow. For filter

replacement indicator descriptions see FILTER REPLACEMENT INDICATORS section.

ACCESSORY INDICATOR – This indicator will show its status when the

access panel is open or closed. This indicator will only be used if an accessory filter is installed in the unit. If the light is red this indicates the filter needs replacing. The replacement period will vary depending on the filters used, hours of use, air quality, and rate of air flow. For filter replacement indicator descriptions see FILTER REPLACEMENT INDICATORS section.

AIR QUALITY SENSOR – This indicator will show its status when the

access panel is open or closed. This indicator monitors the air quality and adjusts the fan speed to keep your air purified. Blue, amber, and red lights indicate the purity of your air.

PlasmaTRUE™ TECHNOLOGY – This indicator will show its status when

the access panel is open or closed. Creates an ionized field to help safely remove airborne pollutants. To turn on and off the PlasmaTRUE™ TECHNOLOGY, touch and hold the PLASMA indicator. A blue light illuminates when the PlasmaTRUE™ TECHNOLOGY is enabled. To disable the PlasmaTRUE™ TECHNOLOGY, press and hold “Plasma” indicator until light is off.

AUTO MODE – To select, press and hold the button until the icon illuminates. This

mode uses the EnviroSmart™ technology to monitor the air quality, motion and noise level to adjust the fan speed in order to purify your air as quickly as possible. This button also includes QUIET MODE. To select, press and hold until the button turns green. The machine will continue to use EnviroSmart™ but only utilizes the 3 lowest, most quiet of the 5 fan speeds.

MANUAL MODE – To select, press the button until the icon illuminates. This

mode allows you to choose one of the 5 fan speeds and keep the unit at this speed until AUTO MODE is chosen again. The internal sensors will not adjust the fan speed in this mode.

FAN SPEED INDICATORS – The fan has 5 speeds and can reach turbo

speed to clean the room in case of high levels of contaminants. The number of bars illuminated indicates fan speed.

1 – whisper 2 – low 3 – medium

4 – high 5 – turbo

1 2 3 4 5 6 7

NOTE: after the unit is turned on the “AQ” light will flash for a few minutes while the system self-calibrates.

HEPA FILTER REPLACEMENT INDICATOR – This indicator will show

CARBON FILTER REPLACEMENT INDICATOR – This indicator will

replacement indicator descriptions see FILTER REPLACEMENT INDICATORS section.

ACCESSORY INDICATOR – This indicator will show its status when the

AIR QUALITY SENSOR – This indicator will show its status when the

access panel is open or closed. This indicator monitors the air quality and adjusts the fan speed to keep your air purified. Blue, amber, and red lights indicate the purity of your air.

PlasmaTRUE™ TECHNOLOGY – This indicator will show its status when

NORMAL MODE – Select this mode for restrooms, cafeterias, fitness areas,

and other louder areas as rapid purification is initiated when the room is occupied and/or strong airborne contaminants are present. To select, press and hold the “Normal” indicator until icon illuminates. This mode monitors air quality, motion, and noise level to adjust the fan speed in order to keep your air purified as quickly as possible. The fan can reach turbo speed to clean the room in the case of high levels of contaminant.

QUIET MODE – This mode utilizes the 3 lowest, most quiet of the 5 fan speeds.

Select this mode for classrooms, meeting rooms, offices, and other quieter areas as the unit will not run faster than the maximum set speed. To select, press and hold the “Quiet” indicator until icon illuminates. Continue to press and hold the indicator to switch between the maximum speeds in this mode. There are three different levels; each level represents a maximum fan speed that the unit can achieve.

• Level 1 = The lowest speed, the unit will beep one time when this mode has been selected and the unit will not run faster than this lowest speed.

• Level 2 = Low speed, the unit will beep two times when this mode has been selected and the unit will not run faster than low speed.

• Level 3 = Medium speed, the unit will beep three times when this mode has been selected and the unit will not run faster than medium speed.

The Quiet Mode monitors air quality, motion, and noise level to adjust the fan speed in order to keep the air purified as efficiently as possible while not exceeding the maximum speed level selected.

OPERATION

The air purifier continuously works in automatic mode; the user can select which preference they would like the purifier to use based on the location or desired operation of the air purifier. The purifier will operate through a minimized range of speeds, not exceeding the maximum level selected, in order to run quietly while cleaning the room of contaminants. Once air is cleaned, and no sensors are activated, the unit lowers to energy saving mode to reduce energy consumption and extend the life of the filters.

When Auto Mode is selected, the Auto mode indicator will be blue. This mode uses the EnviroSmart™ technology to monitor the air quality, motion and noise level to adjust the fan speed in order purify your air as quickly as possible. Once air is cleaned, and no sensors are activated, the unit lowers to energy saving mode to

reduce energy consumption and extend the life of the filters. When Quiet Mode is selected, the Auto Mode indicator will be green. The machine will continue to use EnviroSmart™ but only utilizes the 3 lowest, most quiet of

the 5 fan speeds. When Manual Mode is selected, the Manual mode indicator will be blue. This mode allows you to choose one of the 5 fan speeds and keep unit at this speed until

Auto Mode is chosen/selected. EnviroSmart™ sensors will NOT adjust the fan speed in this mode.

OPERATION

When Normal mode is selected the Normal indicator on the control panel will be blue when the access panel is open. The purifier will operate through its full range of speeds in order to clean the room of contaminates as quickly as possible. Once air is cleaned, and no sensors are activated, the unit lowers to energy saving mode

to reduce energy consumption and extend the life of the filters. When Quiet mode is selected the Quiet indicator on the control panel will be blue when the access panel is open. The purifier will operate through a minimized range

of speeds in order to stay as quiet as possible while cleaning the room of contaminates. Once air is cleaned, and no sensors are activated, the unit lowers to energy saving mode to reduce energy consumption and extend the life of the filters.

+ 7 hidden pages
