Aeotec Range Extender 7, ZW189 Users guide

Aeotec Range Extender 7.

Aeotec Range Extender 7 was developed to amplify Z-Wave and Z-Wave Plus signals. It is powered by
Aeotec’s Gen7 technology.

Important safety information.

Please read this and other device guides carefully. Failure to follow the recommendations set forth by Aeotec
Limited may be dangerous or cause a violation of the law. The manufacturer, importer, distributor, and/or
reseller will not be held responsible for any loss or damage resulting from not following any instructions in this
guide or in other materials.

Keep product away from open flames and extreme heat. Avoid direct sunlight or heat exposure.

Range Extender 7 is intended for indoor use in dry locations only. Do not use in damp, moist, and/or wet
locations.

Quick start.

Adding your Range Extender into a Z-Wave network.

Getting your Range Extender up and running is as simple as plugging it into a wall outlet and adding it to your
Z-Wave network. There are 2 methods to pairing your Range Extender depending on the capabilities of your Z­Wave gateway/controller/hub.

SmartStart Inclusion.
You can use this method of inclusion only if your Z-Wave gateway/controller/hub supports SmartStart.

1. Open up your Z-Wave gateway/controller/app.

2. Select SmartStart inclusion.

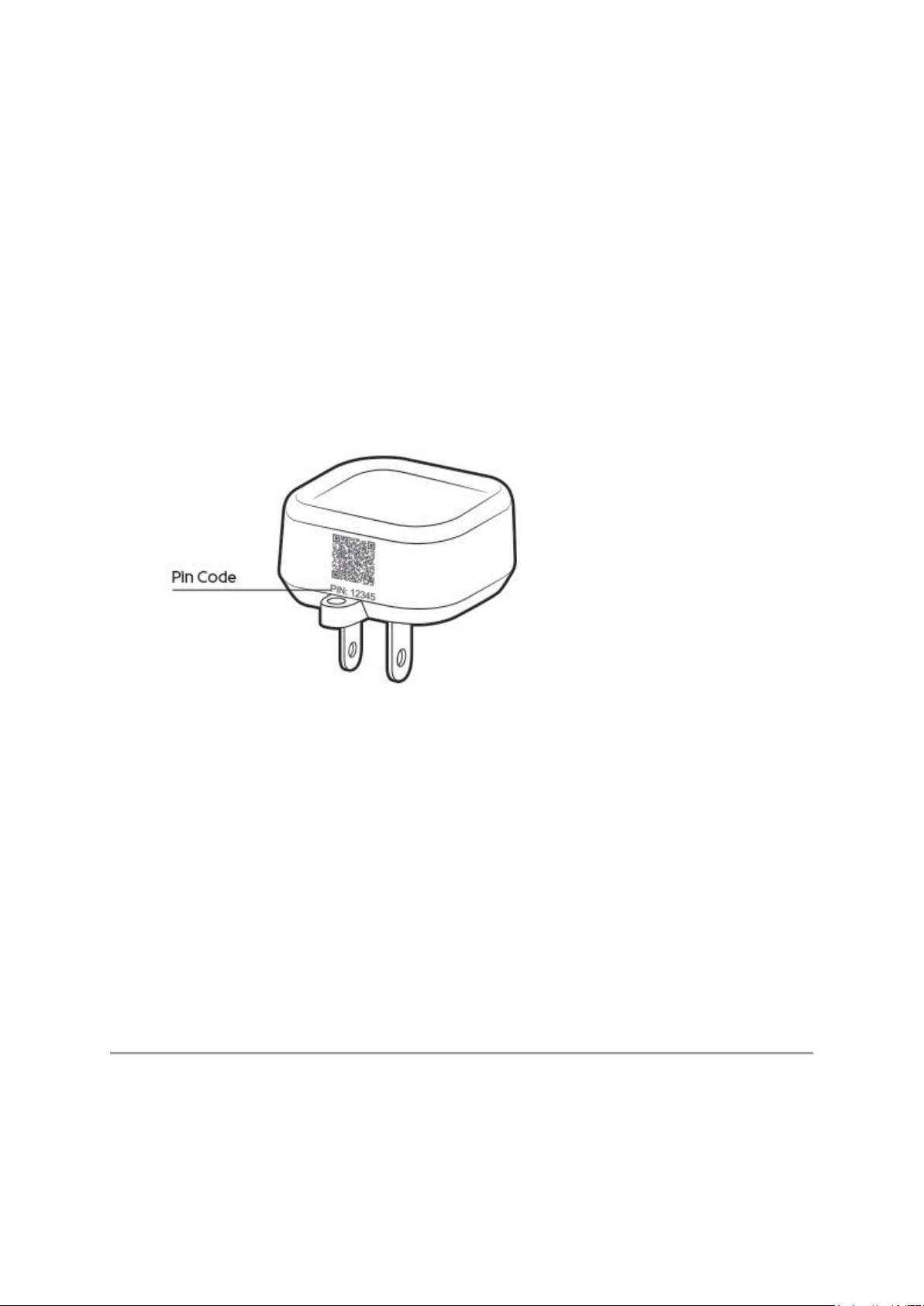

3. Scan the QR code located on the Range Extender 7.

4. Within 10 minutes after powering your Range Extender 7, it will automatically get included into your

Z-Wave gateway/controller/hub.

LED will flash for 1 second after Repeater is powered, if successful, the LED will become a solid bright
light for 2 seconds.

Classic Inclusion.

1. Decide on where you want your Range Extender to be placed and then plug it into a wall outlet.
