LED on.
LED off.
Advanced Functions.
Removing your Range Extender from a Z-Wave network.
Your Range Extender can be removed from your Z-Wave network at any time. You’ll need to use your Z-Wave
network’s main controller. To set your Z-Wave controller/gateway into removal mode, please refer to the respective
section within your controller instruction manual.
1. Set your Z-Wave Controller into device removal mode.
2. Press the Z-Wave Button on your Range Extender.
3. If Range Extender has been successfully removed from your network, its LED will return to a slow breathing
light.
Control LED of Range Extender 7.

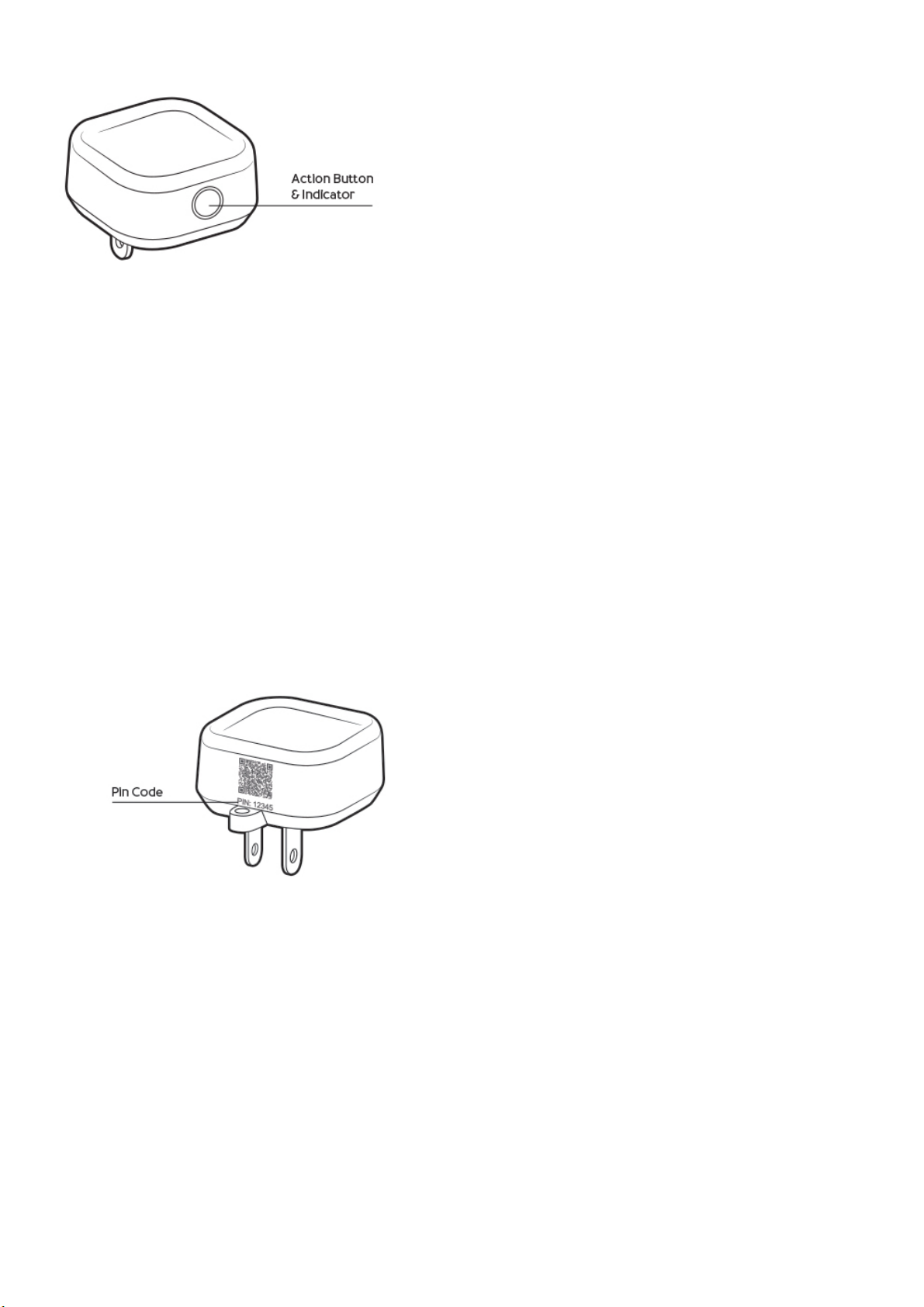

You can turn the LED on or off by using the action button of your Range Extender 7:
Tap the Action Button 2x times.
LED should turn on or off each time you do so.
Testing Health Connectivity.
NOTE - This health detection function is only good for determining the direct connection to the gateway (within
communication distance to your gateway without any other repeater nodes).
You can determine the health of your Range Extender 7 connectivity to your gateway using its manual button press,
hold, and release function which is indicated by the LED.
You gateway/controller/hub must support displaying Z-Wave device health in order for you to see the health of your
Range Extender 7 to your Z-Wave gateway.
Follow these steps to test the health of your Range Extender to your Z-Wave gateway/controller/hub:
Press and hold the Z-Wave Button for 5-10 seconds to test the communication health your Range Extender 7.
@1 second, LED will turn off.
@2 seconds, LED will breath its LED
@5 seconds, LED will flash its LED
Release the Action Button to test the health.
