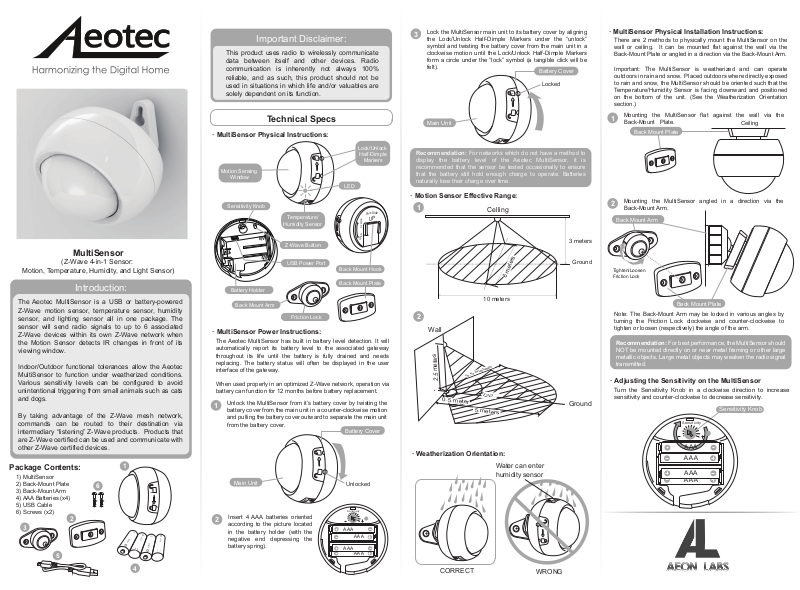

Aeon Labs DSB05 User Manual

MultiSensor

Motion, Temperature, Humidity, and Light Sensor)

(Z-Wave 4-in-1 Sensor:

Introduction:

The Aeotec MultiSensor is a USB or battery-powered
Z-Wave motion sensor, temperature sensor, humidity
sensor, and lighting sensor all in one package. The
sensor will send radio signals to up to 6 associated
Z-Wave devices within its own Z-Wave network when
the Motion Sensor detects IR changes in front of its
viewing window.

Indoor/Outdoor functional tolerances allow the Aeotec
MultiSensor to function under weatherized conditions.
Various sensitivity levels can be configured to avoid
unintentional triggering from small animals such as cats
and dogs.

By taking advantage of the Z-Wave mesh network,
commands can be routed to their destination via
intermediary “listening” Z-Wave products. Products that
are Z-Wave certified can be used and communicate with
other Z-Wave certified devices.

Package Contents:

1) MultiSensor

2) Back-Mount Plate

3) Back-Mount Arm

4) AAA Batteries (x4)

5) USB Cable

6) Screws (x2)

3

2

5

1

6

4

Important Disclaimer:

This product uses radio to wirelessly communicate
data between itself and other devices. Radio
communication is inherently not always 100%
reliable, and as such, this product should not be
used in situations in which life and/or valuables are
solely dependent on its function.

Technical Specs

· MultiSensor Physical Instructions:

Lock/Unlock

Half-Dimple

Markers

Motion Sensing

Window

Sensitivity Knob

Temperature/

Humidity Sensor

Z-Wave Button

USB Power Port

Battery Holder

Back Mount Arm

Friction Lock

· MultiSensor Power Instructions:

The Aeotec MultiSensor has built in battery level detection. It will
automatically report its battery level to the associated gateway
throughout its life until the battery is fully drained and needs
replacing. The battery status will often be displayed in the user
interface of the gateway.

When used properly in an optimized Z-Wave network, operation via
battery can function for 12 months before battery replacement.

Unlock the MultiSensor from it’s battery cover by twisting the

1

battery cover from the main unit in a counter-clockwise motion
and pulling the battery cover outward to separate the main unit
from the battery cover.

Main Unit

Insert 4 AAA batteries oriented

2

according to the picture located
in the battery holder (with the
negative end depressing the
battery spring).

LED

This Side

UP

CLOSE

OPEN

Back Mount Hook

Back Mount Plate

Battery Cover

Unlocked

Sensitivity

AAA

AAA

AAA

AAA

Lock the MultiSensor main unit to its battery cover by aligning

3

the Lock/Unlock Half-Dimple Markers under the “unlock”
symbol and twisting the battery cover from the main unit in a
clockwise motion until the Lock/Unlock Half-Dimple Markers
form a circle under the “lock” symbol (a tangible click will be
felt).

Main Unit

Recommendation: For networks which do not have a method to
display the battery level of the Aeotec MultiSensor, it is
recommended that the sensor be tested occasionally to ensure
that the battery still hold enough charge to operate. Batteries
naturally lose their charge over time.

· Motion Sensor Effective Range:

1

Celling

6 meters

10 meters

Battery Cover

Locked

2

Wall

3.5 meters

2.5 meters

120

0.5 meter

· Weatherization Orientation:

°

5 meters

Water can enter
humidity sensor

CORRECT

WRONG

3 meters

Ground

Ground

· MultiSensor Physical Installation Instructions:

There are 2 methods to physically mount the MultiSensor on the
wall or ceiling. It can be mounted flat against the wall via the
Back-Mount Plate or angled in a direction via the Back-Mount Arm.

Important: The MultiSensor is weatherized and can operate
outdoors in rain and snow. Placed outdoors where directly exposed
to rain and snow, the MultiSensor should be oriented such that the
Temperature/Humidity Sensor is facing downward and positioned
on the bottom of the unit. (See the Weatherization Orientation
section.)

Mounting the MultiSensor flat against the wall via the

1

Back-Mount Plate.

Back Mount Plate

Mounting the MultiSensor angled in a direction via the

2

Back-Mount Arm.

Back Mount Arm

Tighten/Loosen
Friction Lock

Back Mount Plate

Note: The Back-Mount Arm may be locked in various angles by
turning the Friction Lock clockwise and counter-clockwise to
tighten or loosen (respectively) the angle of the arm.

Recommendation: For best performance, the MultiSensor should
NOT be mounted directly on or near metal framing or other large
metallic objects. Large metal objects may weaken the radio signal
transmitted.

·

Adjusting the Sensitivity on the MultiSensor

Turn the Sensitivity Knob in a clockwise direction to increase
sensitivity and counter-clockwise to decrease sensitivity.

Sensitivity

Ceiling

Sensitivity Knob

AAA

AAA

AAA

AAA

Z-Wave Network Instructions:

The Aeotec MultiSensor must be paired (included) into a
Z-Wave network before it can send Basic Set Command,
Temperature, Humidity, and Light level reports to
association group 1, which
Command class.
to devices within its own Z-Wave network.

Note: The LED on the MultiSensor will blink if it is currently
not paired into a Z-Wave network when pressing the
Z-Wave Button.

The MultiSensor can only communicate

Adding/Including/Pairing the MultiSensor into a

Include

Note: To include the MultiSensor with other controllers, please
consult the operation manual for these controllers on how to
include Z-Wave products into an existing network.

Press the Z-Wave Button under the Battery Cover to begin the

2

Z-Wave pairing process.

Troubleshooting:

into any Z-Wave network, the MultiSensor’s LED will blink when
pressing the Z-Wave Button. If the MultiSensor was successfully
paired into a Z-Wave network, the LED will stay solid for a few
seconds when pressing the Z-Wave Button.

If the MultiSensor was not successfully paired

is setup via the Association

Z-Wave Network

Press the button labeled “Include” on

1

the Aeotec Minimote to begin the
Z-Wave inclusion process.

Remove

Learn

Include

Associate

Z-Wave Button

Sensitivity

AAA

AAA

AAA

AAA

Removing/Resetting the MultiSensor from your

Z-Wave Network

Press the button labeled “Remove” on

1

the Aeotec Minimote to begin the
Z-Wave removal process.

Remove

Learn

Include

Associate

Remove

Note: To remove the MultiSensor from other controllers,
please consult the operation manual for these controllers
on how to remove Z-Wave products from an existing
network.

Troubleshooting:

from the Z-Wave network, pressing the Z-Wave Button will cause the
LED to blink. If the MultiSensor was not successfully removed from
the Z-Wave network the LED will stay solid for a few seconds.

If the MultiSensor was successfully removed

Monitoring Motion

The MultiSensor can send Basic Set Command to association group 1,
which is setup via the Association Command Class, when the Motion
Sensor detects movement to control the associated devices to “OPEN”
state. After 4 minutes by default, if the Motion Sensor is not triggered
again, the MultiSensor will send Basic Set Command to these devices to
set them to their “CLOSE” state. However, if the Motion Sensor is
triggered again in 4 minutes, the MultiSensor will reset the timing and
start timing again.

The 4 minutes delay time can be changed through the usage of Z-Wave
command built into Z-Wave certified controllers/gateways. (The specific
Z-Wave command supporting this function is Configuration Command
Class) Please consult the operation manual for these controllers /
gateways for specific instructions on setting the MultiSensor.

Monitoring Temperature, Humidity and Luminance

The MultiSensor can report temperature, humidity, and luminance to
a Z-Wave gateway or controller when requested. If this function is
supported by the gateway/controller, the data will be displayed in the
user interface of the gateway/controller. (The specific Z-Wave
command supporting the monitoring is the Multilevel Sensor
Command Class and Multi Channel Command Class. Automatic
reports are sent to association group 1, which is setup via the
Association Command Class.) Please consult the operation manual
for these gateways/controllers for specific instructions on setting the
MultiSensor.

Warranty

Aeon Labs warrants to the original purchaser of Products that for the
Warranty Period (as defined below), the Products will be free from
material defects in materials and workmanship. The foregoing warranty
is subject to the proper installation, operation and maintenance of the
Products in accordance with installation instructions and the operating
manual supplied to Customer. Warranty claims must be made by
Customer in writing within thirty (30) days of the manifestation of a
problem. Aeon Labs’ sole obligation under the foregoing warranty is, at
Aeon Labs’ option, to repair, replace or correct any such defect that was
present at the time of delivery, or to remove the Products and to refund
the purchase price to Customer.

The "Warranty Period" begins on the date the Products is delivered and
continues for 12 months.

Any repairs under this warranty must be conducted by an authorized
Aeon Labs service representative and under Aeon Labs’ RMA policy.
Any repairs conducted by unauthorized persons shall void this warranty.

Excluded from the warranty are problems due to accidents, acts of God,
civil or military authority, civil disturbance, war, strikes, fires, other
catastrophes, misuse, misapplication, storage damage, negligence,
electrical power problems, or modification to the Products or its
components.

Aeon Labs does not authorize any person or party to assume or create
for it any other obligation or liability in connection with the Products
except as set forth herein.

Aeon Labs will pass on to Customer all manufacturers’ Material
warranties to the extent that they are transferable, but will not
independently warrant any Material.

Customer must prepay shipping and transportation charges for returned
Products, and insure the shipment or accept the risk of loss or damage
during such shipment and transportation. Aeon Labs will ship the
repaired or replacement products to Customer freight prepaid.

Customer shall indemnify, defend, and hold Aeon Labs and Aeon Labs’
affiliates, shareholders, directors, officers, employees, contractors,
agents and other representatives harmless from all demands, claims,
actions, causes of action, proceedings, suits, assessments, losses,
damages, liabilities, settlements, judgments, fines, penalties, interest,
costs and expenses (including fees and disbursements of counsel) of
every kind (i) based upon personal injury or death or injury to property to
the extent any of the foregoing is proximately caused either by a
defective product (including strict liability in tort) or by the negligent or
willful acts or omissions of Customer or its officers, employees,
subcontractors or agents, and/or (ii) arising from or relating to any actual
or alleged infringement or misappropriation of any patent, trademark,
mask work, copyright, trade secret or any actual or alleged violation of
any other intellectual property rights arising from or in connection with
the products, except to the extent that such infringement exists as a
result of Aeon Labs’ manufacturing processes.

IN NO EVENT SHALL AEON LABS BE LIABLE FOR ANY INDIRECT,
INCIDENTAL, PUNITIVE, SPECIAL OR CONSEQUENTIAL
DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, OR
USE INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER
IN AN ACTION IN CONTRACT, OR TORT, OR OTHERWISE EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AEON LABS’
LIABILITY AND CUSTOMER’S EXCLUSIVE REMEDY FOR ANY
CAUSE OF ACTION ARISING IN CONNECTION WITH THIS
AGREEMENT OR THE SALE OR USE OF THE PRODUCTS,
WHETHER BASED ON NEGLIGENCE, STRICT LIABILITY, BREACH
OF WARRANTY, BREACH OF AGREEMENT, OR EQUITABLE
PRINCIPLES, IS EXPRESSLY LIMITED TO, AT AEOTEC’S OPTION,
REPLACEMENT OF, OR REPAYMENT OF THE PURCHASE PRICE
FOR THAT PORTION OF PRODUCTS WITH RESPECT TO WHICH
DAMAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND ARISING IN
CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF
PRODUCTS SHALL BE DEEMED WAIVED UNLESS MADE IN
WRITING WITHIN THIRTY (30) DAYS FROM AEON LABS’ DELIVERY,
OR THE DATE FIXED FOR DELIVERY IN THE EVENT OF
NONDELIVERY.

THE INDEMNITY AND WARRANTY IN ABOVE ARE EXCLUSIVE AND
IN LIEU OF ALL OTHER INDEMNITIES OR WARRANTIES, WHETHER
EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE.

FCC NOTICE (for USA):

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR
TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS
TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

STORE INDOORS WHEN NOT IN USE. SUITABLE FOR DRY
LOCATIONS. DO NOT IMMERSE IN WATER. NOT FOR USE WHERE
DIRECTLY EXPOSED TO WATER.

This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:

1. This device may not cause harmful interference, and

2.This device must accept any interference received, including
interference that may cause undesired operation. This equipment has
been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Warning:

Do not dispose of electrical appliances as unsorted municipal waste,
use separate collection facilities.

Contact your local government for information regarding the collection
systems available.

Certifications (regional):

Do not dispose of electrical appliances as unsorted municipal waste,
use separate collection facilities.

Contact your local government for information regarding the collection
systems available.
