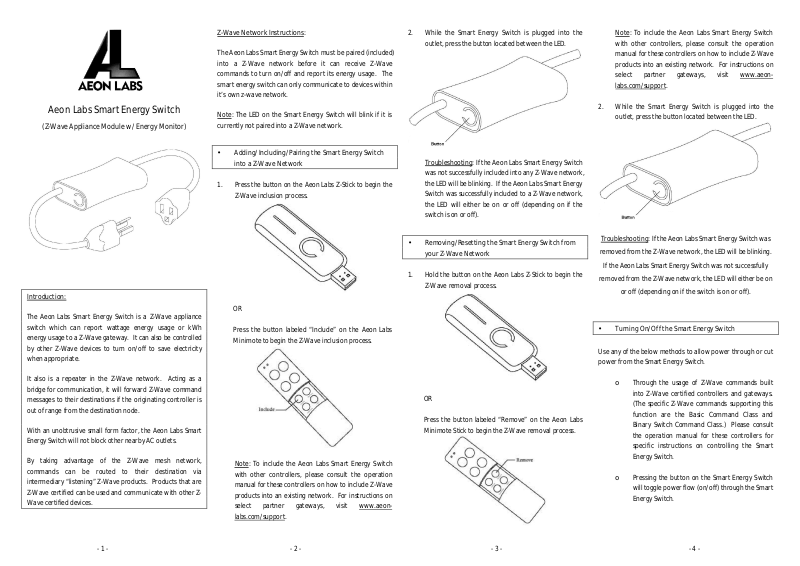

Aeon Labs 20100207 Users Manual

Aeon Labs Smart Energy Switch

(Z-Wave Appliance Module w/ Energy Monitor)

Z-Wave Network Instructions:

The Aeon Labs Smart Energy Switch must be paired (included)
into a Z-Wave network before it can receive Z-Wave
commands to turn on/off and report its energy usage. The
smart energy switch can only communicate to devices within
it’s own z-wave network.

: The LED on the Smart Energy Switch will blink if it is

Note

currently not paired into a Z-Wave network.

2. While the Smart Energy Switch is plugged into the
outlet, press the button located between the LED.

Note: To include the Aeon Labs Smart Energy Switch
with other controllers, please consult the operation
manual for these controllers on how to include Z-Wave
products into an existing network. For instructions on
select partner gateways, visit www.aeon­labs.com/support.

2. While the Smart Energy Switch is plugged into the
outlet, press the button located between the LED.

Introduction:

The Aeon Labs Smart Energy Switch is a Z-Wave appliance
switch which can report wattage energy usage or kWh
energy usage to a Z-Wave gateway. It can also be controlled
by other Z-Wave devices to turn on/off to save electricity
when appropriate.

It also is a repeater in the Z-Wave network. Acting as a
bridge for communication, it will forward Z-Wave command
messages to their destinations if the originating controller is
out of range from the destination node.

With an unobtrusive small form factor, the Aeon Labs Smart
Energy Switch will not block other nearby AC outlets.

By taking advantage of the Z-Wave mesh network,
commands can be routed to their destination via
intermediary “listening” Z-Wave products. Products that are
Z-Wave certified can be used and communicate with other Z­Wave certified devices.

• Adding/Including/Pairing the Smart Energy Switch
into a Z-Wave Network

1. Press the button on the Aeon Labs Z-Stick to begin the
Z-Wave inclusion process.

OR

Press the button labeled “Include” on the Aeon Labs
Minimote to begin the Z-Wave inclusion process.

Note

: To include the Aeon Labs Smart Energy Switch
with other controllers, please consult the operation
manual for these controllers on how to include Z-Wave
products into an existing network. For instructions on
select partner gateways, visit www.aeon­labs.com/support.

Troubleshooting: If the Aeon Labs Smart Energy Switch
was not successfully included into any Z-Wave network,
the LED will be blinking. If the Aeon Labs Smart Energy
Switch was successfully included to a Z-Wave network,
the LED will either be on or off (depending on if the
switch is on or off).

• Removing/Resetting the Smart Energy Switch from
your Z-Wave Network

1. Hold the button on the Aeon Labs Z-Stick to begin the
Z-Wave removal process.

OR

Press the button labeled “Remove” on the Aeon Labs
Minimote Stick to begin the Z-Wave removal process.

Troubleshooting: If the Aeon Labs Smart Energy Switch was

removed from the Z-Wave network, the LED will be blinking.

If the Aeon Labs Smart Energy Switch was not successfully

removed from the Z-Wave network, the LED will either be on

or off (depending on if the switch is on or off).

• Turning On/Off the Smart Energy Switch

Use any of the below methods to allow power through or cut
power from the Smart Energy Switch.

o Through the usage of Z-Wave commands built

into Z-Wave certified controllers and gateways.
(The specific Z-Wave commands supporting this
function are the Basic Command Class and
Binary Switch Command Class.) Please consult
the operation manual for these controllers for
specific instructions on controlling the Smart
Energy Switch.

o Pressing the button on the Smart Energy Switch

will toggle power flow (on/off) through the Smart
Energy Switch.

- 1 - - 2 - - 3 - - 4 -

• Monitoring Energy Consumption

The Aeon Labs Smart Energy Switch can report wattage
energy usage or kWh energy usage to a Z-Wave gateway or
controller when requested. If this function is supported by
the gateway/controller, the energy consumption will be
displayed in the user interface of the gateway/controller.
(The specific Z-Wave commands supporting energy
monitoring are the Meter Command Class and Multilevel
Sensor Command Class.) Please consult the operation
manual for these gateways/controllers for specific
instructions on monitoring the Smart Energy Switch.

• Technical Specifications

o USA: 120V 60Hz input, 1875W or 15A max output
o EU: 250V 50Hz input, 4000W or 16A max output
o AU: 240V 50Hz input, 2400W or 10A max output

Warranty

Aeon Labs warrants to the original purchaser of Products
that for the Warranty Period (as defined below), the Products
will be free from material defects in materials and
workmanship. The foregoing warranty is subject to the
proper installation, operation and maintenance of the
Products in accordance with installation instructions and the
operating manual supplied to Customer. Warranty claims
must be made by Customer in writing within thirty (30) days
of the manifestation of a problem. Aeon Labs' sole obligation
under the foregoing warranty is, at Aeon Labs' option, to
repair, replace or correct any such defect that was present at
the time of delivery, or to remove the Products and to refund
the purchase price to Customer.

The "Warranty Period" begins on the date the Products is
delivered and continues for 12 months.

Any repairs under this warranty must be conducted by an
authorized Aeon Labs service representative and under Aeon
Labs’ RMA policy. Any repairs conducted by unauthorized
persons shall void this warranty.

Excluded from the warranty are problems due to accidents,
acts of God, civil or military authority, civil disturbance, war,
strikes, fires, other catastrophes, misuse, misapplication,
storage damage, negligence, electrical power problems, or
modification to the Products or its components.

Aeon Labs does not authorize any person or party to assume
or create for it any other obligation or liability in connection
with the Products except as set forth herein.

Aeon Labs will pass on to Customer all manufacturers’
Material warranties to the extent that they are transferable,
but will not independently warrant any Material.

Customer must prepay shipping and transportation charges
for returned Products, and insure the shipment or accept the
risk of loss or damage during such shipment and
transportation. Aeon Labs will ship the repaired or
replacement products to Customer freight prepaid.

Customer shall indemnify, defend, and hold Aeon Labs and
Aeon Labs’ affiliates, shareholders, directors, officers,
employees, contractors, agents and other representatives
harmless from all demands, claims, actions, causes of action,
proceedings, suits, assessments, losses, damages, liabilities,
settlements, judgments, fines, penalties, interest, costs and
expenses (including fees and disbursements of counsel) of
every kind (i) based upon personal injury or death or injury to
property to the extent any of the foregoing is proximately
caused either by a defective product (including strict liability
in tort) or by the negligent or willful acts or omissions of
Customer or its officers, employees, subcontractors or
agents, and/or (ii) arising from or relating to any actual or
alleged infringement or misappropriation of any patent,
trademark, mask work, copyright, trade secret or any actual
or alleged violation of any other intellectual property rights
arising from or in connection with the products, except to the
extent that such infringement exists as a result of Aeon
Labs‘ manufacturing processes.

IN NO EVENT SHALL AEON LABS BE LIABLE FOR ANY
INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL OR
CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF
PROFITS, REVENUE, OR USE INCURRED BY CUSTOMER OR
ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT,
OR TORT, OR OTHERWISE EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. AEON LABS’ LIABILITY AND
CUSTOMER’S EXCLUSIVE REMEDY FOR ANY CAUSE OF
ACTION ARISING IN CONNECTION WITH THIS AGREEMENT

OR THE SALE OR USE OF THE PRODUCTS, WHETHER BASED
ON NEGLIGENCE, STRICT LIABILITY, BREACH OF WARRANTY,
BREACH OF AGREEMENT, OR EQUITABLE PRINCIPLES, IS
EXPRESSLY LIMITED TO, AT AEON LABS’ OPTION,
REPLACEMENT OF, OR REPAYMENT OF THE PURCHASE
PRICE FOR THAT PORTION OF PRODUCTS WITH RESPECT TO
WHICH DAMAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND
ARISING IN CONNECTION WITH THIS AGREEMENT OR THE
SALE OR USE OF PRODUCTS SHALL BE DEEMED WAIVED
UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS FROM
AEON LABS’S DELIVERY, OR THE DATE FIXED FOR DELIVERY
IN THE EVENT OF NONDELIVERY.

THE INDEMNITY AND WARRANTY IN ABOVE ARE EXCLUSIVE
AND IN LIEU OF ALL OTHER INDEMNITIES OR WARRANTIES,
WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.

FCC NOTICE (for USA):

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,

including interference that may cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY
RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS

TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID
THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Warning:

Do not dispose of electrical appliances as unsorted municipal
waste, use separate collection facilities.

Contact your local government for information regarding the
collection systems available.

Certifications (regional):

Harmonizing the Smart Home.

www.aeon-labs.com
