For best results from your instrument and for your safety, read the enclosed
operating instructions carefully and comply with the precautions for use. These
products must be only used by qualied and trained users.
WARNING, risk of DANGER! The operator must refer to these instructions
whenever this danger symbol appears.
CAUTION! Risk of electric shock. The voltage at the parts marked with this
symbol may be dangerous.
Application or withdrawal authorized on conductors carrying dangerous voltages.
Type A current sensor as per IEC 61010-2-032.
Must not be applied to or removed from conductors at dangerous voltages.
Type B current sensor as per IEC 61010-2-032.
Equipment is protected by double insulation.
Battery
Important instructions to read and to fully understand.
Useful information or tip to read.
The CE marking guarantees conformity with European directives and with
regulations covering EMC.
The trash can with a line through it means that in the European Union, the
product must undergo selective disposal for the recycling of electric and
electronic material, in compliance with Directive WEEE 2002/96/EC.
Denition of Measurement Categories (CAT)
CAT IV Measurement category IV corresponds to measurements taken at the
source of low-voltage installations.
Example: power feeders, counters and protection devices.
CAT III Measurement category III corresponds to measurements on building
installations.
Example: distribution panel, circuit-breakers, machines or xed industrial devices.
CAT II Measurement category II corresponds to measurements taken on cir-
cuits directly connected to low-voltage installations.
Example: power supply to domestic electrical appliances and portable
tools.
The protection assured by the current probe can be compromised if it is used in a
way that is not recommended by the manufacturer.
■ Comply with the rated maximum voltage and current, and the measurement
category. Do not use the current probe on networks where the voltage or
category exceeds those specied.
■ Comply with the conditions of use (e.g. temperature, humidity, altitude, degree
of pollution, location).
■ Do not use the current probe if its housing is open, deteriorated, or incorrectly
reassembled. Before each use, check the integrity of the insulation of the unit,
jaws, clamps, housing, and leads.
■ Do not subject the current probe to water or other liquids.
■ Keep the jaw contacts of the clamp absolutely clean.
■ Use suitable personal protective equipment when hazardous voltages may be
accessible in the installation where the measurement is made.
■ Any repairs must be carried out by accredited skilled personnel.
Upon receiving your shipment, make sure that the contents are consistent with the
packing list. Notify your distributor of any missing items. If the equipment appears
to be damaged, le a claim immediately with the carrier and notify your distributor
at once, giving a detailed description of any damage. Save the damaged packing
container to substantiate your claim.
1.2 Ordering Information
NOTE: The current probes in this manual are compatible only with AEMC® Power
Analyzers (see § 4 for meter compatibility).
AmpFlex® Sensor 24" Model 193-24-BK .......................................... Cat. #2140.34
AmpFlex® Sensor 36" Model 193-36-BK .......................................... Cat. #2140.35
AmpFlex® Sensor 24” Model 196A-24-BK ........................................ Cat. #2140.75
MiniFlex® Sensor 10" Model MA193-10-BK......................................Cat. #2140.48
MiniFlex® Sensor 14" Model MA193-14-BK......................................Cat. #2140.50
AC/DC Current Probe Model J93-BK ....................... Discontinued October 2021
AC Current Probe Model MN93-BK..................................................Cat. #2140.32
AC Current Probe Model MN193-BK................................................Cat. #2140.36
AC Current Probe Model MR193-BK................................................Cat. #2140.28
AC Current Probe Model SR193-BK ................................................ Cat. #2140.33
AC/DC Current Probe Model SL261* ............................................... Cat. #1201.51
* Adapter for SL261 - BNC Adapter ............................................ Cat. #2140.40
4Current Probes & Sensors for Power Quality Meters and Power Energy Loggers

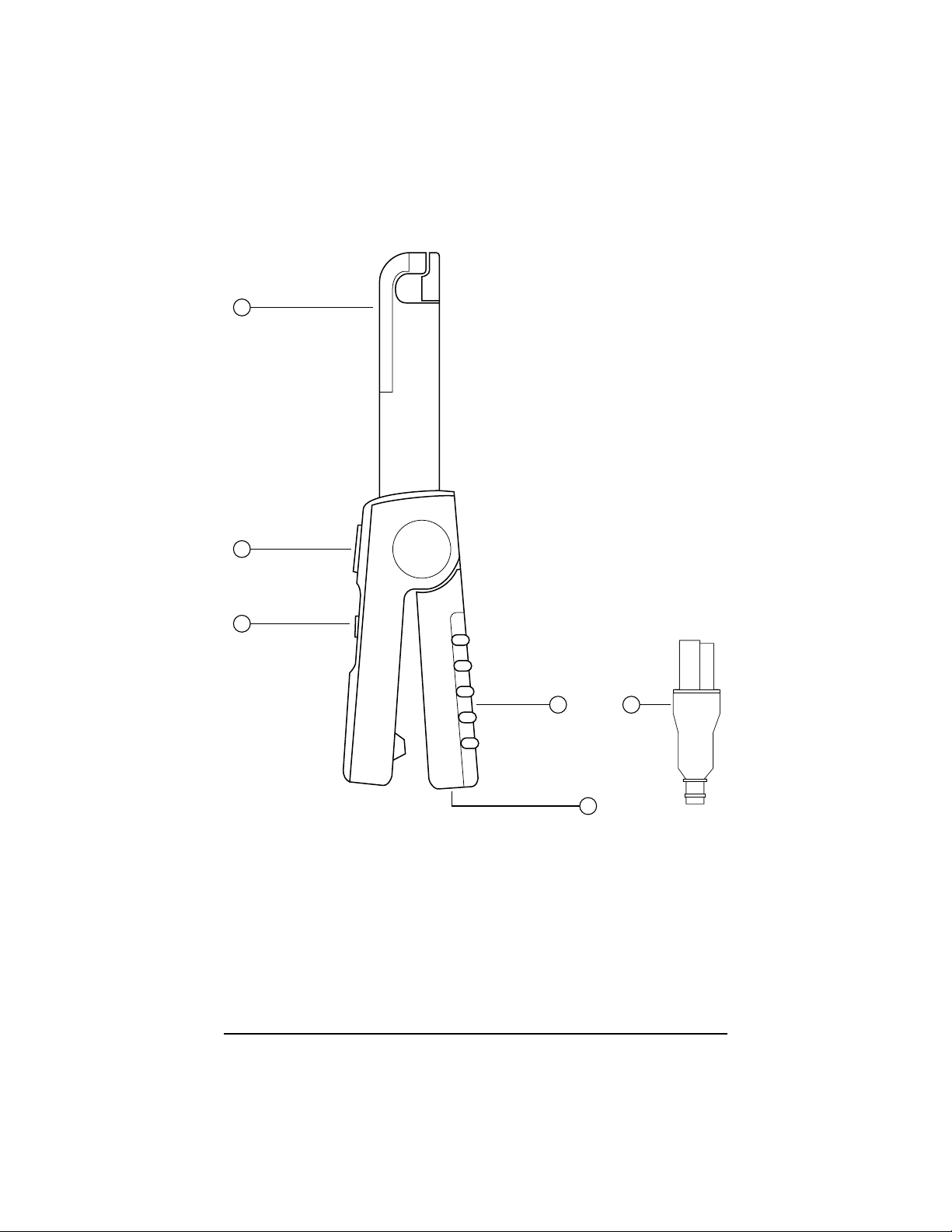

■ Press the jaw opening lever on the probe to open the jaws.
■ Clamp the probe around the conductor to be tested. For best results, center the
conductor in the jaws of the clamp.
I

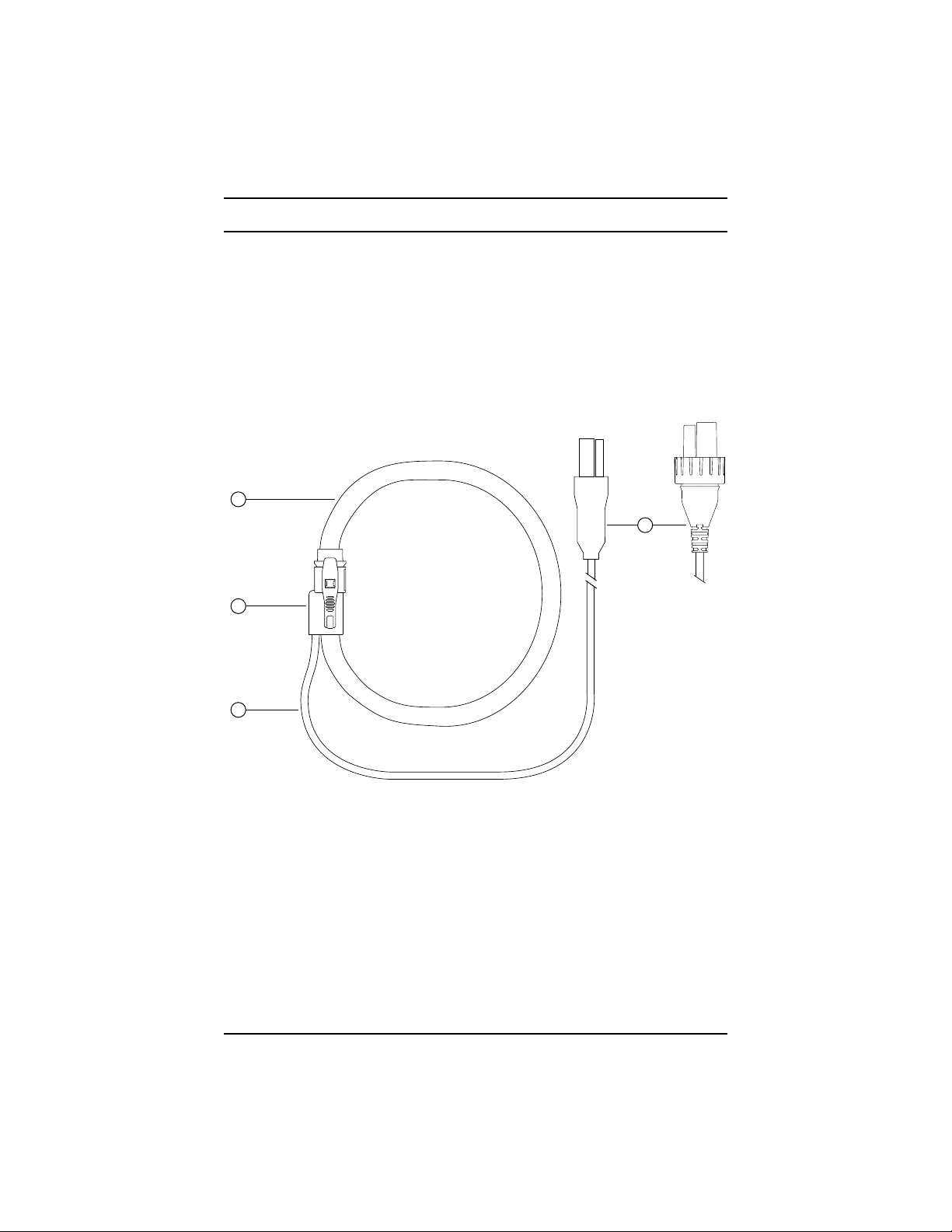

For AmpFlex® and MiniFlex® Sensors:
■ AmpFlex®: Press simultaneously on both sides of the opening connector.
■ MiniFlex®: Press the opening device to open the exible sensor.
■ Clamp the sensor around the conductor to be tested. For best results, center the
conductor in the jaws of the clamp.
■ Close the sensor by pushing the moving part into the connector until it clicks.
NOTE: For details of the measurement configuration and technical specifications,
refer to the user manual of the instrument the current probe is being used with.
Current Probes & Sensors for Power Quality Meters and Power Energy Loggers
NOTE: The measurement ranges specied are for the probes and sensors.
In some cases, they may dier from the ranges that can be measured by the
instrument with which they are used with.
For complete specifications: Refer to the product user manual that is supplied
with each compatible instrument.
ModelMeasurement RangeCompatibility
AmpFlex® 193-24-BK
24" (610mm)
AmpFlex® 193-36-BK
36" (910mm)
AmpFlex
®
196A-24-BK
24" (610mm)
MiniFlex® MA193-BK
10" (250 mm)
MiniFlex® MA193-BK
14" (355 mm)
J93-BK
MN93-BK
MN193-BK
MR193-BK
SL261
SR193-BK
(1) 10 to 6500AAC for Model 8435; 100mA to 6500A for Model 8436
(2) 200mA to 10,000A measurement range for the PEL 100 Series.
(3) 12,000A is specied for the PEL 100 Series only.
