3-PHASE POWER QUALITY
ANALYZER
8333
PowerPad® III
IMPORTANT WARRANTY NOTE:
By registering online within 30 days from the date of
purchase, your warranty will be extended to 3 years
ENGLISH
Find Quality Products Online at: sales@GlobalTestSupply.com
User Manual
www.GlobalTestSupply.com
Copyright © Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments. All rights reserved.
No part of this documentation may be reproduced in any form or by any means (including electronic storage and retrieval or translation into any other
language) without prior agreement and written consent from Chauvin Arnoux®, Inc., as governed by United States and International copyright laws.
Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments
15 Faraday Drive • Dover, NH 03820 USA
Tel: (800) 945-2362 or (603) 749-6434 • Fax: (603) 742-2346
This documentation is provided “as is,” without warranty of any kind, express, implied, or otherwise. Chauvin Arnoux®, Inc. has made every reasonable
effort to ensure that this documentation is accurate; but does not warrant the accuracy or completeness of the text, graphics, or other information
contained in this documentation. Chauvin Arnoux®, Inc. shall not be liable for any damages, special, indirect, incidental, or inconsequential; including (but
not limited to) physical, emotional or monetary damages due to lost revenues or lost prots that may result from the use of this documentation, whether
or not the user of the documentation has been advised of the possibility of such damages.
Chauvin Arnoux®, Inc, AEMC®, DataView®, AmpFlex®, MiniFlex® and PowerPad® are registered trademarks of AEMC® Instruments.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Thank you for purchasing a PowerPad® III Model 8333
For best results from your instrument and for your safety, read the enclosed operating instructions carefully and comply with the
precautions for use. These products must be only used by qualied and trained users.
WARNING, risk of DANGER! The operator must refer to
these instructions whenever this danger symbol appears.
CAUTION! Risk of electric shock. The voltage at the
parts marked with this symbol may be dangerous.
Equipment is protected by double insulation. Kensington anti-theft system.
USB socket.
Ground/Earth.
Must not be applied to or removed from bare
conductors carrying dangerous voltages. Type B
current sensor as per EN 61010-2-032.
Application or withdrawal authorized on conductors
carrying dangerous voltages. Type A current sensor per
IEC 61010-2-032.
Denition of Measurement Categories (CAT)
■ CAT IV Measurement category IV corresponds to measurements taken at the source of low-voltage installations.
Example: power feeders, counters and protection devices.
■ CAT III Measurement category III corresponds to measurements on building installations.
Example: distribution panel, circuit-breakers, machines or xed industrial devices.
Useful information or hint to read.
Important instructions to read and to fully understand.
The product has been declared recyclable after analysis of
its life cycle in accordance with the ISO14040 standard.
The CE marking guarantees conformity with European
directives and with regulations covering EMC.
The trash can with a line through it means that in the
European Union, the product must undergo selective
disposal for the recycling of electric and electronic
material, in compliance with Directive WEEE 2002/96/EC.
■ CAT II Measurement category II corresponds to measurements taken on circuits directly connected to low-voltage installations.
Example: power supply to domestic electrical appliances and portable tools.
PRECAUTIONS FOR USE
This instrument is compliant with safety standard IEC 61010-2-030, the leads are compliant with IEC 61010-031, and the current
sensors are compliant with IEC 61010-2-032, for voltages up to 600V in category IV or 1000V in category III. Failure to observe the
safety instructions may result in electric shock, re, explosion, and destruction of the instrument and/or other equipment.
● The operator and/or the responsible authority must carefully read and clearly understand the various precautions for use of
the instrument. Sound knowledge and a keen awareness of electrical hazards are essential when using this instrument.
● If you use this instrument other than as specied, the protection it provides may be compromised, thereby endangering you.
● Do not use the instrument on networks which the voltage or category exceeds those mentioned.
● Do not use the instrument if it appears damaged or otherwise compromised.
● Before each use, check the condition of the insulation on the leads, housing, and accessories. Any item on which the
insulation is deteriorated (even partially) must be set aside for repair or scrapping.
● Before using your instrument, check that it is perfectly dry. If it is wet, it must be thoroughly dried before being connected or
being operated in any way. This includes the terminals and keypad.
● Use only the leads and accessories supplied. Using leads (or accessories) of a lower voltage or category reduces the voltage
or category of the combined instrument and leads (or accessories) to that of the leads (or accessories).
● Always use personal protection equipment.
● Keep your hands away from the terminals of the instrument.
● When handling the leads, test probes, and alligator clips, keep your ngers behind the physical guard.
● Use only the AC power cord and battery pack supplied by the manufacturer. They include specic safety features.
● Some current sensors must not be placed on or removed from bare conductors at hazardous voltages: refer to the manual
and comply with the handling instructions.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Your instrument is equipped with a NiMH battery. This technology offers several advantages:
● Long battery charge life for a limited volume and weight.
● Possibility of quickly recharging your battery.
● Signicantly reduced memory effect: you can recharge your battery even if it is not fully discharged.
● Respect for the environment: no pollutant materials such as lead or cadmium, in compliance with the applicable
regulations.
After prolonged storage, the battery may be completely discharged. If so, it must be completely recharged. Your
instrument may not function during part of this recharging operation. Full recharging of a completely discharged battery
may take several hours.
NOTE: In this case, at least 5 charge/discharge cycles will be necessary for your battery to recover 95% of its capacity.
To make the best possible use of your battery and extend its effective service life:
● Only use the charger supplied with your instrument. Use of another charger may be dangerous.
● Only charge your instrument at temperatures between 0° and 40°C.
● Comply with the conditions of use dened in the operating manual.
● Comply with the storage conditions specied in the operating manual.
NiMH technology allows a limited number of charge/discharge cycles depending signicantly on:
● The conditions of use.
● The charging conditions.
Do not dispose of the battery pack with other solid waste. Used batteries must be entrusted to a qualied
recycling company or to a company specialized in processing hazardous materials.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
TABLE OF CONTENTS
1. BEFORE YOU BEGIN ..................................................................................................................................... 6
1.1 RECEIVING YOUR SHIPMENT .................................................................................................................................................. 6
1.2 ORDERING INFORMATION ....................................................................................................................................................... 6
1.2.1 ACCESSORIES ............................................................................................................................................................... 6
1.2.2 REPLACEMENT PARTS ................................................................................................................................................. 6
1.3 INSTALLING THE BATTERY ....................................................................................................................................................... 7
1.4 CHARGING THE BATTERY ........................................................................................................................................................ 7
1.5 SETTING THE LANGUAGE ........................................................................................................................................................ 7
2. INTRODUCTION .............................................................................................................................................. 8
2.1 DESCRIPTION ............................................................................................................................................................................ 8
2.2 MEASUREMENTS ...................................................................................................................................................................... 8
2.3 DISPLAY ...................................................................................................................................................................................... 9
2.4 CONFIGURATION ....................................................................................................................................................................... 9
2.5 OVERALL VIEW ........................................................................................................................................................................ 10
2.6 ON/OFF BUTTON ......................................................................................................................................................................11
2.7 DISPLAY .....................................................................................................................................................................................11
2.8 CONNECTION TERMINALS ..................................................................................................................................................... 12
2.9 POWER SUPPLY ...................................................................................................................................................................... 13
2.10 STAND ..................................................................................................................................................................................... 13
3. USE ................................................................................................................................................................ 14
3.1 START-UP ................................................................................................................................................................................. 14
3.2 CONFIGURATION (SET-UP MODE) ......................................................................................................................................... 14
3.3 INSTALLATION OF THE LEADS AND CURRENT SENSORS ................................................................................................. 14
3.3.1 CONNECTION PROCEDURE ...................................................................................................................................... 15
3.3.2 DISCONNECTION PROCEDURE ................................................................................................................................ 15
3.4 FUNCTIONS .............................................................................................................................................................................. 16
4. CONFIGURATION ........................................................................................................................................ 17
4.1 CONFIGURATION (SET-UP MENU) ......................................................................................................................................... 17
4.1.1 DATE/TIME .................................................................................................................................................................... 18
4.1.2 DISPLAY ........................................................................................................................................................................ 19
4.1.2.1 BRIGHTNESS....................................................................................................................................................... 19
4.1.2.2 COLORS ............................................................................................................................................................... 19
4.1.2.3 DISPLAY SHUTDOWN ......................................................................................................................................... 20
4.1.2.4 BACKGROUND COLOR (NIGHT MODE) ............................................................................................................ 20
4.1.3 CALCULATION METHODS ........................................................................................................................................... 21
4.1.3.1 NON-ACTIVE QUANTITIES ................................................................................................................................. 21
4.1.3.2 K FACTOR ............................................................................................................................................................ 22
4.1.3.3 PHASE HARMONIC RATIOS ............................................................................................................................... 22
4.1.4 ELECTRICAL HOOK-UP ............................................................................................................................................... 23
4.1.5 PROBES AND RATIOS ................................................................................................................................................. 26
4.1.5.1 CURRENT PROBES ............................................................................................................................................ 26
4.1.5.2 VOLTAGE RATIOS ............................................................................................................................................... 27
4.1.6 CAPTURE MODE.......................................................................................................................................................... 28
2
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
4.1.6.1 TRANSIENT VOLTAGE THRESHOLDS ............................................................................................................... 28
4.1.6.2 TRANSIENT CURRENT THRESHOLDS .............................................................................................................. 29
4.1.6.3 TREND MODE ...................................................................................................................................................... 30
4.1.7 ALARM MODE CONFIGURATION ................................................................................................................................ 32
4.1.8 ERASING MEMORY ..................................................................................................................................................... 33
4.1.9 ABOUT .......................................................................................................................................................................... 34
5. DISPLAY MODES .......................................................................................................................................... 35
5.1 TRANSIENT MODE
5.1.1 PROGRAMMING AND STARTING A SEARCH ............................................................................................................ 35
5.1.2 DISPLAYING A TRANSIENT ......................................................................................................................................... 36
5.1.3 DELETING A TRANSIENTS SEARCH .......................................................................................................................... 38
5.1.4 DELETING A TRANSIENT ............................................................................................................................................ 38
5.2 HARMONICS MODE
5.2.1 PHASE-TO-NEUTRAL VOLTAGE HARMONICS .......................................................................................................... 39
5.2.2 CURRENT ..................................................................................................................................................................... 41
5.2.3 APPARENT POWER ..................................................................................................................................................... 43
5.2.4 PHASE-TO-PHASE VOLTAGE ..................................................................................................................................... 44
5.2.5 EXPERT MODE ............................................................................................................................................................ 45
5.3 WAVEFORM MODE
5.3.1 RMS MEASUREMENTS ............................................................................................................................................... 47
5.3.1.1 RMS (3U) .............................................................................................................................................................. 48
5.3.1.2 RMS (3V) .............................................................................................................................................................. 48
5.3.1.3 RMS (4A) .............................................................................................................................................................. 49
5.3.1.4 RMS (L1)............................................................................................................................................................... 50
5.3.2 MEASUREMENT OF TOTAL HARMONIC DISTORTION (THD) .................................................................................. 50
5.3.2.1 THD (3U) ............................................................................................................................................................... 50
5.3.2.2 THD (3V) ............................................................................................................................................................... 51
5.3.2.3 THD (4A) ............................................................................................................................................................... 51
5.3.3 MEASUREMENT OF THE PEAK FACTOR (CF) .......................................................................................................... 52
5.3.3.1 CF (3U) ................................................................................................................................................................. 52
5.3.3.2 CF (3V) ................................................................................................................................................................. 53
5.3.3.3 CF (4A) ................................................................................................................................................................. 53
5.3.4 MEASUREMENT OF EXTREME AND MEAN VOLTAGE AND CURRENT VALUES
5.3.5 SIMULTANEOUS DISPLAY
5.3.6 PHASOR DIAGRAM DISPLAY
........................................................................................................................................................ 35
..................................................................................................................................................... 39
........................................................................................................................................................ 47
.............................. 54
.............................................................................................. 55
............................................................................................ 56
5.4 ALARM MODE
5.4.1 ALARM MODE CONFIGURATION ................................................................................................................................ 58
5.4.2 PROGRAMMING AN ALARM CAMPAIGN .................................................................................................................... 58
5.4.3 STARTING AN ALARM CAMPAIGN .............................................................................................................................. 58
5.4.4 MANUALLY STOPPING AN ALARM CAMPAIGN ......................................................................................................... 59
5.4.5 DISPLAYING A LIST OF ALARM CAMPAIGNS ............................................................................................................ 59
5.4.6 LIST OF ALARMS ......................................................................................................................................................... 60
5.4.7 DELETING ALARM CAMPAIGNS ................................................................................................................................. 61
5.4.7.1 DELETING A SINGLE ALARM CAMPAIGN .......................................................................................................... 61
5.4.7.2 DELETING ALL ALARM CAMPAIGNS ................................................................................................................. 61
5.5 TREND MODE
5.5.1 PROGRAMMING AND STARTING A RECORDING ..................................................................................................... 61
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
.................................................................................................................................................................... 57
................................................................................................................................................................ 61
www.GlobalTestSupply.com
3
5.5.2 VIEWING THE RECORDING LIST ............................................................................................................................... 62
5.5.3 DELETING RECORDINGS ........................................................................................................................................... 63
5.5.4 VIEWING RECORDS .................................................................................................................................................... 63
5.5.5 TREND GRAPHS .......................................................................................................................................................... 63
5.6 POWER AND ENERGY MODE ........................................................................................................................................ 71
5.6.1 3L FILTER...................................................................................................................................................................... 71
5.6.1.1 POWER ................................................................................................................................................................ 71
5.6.1.2 QUANTITIES ASSOCIATED WITH POWER ........................................................................................................ 72
5.6.1.3 ENERGY CONSUMED ......................................................................................................................................... 73
5.6.1.4 ENERGY GENERATED ........................................................................................................................................ 74
5.6.2 L1, L2, AND L3 FILTERS ............................................................................................................................................... 74
5.6.2.1 POWERS AND ASSOCIATED QUANTITIES ....................................................................................................... 74
5.6.2.2 ENERGY METERS ............................................................................................................................................... 75
5.6.3 Σ FILTER ....................................................................................................................................................................... 76
5.6.3.1 TOTAL POWERS AND ASSOCIATED QUANTITIES ........................................................................................... 76
5.6.4 TOTAL ENERGY METERS ........................................................................................................................................... 77
5.6.5 STARTING AND STOPPING ENERGY MEASUREMENTS ......................................................................................... 77
5.6.6 RESETTING THE ENERGY MEASUREMENT ............................................................................................................. 78
5.7 SCREEN SNAPSHOTS .................................................................................................................................................. 78
5.7.1 VIEWING A SNAPSHOT ............................................................................................................................................... 78
5.7.2 DELETING A SNAPSHOT ............................................................................................................................................. 79
5.8 HELP
............................................................................................................................................................................... 79
6. DATAVIEW SOFTWARE ................................................................................................................................ 80
6.1 INSTALLING DATAVIEW ........................................................................................................................................................... 80
6.1.1 USB FLASH DRIVE INSTALL ....................................................................................................................................... 80
6.2 CONNECTING THE MODEL 8333 TO YOUR COMPUTER ..................................................................................................... 83
6.3 OPENING THE CONTROL PANEL ........................................................................................................................................... 83
6.4 CONFIGURING THE INSTRUMENT ........................................................................................................................................ 84
6.4.1 SETUP ........................................................................................................................................................................... 85
6.4.2 SENSORS AND RATIOS .............................................................................................................................................. 86
6.4.3 INSTRUMENT DISPLAY ............................................................................................................................................... 86
6.4.4 ALARM CONDITIONS ................................................................................................................................................... 87
6.4.5 RECORDINGS ............................................................................................................................................................. 88
6.4.6 TRANSIENTS ................................................................................................................................................................ 89
6.5 SCHEDULE ............................................................................................................................................................................... 90
6.6 REAL-TIME DATA ...................................................................................................................................................................... 91
6.6.1 TREND .......................................................................................................................................................................... 91
6.6.2 WAVEFORM .................................................................................................................................................................. 91
6.6.3 HARMONICS................................................................................................................................................................. 92
6.6.4 POWER ........................................................................................................................................................................ 92
6.6.5 ENERGY ....................................................................................................................................................................... 93
6.7 DOWNLOADING DATA ............................................................................................................................................................. 93
6.7.1 RECORDINGS .............................................................................................................................................................. 94
6.7.2 SCREEN SNAPSHOTS ................................................................................................................................................ 94
6.7.3 ALARMS ........................................................................................................................................................................ 94
6.7.4 TRANSIENTS ................................................................................................................................................................ 94
6.7.5 EDITING DOWNLOADED DATA ................................................................................................................................... 94
4
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
7. MAINTENANCE ............................................................................................................................................. 96
7.1 CLEANING ................................................................................................................................................................................ 96
7.2 REPLACING THE BATTERY ..................................................................................................................................................... 96
7.3 UPDATING SOFTWARE & FIRMWARE ................................................................................................................................... 97
8. ICONS, BUTTON & SYMBOLS ..................................................................................................................... 98
8.1 FUNCTION BUTTON ICONS .................................................................................................................................................... 98
8.2 KEYPAD BUTTONS .................................................................................................................................................................. 99
8.2.1 FUNCTION BUTTONS (YELLOW BUTTONS) ........................................................................................................... 99
8.2.2 NAVIGATION BUTTONS ............................................................................................................................................... 99
8.2.3 MODE BUTTONS (VIOLET BUTTONS) ....................................................................................................................... 99
8.2.4 OTHER BUTTONS ...................................................................................................................................................... 100
8.3 ABBREVIATIONS .................................................................................................................................................................... 100
9. SPECIFICATIONS ........................................................................................................................................ 102
9.1 REFERENCE CONDITIONS ................................................................................................................................................... 102
9.2 ELECTRICAL SPECIFICATIONS ............................................................................................................................................ 103
9.2.1 VOLTAGE INPUTS ...................................................................................................................................................... 103
9.2.2 CURRENT INPUTS ..................................................................................................................................................... 103
9.2.3 BANDWIDTH ............................................................................................................................................................... 103
9.2.4 POWER SUPPLY ........................................................................................................................................................ 103
9.2.5 ACCURACY SPECIFICATIONS (EXCLUDING CURRENT PROBES) ....................................................................... 104
9.2.6 CURRENT PROBE ACCURACY (TO BE ADDED TO THE MODEL 8333’S ACCURACY) .........................................113
9.2.7 CURRENT PROBES AND SENSORS .........................................................................................................................11 4
9.3 CLASS B UNDER STANDARD IEC 61000-4-30 .....................................................................................................................11 5
9.3.1 CONFORMITY OF THE DEVICE .................................................................................................................................115
9.3.2 ACCURACY AND MEASUREMENT RANGES ............................................................................................................116
9.3.3 REAL-TIME CLOCK ACCURACY ................................................................................................................................116
9.4 MECHANICAL SPECIFICATIONS ............................................................................................................................................116
9.5 ENVIRONMENTAL SPECIFICATIONS ....................................................................................................................................117
9.6 SAFETY SPECIFICATIONS .....................................................................................................................................................117
APPENDIX ....................................................................................................................................................... 118
A.1 HYSTERESIS...........................................................................................................................................................................118
A.1.1 SURGE DETECTION...................................................................................................................................................118
A.1.2 UNDERVOLTAGE OR BLACKOUT DETECTION .......................................................................................................118
A.1.3 MINIMUM SCALE VALUES FOR WAVEFORMS AND MINIMUM RMS VALUES ......................................................119
A.1.4 FOUR-QUADRANT DIAGRAM ....................................................................................................................................119
A.1.5 MECHANISM FOR TRIGGERING TRANSIENT SENSORS ..................................................................................... 120
A.1.6 GLOSSARY OF TERMS ............................................................................................................................................. 121
REPAIR AND CALIBRATION .......................................................................................................................... 124
TECHNICAL AND SALES ASSISTANCE ....................................................................................................... 124
LIMITED WARRANTY ..................................................................................................................................... 125
WARRANTY REPAIRS .................................................................................................................................... 125
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
5
1. BEFORE YOU BEGIN
1.1 RECEIVING YOUR SHIPMENT
Make sure the contents shipped are consistent with the packing list. Notify your distributor of any missing items. If the
equipment appears damaged, le a claim immediately with the carrier and notify your distributor at once. Save the damaged
packing container to substantiate your claim. Do not use equipment which is damaged or appears to be damaged.
1.2 ORDERING INFORMATION
PowerPad® III Model 8333 (No Probes) ........................................................................................................... Cat. #2136.10
PowerPad® III Model 8333 (w/3 A193-24-BK Sensors) .................................................................................... Cat. #2136.11
PowerPad® III Model 8333 (w/3 MN193-BK Probes) ....................................................................................... Cat. #2136.12
Includes extra large tool bag, soft carrying pouch, 5 ft USB cable, four 10 ft black voltage leads with alligator clips, twelve
color-coded input ID markers, power adapter 110/230V with US power cord, 9.6V NiMH battery, SD-Card, quick start
guide, and a USB stick containing DataView® software and user manual.
Only the AmpFlex® sensors are rated 600V CAT IV and IP67. The MN probes are rated 300V CAT IV, 600V CAT III.
1.2.1 ACCESSORIES
10 ft USB Cable ................................................................................................................................................. Cat. #2136.80
AC/DC Current Probe Model SL261* ................................................................................................................ Cat. #1201.51
* Adapter - BNC Adapter (mandatory if using an SL261 w/ the 8333) ........................................................... Cat. #2140.40
AC Current Probe Model MR193-BK................................................................................................................. Cat. #2140.28
AC Current Probe Model MN93-BK................................................................................................................... Cat. #2140.32
AC Current Probe Model SR193-BK ................................................................................................................. Cat. #2140.33
AmpFlex® Sensor 24" Model A193-24-BK ......................................................................................................... Cat. #2140.34
AmpFlex® Sensor 36" Model A193-36-BK ......................................................................................................... Cat. #2140.35
AC Current Probe Model MN193-BK ................................................................................................................ Cat. #2140.36
MiniFlex® Sensor 10" Model MA193-10-BK ...................................................................................................... Cat. #2140.48
AC/DC Current Probe Model J93-BK ................................................................................................................ Cat. #2140.49
1.2.2 REPLACEMENT PARTS
Extra Large Classic Tool Bag ............................................................................................................................Cat. #2133.73
Soft Carrying Pouch .......................................................................................................................................... Cat. #2140.15
Battery 9.6V NiMH ............................................................................................................................................. Cat. #2140.19
(5) Black 10 ft (3M) Leads with (5) Black Alligator Clips .................................................................................... Cat. #2140.43
(1) Black 10 ft (3M) Lead with (1) Black Alligator Clip .......................................................................................Cat. #2140.44
(Leads are rated 600V CAT IV 10A, Clips rated 1000V CAT IV 15A, UL)
Set of 12, Color-coded Input ID Markers ........................................................................................................... Cat. #2140.45
5 ft USB Cable ................................................................................................................................................... Cat. #2140.46
Power Adapter 110/230V with US Power Cord .................................................................................................Cat. #5000.19
6
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
1.3 INSTALLING THE BATTERY
WARNING:
● For safety reasons, replace the battery only with the original replacement model (see § 1.2.2).
● Do not expose the battery to heat exceeding 212°F (100°C).
● Do not short-circuit the battery terminals.
● To eliminate all risk of electric shock, disconnect the power supply cord and measurement leads of the
instrument.
1. Turn the instrument over, raise the stand, and prop it up.
2. Use a coin to unscrew the two quarter-turn screws on the back of the housing.
3. Using a at screwdriver, remove the cover from the compartment.
4. Turn the instrument over and hold the battery as it slides out of its compartment.
5. Disconnect the battery connector without pulling on the wires.
6. Connect the new battery. The connector is error-proofed to prevent reversals of
polarity.
7. Place the battery in its compartment and arrange the wires so that they do not
protrude.
8. Put the battery compartment cover back in place and screw the two screws back in.
1.4 CHARGING THE BATTERY
Fully charge the battery before the rst use.
NOTE: A full recharge of a completely discharged battery takes approximately 5 hrs.
120V ± 10%, 60Hz
230V ± 10%, 50Hz
To recharge the battery:
■ Remove the cover of the battery charging connector.
■ Connect the supplied power cord to the instrument and AC
power.
■ The button lights and will go out when the power cord is
disconnected.
?
W
1.5 SETTING THE LANGUAGE
■ Before using the device, rst choose the language in which
you want the device to display its message.
■ Press the green button to switch the device on.
■ Press the Conguration
button.
■ Press the yellow button on the device corresponding to the
desired language.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
7
2. INTRODUCTION
2.1 DESCRIPTION
The PowerPad® III Model 8333 is a 3-phase network analyzer with a color graphic display and built-in rechargeable
battery. This instrument can be used to:
● Measure the RMS values, powers, and perturbations on electric distribution networks
● Deliver a snapshot of the principal characteristics of a 3-phase network
● Track the variations of various parameters over time
The measurement accuracy of the instrument is better than 1% (not counting the accuracy due to the current sensors).
The instrument is also very exible, with a choice of sensors allowing measurements ranging from a few milliamperes
(MN193) to several kiloamperes (AmpFlex®). The Model 8333 is compact and impact resistant; its ergonomics and
simple interface make it easy to use. The instrument is intended for technicians and engineers responsible for electrical
installation and network inspection and maintenance.
2.2 MEASUREMENTS
The Model 8333 principal measurements are:
■ The RMS values of AC voltages up to 1000V between terminals. By using ratios, the instrument can measure voltages
up to hundreds of gigavolts.
■ The RMS values of AC currents up to 10,000 amperes (excluding neutral current). By using ratios, the instrument can
measure currents up to hundreds of kiloamperes.
■ The DC components of voltages and currents (excluding neutral current).
■ Minimum and maximum half-cycle RMS voltage and current values (excluding neutral current).
■ Peak voltage and current values (excluding neutral current).
■ The frequency of 50Hz and 60Hz networks.
■ Current and voltage peak factors (excluding neutral current).
■ Calculation of the harmonic loss factor (FHL), application to transformers in the presence of harmonic currents.
■ Calculation of the K factor (KF), application to transformers in the presence of harmonic currents.
■ Measurement of total harmonic distortion with respect to the fundamental (THD in %f) of the current and of the voltages
(excluding neutral current).
■ Measurement of the total harmonic distortion with respect to the RMS AC value (THD in %r) for the current and the
voltages (excluding neutral current).
■ Active, reactive (capacitive and inductive), non-active, distortion, and apparent power, by phase and cumulative
(excluding neutral current).
■ Power factor (PF) and displacement factor (DPF or cos Φ (excluding neutral current).
■ Measurement of the RMS distortion value (d) for the current and the voltages (excluding neutral current).
■ Short-term voltage icker (PST) (excluding neutral current).
■ Active, reactive (capacitive and inductive), non-active, distortion, and apparent energy (excluding neutral current).
■ Current and voltage harmonics (excluding neutral) up to order 50: RMS value, percentage referred to the fundamental,
(%f) (excluding neutral current), or the total RMS value (%r), minimum and maximum and sequence harmonics.
■ Apparent harmonic power up to order 50 (excluding neutral current): percentages referred to the fundamental apparent
power (%f) or the total apparent power (%r), minimum and maximum of a rank.
■ Calculation of the rms neutral current from the currents measured on the phases of a three-phase system.
8
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
2.3 DISPLAY
■ Waveforms (voltages and currents)
■ Frequency Bar Chart (voltages and currents - excluding neutral current)
■ Screen Captures (12 maximum)
■ Transients Function: Detection and recording of transients (up to 51) between user-dened start and stop dates
and times. Recording of four complete cycles (one before the triggering event and three after) on the six acquisition
channels.
■ Trend Recording (data logging) Function: SD-card with date-stamping and user-dened start and stop dates for
recording, with a maximum of 100 recording sessions. Display, in bar chart or graph form, of the means of many
parameters vs. time, with or without minima and maxima.
■ Alarm Function: List recorded alarms (up to 4662) exceeding thresholds dened in the conguration menu. User-
dened alarm monitoring start and stop times.
2.4 CONFIGURATION
■ Date and time setting
■ Screen brightness setting
■ Graph colors
■ Display management
■ Night mode
■ Calculation methods (non-active quantities broken down or not, choice of the unit of energy, choice of the coefcients
of calculation of the K factor, choice of reference for the level of harmonics
■ Distribution system (single-phase, 2-phase, 3-phase) and of the connection method (standard, 2-element method or
2½-element method)
■ Congure recording, alarms, and transients
■ Delete data (total or partial)
■ Display software and hardware version numbers
■ Language
■ Current sensors detected, not detected, not managed, simulated, or impossible to simulate (2-element connection
method). Set voltage and current ratio, transduction ratios, and sensitivity
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
9
2.5 OVERALL VIEW
1
2
6
7
8
3
9
10
4
11
?
5
Figure 2-1
Over molded protective case.
1.
Color TFT 320 X 240 (1/4 OFT) display with graphic representation of system parameters and measurements.
2.
Six (6) function buttons used to modify the display mode.
3.
Four (4) function buttons.
4.
ON / OFF button.
5.
Three (3) current input terminals on the top of the instrument to enable the use of current sensors (MN, SR,
6.
AmpFlex®, MiniFlex®, MR, SL and J93 probes). It is possible to use different current probes per input voltage ratio
selectable.
Four (4) voltage input terminals (voltage ratio can be set before recording).
7. USB optically isolated output for conguring, running tests and transferring data to a PC.
8. Input for external power supply and battery charging.
Enter button.
9.
Four (4) buttons that enable movement of the cursor, browsing or the selection of data.
10.
Buttons for directly accessing the 6 display modes.
11.
NOTE: Refer to § 8 for function button descriptions.
10
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
2.6 ON/OFF BUTTON
4
The Model 8333 can operate on either battery or on AC power. Pressing the button powers up the instrument. If
the instrument is shut OFF suddenly (line power outage in the absence of the battery) or automatically (battery low), an
information message is displayed when it is next started up.
Pressing the button again turns the instrument OFF. If the instrument is recording, metering energy, or searching for
transients, alarms, and/or inrush current acquisition, it requests conrmation.
Select YES or NO on the corresponding yellow buttons, then press the
button to conrm.
● If NO is selected, recording will continue.
● If YES is selected, the data recorded until that point are nalized and the instrument is turned OFF.
2.7 DISPLAY
The backlit 320x240-pixel (1/4 VGA) graphic TFT screen displays all measurements with their graphs, the parameters of
the unit, the graphs selected, the instantaneous values of the signals, and the type of measurement selected. When the
instrument is powered up, it automatically displays the Waveform screen.
1
2
3
02/06/14
5
Figure 2-2
1. Top bar on the display, including:
● Symbol of the tested mode ( , , , etc.)
● Frequency of measured signal
● Memory capacity status bar (only available in certain modes)
● Current date and time
● Battery charge status (see § 2.9)
2. Measured RMS values associated with waveforms.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
11
3.
Values of signals at an instant “t” at the intersection of cursor and the waveforms. The cursor can be moved along the time
scale by pressing the
◄ and ► buttons
.
4. Measurement selection (refer to § 8).
Calculation of DPF, Tan, KF, Φ, UNB, Min, Max, VAR, Harmonics, PST, and DF parameters and the frequency measurement can only be performed if voltage or current with a frequency of 40 to 70Hz is applied to the Ch1 voltage
input or the A1 current input.
5. Selection of waveforms to be displayed (use the ▲ and ▼ buttons to select):
U: Signies phase-to-phase voltage
V: Signies phase-to-neutral voltage
A: Displays current for each phase
L1, L2, L3: Refer to the phases (A,B,C)
The Auto Power Off function can be turned ON and OFF during instrument conguration (see § 4.1.2.3).
2.8 CONNECTION TERMINALS
1
N/D
L1/A L2/B L3/C 1000V CAT III 600V CAT IV
Figure 2-3
2
L1/A
L2/B
L3/C
3
1. Three (3) current input terminals on the top of the instrument to enable the use of current sensors (MN, SR, AmpFlex®,
MiniFlex®, MR, SL & J93 probes).
2. Four (4) voltage input terminals (measures 3 voltages).
3. Insertion locations for the current and voltage color-coded ID markers.
1. Theft-prevention access port, used to secure the instrument with padlock.
1
2
2. USB connector for connection to a PC.
3. Input for external AC power supply and battery charging.
3
Figure 2-4
12
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
2.9 POWER SUPPLY
The battery icon in the top right corner of the screen shows the battery level. The number of bars is proportional to the
charge level.
Icon Battery Charge Status
Battery charged
Low battery
Battery charging
Red bar: Condition of the battery is unknown because it had never been fully charged.
The insturment is connected to AC power using the power cord.
When the capacity of the battery is too low, the following message is displayed:
Low battery
Instrument will soon turn OFF
Press to conrm. The instrument will turn OFF if you do not connect the PowerPad® to AC power (using the power
cord) within one minute of this message appearing.
2.10 STAND
A retractable stand on the back of the Model 8333 can be used to hold the instrument in a tilted position.
Figure 2-5
1. Retractable stand.
2. Battery compartment.
NOTE: The SD card is located under the battery.
1
2
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
13
3. USE
3.1 START-UP
To turn the Model 8333 ON, press the button. The button lights up when initially pressed; it then goes OFF if the power
cord is not connected to AC power. During startup, several informational screens appear, displaying data such as the
rmware version and serial number of the instrument. When startup is complete, the Waveform screen is displayed.
02/06/14
Figure 3-1
3.2 CONFIGURATION (SET-UP MODE)
NOTE: The instrument must be congured before each use. The conguration is saved in memory when the instru-
ment is turned OFF.
To display the Conguration screen, press the
NOTE: All congurations can also be modied through DataView® software.
button and follow the instructions in the Conguration chapter (see § 4).
3.3 INSTALLATION OF THE LEADS AND CURRENT SENSORS
Color-coded ID markers are supplied with the PowerPad® to identify the leads and input terminals.
● Detach the appropriate inserts from the color-coded marker and place them in the holes provided under the
terminals (larger inserts for current terminals, smaller inserts for voltage terminals).
● Clip the rings of the same color to the ends of the lead that will connect to the terminal.
Figure 3-2
● Connect the measurement leads to the terminals of the instrument (see § 2.8).
14
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
1
N/D
L1/A L2/B L3/C 1000V CAT III 600V CAT IV
Figure 3-3
L1/A
2
L2/B
L3/C
3
1. Three (3) current input terminals on the top of the instrument to enable the use of current sensors (MN, SR, AmpFlex®,
MiniFlex®, MR, SL & J93 probes).
2. Four (4) voltage input terminals (measures 3 voltages).
3. Insertion locations for the current and voltage color-coded ID markers.
NOTE: Remember to dene the transformation ratios of the current sensors and of the voltage inputs (see § 4.1.5).
To make a measurement, the following must be congured and programmed:
■ Calculation method (see § 4.1.3)
■ Electrical hook-up (see § 4.1.4)
■ Ratios of the sensors (see § 4.1.5)
3.3.1 CONNECTION PROCEDURE
1. Turn the instrument ON.
2. Congure the instrument for the measurement to be made and the type of network concerned (see § 4).
3. Connect the leads and current sensors to the unit.
4. Connect the ground and/or neutral lead to the network ground and/or neutral (when it is distributed) and connect the
corresponding current sensor.
5. Connect the L1 phase lead to the network L1 phase and connect the corresponding current sensor.
6. If applicable, repeat the procedure for phases L2 and L3.
NOTE: Complying with this procedure minimizes connection errors and saves time.
3.3.2 DISCONNECTION PROCEDURE
1. Proceed in the reverse of the order of connection, always nishing by disconnecting the neutral (when distributed).
2. Disconnect the leads and turn the instrument OFF.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
15
3.4 FUNCTIONS
Any screen can be saved (screen snapshot) by pressing the button for three seconds (see § 5.7). You can press the
Help button at any time. The Help screen will inform you about the functions and the symbols used for the current
display mode.
Refer to § 5 for detailed information on the available display modes:
- Waveform Capture
- Harmonics
- Waveform Measurements
- Alarm Recording
- Recording (Trend Mode)
- Power and Energy Measurements
- Screen Snapshot
16
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
4. CONFIGURATION
4.1 CONFIGURATION (SET-UP MENU)
The Conguration button
This must be done before each new type of measurement. The conguration settings remain in memory, even after the
instrument is turned OFF.
When working with the Conguration menu, use the arrow buttons (▲ or ▼ or ◄ or ►) to navigate through the menus
and options, then use the button to select and validate your choices.
displays the Conguration menu. This menu enables you to congure the instrument.
Figure 4-1
The Conguration menu allows you to dene the following parameters:
PARAMETER FUNCTION
Date / Time
Display
Calculation
Methods
Electrical Hook-Up
Sets the date and time format (see § 4.1.1)
Adjusts the contrast and brightness of the display (see § 4.1.2.1)
Defines the color of the voltage and current curves (see § 4.1.2.2)
Defines the settings for Auto Power Off (see § 4.1.2.3)
Enables/Disables Night mode settings (see § 4.1.2.4)
Determines if harmonics are used or not used in calculations of reactive quantities (power and energy) - (see § 4.1.3)
• With harmonics: Harmonics are taken into account when calculating reactive parameters
• Without harmonics: Only the fundamental part is used for the calculation of reactive parameters
Determines the type of connection to the network (see § 4.1.4)
• 1-Phase 2-Wire
• 2-Phase 3-Wire
• 3-Phase 3-Wire
• 3-Phase 4-Wire
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
17
Probes and Ratios
Capture Mode
Trend Mode
Alarm Mode
Erase Memory
About
Defines the type of current probe to connect (see § 4.1.5)
• MN93: 200A
• MN193: 100A or 5A (with variable ratio)
• SR193: 1000A
• SL261: 10A and 100A range
• AmpFlex® Sensors: 3000A (measures up to 10kA)
• MiniFlex® Sensors: 3000A
• MR193: 1000AAC/1200ADC
• J93: 3500AAC/5000ADC
• 5A 3-phase adapter (3-channel only)
Configures the voltage and current thresholds (see § 4.1.6)
Selects the parameters to record (see § 4.1.6.3)
(Up to four configurations)
Defines the parameters of an alarm (see § 4.1.7)
Deletes configurations, alarm settings, snapshots, and recordings (see § 4.1.8)
Displays the serial number, software and hardware version (see § 4.1.9)
4.1.1 DATE/TIME
The Date/Time menu denes the system date and time. The display is as follows:
Figure 4-2
With the Date/Time eld highlighted in yellow, press . To change a value, press ▲ or ▼. To move from one eld to
another, press ◄ or ►. To conrm, press .
Proceed in the same way for selecting data format (DD/MM/YY or MM/DD/YY) and time format (12/24 or AM/PM).
Changes take effect immediately in the data display. To return to the Conguration menu, press
NOTE: The date and time parameters cannot be congured while the instrument is recording, metering energy, or
searching for transients, alarms, and/or inrush current acquisition.
18
Power Quality Analyzer PowerPad® III Model 8333
.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
4.1.2 DISPLAY
4.1.2.1 BRIGHTNESS
The Brightness button initiates a menu that sets the brightness of the display.
Figure 4-3
Use the ◄ or ► buttons to change the brightness. To return to the Conguration menu, press
.
4.1.2.2 COLORS
The Colors menu is used to dene the colors of the voltage and current traces on the graph. There are 15 colors
available: green, dark green, yellow, orange, pink, red, brown, blue, turquoise blue, dark blue, light grey, grey, dark grey,
and black.
Figure 4-4
Use the arrow buttons to change colors. To return to the Conguration menu, press
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
19
4.1.2.3 DISPLAY SHUTDOWN
The Display Status button displays a menu that denes the display shutdown process.
Figure 4-5
Use the ▲ and ▼ buttons to choose Automatic or Never.
■ In Automatic mode the display turns OFF automatically after:
● 5 minutes of inactivity when the instrument is powered by the battery and a recording is in progress.
● 10 minutes if no recording is in progress.
■ The ON/OFF button blinks to indicate that the instrument is still in operation. Press any button to relight the
display. To return to the Conguration menu, press
.
4.1.2.4 BACKGROUND COLOR (NIGHT MODE)
The Night mode button displays a menu that initiates a change in the colors on the display.
In night mode, the screen displays “reverse” video and all colors are changed.
Figure 4-6
Use the ▲ and ▼ buttons to activate or deactivate night mode.
20
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
4.1.3 CALCULATION METHODS
X
=
The Calculation Methods menu
denes:
■ Breakdown or no breakdown of the non-active quantities
■ Reference for the level of harmonics of the phases
■ Coefcients of calculation for the K factor
4.1.3.1 NON-ACTIVE QUANTITIES
The var menu is used to choose whether to separate or combine the non-active quantities (power and energy).
Figure 4-7
Use the ▲ and ▼ buttons to select Separated or Combined.
■ Separated: Non-active power N is separated into reactive power (fundamental) Q1 and distorting power D. Non-active
energy Nh is separated into Q1h and Dh.
■ Combined: Non-active power N and non-active energy Nh are displayed.
Press to conrm the selection and return to the Conguration menu.
NOTE: This setting cannot be modied when the instrument is recording, metering energy, and/or searching for
alarms.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
21
4.1.3.2 K FACTOR
The FK menu denes the coefcients used for the calculation of the K factor (Factor K). This value is used for weighting
the harmonic load currents in accordance with their effects on transformer heating. A higher K factor indicates larger
harmonic heating effects.
Figure 4-8
Use the arrow buttons to set the value of coefcients q and e:
● q: exponential constant that depends on the type of winding and the frequency. The value of q can range from
1.5 to 1.7. The value of 1.7 is suitable for transformers having round or square conductors, in all types of winding.
The value of 1.5 is suitable for those in which the low-voltage windings are in tape form.
● e: ratio between the losses linked to eddy currents (at the fundamental frequency) and resistive losses (both
evaluated at the reference temperature). The value of e can range from 0.05 to 0.1.
The default values (q = 1.7 and e = 0.10) are suitable for most applications.
Press to conrm the selection and return to the Conguration menu.
NOTE: This setting cannot be modied when the instrument is recording, and/or searching for alarms.
4.1.3.3 PHASE HARMONIC RATIOS
The %f-%r Phase Harmonics menu denes the reference for the level of harmonics of the phases.
Figure 4-9
Use the ▲ and ▼ buttons to select the reference for the level of harmonics:
● %f: the reference is the value of the fundamental
● %r: the reference is the total value
For harmonics of the V-h, A-h, and U-h phases, the fundamental and total values are RMS values. For harmonics of the
S-h phases, the fundamental and total values are apparent power values.
Press to conrm the selection and return to the Conguration menu.
NOTE: This setting cannot be modied when the instrument is recording, and/or searching for alarms.
22
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
4.1.4 ELECTRICAL HOOK-UP
L1
L1
N
The menu is used to dene how the Model 8333 is connected, according to the type of network.
Figure 4-10
Several electrical diagrams can be selected. Use the arrow buttons to choose a connection. One or more types of network
correspond to each distribution system.
These connection choices allow you to connect the instrument to all existing networks.
Press to conrm the selection and return to the Conguration menu.
NOTE: This setting cannot be modied when the instrument is recording, and/or searching for alarms.
Distribution System Source
Single-phase 2-wire (L1 and N)
L1
N
Single-phase 2-wire non-grounded neutral
Split-phase 3-wire non-grounded neutral
Split-phase 3-wire (L1, L2 and N)
L1
L2
N
3-phase open star 3-wire non-grounded neutral
N
N
L2
L1
L2
3-phase high leg delta 3-wire non-grounded neutral
3-phase open high leg delta 3-wire non-grounded neutral
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
L1
N
L2
L1
N
L2
23
Distribution System Source
L3
L3
L3
L3
3-phase star 3-wire
3-phase delta 3-wire
3-phase 3-wire (L1, L2 and L3)
L1
L2
L1
L2
L1
L2
L3
3A
A1A2
A2A3
A3A1
Indicates which 2 current sensors will be
connected: A1 and A2, or A2 and A3,
or A3 and A1.
Two-wattmeter method or two-element
method or Aron method.
The third sensor is not necessary if the
other two are of the same type, same
range, and same ratio. Otherwise, the third
sensor must be connected to make current
measurements.
L3
3-phase open delta 3-wire
L1
L2
3-phase open delta 3-wire grounded junction of phases
L1
L2
3-phase open delta 3-wire grounded corner of phase
L1
L2
L3
3-phase high leg delta 3-wire
L1
L2
L3
3-phase open high leg delta 3-wire
L1
L2
24
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
Distribution System Source
L3
L3
L3
3-phase 4-wire (L1, L2, L3 and N)
L1
L2
L3
N
3V
V1V2
V2V3
V3V1
Indicates which voltages will be connected:
all 3 (3V) or only 2 (V1 and V2, or V2 and
V3, or V3 and V1).
If only two of the three voltages are con-
nected, the three phase voltages must be
balanced (2½-element method)
3-phase star 4-wire non-grounded neutral
3-phase open high leg delta 4-wire non-grounded neutral
3-phase high leg delta 4-wire non-grounded neutral
N
L1
L2
L1
N
L2
L1
N
L2
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
25
4.1.5 PROBES AND RATIOS
4.1.5.1 CURRENT PROBES
The screen denes the current probes and ratios.
This menu enables you to dene
■ Current probes (press A)
■ Current ratios (press V or U, depending on set-up)
Figure 4-11
Press A to dene the current probes and ratios. This displays the current probe models detected by the instrument. If a
probe is detected but not managed, an error message is displayed.
For a 3-wire 3-phase set-up where only two of the three current sensors required are connected, if these two sensors are
of the same type and have the same ratio, the instrument simulates the third sensor by assuming the same characteristics
as for the two others. The third sensor will be shown in the list as either being simulated, or impossible to simulate.
The current probe choices that are available are:
MN93 clamp: 200AAC
MN193 clamp: 100 or 5AAC
SR193 clamp: 1000AAC
J93 clamp: 3500A/5000AAC/DC
AmpFlex® A193: 100A/6500A/10,000AAC
MiniFlex® MA193: 100A/
MR193 clamp: 1000A/1200AAC/DC
SL261 clamp: 100A (sensitivity 10mV/AAC/DC)
SL261 clamp: 10A (sensitivity 100mV/AAC/DC)
Three phase adapter: 5AAC
6500AC
If an MN193 clamp (5A range) or an adapter is used, the current ratio setting is proposed automatically. If an MN193
clamp (5A range), an Adapter, an AmpFlex®, a MiniFlex®, J93 or an SL261 clamp is used; adjustment of the ratio, range,
or sensitivity is proposed automatically.
Use the arrow buttons to dene the ratios between the primary current (1A to 60,000A) and the secondary current (1A,
2A or 5A), then conrm the selections with the
current.
26
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
button. Note that the primary current cannot be less than the secondary
Power Quality Analyzer PowerPad® III Model 8333
4.1.5.2 VOLTAGE RATIOS
A second screen, V or U (depending on set-up), denes the voltage ratios. Ratios can be different for each channel, or the
same for all or some channels. These are phase-to-neutral voltage ratios when there is a neutral (indicated by V)...
Figure 4-12
…and phase-to-phase voltage ratios when there is not (indicated by U).
Figure 4-13
Use the ▲ and ▼ buttons to choose the conguration of the ratios.
■ 3V 1/1 or 3U 1/1: all channels have the same 1/1 ratio.
■ 3V or 3U: all channels have the same ratio, to be programmed.
- Press then use the ▲ and ▼ buttons to highlight the ratio in yellow.
- Press then use the arrow buttons to change the ratio. The primary voltage is in kV and the secondary
voltage is in V.
■ 3V: all channels have the same ratio and the neutral has a different ratio. The process is similar to when there is only
one ratio, but you must perform the operation twice.
■ U1+U2+U3 or V1+V2+V3: each channel has a different ratio, to be programmed. The process is similar to when there
is only one ratio, but you must perform the operation several times.
Conrm your selections by pressing . To return to the Conguration menu, press
NOTE: The primary and secondary voltages can each be congured with a multiplier factor of 1/√3. Note also that
you cannot modify ratios if the instrument is recording, metering energy, or searching for transients, alarms, and/or
.
inrush current acquisitions.
Power Quality Analyzer PowerPad® III Model 8333
27
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
4.1.6 CAPTURE MODE
The
Capture mode is used to congure the voltage thresholds, the current thresholds of the transient mode, and the
current thresholds of the inrush current mode.
4.1.6.1 TRANSIENT VOLTAGE THRESHOLDS
The rst
Thresholds screen, displayed by pressing the V icon (or U, for set-ups without a neutral), congures the
voltage thresholds. These thresholds can be the same for all channels or different for some or each of them.
Figure 4-14
To change the voltage thresholds, press .
Use the ▲ and ▼ buttons to choose conguration of the thresholds.
■ 3V or 3U: all channels have the same threshold.
- Press the button, then use the ▲ and ▼ buttons to highlight the value of the threshold in yellow.
- Press the button, then use the arrow buttons to change the threshold. The unit can be V or kV.
■ V1+V2+V3 or U1+U2+U3: each channel has a different ratio, to be programmed. Proceed as when there is only one
ratio, but perform the operation several times.
Conrm your selections by pressing . To return to the Conguration menu, press
NOTE: You cannot modify thresholds in the transient mode if the instrument is searching for transients.
.
28
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
4.1.6.2 TRANSIENT CURRENT THRESHOLDS
A second
Thresholds screen, displayed by pressing the A icon, congure the current thresholds (independently of
the current sensors detected by the instrument). The thresholds programmed can be the same for all channels or different
for some or all of them.
Figure 4-15
To change the current thresholds, press . Use the ▲ and ▼ buttons to choose conguration of the thresholds.
■ 3A: all current sensors have the same threshold.
- Press the button, then use the ▲ and ▼ buttons to highlight the value of the threshold in yellow.
- Press the button, then use the arrow buttons to change the threshold. The unit can be A, kA, or mA.
■ A1+A2+A3: each current sensor has a different threshold, to be programmed. Proceed as when there is only one ratio,
but perform the operation several times
Conrm your selections by pressing . To return to the Conguration menu, press
NOTE: You cannot modify thresholds in the transient mode if the instrument is searching for transients.
.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
29
4.1.6.3 TREND MODE
The instrument has a recording function (activated by the button, see § 5.5), used to record measured and calculated
values (Urms, Vrms, Arms, and so on). To display the Trend Mode menu, press
to display the Conguration menu,
and then select .
Figure 4-16
The Trend Mode menu consists of two pages. The rst page is illustrated in Figure 4-16. To display the next page, press
the button.
Figure 4-17
There are four possible programmable congurations: , , , . To navigate through these
congurations, press the or button.
To select a parameter to be recorded, move the yellow cursor to the parameter using the navigation arrow buttons, then
press . Selected parameters are identied by a red spot. The frequency (Hz) is always selected (black spot).
NOTE: If a quantity is displayed in red, it is incompatible with the conguration chosen (connection selected, sen-
sors connected, ratios programmed, reference of the level of harmonics of the phases, breakdown of the non-active
quantities). For example, if no current sensor is connected, all current quantities appear in red.
To select all of the parameters of a page, press the button. To deselect all of the parameters of a page, press the
button.
To change conguration pages, press the
30
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
or button.
Power Quality Analyzer PowerPad® III Model 8333
The recordable values are:
Unit Designation
Urms RMS phase-to-phase voltage
Ucf Crest (peak) factor of phase-to-phase voltage
Uthdf Harmonic distortion of the phase-to-phase voltage with the RMS value of the fundamental as reference
Uthdr Harmonic distortion of the phase-to-phase voltage with the total RMS value without DC as reference
Vrms RMS phase-to-neutral voltage
Vcf Crest factor of phase-to-neutral voltage
Vthdf Harmonic distortion of the phase-to-neutral voltage with the RMS value of the fundamental as reference
Vthdr Harmonic distortion of the phase-to-neutral voltage with the total RMS value without DC as reference
Arms RMS current
Acf Crest factor of current
Athdf Harmonic distortion of the current with the RMS value of the fundamental as reference
Athdr Harmonic distortion of the current with the total RMS value without DC as reference
P Active power
Q1 Reactive power (fundamental)
D Distortion power
S Apparent power
PF Power factor
tan Φ Tangent of the phase shift of the voltage with respect to the current
PST Short-term icker
FHL Harmonic loss factor
FK K factor
Vunb or
Uunb
Aunb Negative sequence current unbalance factor
Hz Network frequency
U-h Harmonics in phase-to-phase voltage
V-h Harmonics in phase-to-neutral voltage
A-h Harmonics in current
S-h Harmonics in power
Phase-to-neutral voltage unbalance (set-up with neutral). Phase-to-phase voltage unbalance
(set-up without neutral)
The last four entries in the preceding table (U-h, V-h, A-h, and S-h) involve the recording of the harmonics of U, V, A, and
S. You can select a range of orders of the harmonics to be recorded (between 0 and 50) for each of these quantities; and
within this range (if desired) only odd harmonics.
NOTE: The level of harmonics of order 01 will be displayed only if they concern values expressed in % r.
To change an order of harmonic:
1. Select the parameter to be recorded (identied by a red spot).
2. Move the yellow cursor to the parameter using the navigation arrow buttons.
3. Conrm the selection by pressing .
4. Change the value using the ▲ and ▼ arrow buttons, then conrm by pressing .
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
31
Figure 4-18
NOTE: If a recording is in progress, the associated conguration cannot be modied and the selected values are
identied by black spots.
To return to the Conguration menu, press
.
4.1.7 ALARM MODE CONFIGURATION
The
To activate an alarm, highlight it using the up and down arrow buttons, then conrm the selection by pressing . The
active alarm is identied by a red spot. An alarm that is not programmed (identied by a question mark “?”) cannot be
activated. To program the alarm, select the parameter, then enter a new value. Conrm the change by pressing .
Alarm mode menu denes the alarms used by the Alarm mode function (see § 5.4 for a complete list of alarms).
Figure 4-19
The Alarm mode menu denes (10 alarms programmable):
● Type of alarm
● Order of the harmonic (between 0 and 50), for |S-h|, A-h, U-h and V-h only
● Direction of the alarm (>or <) in the case of Hz, Urms, Vrms, Arms.
● Triggering threshold of the alarm (value and unit for Urms, Vrms, Arms, |Q1| or N, D and S).
● Triggering delay, or minimum duration above or below the alarm threshold: in minutes or seconds or, in the case
of Vrms, Urms and Arms (excluding the neutral), in hundredths of a second.
● Hysteresis: 1%, 2%, 5% or 10% (see § A.1).
32
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
To go from one page to the other, press the
campaign of alarms.
NOTE: A red alarm indicates the programmed quantity and/or target is incompatible with the conguration chosen
(connection selected, sensors connected, ratios programmed, calculation methods chosen).
The alarms on the level of harmonics of order 01 concern only the values expressed in % r.
If a search for alarms is in progress, the activated alarms cannot be modied and are identied by black dots. However, new alarms (not yet programmed or not activated) can be activated.
or button. Each overshoot of an alarm will be recorded in a
To return to the Conguration menu, press
.
4.1.8 ERASING MEMORY
The Erase Memory menu partially or totally deletes data recorded in the instrument.
Figure 4-20
■ To select an item to be deleted, highlight it using the arrow buttons, then conrm the selection by pressing .
A red dot appears identifying the item to be deleted. To select all items, press . To deselect all items, press .
■ To proceed with the deletion, press the button, then conrm by pressing .
■ To return to the Conguration menu, press
WARNING: Which deletions are possible depends on the recordings in progress (recording, metering of energy,
search for transients, alarms, and/or inrush current acquisition).
.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
33
4.1.9 ABOUT
The About menu displays information concerning the instrument.
Figure 4-21
34
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
5. DISPLAY MODES
To select parameters in all modes, use the ◄ ►▲▼ buttons to move to the desired parameter and use the button to
conrm selections.
5.1 TRANSIENT MODE
The Transient menu is used to record transients, look up the list of recorded searches and the list of transients they
contain, or erase them. You can record up to 7 detections and 51 transients.
When the Transient mode is selected, the display screen will depend on the following conditions:
if … then …
no record has been made the Detection Schedule screen is displayed
transients have been recorded the List of Seaches for Transients screen is displayed
5.1.1 PROGRAMMING AND STARTING A SEARCH
Figure 5-22
Item Function
1
Reminder of the mode used
2
Display of sub-mode used
3
Flashing icon: indicates that the search has been started
4
Memory indicator. Black area = used memory; White area = available memory
5
Transients search start time
6
Transients search end time
7
Number of transients
8
Name of transient
9
Display a list of searches; Program a search; Start a search
To program a search for a transient, enter the start date and time, the stop date and time, the number of transients to
search for, and the name of the search.
To change an item, move the yellow cursor to it using the ▲ and ▼ buttons, then conrm the selection with the
button. Change the value using the ◄ ►▲▼ arrow buttons, then press . The name can be up to eight characters
long. Several searches can bear the same name. The available alphanumeric characters are uppercase letters from A
through Z and the digits 0 through 9. The last ve names assigned (in the transient, trend, and alarm modes) are stored in
memory. When a name is entered, it may then be completed automatically.
Power Quality Analyzer PowerPad® III Model 8333
35
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
NOTE: The start date and time must be later than the current date and time. The stop date and time must be later
than the start date and time.
After you program the search, start it by pressing the button. The icon on the status bar blinks to indicate that the
search is underway. While the search is active, the button replaces the button and can be used to stop the search
before it is nished.
The message “Detection on standby” is displayed until the start time of the search is reached. When the search starts,
this message is replaced by the message “Detection in progress”. When the stop time is reached, the Detection schedule
menu returns with the button displayed. You can now program another search. During a search for transients, only the
stop date eld can be modied. It is automatically highlighted in yellow.
To return to the Waveform capture screen, press .
5.1.2 DISPLAYING A TRANSIENT
To display the recorded transient, proceed as follows:
To display the recorded transients, press button. The Detection List screen is displayed.
Figure 5-23
Item Function
1
The displayed value indicates the page number and the number of pages.
These icons let you browse through the previous and next screens. Press the yellow buttons corresponding to these icons to display
2
the pages.
If the stop date is in red, it means that it does not match the stop date initially programmed, because either:
● There is a power supply problem (battery low or disconnection from AC power)
● The number of transients has been reached, thereby ending the search
To select a search for transients, move the cursor to it using the ▲ and ▼ buttons. The selected search is bolded. Conrm
by pressing . The screen then displays a list of transients.
36
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
1
5
2
3
4
Figure 5-24
Item Function
1
Transient name, number, date, time and triggering channel of transient.
2
Activates/deactivates the choice of a transient list display filter.
3
The displayed value indicates the page number and the number of pages.
These icons let you browse through the previous and next screens. Press the yellow buttons corresponding to these icons to display
4
the pages.
Transient display filter:
- : displays the 3 single voltages during the transient
5
- 3V: displays the 3 single voltages during the transient
- 3A: displays the 3 currents and the neutral current during the transient
- L1, L2 or L3: displays the current and the single voltage successively in relation to phases 1, 2 and 3
To select a transient, move the cursor to it using the ▲ and ▼ buttons. The selected eld is bolded.
Validate with the . button. The screen then displays the transients in graph form.
Figure 5-25
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
37
Item Function
1
Location in the record of the zone displayed.
2
Instantaneous value of the signals according to the position of the cursor on the scale. To move the cursor use the ◄ and ► buttons.
3
Move cursor to one period of the signal before transient triggering time.
4
Move cursor to transient triggering time.
5
Number assigned to displayed graph (e.g. 1 is highlighted indicating channel V1 triggered capture of the transient)
6
To return to the Transient List screen, press .
: Zoom In - Press this button to zoom in. : Zoom Out - Press this button to zoom out.
NOTE: The selection lter is dynamic and depends on the connection chosen. For example, the selection lter lists
(3U, 3A) for a 3-wire 3-phase set-up.
5.1.3 DELETING A TRANSIENTS SEARCH
You can remove a stored search for transients from memory.
To do this, when the Detection List screen is displayed (see Figure 5-23), select the search to be deleted. Then press
the button, and press to conrm the deletion. Note that you can delete a transient search only if it is not actively in
progress. To return to the Waveform capture screen, press .
5.1.4 DELETING A TRANSIENT
When the Transient List screen is displayed (see Figure 5-23), select the transient to be deleted. The selected transient is
bolded. Next, press the button, and then press to conrm the deletion. To return to the Waveform capture screen,
press .
38
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
5.2 HARMONICS MODE
The Harmonics mode displays a representation of the harmonic levels of the voltage, current, and apparent power, order
by order. It can be used to determine the harmonic currents produced by nonlinear loads, and analyze problems caused
by harmonics according to their order (overheating of neutrals, conductors, motors, and so on).
Figure 5-26
● V - Phase-to-neutral voltage
● A - Harmonics of the current
● S - Apparent power of the harmonics
● U - Phase-to-phase voltage harmonics
● The and buttons allow the user to zoom in or out, in increments of 2%, 5%, 10%, 20%, 50% and 100%.
5.2.1 PHASE-TO-NEUTRAL VOLTAGE HARMONICS
The V sub-menu displays the harmonics of the phase-to-neutral voltage only for sources having a neutral.
NOTE: The choice of curves to be displayed depends on the type of connection (see § 4.1.4):
● Single-phase, 2-wire: no choice (L1)
● Split-phase, 3-wire: 2L, L1, L2
● 3-phase 3-wire: L1, L2, L3
● 3-phase, 4-wire: 3L, L1, L2, L3, -,+
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
39
3L PHASE-TO-NEUTRAL VOLTAGE HARMONICS
3
2
1
Item Function
Data about harmonic indicated by cursor:
V-h03: harmonic number
%: level of harmonics with fundamental RMS value as reference (%f) or (total) RMS value as reference (%r).
1
V: RMS voltage of harmonic
+000°: phase shift with respect to fundamental (order 1).
Harmonic selection cursor; change values with the cursor using the ◄ and ►buttons
2
Horizontal axis indicates orders of harmonics.
Level of harmonic is given as a percentage with respect to fundamental or total RMS value.
3
DC: DC component. 1 to 25: harmonics of order 1 to 25. When cursor exceeds order 25, order 26 to 50 appears.
Figure 5-27
Display in expert mode -.+ (on the right-hand side) is available for 3-phase hookups by pressing the ▲ and ▼ buttons.
40
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333

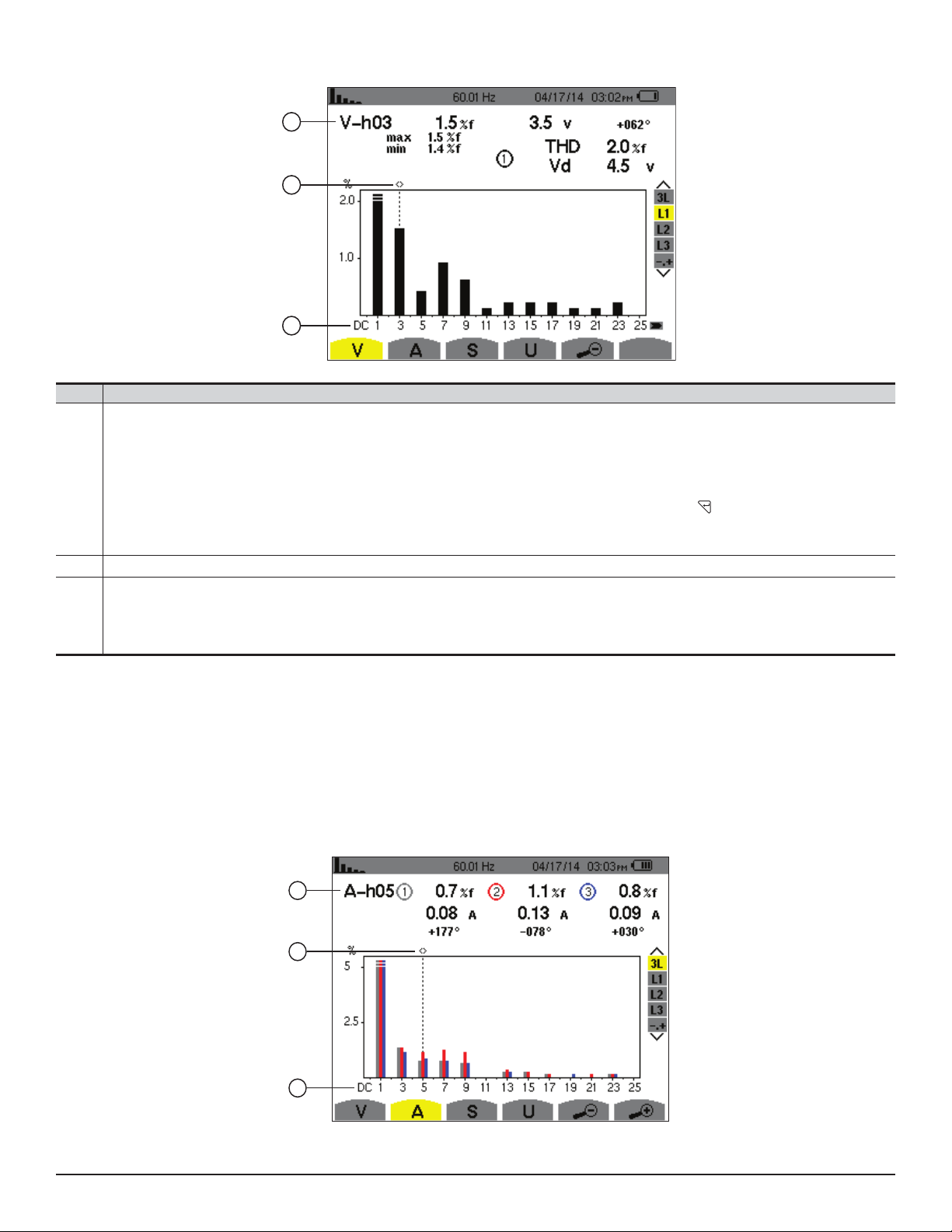

L1 PHASE VOLTAGE HARMONICS
3
2
1
3
2
1
Item Function
Data about harmonic indicated by cursor:
V-h03: harmonic number
%: level of harmonics with fundamental RMS value (%f) or (total) RMS value (%r) as reference
V: RMS voltage of harmonic
1
-143°: phase shift with respect to fundamental (order 1)
max – min: maximum and minimum levels of harmonic. Reset when harmonic number is changed or is pressed
THD: total harmonic distortion
Vd: RMS distortion voltage
Harmonic selection cursor; change values with the cursor using the ◄ and ►buttons
2
Horizontal axis indicates orders of harmonics
Level of harmonic is given as a percentage with respect to fundamental or to total RMS value
3
DC: DC component
1 to 25: harmonics of order 1 to 25. When the cursor exceeds order 25, order 26 to 50 appears
Figure 5-28
NOTE: Filters L2 and L3 display the harmonics of the phase-to-neutral voltage for phases 2 and 3, respectively. The screen is
identical to the one displayed for lter L1.
5.2.2 CURRENT
The A sub-menu displays the harmonics of the current.
3L CURRENT HARMONICS
Figure 5-29
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
41
Item Function
3
2
1
Data about harmonic indicated by cursor:
A-h05: harmonic number
%: level of harmonics with fundamental RMS value (%f) or (total) RMS value (%r) as reference
1
A: RMS current of harmonic
+179°: phase shift with respect to fundamental (order 1)
Harmonic selection cursor; change values with the cursor using the ◄ and ►buttons
2
Horizontal axis indicates orders of harmonics
Level of harmonic is given as a percentage with respect to the fundamental or to the total RMS value
3
Range DC: DC component
1 to 25: harmonics of order 1 to 25. When the cursor exceeds order 25, order 26 to 50 appears
L1 CURRENT HARMONICS
Figure 5-30
Item Function
Data about harmonic indicated by cursor:
A-h05: harmonic number
%: level of harmonics with fundamental RMS value (%f) or (total) RMS value (%r) as reference
A: RMS current of harmonic
1
+178°: phase shift with respect to fundamental (order 1)
max – min: maximum and minimum levels of harmonic. Reset when harmonic number is changed or pressed
THD: total harmonic distortion
Ad: RMS distortion current
Harmonic selection cursor; change values with the cursor using the ◄ and ►buttons
2
Horizontal axis indicates orders of harmonics
Level of harmonic is given as a percentage with respect to the fundamental or to the total RMS value
3
Range DC: DC component
1 to 25: harmonics of order 1 to 25. When the cursor exceeds order 25, order 26 to 50 appears
NOTE: Filters L2 and L3 display the current harmonics of phases 2 and 3, respectively. The screen is identical to the one
displayed for lter L1.
42
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
5.2.3 APPARENT POWER
The S sub-menu displays the harmonics of the apparent power, for all connections except 3-wire 3-phase. The horizontal
axis indicates the orders of the harmonics. The bars of the bar chart above the horizontal center line signify harmonic
power consumed, those below it harmonic power generated.
3L APPARENT POWER HARMONICS
1
2
3
Figure 5-31
Item Function
S-h03: harmonic number
%: level of harmonics with fundamental apparent power (%f) or (total) apparent power (%r) as reference
+006°: phase shift of voltage harmonic with respect to current harmonic
1
: energy generated for this harmonic
: energy consumed for this harmonic
Harmonic selection cursor; change values with the cursor using the ◄ and ►buttons
2
Horizontal axis indicates orders of harmonics.
Harmonic level is percentage of fundamental apparent or (total) apparent power
3
Range DC: DC component
1 to 25: harmonics of order 1 to 25. When cursor exceeds order 25, order 26 to 50 appears
L1 APPARENT POWER HARMONICS
1
2
3
Figure 5-32
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
43
Item Function
Data about harmonic indicated by cursor:
S-h03: harmonic number
%: level of harmonics with fundamental RMS value (%f) or (total) RMS value (%r) as reference
1
A: RMS current of harmonic
+45°: phase shift of the voltage harmonic with respect to the current harmonic
max – min: maximum and minimum levels of harmonic. Reset when harmonic number is changed or pressed
Harmonic selection cursor; change values with the cursor using the ◄ and ►buttons
2
Horizontal axis indicates orders of harmonics.
Level of harmonic is given as a percentage with respect to the fundamental or to the total RMS value.
Range DC: DC component
3
1 to 25: harmonics of order 1 to 25. When the cursor exceeds order 25, order 26 to 50 appears
: energy consumed for this harmonic
NOTE: Filters L2 and L3 display the apparent power of the harmonics for phases 2 and 3, respectively. The screen is identical to
the one displayed for lter L1.
5.2.4 PHASE-TO-PHASE VOLTAGE
The U sub-menu is available for all connections except 2- or 3-wire single-phase. This sub-menu displays the harmonics
of the phase-to-phase voltage.
3L PHASE-TO-PHASE VOLTAGE HARMONICS
1
2
Item Function
U-h03: harmonic number
%: level of harmonics with fundamental apparent power (%f) or (total) apparent power (%r) as reference
1
V: RMS voltage of harmonic
+000°: phase shift with respect to fundamental (order 1)
Harmonic selection cursor; change values with the cursor using the ◄ and ►buttons
2
Horizontal axis indicates orders of harmonics.
Harmonic level is percentage of fundamental apparent or (total) apparent power
3
Range DC: DC component
1 to 25: harmonics of order 1 to 25. When cursor exceeds order 25, order 26 to 50 appears
3
Figure 5-33
44
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
L1 PHASE-TO-PHASE VOLTAGE HARMONICS
3
1
2
Item Function
Data about harmonic indicated by cursor:
U-h03: harmonic number
%: level of harmonics with fundamental RMS value (%f) or (total) RMS value (%r) as reference
V: RMS voltage of harmonic
1
+000°: phase shift with respect to fundamental (order 1)
max – min: maximum and minimum levels of harmonic. Reset when harmonic number is changed or by pressing
THD: total harmonic distortion
Ud: phase-to-phase RMS distortion voltage
Harmonic selection cursor; change values with the cursor using the ◄ and ► buttons
2
Horizontal axis indicates orders of harmonics.
Level of harmonic is given as a percentage with respect to the fundamental or to the total RMS value.
3
Range DC: DC component
1 to 25: harmonics of order 1 to 25. When the cursor exceeds order 25, order 26 to 50 appears
Figure 5-34
NOTE: Filters L2 and L3 display the harmonics of the phase-to-neutral voltage for phases 2 and 3, respectively. The screen is
identical to the one displayed for lter L1.
5.2.5 EXPERT MODE
The Expert mode is available with a 3-phase connection only. It displays the inuence of the harmonics on heating
the neutral and on rotating machines. To display the expert mode press the ▲ or ▼ button. The selection is highlighted in
yellow and the screen simultaneously displays the expert mode.
From this screen, two sub-menus are available:
● V for 3-phase set-ups with neutral or U for the 3-phase set-up without neutral
● A for the expert mode in current
NOTE: The breakdown into sequences shown in the following gure is valid only in the case of a balanced load.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
45
PHASE-TO-NEUTRAL VOLTAGE EXPERT MODE
For 3-phase set-ups with neutral, the V sub-menu displays the inuence of the harmonics of the phase-to-neutral voltage
on the heating of the neutral and on rotating machines.
Figure 5-35
■ Column One: The harmonics inducing a negative sequence.
■ Column Two: Those inducing a zero sequence.
■ Column Three: Those inducing a positive sequence.
■ %: Level of harmonics with fundamental RMS value as reference (%f) or the (total) RMS value as reference (%r)
For 3-phase set-ups without neutral, the U sub-menu displays the inuence of the harmonics of the phase-to-phase
voltage on the heating of revolving machines.
CURRENT EXPERT MODE
The A sub-menu displays the inuence of current harmonics on heating the neutral and on rotating machines
Figure 5-36
■ Column One: The harmonics inducing a negative sequence.
■ Column Two: Those inducing a zero sequence.
■ Column Three: Those inducing a positive sequence.
■ %: Level of harmonics with fundamental RMS value as reference (%f) or the (total) RMS value as reference (%r)
46
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
5.3 WAVEFORM MODE
The Waveform mode displays the current and voltage graphs, along with the values measured and those calculated from
the voltages and currents (except for power, energy, and harmonics). This is the screen that appears when the instrument
is powered up.
02/06/14
Figure 5-37
Item Function
RMS
THD
Measurement of the true RMS value
Measurement of total harmonic distortion
CF
Measurement of the peak factor
Display of Min/Max, RMS and peak values (see § 5.3.4)
Simultaneous display of the following measurements: RMS, DC, THD, CF, PST, FHL and FK (see § 5.3.5)
Display of Fresnel diagram of signals (see § 5.3.6)
5.3.1 RMS MEASUREMENTS
This sub-menu displays the waveforms over a period of the measured signals and the true effective values of the voltage
and the current.
The choice of graphs to be displayed depends on the type of electrical connection that was set up during the conguration (see § 4.1.4).
● Single-phase, 2-wire: no choice (L1)
● Split-phase, 3-wire:
- For RMS, THD, CF, and : U, 2V, 2A, L1, L2
- For : 2V, 2A, L1, L2
● 3-phase, 3-wire: 3U, 3A
● 3-phase, 4-wire: 3U, 3V, 3A, L1, L2, L3
- For RMS, THD, CF, and : 3U, 4A, L1, L2, L3
- For : 3U, 3V, 3A, L1, L2 and L3
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
47
5.3.1.1 RMS (3U)
This screen displays the three phase-to-phase voltages of a 3-phase system.
1
2
3
Figure 5-38
Item Function
RMS phase-to-phase voltages
1
Instantaneous value cursor; change values with the cursor using the ◄ and ► buttons
2
Instantaneous value of the signals at the intersection of the cursor and the curves
t: time relative to the start of the period (expressed in milliseconds)
U1: instantaneous phase-to-phase voltage between phases 1 and 2 (U12)
3
U2: instantaneous phase-to-phase voltage between phases 2 and 3 (U23)
U3: instantaneous phase-to-phase voltage between phases 3 and 1 (U31)
5.3.1.2 RMS (3V)
This screen displays the three phase-to-neutral voltages of a 3-phase system.
1
2
3
Figure 5-39
48
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
Item Function
3
2
1
Effective phase-to-neutral voltages
1
Instantaneous value cursor; change values with the cursor using the ◄ and ► buttons
2
Instantaneous value of the signals at the intersection of the cursor and the curves
t: time relative to the start of the period (expressed in milliseconds)
V1: instantaneous phase-to-neutral voltage of curve 1
3
V2: instantaneous phase-to-neutral voltage of curve 2
V3: instantaneous phase-to-neutral voltage of curve 3
5.3.1.3 RMS (4A)
This screen displays the three phase currents and the neutral current of a 3-phase system.
Figure 5-40
Item Function
RMS currents
1
Instantaneous value cursor; change values with the cursor using the ◄ and ► buttons
2
Instantaneous value of the signals at the intersection of the cursor and the curves
t: time relative to the start of the period (expressed in milliseconds)
A1: instantaneous current of phase 1
3
A2: instantaneous current of phase 2
A3: instantaneous current of phase 3
AN: instantaneous neutral current
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
49
5.3.1.4 RMS (L1)
This screen displays the neutral voltage relative to ground and the neutral current.
1
2
3
Figure 5-41
Item Function
Effective values of RMS voltage and current
1
Instantaneous value cursor; change values with the cursor using the ◄ and ► buttons
2
Instantaneous value of the signals at the intersection of the cursor and the graphs
t: time relative to the start of the period (expressed in milliseconds)
3
V: instantaneous phase-to-neutral voltage
A: instantaneous phase-to-neutral current
NOTE: Filters L1, L2, and L3 display the current and voltage in phases 1, 2, and 3, respectively.
5.3.2 MEASUREMENT OF TOTAL HARMONIC DISTORTION (THD)
The THD sub-menu displays the waveforms of the signals measured over one full cycle and the total voltage and current
harmonic distortion. The levels are displayed either with the fundamental RMS value as reference (%f) or with the RMS
value without DC as reference (%r), depending on which reference is chosen in the Conguration menu.
5.3.2.1 THD (3U)
This screen displays the phase-to-phase voltage waveforms for one period and the total harmonic distortion values.
1
2
3
Figure 5-42
50
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
Item Function
Harmonic distortion rate for each curve
1
Instantaneous value cursor; change values with the cursor using the ◄ and ► buttons
2
Instantaneous value of the signals at the intersection of the cursor and the curves
t: time relative to the start of the period (expressed in milliseconds)
U1: instantaneous phase-to-phase voltage between phases 1 and 2 (U12)
3
U2: instantaneous phase-to-phase voltage between phases 2 and 3 (U23)
U3: instantaneous phase-to-phase voltage between phases 3 and 1 (U31)
5.3.2.2 THD (3V)
This screen displays the phase-to-neutral voltage waveforms for one period and the total harmonic distortion values.
1
2
3
Figure 5-43
Item Function
Harmonic distortion rate for each curve
1
Instantaneous value cursor; change values with the cursor using the ◄ and ► buttons
2
Instantaneous value of the signals at the intersection of the cursor and the curves
t: time relative to the start of the period (expressed in milliseconds)
V1: instantaneous phase-to-neutral voltage of curve 1
3
V2: instantaneous phase-to-neutral voltage of curve 2
V3: instantaneous phase-to-neutral voltage of curve 3
5.3.2.3 THD (4A)
This screen displays the phase current waveforms for one period and the total harmonic distortion values.
1
2
3
Figure 5-44
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
51
Item Function
Harmonic distortion rate for each curve
1
Instantaneous value cursor; change values with the cursor using the ◄ and ► buttons
2
Instantaneous value of the signals at the intersection of the cursor and the curves
t: time relative to the start of the period (expressed in milliseconds)
A1: instantaneous current of phase 1
3
A2: instantaneous current of phase 2
A3: instantaneous current of phase 3
AN: instantaneous value of the neutral current
Note: Filters L1, L2, L3 display the total current and voltage harmonic distortion for phases 1, 2, and 3, respectively.
5.3.3 MEASUREMENT OF THE PEAK FACTOR (CF)
The CF sub-menu displays the waveforms of the signals measured over one period and the voltage and current peak factors.
5.3.3.1 CF (3U)
This screen displays the phase-to-phase voltage waveforms of one period and the peak factors.
1
2
Item Function
1
Peak factor for each curve
2
Instantaneous value cursor; change values with the cursor using the ◄ and ► buttons
Instantaneous value of the signals at the intersection of the cursor and the graphs
t: time relative to the start of the period (expressed in milliseconds)
3
U1: instantaneous voltage peak factor between phases 1 and 2 (U12)
U2: instantaneous voltage peak factor between phases 2 and 3 (U23)
U3: instantaneous voltage peak factor between phases 3 and 1 (U31)
3
Figure 5-45
52
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
5.3.3.2 CF (3V)
This screen displays the phase-to-neutral voltage waveforms of one period and the peak factors.
1
2
3
Figure 5-46
Item Function
1
Instantaneous value cursor; change values with the cursor using the ◄ and ► buttons
2
Peak factor for each curve
Instantaneous value of the signals at the intersection of the cursor and the curves
t: time relative to the start of the period (expressed in milliseconds)
3
V1: instantaneous phase-to-neutral voltage of phase 1
V2: instantaneous phase-to-neutral voltage of phase 2
V3: instantaneous phase-to-neutral voltage of phase 3
5.3.3.3 CF (4A)
This screen displays the current waveforms of one period and the peak factors.
1
2
3
Figure 5-47
Item Function
Instantaneous value cursor; change values with the cursor using the ◄ and ► buttons
1
Peak factor for each curve
2
Instantaneous value of the signals at the intersection of the cursor and the graphs
t: time relative to the start of the period (expressed in milliseconds)
A1: instantaneous current of phase 1
3
A2: instantaneous current of phase 2
A3: instantaneous current of phase 3
AN: instantaneous value of the neutral current
NOTE: Filters L1, L2, L3 display the total current and voltage harmonic distortion for phases 1, 2, and 3, respectively.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
53
5.3.4 MEASUREMENT OF EXTREME AND MEAN VOLTAGE AND CURRENT VALUES
The sub-menu displays the RMS, maximum, minimum and average values for voltage and current, as well as the
instantaneous positive and negative voltage and current peaks.
NOTE: The display screen varies depending on which value is selected.
● 3U: Displays the one-second mean and half-cycle maximum and minimum RMS values and the instantaneous
positive and negative phase-to-phase voltage peaks.
● 3V: Displays the one-second mean and half-cycle maximum and minimum RMS values and the instantaneous
positive and negative peaks of the phase-to-neutral voltages and of the neutral.
● 4A: Displays the one-second mean and half-cycle maximum and minimum RMS values and the positive and
negative instantaneous peak values of the phase and neutral currents.
● L1/L2/L3: Displays the one-second mean and half-cycle maximum and minimum RMS values and the
instantaneous positive and negative peaks of the phase-to-neutral voltage and of the current of phase 1.
Figure 5-48
The columns display the values relative to each voltage, current or neutral graph.
Item Function
MAX
RMS
NOTE: The MAX and MIN RMS measurements are calculated every half-period (e.g. every 10ms for a signal at 50Hz).
The measurements are refreshed every 250ms.
To reset the MIN and MAX on the display, press the button.
Maximum RMS phase-to-phase voltage since the instrument was turned ON or the last time button is pressed.
True RMS phase-to-phase voltage
MIN
Minimum RMS phase-to-phase voltage since the instrument was turned ON or the last time button is pressed.
PK+
Maximum (positive) peak phase-to-phase voltage since instrument was turned ON or the last time button is pressed.
PK-
Minimum (negative) peak phase-to-phase voltage since instrument was turned ON or the last time button is pressed.
54
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
5.3.5 SIMULTANEOUS DISPLAY
The sub-menu displays all the voltage and current measurements (RMS, DC, THD, CF, PST, FHL and FK).
NOTE: The display screen varies depending on which value is selected.
● 3U: Displays the RMS, DC, THD and CF values of the phase-to-phase voltages.
● 3V: Displays the RMS, DC, THD, CF, and PST values of the phase-to-neutral voltages and of the neutral.
● 4A: Displays the RMS, DC, THD, CF, FHL and FK values of the phase and neutral currents.
● L1/L2/L3: Displays the RMS, DC, THD, CF, PST FHL and FK values of the phase-to-neutral voltage and of the
current, the DC and PST parameters of the phase-to-neutral voltage, and the DC value (if the current sensor
allows) and FK of the current for phase 1.
Figure 5-49
Item Function
RMS
DC
THD
CF
PST
FHL
FK
NOTE: The DC value of the current of phase 1 is displayed only if the associated current sensor can measure direct
current. L2 and L3 provide the simultaneous display of the current and voltage for phases 2 and 3, respectively.
True effective value of voltage or current
Direct component
Total harmonic distortion rate
Peak factor calculated in relation to the displayed waveform
Short-term flicker calculated over 10 minutes
Harmonic loss factor for oversizing of transformers relative to harmonics
K factor - Oversizing of transformers relative to harmonics
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
55
5.3.6 PHASOR DIAGRAM DISPLAY
The
sub-menu displays a vector representation of the fundamentals of the voltages and currents. It indicates their
associated quantities (modulus and phase of the vectors) and the unbalances of the voltages and currents.
NOTE: The display screen varies depending on which value is selected.
● 3U: Displays a vector representation of the fundamentals of the phase-to-phase voltages and of the currents. It
indicates their associated quantities (modulus and phase of the phase-to-phase voltage vectors) and the voltage
unbalance. The reference vector of the representation (at 3 o’clock) is U1.
● 3V: Displays a vector representation of the fundamentals of the phase-to-neutral voltages and of the currents. It
indicates their associated quantities (modulus and phase of the phase-to-neutral voltage vectors) and the voltage
unbalance. The reference vector of the representation (at 3 o’clock) is V1.
● 3A: Displays a vector representation of the fundamentals of the phase-to-neutral voltages and of the currents. It
indicates their associated quantities (modulus and phase of the current vectors) and the current unbalance. The
reference vector of the representation (at 3 o’clock) is A1.
● L1/L2/L3: Displays a vector representation of the fundamentals of the phase-to-neutral voltages and the currents
of one phase. It indicates their associated quantities (modulus and phase of the current and phase-to-neutral
voltage vectors). The reference vector of the representation (at 3 o’clock) is the current vector.
Figure 5-50
Item Function
U1, U2, U3
V1, V2, V3
A1, A2, A3
φ
12
φ
23
φ
31
φ
VA
Unb
NOTE: L2 and L3 display vector representations of the fundamentals of the phase-to-neutral voltages and the currents of
phases 2 and 3, respectively. They indicate their associated quantities (modulus and phase of the current and phase-toneutral voltage vectors of phases 2 and 3, respectively). The reference vector of the representation (at 3 o’clock) is the
current vector (A2 and A3, respectively).
56
Find Quality Products Online at: sales@GlobalTestSupply.com
Absolute values of the voltages at fundamental frequency
Absolute values of the voltages at fundamental frequency
Absolute values of the current at fundamental frequency
Phase displacement of phase 1 relative to phase 2
Phase displacement of phase 2 relative to phase 3
Phase displacement of phase 3 relative to phase 1
Phase displacement of voltage (V) relative to current (A)
Unbalance of line voltages
Power Quality Analyzer PowerPad® III Model 8333
www.GlobalTestSupply.com
5.4 ALARM MODE
The Alarm mode detects overshoots of thresholds on each of the following parameters:
Hz
Urms
Vrms
Arms
Ucf
Vcf
Acf
Uthdf
Vthdf
Athdf
Uthdr
Vthdr
Athdr
|P|
| Q1| or N
D
S
|PF |
|PPF|
| tan Φ |
PST
FHL
FK
Vunb (or Uunb for a 3-phase source without neutral)
Aunb
U-h
V-h
A-h
|S-h|
(See also the table of abbreviations in § 8.3)
The alarm thresholds must:
● have been programmed in the Conguration / Alarm mode screen (see § 4.1.8)
● be active (marked with a red spot on that same screen)
NOTE: Stored alarms can subsequently be transferred to a PC via the DataView data analysis program (see § 6).
You can capture over 4000 alarms.
When the Alarm mode button . is pressed, the Detection Schedule screen will appear:
Figure 5-51
Item Measurement Type
Displays the Alarm mode configuration sub-menu
Displays alarm campaigns
Programs an alarm
Validates the programming of an alarm (after is selected, the icon appears)
Manually stops an alarm that is in progress
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
57
5.4.1 ALARM MODE CONFIGURATION
To program/display alarms, they must rst be congured (see § 4.1.7).
The
lets you dene or change alarm congurations. Press to return to the Detection Schedule (Programming a
Campaign) screen.
Alarm Mode conguration submenu displays the list of alarms congured (see § 4.1.7). This shortcut button
5.4.2 PROGRAMMING AN ALARM CAMPAIGN
The Detection Schedule screen species the start and stop times for an alarm campaign.
Figure 5-52
To program an alarm campaign, enter the start date and time, the stop date and time, and the name of the campaign.
To modify an item, move the yellow cursor to it using the up and down arrow buttons, then validate with the button.
Change the value using the arrow buttons, then validate again.
The name can be up to eight characters long. Several campaigns can have the same name. Allowable characters are
uppercase letters A through Z and digits 0 through 9. The last ve names assigned (in the transient, trend, and alarm
modes) are kept in memory. When a name is entered, it can then be completed automatically.
NOTE: The start date and time must be later than the current date and time. The stop date and time must be later
than the start date and time.
5.4.3 STARTING AN ALARM CAMPAIGN
After the settings are entered, the campaign can be started by pressing the button. The icon on the status bar
blinks to indicate that the campaign has been started. The button replaces the button and can be used to stop the
campaign before it is nished.
Alarms in progress (not yet ended) are recorded in the campaign if their duration is equal to or greater than their
programmed minimum duration. The message “Campaign on standby” is displayed until the start time is reached. It is
then replaced by the message “Campaign running”.
When the stop time is reached, the Detection Schedule screen returns with the button. You can then program another
campaign.
NOTE: During an alarm campaign, only the stop date eld can be modied. It is automatically highlighted in yellow.
58
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
5.4.4 MANUALLY STOPPING AN ALARM CAMPAIGN
2 3
1
An alarm can be manually stopped before the stop date and time by pressing the icon’s yellow button. The icon will
reappear in the same location.
5.4.5 DISPLAYING A LIST OF ALARM CAMPAIGNS
To display the list of campaigns performed, press the button. The Detection List screen is displayed.
Figure 5-53
Item Function
1
Name of the campaign
2
Start date and time of the campaign
3
Stop date and time of the campaign
If the stop date of the campaign is in red, it does not match the stop date initially programmed for one of the following
reasons:
● Power supply problem (battery low or disconnection of the instrument supplied by AC power only).
● Memory is full.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
59
5.4.6 LIST OF ALARMS
To select a campaign, move the cursor to it using the ▲ and ▼ arrow buttons. The selected eld is bolded. Then validate
with the button. The instrument then displays the alarms in list form.
2 3 4 5
1
Figure 5-54
Item Function
1
Alarm date and time
2
Target of alarm detected
3
Type of alarm detected
4
Minimum or maximum (configuration dependent) of alarm detected
5
Dynamic filter (connection type dependent)
If an alarm duration is displayed in red, it was cut short for one of the following reasons:
● Power supply problem (battery low)
● Manual stoppage of the campaign by pressing or by turning the instrument OFF
● Memory is full
● Measurement error
● Incompatibility between the quantity monitored and the conguration of the instrument (for example withdrawal of
a current sensor)
In the last two cases, the minimum or maximum (whichever is applicable) s also displayed in red. To return to the
Detection List screen, press .
60
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
5.4.7 DELETING ALARM CAMPAIGNS
3 6
5
4
1
2
5.4.7.1 DELETING A SINGLE ALARM CAMPAIGN
When the list of campaigns performed is displayed (see Figure 5-53), select the campaign to be deleted by moving the
cursor to it using the up and down arrow buttons. The selected campaign is bolded. Then press the button. Press
to conrm the deletion or to cancel.
NOTE: You cannot delete an alarm campaign in progress.
5.4.7.2 DELETING ALL ALARM CAMPAIGNS
Erasing all alarm campaigns from memory is performed via the Conguration menu, in the Erase Memory sub-menu (see
§ 4.1.8).
5.5 TREND MODE
5.5.1 PROGRAMMING AND STARTING A RECORDING
The Trend mode records changes to parameters previously specied in Trend mode conguration screen (see §
4.1.6.3). Pressing this button displays the Recording Schedule screen.
Figure 5-55
Item Function
1
Memory card usage
2
Rapid programming and starts a recording
3
Shortcut to the Trend Mode configuration screen
4
The screen species the characteristics of a recording (see Figure 5-55). To quickly start a recording, press the
button. Recording starts immediately; all measurements are recorded every second until the memory or completely full.
The conguration displayed is .
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
Displays a list of recordings
5
Programs a recording
6
Starts a recording
www.GlobalTestSupply.com
61
To program a recording, set the parameters listed in the Recording Schedule screen:
● Set-up identies the conguration
● Start denes the time and date when the recording starts. The start date and time must be later than the current
date and time.
● Stop species when the recording ends. This must be later than the start date and time.
● Period is the time over which the measurements of each recorded value are averaged (arithmetic mean).
Allowable values are 1s, 5s, 20s, 1min, 2min, 5min, 10min, and 15min.
● Name can be up to eight characters long. Several recordings can have the same name. Allowable characters are
uppercase A through Z and the numbers 0 through 9. The last ve names assigned (in the transient, trend, and
alarm modes) are kept in memory. When a name is entered, it can then be completed automatically.
To modify an item, move the yellow cursor to it using the up and down arrow buttons, then press the button. Change
the value using the arrow buttons, then press again to conrm.
After you nish setting the parameters, start the recording by pressing the button. If not enough memory is available,
an error message appears informing you of this. The icon in the status bar blinks to indicate that recording has begun.
NOTE: The button replaces the button and can be used to stop the recording before it is nished.
The “Recording on standby” message is displayed until the start time is reached. It is then replaced by the message
“Recording running”. When the stop time is reached, the Recording Schedule screen returns with the button
displayed. You can then program a new recording. During the recording of a trend, only the stop date eld can be
modied. It is automatically highlighted in yellow.
through .
5.5.2 VIEWING THE RECORDING LIST
The Recording List submenu displays the recording list already made..
21 3 4
Figure 5-56
Item Function
1
Recording name
2
Memory usage (black indicates % of memory used)
3
Recording start time
4
Recording end time
If the stop date is in red, it does not match the stop date initially programmed because of a power supply problem (battery
low or disconnection of the instrument from AC power).
62
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
5.5.3 DELETING RECORDINGS
When the list of records is displayed (see Figure 5-56), select the recording to be deleted using the ▲ or ▼ button. The
selected recording is bolded. Press the button. Press the button to conrm deletion, or the button to cancel.
5.5.4 VIEWING RECORDS
When the list of records is displayed (see Figure 5-56), use the up and down arrow buttons to select the record to be
displayed. The selected recording is bolded. Press to validate.
1 2
Figure 5-57
Item Function
1
Types of measurement chosen upon configuration
2
Displays additional pages of parameters
If a measurement does not appear in the tabs, it was incompatible with the conguration chosen (connection, types
of sensors, ratios programmed). For example, if the calculation mode chosen during the programming is “Non-active
Quantities not separated” (see § 4.1.3), the D tab does not appear. Press the appropriate yellow button to display a
specic graph.
5.5.5 TREND GRAPHS
Figure 5-58
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
63
Item Function
1
Position of viewing window in the record
2
Date indicated by the cursor position
3
Indicates that this screen is a partial view of the trend graph. There are other screens before and after this screen.
4
Use the ▲ and ▼ arrow buttons to move the cursor.
The display period of this graph is one minute. Since the period of the record is one second, each point on the graph
corresponds to a value recorded in a one-second window once per minute. There is therefore a substantial loss of
information (59 values out of 60), but the display is rapid.
NOTE: Values of the cursor in red indicate saturated values. Black dashes indicate erroneous values. Red dashes
indicate values that are not calculated (following the end of calculation of the MIN-MAX-AVG mode when is
pressed).
Figure 5-59
Item Function
1
Indicates that the MIN-AVG-MAX mode is active
2
Changes the scale of the display between 1 minute and 5 days
The display period of the graph shown in Figure 5-59 is one minute. With the MIN-AVG-MAX mode activated, each point
of this graph represents the arithmetic mean of 60 values recorded every second. This graph is therefore more precise
than the graph shown in Figure 5-58, since there is no loss of information. It is slower, however.
To stop the calculation of the MIN-AVG-MAX mode, press .
NOTE: While MIN-AVG-MAX mode is being calculated, a progress bar is displayed for this calculation in the status
strip instead of the recording display window positioning bar. The MIN-AVG-MAX mode is not available while a trend
is being recorded.
To return to the Recording Parameters screen, press .
64
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
Figure 5-60
For each of the phases (L1, L2, and L3), at each recording of a value over one second (recording period), the instrument
also records the minimum half-cycle RMS value over one second and the maximum half-cycle RMS value over one
second. These are the three graphs shown in Figure 5-60.
Figure 5-61
This graph differs slightly from the one shown in Figure 5-60 because, with the MIN-AVG-MAX mode, there is no loss of
information.
NOTE: For the quantities (P, VAR, S, D, PF, cos Φ and tan Φ) and for a 3-phase source without neutral, only the total
quantities are represented.
Figure 5-62
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
65
This graph is an example of tan Φ (L1) without MIN-AVG-MAX for a 3-phase connection with neutral.
Figure 5-63
This graph is an example of tan Φ (L1) with MIN-AVG-MAX.
1
2
Figure 5-64
Item Function
1
Sum of powers of the three phases is presented in bar graph form.
2
Changes the scale of display between 1 minute and 5 days.
For the energy graphs, the quantities are expressed in Wh, J, toe, or BTU, depending on the unit chosen in the
conguration of the instrument.
Figure 5-65
66
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
This graph (Figure 5-65) differs slightly from the previous one because, with the MIN-AVG-MAX mode, there is no loss of
information.
The MIN-AVG-MAX mode can be activated for the powers to be displayed (above the graph) the mean power value at the
cursor date along with the maximum and minimum power values. Note that, in contrast with the other quantities, only the
bar chart of mean values is represented.
1
2
Figure 5-66
3
Item Function
1
Start date of selected period
2
Energy calculation mode. Pressing this button lets you define the start of the selection.
3
Date indicated by cursor (defines end date of selected period). Use the ◄ and ► buttons to move the cursor.
The display period of this bar chart is one minute. Since the recording period is one second, each bar of this bar chart
represents a value recorded in a one-second window once a minute. The energy calculation mode determines the sum of
the powers on the selected bars.
Figure 5-67
With the MIN-AVG-MAX mode activated, the display differs slightly from the previous one because there is no loss of
information.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
67
1
2
3
4
Figure 5-68
Item Function
1
Position of viewing window in record.
2
Date defined by cursor position.
3
Indicates that this screen is a partial view of the trend graph. There are other screens before and after this visible screen.
4
Use the ◄ and ► buttons to move the cursor.
The period of display of this graph is two hours. Since the recording period is one second, each point of this graph
represents a value recorded every second taken every two hours. There is therefore a substantial loss of information
(7199 out of 7200), but the display is rapid.
1
Figure 5-69
Item Function
1
Indicates MIN-AVG-MAX mode has been activated.
This graph differs considerably from the one illustrated by Figure 5-68 in that MIN-AVG-MAX mode is activated. Each
point of the AVG curve represents the arithmetic mean of 7,200 values recorded every second. Each point of the graph
of the MAX represents the maximum of the 7,200 values recorded every second. Each point of the graph of the MIN
corresponds to the minimum of the 7,200 values recorded every second. This display is therefore more precise, because
there is no loss of information, but it is slower.
68
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
Item Function
1
You can stop the loading of recorded values and calculation of the values displayed at any time by pressing this button.
Item Function
1
Dashes indicate that the value is not available at the cursor position because it was not calculated.
1
Figure 5-70
1
Figure 5-71
Display of the record is not complete because construction was stopped before the end.
1
Figure 5-72
Item Function
1
Changes the scale of the display between 1 minute and 5 days.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
69
The display has not been stopped and is therefore complete.
The following table indicates the time needed to display the graph on screen as a function of the width of the display
window for a recording period of one second:
Width of display window
(60 points or increments)
5 days 2 hours
2.5 days 1 hour
15 hours 15 minutes
10 hours 10 minutes
5 hours 5 minutes
1 hour 1 minute
20 minutes 10 seconds
5 minutes 5 seconds
1 minute 1 second
Grid increment
Typical waiting time for
display with the
MIN-AVG-MAX mode
deactivated
11 seconds
6 seconds
2 seconds
2 seconds
1 second
1 second
1 second
1 second
1 second
Typical waiting time for display
MIN-AVG-MAX mode
1 minute 15 seconds
These times can be long; you can stop the display at any time by pressing .
You can also, at any time, press:
● or to change the scale of the display
● ◄ or ► to move the cursor
● ▲ or ▼ to change the display lter
NOTE: Pressing these buttons may restart the loading and/or calculation of the values from the beginning.
with the
activated
10 minutes
5 minutes
50 seconds
25 seconds
8 seconds
2 seconds
1 second
1 second
70
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
5.6 POWER AND ENERGY MODE
The Power and Energy button displays power and energy measurements. The sub-menus available depend on
which lter is selected:
■ For 2- and 3-wire single-phase connections and for the 2-wire 2-phase connection, only L1 is available. The lter is
therefore not displayed; but the display is the same as for L1.
■ For the 3-wire 3-phase connection, only the Σ lter selection is available. The lter is therefore not displayed, but the
display is the same as for Σ.
5.6.1 3L FILTER
5.6.1.1 POWER
The W... sub-menu is used to display power.
Figure 5-73
Item Function
P (W)
Pdc (W)
Q1 (var)
D (var)
S (VA)
W...
PF...
Wh...
On the right side of the screen are a set of lters: 3L, L1, L2, L3, and Σ. Use the ▲ and ▼ buttons to choose the lter.
The values displayed on the Power and Energy screens are dependent on which of these lters is selected; different data
will appear for different lters. The following sections describe how these screens appear for the 3L, L1/L2/L3 (all three
display the same elds), and Σ lters.
Active power
DC power ( only if a DC current sensor is connected)
Reactive power
Distortion power
Apparent power
Power
Power Factor (this button is only available for the 3L filter)
Energy Meters (this button is not available for the 3L filter)
Energy consumed (active, reactive, and apparent power) (this button is only available for the 3L filter)
Energy generated (active, reactive, and apparent power) (this button is only available for the 3L filter)
NOTE: This screen corresponds to the choice “non-active quantities separated” in the AR tab of the Calculation Meth-
ods menu in Conguration mode. If the choice is “non-active quantities combined” the D label (distortion power) does
not appear, and Q1 is replaced by N. This non-active power is unsigned and has no inductive or capacitive effect.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
71
5.6.1.2 QUANTITIES ASSOCIATED WITH POWER
The PF... sub-menu displays the quantities associated with power.
Figure 5-74
The values in this screen are as follows:
Item Function
PF
Power factor
cos Φ
tan Φ
Φ VA
Fundamental power factor (also called DPF - displacement factor)
Tangent of phase shift
Phase shift of voltage with respect to current
72
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
5.6.1.3 ENERGY CONSUMED
The Energy Consumed sub-menu displays the meters of energy consumed by the load.
Figure 5-75
NOTE: This screen corresponds to the choice “non-active quantities separated” in the VAR tab of the Calculation
Methods menu in Conguration mode. If the choice is “non-active quantities combined” Dh does not appear and Q1h
is replaced by Nh. This non-active energy has no inductive or capacitive effect.
Item Function
Ph (Wh)
Q1h (varh)
Dh (varh)
Sh (VAh)
Active energy consumed
Reactive energy consumed
Distortion energy.
Apparent energy consumed
Inductive reactive effect
Capacitive reactive effect
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
73
5.6.1.4 ENERGY GENERATED
The Energy Generated screen displays the meters of the energy generated by the load.
Figure 5-76
NOTE: This screen corresponds to the choice “non-active quantities separated” in the VAR tab of the Calculation
Methods menu in Conguration mode. If the choice is “non-active quantities combined” Dh does not appear and Q1h
is replaced by Nh. This non-active energy has no inductive or capacitive effect.
5.6.2 L1, L2, AND L3 FILTERS
5.6.2.1 POWERS AND ASSOCIATED QUANTITIES
The W... sub-menu displays the power and associated quantities.
Figure 5-77
74
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
The values in this screen are as follows:
Item Function
P (W)
Q1 (var)
D (var)
S (VA)
PF
cos Φ
tan Φ
Φ VA
Filters L2 and L3 display the same information for phases 2 and 3.
Active power
Reactive power
Distortion power
Apparent power
Power factor
Fundamental power factor (also called DPF - displacement factor)
Tangent of the phase shift
Phase shift of voltage with respect to current (Φ is displayed for the 2-wire 2-phase set-up.
NOTE: This screen corresponds to the choice “non-active quantities separated” in the VAR tab of the Calculation
Methods menu in Conguration mode. If the choice is “non-active quantities combined” D (distortion power) does not
appear and Q1 is replaced by N. This non-active energy has no inductive or capacitive effect.
Φ UA is displayed for the 2-wire 2-phase set-up.
5.6.2.2 ENERGY METERS
The Wh... sub-menu displays the energy meters.
Figure 5-78
The values in this screen are as follows:
Item Function
Meters of the energy consumed by the load
Meters of the energy generated by the load
Filters L2 and L3 display the same information for phases 2 and 3.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
75
5.6.3 Σ FILTER
5.6.3.1 TOTAL POWERS AND ASSOCIATED QUANTITIES
When the Σ lter is selected, the W... sub-menu displays the powers and associated quantities.
Figure 5-79
NOTE: This screen corresponds to the choice “non-active quantities separated” in the VAR tab of the Calculation
Methods menu in Conguration mode. If the choice is “non-active quantities combined” D does not appear and Q1 is
replaced by N. This non-active energy has no inductive or capacitive effect.
Filters L2 and L3 display the same information for phases 2 and 3.
Item Function
P (W)
Pdc (W)
Q1 (var)
D (var)
S (VA)
PF
cos Φ
tan Φ
Φ VA
Total active power
Total DC power
Total reactive power
Total distortion power
Total apparent power
Total power factor
Total fundamental power factor (also called DPF - displacement factor)
Total tangent
Phase shift of voltage with respect to current (Φ is displayed for the 2-wire 2-phase set-up.
76
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
5.6.4 TOTAL ENERGY METERS
The Wh... sub-menu displays the energy meters.
Item Function
Meters of the energy consumed by the load
Meters of the energy generated by the load
Ph (Wh)
Q1h (varh)
Dh (varh)
Sh (VAh)
Total active energy consumed
Total reactive energy consumed
Total distortion energy.
Total apparent energy consumed
Figure 5-80
Total inductive reactive effect
NOTE: This screen corresponds to the choice “non-active quantities separated” in the VAR tab of the Calculation
Methods menu in Conguration mode. If the choice is “non-active quantities combined” Dh does not appear and Q1h
is replaced by Nh. This non-active energy has no inductive or capacitive effect.
For the 3-wire 3-phase set-up, only the display of total quantities is available; the method of calculation of the powers
used is the two-wattmeter method.
Total capacitive reactive effect
5.6.5 STARTING AND STOPPING ENERGY MEASUREMENTS
To start a measurement:
1. Press the button while in an energy display ( , , or Wh...). The date and time at which the measuring
starts will appear in the upper left corner of the screen, and the icon on the screen blinks to indicate that energy
metering is in progress.
2. To stop the measurement, press the button. The date and time at which the measuring stops will appear in the
upper right corner of the screen. The icon is also replaced by the by icon.
3. To resume metering, press the button again.
NOTE: If no recording is in progress, disconnecting the energy metering results in the appearance of the blinking
icon in the status bar (in place of the icon).
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
77
5.6.6 RESETTING THE ENERGY MEASUREMENT
To reset the measurement, press the press the button to stop metering. Then press the button, and then to
conrm. All energy values (consumed and generated) are reset.
5.7 SCREEN SNAPSHOTS
The button enables you to take up to 50 screen snapshots and display the recorded snapshots. Saved screens can
then be downloaded to a PC using DataView.
Press the button for approximately three seconds to shoot any screen displayed on the instrument. When a screen
snapshot is taken, the icon of the active mode ( , , , , , , ) in the top strip of the display unit is
replaced by the icon. You can then release the button. The instrument can record only 50 screen snapshots. If you
want to record a 51st screen, the instrument informs you that snapshots must be deleted by displaying the icon in
place of .
1
2
4
3
Figure 5-81
Item Function
1
Available image memory. Black represents memory used.
2
List of saved snapshots. Each icon represents the type of screen recorded. It is followed by the date and time of the screen snapshot.
3
Icons for browsing through the screen pages.
4
Displays a list of snapshots.
NOTE: These screens can be downloaded to a computer using DataView
®
5.7.1 VIEWING A SNAPSHOT
■ A short press (about 1s) on the button gives access to the menu of snapshots that have been saved.
■ Use the arrow buttons to select the snapshot.
■ The date and time of the selected snapshot are bolded. Press to display the selected snapshot.
■ Press to return to the list of screen snapshots.
78
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
5.7.2 DELETING A SNAPSHOT
■ Select the snapshot that you want to delete using the arrow buttons.
■ Press the button and conrm the deletion by pressing .
To leave the screen without deleting any alarm, press the button.
5.8 HELP
Press this button to obtain help for the currently displayed mode.
To exit the Help mode, press the button once again.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
79
6. DATAVIEW SOFTWARE
DataView is a software program that enables a PC to connect to and interact with a variety of AEMC instruments,
including the Model 8333. As its name implies, a primary purpose of DataView is to view data that has been recorded by
the instrument and displayed on the PC. With DataView you can:
● Connect PC to the instrument
● Download data
● Display and analyse data
● Generate reports
● Export to a spreadsheet
● Congure the instrument from the PC
6.1 INSTALLING DATAVIEW
DO NOT CONNECT THE INSTRUMENT TO THE PC BEFORE INSTALLING THE SOFTWARE AND DRIVERS.
When you purchase an AEMC instrument supported by DataView, the software is included as part of the product package.
DataView program les are stored on a USB stick.
Before installing DataView, be sure your system meets the following minimum hardware and software requirements.
■ Windows XP / Windows Vista & Windows 7/8 (32/64 bit)
■ 256MB of RAM for Windows XP
1GB of RAM for Windows Vista & Windows 7/8 (32 bit)
2GB or RAM for Windows Vista & Windows 7/8 (64 bit)
■ 80MB of hard disk space (200MB recommended)
■ USB port
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
NOTE: When installing, the user must have Administrative access rights during the installation. The users access
rights can be changed after the installation is complete. DataView must be reinstalled for each user in a multi-user
system.
6.1.1 USB FLASH DRIVE INSTALL
1. Insert the USB stick into an available USB port (wait for driver to be installed).
2. If Autorun is enabled then an AutoPlay window should appear as shown.
Figure 6-1
80
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
NOTE: If Autorun is disabled, it will be necessary to open Windows Explorer, then locate and open the USB stick drive
labeled “DataView” to view the les on the drive.
3. In the AutoPlay window, select Open Folder to view les.
4. Double-click on Setup.exe from the opened folder view to launch the DataView setup program.
NOTE: Depending on your operating system, the User Account Control dialog box may be displayed. Conrm when
prompted to proceed.
5. A Set-up window, similar to below, will appear.
Figure 6-2
There are several different options to choose from. Some options(*) require an internet connection.
● DataView, Version x.xx.xxxx - Installs DataView onto the PC.
● *Adobe Reader - Links to the Adobe® website to download the most recent version of Adobe® Reader to the
computer. Adobe® Reader is required for viewing PDF documents supplied with DataView.
● *DataView Updates - Links to the online DataView software updates to check for new software version releases.
● *Firmware Upgrades - Links to the online rmware updates to check for new rmware version releases.
● User Manuals - Shows a list of instrument related documents that you can view. Adobe® Reader is required for
viewing PDF documents supplied with DataView.
6. DataView, Version x.xx.xxxx option should be selected by default. Select the desired language and then click on
Install.
7. The Installation Wizard window will appear. Click Next.
8.
Read the terms of the license agreement. If agreeable, indicate your acceptance and click Next.
9. In the Customer Information window, enter a Name and Company, then click Next.
10.
In the Setup Type window that appears, select either Complete to install DataView les in the default directory, or
Custom to choose a directory. Then click Next.
11. The Select Features window appears. This enables you to select the DataView Control panels you want to install.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
81
Figure 6-3
Select Power & Quality Analyzers and any other instrument control panel(s) that you want to install. You can also deselect
any Control Panel that you do not need. Then click Next.
NOTE: The PDF-XChange option must be selected to be able to generate PDF reports from within DataView.
12. In the Ready to Install the Program window, click on Install.
13. If the instrument selected for installation requires the use of a USB port, a warning box will appear, similar to Figure
6-4. Click OK.
Figure 6-4
NOTE: The installation of the drivers may take a few moments. Windows may even indicate that it is not responding,
however it is running. Please wait for it to nish.
14. When the drivers are nished installing, the Installation Successful dialog box will appear. Click on OK.
15. Next, the Installation Wizard Complete window will appear. Click on Finish.
16. A Question message box appears next. Click Yes to read the procedure for connecting the instrument to the USB
port on the computer.
NOTE: The Set-up window remains open. You can now select another option to download (e.g. Adobe® Reader), or
close the window.
82
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
17. Restart your computer, then connect the instrument to the USB port on the computer.
18. After the instrument is connected to the computer, the Found New Hardware dialog box appears. Windows will
complete the driver installation process automatically.
Shortcuts for DataView and each instrument Control Panel selected during the installation process will appear on your
desktop. The shortcut icon for the Control Panel for the Model 8333 will appear as and be labeled “PowerPad III”.
NOTE: If you connected your instrument to the computer before installing the software and drivers, you may need to
use the Add/Remove Hardware utility to remove the instrument driver before repeating the process.
6.2 CONNECTING THE MODEL 8333 TO YOUR COMPUTER
The Model 8333 is supplied with a USB cable required for connecting the instrument to the computer.
To connect the instrument to your computer:
1. Connect the USB cable to the port on the front panel of the instrument.
2. Connect the other end of the USB cable to a USB port on your computer.
3. Turn the instrument on.
You are now ready to use the DataView® software with the Model 8333.
6.3 OPENING THE CONTROL PANEL
To open the PowerPad III Control Panel:
1. Double-click the PowerPad III shortcut icon ( ) created on your desktop during DataView installation.
2. In the Menu bar at the top of the Control Panel interface, click Instrument.
3. From the drop-down menu, select Reconnect Instrument. The Connect an Instrument Wizard screen appears.
Figure 6-5
The Model 8333 to which you are connected should appear in the Instrument drop-down list. Select the instrument’s
name and click Next.
4. The computer connects with the instrument. During this process a progress bar may appear on the screen. When
the connection is established, the message “Instrument has been identied, select Finish to continue” appears. Click
Finish to exit the Connect an Instrument Wizard.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
83
The Control Panel user interface consists of multiple components for displaying, modifying, saving, and navigating data
recorded on the Model 8333.
Figure 6-6
The Control Panel user interface consists of multiple components for displaying, modifying, saving, and navigating data
recorded on the Model 8333.
■ At the very top of the Control Panel is the title bar. The title bar displays the name of the application and the path to
the open data le (if any).
■ Below the title bar is the menu bar. The menu bar contains six drop-down menus: File, Edit, View, Instrument, Tools,
and Help. Each command in these drop-down menus is associated with the menu name. For example, instrument
specic commands are listed under the Instrument menu.
■ Below the menu bar is the toolbar. The toolbar contains iconic representations of menu commands; each icon
performs the same function as its associated menu command when selected.
■ Below the toolbar and to the left is the navigation tree frame. The navigation tree operates much like Windows
Explorer does when exploring the folders on your computer. The selected entry in the navigation tree determines
what information is displayed in the data frame to the right. For example, selecting the My Open Sessions entry in
the navigation tree displays a list of the open sessions (if any) in the data frame. Other data shown in the data frame
includes data recorded from the instrument (recordings, photographs, alarms, transients, inrush), real-time data
currently being reported by the instrument (trend, waveform, harmonics. power, energy), campaigns, and DataView
reports.
■ Below the navigation and data frames is the status bar. The status bar displays a single line of help information (to the
left) and instrument connection status (to the right).
6.4 CONFIGURING THE INSTRUMENT
The PowerPad III Control Panel also enables you to congure every aspect of the Model 8333. Each eld is identical to
the programmable features available from the instrument’s front panel itself. Several of the functions are congured by
typing the appropriate value in the eld provided. Others are congured by clicking the available radio button or icon. To
congure the instrument, select Instrument from the menu bar, and then click Congure. This displays the Congure
Instrument dialog box.
84
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
Figure 6-7
The Congure Instrument dialog box consists of eight tabs: Setup, Sensors and Ratios, Instrument Display, Alarm
Conditions, Recordings, Transients, Inrush, and Schedule.
At the bottom of each of these tabs are a set of buttons that perform the following tasks:
● Re-Read from Instrument reads the current conguration of the connected Model 8333.
● Save To File saves the current conguration. This le will reside on the computer’s disk drive. Saving different
conguration setups can be useful for future functions and tests.
● Load From File retrieves a saved le from the computer’s disk drive to be used in programming the Model 8333.
● OK writes the current conguration to the instrument and closes the open dialog box.
● Cancel exits the dialog box without writing the conguration to the instrument.
● Apply programs the instrument using the current settings without closing the window.
● Help opens the online Help.
6.4.1 SETUP
The Setup tab (shown in Figure 6-7) enables you to select the distribution system and associated parameters. This tab
includes the following selections:
● Distribution System denes the hook-up to be tested. Options are 1-Phase (2 wire), 2-Phase (3 wire), and
3-Phase (3 and 4 wire).
● Reactive values (var) calculation Reactive Values (var) Calculation can be “N. Combined (With Harmonics)”
or “Q. Separated (Without Harmonics).” This allows you to select calculations with or without harmonics.
● Transformer Factor K sets the q and e settings for the factor K (also called K-factor).
● Nominal Frequency is either 50 or 60Hz. This parameter determines the correction coefcients used for
calculating power and energy.
● Phase Harmonics Ratios: Options are Fundamental Value as reference (%f) and Total Value as reference (%r).
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
85
6.4.2 SENSORS AND RATIOS
The Sensors and Ratios tab denes the voltage ratios and current ratios (when available) so nal values can be adjusted,
recorded, and displayed with correct magnitudes. The ability to set the current probe ratio is dependent on the type of
probe used.
Figure 6-8
NOTE: For detailed instructions and descriptions for any feature in this and any other Control Panel dialog box, click
on the Help button (lower right-side of the dialog box).
6.4.3 INSTRUMENT DISPLAY
The Instrument Display tab allows you to customize the display (colors, clock, language and contrast) and specify energy
units to use.
Figure 6-9
86
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
6.4.4 ALARM CONDITIONS
The Alarm Conditions tab allows you to set up 40 alarm congurations.
Figure 6-10
■ Prev Page & Next Page: Move between the 3 pages of alarms with 16 alarms per page.
■ Data to Capture: The alarm will be triggered based on the value of the selected parameter. Choices include:
None: no alarm
A CF: current crest factor
A Hf: current harmonic factor Pst: short-term severity VΦ-N Hf: phase-to-neutral voltage
A rms: current root mean squared
A THDf: harmonic distortion of the
current with the RMS value of the
fundamental as reference
A THDr: harmonic distortion of the
current with the total RMS value
without DC as reference
Aunb (u2): unbalance in current Tan Φ: Tangent of the phase shift of the
D (var) VΦ-Φ CF: phase-to-phase voltage crest
DPF (cos Φ): displacement factor VΦ-Φ Hf: phase-to-phase voltage
FHL: harmonic loss factor VΦ-Φ rms: phase-to-phase voltage root
FK: factor K (K factor) VΦ-Φ THDf: harmonic distortion of
Hz: frequency VΦ-Φ THDr: harmonic distortion of the
phase-to-phase voltage with the total
RMS value without DC as reference
PF: power factor VΦ-N CF: phase-to-neutral voltage
crest factor
harmonic factor
P (W): power VΦ-N rms: phase-to-neutral voltage
root mean squared
Q (var): voltage/ampere reactive VΦ-N THDf: harmonic distortion of
the phase-to-neutral voltage with the
fundamental RMS value as reference
S (VA): volt/ampere VΦ-N THDr: harmonic distortion of the
phase-to-neutral voltage with the total
RMS value without DC as reference
VΦ-N unb (2): phase-to-neutral voltage
voltage with respect to the current
factor
harmonic factor
mean squared
the phase-to-phase voltage with the
fundamental RMS value as reference
unbalance
VA Hf: Apparent power harmonic factor
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
87
■ Phases: Options are 3L, N, and 4L.
■ < or >: Determines whether the alarm condition is triggered when the measurement exceeds or falls below the
threshold alarm setting.
■ Threshold: The value that must be reached to start an alarm. For “>” alarms, the value or higher must be reached. For
“<” alarms, the value or lower must be reached. To the right of this setting is a button that displays a drop-down menu
from which you can select the appropriate unit of measurement.
■ Duration: The alarm will only be recorded if the duration of the parameter meeting the threshold criteria exceeds the
duration. The minimum alarm duration can be in minutes or seconds. In the case of Vrms, Urms, or Arms not using
neutral current, this setting can also be in hundredths of a second. For Vrms, Urms, and Arms, it can be useful to set a
duration of 0 seconds. In that case an event as short as a half cycle can be detected (8 milliseconds at 60Hz). For all
other parameters, the minimum duration that can be detected is 1 second.
■ Hysteresis: This value for alarms is set to prevent multiple recordings of an event that goes above the threshold and a
certain percentage below it at times.
Example: Alarm threshold is 100 Volts or higher, hysteresis is 1%. When the voltage goes up to 100V, the alarm condition
starts. When it goes back down to 99V, the alarm condition stops.
NOTE: You can congure alarms, recordings, Inrush, and transient searches while testing is in progress.
6.4.5 RECORDINGS
The Recordings tab shows the parameters for a recording session.
Figure 6-11
Four different congurations are available. More congurations can be saved by pressing Save to File and recalled later
by pressing Load From File.
1. Select the conguration to set up: 1, 2, 3, or 4.
2. Check the box for each parameter desired in the Data to Record section.
3. Congure the harmonic values to be recorded, if desired.
4. Choose an Aggregation Period for the recording, which sets how often the recording updates while it is running.
The Model 8333 loses its scheduled recording if it is powered OFF before the recording begins. If it is powered OFF
during the recording, a partial recording will usually still exist but with the rst letter of its name changed to “@”. The
start and end times requested for the recording might be adjusted by the Model 8333 to be in even multiples of the
averaging period. For instance, if an integration period of 10 minutes was requested, and the start time was 9:03, the
recording might not actually begin until 9:10.
88
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
6.4.6 TRANSIENTS
The Transients tab allows you to set up the criteria for capturing transients.
Figure 6-12
1. In the Threshold of Voltage Difference section of the dialog box, select from the drop-down menu one of the following
options: 4L Same thresholds for all, 3L+N Same except N has its own threshold, or L1+l2+l3+N Separate thresholds.
2. Based on the preceding selection, ll in appropriate values for L1, L2, L3, and N. (Some of these may be greyed out
and inactive, depending on the selected connection type.)
3. Select Maximum number of transients to nd. If previous transients are stored in the memory, the maximum available
will be reduced accordingly. The information is available on the screen.
4. In the Threshold of Current Difference section of the dialog box, select the appropriate option in the drop-down menu.
Available options are the same as those in the Threshold of Voltage Difference drop-down menu.
The conguration settings can be saved to a le by clicking the Save to File button and selecting a le name. A previously
saved conguration can be loaded by clicking the Load From File button. A present conguration in the instrument (if
connected) can be read by clicking Re-Read From Instrument.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
89
6.5 SCHEDULE
The Schedule Tab allows you to choose Start/Stop times and dene other parameters related to recording sessions and
searching for alarms.
Figure 6-13
■ Record Now immediately begins a recording session or search, depending on selections. The process can start
without a name.
■ “Use the same dates, times, and names for the recordings and searches” instructs the Control Panel to use the
same settings for all recordings and searches.
The remaining elds on the dialog enable you to schedule (and optionally name) a recording, transient search, inrush
search, or alarm search.
Click OK to write the congurations to the instrument and close the Conguration dialog box.
NOTE: For more information about conguring the Model 8333 from the PowerPad III Control Panel, consult the Help
le within the software.
90
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
6.6 REAL-TIME DATA
When your setup is completed, you can display different views on the screen of real-time data and waveforms.
6.6.1 TREND
This display shows a real-time trend of data from the Model 8333. The data is an average of waveforms downloaded to
the PC whose scale adjusts constantly to t all the data it has received.
Figure 6-14
6.6.2 WAVEFORM
You can select the type of data to display using the buttons at the top of the Waveform display. Stop the update with the
(Pause) button, and resume with the
(Play) button.
Figure 6-15
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
91
6.6.3 HARMONICS
This screen displays harmonic data up to the 50th harmonic for voltage or current for selected phase(s) of the available
channels or neutral (N).
Figure 6-16
The voltage harmonics can be selected for phase-to-phase voltage or phase-to-neutral voltage or neutral-to-ground
voltage. The Harmonics is displayed as a % of the fundamental (%f) as default. Harmonics are displayed as absolute
voltage by pressing % button. Similarly, the current harmonics can be selected for each phase and neutral.
6.6.4 POWER
The Real-time Data Power window displays accumulated power data.
Figure 6-17
The data can be started or stopped using the
(Pause) and
(Play) buttons, and the results can be downloaded
to a database and viewed on the screen, selected by phase. The data for all available phases are downloaded to a
database or spreadsheet, not just what is shown on the screen.
92
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
6.6.5 ENERGY
Real-time Data Energy resembles the Power display.
Figure 6-18
This displays accumulated energy data, and can be started or stopped; the results can be downloaded to a database and
viewed on the screen, selected by phase.
6.7 DOWNLOADING DATA
To download recorded data, select Instrument from the menu bar and click Download Recorded Data. The Control Panel
prompts you to conrm that you want to download all the data from the instrument. Click Yes to initiate the download. The
Download dialog box appears.
Figure 6-19
This dialog box lists the recorded sessions, photographs, alarms, transients, and Inrush data stored on the instrument.
The download progress is shown in the Status of download column. When downloading is complete, click Open to view
a list of recorded sessions. These appear under Recorded Sessions on the left side of the Control Panel display. Click on
the listed item to view its recorded data.
You can format this data as a DataView report by opening the File menu and selecting Create DataView Report. You can
also view the data as an Excel-compatible spreadsheet by selecting Export to a Spreadsheet from the File menu.
You can delete les listed in the Downloads dialog box by using the buttons Clear (to delete a selected session) or Clear
List (to delete all sessions from the list). Note that this does not affect the les stored on the Model 8333; any le deleted
through the Downloads dialog box remains on the instrument and can be downloaded at a future time
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
93
6.7.1 RECORDINGS
The Recordings option in the navigation frame on the left side of the Control Panel lists all recordings downloaded from
the Model 8333. A recording can be downloaded to a database on the PC by selecting it and clicking Save or Save As
from the File menu. This saves the session as an .icp le within DataView. This le can later be opened by selecting File
from the menu bar and clicking Open; this displays a dialog box for locating the le to be opened.
6.7.2 SCREEN SNAPSHOTS
The Snapshot option in the navigation frame displays a list of photographs (snapshots), with the date and time, taken
when the camera button was pressed. Clicking on a recorded snapshot shows the data at the time the camera button was
pressed.
Snapshots can only be initiated using the camera button on the Model 8333 itself, not by DataView®.
6.7.3 ALARMS
Clicking Alarms in the navigation frame displays a list of alarms that were recorded on the Model 8333. Details on the
alarm search are available by clicking on the desired alarm set, which opens up an alarm window with the searches
details. Alarm search data can be selected and downloaded to a spreadsheet or a DataView report by opening the File
menu and selecting the appropriate commands.
6.7.4 TRANSIENTS
The Transients tab displays transients stored on the Model 8333. It shows the number and name of the recording, and the
time it began and ended. The selected transient(s) can either be downloaded or deleted.
The downloaded data contains many waveforms. Use the navigational buttons in the toolbar (such as zoom in and
zoom out ) to view details in the data. These buttons are available in every graph from recorded data.
6.7.5 EDITING DOWNLOADED DATA
The Control Panel enables you to augment downloaded data with additional information about the recording session,
such as operator and site. To do this, highlight the downloaded recording, alarm, transient, or Inrush result listed under
Recorded Sessions. Then open the Edit menu and click Edit Address Book. The Session Properties dialog box appears.
94
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
Figure 6-20
The Session Properties dialog box allows you to specify the Operator, Site, and Custom parameters that are to be saved
with recorded data. These parameters are used when generating reports. The Operator and Site tabs allow you to
maintain lists of operators and sites, saving you time when specifying parameters for reports. On the left of the Operator
and Site tabs is the list of previously dened operators and sites. On the right of the Operator and Site tabs is a set of
individual parameters that will be saved in an associated database. Only a single set of operator and site elds is saved in
the recording database.
The Custom tab contains a list of user dened parameters. Next to each user dened parameter is a check box. Items
that are checked will be added to an associated database. Only a single set of custom parameters can be maintained
(unlike the Operator and Site lists). The Custom tab allows you to specify any user dened parameters (in addition to the
comments eld of the Site tab) that are to be used in displaying a report.
Power Quality Analyzer PowerPad® III Model 8333
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
95
7. MAINTENANCE
Use only factory specied replacement parts. AEMC® will not be held responsible for any accident, incident, or malfunction
following a repair done other than by its service center or by an approved repair center.
7.1 CLEANING
Disconnect the instrument from any source of electricity.
● Use a soft cloth, lightly dampened with soapy water
● Wipe with a damp cloth and then dry with a dry cloth
● Do not splash water directly on the instrument
● Do not use alcohol, solvents or hydrocarbons
For the current probes and sensors: Keep the air gaps of the clamps perfectly clean using a cloth. Lightly oil visible metal
parts to avoid rust.
7.2 REPLACING THE BATTERY
WARNING:
● For safety reasons, replace the battery only with the original replacement model (see § 1.2.2).
● Do not expose the battery to heat exceeding 212°F (100°C).
● Do not short-circuit the battery terminals.
● To eliminate all risk of electric shock, disconnect the power supply cord and measurement leads of the
instrument.
1. Turn the instrument over, raise the stand, and prop it up.
2. Use a coin to unscrew the two quarter-turn screws on the back of the
housing.
3. Using a at screwdriver, remove the cover from the compartment.
4. Turn the instrument over and hold the battery as it slides out of its
compartment.
5. Disconnect the battery connector without pulling on the wires.
6. Connect the new battery. The connector is error-proofed to prevent
reversals of polarity.
7. Place the battery in its compartment and arrange the wires so that
they do not protrude.
8. Put the battery compartment cover back in place and screw the two
screws back in.
NOTE: If the battery is disconnected, it must then be fully recharged, even if it is not replaced, so that the instrument
will know the battery charge condition (this information is lost when the battery is disconnected).
96
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Power Quality Analyzer PowerPad® III Model 8333
7.3 UPDATING SOFTWARE & FIRMWARE
To provide our customers the best possible service in terms of performance and technical upgrades, AEMC® offers free
software and rmware updates on our website.
● Visit us at: www.aemc.com
● Click on the TECH INFO tab, then click on the Software & Firmware Updates button.
You can also update the software by selecting “Update” from the Help menu within the DataView® software.
NOTE: Updating embedded software or rmware resents the conguration and erases all data stored on the instrument. As a precaution, you should always save stored data to a PC before performing any software or rmware
updates.
