AEMC MN307 Data sheet

AC Current Probe Model MN307 (pdf) 10/05 Rev. 03

Technical Assistance [phone] www.aemc.com1of 4

The Model MN307 is the latest in
compact AC current probes. It is
designed to meet the most stringent
demands in industry and electrical
contracting. Model MN307 meets
EN 61010, 600V, Cat. III safety
standards and is CE Marked and
UL approved for Canada and United
States.

The Model MN307 has a 0.78" (20mm)
jaw opening and accommodate
conductors up to 250MCM. The
unique hooked jaw design facilitates
clamping and hooking onto
conductors. Polycarbonate materials
and ultrasonic welding are used
throughout to ensure ruggedness
and overall lasting reliability.

The Model MN307 is a high perform­ance model and uses a custom nickel
core to improve accuracy and phase
shift on the low end of the measure­ment range. The Model MN307 is an
excellent probe to be used in power
and low level current measurement
applications.

Features

• Small, compact size

• Measurement range of

0.01 to 12A

• Large jaw opening accommodates

conductors up to 250MCM

• Designed for DMMs, loggers,

recorders and oscilloscopes

• 40Hz to 10kHz response

• 100mV/A output signal

• Designed to EN 61010, 600V,

Cat. III safety standard

• UL approved for Canada and
United States

• Double Insulation

• CE Mark

Applications

• Measuring in breaker panels

• Industrial loads

• HVAC

• Residential and commercial sites

• Data logging/recording

AC Current Probe
Model MN307

AC Current Probe Model MN307 (pdf) 10/05 Rev. 03

Technical Assistance [phone] www.aemc.com2of 4

Specifications

MODEL MN307

ELECTRICAL

Nominal Range 10A
Measurement Range 0.01 to 12A
Transformation Ratio Voltage output
Output Signal 100mV/A (1V @ 10A)
Accuracy (10A Range)

0.1 to 0.5A ≤2.5% of Reading ± 0.1mV

0.5 to 1A ≤2.5% of Reading
1 to 12A ≤1.0% of Reading

Phase Shift (10A Range)

0.01 to 0.1A Not Specified

0.1 to 1A ≤ 5.0°

1 to 5A ≤ 3.0°

5 to 12A ≤ 2.5°

Overload 12A for Continuous
Frequency Range 40 to 10kHz
Limit Operating 200A permanently to 3kHz;

Conditions Derating above 3kHz: 200A x (1/0.333F), F in kHz
Crest Factor 3 @ 10Arms with an error (due to CF) of 3%
Working/Common

Mode Voltage

600Vrms

Output Termination 5 ft Lead

MECHANICAL

Operating Temperature 14° to 131°F (-10° to 55°C)
Storage Temperature -40° to 158°F (-40° to 70°C)
Operating Relative

Humidity

10 to 35°C 85% RH (without roll-off above 35°C)

Jaw Opening 0.83" (21mm)
Maximum Conductor Size 0.78" (20mm)
Dimensions 5.47 x 2.00 x 1.18" (139 x 51 x 30mm)
Weight 6.5 oz (180g)
Polycarbonate Material Polycarbonate with fiberglass charge, UL94 V0

SAFETY

Electrical EN 61010-2-32

UL Approval Yes – Canada and United States

Double Insulation Yes

CE Mark Yes

Note: Reference conditions: 20 to 26°C, 20 to 75% RH, external magnetic field <40A/m, 48 to 65Hz sine wave, distortion factor less than

1%, no DC component, no external current carrying conductor, test sample centered. Load impedance >1Ω

AC Current Probe Model MN307 (pdf) 10/05 Rev. 03

Technical Assistance [phone] www.aemc.com3of 4

ORDERING INFORMATION CATALOG NO.

AC Current Probe Model MN307 (Lead – 100mV/A – 12A max). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cat. #2116.23

Includes a user manual

Accessories (Optional)

Banana plug adaptor (Safety Leads to nonrecessed plug) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cat. #1017.45

Banana (Female) – BNC (Male) Adaptor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cat. #2118.46

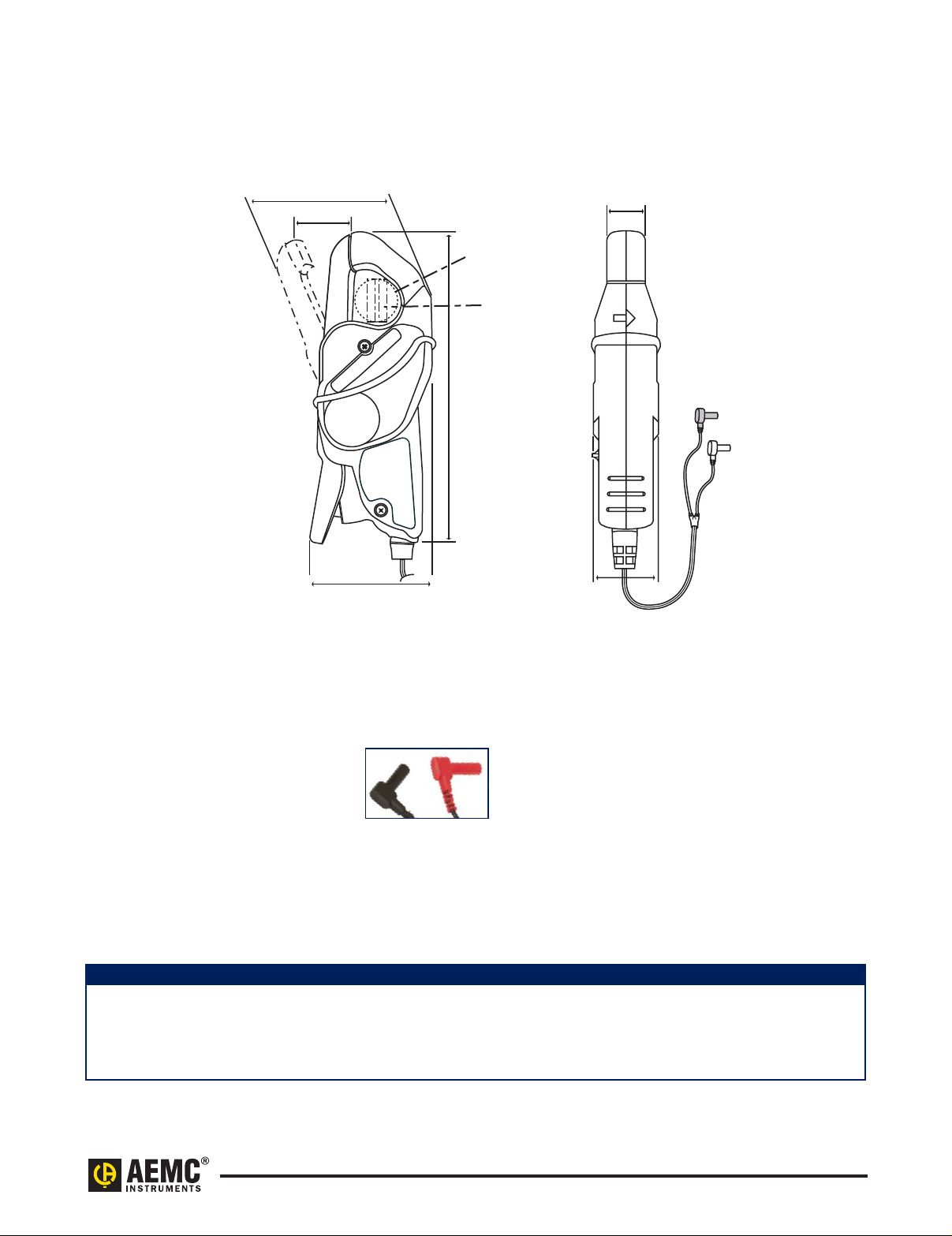

2.56" (65mm)

Leads:

Double/reinforced
5 ft (1.5m) lead
with safety 4mm
banana plug

.83" (21mm)

.73"

(18.5mm)

Ø=0.786" (20mm)

Cable max.

0.79 x 0.20"
(20 x 5mm)

Dual Bus Bar max.

5.47" (139mm)

Black

Red

2.00" (51mm)

1.18"

(30mm)
