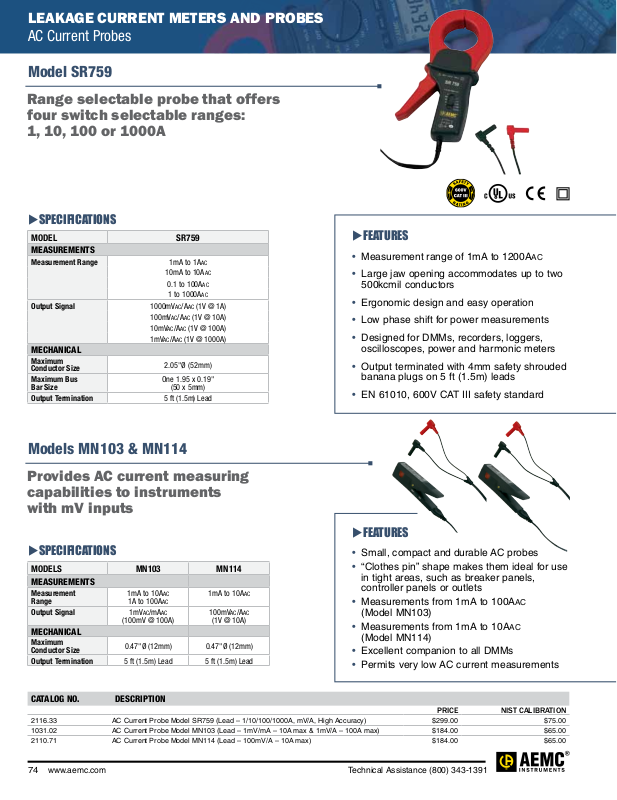

AEMC MN103, MN114 Data sheet
LEAkAGE CURRENT METERS AND PROBES
AC Current Probes
Model SR759
Range selectable probe that offers
four switch selectable ranges:
1, 10, 100 or 1000A
SpecificationS
MODEL SR759
MEASUREMENTS
Measurement Range
Output Signal
MECHANICAL
Maximum
Conductor Size
Maximum Bus
Bar Size
Output Termination
1mA to 1Aac
10mA to 10Aac
0.1 to 100Aac
1 to 1000Aac
1000mVAC/Aac (1V @ 1A)
100mV
AC/AAC (1V @ 10A)
AC/AAC (1V @ 100A)
10mV
1mV
AC/AAC (1V @ 1000A)
2.05"Ø (52mm)
One 1.95 x 0.19"
(50 x 5mm)
5 ft (1.5m) Lead
featureS
• Measurement range of 1mA to 1200Aac
• Large jaw opening accommodates up to two
500kcmil conductors
• Ergonomic design and easy operation
• Low phase shift for power measurements
• Designed for DMMs, recorders, loggers,
oscilloscopes, power and harmonic meters
• Output terminated with 4mm safety shrouded
banana plugs on 5 ft (1.5m) leads
• EN 61010, 600V CAT III safety standard
Models MN103 & MN114
Provides AC current measuring
capabilities to instruments
with mV inputs
featureS
SpecificationS
MODELS MN103 MN114
MEASUREMENTS
1ma to
Measurement
Range
Output Signal
MECHANICAL
Maximum
Conductor Size
Output Termination
CATALOG NO. DESCRIPTION
2116.33 AC Current Probe Model SR759 (Lead – 1/10/100/1000A, mV/A, High Accuracy)
1031.02 AC Current Probe Model MN103 (Lead – 1mV/mA – 10A max & 1mV/A – 100A max)
2110.71 AC Current Probe Model MN114 (Lead – 100mV/A – 10A max)
10aac
1a to 100aac
1mV
AC/mAAC
(100mV @ 100A)
0.47"Ø (12mm) 0.47"Ø (12mm)
5 ft (1.5m) Lead 5 ft (1.5m) Lead
1ma to 10aac
100mVAC/AAC
(1V @ 10A)
• Small, compact and durable AC probes
• “Clothes pin” shape makes them ideal for use
in tight areas, such as breaker panels,
controller panels or outlets
• Measurements from 1mA to 100Aac
(Model MN103)
• Measurements from 1mA to 10Aac
(Model MN114)
• Excellent companion to all DMMs
• Permits very low AC current measurements
PRICE NIST CALIBRATION
$ 299.00 $ 75.00
$ 184.00 $ 65.00
$ 184.00 $ 65.00
74
