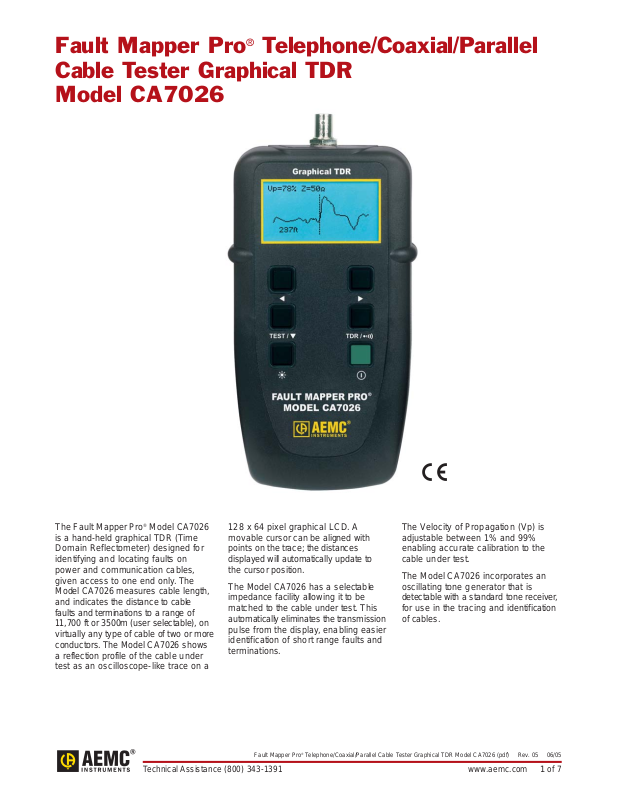

AEMC CA7026 Data sheet

Fault Mapper Pro®Telephone/Coaxial/Parallel
Cable Tester Graphical TDR
Model CA7026

The Fault Mapper Pro®Model CA7026
is a hand-held graphical TDR (Time
Domain Reflectometer) designed for
identifying and locating faults on
power and communication cables,
given access to one end only. The
Model CA7026 measures cable length,
and indicates the distance to cable
faults and terminations to a range of
11,700 ft or 3500m (user selectable), on
virtually any type of cable of two or more
conductors. The Model CA7026 shows
a reflection profile of the cable under
test as an oscilloscope-like trace on a

128 x 64 pixel graphical LCD. A
movable cursor can be aligned with
points on the trace; the distances
displayed will automatically update to
the cursor position.

The Model CA7026 has a selectable
impedance facility allowing it to be
matched to the cable under test. This
automatically eliminates the transmission
pulse from the display, enabling easier
identification of short range faults and
terminations.

The Velocity of Propagation (Vp) is
adjustable between 1% and 99%
enabling accurate calibration to the
cable under test.

The Model CA7026 incorporates an
oscillating tone generator that is
detectable with a standard tone receiver,
for use in the tracing and identification
of cables.

Fault Mapper Pro®Telephone/Coaxial/Parallel Cable Tester Graphical TDRModel CA7026 (pdf) Rev. 05 06/05

Technical Assistance [phone] www.aemc.com

1

of 7

Fault Mapper Pro®Telephone/Coaxial/Parallel Cable Tester Graphical TDRModel CA7026 (pdf) Rev. 05 06/05

Technical Assistance [phone] www.aemc.com2of 7

Features

• Hand-held Graphical TDR

(Time Domain Reflectometer)

• Detects opens, shorts, taps, faulty

taps, bridge taps, splitters, high
resistance, wet cables, splices and
more

• Identifies impedance mismatches

• Indicates cable faults and

terminations up to 11,700 ft or
3500m (user selectable)

• Works with twisted pair, parallel and

coaxial cable

• Selectable cable impedance

(50Ω, 75Ω, 100Ω)

• Over-voltage protection up to 250V

• Adjustable cursor assists in locating

faults and termination

• Built-in tone generator for tracing and

locating cables

• Auto-Ranging scale

• Large high-visibility blue

electroluminescent backlit display

Applications

• Determine length of cable runs

• Find cable faults and the distance
to them

• Determine degradation of cables due
to moisture and other contaminants

•Trace and identify cables

• Determine telephone cable
connections and the length to them

Model CA7026 includes meter, soft carrying

case, BNC pigtail cable with alligator clips,

four x 1.5V AA batteries and user manual

Model CA7026 testing cables in a telephone patch panel.

Fault Mapper Pro®Telephone/Coaxial/Parallel Cable Tester Graphical TDRModel CA7026 (pdf) Rev. 05 06/05

Technical Assistance [phone] www.aemc.com3of 7

Specifications

MODEL CA7026

MEASUREMENTS

Range @ Vp = 70% 11,700 ft or 3500m (user selectable)
Ranges @ Vp = 70% 670, 1470, 2900, 5830 & 11,700 ft (220, 440, 870, 1750 & 3500m)
Resolution Approximately 1% of selected range
Accuracy* ±1% of range
Range Selection Automatic range selection against cursor position
Minimum Cable Length 12 ft (4m)
Sensitivity Minimum 3 pixel return on a fault at 6000 ft (2000m)
Vp (Velocity of Propagation) Adjustable from 0 to 99% in 1% steps
Output Pulse +5V into an open circuit or +1.5V into 50Ω load; 25ns min to 2.15µs dependent on range
Cable Impedance Selectable between 50, 75 & 100Ω
Tone Generator Oscillating tone 810 to 1110Hz
Scan Rate Single shot or 6.7 pulses per second (operator selectable)
Voltage Warning Triggers @ >10VAC/DC

GENERAL

Display Resolution 128 x 64 pixel graphical LCD
Display Backlight Blue electroluminescent
Power Source 4 x 1.5V AA Alkaline batteries
Auto-Off After 3 minutes
Languages English, French, German, Spanish, Portuguese, Italian
Battery Life Standby mode >4000 hrs; Continuous testing >7.5 hrs
Storage Temperature -4° to 158°F (0° to 70°C); 5 to 95% RH non-condensing
Operating Temperature 32° to 112°F (0° to 40°C); 5 to 95% RH non-condensing
Altitude 6000 ft (2000m) max
Dimensions 6.5 x 3.5 x 1.5" (165 x 90 x 37mm)
Weight 12 oz (350g)

SAFETY

Safety Ratings EN 61010-1, EN 60950, EN 61326-1
CE Mark Yes

*Measurement accuracy of ±1% assumes the instrument setting for Velocity of Propagation (Vp) of the cable under test to be accurately set, and homogeneity
of the Velocity of Propagation (Vp) along the cable length. Accurate positioning of the cursor is also required.

Shorted Conductor Frayed Cable

Splice Water Ingress

Bridge Tap Tap

Split/Resplit Splitter

Functional Displays

Typical Traces

The graphic display on the Model CA7026 will display the waveforms associated with the conditions found in
communication and other cables. The cursor may be moved to the left or right to indicate the distance to condition.
Additionally, the Velocity of Propagation and the impedance is also displayed.

Open Conductor Wet Splice/Water

Fault Mapper Pro®Telephone/Coaxial/Parallel Cable Tester Graphical TDRModel CA7026 (pdf) Rev. 05 06/05

Technical Assistance [phone] www.aemc.com4of 7

Fault Mapper Pro®Telephone/Coaxial/Parallel Cable Tester Graphical TDRModel CA7026 (pdf) Rev. 05 06/05

Technical Assistance [phone] www.aemc.com5of 7

ORDERING INFORMATION CATALOG NO.

Fault Mapper Pro®Model CA7026 (Telephone Cable Tester/Graphical TDR) . . . . . . . . . . . . . . . . . . . . . . . Cat. #2127.81

Tone Receiver/Cable Tracer Model TR02. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cat. #2127.75

Construction

Alligator cable clips

BNC
connector

4"

(102mm)

BNC input connector

Graphical

backlit LCD

Cable select/Vp

(Velocity of Propagation)

decrement button

Test/Function

select button

Backlight ON/OFF

button

Cable select/Vp
(Velocity of Propagation)
increment button

Mode select button
(TDR/Tone Tracer)

Power ON/OFF
button

BNC input connector

Fault Mapper Pro®Telephone/Coaxial/Parallel Cable Tester Graphical TDRModel CA7026 (pdf) Rev. 05 06/05

Technical Assistance [phone] www.aemc.com6of 7

Volume
control

Botón de
ON/OFF

Power
ON LED

Audio

output

jack

Features

• Compatible with AEMCModels CA7024,

CA7026 and CA7028

• Contains a frequency selective hi-gain,

hi-impedance amplifier for clear pick-up

• Rugged, moisture resistant mylar cone speaker

• Convenient operation from a standard

9V battery

• Volume control adjustment

• Audio output jack for head phones

• Pen size, fits into your pocket

Applications

• Locate cable runs

• Detect breaks in cables

• Find cables in panels

Tone Receiver/
Cable Tracer
Model TR02

Model TR02

The Tone Receiver/Cable Tracer Model TR02 is a small, hand-held tracer that
will aid in the identification of tone carrying wires without piercing their insulation.
It has a self-contained amplifier and a rugged, moisture resistant mylar cone
speaker. When used in conjunction with the tone transmitter function of the
Models CA7024, CA7026 or CA7028, wire tracing and locating is quick and
efficient.

One button turns the unit on and, while it is depressed activates the receiver. A
volume control allows you to set the speaker loudness to a desirable level. An
audio output jack facilitates the use of an optional, commercially available ear piece
which inhibits the Model TR02’s internal speaker. This provides quiet operation
in office environments while allowing the operator to hear the signal clearly.

Model TR02 used to find cables in a panel.

Construction

Specifications

MODEL TR02

GENERAL

Power Source 9V Alkaline Battery
Dimensions 5.12 x 1.26 x 1.26" (130 x 32 x 32mm)
Weight 3.18 oz (90g)

Fault Mapper Pro®Telephone/Coaxial/Parallel Cable Tester Graphical TDRModel CA7026 (pdf) Rev. 05 06/05

Technical Assistance [phone] www.aemc.com7of 7
