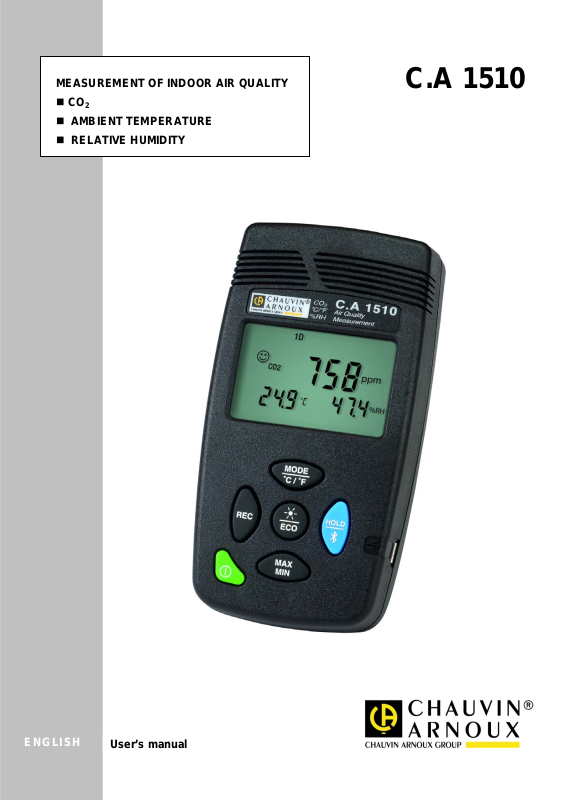

Page 1
User’s manual
ENGLISH
MEASUREMENT OF INDOOR AIR QUALITY
CO2
AMBIENT TEMPERATURE
RELATIVE HUMIDITY
C.A 1510
Page 2
The product has been declared recyclable after analysis of its life cycle in accordance with the ISO14040
standard.
Thank you for purchasing a C.A 1510 indoor air quality meter.
For best results from your instrument:
read this user manual carefully,
comply with the precautions for use.
WARNING, risk of DANGER! The operator must refer to these instructions whenever this danger symbol
appears.
Useful information or tip.
Important instruction.
The CE marking indicates conformity with European directives, in particular LVD and EMC.
The rubbish bin with a line through it indicates that, in the European Union, the product must undergo selective
disposal in compliance with Directive WEEE 2002/96/EC. This equipment must not be treated as household
waste.
Definition of measurement categ o ries:
Measurement category IV corresponds to measurements taken at the source of low-voltage installations.
Example: power feeders, counters and protection devices.
Measurement category II I corresponds to measurements on building instal lat ion s.
Example: distribution panel, circuit-breakers, machines or fixed industrial devices.
Measurement category II corresponds to measurements taken on circuits directly connected to low-voltage installations.
Example: power supply to domestic electrical appliances and portable tools.
PRECAUTIONS FOR USE
This instrument complies with safety standard IEC 61010-1 for voltages of 50V in category II.
The operator and/or the responsible authority must carefully read and clearly understand the various precautions to be
taken in use.
Do not use the instrument if it seems to be damaged, incomplete, or poorly closed.
Before each use, check the condition of the housing. Any item of which the insulation is deteriorated (even partially) must be
set aside for repair or scrapping.
Never make measurements in atmospheres contaminated by solvents, which could damage the sensor.
All troubleshooting and metrological checks must be performed by competent and accredited personnel.
2
Page 3
CONTENTS
1. PRESENTATION ..................................................................................................................................................................... 4
1.1 Introduction....................................................................................................................................................................................... 4
1.2 Side view .......................................................................................................................................................................................... 4
1.3 Side and back views ........................................................................................................................................................................ 5
1.4 The display unit ................................................................................................................................................................................ 6
2. USE ......................................................................................................................................................................................... 7
2.1 Installing the batteries ...................................................................................................................................................................... 7
2.2 Switching the device on ................................................................................................................................................................... 7
2.3 Switching the device off ................................................................................................................................................................... 7
2.4 Making a measurement ................................................................................................................................................................... 7
2.5 Portable mode .................................................................................................................................................................................. 8
2.6 1D and 3D surveillance modes ....................................................................................................................................................... 8
2.7 Eco mode (Energy saving) ............................................................................................................................................................ 11
2.8 P_REC mode (Programmed recording) ....................................................................................................................................... 11

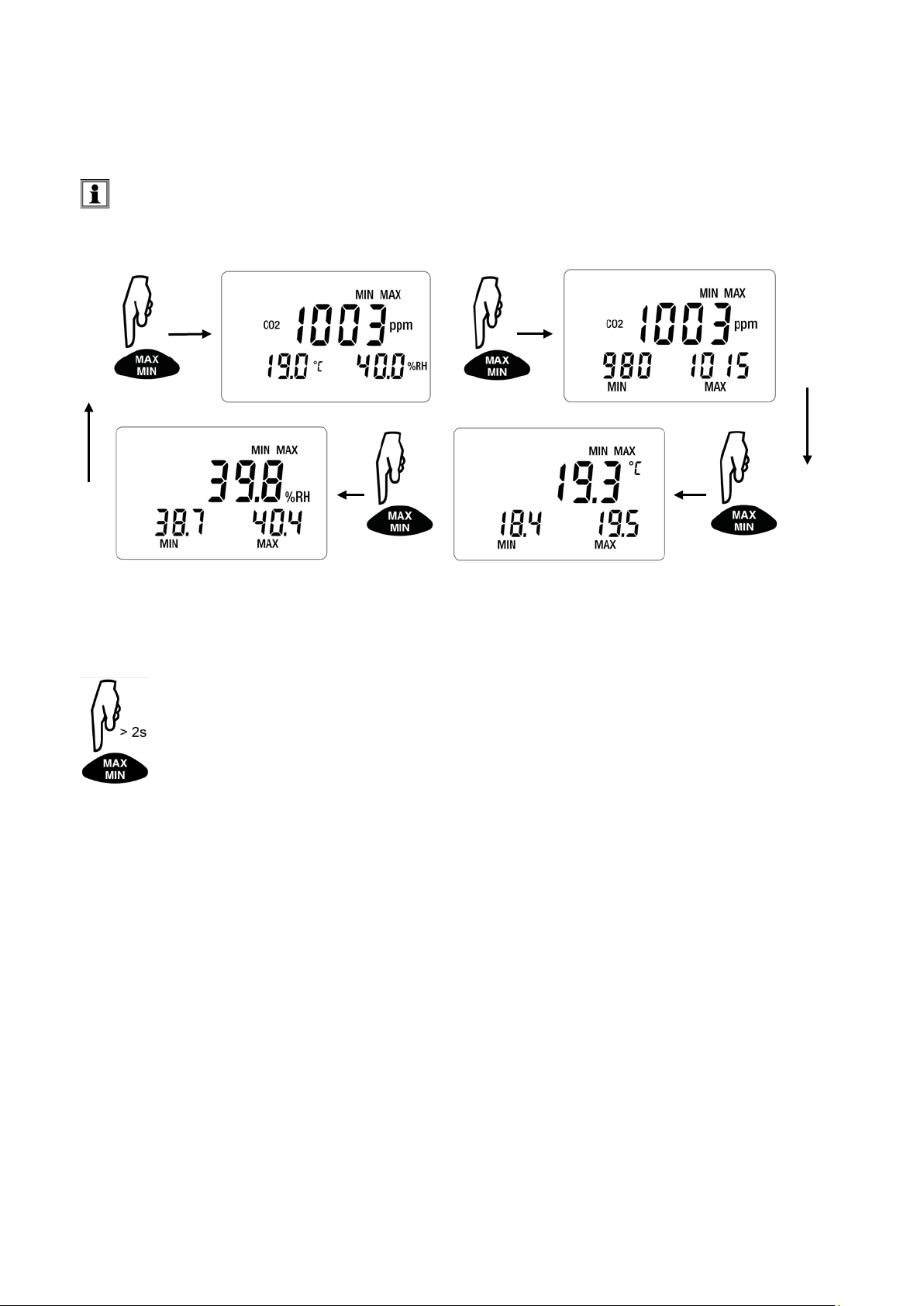

2.9 MIN MAX function .......................................................................................................................................................................... 12

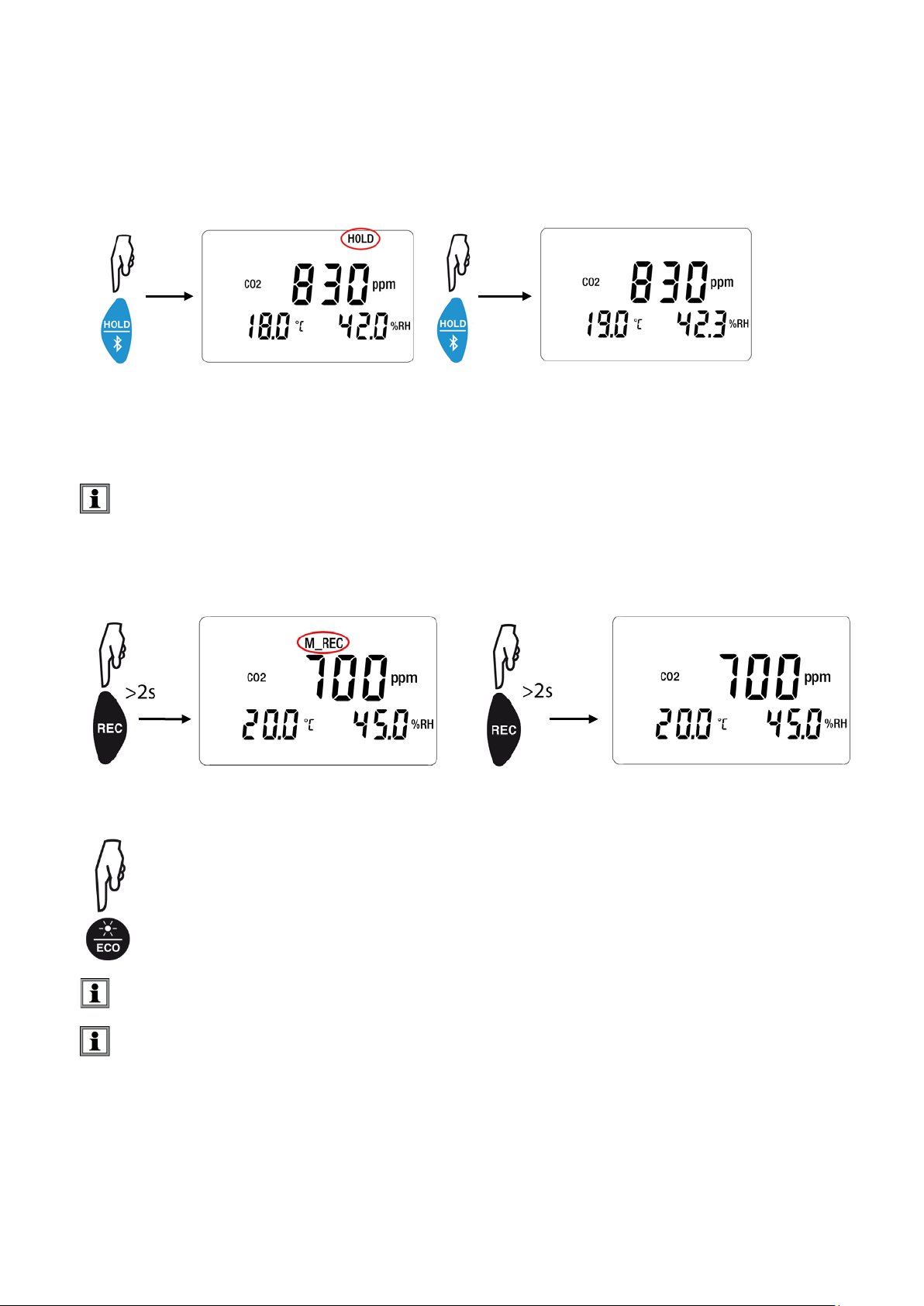

2.10 HOLD function (Holding the measurement) ................................................................................................................................. 13
2.11 M_REC function (Manual recording) ............................................................................................................................................ 13
2.12 Back-lighting function..................................................................................................................................................................... 13
2.13 Activation of the audible warning (Buzzer) ................................................................................................................................... 14

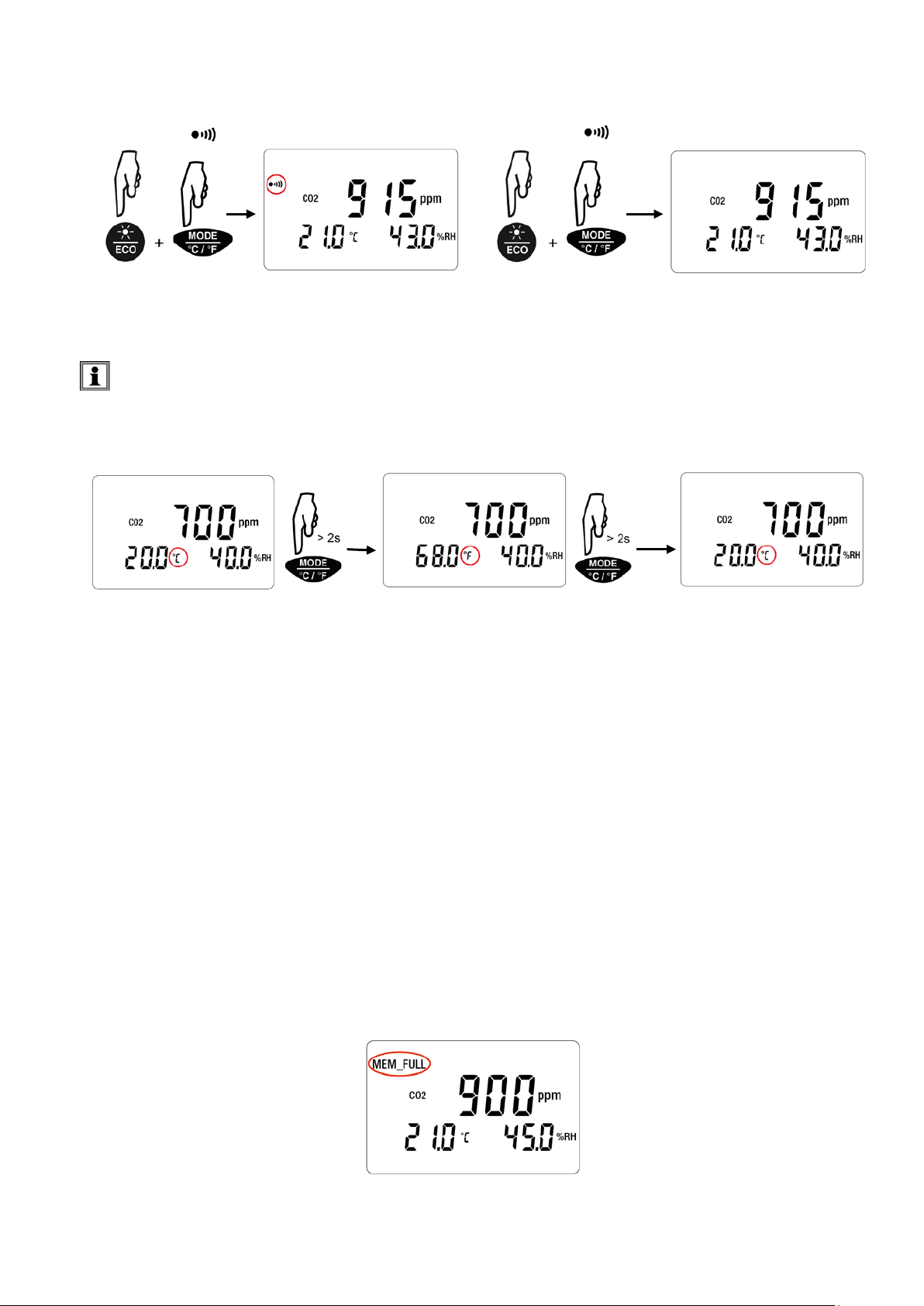

2.14 Change of unit of temperature ...................................................................................................................................................... 14
2.15 Display of errors and anomalies of operation............................................................................................................................... 14
3. AQR SOFTWARE ................................................................................................................................................................. 15
3.1 Minimum configuration .................................................................................................................................................................. 15
3.2 Communication .............................................................................................................................................................................. 15
3.3 Functions of the software .............................................................................................................................................................. 15
3.4 Installation ...................................................................................................................................................................................... 15
4. SPECIFICATIONS ................................................................................................................................................................. 16
4.1 Reference conditions ..................................................................................................................................................................... 16
4.2 Measurement characteristics ........................................................................................................................................................ 16
4.3 Measurement modes..................................................................................................................................................................... 17
4.4 Power supply ................................................................................................................................................................................. 17
4.5 Recording ....................................................................................................................................................................................... 18
4.6 Environmental conditions .............................................................................................................................................................. 18
4.7 Mechanical characteristics ............................................................................................................................................................ 18
4.8 Compliance with international standards...................................................................................................................................... 18
4.9 Electromagnetic compatibility........................................................................................................................................................ 18
5. MAINTENANCE .................................................................................................................................................................... 19
5.1 Cleaning ......................................................................................................................................................................................... 19

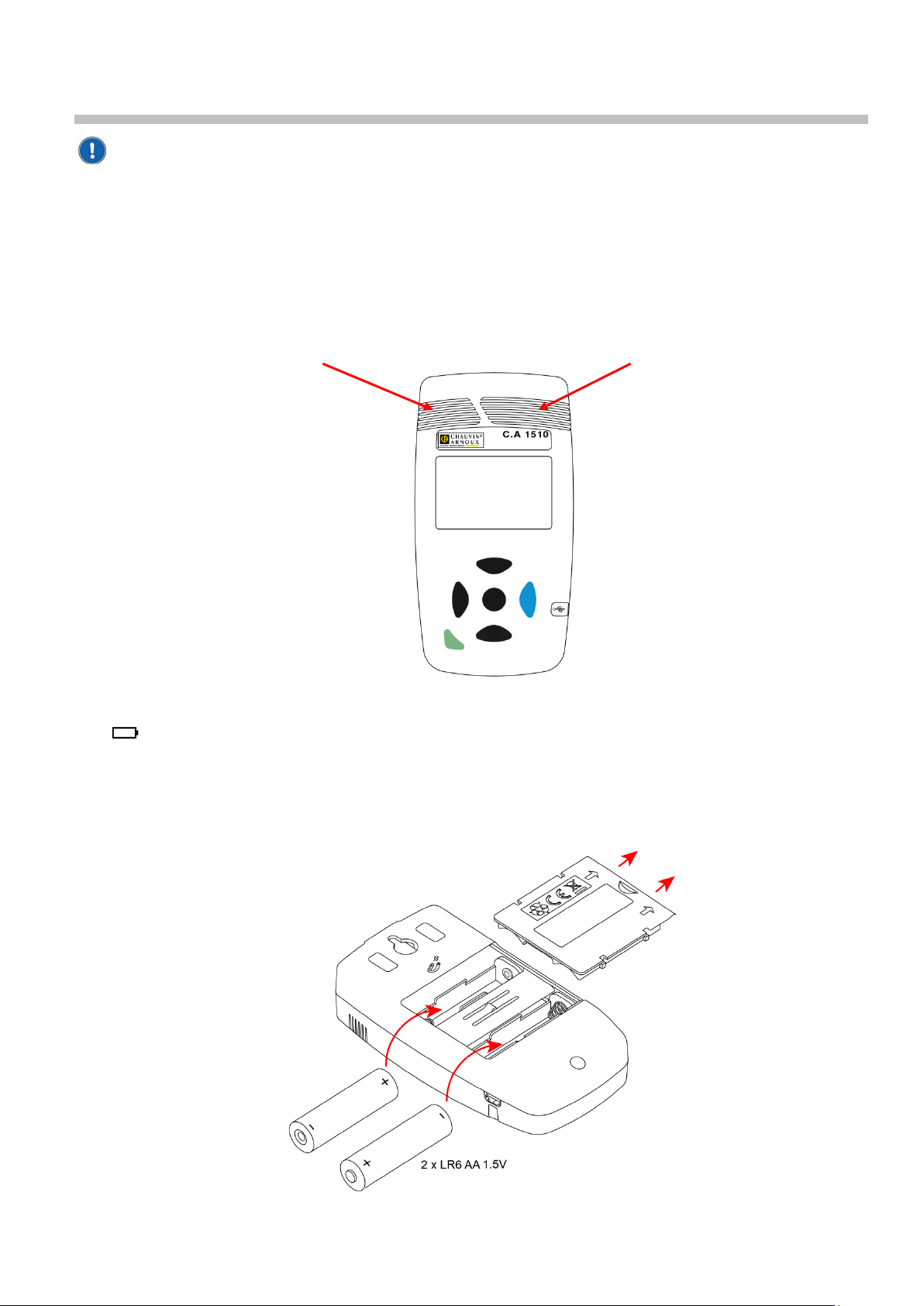

5.2 Replacement of the batteries ........................................................................................................................................................ 19
5.3 Metrological check ......................................................................................................................................................................... 20
5.4 Repair ............................................................................................................................................................................................. 20
6. WARRANTY .......................................................................................................................................................................... 21

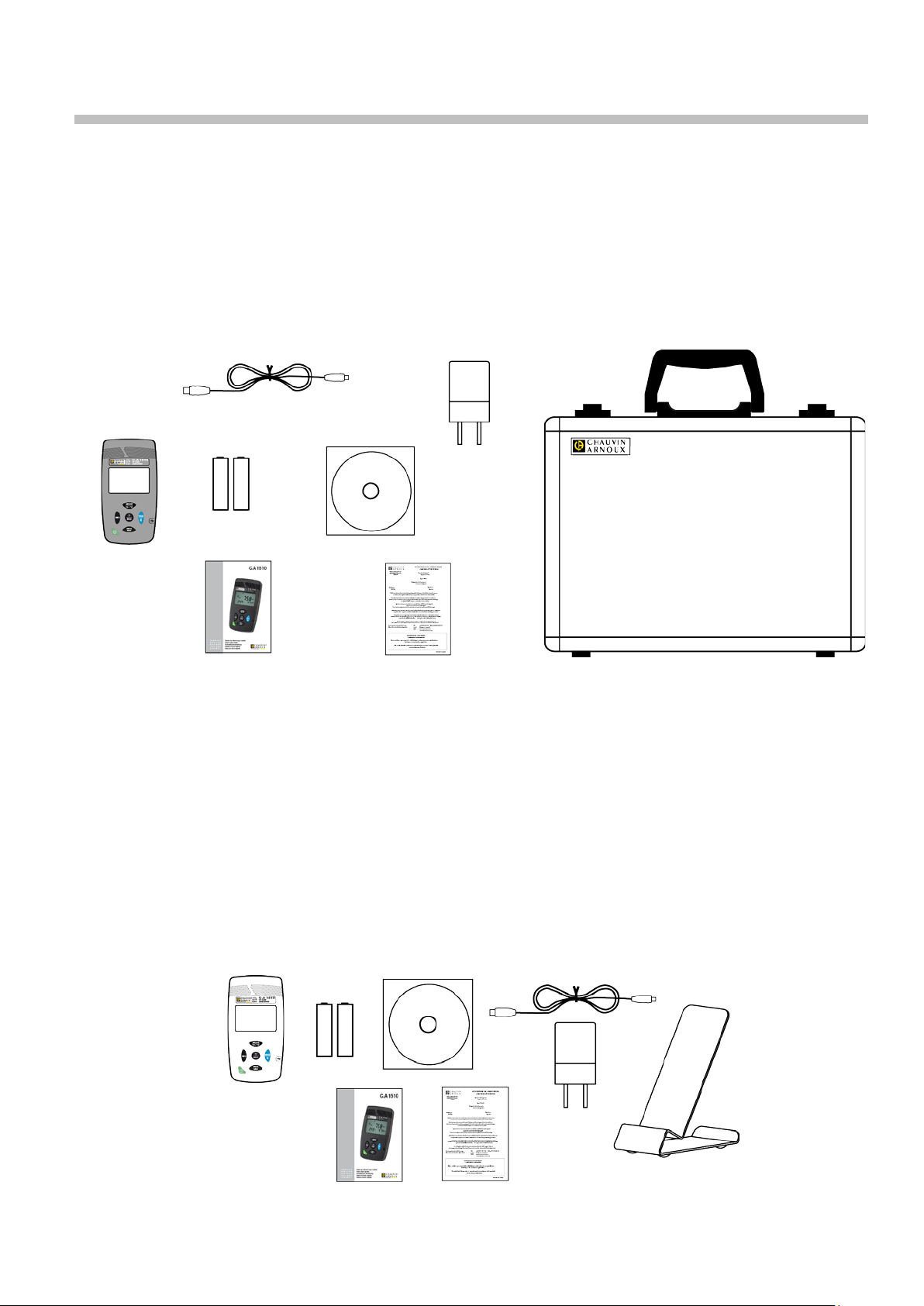

7. TO ORDER ............................................................................................................................................................................ 22
7.1 Accessories and replacement parts ............................................................................................................................................. 23
3
Page 4
Temperature and humidity sensors
CO2 sensor
LCD display unit
Change of unit of
Long press: Manual recording
Buzzer
On/Off
press: Enter the MIN MAX
Long press: exit from the MIN
1. PRESENTATION
1.1 INTRODUCTION
Carbon dioxide is a colourless and odourless gas. It is not toxic, but at high concentrations can interfere with mental
concentration and cause headaches. Outdoor air contains approximately 0.04% (400 ppm) CO
human activity (breathing) can rapidly increase this concentration to values in excess of 1000 ppm (for example in meeting
rooms or school classrooms). It is for this reason that the level of CO
indoor air.
The ambient temperature and relative humidity are two more important quantities in the monitoring of indoor air quality. Beyond
certain values, they can cause discomfort and favour the propagation of moulds that release allergenic or irritant substances
into the air.
The C.A 1510 is an instrument for measuring physical quantities that combines the following functions:
Measurement of the concentration of carbon dioxide in the air (CO
is an excellent indicator of the efficacy of the renewal of
2
);
2
Measurement of the ambient temperature;
Measurement of the relative humidity;
It works out air quality criteria based either on the level of CO
The device is a response to decree no. 2012-14 of 5 January 2012 concerning the evaluation of means of ventilation and the
measurement of pollutants in the context of measurements of CO
or on a combination of the three physical quantities meas ur ed.
2
.
2
. In an indoor environment,
2

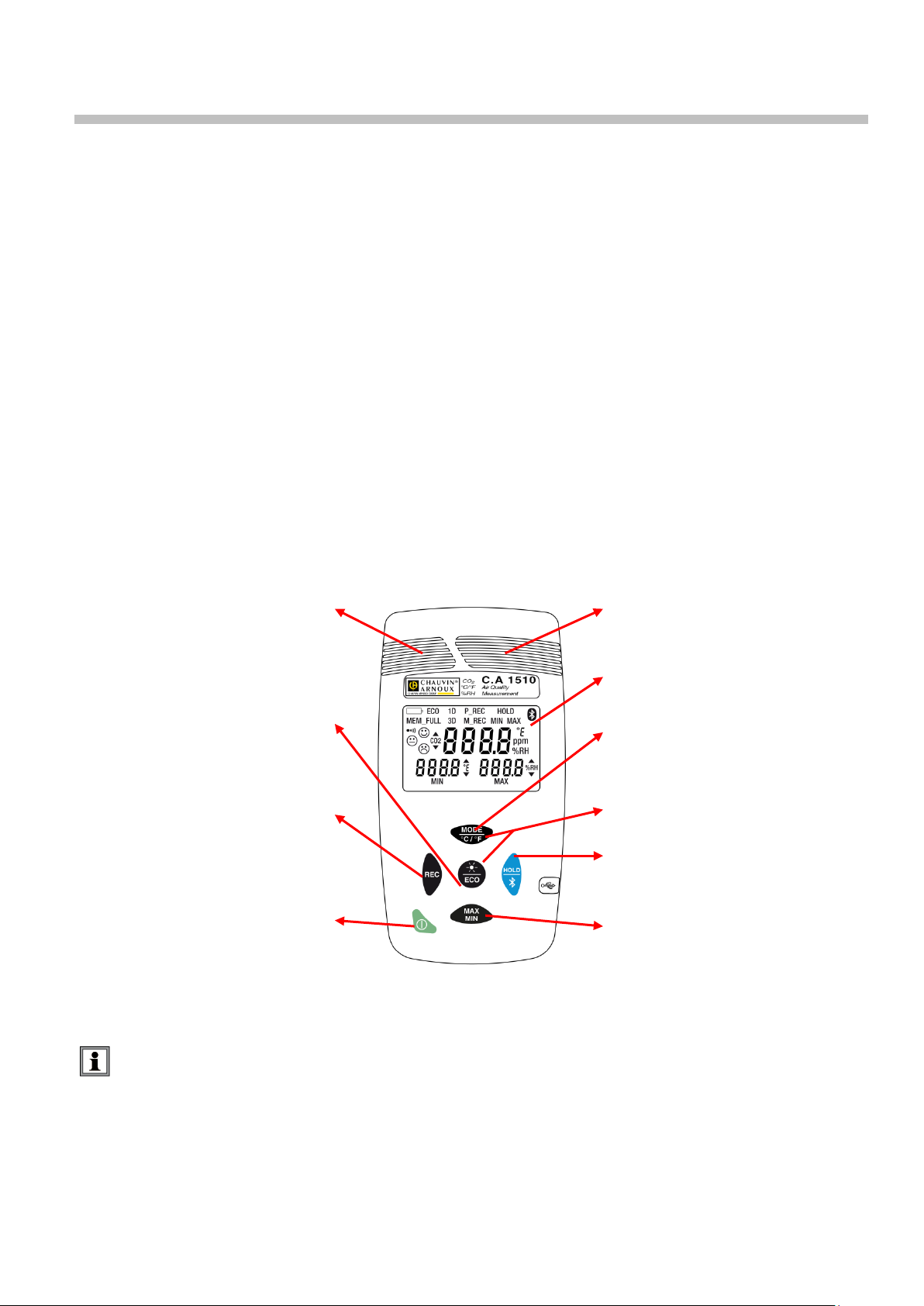

1.2 SIDE VIEW
Short press: Back-lighting
Long press: Energy-saving funct ion
Short press: 1D and 3D modes
Long press:
temperature
Short press: Display hold
Long press: Bluetooth
Short
function and view the various extreme
values
function MAX
On the keys, the function written above the line is invoked by a short press, the function written below the line by a long
press.
4
Page 5
Micro - USB
Battery
Magnet for attachment to a metallic
Notch for hanging up the device
Non-skid pads

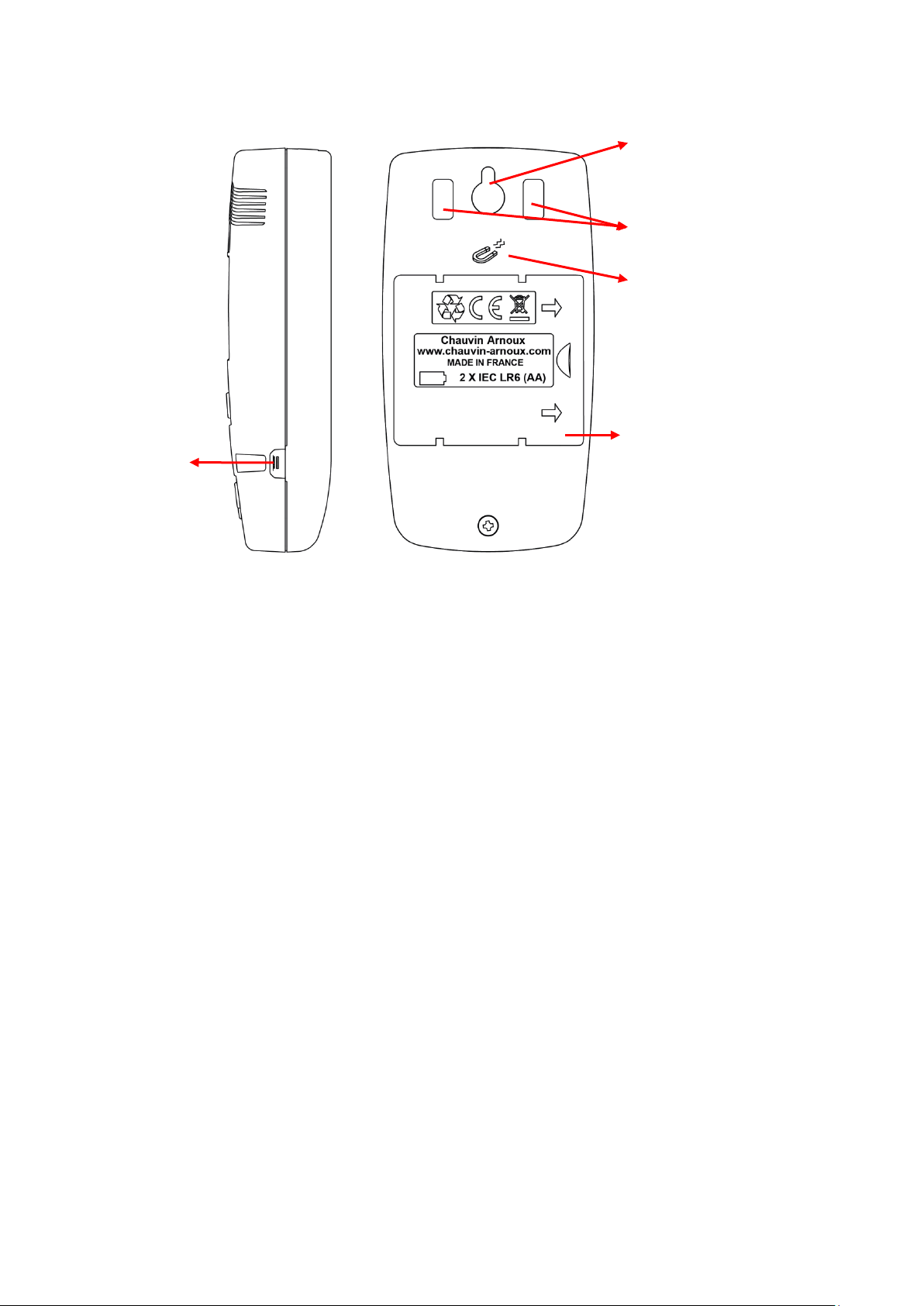

1.3 SIDE AND BACK VIEWS
connector
surface
compartment cover
5
Page 6
Display of the level
Display of the
Display of the

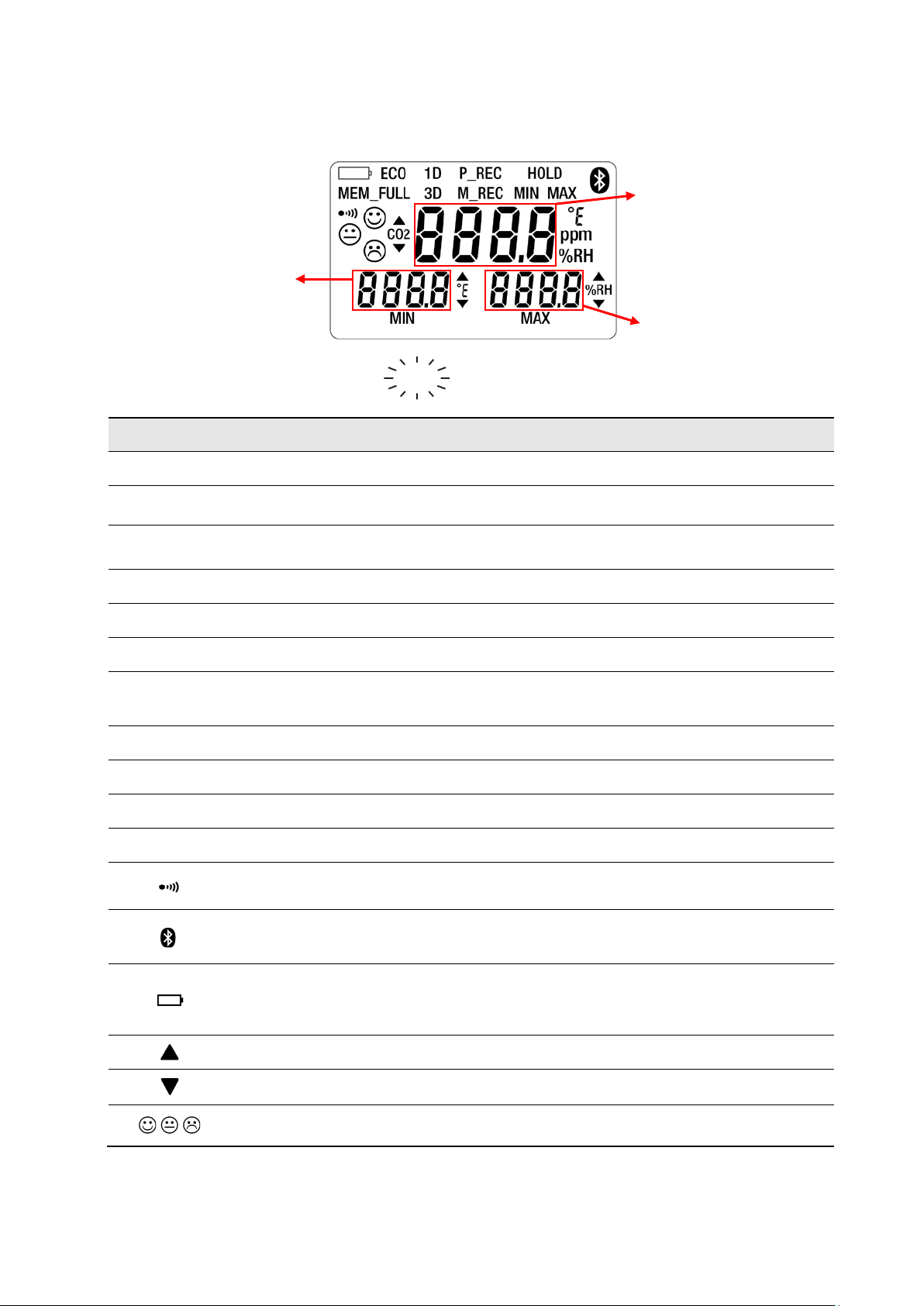

1.4 THE DISPLAY UNIT
temperature
Symbols Designation
Indicates blinking
of CO2
relative humidity
MEM_FULL
1D
3D
MAX
MIN
ECO
P_REC
M_REC
HOLD
MIN MAX
ppm
Memory full
Surveillance of the level of CO
Surveillance of crossing of CO
2
, temperature, and humidity comfort zone thresholds
2
Maximum value
Minimum value
Energy-saving operating mode
Programmed recording Blinking: waiting to start recording
Steady: recording
Manual recording
Hold of the display
MIN MAX function: detection of minimum and maximum values
Unit of concentration of CO
in the air in parts per million
2
Buzzer active
Bluetooth Blinking: waiting for connection
Steady: connected
Blinking: Batteries low
Steady: Indicator of external power supply by connection of the mains adapter or of the USB
connection.
Overshoot of high threshold
Overshoot of low threshold
Indication of air quality and of the temperature/humidity zone of comfort
6
Page 7
2.1 INSTALLING THE BATTERIES
See §5.2.
2.2 SWITCHING THE DEVICE ON
2.3 SWITCHING THE DEVICE OFF
2.3.1 Manual switching off
2. USE
Manual switching off is blocked if a programmed recording session (P_REC) is in progress.
2.3.2 Automatic switching off
In the portable mode, the device switches itself off automatically after 15 minutes of inactivity.
Automatic switching off is de-activated in the other modes (1D or 3D, ECO, P_REC), and in the MIN MAX and M_REC
functions, if the Bluetooth or USB link is active or if the device is connected via the USB mains adapter.
2.4 MAKING A MEASUREMENT
When the device is switched on, CO2 is displayed during the wait for the first measured of CO2 value; access to the keys is
disabled until this first value is displayed on screen. The measurements are then displayed automatically on screen.
If the device is exposed to large variations of temperature, after the temperature stabilizes, wait 20 minutes before
starting the measurements.
The device has 4 operating modes:
The portable mode,
The 1D and 3D modes
The ECO mode
The P_REC mode
It also has several functions that can be used in the various modes:
The MIN MAX function
The HOLD function
The M_REC function
The backlighting function
7
Page 8
Activation of
the 1D mode
Activation of
the 3D mode
Deactivation of
2.5 PORTABLE MODE
The portable mode is the mode the device starts up in. It is in this mode that the device makes the most measurements: one
every 15 seconds. It is therefore highly responsive to changes in air quality.
This mode is used to inspect several rooms one after another. Install the device in a room and wait for the CO
measurement
2
to stabilize (approximately 10 minutes).
2.6 1D AND 3D SURVEILLANCE MODES
1D mode: surveillance of the level of CO2.
3D mode: surveillance of 3 parameters: level of CO
and hygrothermal comfort zone.
2
The audible and/or visual warnings alert you to overshoots.
The level of CO2 is measured every minute.

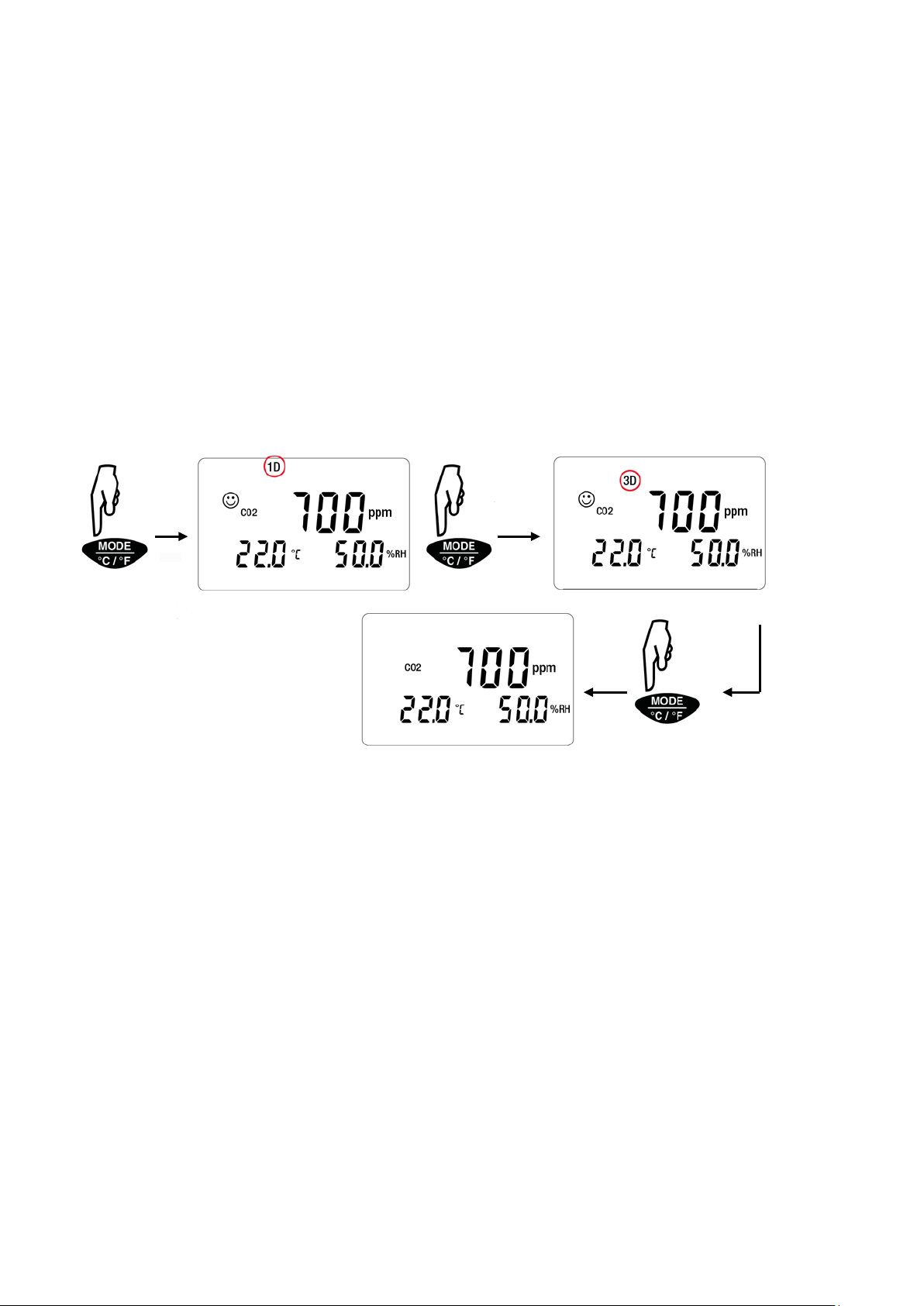

2.6.1 Activation of the 1D and 3D modes
the 3D mode
8
Page 9

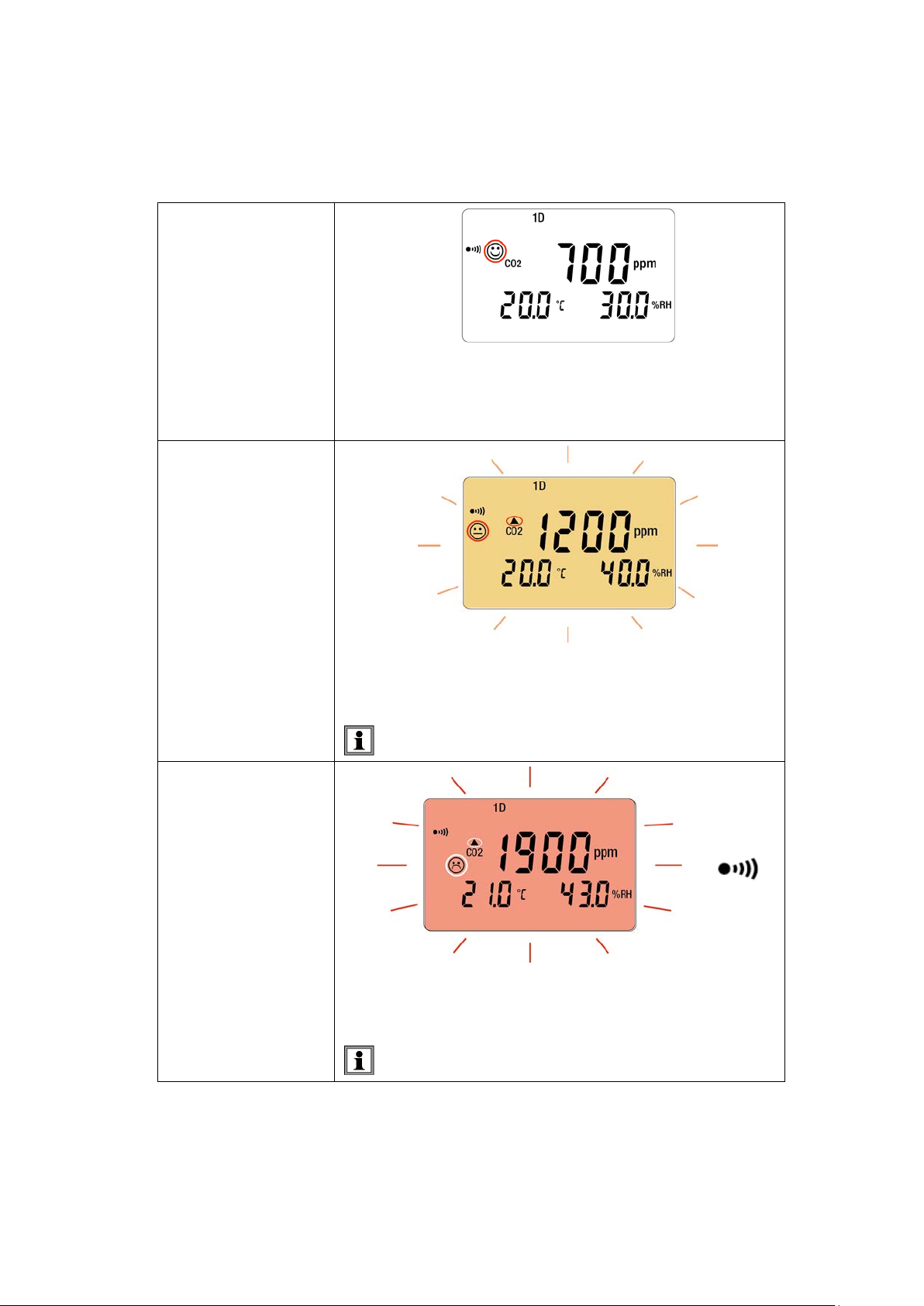

2.6.2 Operation of the visible and audible warnings
1D mode: Activation of the visual (and, if activated, audible) warnings during overshoots of the CO2 thresholds.
S1 = Low threshold = 1000 ppm
S2 = High threshold = 1700 ppm
Level of CO2 < S1
Back-lighting off
Air quality indicator: good
S1 < Level of CO2 < S2
Level of CO2 > S2
Blinking orange back-lighting
Arrow indicating overshoot of the CO
Air quality indicator: average
The back-lighting is off in ECO mode
Blinking red back-lighting
Arrow indicating overshoot of the CO
Air quality indicator: poor
threshold
2
threshold
2
The back-lighting is off in ECO mode
9
Page 10
The back-lighting is off in ECO mode

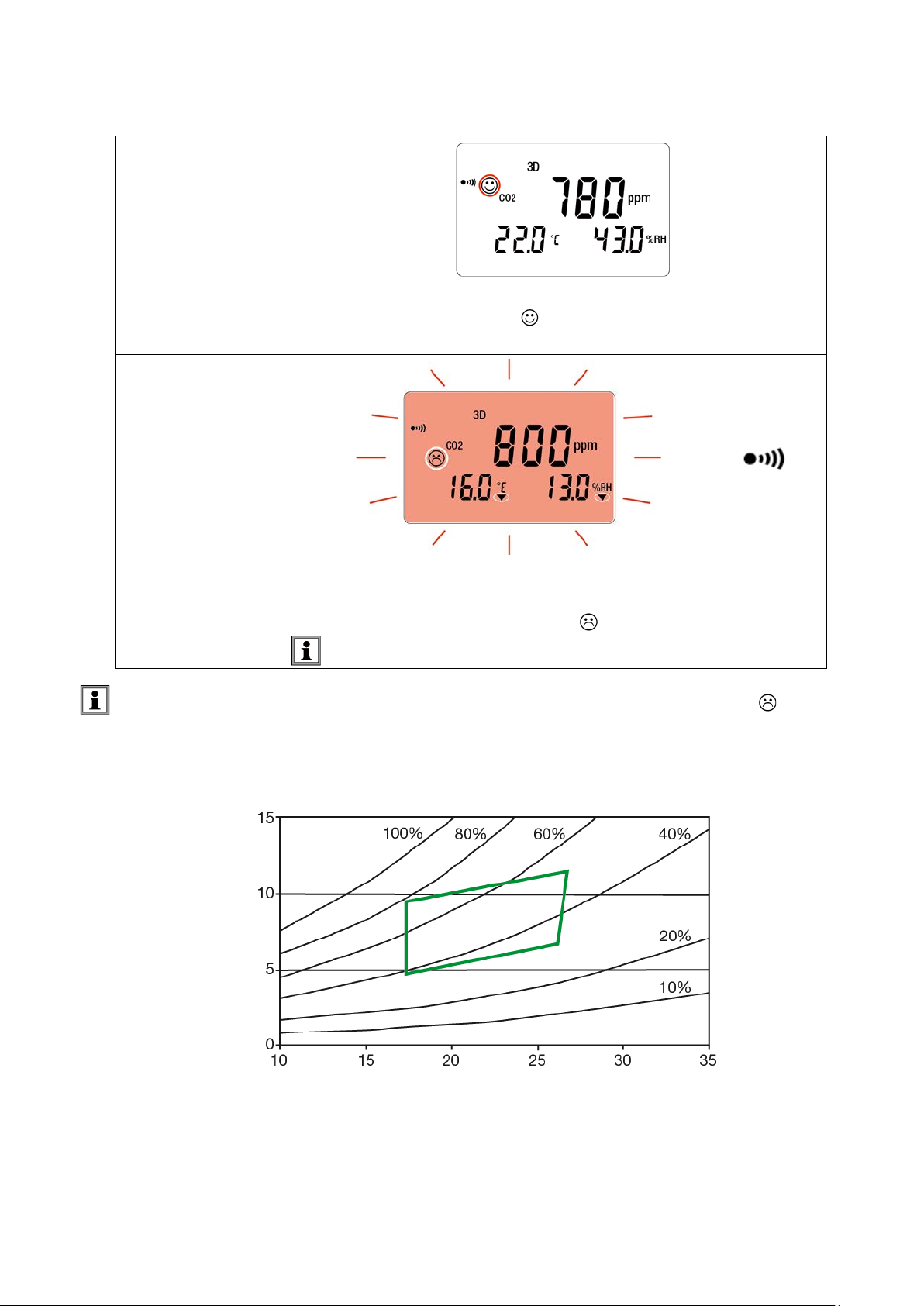

3D mode: Activation of the visual (and, if activated, audi ble) warnings during overshoots of the temperature, humidity, and/or
comfort zones.
CO
2
Example of display with
no overshoot of the
, temperature, and
CO
2
humidity comfort zones
Back-lighting off
Optimum comfort zone indicator:
Example of display with
overshoot of the
temperature and
humidity thresholds
Blinking red back-lighting
Arrow in the direction of the overshoot for each quantity outside the comfort zone.
"Outside optimum comfort zone" indicator:
For the 1D and 3D modes, if the buzzer is active, it will sound intermittently upon the appearance of the symbol.

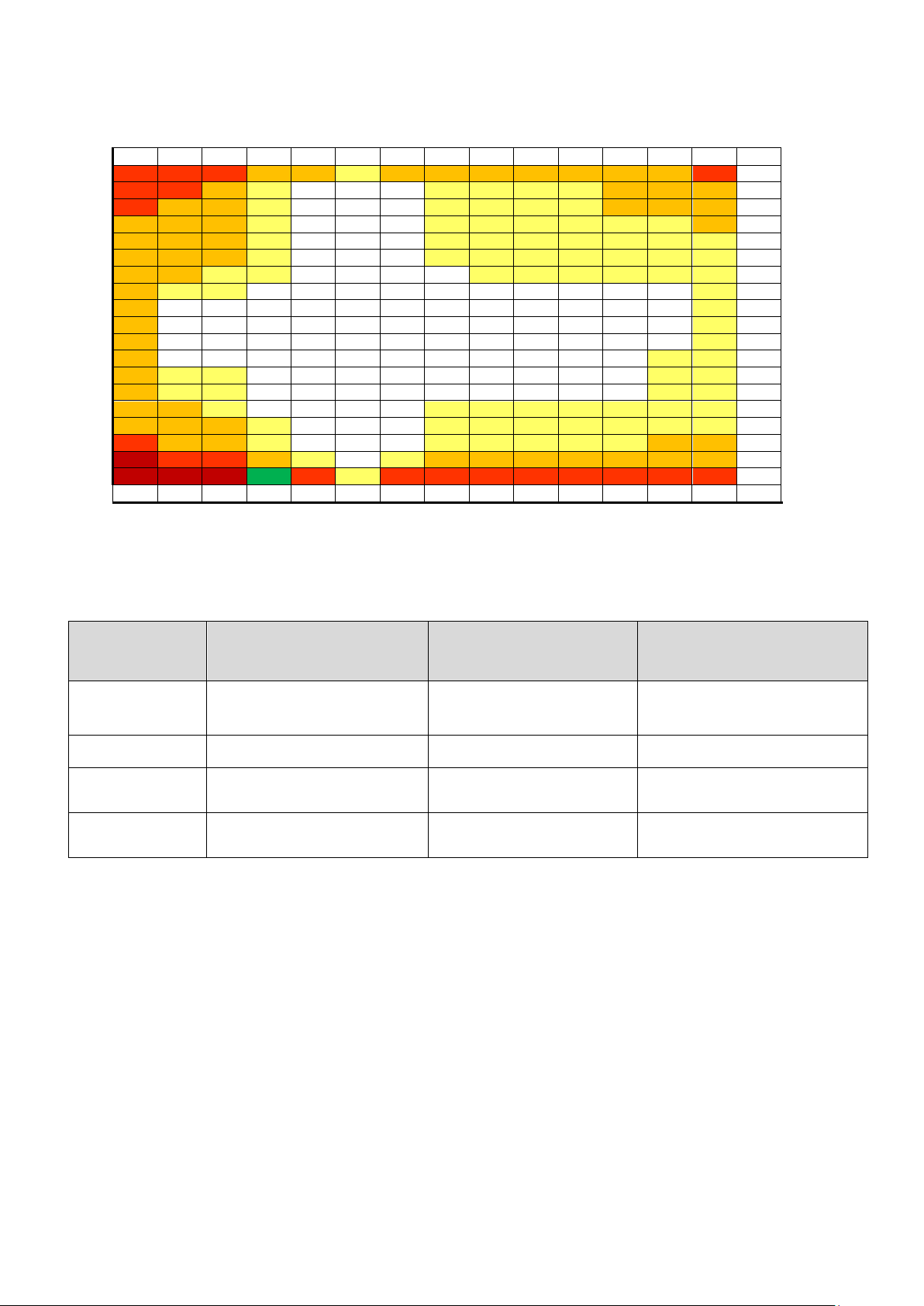

The Porcher diagram defines the hygrothermal comfort zones:
Relative humidity (%RH)
Absolute humidity (g/kg)
Optimum comfort
zone
Dry-bulb temperature (°C)
10
Page 11
To stop the function

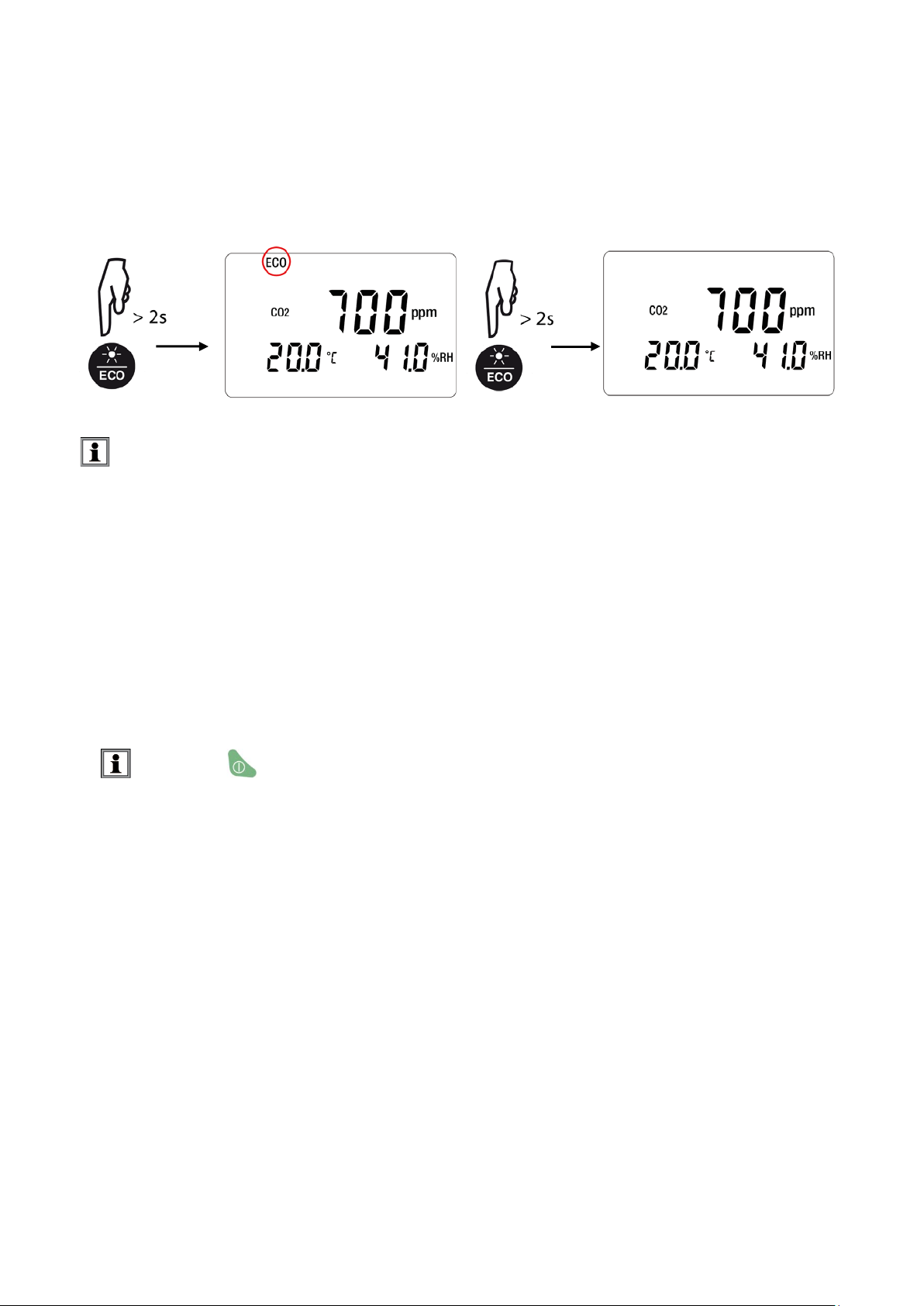

2.7 ECO MODE (ENERGY SAVING)
The ECO mode is used when the device is left to measure the air quality in a room over a longer period.
The backlighting and the buzzer are deactivated, and CO
In addition, the device sets itself to sleep mode at night, from 4:30 p.m. to 8:30 a.m. These times can be programmed using the
AQR software provided with the device (see § 3).
is measured only once every 10 minutes. This saves the batteries.
2
In the ECO mode, the measurement is more sensitive to instantaneous variations of CO
breathes near the device, it may throw off the measurement. It will be necessary to wait for the next measurement to
recover the true concentration of CO2 in the room.
. For example, if the user
2
2.8 P_REC MODE (PROGRAMMED RECORDING)
When the device is connected to a PC, you can program a recording session (see §3). There are two types of programmed
recording sessions:
Locked recording, in which the device displays nothing except the P_REC symbol (blinking before recording starts, then
steady while recording) and the keys are inactive.
At the end of recording, the device switches itself off.
Unlocked recording, in which the device displays the measurements. The P_REC symbol is displayed, blinking before
recording starts, then steady while recording. The device operates normally. It is not possible to change the mode, but the
MIN MAX, HOLD and backlighting functions can be used.
Pressing the button has no effect.
11
Page 12
Entering the MIN
Display of MIN
Display of MIN MAX in
Display of MIN MAX in
2.9 MIN MAX FUNCTION
This function displays the maximum and minimum measured values in addition to the current value: the device compares each
new measurement to those displayed. If the new measurement is greater than the former MAX value or less than the former
MIN value, it replaces them in the display.
The MIN MAX function cannot be used in the 1D and 3D modes.
MAX function
When the MIN MAX function is activated, recording of the minimum and of the maximum starts but the display of the three
quantities measured makes it possible to continue using the device normally.
humidity
MAX CO2
temperature
To stop the MIN MAX function.
12
Page 13
To stop the
To stop
2.10 HOLD FUNCTION (HOLDING THE MEASUREMENT)
Pressing HOLD freezes the digital display on the last measurement displayed. Activating the function does not entail
interruption of recording or of the current mode, but access to the other functions of the device is disabled.
2.11 M_REC FUNCTION (MANUAL RECORDING)
You can start recording manually and all data measured are recorded in the device at the rate determined by the mode in
progress (see the table in § 4.3).
It is possible to record manually whatever mode is in progress (except P_REC). But once recording is in progress, it is no
longer possible to cha nge modes.
recording
2.12 BACK-LIGHTING FUNCTION
To activate and de-activate back-lighting.
The back-lighting switches itself off automatically after 10 seconds.
It is impossible to activate the back-lighting in the ECO mode.
13
Page 14
First press the ECO key, then,
Repeat the operation.
Activation
Deactivation
2.13 ACTIVATION OF THE AUDIBLE WARNING (BUZZER)
while keeping it pressed, press the
MODE key.
There is no buzzer if the ECO mode is active.
2.14 CHANGE OF UNIT OF TEMPERATURE
The choice of unit of temperature is preserved when the device is switched off.
2.15 DISPLAY OF ERRORS AND ANOMALIES OF OPERATION
2.15.1 OL symbol
The OL symbol appears on screen when the measurement leaves the range covered by the device. In other words when:
CO
> 5,000 ppm
2
-10 °C < T < 60°C
5%< RH < 95%
2.15.2 Err symbol
If an error of the Err type is displayed, switch the device off and back on. If the error persists, the device must be sent in for
repair (see § 5.4).
2.15.3 MEM_FULL Symbol
When the memory is full, the MEM_FULL symbol appears on screen.
Any recording in progress is then stopped, and it is impossible to restart recording before emptying the memory.
14
Page 15
3. AQR SOFTWARE
AQR (Air Quality Report) software for the use of the C.A 1510 is provided with the device.
3.1 MINIMUM CONFIGURATION
To install the AQR software, you must have a PC running Windows® XP, Windows® 7 or Windows® 8.
3.2 COMMUNICATION
The device has 2 communication modes:
A Bluetooth wireless link
A USB link via the cable provided
When the device is connected to the PC, it is seen as a USB key and it is then possible to make copies of files.
3.2.1 Pairing the device
To pair the device and the PC, you must start by activating Bluetooth on your PC. If your PC does not have a Bluetooth link,
you can add a board to it or connect a Bluetooth adapter to a USB port (see § 7.1).
Then power up the device and activate the Bluetooth link by a long press on the key.
In the Windows bar, look for the Bluetooth logo, right-click on it, and choose Add a peripheral. If the Bluetooth logo is not
present, go to Peripherals and printers in the Windows menu. Then choose Add a peripheral.
The PC searches its environment for Bluetooth-compatible devices. When the C.A 1510 is detected, select it and click on
Next.
Choose Associate without using a code, click Next to accept the connection, then Close. If a coupling code is requested,
enter 1111.
3.3 FUNCTIONS OF THE SOFTWARE
The AQR software can be used to:
Configure the time ranges of the ECO mode.
Configure programmed recording sessions (P_REC mode).
Recover recorded data.
Display records in the form of curves or tables.
Calculate the air stuffiness index .
Generate a summary report in pdf format.
Export recorded data in spreadsheet, text, or image format.
View the measurements made by the device in real time.
3.4 INSTALLATION
Insert the mini-CD provided with the device in your PC. Go to the AQR directory and run setup.exe.
Then follow the installation instructions.
To use the AQR software, refer to Help.
15
Page 16
Intrinsic uncertainty
±0.5°C at 50% RH
Influence of relative humidity
±0.5°C ±R from 10 to 40% RH
Outside of the range stated above, ±0,032 x (T-25°C) ± R
Measurement hysteresis
± 1 %RH
Rate of increase of intrinsic
uncertainty
< 0.5 %RH/year.
4. SPECIFICATIONS
4.1 REFERENCE CONDITIONS
Influence quantities Reference conditions
Supply voltage 3 ± 0.5V
Air pollution no pollution (CO, solvents, etc.)
4.2 MEASUREMENT CHARACTERISTICS
4.2.1 CO
Type of sensor Dual-beam infrared cell
Measuring principle Non-dispersive infrared (NDIR) technology
Measurement range 0 to 5.000ppm
Intrinsic uncertainty ±3% ±50 ppm at 25°C and 1013 mbar; in ECO mode, ±3% ±80 ppm at 25°C and 1013 mbar
Response time at 63% 195 seconds
Resolution (R) 1ppm
measurements
2
4.2.2 Influences on the measurements of CO2.
The influence of the temperature is 1 ppm/°C from -10 to +45°C.
The influence of the atmospheric pressure is:
CO
2 real
= CO
2 measured
x(1 + (1013-P)x0,0014) avec P= pressure in mbar.
4.2.3 Temperature measurements
Type of sensor CMOS
Measurement range -10 to +60°C
Resolution (R) 0.1°C or 0.1°F
4.2.4 Humidity measurement
Type of sensor Capacitive
Measurement range 5 to 95 %RH
Intrinsic uncertainty
Resolution (R) 0.1 %RH
± 2 %RH ± R from 10 to 90 % RH
± 3 %RH ± R outside of the range stated above.
Note: Prolonged exposure to values outside the 10% to 80% range may lead to a
measurement bias of as much as ± 3 %RH. This bias disappears after 5 days at between 20
and 30°C and 40 and 75% RH.
16
Page 17
100
±5
±5
±5
±4
±4
±3
±4
±4
±4
±4
±4
±4
±4
±5 90
±5
±5
±4
±3
±2
±2
±2
±3
±3
±3
±3
±4
±4
±4
±5
±4
±4
±3
±2
±2
±2
±3
±3
±3
±3
±4
±4
±4 80
±4
±4
±4
±3
±2
±2
±2
±3
±3
±3
±3
±3
±3
±4
±4
±4
±4
±3
±2
±2
±2
±3
±3
±3
±3
±3
±3
±3
70
±4
±4
±4
±3
±2
±2
±2
±3
±3
±3
±3
±3
±3
±3
±4
±4
±3
±3
±2
±2
±2
±2
±3
±3
±3
±3
±3
±3
60
±4
±3
±3
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±3
±4
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±3 50
±4
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±3
±4
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±3
40
±4
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±3
±4
±3
±3
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±3 30
±4
±3
±3
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±3
±4
±4
±3
±2
±2
±2
±2
±2
±2
±2
±2
±2
±2
±3 20
±4
±4
±4
±3
±2
±2
±2
±3
±3
±3
±3
±3
±3
±3
±5
±4
±4
±3
±2
±2
±2
±3
±3
±3
±3
±3
±4
±4
10
±8
±5
±5
±4
±3
±2
±3
±4
±4
±4
±4
±4
±4
±4
±8
±8
±8
±6
±5
±3
±5
±5
±5
±5
±5
±5
±5
±5 0
4.2.5 Influence of the temperature on the relative humidity measurement
Relative humidity (%)
0 10 20 30 40 50 60 70
Temperature (°C)
4.3 MEASUREMENT MODES
Measurement
modes
Portable
1D and 3D Mean Every minute Every 2 seconds
ECO Instantaneous, not averaged Every 10 minutes Every 5 seconds
P_REC Mean User-programmable User-programmable
Displayed value Rate of display of CO2 values
Mean of 11 successive
measurements
Every 15 seconds Every 2 seconds
Rate of polling of the temperature
and relative humidity sensors
4.4 PO W ER SU P PLY
Batteries: 2x1.5V AA/LR6
Mean battery life (without backlighting and Bluetooth):
In portable mode: 15 days
In 1D 3D mode: 45 days
In ECO mode: approximately 1 year
In P_REC 10 minutes mode: 45 days
It is possible to use rechargeable storage batter ies but the lif e between char g es will be sho rter .
Connected to mains using the mains--micro USB adapter provided. The batteries are not used while the device is connected to
mains.
17
Page 18
4.5 RECORDING
Memory: 1,000,000 measurements (8 MB)
FAT12 Format
4.6 ENVIRONMENTAL CONDITIONS
Use indoors
Operating range -10 to +60°C and 5 to 95%RH
Range in storage (without batt ery ) -20 à +60°C
Altitude <2.000m
4.7 MEC HANICAL CHARACT ERISTICS
Dimensions (L x W x H) 125 x 65.5 x 32 mm
Weight approximately 190 g
Protection class IP 40 per IEC60529.
IK 04 per IEC50102
Free fall test Per IEC61010-1
4.8 COMPLIANCE WITH INTERNATIONAL STANDARDS
Compliant with IEC61010-1 safety standard for voltages of 50V in category II.
4.9 ELECTROMAGNETIC COMPATIBILITY
Emissions and immunity in an industrial setti ng compli ant w it h IEC 61326-1.
18
Page 19
5. MAINTENANCE
Except for the batteries, the instrument contains no parts that can be replaced by personnel who have not been
specially trained and accredited. Any unauthorized repair or replacement of a part by an "equivalent" may gravely
impair safety.
5.1 CLEANING
Disconnect the instrument completely and switch it OFF.
Use a soft cloth, dampened with soapy water. Rinse with a damp cloth and dry rapidly with a dry cloth.
Take care to keep the sensor intakes perfectly clean.
5.2 REPLACEMENT OF THE BATTERIES
The symbol indicates that the batteries are spent and must be changed.
To replace the batteries, proceed as follows:
Switch the device off.
Slide the battery compartment cover off .
19
Page 20
Remove the old batteries.
Spent batteries must not be treated as ordinary household waste. Take them to the appropriate recycling
collection point.
Insert the new batteries with the correct polarity.
Close the battery compartment cover: make sure that it is completely and correctly closed.
5.3 METROLOGICAL CHECK
Like all measuring or testing devices, the instrument must be checked regularly.
This instrument should be checked at least once a year. For checking and calibration, contact one of our accredited metrology
laboratories (information and contact details available on request), at our Chauvin Arnoux subsidiary or the branch in your
country.
5.4 REPAIR
For all repairs before or after expiry of warranty, please return the device to your distributor.
20
Page 21
6. WARRANTY
Except as otherwise stated, our warranty is valid for twelve months starting from the date on which the equipment was sold.
Extract from our General Conditions of Sale provided on request.
The warranty does not apply in the following cases:
Inappropriate use of the equipment or use with incompatible equipment;
Modifications made to the equipment without the explicit permission of the manufacturer’s technical staff;
Work done on the device by a person not approved by the manufacturer;
Adaptation to a particular application not anticipated in the definition of the equipment or not indicated in the user’s manual;
Damage caused by shocks, falls, or floods.
21
Page 22
7. TO ORDER
C.A 1510 indoor air quality meter ........................................................................................................................... P01651010
The device is anthracite grey. It is delivered in a compact metal carrying case with:
2 LR6 batteries
One mains-USB adapter
One USB - micro USB cord 1.80 m long
One getting started guide
One mini CD containing the AQR software and user’s manuals (1 file per language)
One verification certificate
C.A 1510W indoor air quality meter ........................................................................................................................ P01651011
Delivered in a cardboard box with:
2 LR6 batteries
One mains-USB adapter
One USB - micro USB cord 1.80 m long
One desktop support
One getting started guide
One mini CD containing the AQR software and user’s manuals (1 file per language)
One verification certificate
22
Page 23
7.1 ACCESSORIES AND REPLACEMENT PARTS
Field calibration kit ............................................................................................................................................... P01651022
Carrying case ...................................................................................................................................................... P01298071

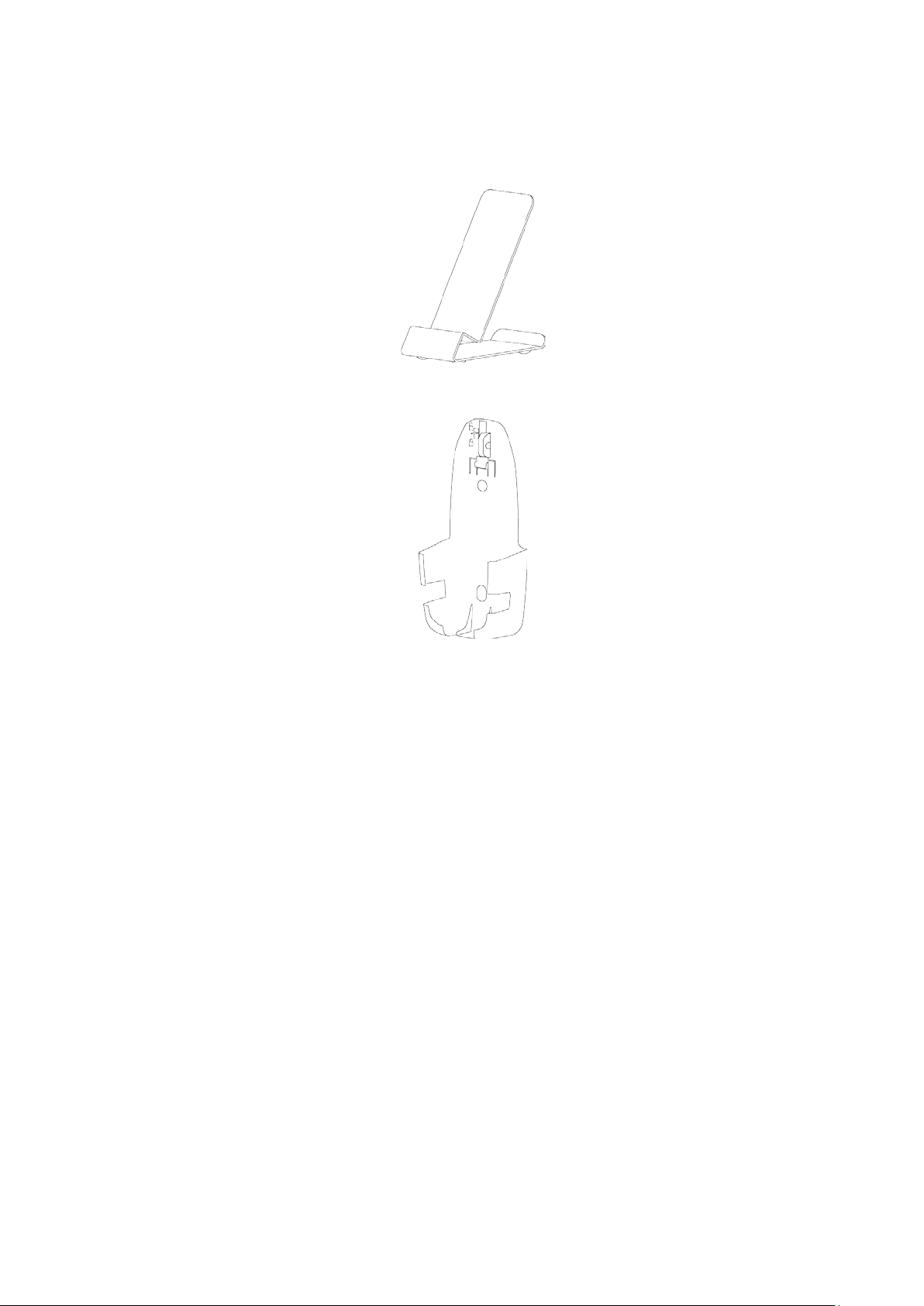

Desktop support .................................................................................................................................................. P01651021
Wall mount ........................................................................................................................................................... P01651020
It is attached to the wall. It can be used to
protect the device against theft by adding a
padlock.
Mains adapter with USB cable .................................................................................................................................. P01651023
USB-Bluetooth adapter ............................................................................................................................................. P01102112
23
Page 24
DEUTSCHLAND - Chauvin Arnoux GmbH
Tel: (07851) 99 26-0 - Fax: (07851) 99 26-60
SCHWEIZ - Chauvin Arnoux AG
Tel: +41 44 727 75 55 - Fax: +41 44.727 75 56
UNITED KINGDOM - Chauvin Arnoux Ltd
Tel : 019244 460 494 – Fax : 01924 455 328
CHINA - Shanghai Pu-Jiang - Enerdis Instruments Co. Ltd
Tel: +86 21 65 21 51 96 - Fax: +86 21 65 21 61 07
ITALIA - Amra SpA
Tel: 039 245 75 45 - Fax: 039 481 561
ESPAÑA - Chauvin Arnoux Ibérica SA
Tel: 902 20 22 26 - Fax: 934 59 14 43
ÖSTERREICH - Chauvin Arnoux Ges.m.b.H
Tel: 01 61 61 961-0 - Fax: 01 61 61 961-61
MIDDLE EAST - Chauvin Arnoux Middle East
Tel: (01) 89 04 25 - Fax: (01) 89 04 24
SCANDINAVIA - CA Mätsystem AB
Tel: +46 8 50 52 68 00 - Fax: +46 8 50 52 68 10
USA - Chauvin Arnoux Inc - d.b.a AEMC Instruments
Tel: (508) 698-2115 - Fax: (508) 698-2118
Code 694156A02 - Ed. 2
Straßburger Str. 34 - 77694 Kehl / Rhein
Unit 1 Nelson Court – Flagship Sq-Shaw Cross Business Pk
Dewsbury, West Yorkshire – WF12 7TH
Via Sant’Ambrogio, 23/25 - 20846 Macherio (MB)
Slamastrasse 29/2/4 - 123 0 Wien
07 - 2014
Moosacherstrasse 15 - 8804 AU / ZH
3 Floor, Building 1 - N° 381 Xiang De Road
Hongkou District - 200081 SHANGHAI
C/ Roger de Flor N° 293, Planta 1- 08025 Barcelona
P.O. BOX 60-154 - 1241 2020 JAL EL DIB (Beirut) – LEBANON
Sjöflygvägen 35 - SE 18304 TÄBY
http://www.chauvin-arnoux.com
190, rue Championnet - 75876 PARIS Cedex 18 - FRANCE
Tel.: +33 1 44 85 44 85 - Fax: +33 1 46 27 73 89 - info@chauvin-arnoux.fr
Export: Tél.: +33 1 44 85 44 86 - Fax: +33 1 46 27 95 59 - export@chauvin-arnoux.fr
200 Foxborough Blvd. - Foxborough - MA 02035
24
Loading...
