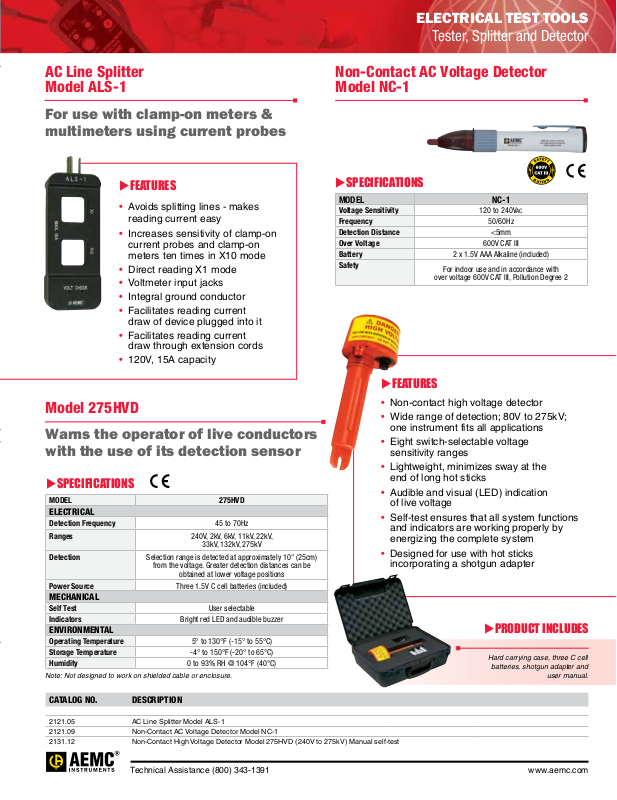

AEMC ALS-1 Data sheet
ELECTRICAL TEST TOOLS
Tester, Splitter and Detector
AC Line Splitter
Model ALS-1
For use with clamp-on meters &
multimeters using current probes
FEATURES
• Avoids splitting lines - makes
reading current easy
• Increases sensitivity of clamp-on
current probes and clamp-on
meters ten times in X10 mode
• Direct reading X1 mode
• Voltmeter input jacks
• Integral ground conductor
• Facilitates reading current
draw of device plugged into it
• Facilitates reading current
draw through extension cords
• 120V, 15A capacity
Non-Contact A
C Voltage Detector
Model NC-1
SPECIFICATIONS
MODEL NC-1
Voltage Sensitivity
Frequency
Detection Distance
Over Voltage
Battery
Safety
For indoor use and in accordance with
over voltage 600V CAT III, Pollution Degree 2
120 to 240V
50/60Hz
<5mm
600V CAT III
2 x 1.5V AAA Alkaline (included)
AC
Model 275HVD
Warns the operator of live conductors
with the use of its detection sensor
SPECIFICATIONS
MODEL 275HVD
ELECTRICAL
Detection Frequency
Ranges
Detection
Power Source
MECHANICAL
Self Test
Indicators
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Humidity
Note: Not designed to work on shielded cable or enclosure.
Selection range is detected at approximately 10" (25cm)
from the voltage. Greater detection distances can be
obtained at lower voltage positions
Three 1.5V C cell batteries (included)
Bright red LED and audible buzzer
45 to 70Hz
240V, 2kV, 6kV, 11kV, 22kV,
33kV, 132kV, 275kV
User selectable
5° to 130°F (-15° to 55°C)
-4° to 150°F (-20° to 65°C)
0 to 93% RH @ 104°F (40°C)
FEATURES
• Non-contact high voltage detector
• Wide range of detection; 80V to 275kV;
one instrument fits all applications
• Eight switch-selectable voltage
sensitivity ranges
• Lightweight, minimizes sway at the
end of long hot sticks
• Audible and visual (LED) indication
of live voltage
• Self-test ensures that all system functions
and indicators are working properly by
energizing the complete system
• Designed for use with hot sticks
incorporating a shotgun adapter
PRODUCT INCLUDES
Hard carrying case, three C cell
batteries, shotgun adapter and
user manual.
CATALOG NO. DESCRIPTION
2121.05 AC Line Splitter Model ALS-1
2121.09 Non-Contact AC Voltage Detector Model NC-1
2131.12 Non-Contact High Voltage Detector Model 275HVD (240V to 275kV) Manual self-test
Technical Assistance (800) 343-1391
www.aemc.com
