AEMC 1950 Specifications

Thermal Imaging

Exceptional

ergonomics for

IR Camera

Model 1950

simplified use

Saves you time and money.

Provides ease with professional
reports, fast start up, focus free

operation and simple to

use tools. Get quality

measurements in seconds!

Real-time thermal inspection.

The Model 1950 features a 20°x 20°
field of view, allowing you to inspect a wide
area in real-time. You can toggle between
displaying a thermogram or digital image.
The camera can quickly identify hot and cold
spots, display the temperature of a selected
point, show the minimum, maximum and
average temperatures within a selected
screen area, display temperature profile,
and selectively show all the points within the
same selected temperature range.

Thermal imaging.

The Model 1950 can capture thermal
images, called thermograms, and save
them in the instrument. You can then add
audio narration to each image, as well as
measurement data provided by a
clamp-on meter or multimeter connected
to the camera via Bluetooth. Thermograms
can be downloaded from the instrument to
a computer for processing, analysis, and
report generation using the provided
CAmReport software.

IP
54

Rated

Our products are backed by over 100 years of experience in test and measurement

equipment, and encompass the latest international standards for quality and safety.



Technical Hotline: [phone]

Advanced user interface.

The instrument features quick and easy
setup via a robust and intuitive user
interface. The interface also allows you to
customize colors to highlight thermal data of
particular interest. Setup files can be saved
and recalled for configuring the instrument
for specific applications and environments.

Easy maintenance.

The Model 1950 runs on AA rechargeable
or Alkaline batteries, providing up to 13
hours of continuous operation between
recharges/replacements. The instrument is
easily cleaned with common cleansers and
is rugged enough to withstand an accidental
6 foot drop on any of its surfaces.



www.aemc.com

Technical Assistance [phone]

www.aemc.com

1

A revolutionary infrared,

Versatile tool for performing infrared thermography.
This technology is an indispensable means for ensuring
safety in industrial production

Protective
elastomer flap

Mini USB
connector

Micro SD
card slot

320 x 240 pixel
graphic display
(2.8" wide)

Automatic

brightness

sensor

ON/OFF key

Multiple-function keys
associated with display
on the screen

Thermal Imaging IR Camera Model 1950

is a simple-to-use “focus free” instrument that
features a 20° x 20° field of view. The camera
can be used as a real-time viewer for detecting
hot spots and other thermal anomalies. Thermal
images (also known as thermograms) can be
recorded and stored on the instrument. You can
also add audio comments and measurement
data (provided by a compatible clamp-on meter
or multimeter) to the stored image files.

The instrument features Bluetooth technology
for connecting to electrical measurement
instruments and a headphone for recording
narration. You can download stored thermograms
to a computer running CAmReport software
(provided with the instrument) for image
processing, analysis, and report generation.

Navigation keys:

Up 

Down 

Right 

Left 

Roll top lens
protection flap

Infrared camera lens

Visible camera lens

Multiple-function trigger

2

www.aemc.com

Technical Assistance [phone]

real-time

inspection method

Key features functions

Provides a wide 20° x 20° field of view with an IFOV spacial
resolution of 4.4mrad.

This allows you to quickly inspect a large area in real-time, and capture a high level
of thermal information in a single thermogram. Focus on a 0.086" (2.2mm) object from 9.8' (3m) away.
Capture desired measurements from a distance with the camera’s 75:1 ratio.

Focus free quality.








Provides crisp, clear thermal and digital images without the need for adjustments.

Accurate temperature measurement over the full range.

From -4 to 482˚F (-20 to 250˚C) with a stability of 80mk at 86˚F (30˚C).

Audio narration can be recorded with thermograms.

You can describe the circumstances of each image, providing additional text and
description to be stored with each image.

Automatic non-uniformity temperature correction.

Compensates for any internal drift to improve accuracy.

&



6 FT

Measurement data can also be stored with each thermogram.

The Model 1950 can wirelessly connect via Bluetooth to a compatible AEMC® clamp-on meter or multimeter,
enabling you to combine electrical measurements to the imaging data.

Offers broad range of operational capabilities.

Locating the cold and hot spots in the image, measuring the temperature of a selected point in the image,
displaying the temperature profile of a line in the image, displaying points at the same temperature in the
image, and freezing the colors representing the temperatures.

CAmReport software.

Included for downloading stored files from the instrument to a computer for further processing,
analysis, and report generation.

This camera is built to last.

Its rugged design survives accidentally dropping on any of its surfaces from as high as 6'.

Exceptionally long 13 hour battery life.

Ensures no loss of test time during a typical work day.

Technical Assistance [phone]

www.aemc.com

3

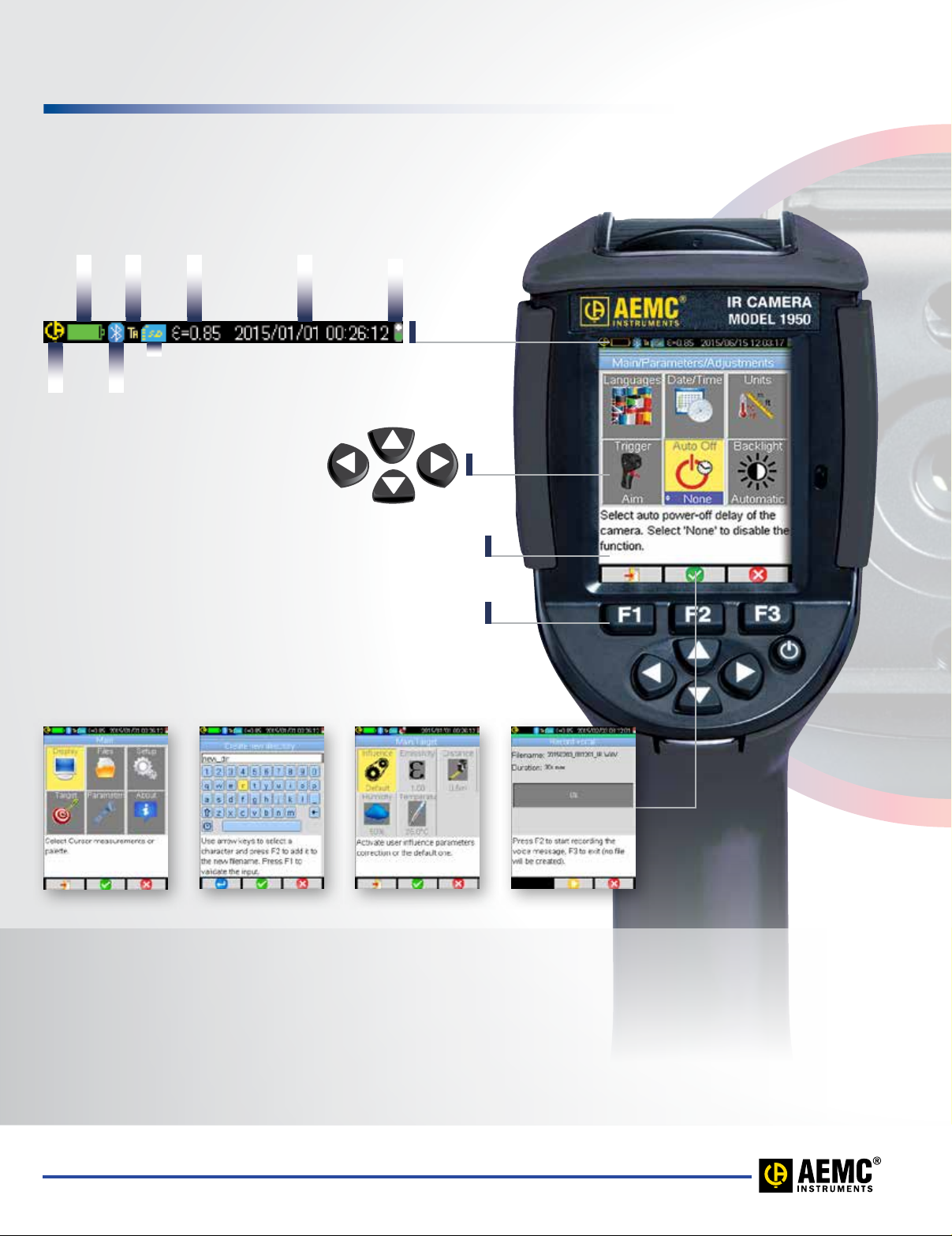

Display & menu contents

F1 F3F2

Status bar :

Battery

CA

logo

Menu:

status

Trigger

function

Bluetooth

active

Emissivity

SD card

presence

Selectable using navigation keys

Date & time of

current image

Contextual help:

Function keys:

Linked to selected menu choice
or camera image

Fixed image:
Dynamic:

This display area updates based
on the menu item selected





A comprehensive set of easy access menus are available on screen. You can use the function and navigation keys to easily configure
the camera for your specific needs. Trigger functions can be programmed, color palettes can be selected, cursor tools can be
configured as well as environmental conditions including ambient temperature and humidity, distance and emissivity.

All users programmable screens have context-sensitive help messages to aid the decision-making process.

Wireless interface to a microphone supplied with the camera facilitates easy notetaking and documentation.
Additionally, AEMC® clamp-on meters and multimeters can also wirelessly transmit measurement data to the camera.

4

www.aemc.com

Technical Assistance [phone]

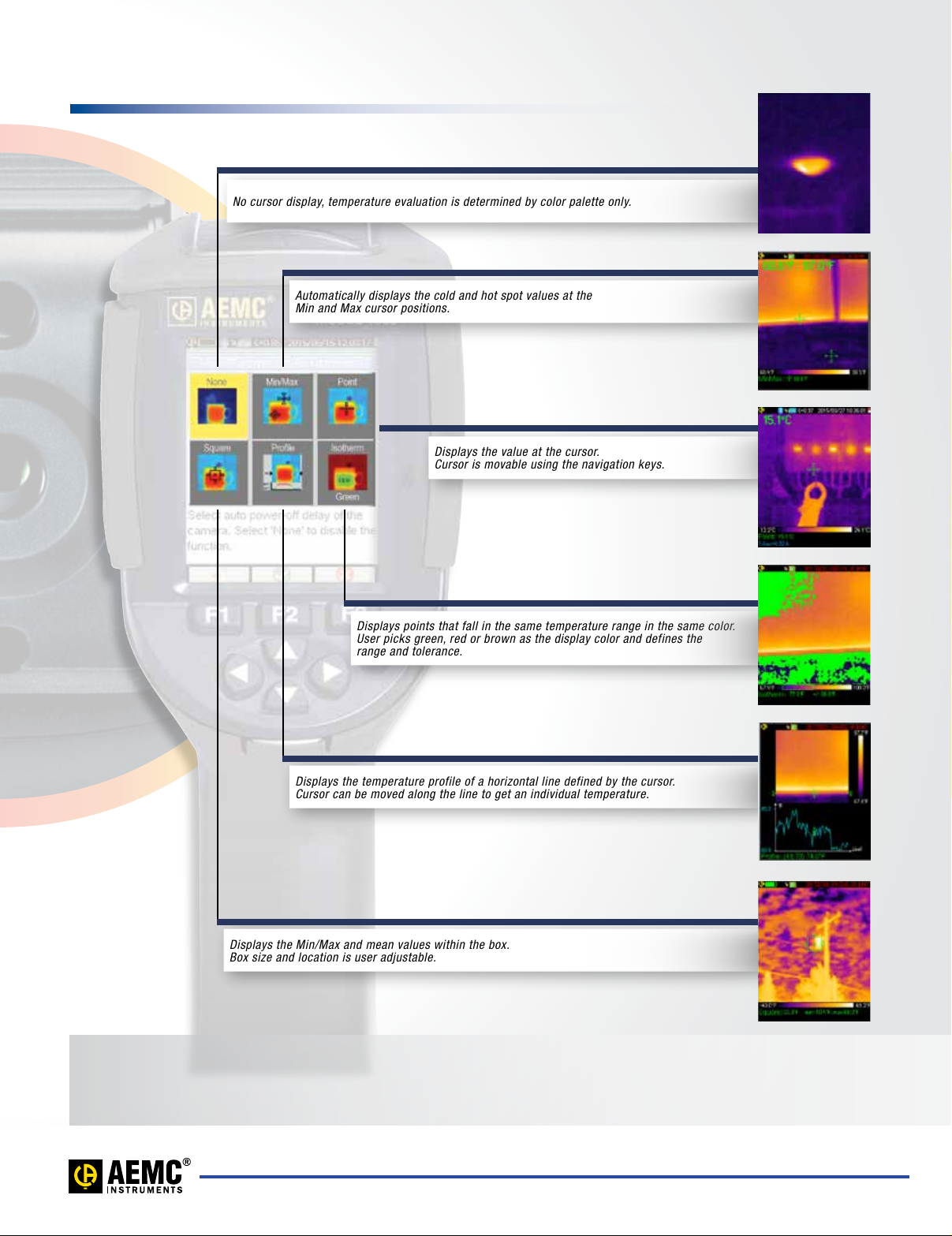

Selectable cursor tools

No cursor display, temperature evaluation is determined by color palette only.

Automatically displays the cold and hot spot values at the
Min and Max cursor positions.

Displays points that fall in the same temperature range in the same color.
User picks green, red or brown as the display color and defines the
range and tolerance.

Displays the temperature profile of a horizontal line defined by the cursor.
Cursor can be moved along the line to get an individual temperature.

Displays the Min/Max and mean values within the box.
Box size and location is user adjustable.

Displays the value at the cursor.
Cursor is movable using the navigation keys.

NONE

MIN/MAX

POINT

PROFILE

SQUARE

ISOTHERM

User programmable cursors provide a comprehensive set of options for evaluating thermal profiles.
Identify a single point (user selectable) to automatically detect minimum, maximum and mean temperatures
of a selected area or the entire image.

Technical Assistance [phone]

www.aemc.com

5

CAmReport software

CAmReport, the software for analyzing thermograms.

This comprehensive software offers all the necessary functions for effective analysis of the
measurement results and report generation.

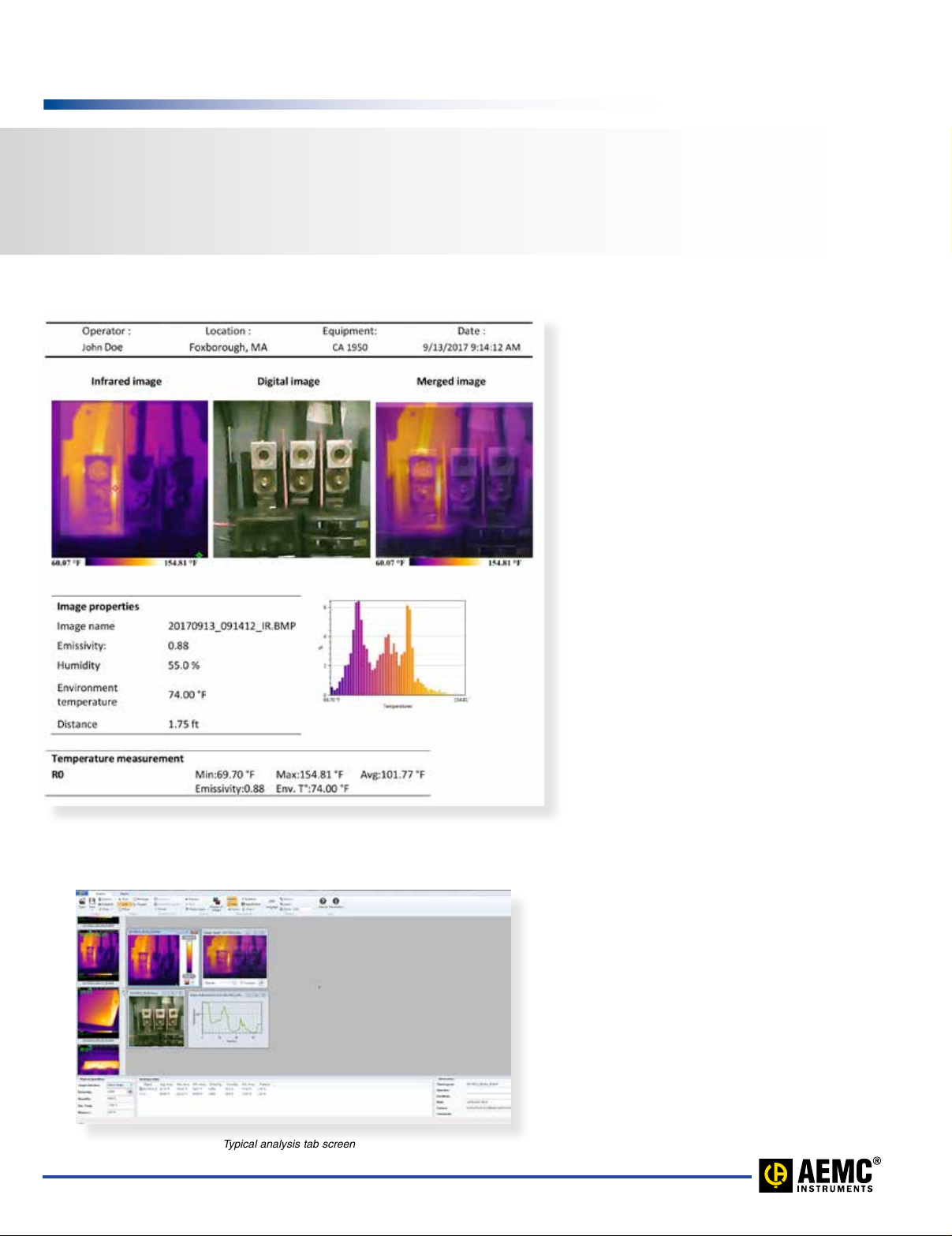

Sample Test Report

Features

• Transfer measurements from your camera to the
software by USB cable, wireless Bluetooth, or
transportable SD card

• Drag-and-drop measurement images from the
storage directory to the analysis window in the
software

• Includes thermal and real images automatically

Reports can be exported in Word or PDF format. This makes it simple to print and/or archive them.

Report creation is automatic, using one of three available templates.

• Superimpose thermal images over real images
for better visual analytical results

• Locate Min/Max and mean temperatures of the
image or an area of the image

• User selectable color palette from seven
different types

• Summary table automatically displays
environmental parameters and statistical results
of the measurement

• Include dictated audio comments into the report

• Includes multiple analytical tools for assessing
thermal images

• Manually enter measurement analysis findings,
site characteristics and operator information to
your report.

• Add graphics such as logos to your reports

• Correct the measurement results using built-in
or user configured emissivity tables

• Include multiple measurements in any report

6

www.aemc.com

• Save reports as a Word or PDF document

Typical analysis tab screen

Technical Assistance [phone]

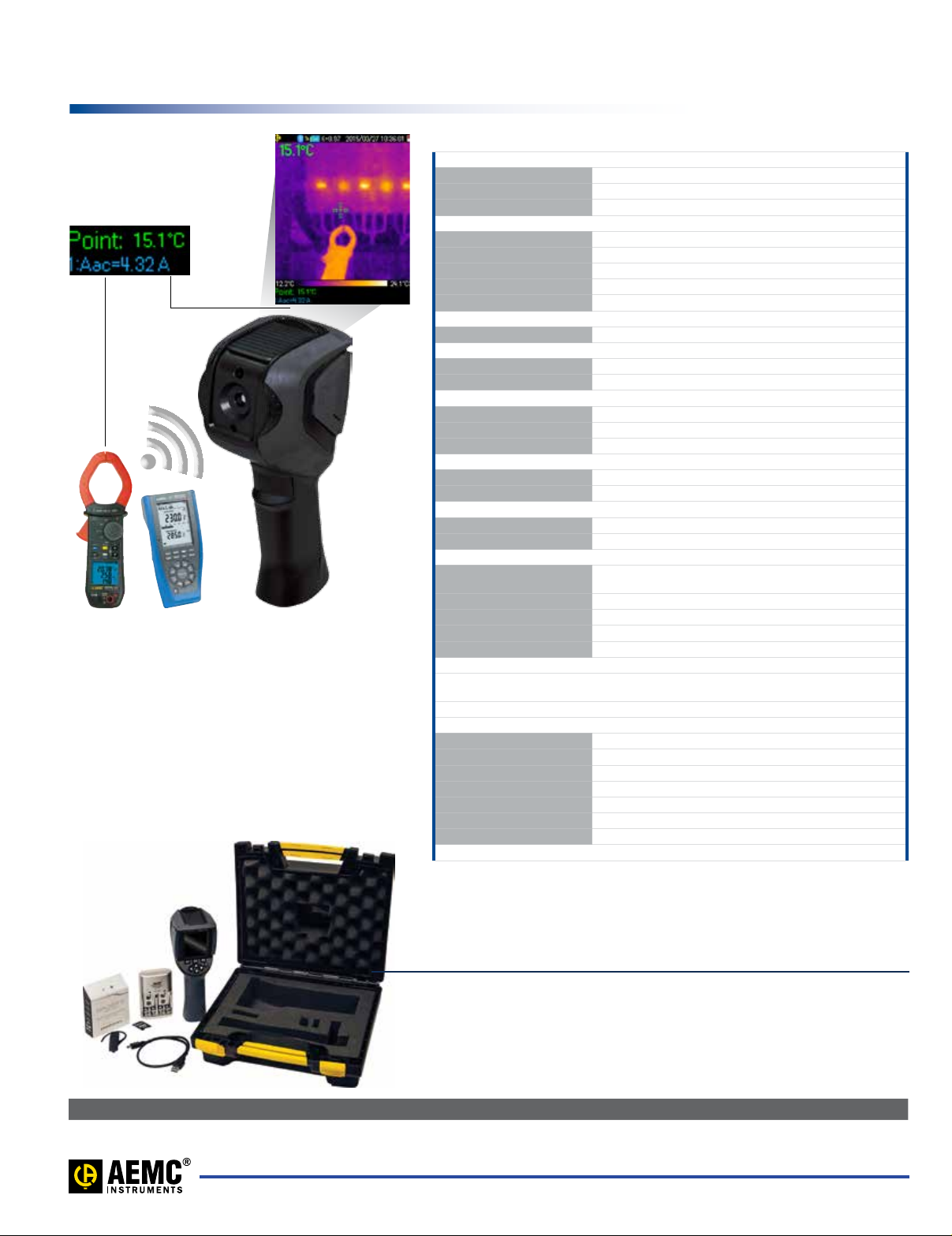

Specifications & ordering info

IR Detector

Compatable AEMC
407 & 607, and Multimeters MTX 3292-BT & 3293-BT

®

Models are Clamp-On Meters

Measurement data can also be stored

with each thermogram. The Model 1950

can wirelessly connect via Bluetooth to a

compatible clamp-on meter or multimeter,

enabling you to combine electrical

measurements to the imaging data.

Type
Spectral Range
Resolution

IR Imaging Performance

NETD
Frequency
Field View
IFOV (Spatial Resolution)
Min Focal Distance

Focusing

Adjustment

Visual Image

Built-in Digital Video
Min Focal Distance

Presentation of Images

Images Displayed
LCD Screen
Image Display

Functions

Image Freezing
Storage

Measurement

Temperature Range
Accuracy

Analysis Functions

Analysis Tools

Adjustment
Correction
Isotherm Display

Voice Recordings

Software
Power Source

Safety
Environmental Specification

Operating Temperature

Storage Temperature

Humidity

Drop Resistance

Impact Resistance

Vibration Resistance

Protection

Dimensions/Weight

Point cursor, area cursor, temperature profile,

minimum/maximum, cursor and isothermal

Automatic or manual adjustment of the minimum/maximum palette

Emissivity, distance, ambient; temperature, relative humidity

Color display of a temperature range adjustable by the user

8.86 x 4.92 x 3.27" (225 x 125 x 83mm)/25 oz. (700 g)

UFPA microbolometer

8~14µm

80 x 80

80mK at 86°F (30°C) [0.1° at 30°C]

9Hz

20° x 20°

4.4mrad

15.6" (0.4m)

Focus free

320 x 240 pixels

2" (0.05m)

Infrared image, real image

2.8" (7.1cm)

Multiple palettes selectable

Moving or frozen image

Micro SD and SD HC card

-4 to 482°F (-20 to 250°C)
±3.6°F (±2°C or ±2%)

Via Bluetooth headset

Analysis & report writing software

NiMH, low self-discharge battery;

Battery Life: 13h30 typical (11h min)

EN61326-1, EN61010-1-Ed.02

-4 to 122°F (-15 to 50°C)

-40 to 158°F (-40 to 70°C)

10% to 95%

6' (2m) on all sides

25G

2G

IP54

Carrying case, external battery charger, USB cable, four NiMH rechargeable batteries,
SD card, Bluetooth headphone, quick start guide, and a USB stick with CAmReport
software and user manual.

2 year warranty

DESCRIPTION CATALOG NO.

Thermal Imaging IR Camera Model 1950 2121.40

Technical Assistance [phone]

www.aemc.com

7

www.aemc.com

United States & Canada

Chauvin Arnoux®, Inc.
d.b.a. AEMC

200 Foxborough Blvd.
Foxborough, MA 02035 USA
[phone] • Fax [phone]

Customer Support

for placing an order,
obtaining price & delivery

[phone]

[e-mail]

Sales & Marketing Department

for general sales and marketing
information

[e-mail]
[e-mail]

Repair & Calibration Service

for information on repair & calibration

[e-mail]

®

Instruments

United States & Canada (continued)

Technical & Product
Application Support

for technical and application support
[phone]

[e-mail]

Webmaster

for information regarding our website
www.aemc.com

[e-mail]

South America, Central America,
Mexico & the Caribbean

Chauvin Arnoux®, Inc.
d.b.a. AEMC

15 Faraday Drive
Dover, NH 03820 USA

[e-mail]

®

Instruments

Australia & New Zealand

Chauvin Arnoux®, Inc.
d.b.a. AEMC

15 Faraday Drive
Dover, NH 03820 USA

[e-mail]

®

Instruments

All other countries

Chauvin Arnoux® SCA

190, rue Championnet
75876 Paris Cedex 18, France
Tel [phone]
Fax [phone]

[e-mail]
www.chauvin-arnoux.com

Visit our website at www.aemc.com

Call the AEMC® Instruments Technical Assistance Hotline for immediate consultation with an applications engineer: [phone]

Chauvin Arnoux®, Inc. d.b.a AEMC® Instruments • 200 Foxborough Blvd. • Foxborough, MA 02035 USA • [phone] • [phone] • Fax [phone]

© 2016 Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments 950.BR-IR1950_1116Rev00 Printed in the USA

Export Department: [phone] (x520) • Fax [phone] • E-mail: [e-mail]
