AEMC 1035, 1039 Data sheet

Multi-Function Telecom Cable Tester Models 1035 & 1039

The new AEMC® Digital/Analog
Megohmmeters Models 1035 and
1039 are innovative in the design of
multiple voltage insulation, resistance
and continuity meters.

They incorporate the latest
measure ment technology and are
specifically de signed to the most
recent inter national insulation and
continuity testing standards, as well as
EN 61010-1, 600V Cat. III, IEC 61557
safety standards.

Their rugged construction is unique in
Megohmmeters. A slip-proof and shock­proof holster is directly over-molded on
the high impact polycarbonate case.
The overall ergonomic shape fits

Technical Assistance [phone] www.aemc.com 1 of 6

naturally into the hand and the two
back case ridges facilitate a firm grip
on the meter. The case is sealed
against water and dust with an IP44
(Index of Protection), NEMA 2 rating.

Digital and analog features are
enhanced by a third digital display,
which indicates alarm set point or
elapsed test time.

Both models measure insulation resis­tance to 20,000MΩ with 1mA of test
current required by IEC 61557 at
the rated test voltage. Each model
incorporates a 600V voltmeter, which
automatically de tects and accurately
displays AC/DC voltages in the test
circuit in each of the insulation test

voltage ranges. Above 25V, it also
provides an audible and visual signal
and inhibits further tests, thus protecting
the user and the meter. After an
insulation resistance measurement,
the megohmmeter will automatically
discharge the circuit and display the
remaining capacitive voltage of the
test sample.

The Model 1039, ideal for telecom
applications, also measures cable
length to 80.0 kilometers and
capacitance to 4000nF. A 400mA
range is available for direct current
measurement or it can be used
with an AC current probe with a
mA output.

Models 1035 & 1039 (pdf) 0308 Rev.06

a c

Features

• True Megohmmeter

• Test voltage combinations of 50V, 100V, 250V and 500V

• Insulation measurements to 20,000MΩ (20GΩ) (Model 1035)

• Insulation measurements to 4000MΩ (Model 1039)

• Capacitance measurement to 4000nF (Model 1039)

• Cable length measurement to 80.0km (>264,000 ft)

(Model 1039)

• Automatic test inhibition (if live sample >25V)

• Automatic discharge for operator safety

• Multi-line 4000-count backlit digital display with analog bargraph

• Resistance, 200mA continuity and alarm functions

• Over-molded slip proof holster for rugged field use

• EN 61010-1, 600V Cat. III, IEC 61557 and CE rated

• Double Insulation

• CE Mark

®

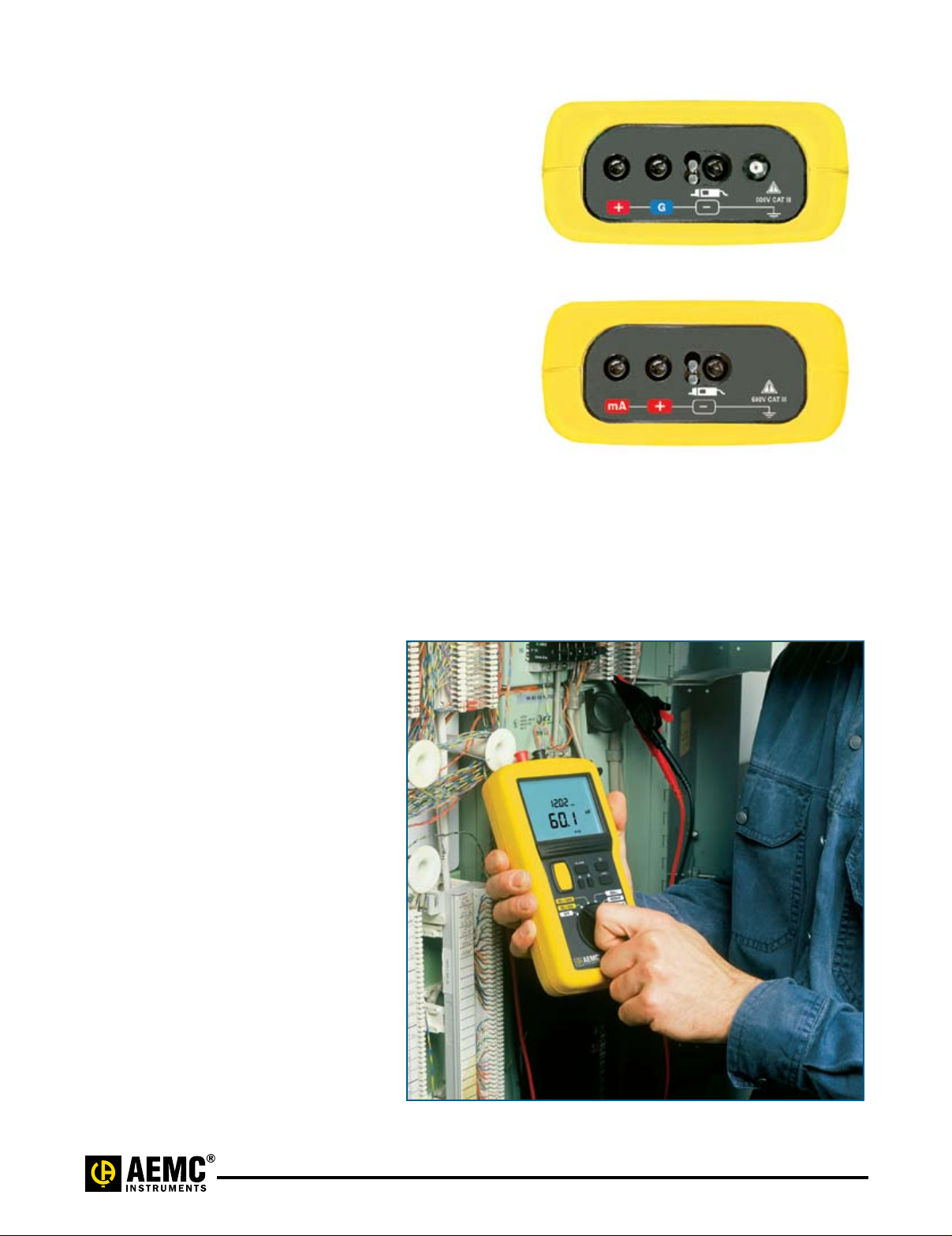

Input Connections

Model 1035

Applications

• Cable testing (including telecom)

• Telephone line resistance and capacitance imbalance

• Measure cable length and capacitance

• Line to line imbalance

• Line to line capacitance

• Off hook detection

• Center station voltage testing

Model 1039

Safety rated 1000V clips provide quick and easy connection of test points for
the Model 1039.

Models 1035 & 1039 (pdf) 0308 Rev.06

Technical Assistance [phone] www.aemc.com 2 of 6

Key Components

Timer On

Alarm On

High Limit Trigger

Low Limit Trigger

Test Voltage On

Negative Value

Refer to User Manual

Fuse Open

Measured Voltage > 25V

Lead, Resistance Zeroing

Active Buzzer

Permanent Run -

Auto Off Disabled

Low Battery

nanoFarad

Kilometers

Relative Position

Straightforward layout & intuitive operation

For telecom and low voltage, low current applications

Alarm

displayed
if fuse open

Function
indicators
and
warnings

Analog
bargraph

Capacitance and
cable length
indicated
(Model 1039 only)

Dual liquid
crystal
display

Battery
charge (%)
displayed
during
power up

Large
ergonomically
shaped
test button

Cursor keys
to adjust
alarm settings

Alarm
on/off
key

Backlight
key

Deviation key

Large range
selector
switch

Shown at actual size (backlight on)

Models 1035 & 1039 (pdf) 0308 Rev.06

Technical Assistance [phone] www.aemc.com 3 of 6

FUNCTION MODEL MODEL
1035 1039

50V (400MΩ) –3
50V (2000MΩ) 3 –
100V (400MΩ) –3
100V (2000MΩ) 3 –
250V (20,000MΩ) 3 –
500V (20,000MΩ) 3 –
Voltage Tester/Safety Check (600V
Guard Terminal 3 –
∆ REL 3 3
Resistance (400kΩ) 3 –
Resistance (40kΩ) – 3
Backlight 3 3
AC Voltage (0 to 400VA C ) –3
Capacitance (to 4000nF) –3
Cable Length (80km) –3
AC Current Measurement (0 to 400mAA C Direct) 3 –
Alarm (setpoint, <, >) 3 3

AC/d C ) 3 3

FUNCTION MODEL MODEL
1035 1039

 Remote Test Probe 3 3
 Digital Dual Display 3 3

Analog Bargraph 3 3
Auto-Off 3 3
Voltage Detection (>25V) 3 3
Safety Test Inhibitor 3 3
Automatic Discharge 3 3
Fuse Protection 3

 Auto Fuse Check 3 3
 Low Battery 3 3

Battery Capacity (%) Indication 3 3
Auto-Off Disable 3 3
EN 61010-1, 600V Cat. III 3 3
Agency Approval CE Mark CE Mark
Optional Hands-Free Carrying Case 3 3
Optional Waterproof Field Case 3 3
Optional AC Current Probe –3

Specifications

MODELS 1035 1039

ELECTRICAL

INSULATION TESTS
Test Voltage 50V 10kΩ to 2000MΩ (2GΩ) 0.01 to 400MΩ

100V 20kΩ to 2000MΩ (2GΩ) 0.02 to 400MΩ
250V 50kΩ to 20,000MΩ (20GΩ) –
500V 100kΩ to 20,000MΩ (20GΩ) –

Short Circuit Current ≤3mA ≤3mA
Accuracy ±3% of Reading ± 5cts ±3% of Reading ± 5cts
Automatic Discharge Yes, with voltage display Yes, with voltage display
Voltage Test/Safety Check 0 to 600V
Voltage Warning Indicator >25V >25V
Test Inhibition Yes >25V Yes >25V
Guard Terminal Yes –

RESISTANCE TESTS

Measurement Range 0.0 to 400kΩ 0.0 to 40.0kΩ
Test Voltage 7 to 9V 7 to 9V
Test Current 600µA < 400Ω; 6µA > 40Ω 600µA < 400Ω

Accuracy >400Ω ±3% of Reading ± 1ct ±3% of Reading ± 1ct
VOLTAGE TESTS

Voltage Range – 0 to 400V
Accuracy – ±3% of Reading ± 1ct

CURRENT TESTS

AC Current – 0.00 to 400mA (240A with probe option)
Capacitance – 0.0 to 4000nF
Cable Length – 0.000 to 80.0km

DISPLAY

Display Size 2 x 3" (54.3 x 73mm) 2 x 3" (54.3 x 73mm)
Digital Display 4000-count 4000-count
Analog Bargraph 34-segments 34-segments
Backlight Blue Electroluminescent Blue Electroluminescent

GENERAL

Power Source 6 x 1.5V AA (NEDA 15A) 6 x 1.5V AA (NEDA 15A)
Capable of performing > 3500 5 sec tests Capable of performing > 3500 5 sec tests

Dimensions 8.30 x 4.25 x 2.36" (211 x 108 x 60mm)
Weight 1.81 lbs (830g)
Index Protection IP44 IP44
Patent Pending Yes Yes

SAFETY

Safety Rating EN 61010-1, 600V Cat. III, EN 61557 EN 61010-1, 600V Cat. III, EN 61557

Double Insulation Yes

CE Mark Yes Yes

a c /d c 0 to 600Va c /d c

a c

Models 1035 & 1039 (pdf) 0308 Rev.06

Technical Assistance [phone] www.aemc.com 4 of 6

Accessories

Model 1039 Field Kit, Catalog #2115.43

Model 1035

Field Kit,

Catalog

#2115.42

Field case for use with all models

Catalog #2118.98

Remote test probe

for use with Models 1035 & 1039

Catalog #2118.97

Test leads for Model 1035

Catalog #2119.41

Hands-free

carrying case

for use with all

models

Catalog

#2118.99

Soft carrying case

included with

standard

megohmmeter

models

Catalog #2119.02

Test leads for Model 1039

Catalog #2119.40

ORDERING INFORMATION CATALOG NO.

Megohmmeter Model 1035 (Digital, with Analog Bargraph, Alarm, Backlight, 50V, 100V, 250V, 500V, 400k) ..... Cat. #2116.90

Megohmmeter Model 1039 (Digital, with Analog Bargraph, Alarm, ∆Rel, Backlight, 50V, 100V, mA, nF, km) ...... Cat. #2116.91

All models include a soft carrying case, two color-coded leads (three for Model 1035), black test probe,

two alligator clips (three for Model 1035), batteries and user manual

Megohmmeter Field Kit Model 1035, Includes megohmmeter, field case, three color-coded leads, black test probe,

three alligator clips, two grip probes, remote test probe, batteries and user manual ......................... Cat. #2115.42

Megohmmeter Field Kit Model 1039, Includes megohmmeter, field case, two color-coded leads, black test probe,

two alligator clips, two grip probes, remote test probe, AC current probe, batteries and user manual ........... Cat. #2115.43

Accessories (Optional)

Remote Test Probe ..............................................................................Cat. #2118.97

Field Case (Waterproof) ..........................................................................Cat. #2118.98

Hands-Free Carrying Case ........................................................................Cat. #2118.99

AC Current Probe Model MN211 (Lead - 1mA/A - 240A max) ...........................................Cat. #2115.73

Models 1035 & 1039 (pdf) 0308 Rev.06

Technical Assistance [phone] www.aemc.com 5 of 6
