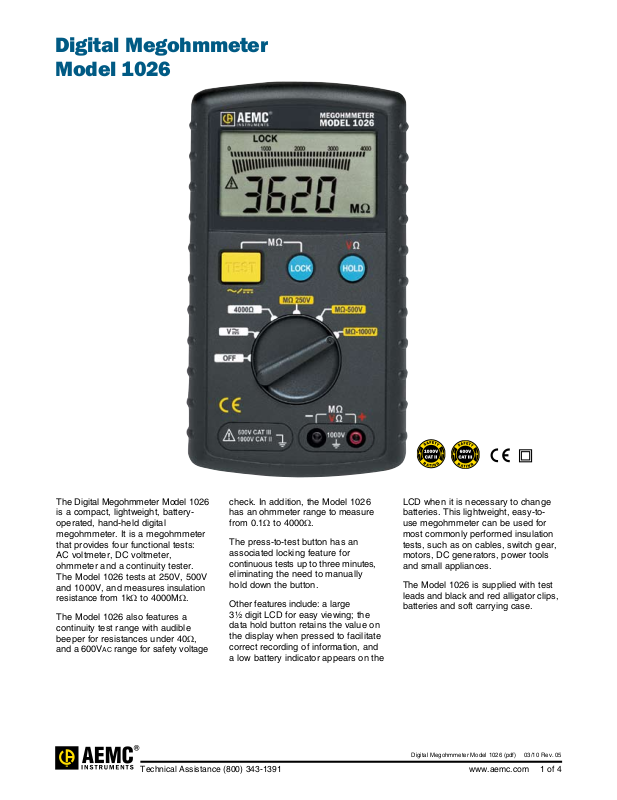

AEMC 1026 Data sheet

Digital Megohmmeter Model 1026

The Digital Megohmmeter Model 1026
is a compact, lightweight, battery­ operated, hand-held digital
megohmmeter. It is a megohmmeter
that provides four functional tests:
AC voltmeter, DC voltmeter,
ohmmeter and a continuity tester.
The Model 1026 tests at 250V, 500V
and 1000V, and measures insulation
resistance from 1kΩ to 4000MΩ.

The Model 1026 also features a
continuity test range with audible
beeper for resistances under 40Ω,
and a 600V

a c range for safety voltage

Technical Assistance [phone] www.aemc.com 1 of 4

check. In addition, the Model 1026
has an ohmmeter range to measure
from 0.1Ω to 4000Ω.

The press-to-test button has an
associated locking feature for
continuous tests up to three minutes,
eliminating the need to manually
hold down the button.

Other features include: a large
3½ digit LCD for easy viewing; the
data hold button retains the value on
the display when pressed to facilitate
correct recording of information, and
a low battery indicator appears on the

LCD when it is necessary to change
batteries. This lightweight, easy-to­use megohmmeter can be used for
most commonly performed insulation
tests, such as on cables, switch gear,
motors, DC generators, power tools
and small appliances.

The Model 1026 is supplied with test
leads and black and red alligator clips,
batteries and soft carrying case.

Digital Megohmmeter Model 1026 (pdf) 03/10 Rev. 05

Features

• Test voltage combinations of 250V,

500V and 1000V

• Insulation measurements to 4000MΩ

• Resistance measurements to 4000Ω

• Continuity test

• Continuity beeper

a c /d c test voltage range

• 600V

• Large, easy-to-read digital display

• Test button may be “locked-on”

for three minutes for hands-free
operation

• Automatic discharge when test

button is released

• Low battery indicator

• Supplied with a soft carrying case

and test leads

• CE Mark

Applications

• Motor testing

• Transformer testing

• Relay testing

• Cable monitoring

• Continuity checks

• Data hold switch

Specifications

MODEL 1026

ELECTRICAL

INSULATION TESTS
Test Voltage 250V 1kΩ to 4000MΩ

500V 1kΩ to 4000MΩ
1000V 1kΩ to 4000MΩ

Accuracy < 2000MΩ ±3% of Reading ± 5cts
>2000MΩ ±5% of Reading ± 5cts

RESISTANCE TESTS

Measurement Range 400Ω to 4000Ω
Accuracy* ±1% of Reading ± 5cts

CONTINUITY TESTS

Beeper Activation Displays Ω and beeps below 40Ω
Overload Protection 600Vrms

VOLTAGE TESTS

Measurement Range 0 to 600V
Resolution 0.1V
Accuracy* AC ±1.5% of Reading ± 5cts

DC ±1% of Reading ± 3cts

DISPLAY

Digital Display 3 x 1.7" (76 x 42mm) (LCD panel with 40-segments analog bar indication)

GENERAL

Overrange Indication “OL” will be shown on the LCD Panel when out of range measurement is made
Low Battery Indication The
Sampling Rate 2.5 times/sec digital display; 10 times/sec bar graph
Power Source 8 x 1.5V AA batteries
Dimensions 7.72 x 4.41 x 2.52" (196 x 112 x 64mm)
Weight 1.5 lbs (700g)
Temperature Range Operating: 32° to 104°F (0° to 40°C), below 80% RH; Storage: 14° to 140°F (-10° to 60°C)

SAFETY

Safety Rating EN 61010, 600V, Cat. III, Pollution Degree 2, Altitude up to 6000 ft (2000m), EN50081-1; EN50082-1
CE Mark Yes

*Accuracies are at 23°C ± 5°C, below 80% RH

will be shown when the batteries need to be changed

a c /d c

Digital Megohmmeter Model 1026 (pdf) 03/10 Rev. 05

Technical Assistance [phone] www.aemc.com 2 of 4

1. Data hold switch

2. Manual and lock switch
(locks power on 3 minutes)

3. Range selector switch

4. Test terminals

5. Press-to-Test button

6. Digital display

Soft carrying case and test leads included

ORDERING INFORMATION CATALOG NO.

Megohmmeter Model 1026 (Digital, 250V, 500V, 1000V, 4000Ω, V) .............................. Cat. #2117.72

Includes set of leads with black and red alligator clips, batteries, soft carrying case and user manual

Digital Megohmmeter Model 1026 (pdf) 03/10 Rev. 05

Technical Assistance [phone] www.aemc.com 3 of 4
