AEI DG440 User guide [ml]
170108-1
ENGLISH (EN)
MODEL: DG440
DigiSender
ADVANCED WIRELESS VIDEO SENDER SYSTEM
®
X7
DEUTSCH (DE)
FRANCAIS (FR)
NEDERLANDS (NL)
IMPORTANT: ALWAYS KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE
WICHTIG: HEBEN SIE DIESE BEDIENUNGSANLEITUNG ZU REFERENZZWECKEN AUF
IMPORTANT : VEUILLEZ CONSERVER CE MODE D’EMPLOI AFIN DE POUVOIR VOUS Y REPORTER SI BESOIN
BELANGRIJK: GELIEVE DEZE INSTRUCTIEHANDLEIDING ALTIJD TE BEWAREN VOOR LATER GEBRUIK
DG440 - DigiSender® X7
Table of Contents (EN)
Inhalt (DE)
Table des matières (FR)
Matières (NL)
ENGLISH
Page 3 Introduction
SECTION 1: Step by Step Installation Guide
Page 4 Check the kit contents
Page 6 Install the DigiSender® X7 Transmitter Unit
Page 8 Install the IR Systeme Technik™
Page 9 Install the DigiSender® X7 Receiver Unit
SECTION 2: Daily Usage
Page 11 Using your DigiSender® X7 System
Page 13 Audio/Video and Remote Relay Channels
SECTION 3: Setup Troubleshooting

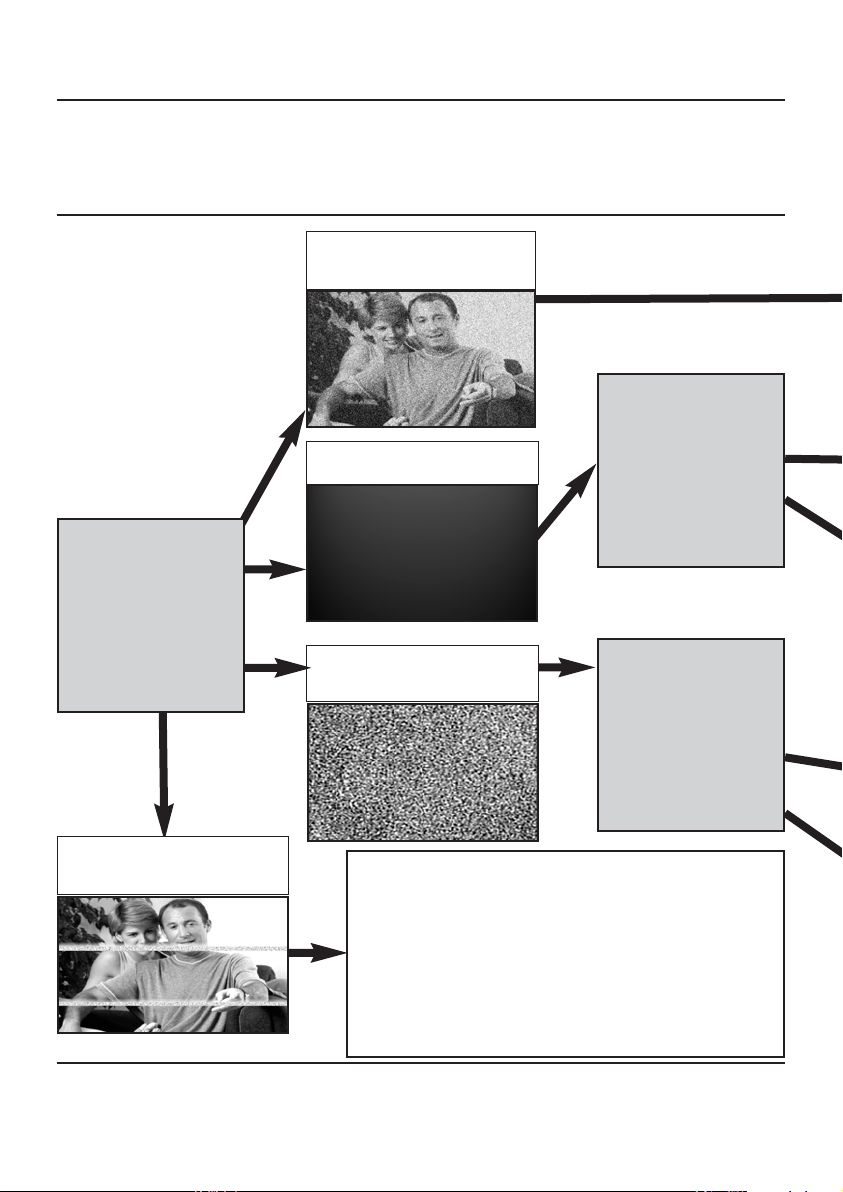

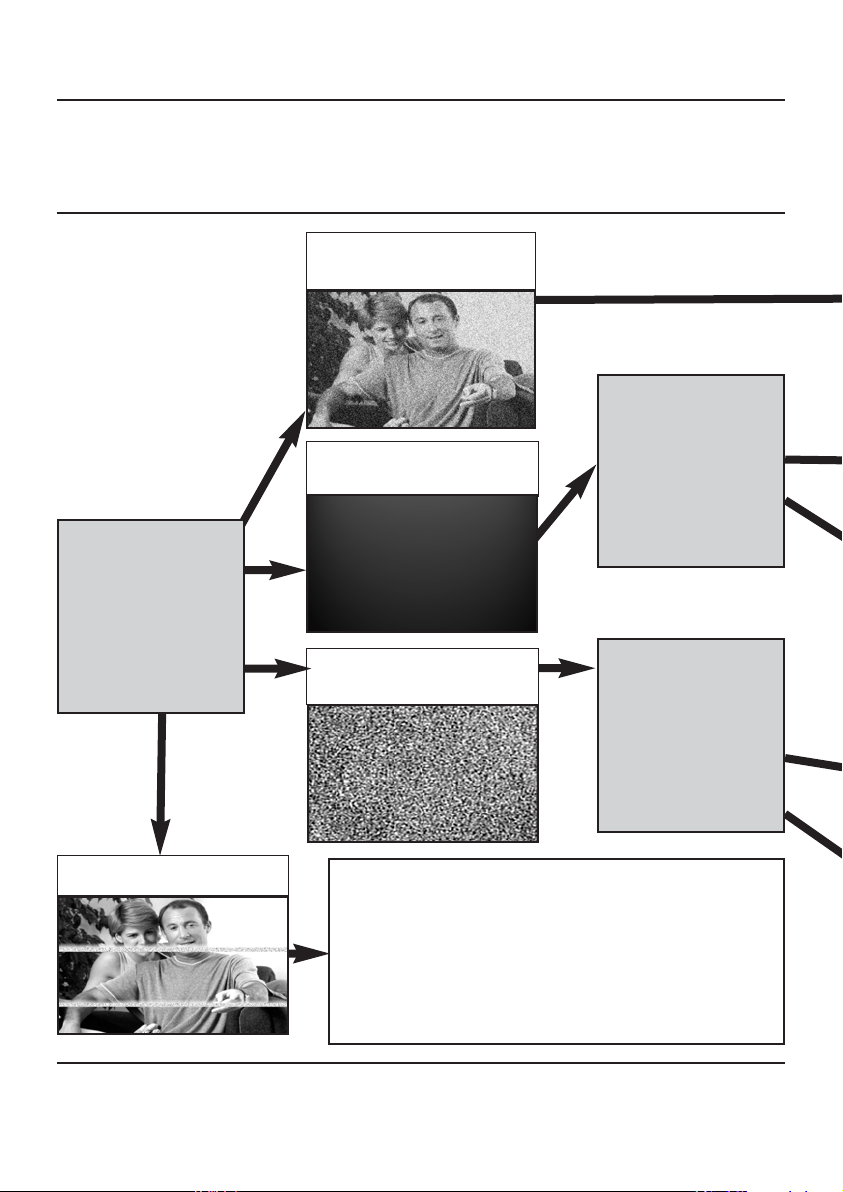

Page 14 Troubleshooting: Picture Problems
Page 16 Troubleshooting: Sound Problems
Page 17 Troubleshooting: Remote Extender Problems
SECTION 3: Further Information
Page 18 Customer Care Options
Page 19 Upgrades and Accessories
DEUTSCH
Seite 20 Einleitung
ABSCHNITT 1: Schritt für Schritt Installation
Seite 21 Überprüfen des Packungsinhalts
Seite 22 Installation der DigiSender® Sendereinheit
Seite 24 Installation der IR Systeme Technik™
Seite 25 Installation der DigiSender® Empfängereinheit
ABSCHNITT 2: Tägliche Verwendung
Seite 27 Verwendung Ihres DigiSender® X7 Systems
Seite 29 Audio/Video-Kanal und Fernbedienungsrelais-Kanal
ABSCHNITT 3: Einrichtung und Problemlösung
Seite 30 Problemlösung: Bildprobleme
Seite 32 Problemlösung: Tonprobleme
Seite 33 Problemlösung: Fernbedienungsprobleme
ABSCHNITT 3: Weiterführende Informationen
Seite 34 Kundenserviceoptionen
Seite 35 Upgrades & Zubehör
Waste electrical products should
not be disposed of with
household waste. Please recycle
where facilities exist. Check with
your local Authority or retailer for
recycling waste
Die Entsorgung elektrischer
Produkte sollte nicht mit dem
normalen Hausmüll erfolgen. Bitte
führen Sie sie dem Recycling zu,
wenn entsprechende
Einrichtungen vorhanden sind.
Befragen Sie dazu Ihre regionalen
Behörden oder den Händler
bezüglich des Abfallrecycling
WARNING
To prevent damage do
not expose this unit to
rain or moisture.
FRANCAIS
Page 36 Introduction
SECTION 1 : Guide d’installation étape par étape
Page 37 Vérification du contenu du kit
Page 38 Installation du DigiSender® Emetteur X7
Page 40 Installation du IR Systeme Technik™
Page 41 Installation du DigiSender® Récepteur X7
SECTION 2 : Usage quotidien
Page 43 Utilisation de votre DigiSende® Système X7
Page 45 Canal audio/vidéo et Canal de relais de télécommande
SECTION 3 : Installation Dépannage
Page 46 Dépannage : Problèmes d’image
Page 48 Dépannage : Problèmes de son
Page 49 Dépannage : Problèmes avec le relais à distance
SECTION 3 : Informations supplémentaires
Page 50 Options du service à la clientèle
Page 51 Mises à jour et accessoires
NEDERLANDS
Page 52 Introductie
SECTIE 1: Stap-voor-stap Installatiehandleiding
Page 53 Controleer de inhoud van de kit
Page 54 Installeer de DigiSender® X7 Zendapparaat
Page 56 Installeer de IR Systeme Technik™
Page 57 Installeer de DigiSender® X7
SECTIE 2: Dagelijks gebruik
SECTIE 3: Opzet Probleemoplossing
SECTIE 3: Verdere informatie
Ontvangapparaat
Page 59 Uw DigiSender® X7 Systeem gebruiken
Page 61 Audio-/videokanaal en Relaiskanaal voor de
afstandsbediening
Page 62 Probleemoplossing: Beeldproblemen
Page 64 Probleemoplossing: Geluidsproblemen
Page 65 Probleemoplossing: Problemen bij
verlenging-op-afstand
Page 66 Opties klantendienst
Page 67 Upgrades & Accessoires
Les déchets de produits
électriques ne doivent pas être
déposés dans les conteneurs de
déchets ménagers. Veuillez les
déposer dans les conteneurs de
recyclage. Veuillez vous
renseigner auprès des autorités
locales ou auprès de votre
revendeur pour le recyclage des
déchets
Overtollige electrische producten
mogen niet samen met
huishoudelijk afval verwijderd
worden. Gelieve te recycleren
waar die mogelijkheid bestaat.
Controleer bij uw plaatselijke
overheid of kleinhandelaar naar
de mogelijkheden om afval te
recycleren
Page 2
Online Support at www.digisender.net
DG440 - DigiSender® X7
INTRODUCTION
DigiSender® X7 - Advanced Wireless Video Sender
Congratulations on purchasing the DigiSender®
X7. This product represents state of the art
wireless video and infra red technology at
exceptional value for money.
This system is fully upgradable. You can add
additional receivers, aerial convertors, wireless
baby monitor cameras and countless other
upgrades.
What makes the DigiSender® X7 so different is
that it provides compatibility with virtually any
make of Satellite receiver, Cable receiver, VCR,
DVD and Freeview in the market today.
ENGLISH
You also have the ability to select which video
source you want to watch whilst you
comfortably rest in bed. You can select between
VCR, DVD and Satellite/Cable without
interfering with the channel being viewed on
your main TV.
Benefit from 4 video channels, stunning hi-fi
quality stereo sound and digital
communication providing an astounding
degree of flexibility.
Your purchase of this DigiSender® system
represents an investment in the very latest
wireless communication technology for the
home.
Please read this instruction manual carefully prior to installation
CUSTOMER CARE
Telephone: 0845 1667940
E-mail: advice@digisender.net
Page 3
DG440 - DigiSender® X7
DigiSenderDigiSender
TRANSMITTINGTRANSMITTING
SATSAT
VCRVCR
DVDDVD
AUXAUX
POWER
DigiSenderDigiSender
RECEIVINGRECEIVING
SATSAT
VCRVCR
DVDDVD
AUXAUX
POWER
STEP 1

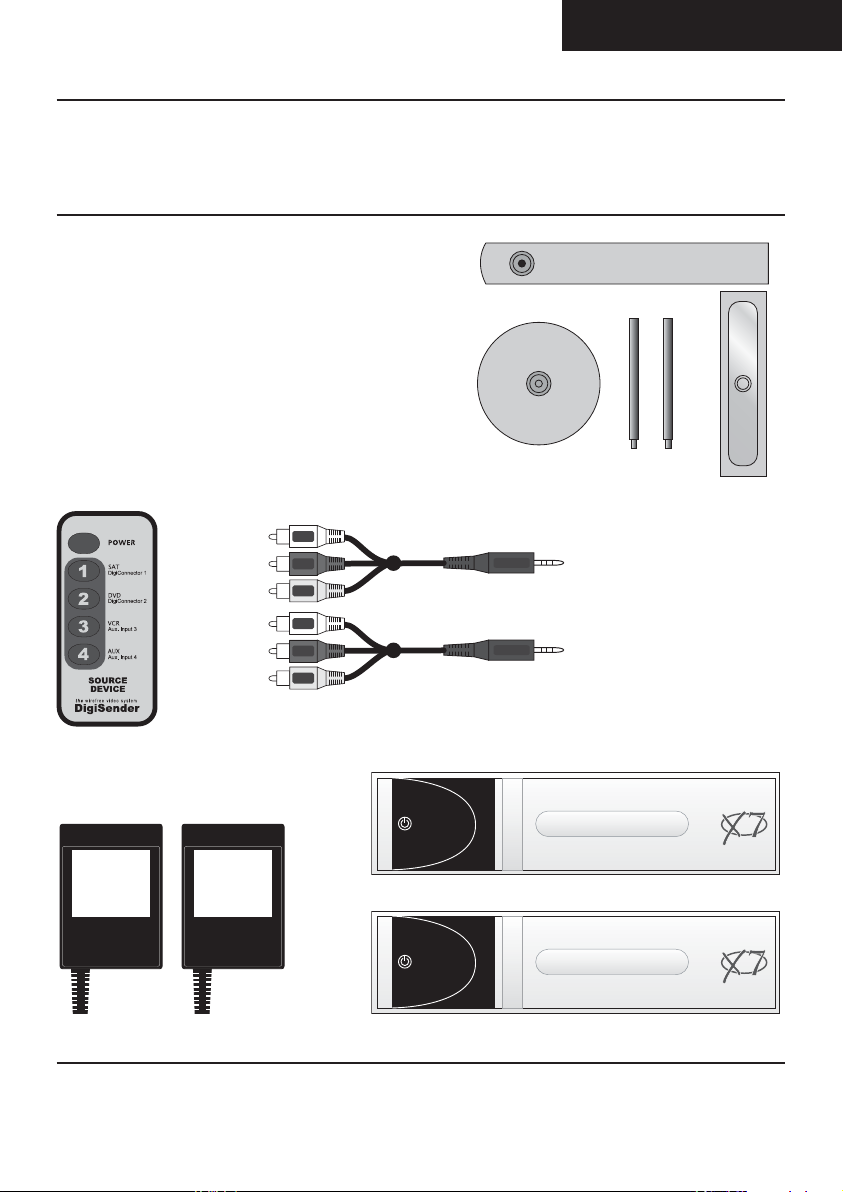

Unpacking your DigiSender® X7
All packs are computer weigh checked when packed. However, it is a good idea to
check all kit contents are present before proceeding with the installation.

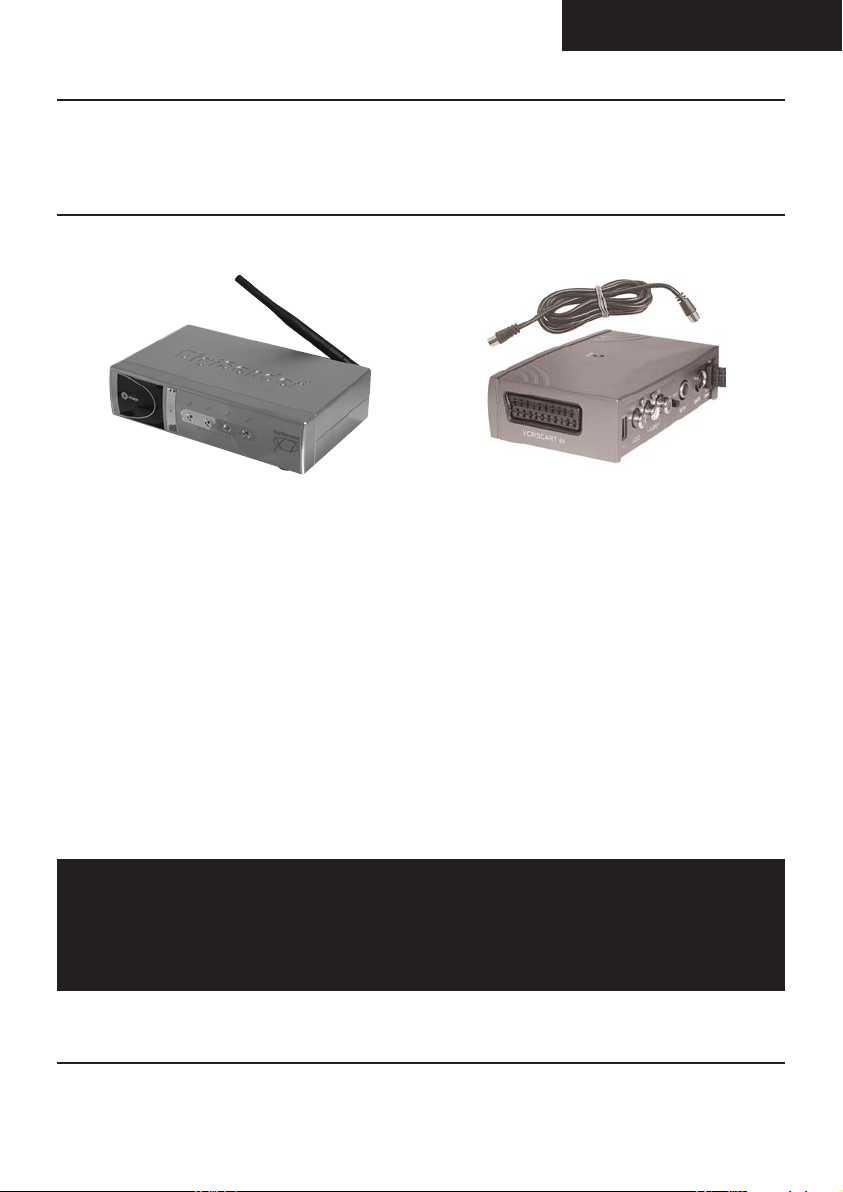

DigiSender® Transmitter
Page 4
DigiSender® Receiver
Online Support at www.digisender.net
continued...
ENGLISH
DG440 - DigiSender® X7
2 x RCA Phono - 4.5mm Jack Leads

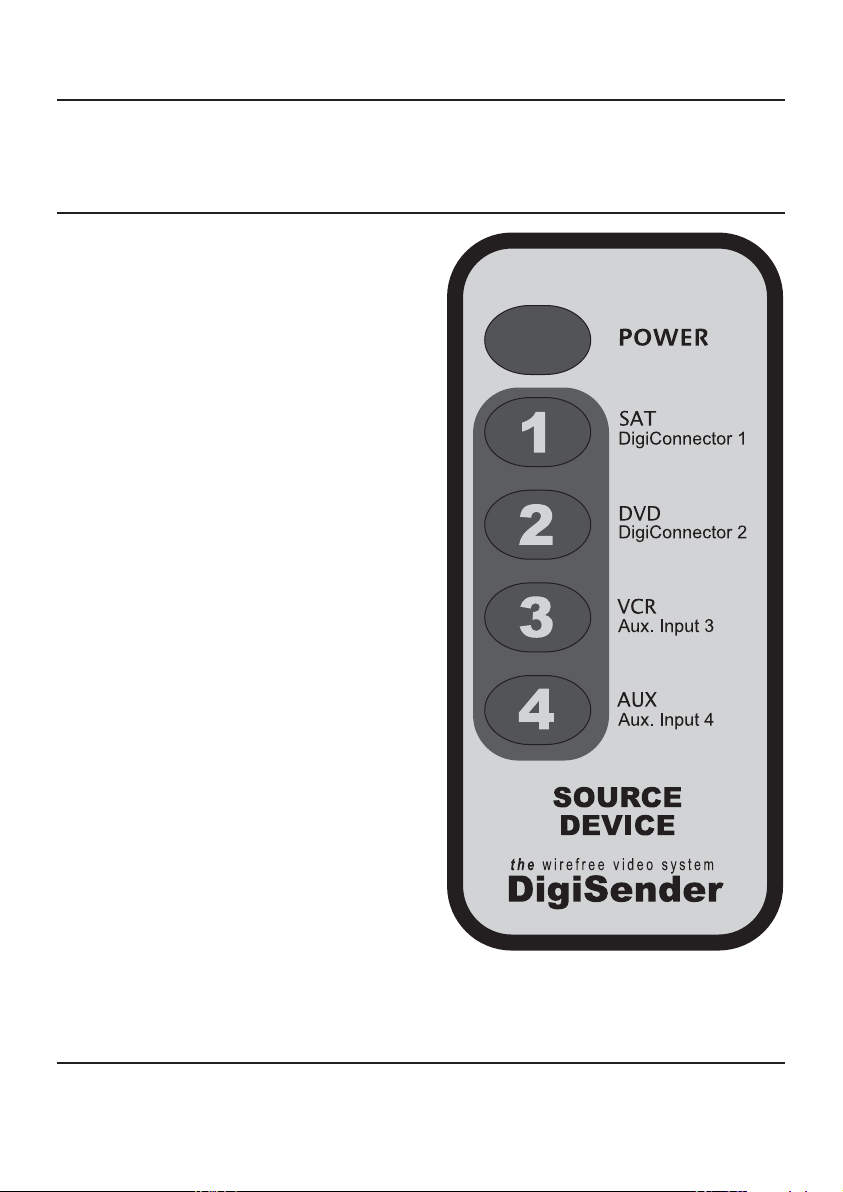

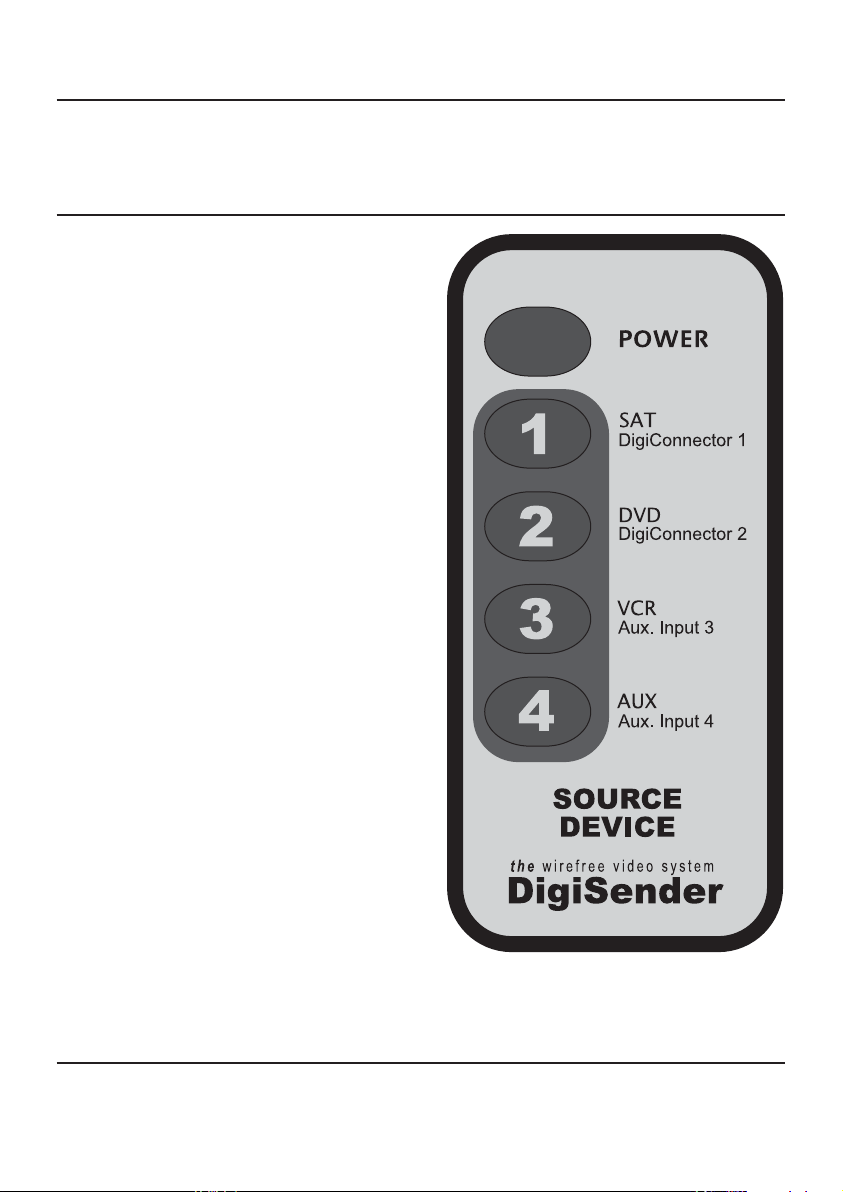

Remote Control
2 x Power Supply Unit
Please read this instruction manual carefully prior to installation
1x IR Systeme Technik IR Emitter
Page 5
DG440 - DigiSender® X7

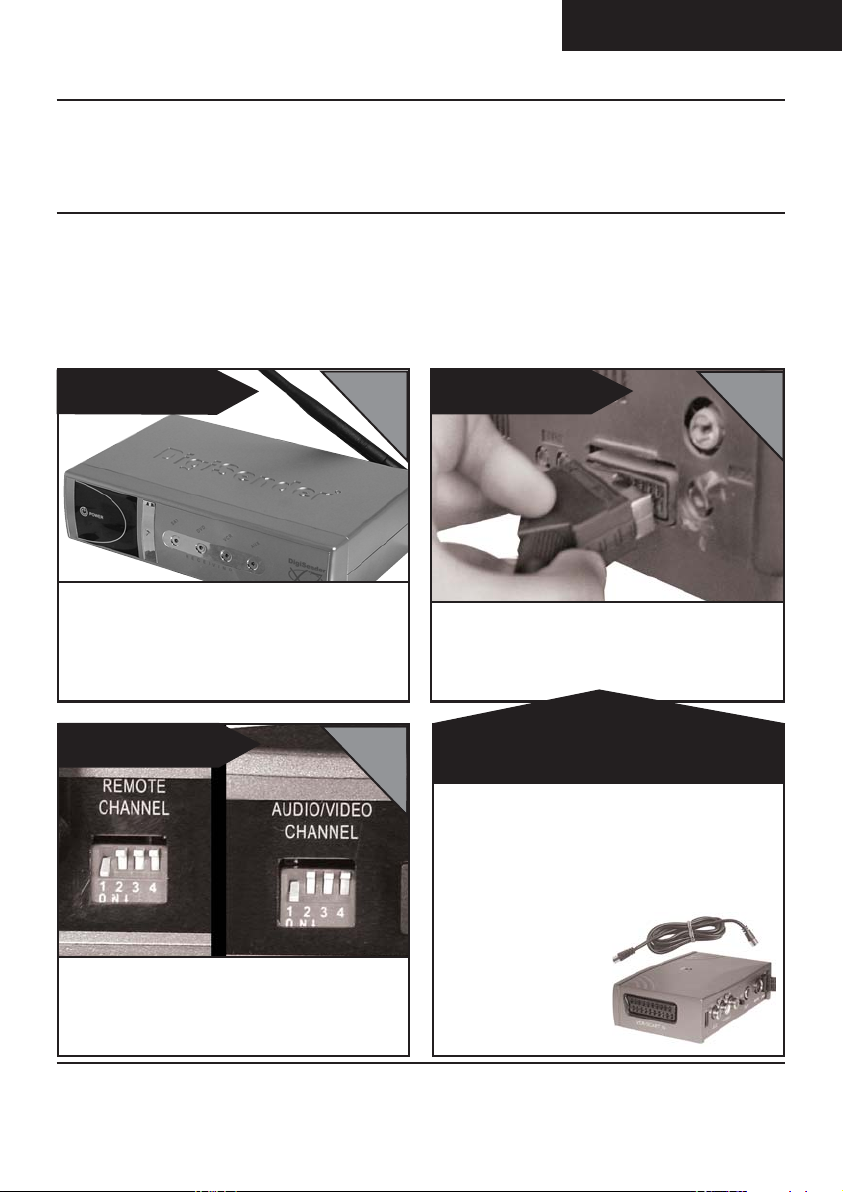

STEP 2

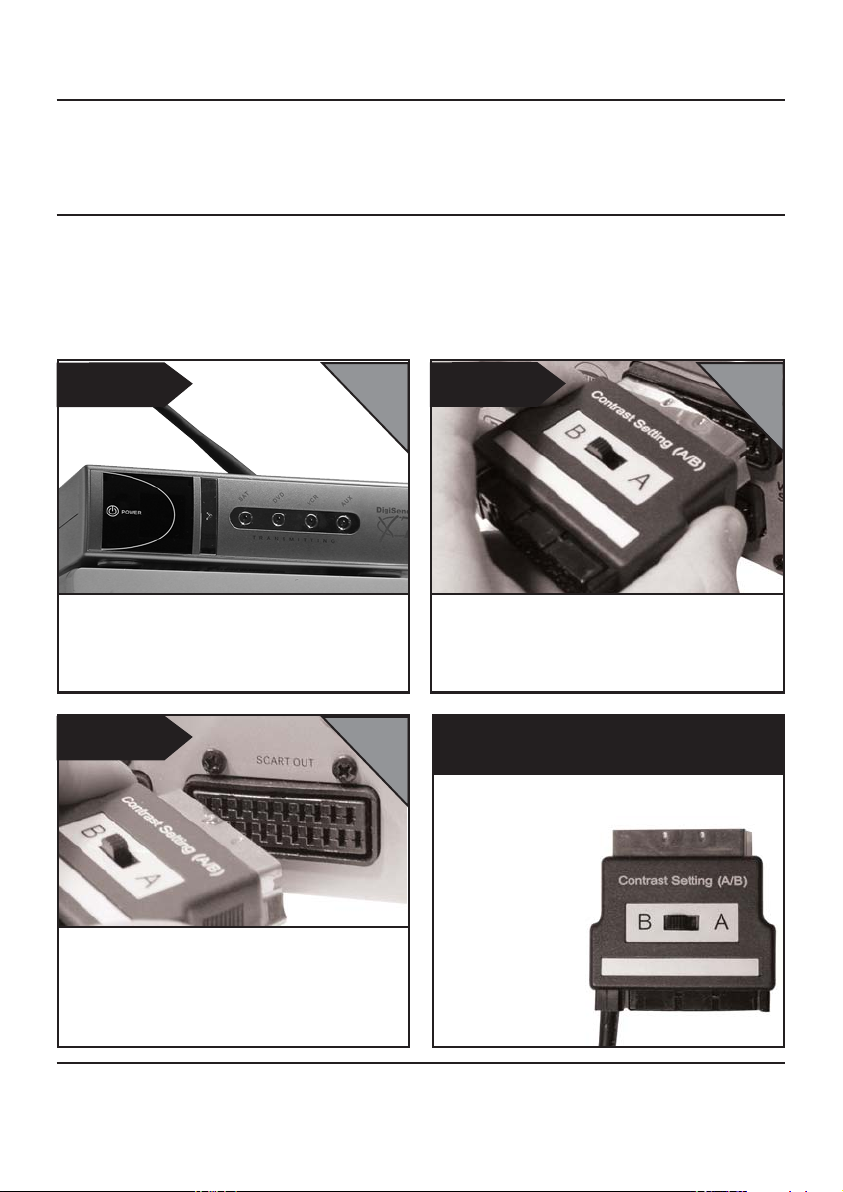

Install the DigiSender® X7 Transmitter Unit
The transmitter unit is designed to send video and sound from one of up to 4
connected sources to a receiver somewhere else in your home.
STEP 1
LIVING ROOM
Place the DigiSender® transmitter on a flat
surface near to your source equipment. Avoid
placing the transmitter directly on top of other
electrical devices (see troubleshooting guide)
LIVING ROOM
STEP 3
Connect DigiConnector™ 2 into your VCR or
DVD. Where available, use SCART sockets labelled
OUT or TV. Connect any existing SCART lead in to
the rear socket of the DigiConnector™
STEP 2
LIVING ROOM
Connect DigiConnector™ 1 into your satellite or
cable receiver. Use the SCART socket labelled ‘TV’
and connect any existing SCART lead (if present)
into the rear (socket) of the DigiConnector™.

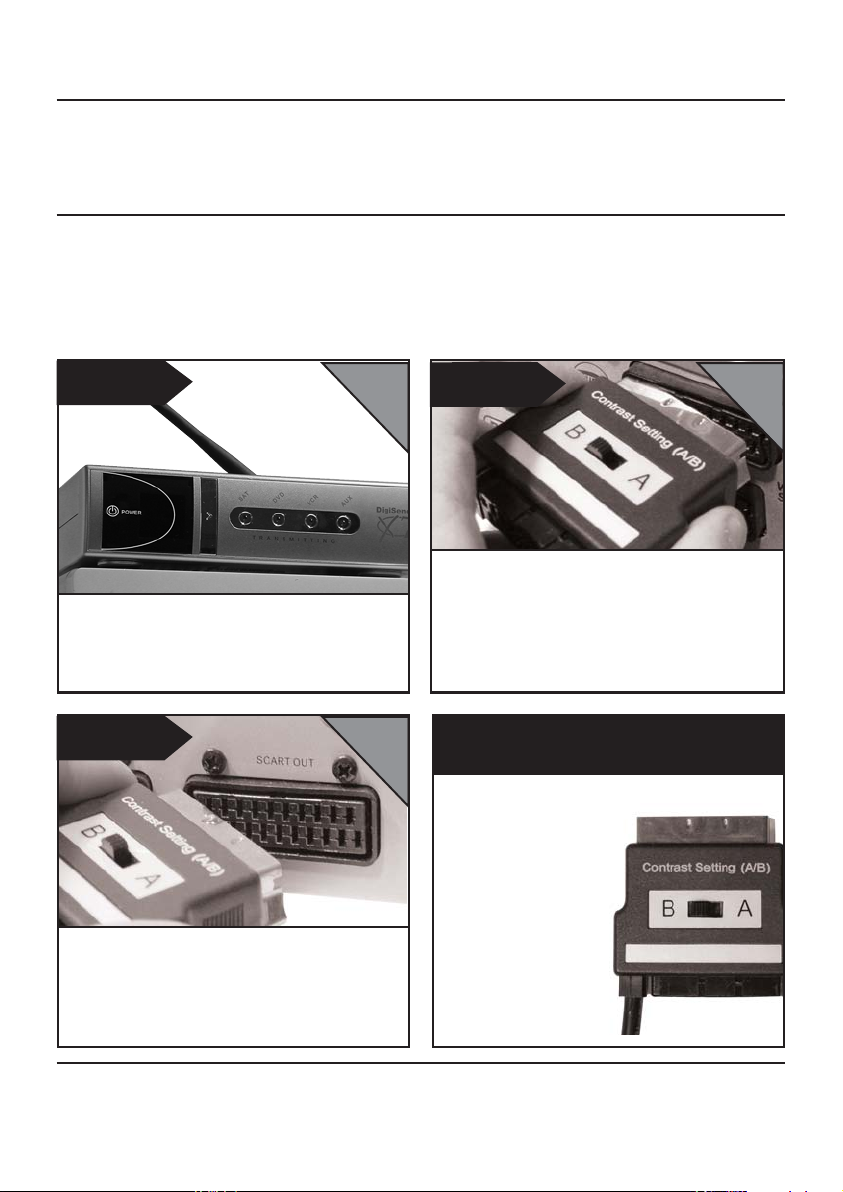

What’s the A/B switch for??
The Contrast A/B
switch is present
to compensate
for differences in
equipment/setups.
Once installation
is complete, if
you experience a
poor picture then
adjust the A/B
setting.
Page 6
Online Support at www.digisender.net
ENGLISH
DG440 - DigiSender® X7
continued...
Avoid positioning the transmitter near to 2.4GHz wireless enabled devices
such as modern games consoles, wireless controllers, laptops, DECT phones
or wireless networking equipment.

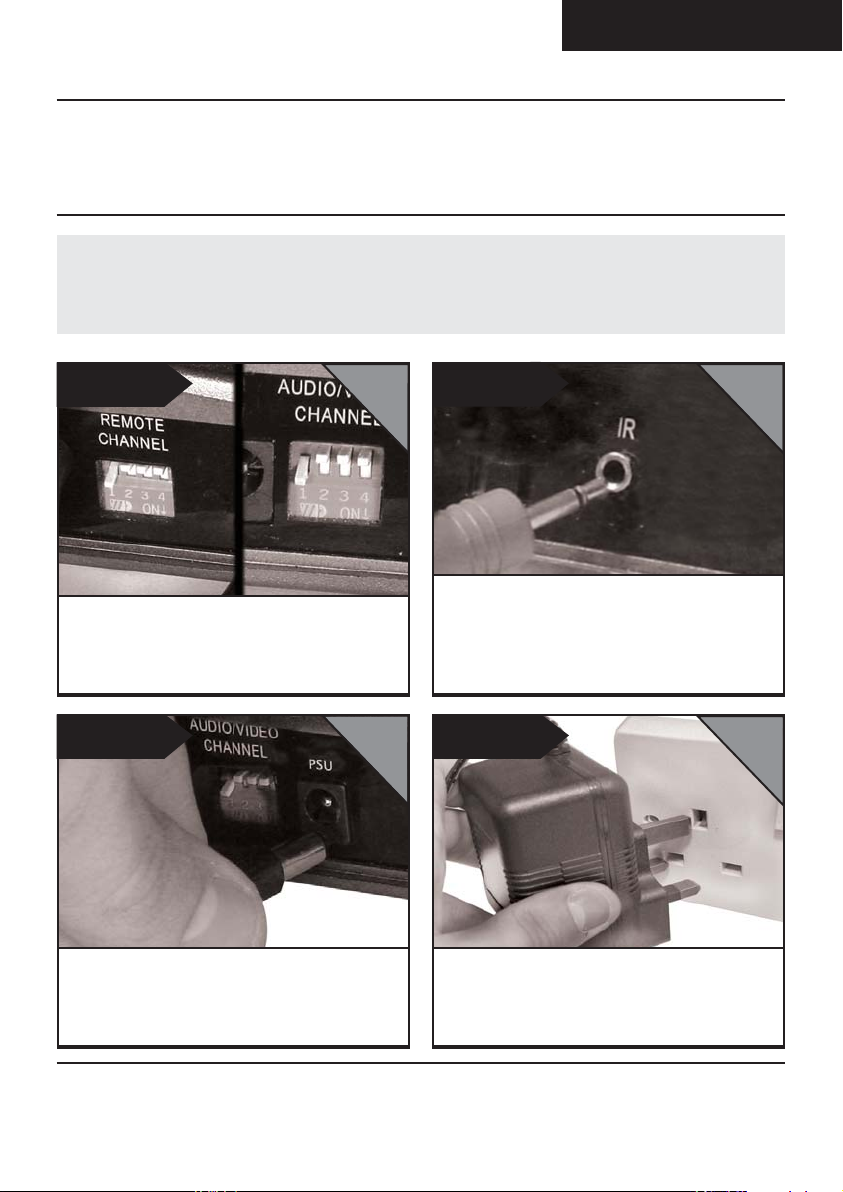

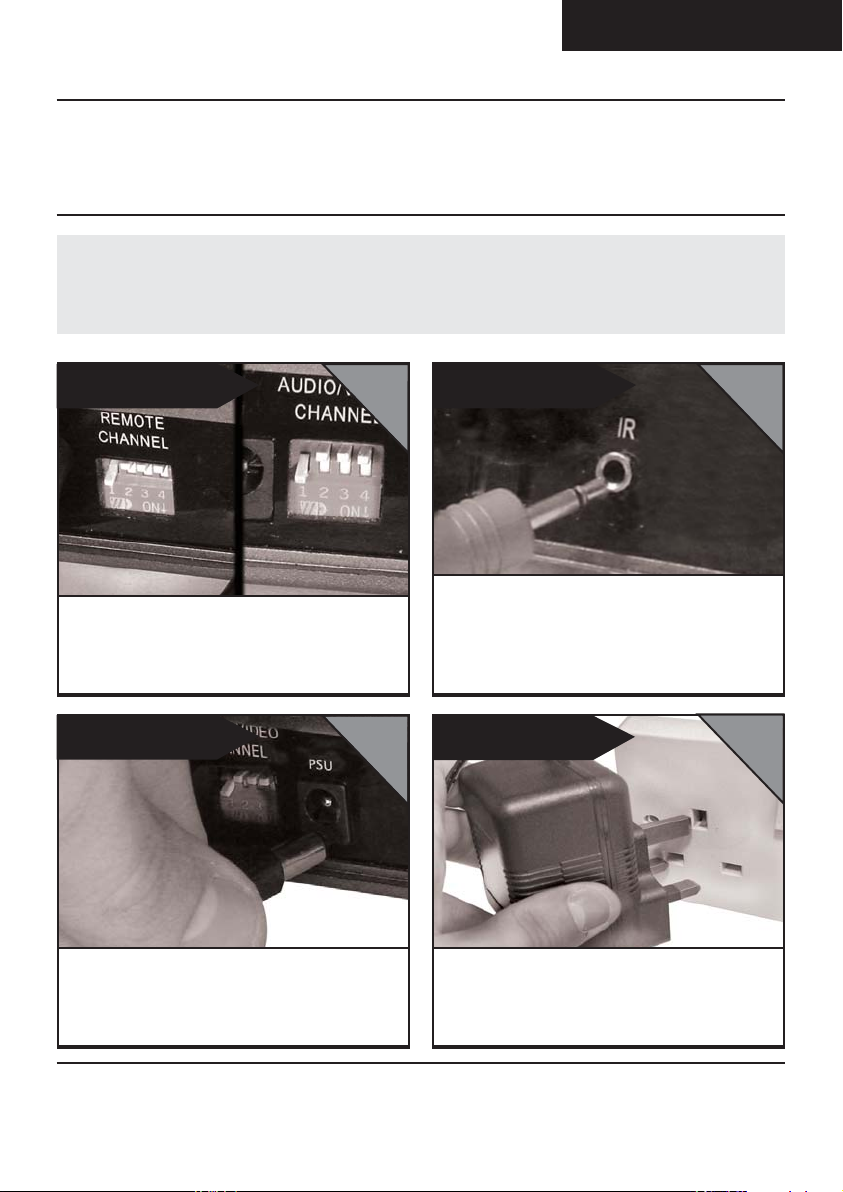

STEP 4
LIVING ROOM

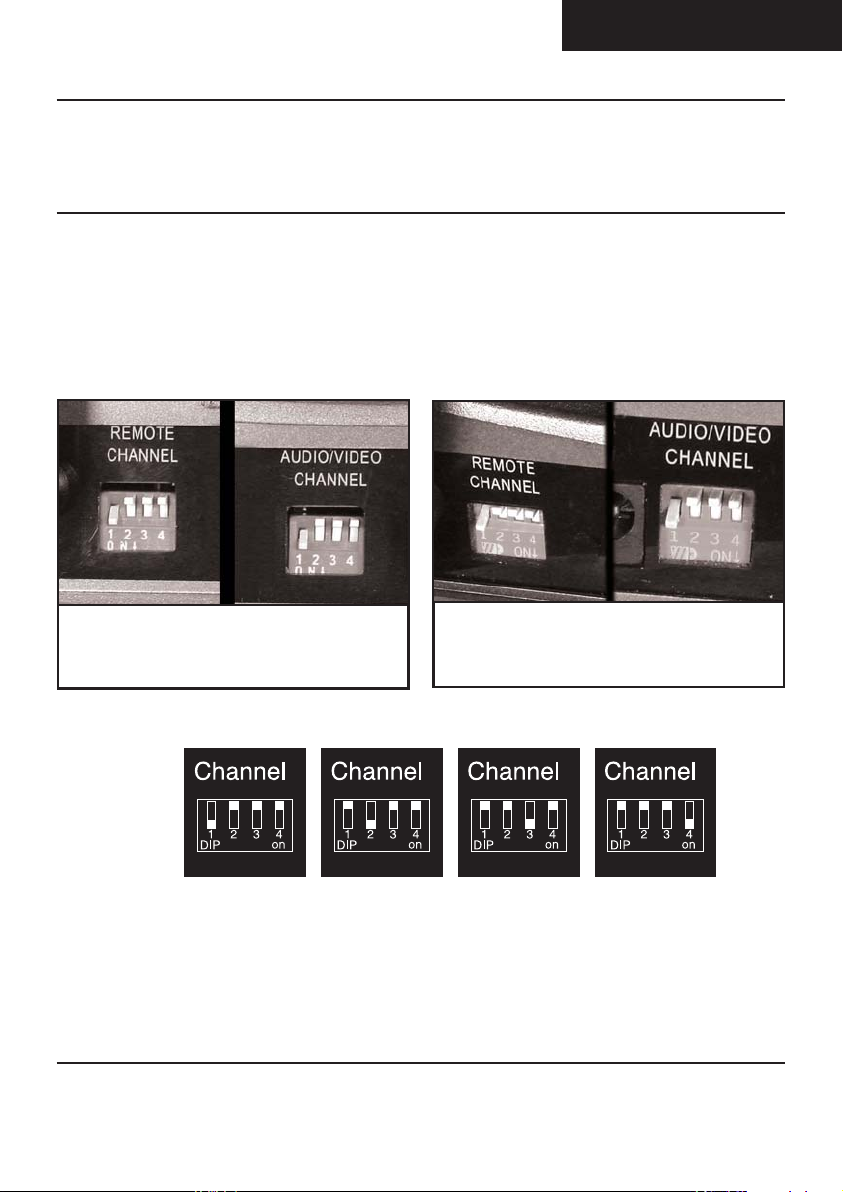

Ensure that both the A/V Channel and IR
Channel are set to 1.
See the trouble shooting sections for further
information on the channel selection process.
LIVING ROOM
STEP 6 STEP 7
STEP 5
Connect the IR Systeme Technik™ IR Emitter to
the socket labelled IR on the rear of the
transmitter. Follow the steps overleaf to install the
IR Systeme Technik™ IR Emitter.
LIVING ROOM
LIVING ROOM

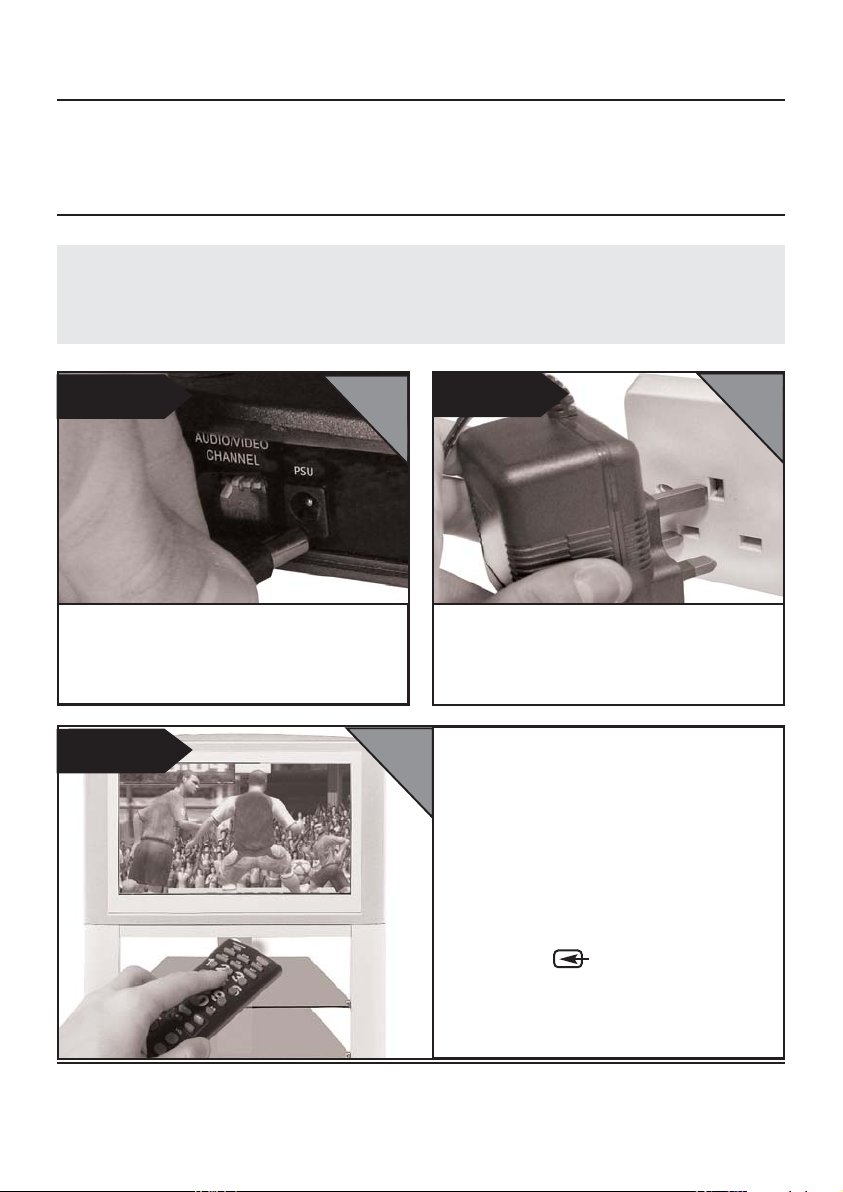

Connect the power supply unit to the socket
labelled PSU.
Connect the power supply unit (PSU) into an
available wall socket.Press the POWER button on
your DigiSender remote control to switch the
transmitter on.
Please read this instruction manual carefully prior to installation
Page 7
DG440 - DigiSender® X7
STEP 3

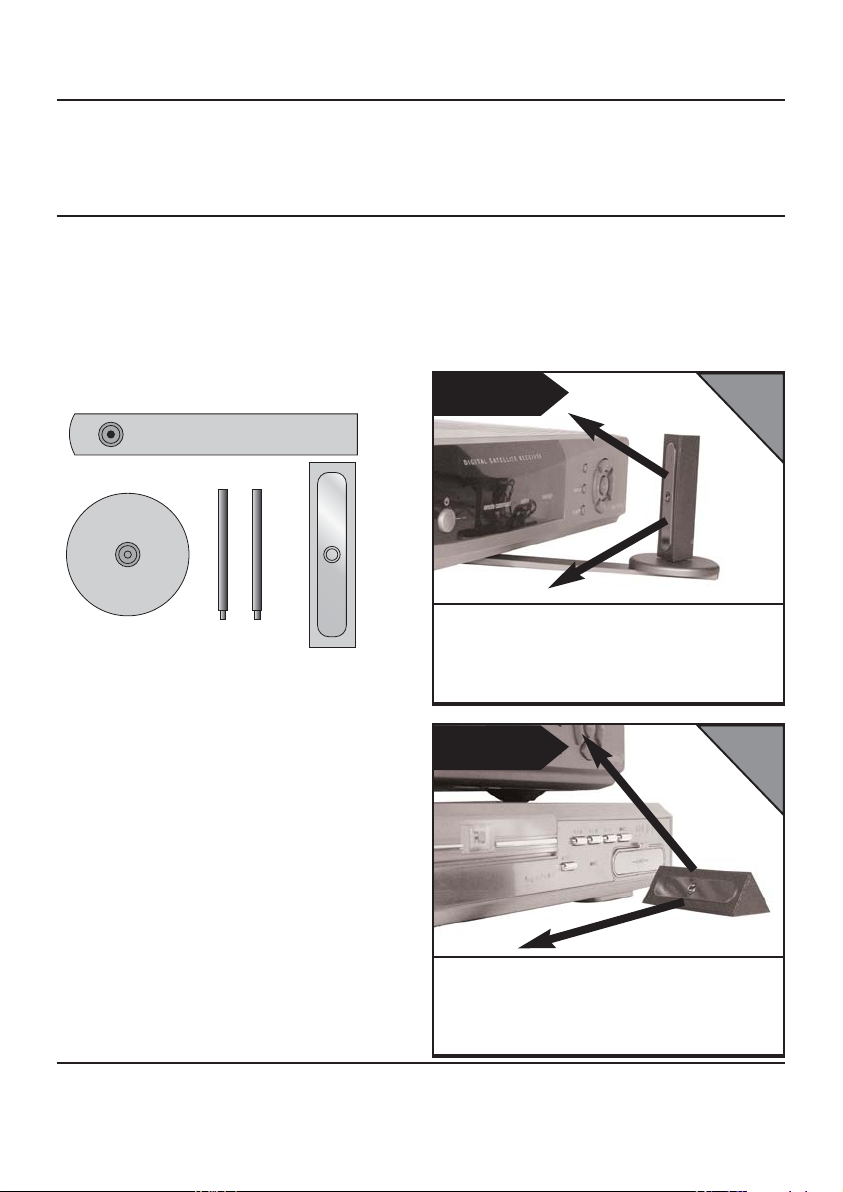

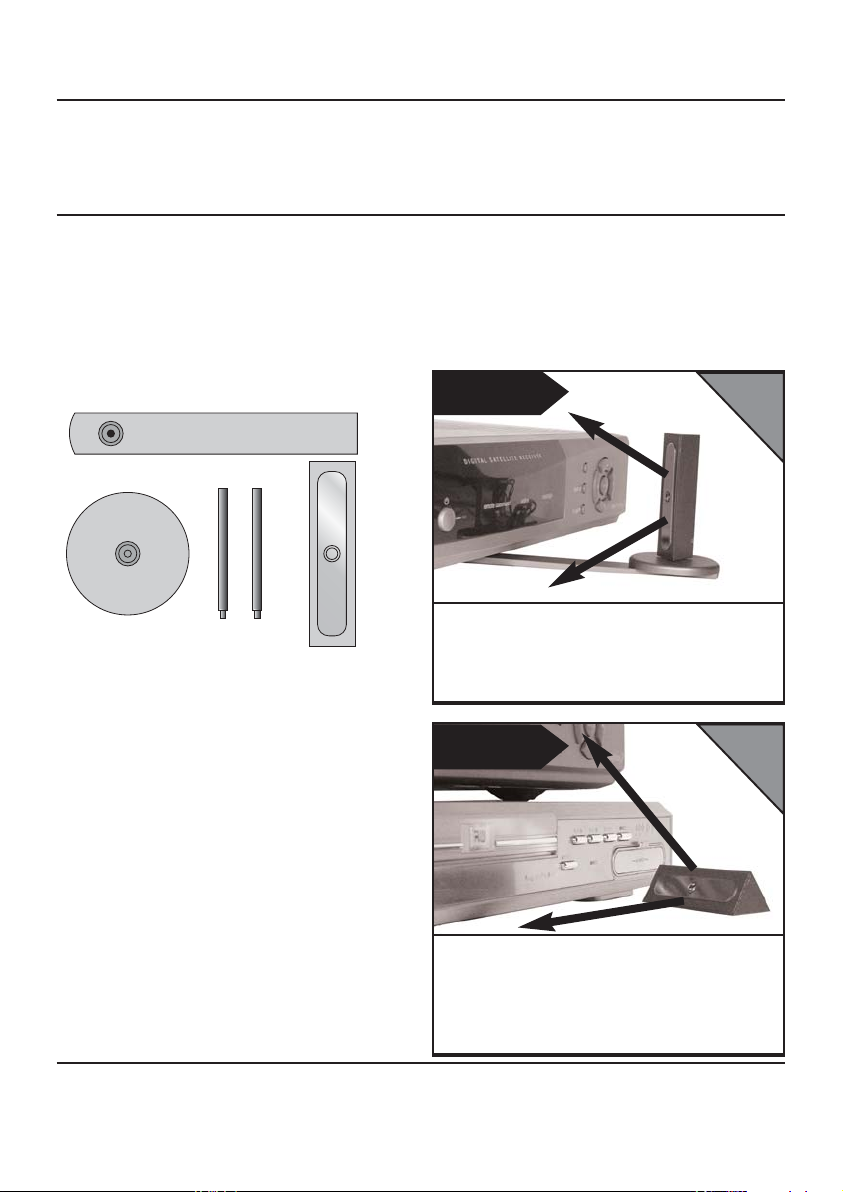

Install the IR Systeme Technik™ remote extender
Once set up correctly, the remote
extender will enable you to utilise your
remote control in the remote location in
your home.
Accessory #1
Accessory #2
Extension Pieces
IR Emitter
Because everyone’s set up is different
there are many ways you can install the
remote extender system.
LIVING ROOM
Ex. 1
Use accessories 1 and 2 to mount the IR Emitter
vertically with the IR emitting LED facing the
remote sensor of your source equipment.
LIVING ROOM
Ex. 2
Page 8
Mount the IR Emitter horizontally using the
supplied sticky pad. Ensure the IR emitting LED is
facing the remote sensor of the source equipment.
Online Support at www.digisender.net
ENGLISH
DG440 - DigiSender® X7
STEP 4

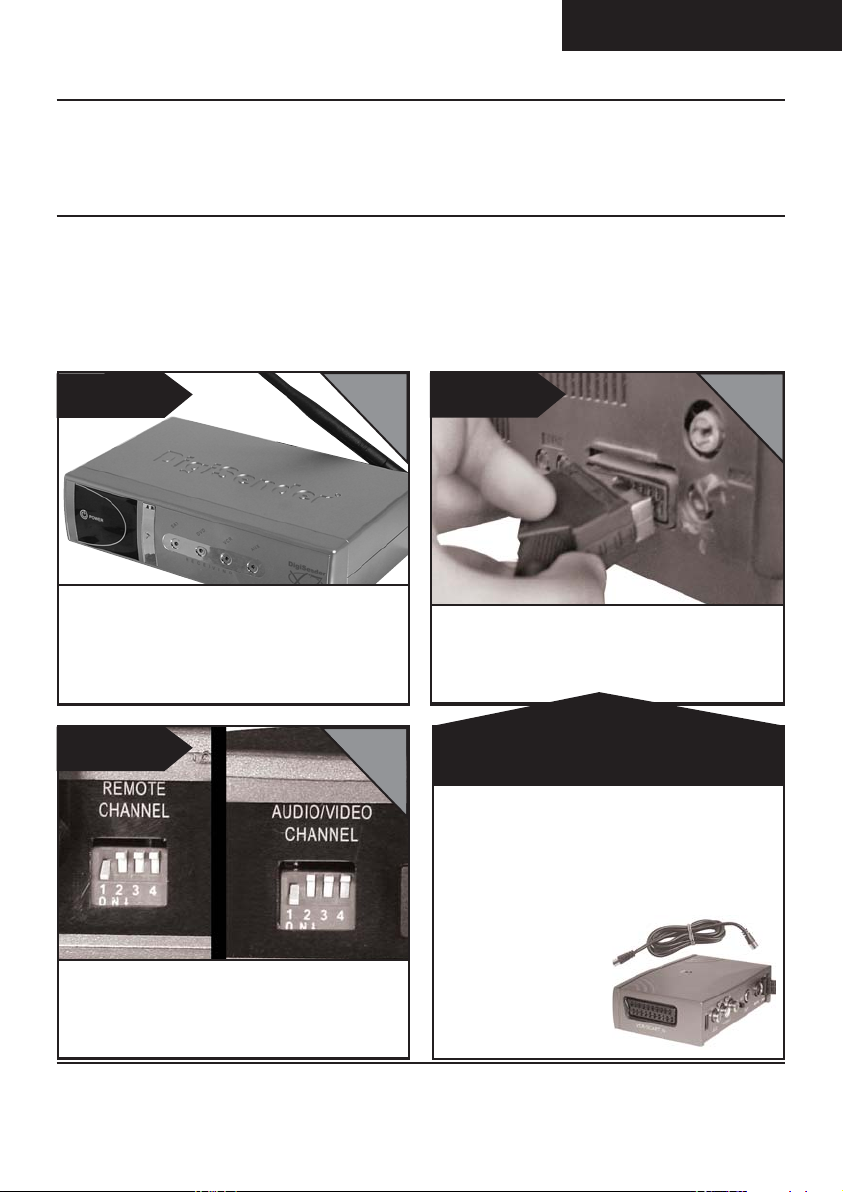

Install the DigiSender® X7 Receiver Unit
The DigiSender® X7 Receiver will pick up transmitted signals from the transmitter
unit and output them to a television. In addition, the receiver detects remote
controls being used in the second room and will send those signals to the source
equipment in your main lounge.
STEP 1
Place the DigiSender® receiver on a flat surface
near to your second television. Avoid placing the
receiver directly on top of other electrical devices
such as the television.
STEP 3
Ensure that both the A/V Channel and IR Channel
are set to 1.
See the trouble shooting sections for further
information on the channel selection process.
BEDROOM
BEDROOM
STEP 2
Connect the SCART output to the second
television.
BEDROOM
No SCART socket on the TV??
AEI produce an ‘Aerial
Convertor ‘ enabling
you to connect
the receiver to
any TV without a
SCART socket.
Ask for part
number
MOD01PIS
Please read this instruction manual carefully prior to installation
Page 9
DG440 - DigiSender® X7
continued...
Did you know? The receiver can be connected to a Hi-Fi unit using
the Left & Right Audio outputs on the rear of the DigiSender®receiver unit.
Phono cable may be required.

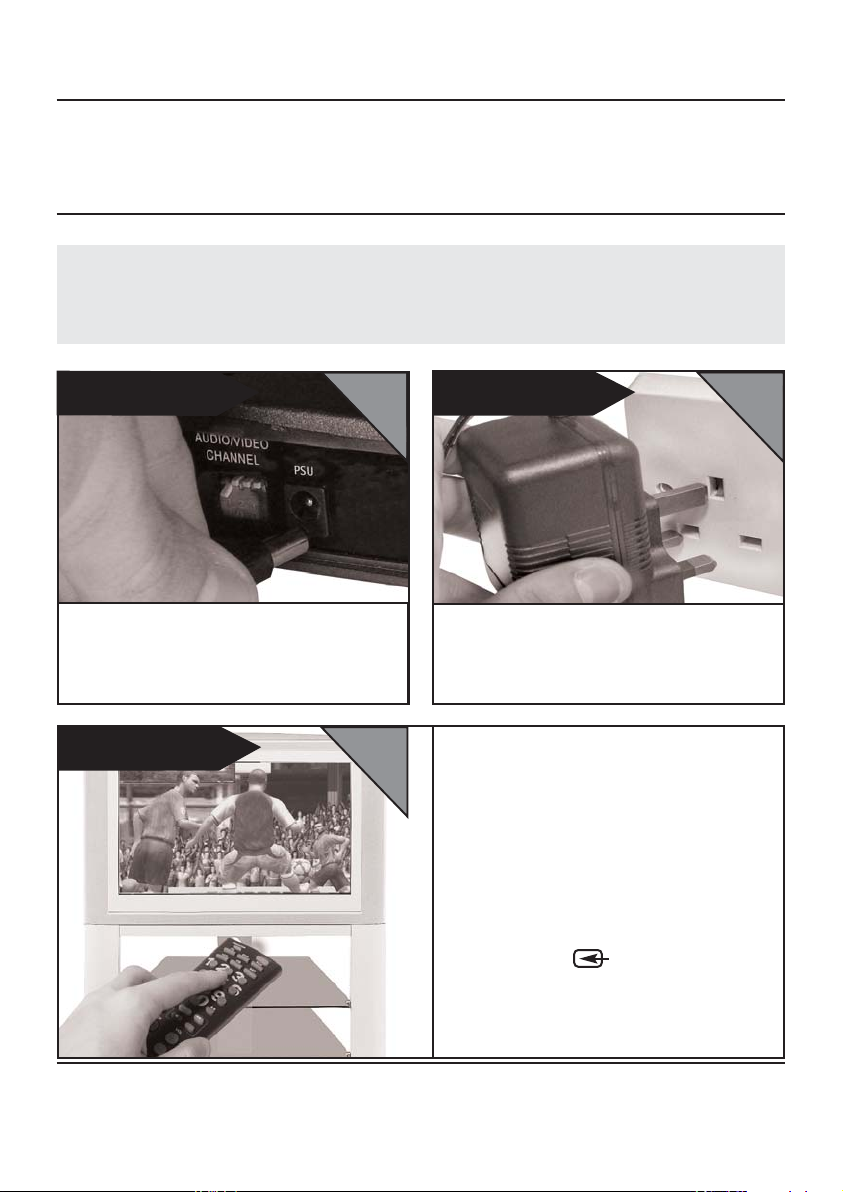

STEP 4
Connect the power supply unit to the socket
labelled PSU.
STEP 6
BEDROOM
BEDROOM
STEP 5
Connect the power supply unit (PSU) to an
available wall socket.
Press the POWER button on your DigiSender
remote control to switch the receiver on. The
power LED will be green to indicate the device is
switched on.
Switch on the second television and select it’s
SCART channel. This will be labelled on the
remote control as one of the following buttons:
AV, VIDEO, VCR, AUX, SCART,
EXT, 0
BEDROOM
Page 10
Refer to your tv’s manual for further assistance.
Online Support at www.digisender.net
STEP 5

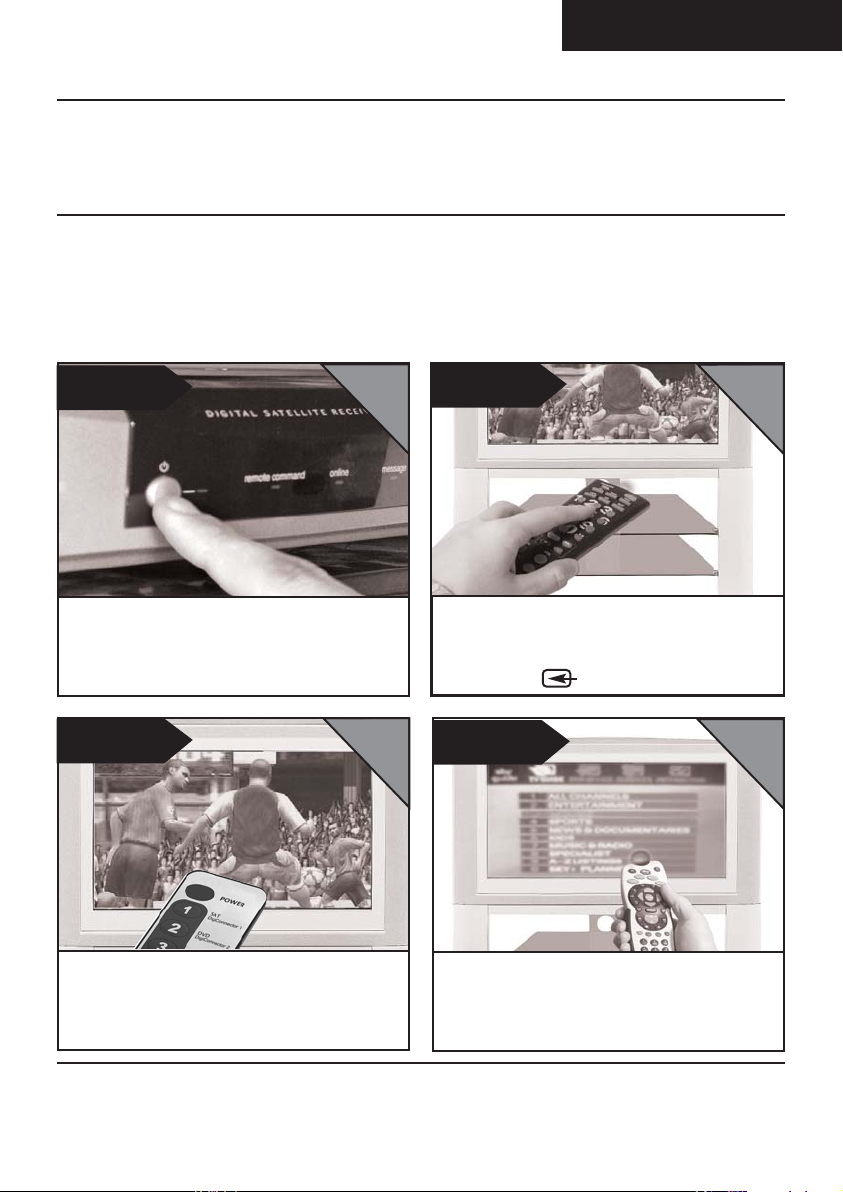

Using the DigiSender® X7
ENGLISH
DG440 - DigiSender® X7

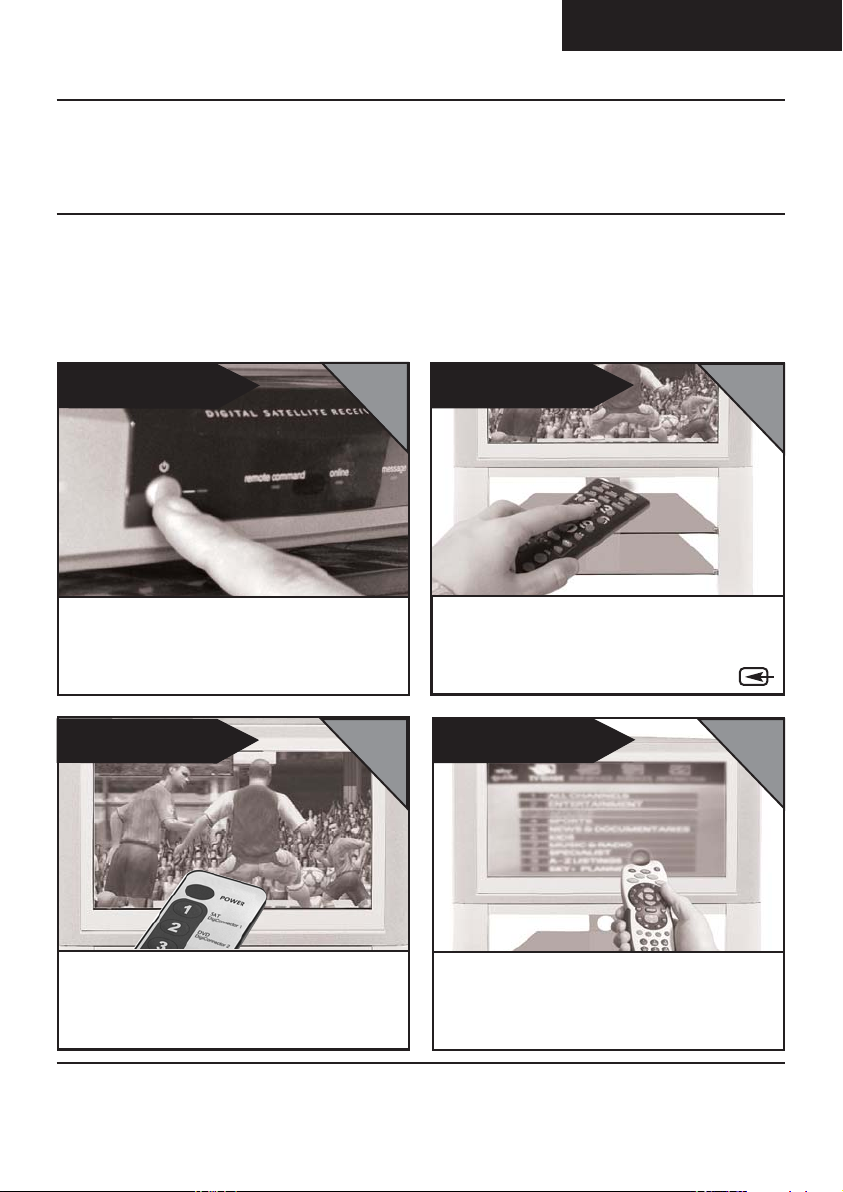

The DigiSender® X7 is designed to be
simple to use once set up.
STEP 1
Switch on the source equipment such as your
satellite receiver or DVD player.
STEP 3
LIVING ROOM
BEDROOM
The supplied remote control can be
used to switch between sources, such
as Satellite/Cable, DVD and VCR.
STEP 2
Select the SCART channel on the second television
using the televisions remote control. Look for a
button labelled AUX, AV, VIDEO, VCR or .
STEP 4
BEDROOM
2nd TV
REMOTE
CONTROL
BEDROOM
DIGISENDER
REMOTE
CONTROL
Select the correct source device using the
supplied remote control pointed at the
DigiSender® receiver - see opposite.
Use your original source equipment remote control
to control what channel you watch or your DVD
player or VCR.
SOURCE
REMOTE
CONTROL
Please read this instruction manual carefully prior to installation
Page 11
DG440 - DigiSender® X7
continued...
Transmitter Source Select Controls.
The POWER button toggles the
DigiSender transmitter and receiver
mode between STANDBY and ON. The
power LED indicates the current mode
- GREEN for ON, RED for STANDBY.
Press 1,2,3 or 4 with the remote
pointing at your receiver, to select a
device connected to your DigiSender®
transmitter. For example you could
switch between your satellite/cable,
DVD, VCR and CCTV camera from your
bedroom.
1 = DigiConnector 1
2 = DigiConnector 2
3 = RCA Input 3
4 = RCA Input 4
Please use your original or compatible
remote controls to control your source
equipment. The supplied remote
control cannot be used to achieve
this.
Page 12
Online Support at www.digisender.net
ENGLISH
DG440 - DigiSender® X7
Audio/Video Channel
Remote Relay Channel
The DigiSender® X7 features 4 audio/video channels and 4 primary remote relay
channels. For the unit to function correctly the audio/video channel must be set
the same on both the transmitter and receiver. Also, the remote relay channel
must be the same on both the transmitter and receiver.
Receiver Channel Settings
Channel 1 Channel 2 Channel 3 Channel 4
1
2
3
4
Please read this instruction manual carefully prior to installation
ON
OFF
OFF
OFF
OFF
ON
OFF
OFF
Transmitter Channel Settings
OFF
OFF
ON
OFF
OFF
OFF
OFF
ON
Page 13
DG440 - DigiSender® X7
TROUBLESHOOTING
Picture Problems
ST ART
HERE
Q: What do you
see on your
second
television?
The picture is present but
poor quality
I see black or blank screen
I see a snowstorm effect or
plain blue screen
Switch OFF your
DigiSender®
TRANSMITTER.
Q: What do you now
see at the second
television?
Switch OFF your
DigiSender®
RECEIVER.
I see lines over the picture
Page 1
Page 14
Q: What do you now
see at the second
television?
This indicates one or more electrical devices are interfering
with the DigiSender®. To ascertain the source of the
interference, switch OFF any wireless networking equipment,
laptops, 2.4GHz DECT phones, games consoles or bluetooth
devices. Try all 4 audio/video channels as one or more may still
be available. Visit digisender.net or contact our helpline for
information on configuring your equipment to work together.
Online Support at www.digisender.net
ENGLISH
DG440 - DigiSender® X7
continued...
1. Adjust the Contrast A/B switch on the transmitter
2. Try the 3 other available channels ensuring that the audio/video channel is set to the same on both the
transmitter and receiver
3. Ensure the units are within the usable range, normally this would be 40m when passing through 2
average internal walls. Thicker or stone/granite walls may lower the usable range of this device.
4. Switch off any wireless computer network devices, 2.4GHz DECT cordless phones & microwave ovens.
1. Switch the transmitter back on.
2. Ensure the correct SCART channel is selected on your
Still a Black Screen...
second television. Some televisions feature multiple channels
for one or more SCART, phono and S-Video inputs.
3. If available try another SCART socket on the remote
television
It’s now a snowstorm or blue
1. Switch the transmitter back on.
2. Ensure the transmitter is connected to your source device not your main television.
3. Ensure that the source equipment is switched on (such as
your satellite, cable or freeview box)
4. Ensure the source device (such as your satellite receiver or
DVD) is set to output CVPAL, PAL or COMPOSITE.
Incompatible types include S-VIDEO and RGB.
Black Screen
1. Switch the DigiSender® Receiver back on
2. Ensure the DigiSender® Transmitter is switched on
3. Select a different audio/video channel ensuring an identical
channel is chosen on both the transmitter and receiver
Still Snowstorm or Blue...
4. Switch off any wireless cameras and/or networks in your
household.
This indicates the SCART Channel has NOT been selected on
the second television. Look for buttons on this televisions
remote control which could select the AV Channel such as
EXT, AV, VIDEO, VCR, AUX, Channel 0 AND .
Please read this instruction manual carefully prior to installation
Page 15
DG440 - DigiSender® X7
TROUBLESHOOTING
Sound Problems
Please follow the guide below if you experience any trouble with the picture and
sound. If this guide does not solve your problem please call our customer care line
on 0845 1667940 for further assistance or email advice@digisender.net.
ST ART
HERE
Q: What seems to
be the problem
with the sound?
I can see the picture but
can’t hear anything.
The sound is distorted.
There is a buzzing sound
present. It seems to get
worse during on-screen
menus or bright pictures.
There is a hissing sound
and the volume must be
turned up high on the
second TV to hear
anything.
1. Disconnect both the transmitter
AND receiver SCART’s. Reconnect the
leads ensuring they are pushed into
the sockets firmly.
2. If you are using a home cinema
DVD player with surround sound,
please ensure the analogue audio
output on SCART is switched on.
Turn down the volume on the source
device such as your satellite/cable
receiver or DVD player.
Change the Contrast A/B setting on
the transmitter DigiConnector™
connected to the offending
equipment.
1. Turn the output volume UP (if
possible) on the source equipment,
such as your satellite/cable receiver
or DVD player.
2. Ensure the transmitter and receiver
are within the usable range (40m avg)
3. Switch off your microwave oven if
present.
Page 1
Page 16
Online Support at www.digisender.net
ENGLISH
DG440 - DigiSender® X7
TROUBLESHOOTING
Remote Control Extender
If you have any difficulty operating your source equipment remote control in
your second room please follow the advice below below:
1) Ensure the IR Systeme Technik™ IR Emitter is connected to the DigiSender®
transmitter.
2) Ensure you are using the correct remote control in the second room. For
instance, if you are trying to control your satellite channel you will need to use
the satellite remote control.
3) Ensure the IR Systeme Technik™ IR Emitter is facing the remote sensor on your
source equipment.
4) Move the IR Emitter further away from the source equipment using the
supplied extension accessory.
5) Move the transmitter AND receiver further away from other electrical devices.
6) Choose a new remote relay channel taking care that the same channel is
selected on both transmitter and receiver.
7) Operate the remote control closer to the DigiSender® receiver.
8) Replace the batteries in the source remote control.
Please read this instruction manual carefully prior to installation
Page 17
DG440 - DigiSender® X7
Customer Care & Technical Support
AEI Security & Communications Ltd is
dedicated to providing our customers
with first class customer care and
technical support.
We have provided you with 3 methods
of obtaining technical advice on this
product.
During busy periods we would suggest
using the web and e-mail options to
obtain support.
1. On the web...
Free technical advice is available online 24/7 at
our dedicated support web site:
http://www.aei.eu
2. By e-mail...
You can contact our engineers by e-mail. Please
be sure to clearly explain your problem and the
model you have purchased.
advice@digisender.net
3. By telephone...
We have a dedicated helpline, Monday to Friday,
9AM - 5PM. The telephone helpline is available
to UK customers only.
Please note that calls are charged at the local
rate and your call may be recorded for training
purposes.
Page 1
Page 18
0845 166 7940
Online Support at www.digisender.net
Upgrades & Accessories
ENGLISH
DG440 - DigiSender® X7

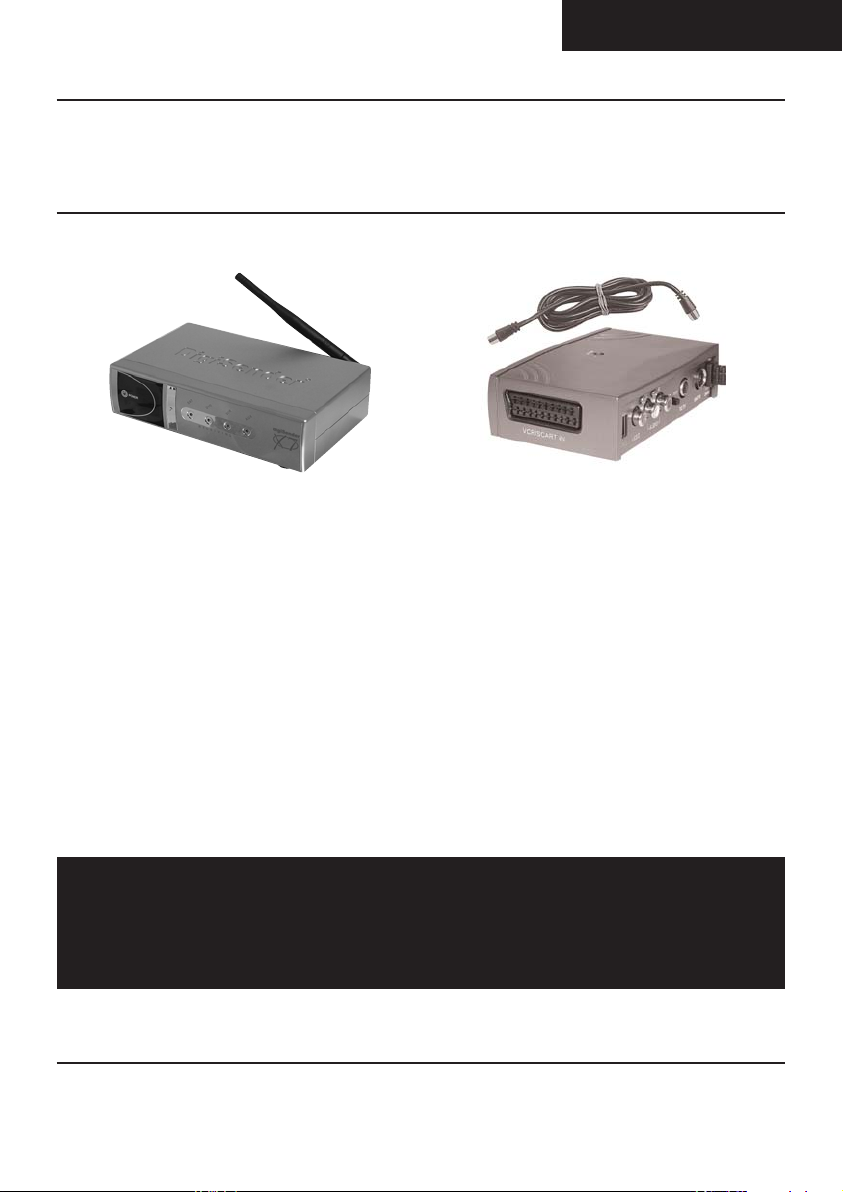

DigiSender® Receiver - Part DG44RX
• Add as many receivers as you require
to your DigiSender® system
• Connect to any SCART enabled
television or use with the MOD01PIS
Aerial Converter
• Supplied with PSU
• Requires DigiSender®, PCSender™,
or Baby Monitor transmitter
Aerial Convertor - Part MOD01PIS
• Connect a DigiSender® receiver to an
aerial socket on your T.V.
• Shares the power supply with your
DigiSender
• Test Card signal for easy set up
• Compatible with every UK television
• Adds the DigiSender® signal to your
existing aerial signal
http://www.digisender.net
for the latest info, upgrades and technical support
Please read this instruction manual carefully prior to installation
Page 19
DG440 - DigiSender® X7
Einführung
DigiSender® X7 – Hochwertiges kabelloses VideoSendesystem
Wir gratulieren Ihnen zum Kauf Ihres
DigiSender® X7. Dieses Produkt bietet
modernste kabellose Video- und InfrarotTechnologie und ist dabei ausgesprochen
preiswert.
Das System lässt sich weiter aufrüsten. Sie
können es durch zusätzliche Empfänger,
Antennenumschalter, kabellose BabyÜberwachungskameras und zahllose andere
Zusatzgeräte erweitern.
Das Besondere am DigiSender® X7 ist, das er mit
nahezu allen aktuellen Satellitenempfängern,
Kabelempfängern, Videorekordern, DVD-Playern
und Freeview-Receivern auf dem Markt
kompatibel ist.
Sie haben auch die Möglichkeit, das
Ausgangsgerät zu wechseln, während Sie
bequem im Bett liegen. Sie können zwischen
Videorekorder, DVD-Player und Satelliten/Kabelempfänger umschalten, ohne den Sender
zu beeinflussen, der auf Ihrem
Hauptfernsehgerät läuft.
Genießen Sie 4 Videokanäle, kristallklaren
Stereosound in Hi-Fi-Qualität und digitale
Kommunikation mit erstaunlicher Flexibilität.
Mit dem Kauf dieses DigiSender® Systems
haben Sie in die neueste kabellose
Kommunikationstechnologie für daheim
investiert.
Seite 20
Onlinesupport an www.digisender.net
WARNUNG
Um Schaden zu vermeiden,
setzen Sie dieses Gerät keinem
Regen oder Feuchtigkeit aus.
SCHRITT 1
DigiSenderDigiSender
TRANSMITTINGTRANSMITTING
SATSAT
VCRVCR
DVDDVD
AUXAUX
POWER
DigiSenderDigiSender
RECEIVINGRECEIVING
SATSAT
VCRVCR
DVDDVD
AUXAUX
POWER

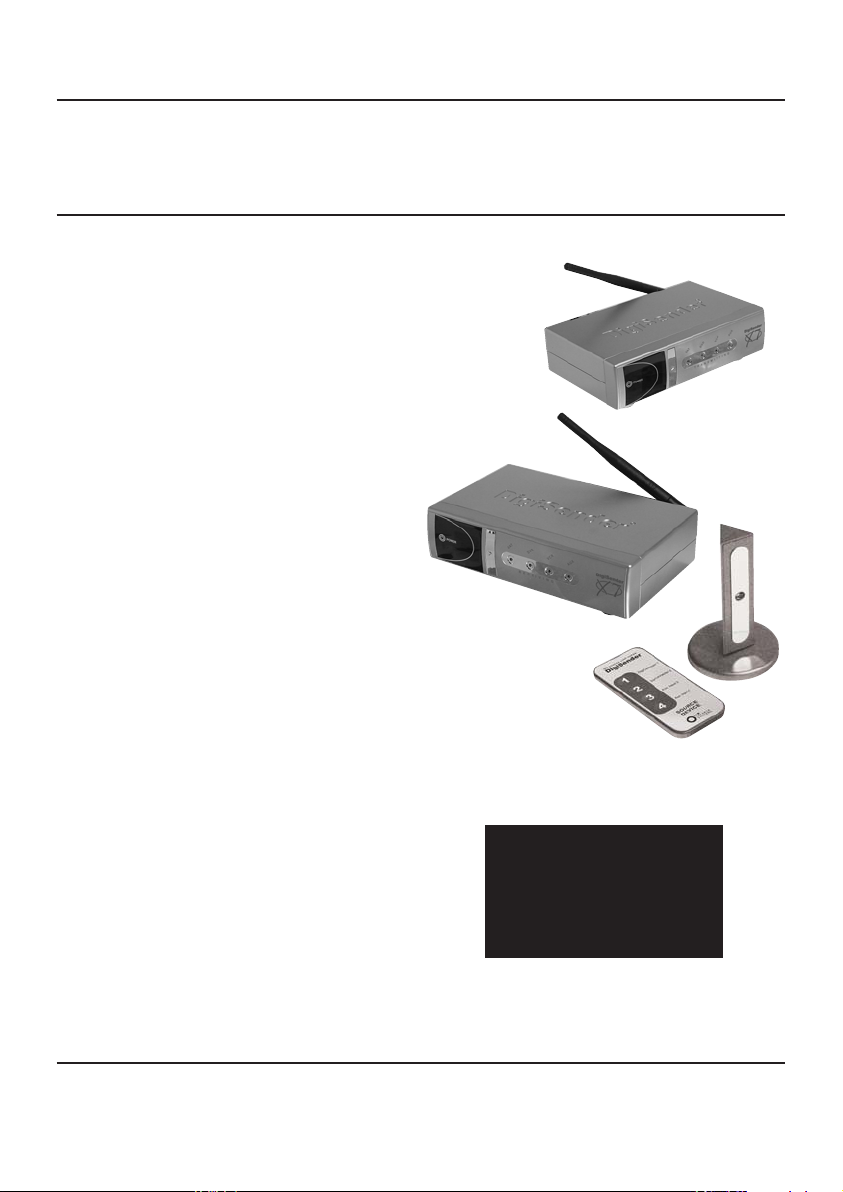

INHALT Überprüfung des Packungsinhalts
Alle Pakete werden von einem
Computer bei der Verpackung
auf Ihr Gewicht geprüft. Es ist
jedoch eine gute Idee zu
überprüfen, ob alle
angegebenen Teile vorhanden
sind, bevor Sie mit der
Installation fortfahren.
2x Audiokabel
DEUTSCH
DG440 - DigiSender® X7
IR System Technik™
DigiSender® Fernbedienung
2 x Stromversorgung
DigiSender® Sender
DigiSender® Empfänger
Seite 21
DG440 - DigiSender® X7
SCHRITT 2 - Installieren Sie die DigiSender® X7
Sendereinheit
Der Transmitter überträgt Videobilder und Ton von einem der bis zu 4
angeschlossenen Ausgangsgeräte an einen Empfänger in einem anderen Raum.
AUFENTHALTSRAUM
SCHRITT 1
Stellen Sie den DigiSender® Transmitter auf eine
ebene Fläche in der Nähe Ihres
Hauptfernsehgeräts. Der Transmitter darf nicht
direkt auf andere Elektrogeräte gestellt werden.
AUFENTHALTSRAUM
SCHRITT 3
Schließen Sie den DigiConnector™ 2 an Ihren
Videorekorder oder DVD-Player an. Verwenden Sie
dazu, falls verfügbar, die SCART-Buchsen mit der
Aufschrift „OUT“ (Ausgang) oder „TV“. Schließen
Sie ein verfügbares SCART-Kabel an die Buchse an
der Rückseite des DigiConnector™ an.
AUFENTHALTSRAUM
SCHRITT 2
Schließen Sie den DigiConnector™ 1 an Ihren
Satelliten- oder Kabelempfänger an. Verwenden
Sie die mit „TV“ beschriftete SCART-Buchse und
schließen Sie ein verfügbares SCART-Kabel an die
Buchse an der Rückseite des DigiConnector™ an.
Wozu dient der A/B-Schalter?
Mit dem Schalter
„Contrast A/B“
(Kontraste) können
Unterschiede bei den
Geräten/Einstellungen
ausgeglichen werden.
Falls die Bildqualität
nach der Einrichtung
des Geräts schlecht
ist, können Sie die
A/B-Einstellung
anpassen.
Seite 22
Onlinesupport an www.digisender.net
Loading...
