AEG-Electrolux WASL6E100 User Manual

User Manual

Washing Machine

WA SL6E100

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will
provide you with lots of pleasure in the future. The Electrolux ambition is to offer
a wide variety of quality products that make your life more comfortable. You find
some examples on the cover in this manual. Please take a few minutes to study
this manual so that you can take advantage of the benefits of your new
machine. We promise that it will provide a superior User Experience delivering
Ease-of-Mind. Good luck!

3

The following symbols are used in this manual:

Important information concerning your personal safety and information on how to
avoid damaging the appliance

General information and tips

Environmental information

Contents

4

Contents

Instruction booklet

Safety information 6-9

Product Description 10

Detergent dispenser drawer 10

Control panel 11

Display 11

First use 12

Setting the language 12
Setting the time 12

Personalization 12

Setting the brightness 13
Setting the contrast 13
Setting the acoustic signal 13
Return to main menu 13

Daily use 15

Load the laundry 15
Measure out the detergent and the fabric softener 15
Select the required programme 16
Select the temperature 16
Select the spin speed, Rinse Hold or Night Cycle option 16-17
Select the options 17
Select the PREWASH option 18
Select the STAIN option 18
Select the SENSITIVE option 19
Select the EXTRA RINSE option 19
Select the QUICK option 19

Contents

Select the SAVE MEMORY option 20
Select the CHILD LOCK option 21
DISPLAY 21
Select the START/PAUSE 23
Select the DELAY START 23-24
Altering an option or a running programme 24
Interrupting a programme 24
Cancelling a programme 24
Opening the door after the programme has started 25
At the end of the programme 25

Washing programmes 26-29

Programme informations 30

Washing hints 31-35

Sorting the laundry 31
Temperature 31
Before loading the laundry 31
Maximum loads 32
Laundry weights 32
Removing stains 33
Detergents and additives 35
Quantity of detergent to be used 35

5

International wash code symbols 36

Care and cleaning 37

Descaling 37
After each wash 37
External cleaning 37
Detergent dispenser drawer 37
Drain pump 38-39
Water inlet filter 39
Frost precautions 40

Contents

6

Emergency emptying out 40

Something not working 41-45

Technical Data 46

Consumption value 47

Installation 48

Unpacking 48-49
Positioning and levelling 50
Water inlet 50-51
Water-stop device 51
Water drainage 51-52
Electrical connection 52

Enviroment concerns 53

Packaging materials 53
Old machine 53
Ecological hints 53

Guarantee 54-56

Customer service centres 57

Instruction booklet

Safety information

Prior to using for the first time

• The safety of AEG/ELECTROLUX appliances complies with the industry
standards and with legal requirements on the safety of appliances. However,
as manufacturers, we feel it is our duty to provide the following safety notes.
You MUST read them carefully before installing or using the appliance.

• It is most important that this instruction book should be retained with the
appliance for future reference. Should the appliance be sold or transferred to
another owner, or should you move house and leave the appliance, always
ensure that the book is supplied with the appliance in order that the new
owner can get to know the functioning of the appliance and the relevant
warnings.

• You MUST read them carefully before installing or using the appliance.

• Before first starting up, check the machine for any damage incurred during
transport. Never connect up a damaged machine. If parts are damaged,
contact your supplier.

• If the appliance is delivered in the winter months when there are minus
temperatures: Store the washing machine at room temperature for 24 hours
before using for the first time.

Safety information

7

General safety

It is dangerous to alter the specifications or attempt to modify this product in
any way.

During high temperature wash programmes the door glass may get hot. Do
not touch it!

Make sure that small pets do not climb into the drum. To avoid this, please
check into the drum before using.

Any objects such as coins, safety pins, nails, screws, stones or any other hard,
sharp material can cause extensive damage and must not be placed into the
machine.

Only use the advised quantities of fabric softener and detergent. Damage to
the fabric can ensue if you over-fill. Refer to the manufacturer’s
recommendations of quantities.

Safety information

8

Wash small items such as socks, laces, washable belts etc in a washing bag or
pillow case as it is possible for such items to slip down between the tub and
the inner drum.

Do not use your washing machine to wash articles with whalebones, material
without hems or torn material.

Always unplug the appliance and turn off the water supply after use, clean
and maintenance.

This appliance is provided with a white drum light. It is class 1, in accordance
with IEC 60825-1:1993 + A1:1997 + A2:2001 standard. Should the appliance
drum light need to be replaced, this must be carried out by a Service Centre.

Under no circumstances should you attempt to repair the machine yourself.
Repairs carried out by inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Centre. Always insist on genuine
spare parts.

Installation

This appliance is designed for domestic use. It must not be used for purposes
other than those for which it was designed.

When unpacking the appliance, check that it is not damaged. If in doubt, do
not use it and contact the Service Centre.

All packing and transit bolts must be removed before use. Serious damage can
occur to the product and to property if this is not adhered to. See relevant
section in the user manual.

After having installed the appliance, check that it is not pressing or standing on
its electrical supply cable, inlet hose and drain hose.

If the machine is situated on a carpeted floor, please adjust the feet in order to
allow air to circulate freely

Always be sure, that there is no water leakage from hoses and their connections
after the installation.

If the appliance is installed in a location subject to frost, please read the

ddaannggeerrss ooff ffrreeeezziinngg

“
Any plumbing work required to install this appliance should be carried out by a

qualified plumber or competent person.
Any electrical work required to install this appliance should be carried out by a

qualified electrician or competent person.

” chapter.

Use

Safety information

This appliance is designed for domestic use. It must not be used for purposes
other than those for which it was designed.

Only wash fabrics which are designed to be machine washed. Follow the
instructions on each garment label.

Do not overload the appliance. See the relevant section in the user manual.
Before washing, ensure that all pockets are empty and buttons and zips are

fastened. Avoid washing frayed or torn articles and treat stains such as paint,
ink, rust, and grass before washing. Underwired bras must NOT be machine
washed.

Garments which have been in contact with volatile petroleum products should
not be machine washed. If volatile cleaning fluids are used, care should be
taken to ensure that the fluid is removed from the garment before placing in
the machine.

Never pull the power supply cable to remove the plug from the socket; always
take hold of the plug itself.

Never use the washing machine if the power supply cable, the control panel,
the working surface or the base are damaged so that the inside of the washing
machine is accessible.

9

Child Safety

This appliance is not intended for use by person (including children) with
reduced physical sensory or mental capabilities or lack of experience and
knowledge unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.

This washing machine is not intended for use by young children or infirm
persons without supervision.

Young children should be supervised to ensure that they do not play with the
appliance.

The packaging components (e.g. plastic film, polystyrene) can be dangerous to
children - danger of suffocation! Keep them out of children’s reach.

Keep all detergents in a safe place out of children’s reach.

Safety information

10

Make sure that children or pets do not
climb into the drum. To avoid this the
machine incorporates special feature. To
activate this device, rotate the button
(without pressing it) inside the door
clockwise until the groove is horizontal.
If necessary use a coin. To disable this

device and restore the possibility of
closing the door, rotate the button anti­clockwise until the groove is vertical.

Product description

Product description

Your new appliance meets all modern requirements for effective treatment of
laundry with low water, energy and detergent consumption.

11

Detergent dispenser drawer

1

Control panel

2
3

Drum light

4

Door opening handle

Detergent dispenser drawer

Compartment for detergent used for prewash.
Compartment for powder or liquid detergent used for main wash.
Compartment for liquid additives (fabric softener, starch).
Compartment for stain remover used for main wash with STAIN -

option.

Rating plate

5

Drain pump

6

Three adjustable feet; The rear

7

foot on the left-hand side is
automatic

Control panel

12

Control panel

Programme selector dial

1

«Temperature» button (Temperatur/

2

Temp)
«Spin reduction» button

3

(U/Min./Essorage)
«Option» button (Option)

4

«OK» button

5

Display

1

Information field, shows the current
settings

1

Washing programme duration
End of the programme

2

Options

3
4

1

2 3 4 5 6 8 9

7

«Quick» button (Zeitsparen/Temps)

6

Display

7

«Start/Pause» button (Depart/Pause)

8

«Delay start» button

9

(Zeitvorwahal/Zeitvorwahl)

COTTONS/LINEN 01:40

13:05Press START to run

program

678

Delay Start - symbol
«Quick» - option symbol

5

Spin Speed, Rinse Hold, Night Cycle -

6

symbol

7

Temperature - symbol

8

2

3

4

5

First Use

Ensure that the electrical and water connections comply with the installation
instructions.

Remove the polystyrene block and any material from the drum.

Setting the language

When switching on the appliance for the first time, by turning the programme selector
dial, you must set the language in which you want the messagges in the display to
appear. When the appliance is switched on again all the messagges in the display will
appear in this language.

Important!

If the display is not showing any language, the appliance has already been
switched on once. In such case, if you would change the language setting, press
at the same time «TEMPERATURE» and «SPIN» buttons for 6 seconds to activate
the menu language. By pressing the «OPTION» button you can scroll all the
available languages.

Press the

OOKK

button twice to confirm your choice.

Setting the time

After having chosen the language you must set the time prior to the first wash
and when changing to and from daylight savings time.

The clock setting permits you to modify/set up the current time. It is important
to keep it updated as the current END Cycle Time depends on it.

With a short/single time pressure of the «OPTION» button, the time varies minute
by minute. With a continue pressure of the same buttons, the time varies 10
minutes by 10 minutes.

Press the

OOKK

button to fix the current time.

OOKK

Use

13

Personalization

This appliance is provided of a «settings» menu that allows you to modify the
factory settings as you want.

When you switch on the machine, by turning the programme selector dial, press
the «OPTION» button to activate the Options menu. By pressing again the same
button you can move through all the available options till when you locate the
SSeettttiinnggss
scroll all the settings and press

menu. Press

Setting the brightness

OOKK

to access in the menu. Use again «OPTION» button to

OOKK

button to confirm your choice.

Use

14

BBrriigghhttnneessss

The
By pressing the «OPTION» button, you can increase or decrease the brightness.
You can choose between different levels from 0 to 9 (0 = min. - 9 = max.).

OOKK

Press

setting allows you to modify the backlight intensity of the display.

button to confirm your choice.

Setting the contrast

CCoonnttrraasstt

The
By pressing the «OPTION» button, you can increase or decrease the contrast.
You can choose between different levels from 0 to 9 (0 = min. - 9 = max.).

OOKK

Press

setting allows you to modify the optical characteristic of the display.

button to confirm your choice.

Setting the acoustic signal

The machine is provided of an acoustic device, which sounds in the following
cases:

at the end of the programme
in the event of operating problems

If you wish to activate the acoustic device, press the «OPTION» button in order to
select the menu "Buzzer". Press
the corresponding symbol begins to flash in order to indicate that the regulation
can be carried out.

Press again «OPTION» button to activate or deactivate the acoustic signal.
Then press

OOKK

button to confirm your choice.

OOKK

button to confirm your choice. The line around

Riturn to main menu

This setting function allows you to return to the options menu.
Locate the
Press

BBAACCKK

option by pressing the «OPTION» button.

OOKK

button to confirm your choice.

Daily Use

Load the laundry

1. Open the door by carefully pulling the door
handle outwards. Place the laundry in the
drum, one item at a time, shaking them out as
much as possible.

2. Close firmly the door. You must hear a click
during closing.
Attention! Do not embed the laundry
between the door and the rubber joint.

Measure out the detergent and the fabric softener

Your new appliance was designed to reduce water, energy and detergent
consumption.

1. Pull out the dispenser drawer until it
stops. Measure out the amount of
detergent required, pour it into the main
wash compartment and, if you wish
to carry out the prewash phase, pour
the detergent into the compartment
marked .

If you wish to perform the stain
function, pour the stain remover into
the compartment marked .

2. If required, pour fabric softener into the
compartment marked (the amount
used must not exceed the MAX mark in
the drawer).

Close the drawer gently.

Use

15

Use

16

Select the required programme

You can choose the right programme for any type of laundry following the
descriptions on the washing programme tables (see Washing Programmes).

Turn the programme selector dial to the required programme. The programme
selector determines the type of washing cycle (e.g. water level, drum movement,
number of rinses) and the washing temperature according to the type of laundry.

The Start/Pause light starts to flash and the Display shows the programme name
and the duration of the selected programme.

The selector dial can be turned either clockwise or anticlockwise.
Position

O to Reset programme/Switching OFF of the machine.

At the end of the programme the selector dial must be turned to position
O, to switch the machine off.

Attention!

If you turn the programme selector dial to another programme when the machine

is working, the Yellow Start/Pause pilot light will flash 3 times and the message
”Please turn programme selector in the last used position” will appear in the

display. The machine will not perform the new selected programme.

Select the temperature

Press this button repeatedly to increase or
decrease the temperature, if you want your
laundry to be washed at a temperature
different from the one proposed by the
washing machine.

The maximum temperatures for each washing
programme can be checked in the paragraph
«Washing programmes».

The symbol of cold wash corresponds to .
For the compatibility between options and washing programmes consult the

chapter

«WASHING PROGRAMMES».

COTTONS/LINEN 1:40

program.

Temperatur

U / Min.

Essorage

Option

Options

Temp

13:05Press START to run

Zeitsparen

Temps

Ok

Select the spin speed, Night cycle or Rinse hold option

Press this button repeatedly to change the spin speed, if you want your laundry to
be spun at a speed different from the one proposed by the washing machine.

Maximum speed is 1600 rpm;

Use

17

«Rinse hold» : by selecting this option the
water of the last rinse is not emptied out to
prevent the fabrics from creasing. At the end of
the programme,
the display, the messages

RRiinnssee hhoolldd””

“

0 and -symbol will flash on

““DDoooorr lloocckkeedd””

appear on the display, the

and

COTTONS/LINEN 1.40

program.

Temperatur

U / Min.

Essorage

Option

Options

Temp

13.05Press START to run

Zeitsparen

Temps

Ok

Start/Pause pilot light goes off and the door is
blocked to indicate that the water must be
emptied out.

To empty the water out:

● turn the programme selector dial to O

● select the Drain or Spin programme

● reduce the spin speed if needed, by means of the relevant button

● press the Start/Pause button

● when the programme has finished the display shows a flashing 0 and the

message

““FFiinniisshheedd””

. The door can be opened.

«Night cycle» : by selecting this option, the machine will not drain the water
of the last rinse, so as not to wrinkle the laundry. As all spinning phases are
suppressed, this washing cycle is very noiseless and it can be selected at night or in
times with a more economical power rate

. On Cottons, 40-60 Mix, Synthetics,

Jeans, Delicates, Lingerie, Silk and Sport Intensive programmes (except Easy iron,
Duvets, 20 Min. - 3 KG and Outdoor sports) the rinses

more water. At the end of the programme, 0 and -symbol will flash on the

display, the messages

““DDoooorr lloocckkeedd””

and “

RRiinnssee hhoolldd””

will be performed with

appear on the display, the
Start/Pause pilot light goes off and the door is blocked to indicate that the water
must be emptied out.

TToo eemmppttyy oouutt tthhee wwaatteerr,, pplleeaassee rreeaadd tthhee pprreevviioouuss ooppttiioonn cchhaapptteerr..

For the compatibility between options and washing programmes consult the
chapter

«Washing programmes».

Programme option buttons

Depending on the programme, different functions can be combined.
Attention: Not all the options are compatible between themselves. The symbols

and messagges of the incompatible options are not displayed.
Anyway, if an option, which is not compatible with the set washing programme

or any other option, is selected, the message

““NNoott sseelleeccttaabbllee””

will be displayed.

Use

18

You must select the options after you have selected the programme but before
pressing the «Start/Pause» button. Press the «OPTION» button to activate the
Options menu.

To scroll all the available options, depress the «OPTION» button. The
corresponding programme name appears in the relative rectangle to indicate
that this programme has been selected.

Depress the OK button to activate and confirm your choice. The corresponding icon
appears on the right side of the display to indicate that this option has been set.
Depress the same button to deactivate the option.

After selecting the options, wait about 10 seconds untill the display gets back to the
default status. The selected options appear on the display.

Select the Prewash option

Select this option if you wish your laundry to
be prewashed at 30°C before the main wash.

The Prewash ends with a short spin in
programmes for cotton and synthetic fabrics,
whereas in the programmes for delicate
fabrics the water is only drained.

For the compatibility between this option and
washing programmes consult the chapter

«Washing programmes».
The relevant symbol will appear on the display.

COTTONS/LINEN 1:40

PREWASH

EXTRA RINSE

Temperatur

Temp

U / Min.

Essorage

Option
Options

1

13: 05BACK

Zeitsparen

Temps

Ok

2

Select the Stain option

Select this option to treat heavily soiled or
stained laundry with stain remover (extended
main wash with time optimised stain action
phase).

This option is not available with a
temperature lower than 40°C.

For the compatibility between this option and
all washing programmes consult the chapter
«Washing programmes».

Attention! If you wish to perform a programme with the stain option, pour stain
remover into compartment .

The relevant symbol will appear on the display.

COTTONS/LINEN 1:40

STAIN

EXTRA RINSE

Temperatur

Temp

U / Min.

Essorage

Option
Options

1

13:05PREWASH

Zeitsparen

Tem p s

Ok

2

Use

19

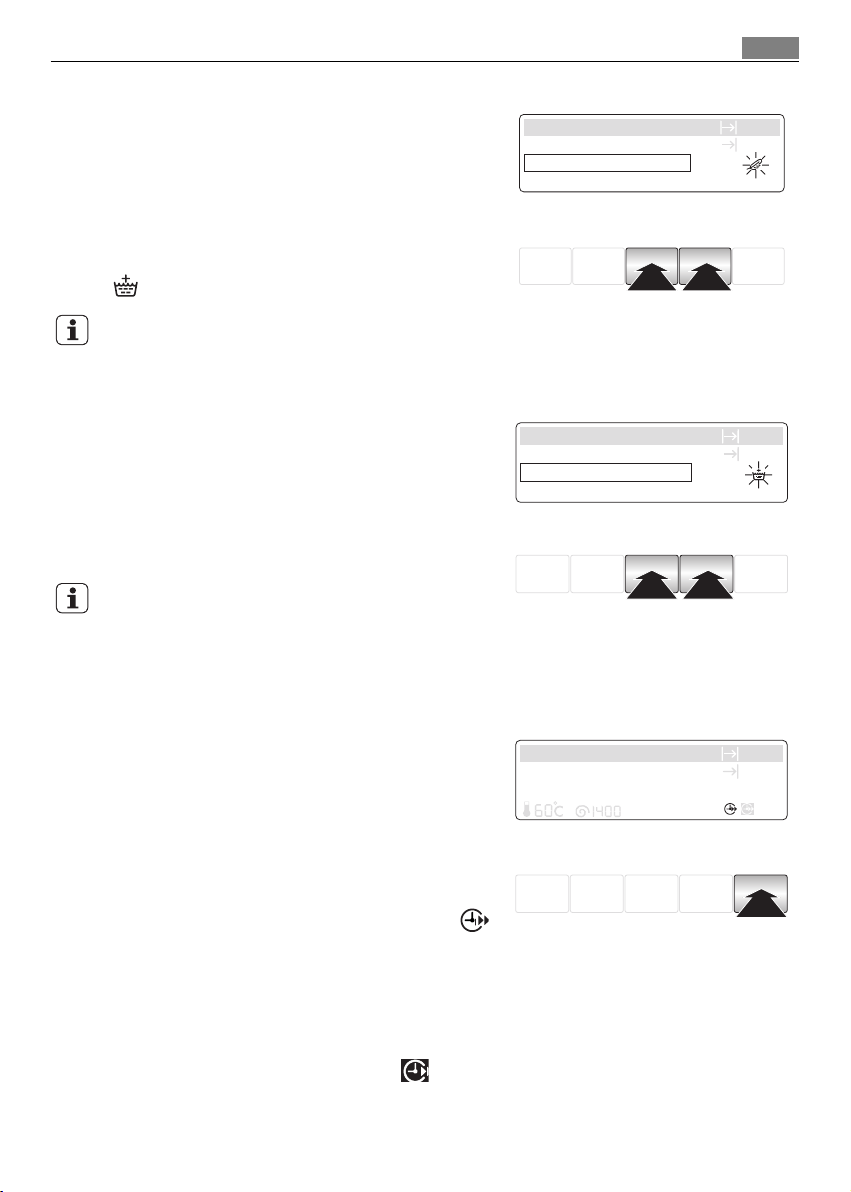

Select the Sensitive option

By depressing this button the washing
intensity will be reduced. The machine adds

COTTONS/LINEN 1:40

SENSITIVE

CHILD LOCK

one rinse in the programmes for COTTONS,
40°-60° MIX and SYNTHETICS.

Temperatur

Temp

U / Min.

Essorage

This option is non compatible with Extra Rinse

option.

For the compatibility between this option and washing programmes consult the
chapter

«Washing programmes».

This option is recommended for non fast coloureds items.

Select the Extra Rinse option

This appliance is designed for saving water.
However, for people with a very delicate skin
(allergic to detergents) it may be necessary to
rinse the laundry using an extra quantity of
water (extra rinse).

COTTONS/LINEN 1:40

EXTRA RINSE

SENSITIVE

Temperatur

Tem p

U / Min.
Essorage

For the compatibility between this option and
washing programmes consult the chapter

«Washing programmes».
The relevant symbol will appear on the display.

Option

Options

1

Option

Options

1

13:05EXTRA RINSE

Zeitsparen

Temps

Ok

2

13:05STAIN

Zeitsparen

Temps

Ok

2

Select the Quick option

The washing machine proposes by default the
washing cycle for «Normally soiled laundry». The
washing cycle can be shorted by means of this
button.

This option can be selected with the washing
programmes for COTTONS, SYNTHETICS and
DELICATES.

By pressing this button once, the symbol
and the message “DAILY” appear on the display and you will be able to short the
washing duration for «Daily soiled laundry».
The display will show the shorted washing time. To be used for daily soiled
laundry. The maximum load size is 8 kg for cotton and 4 kg for synthetics and
delicates.

By pressing this button twice, the symbol and the message “SUPER QUICK”
will appear on the display and you will be able to short the washing duration for
«lightly soiled laundry». The display will show the shorted washing time.

COTTONS/LINEN 1:40

lancer le programme

Temperatur

Tem p

U / Min.

Essorage

Option

Options

13:05Appuyer sur Depart pour

Zeitsparen

Temps

Ok

Use

20

To be used only for very lightly soiled laundry. The maximum load size is 4 kg for
cotton and 2 kg for synthetics and delicates.

Select the SAVE MEMORY option

Programme settings that are frequently used
can be saved (e.g. cotton, 60°C, 1000 rpm,
with Prewash and Extra Rinse).
There are 2 memory spaces available for this
purpose in the last 2 position of the
programme selector dial. The saved
programme can be selected in the same way
as any other wash programme by means of

COTTONS/LINEN 1:40

13:05CHILD LOCK

SAVE MEMORY

SETTINGS

Temperatur

U / Min.

Temp

Essorage

Option

Options

1

Zeitsparen

Ok

2

the selector dial.
Saving Memory:

● select the desired programme and required

MEMORY 1:40

MEMORY 1
MEMORY 2

13:05

options

● press the

OOPPTTIIOONN

button to activate the

Temp

Essorage

Option

Options

Zeitsparen

Ok

Temperatur

U / Min.

options menu

● by pressing the

SSAAVVEE MMEEMMOORRYY

«
button

● by pressing the

OOPPTTIIOONN

button, locate the

» option and depress

OOPPTTIIOONN

button select the

OOKK

SAVE MEMORY 1:40

Saved

13:05

MEMORY 2

number of the MEMORY (1-2) in which you
wish memorize your customized
programme.

● press the

OOkk

button to save the selected

Temperatur

Tem p

U / Min.
Essorage

Option
Options

Zeitsparen

Ok

programme. On the display appears the
message «Saved» in highlighted mode.

To change the memorized programme setting repeat the procedure from the
beginning.

Temps

Temps

Tem p s

NNoottee
If the memory space is already used by a programme previously selected, the

display will show the message «
OOPPTTIIOONN ttoo ccaanncceell..

». Depress then

MMeemmoorryy ffuullll.. PPrreessss OOKK ttoo oovveerrwwrriittee iitt.. PPrreessss

OOKK

button to memorize the new programme.

The MEMORY programmes cannot be erased, but you can only overwrite them
with another preferred washing programmes (see Note).

Selection of the Child Lock option

Use

21

Your appliance is provided of CHILD SAFETY
LOCK, which permits you to leave the
appliance not supervised with the door closed

COTTONS/LINEN 1:40

13:05SENSITIVE

CHILD LOCK

SAVE MEMORY

without having the worry that children might
be injured by or cause damage to the

Temp

Essorage

Option

Options

Zeitsparen

Temps

Ok

Temperatur

U / Min.

appliance.
Set this option before pressing the

SSttaarrtt//PPaauussee

1

2

and after having selected the required
programme wash.
This function remains able also when the
washing machine is not working.

Press OPTION and OK together for

5 seconds to unlock machine.

Setting Child lock option:

• press the «OPTION» button to activate the
options menu.

Temperatur

Temp

U / Min.

Essorage

Option

Options

Zeitsparen

Temps

Ok

• press the “OPTION” button to locate the Child
Lock option.

• press the OK button to enable this option. The corrisponding icon and the
message

““PPrreessss OOPPTTIIOONN aanndd OOKK ttooggeetthheerr ffoorr 55 sseeccoonnddss ttoo uunnlloocckk mmaacchhiinnee””

appear

on the display.
If you press any button after the programme has started with Child Lock enabled,

the display will show the message

““MMaacchhiinnee i

iss lloocckkeedd,, uussee kkeeyy ccoommbbiinnaattiioonn ttoo

uunnlloocckk iitt..””
At the end of the programme it is necessary to press simultaneously the OPTION

and OK buttons for 5 seconds until the dispaly wiil show the message
uunnlloocckkeedd””

.

““MMaacchhiinnee

DISPLAY

The display shows the following information:

Duration of the selected programme

After selecting a programme, the duration of
the washing programme (AA) and the extimated
end of cycle (BB) are displayed in hours and
minutes (for example 2.05).

The duration is calculated automatically on
the basis of the maximum recommended load
for each type of fabric.

COTTONS/LINEN 2:05

13:05Press START to run

program.

Temperatur

Temp

U / Min.
Essorage

Option

Options

Zeitsparen

Tem p s

Ok

A
B

22

Use

After the programme has started, the time

COTTONS/LINEN 1:40

remaining is updated every minute.

Washing

Programme progress display

After having pressed the Start/Pause button, the
display shows the running phase of the
washing program. On the display you can see
also the description of the selected type of
fabric, an animated bar, that indicates the carried out cycle and the remaining one,
the duration of the washing program and the end of cycle.

COTTONS/LINEN 40

Rinsing

Delay start

If you have selected the Delay Start, the relevant icon appears on the right side

of the display

After having pressed the START/PAUSE button, the selected delay time value (max
20 hours) appears on the right side of the display, closed to the relative icon .

The delay time value decreases every minute.

Incorrect option selection

If an option, which is not compatible with
the set washing programme, is selected, the
message

««NNoonn sseelleeccttaabbllee»»

is displayed for

some seconds.

COTTONS/LINEN

Not selectable

13:05

13:05

1:40

23:00

Alarm codes

In the event of operating problems, some
alarm messages can be displayed, for
example
tthhee ttaapp iiss ooppeenn aanndd tthheenn pprreessss SSTTAARRTT//PPAAUUSSEE””
(see paragraph «Something not working»).

““CCaannnnoott ffiillll wwaatteerr.. PPlleeaassee cchheecckk tthhaatt

Cannot drain the water. Please check
that the filter is clean and then press

.

START.

Use

23

End of the programme

When the programme has finished the
messages «

DDoooorr UUnnlloocckkeedd

» and «

FFiinniisshheedd

»
appear alternatively.
The Start/Pause button pilot light goes off.
If your laundry is not removed during 10 minutes after the programme is finished,
the backlight of the display switches off and the energy saving system will be
enabled.
Only the

SSttaarrtt//PPaauussee

button pilot light is flashing to indicate that the appliance has
to be switched off.
By pressing any button the appliance will come out from the energy saving status
and you could set another washing programme or swich off the appliance.

Door Unlocked

Finished

Select the «Start/Pause»

Press the Start/Pause button, to start the
selected programme. The corresponding red
pilot light stops flashing.
On the display will appear the name and the
running phase of the selected programme to
indicate that the appliance starts operating
and the door is locked.

To interrupt a programme which is running, depress the Start/Pause button: the
corresponding red pilot light starts to flash, while the message “PAUSE” appears on
the display to indicate that the machine is in pause.

To restart the programme from the point at which it was interrupted, press the
Start/Pause button again.

If you have chosen a delayed start, the machine will begin the countdown.

COTTONS/LINEN 1:40

Filling

Temperatur

U / Min.
Essorage

Option

Options

Ok

Temp

13:05

Zeitsparen

Tem p s

0:00

18:05

Start/Pause
Départ/Pause

Select the Delay Start

This option makes it possible to delay the
starting of the washing programme by 30, 60,
90 minutes, 2 hours and then by 1 hour till 20
hours.

Press the Delay Start button, to select the desired delay.
The selected delay time will appear on the display for some seconds, then the

selected programme name and its duration will appear again.
You must select this option after you have set the programme and before you

press the Start/Pause button.

COTTONS/LINEN

Delay Start

1:40

23:00

Use

24

Selecting the delayed start:

● Select the programme and the required options;

● Select the delay start;

● Depress the «Start/Pause» button: the machine starts its hourly countdown.

The programme will start after the selected delay has expired.

You can cancel the delay time at any moment, before you press the Start/Pause
button.

Cancelling the delayed start:

● set the washing machine to PAUSE by pressing the Start/Pause button;

● press the Delay Start button until the symbol and the message “Finished”

disappear from the display

● press the Start/Pause button again to start the programme.

The Delay Start option can not be selected with

DDrraaiinn

and

SSppiinn

Altering an option or a running programme

It is possible to change any option before the programme carries it out. Before
you make any change, you must pause the washing machine by pressing the
Start/Pause button.

Changing a running programme is possible only by resetting it. Turn the
programme selector dial to

the Ok button to cancel the previous washing programme. The washing water

in the tub will be not emptied out. Start the new programme by depressing the
Start/Pause button again.

OO

and then to the new programme position.

programmes

Press

.

Interrupting a programme

Depress the Start/Pause button to interrupt a programme which is running, the
corresponding light starts to flash. Depress the button again to restart the
programme.

Cancelling a programme

Turn the selector dial to
Press the
Now press the

OOkk

button to cancel the programme which is running.

SSttaarrtt//PPaauussee

““OO””

and then in the new selected programme.

button to start the new programme.

Opening the door after the programme has started

First set the machine to pause by pressing the Start/Pause button.

● If the messages «

PPaauussee

display, the door can be opened.

● If the messages «

means that the machine is already heating, that the water level is above the
bottom edge of the door or that the drum is turning. In this case the door
can not be opened.

● If you cannot open the door but you need to open it you have to switch the

machine off by turning the selector dial to «O». After about 3 minutes the
door can be opened (pay attention to the water level and
temperature!).

PPaauussee

At the end of the programme

The machine stops automatically. The Start/Pause button pilot light goes off,
flashing «
minutes.

If the Rinse Hold or Night Cycle option has been selected, the Start/Pause
pilot light goes off, the messages
display, the door is blocked to indicate that the water must be emptied out.

To empty out the water please read the steps on the «Rinse hold» option
paragraph.

Turn the programme selector dial to O to switch the machine off. Remove the
laundry from the drum and carefully check that the drum is empty.

If you do not intend to carry out another wash, close the water tap. Leave the
door open to prevent the formation of mildew and unpleasant smells.

0.00» appear on the display and the acoustic signal sounds for some

» and «

» and «

DDoooorr uunnlloocckkeedd

DDoooorr uunnlloocckkeedd

““DDoooorr lloocckkeedd””

» appear alternately on the

» don’t appear on the display, this

RRiinnssee hhoolldd””

and “

appear on the

Use

25

Washing programmes

26

Washing programmes

Programme/

Temperature

WHITE COTTONS

95°-60°

COLOURED
COTTONS

60°-50°-40°-30°­cold

40-60 MIX

HYGIENE

60°

JEANS

60°-50°-40°-30°­cold

SYNTHETICS

60°-50°-40°-30°­cold

TTyyppee ooff llaauunnddrryy

White cotton:
tablecloths, household
linen.

Coloured cotton and
linen: work garments,
sheets, household linen,
underwear, towels.

Special programme for
white cottons

Special programme for
the items like pants,
shirts or jackets in jeans

Synthetic or mixed
fabrics: underwear,
coloured garments, non­shrink shirts, blouses.

e.g. sheets,

Options

Spin reduction/

/

- (*) - -

-

Spin reduction/

/

- (*) - -

- (not possible with 40-60

MIX)

Spin reduction/

- (*)

Spin reduction/

/

Spin reduction/ /

- (*) - -

-

Description of the

programme

Main wash
3 rinses
Long spin

Main wash
3 rinsees
Long spin

Main wash
5 rinsees
Long spin

Main wash
5 rinsees
Long spin at 1200 rpm

Main wash
3 rinses
Short spin

EASY IRON

60°-50°-40°-30°­cold

DELICATES

40°-30°-cold

Synthetic or mixed
fabrics: underwear,
coloured garments, non­shrink shirts, blouses.

Delicate fabrics: for
example curtains

Spin reduction/

-

Spin reduction/ /

- (*) - -

Main wash
4 rinsees
Short spin at 1200 rpm

Main wash
3 rinses
Short spin

Washing programmes

Washing programmes

27

Programme/

Temperature

BLANKET

DELICATE
RINSES

DRAIN

SPIN

WOOL

40°-30°-cold

TTyyppee ooff llaauunnddrryy

Short cycle for blankets

Separate rinse cycle for
hand washed items.

For emptying out the last
rinse water in
programmes with the
Rinse Hold and Night
cycle option.

Separate spin for cottons

Garments bearing the
“Pure new wool, non­shrink, machine
washable” or
“Handwash” label

Options

Spin reduction Drain and long spin

Spin reduction/ /

Spin reduction Drain and long spin

Spin reduction/ /

Description of the

programme

Long spin

Drain

Main wash
3 rinses
Short spin

LINGERIE

40°-30°-cold

SILK

30°-cold

Special programme for
extremly delicate
handwashed garments

Silk items to be gentle
washed and spun.

Spin reduction/ /

Spin reduction/ /

Main wash
3 rinses
Short spin

Main wash
3 rinses
Short spin

Washing programmes

28

Washing programmes

Programme/

Temperature

OUTDOOR
SPORTS

40°-30°-COLD

20 MIN. - 3 Kg

30°

QUICK
INTENSIVE

60°-50°-40°

ECONOMY

60°

TTyyppee ooff llaauunnddrryy

Special programme for
sport clothes

For slightly soiled
fabrics, except wool

To use for cotton or
mixed fabrics, slightly
soiled or worn only once

White and coloured
cotton - economy,

lightly-normally soiled
items, shirts, underwear.

Options

Spin reduction/

Spin reduction

Spin reduction/

Spin reduction/ /

- (*) - -

DDeessccrriippttiioonn ooff tthhee

pprrooggrraammmmee

Main wash from 40°C to
cold
3 rinses
Short spin

Main wash at 30°
2 rinses

Short spin at 1200 rpm

Main was from 60° to
40°C
3 rinses

Short spin at 1200 rpm

Main wash at 60°C
3 rinses
Long spin

For cancelling the pro-

O

gramme which is run­ning or to switch the
machine off.

* Stain option can be selected only at the temperature of 40°C or higher.

Washing programmes

Washing programmes

Type of fabric Max. Load

COTTONS 7 kg

SYNTHETICS, DELICATES 3,5 kg

JEANS 3,5 kg

EASY IRON 1 kg

BLANKET 2 kg

WOOL (HANDWASH) 2 kg

LINGERIE and SILK 1 kg

OUTDOOR SPORTS 2,5 kg

20 MIN. - 3 KG 3 kg

QUICK INTENSIVE 5 kg

ECONOMIY 7 kg

29

Programme informations

30

Programme informations

The washing program for white cottons. This program
eliminates the micro-organisms thanks to the washing by 60°C

HYGIENE

40-60 MIX

Jeans

and an additional rinse. So that this action is more effective,
place into the compartment "Stains" a special additive
"Hygiene" and select the option "Stains".

Special programme for white and coloured cotton suitable
for different washing temperatures. This programme can be
used for laundry, which should be washed at 40°C or 60°C
separately. So, you can put into the drum the maximum
load capacity in order to save energy and water. You will
obtain the same good washing result as a normal
programme at 60°C.

With this programme it is possible to wash items like pants,
shirts or jackets in Jeans and also jersey realized with hi-tech
materials. (The Extra Rinse option will be activated
automatically).

Easy iron

Blanket

Wool
(Handwash )

Lingerie

Selecting this programme the laundry is gently washed
and spun to avoid any creasing. In this way ironing is
easier. Furthermore the machine will perform additional
rinses.

Washing programme for a single synthetic blanket,
bedspread etc. The washing temperature is 30°C and 40°C.

Washing programme for machine washable wool as well as
for hand washable woollens and delicate fabrics with the
“hand washing” care symbol .

This programme is suitable for very delicate items, as lingerie,
bras and underwear etc. The maximum washing temperature
is 40°C.

Programme informations

Programme informations

31

Silk

Outdoor sports

20 MIN. - 3 Kg

Quick Intensive

Economy

Delicate Rinses

Delicate washing programme suitable for silk and mixed
synthetic items. Washing temperature is 30°C.

Special program for sport clothes washing. The maximum
temperature is 40°C. The maximum spin speed is 800 rpm. By
selecting this program, do not add any additives.

Special program at 30°C, duration - approx. 20 minutes, ideal
for laundry to be refreshed: e.g. a sport jacket worn only once
or slightly soiled or new garments.

Quick washing programme, to be used for lightly soiled
white/fast coloured cottons and mixed fabrics.

This programme can be selected for slightly or normally
soiled cotton items. The temperature will decrease and the
washing time will be extended. This allows to obtain a good
washing efficiency by saving energy.

With this programme it is possible to rinse and spin cotton
garments which have been washed by hand. The machine
performs 3 rinses, followed by a final long spin. The spin
speed can be reduced by depressing the

SSppiinn SSppeeeedd

button.

Drain

Spin

For emptying out the water of the last rinse in programmes
with the Rinse Hold and Night Cycle option.

Turn first the programme selector dial to O, then select
programme

Separate spin for hand washed garments and after
programmes with the Rinse Hold and Night Cycle
option. Before selecting this programme the selector dial
must be turned to O. You can choose the speed by means of
the relevant button to adapt it to the fabrics to be spun.

DDrraaiinn

and depress the Start/Pause button.

Preparing the wash cycle

32

Preparing the wash cycle

Sorting out the laundry

Follow the wash code symbols on each garment label and the manufacturer’s
washing instructions. Sort the laundry as follows: whites, coloureds, synthetics,
delicates, woollens.

Temperatures

95° or 90°

60°/50°

40°-30°- Cold

for normally soiled white cottons and linen (e.g. tea cloths,
towels, tablecloths, sheets...).

for normally soiled, colour fast garments (e.g. shirts, night

dresses, pyjamas....) in linen, cotton or synthetic fibres and

for lightly soiled white cotton (e.g. underwear).

for delicate items (e.g. net curtains), mixed laundry including
synthetic fibres and woollens bearing the label «pure new
wool, machine washable, non-shrink».

Before loading the laundry

Never wash whites and coloureds together. Whites may lose their “whiteness” in
the wash.

New coloured items may run in the first wash; they should therefore be washed
separately the first time.

Make sure that no metal objects are left in the laundry (e.g. hair clips,
safety pins, pins).

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or
long tapes.

Remove persistent stains before washing.
Rub particularly soiled areas with a special detergent or detergent paste.
Treat curtains with special care. Remove hooks or tie them up in a bag or net.

Preparing the wash cycle

Maximum loads

Recommended loads are indicated in the washing programme charts.
General rules:

Cotton, linen: drum full but not too tightly packed;
Synthetics: drum no more than half full

;

Delicate fabrics and woollens: drum no more than one third full.
Washing a maximum load makes the most efficient use of water and energy.
For heavily soiled laundry, reduce the load size.

Laundry weights

The following weights are indicative:

Removing stains

33

bathrobe

1200 g

100 gnapkin

700 gquilt cover
500 gsheet
200 gpillow case
250 gtablecloth
200 gtowelling towel

100 gtea cloth
200 gnight dress

100 gladies’ briefs
600 gman’s work shirt
200 gman’s shirt
500 gman’s pyjamas

100 gblouse

100 gmen’s underpants

Stubborn stains may not be removed by just water and detergent. It is therefore
advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in
water with a special detergent then rub in the soap and water.

Oil based paint::moisten with benzine stain remover, lay the garment on a soft

cloth and dab the stain; treat several times.
Dried grease stains: moisten with turpentine, lay the garment on a soft

surface and dab the stain with the fingertips and a cotton cloth.

Preparing the wash cycle

34

Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be
careful with rust stains which are not recent since the cellulose structure will
already have been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).
Grass: soap lightly and treat with bleach (whites and fast coloureds only).
Ball point pen and glue: moisten with acetone (*), lay the garment on a soft

cloth and dab the stain.
Lipstick: moisten with acetone as above, then treat stains with methylated

spirits. Treat any residual marks with bleach.
Red wine: soak in water and detergent, rinse and treat with acetic or citric acid,

then rinse. Treat any residual marks with bleach.
Ink: depending on the type of ink, moisten the fabric first with acetone (*), then

with acetic acid; treat any residual marks on white fabrics with bleach and then
rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub
with detergent paste.

(*) do not use acetone on artificial silk.

Detergents and additives

Good washing results also depend on the choice of detergent and use of the
correct quantities to avoid waste and protect the environment.

Although biodegradable, detergents contain substances which, in large
quantities, can upset the delicate balance of nature.

The choice of detergent will depend on the type of fabric (delicates, woollens,
cottons, etc.), the colour, washing temperature and degree of soiling.

All commonly available washing machine detergents may be used in this
appliance:

powder detergents for all types of fabric,
powder detergents for delicate fabrics (60°C max) and woollens,
liquid detergents, preferably for low temperature wash programmes (60°C

max) for all types of fabric, or special for woollens only.

The detergent and any additives must be placed in the appropriate
compartments of the dispenser drawer before starting the wash programme.

If using concentrated powder or liquid detergents, a programme without

prewash must be selected.

Preparing the wash cycle

The washing machine incorporates a recirculation system which allows an
optimal use of the concentrated detergent.

Pour liquid detergent into the dispenser drawer compartment marked just
before starting the programme.

Any fabric softener or starching additives must be poured into the compartment
marked before starting the wash programme.

Follow the product manufacturer’s recommendations on quantities to use and do

not exceed the «MAX» mark in the detergent dispenser drawer.

Quantity of detergent to be used

The type and quantity of detergent will depend on the type of fabric, load size,
degree of soiling and hardness of the water used.

Follow the product manufacturers’ instructions on quantities to use.
Use less detergent if:

• you are washing a small load,

• the laundry is lightly soiled,

• large amounts of foam form during washing.Pour le traitement des taches
avant le cycle de lavage, conformez-vous aux doses et aux instructions
préconisées par le fabricant du produit. Si vous utilisez du produit de lavage
pour traiter les taches, vous devez démarrer immédiatement le cycle de
lavage.

35

Degrees of water hardness

Water hardness is classified in so-called “degrees” of hardness. Information on
hardness of the water in your area can be obtained from the relevant water
supply company, or from your local authority.

Note: A water softener must be added when water has a medium-high degree
of hardness (from degree of hardness II). Follow the manufacturer’s instructions.
The quantity of detergent can then always be adjusted to degree of hardness I (=
soft).

DDeeggrreeeess ooff wwaatteerr hhaarrddnneessss

LLeevveell

1
2 medium 8-14 16-25
3 hard 15-21 26-37
4 very hard

Characteristic

soft

GGeerrmmaann

°°ddHH

0-7 0-15

> 21 > 37

FFrreenncchh

°°TT..HH..

International wash code symbols

95

60

60

40

40

40

30

30

36

International wash code symbols

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic wash

Max. wash

temperature

95°C

Delicate wash

Bleaching Bleach in cold water Do not bleach

Ironing Hot iron

max 200°C

Max. wash

temperature

60°C

Max. wash

temperature

40°C

Warm iron

max 150°C

Max. wash

temperature

30°C

Lukewarm iron

max 110°C

Hand wash Do not

wash
at all

Do not iron

Dry cleaning Dry cleaning

Drying Flat On the line On clothes

in all solvents

Dry cleaning in

perchlorethylene,

petrol, pure alcohol,

R 111 & R 113

hanger

Dry cleaning

in petrol,

pure alcohol

and R 113

Tumble dry

high
temperature

low
temperature

Do not

dry clean

Do not

tumble dry

Care and cleaning

Care and cleaning

You must DISCONNECT the appliance from the electricity supply, before you can
carry out any cleaning or maintenance work.

Descaling

The water we use normally contains lime. It is a good idea to periodically use a
water softening powder in the machine. Do this separately from any laundry
washing, and according to the softening powder manufacturer's instructions.

This will help to prevent the formation of lime deposits.

After each wash

Leave the door open for a while. This helps to prevent mould and stagnant smells
forming inside the appliance. Keeping the door open after a wash will also help
to preserve the door seal.

Maintenance wash

With the use of low temperature washes it is possible to get a build up of
residues inside the drum.

We recommend that a maintenance wash be performed on a regular basis.
To run a maintenance wash:

• The drum should be empty of laundry.

• Select the hottest cotton wash programme.

• Use a normal measure of detergent, must be a powder with biological
properties

.

37

External cleaning

Clean the exterior cabinet of the appliance with soap and water only, and then
dry thoroughly.
Important: do not use methylated spirits, solvents or similar products to clean
the cabinet.

Detergent dispenser drawer

The detergent dispenser drawer should be
cleaned regularly.

1. Remove the detergent dispenser drawer
by pulling it firmly.

Care and cleaning

38

2. Remove the conditioner insert from the
middle compartment.

3. Clean all parts with water.

4. Put the conditioner insert in as far as it

will go, so that it is firmly in place.

5. Clean all parts of the washing ma­chine, especially the nozzles in the top of the washing-in chamber, with a
brush.

6. Insert the detergent dispenser drawer in the guide rails and push it in.

Drain pump

The pump should be inspected regularly and particularly if

• the machine does not empty and/or spin

• the machine makes an unusual noise during draining due to objects such as
safety pins, coins etc. blocking the pump.

Proceed as follows:

1. Disconnect the appliance.

2. If necessary wait until the water has

cooled down.

3. Open the pump door.

4. Place a container close to the pump to

collect any spillage.

5. Release the emergency emptying hose,
place it in the container and remove its
cap.

6. When no more water comes out,
unscrew the pump and remove it.
Always keep a rag nearby to dry up
spillage of water when removing the
pump.

7. Remove any objects from the pump
impeller by rotating it.

8. Put the cap back on the emergency
emptying hose and place the latter
back in its seat.

9. Screw the pump fully in.

10. Close the pump door.

Warning!

When the appliance is in use and
depending on the programme selected
there can be hot water in the pump. Never
remove the pump cover during a wash
cycle, always wait until the appliance has
finished the cycle, and is empty. When
replacing the cover, ensure it is securely
retightened so as to stop leaks and young
children being able to remove it.

Care and cleaning

39

Water inlet filter

If you notice that the machine is taking longer
to fill, check that the filter in the water inlet
hose is not blocked.

1. Turn off the water tap.

2. Unscrew the hose from the tap.

3. Clean the filter in the hose with a stiff

brush.

4. Screw the hose back onto the tap.

Care and cleaning

40

Frost precautions

If the machine is installed in a place where the temperature could drop below
0°C, proceed as follows:

1. Close the water tap and unscrew the water inlet hose from the tap.

2. Place the end of the emergency emptying hose and that of the inlet hose in a

bowl placed on the floor and let water drain out.

3. Screw the water inlet hose back on and reposition the emergency emptying
hose after having put the cap on again

By doing this, any water remaining in the machine is removed, avoiding ice
forming and consequently damage to the appliance.

When you use the machine again, make sure that the ambient temperature is
above 0°C.

.

Emergency emptying out

If the water is not discharged, proceed as follows to empty out the machine:

1. pull out the plug from the power socket;

2. close the water tap;

3. if necessary, wait until the water has cooled down;

4. open the the pump door;

5. place a bowl on the floor and place the end of the emergency emptying hose

into the bowl. Remove its cap. The water should drain by gravity into the
bowl. Whe the bowl is full, put the cap back on the hose. Empty the bowl.
Repeat the procedure until water stops flowing out;

6. clean the pump if necessary as previously described;

7. replace the emergency emptying hose in its seat after having plugged it;

8. screw the pump again and close the door.

Something not working

Something not working

Certain problems are due to lack of simple maintenance or oversights, which can be
solved easily without calling out an engineer. Before contacting your local Service Centre,
please carry out the checks listed below.

During machine operation it is possible that the
the following alarm codes appears on the display and at the same some acoustic signals
sound every 20 seconds to indicate that the machine is not working:

● Problem with the water supply: «Cannot fill water. Please check that the tap

is open and then press START/PAUSA».

● Problem with the water draining: «Cannot drain the water. Please check

that the filter is clean and then press START/PAUSA».

● Door open: «Please check that the door is closed properly and then press

START/PAUSA».

● Anti-flooding system has been activated: «Anti-flooding system has been

activated. Please check inlet/drain pipe connections».

Once the problem has been eliminated, press the
programme. If after all checks, the problem persists, contact your local Service Centre.

yyeellllooww

Start/Pause pilot light flashes, one of

SSttaarrtt//PPaauussee

button to restart the

41

Problem Possible cause/Solution

The washing machine does not
start:

The door has not been closed.

««PPlleeaassee cchheecckk tthhaatt tthhee
ddoooorr iiss cclloosseedd pprrooppeerrllyy aanndd tthheenn pprreessss
SSTTAARRTT//PPAAUUSSAA»»

• Close firmly the door.
The plug is not properly inserted in the power socket.

• Insert the plug into the power socket.
There is no power at the socket.

• Please check your domestic electrical installation.
The main fuse has blown.

• Replace the fuse.
The selector dial is not correctly positioned and the

Start/Pause button has not been depressed.

• Please turn the selector dial and press the

Start/Pause button again.

The delay start or child safety lock has been selected.

• If the laundry are to be washed immediately, cancel

the delay start.

• Deactivate the child safety lock.

Something not working

42

Problem Possible cause/Solution

The machine does not fill:

The machine fills then empties
immediately:

The machine does not empty
and/or does not spin:

The water tap is closed.

««CCaannnnoott ffiillll wwaatteerr.. PPlleeaassee
cchheecckk tthhaatt tthhee ttaapp iiss ooppeenn aanndd tthheenn pprreessss
SSTTAARRTT//PPAAUUSSAA»»..

• Open the water tap.
The inlet hose is squashed or kinked.

««CCaannnnoott ffiillll
wwaatteerr.. PPlleeaassee cchheecckk tthhaatt tthhee ttaapp iiss ooppeenn aanndd tthheenn
pprreessss SSTTAARRTT//PPAAUUSSAA»»..

• Check the inlet hose connection.
The filter in the inlet hose is blocked.

««CCaannnnoott ffiillll
wwaatteerr.. PPlleeaassee cchheecckk tthhaatt tthhee ttaapp iiss ooppeenn aanndd tthheenn
pprreessss SSTTAARRTT//PPAAUUSSAA»»..

• Clean the water inlet hose filter.
The door is not properly closed.

««PPlleeaassee cchheecckk tthhaatt
tthhee ddoooorr iiss cclloosseedd pprrooppeerrllyy aanndd tthheenn pprreessss
SSTTAARRTT//PPAAUUSSAA»»

• Close firmly the door.

The end of the drain hose is too low.

• Refer to relevant paragraph in «water drainage»

section.

The drain hose is squashed or kinked.

««CCaannnnoott ddrraaiinn
tthhee wwaatteerr.. PPlleeaassee cchheecckk tthhaatt tthhee ffiilltteerr iiss cclleeaann aanndd
tthheenn pprreessss SSTTAARRTT//PPAAUUSSAA»»

• Check the drain hose connection.
The drain pump is clogged.

««CCaannnnoott ddrraaiinn tthhee wwaatteerr..
PPlleeaassee cchheecckk tthhaatt tthhee ffiilltteerr iiss cclleeaann aanndd tthheenn pprreessss
SSTTAARRTT//PPAAUUSSAA»»

• Clean the drain pump.
The option or Night Cycle has been selected.

• Select SPIN or DRAIN programme.
The laundry is not evenly distributed in the drum.

• Redistribute the laundry.

Problem Possible cause/Solution

There is water on the floor:

Unsatisfactory washing results:

Something not working

43

Too much detergent or unsuitable detergent (creates
too much foam) has been used.

• Reduce the detergent quantity or use another one
Check whether there are any leaks from one of the

inlet hose fittings. It is not always easy to see this as
the water runs down the hose; check to see if it is
damp.

• Check the water inlet hose connection.
The drain hose is damaged.

• Change it with a new one.
The cap on the emergency emptying hose has not

been replaced after cleaning the pump.

• Put the cap back on the emergency emptying and

place the latter back in its seat.

Too little detergent or unsuitable detergent has been
used.

• Increase the detergent quantity or use another one.
Stubborn stains have not been treated prior to

washing.

• Use commercial products to treat the stubborn

stains

.

The correct temperature was not selected.

• Check if you have selected the correct temperature.
Excessive laundry load.

• Introduce into the drum less laundry.

.

The door will not open:

The programme is still running.

• Wait the end of washing cycle.
The door lock has not been released.

• Wait some minutes.
There is water in the drum.

• Select drain or spin programme to empty out the

water.

Something not working

44

Problem Possible cause/Solution

The machine vibrates or is noisy:

Spinning starts late or the machine
does not spin:

The transit bolts and packing have not been removed.

• Check the correct installation of the appliance.
The support feet have not been adjusted

• Check the correct levelling of the appliance.
The laundry is not evenly distributed in the drum.

• Redistribute the laundry.
Maybe there is very little laundry in the drum.

• Load more laundry.

The electronic unbalance detection device has cut in
because the laundry is not evenly distributed in the
drum. The laundry is redistributed by reverse rotation
of the drum. This may happen several times before
the unbalance disappears and normal spinning can
resume. If, after some minutes, the laundry is still not
evenly distributed in the drum, the machine will not
spin.

• Redistribute the laundry.

The machine makes an unusual
noise

No water is visible in the drum:

The machine is fitted with a type of motor which
makes an unusual noise compared with other
traditional motors. This new motor ensures a softer
start and more even distribution of the laundry in the
drum when spinning, as well as increased stability of
the machine.

Machines based on modern technology operate very
economically using very little water without affecting
performance.

Something not working

Mod. ..........

Prod. No. ...........

Ser. No. .........

M
o
d
.

....

..

....

P

r

o
d
.
N
o

. ..
.
..
..

....

S
e
r

. N
o
.
.
.

....

...

P0042 BD

Problem Possible cause/Solution

45

The display shows the alarm code:

««AAnnttii--ffllooooddiinngg ssyysstteemm hhaass bbeeeenn
aaccttiivvaatteedd.. PPlleeaassee cchheecckk iinnlleett//ddrraaiinn

Anti-flooding system has activated.

• Disconnect the appliance and contact the Service
Force Centre

ppiippee ccoonnnneeccttiioonnss..»»

The drum light doesn’t work: Please contact your local Service Centre.

If you are unable to identify or solve the problem,
contact our service centre. Before telephoning,
make a note of the model, serial number and
purchase date of your machine: the Service Centre
will require this information.

Technical data

46

Technical Data

Dimensions

Electrical connection Voltage ­Overall power - Fuse

Water supply pressure

Maximum Load

Spin Speed

Width
Height
Depth
(door included)

Information on the electrical connection is given on the rating
plate on the inner edge of the appliance door

Minimum
Maximum

Cottons 7,0 kg

Maximum 1600 rpm

60 cm
85 cm
63 cm

0,05 MPa
0,80 MPa

Consumption value

Consumption value

47

Programme

Cottons 95° 62 2,1

Hygiene 60° 67 1,7

40-60 MIX 40° 45 1,3

Jeans 60° 55 0,9

Synthetics 60° 54 0,9

Easy iron 40° 63 0,45

Delicates 40° 63 0,55

Blanket 40° 75 0,35

Delicate Rinses 55 0,06

Drain - -

Spin - -

Wool 40° 62 0,4

Lingerie 40° 60 0,35

Silk 30° 50 0,25

Outdoor sports 40° 70 0,5

Water consumption

(in litres)

Energy consumption

(in kWh)

Programme duration

(in minutes)

the control panel.

20 MIN.- 3 Kg 30° 38 0,2

Quick Intensive 60° 48 1,05

(*) Economy 60° 45 1,19

The consumption data shown on this chart is to be considered purely indicative, as
it may vary depending on the quantity and type of laundry, on the inlet water
temperature and on the ambient temperature. It refers to the highest temperature
for each wash programme.

(*) “Economy 60°C”with a load of 7 kg is the reference programme for the data
entered in the energy label, in compliance with EEC 92/75 standards.

For the duration of the programmes, please refer to the display on

Installation

HEC0008

A

HEC00022

HEC0001

48

Installation

Unpacking

All transit bolts and packing must be removed before using the appliance.
You are advised to keep all transit devices so that they can be refitted if the

machine ever has to be transported again.

1. After removing all the packaging, carefully lay
machine on it’s back to remove the
polystyrene base from the bottom.

2. Remove the power supply cable and the draining hose
from the hose holders on the rear of the appliance.

3.

With a suitable spanner unscrew and remove the central rear
bolt A.

4. Unscrew and remove the two large rear bolts B

C

C

B

D

HEC0003

B

C

C

HEC0023

E

HEC0010

HEC0005

and the six smaller bolts C.

5. Remove the bracket D and tighten up the six

smaller bolts C. Slide out the relevant plastic
spacer E.

6. Open the porthole, take out the inlet hose from the
drum and remove the polystyrene block fitted with the
adhesive tape on the door seal.

Installation

49

7. Fill the smaller upper hole and the two large ones with
the corresponding plastic plug caps supplied in the bag
containing the instruction booklet.

8. Connect the water inlet hose as described under the
paragraph «Water inlet».

All the different plug caps are supplied with the appliance in
the plastic bag containing the instruction booklet.

Installation

HEC007S

HEC0006

50

Positioning and levelling

Install the machine on a flat hard floor.
Make sure that air circulation around the machine is

not impeded by carpets, rugs etc.
Before placing it on small tiles, apply a rubber

coating.
Never try to correct any unevenness in the floor by

putting pieces of wood, cardboard or similar
materials under the machine.

If it is impossible to avoid positioning the machine next to a gas cooker or coal­burning stove, an insulating panel covered with aluminium foil on the side facing
the cooker or stove, must be inserted between the two appliances.

The machine must not be installed in rooms where the temperature can drop
below 0.

The water inlet hose and the drain hose must not be kinked.
Please ensure that when the appliance is installed, it is easily accessible for the

engineer in the event of a breakdown.
Carefully level by screwing the adjustable feet in or out. Never place cardboard,

wood or similar materials under the machine to compensate for any unevenness
in the floor.

Automatic foot: The rear foot on the left-hand
side of your washing machine is built as a shock
absorbing foot, which is why the appliance gives in
the back left-hand corner if put under load. The
automatic foot guarantees that the appliance does
not move even at high spin speeds. Basically the
automatic foot does not need to be set.

Water inlet

An inlet hose is supplied and can be found inside the machine drum.

Do not use the hose from your previous
machine to connect to the water supply.

This appliance must be connected to a cold
water supply.

1. Open the porthole and extract the inlet hose.

2. Connect the hose with the angled connection to

the machine.

Installation

A

352

Do not place the inlet hose downwards. Angle the hose to the left or
right depending on the position of your water tap.

loosening the ring nut.

After positioning the inlet hose, be sure to tighten the ring nut again to prevent leaks.

3. Set the hose correctly by

4. Connect the hose to a tap with a 3/4” thread. Always use the hose supplied with
the appliance.

The inlet hose must not be lengthened. If it is too short and you do not wish to
move the tap, you will have to purchase a new, longer hose specially designed
for this type of use.

Water-stop device

The inlet hose is provided with a water stop device,
which protects against damage caused by water leaks in
the hose which could develop due to natural ageing of
the hose. This fault is shown by a red sector in the
window “AA”. Should this occur, turn the water tap off
and refer to your Service Centre to replace the hose.

Water drainage

The end of the drain hose can be positioned in three ways:

Hooked over the edge of a sink using the
plastic hose guide supplied with the machine.

In this case, make sure the end cannot come
unhooked when the machine is emptying.

This could be done by tying it to the tap with a piece
of string or attaching it to the wall.

In a sink drain pipe branch. This branch must be
above the trap so that the bend is at least 60 cm above
the ground.

Directly into a drain pipe at a height of not less than 60 cm and not more
than 90 cm.

The end of the drain hose must always be ventilated, i.e. the inside diameter of
the drain pipe must be larger than the outside diameter of the drain hose.

The drain hose must not be kinked.

51

Installation

P1118

52

Important!

The drain hose may be extended to a maximum of 4 metres. An additional drain hose and
joining piece is available from your local Service Centre.

Electrical connection

This machine is designed to operate on a 220-230 V, single-phase,
50 Hz supply.

Check that your domestic electrical installation can take the maximum load
required (2.2 kW), also taking into account any other appliances in use.

Connect the machine to an earthed socket.

The manufacturer does not accept any responsibility for damage or
injury through failure to comply with the above safety precaution.

Permanent connection

In the case of a permanent connection it is necessary that you install a double pole
switch between the appliance and the electricity supply (mains), with a minimum
gap of 3 mm between the switch contacts and of a type suitable for the required
load in compliance with the current electrical regulations.

The switch must not break the yellow and green earth cable at any point.
This operation must be performed by a qualified electrician.

The power supply cable must be easily accessible after installing the
machine.

Should the appliance power supply cable need to be replaced, this must
be carried out by a Service Centre.

Environment concerns

Enviroment concerns

Packaging materials

The materials marked with the symbol are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of them properly in

appropriate collection containers.

Old machine

Use authorised disposal sites for your old appliance. Help to keep your country tidy!

The symbol on the product or on its packaging indicates that this product may
not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be
caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city office,
your household waste disposal service or the shop where you purchased the
product.

53

Ecological hints

To save water, energy and to help protect the environment, we recommend that
you follow these tips:

• Normally soiled laundry may be washed without prewashing in order to save

detergent, water and time (the environment is protected too!).

• The machine works more economically if it is fully loaded.

• With adequate pre-treatment, stains and limited soiling can be removed; the

laundry can then be washed at a lower temperature.

• Measure out detergent according to the water hardness, the degree of soiling

and the quantity of laundry being washed.

54

Guarantee

Garantie/Kundendienst, Garantie/service-clientèle,
Garanzia/Servizio clienti, Guarantee/Customer
Service Centres

Servicestellen Points de Service Servizio dopo

vendita

5506 Mägenwil/Zürich
Industriestrasse 10

9000 St.
GallenZürcherstrasse
204 e

4127 Birsfelden
Hauptstrasse 52

6020 Emmenbrücke
Seetalstrasse 11

7000 Chur
Comercialstrasse 19

3018 Bern
Morgenstrasse 131

1028 Préverenges Le
Trési 6

Point of Service

6916 Grancia Zona
Industriale E

Ersatzteilverkauf/Points de vente de rechange/Vendita pezzi di ricambio/
spare parts service:

5506 Mägenwil, Industriestrasse 10, Tel. [phone]

Fachberatung/Verkauf/Demonstration/Vente/Consulente (cucina)/Vendita

8048 Zürich, Badenerstrasse 587, Tel. [phone]

Garantie

Für jedes Produkt gewähren wir ab Verkauf bzw. Lieferdatum an den
Endverbraucher eine Garantie von 2 Jahren. (Ausweis durch Garantieschein,
Faktura oder Verkaufsbeleg). Die Garantieleistung umfasst die Kosten für Material,
Arbeits- und Reisezeit. Die Garantieleistung entfällt bei Nichtbeachtung der
Gebrauchsanweisung und Betriebs-vorschriften, unsachgerechter Installation,
sowie bei Beschädigung durch äussere Einflüsse, höhere Gewalt, Eingriffe Dritter
und Verwendung von Nicht-Original Teilen.

Garantie

Nous octroyons sur chaque produit 2 ans de garantie à partir de la date de livraison
ou de la mise en service au consommateur (documenté au moyen d’une facture,

Guarantee

d’un bon de garantie ou d’un justificatif d’achat). Notre garantie couvre les frais
de mains d’œuvres et de déplacement, ainsi que les pièces de rechange.
Les conditions de garantie ne sont pas valables en cas d’intervention d’un tiers non
autorisé, de l’emploi de pièces de rechange non originales, d’erreurs de maniement
ou d’installation dues à l’inobser-vation du mode d’emploi, et pour des dommages
causés par des influences extérieures ou de force majeure.

Garanzia

Per ogni prodotto concediamo una garanzia di 2 anni a partire dalla data di
consegna o dalla sua messa in funzione. (fa stato la data della fattura, del certificato
di garanzia o dello scontrino d’acquisto) Nella garanzia sono comprese le spese di
manodopera, di viaggio e del materiale. Dalla copertura sono esclusi il logoramento
ed i danni causati da agenti esterni, intervento di terzi, utilizzo di ricambi non
originali o dalla inosservanza delle prescrizioni d’istallazione ed istruzioni per l’uso.

Warranty

For each product we provide a two-year guarantee from the date of purchase or
delivery to the consumer (with a guarantee certificate, invoice or sales receipt
serving as proof). The guarantee covers the costs of materials, labour and travel.
The guarantee will lapse if the operating instructions and conditions of use are not
adhered to, if the product is incorrectly installed, or in the event of damage caused
by external influences, force majeure, intervention by third parties or the use of
non-genuine components.

55

European Guarantee

56

European Guarantee

This appliance is guaranteed by Electrolux in each of the countries listed at the
back of this user manual, for the period specified in the appliance guarantee
orotherwise by law. If you move from one of these countries to another of the
countries listed, the appliance guarantee will move with you subject to the
following qualifications:

• The appliance guarantee starts from the date you first purchased the appliance

which will be evidenced by production of a valid purchase document issued by
the seller of the appliance.

• The appliance guarantee is for the same period and to the same extent for

labour and parts as exists in your new country of residence for this particular
model or range of appliances.

• The appliance guarantee is personal to the original purchaser of the appliance

and cannot be transferred to another user.

• The appliance is installed and used in accordance with instructions issued by

Electrolux and is only used within the home, i.e. is not used for commercial
purposes.

• The appliance is installed in accordance with all relevant regulations in force

within your new country of residence.
The provisions of this European Guarantee do not affect any of the rights

granted to you by law.

www.electrolux.com

Customer service centres

57

à

Albania
Belgique/België/Belgien
Česká republika
Danmark
Deutschland

Eesti
España
France
Great Britain
Hellas
Hrvatska
Ireland
Italia
Latvija
Lituania
Luxembourg
Magyarország
Nederland
Norge
Österreich
Polska
Portugal
Romania
Schweiz-Suisse-Svizzera
Slovenija
Slovensko
Suomi
Sverige
Türkiye

Россия

 

35 5 4 261 450
[phone]
[phone]
[phone]
[phone]

[phone]
[phone]

www.electrolux.fr
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
www.electrolux.fi
[phone]
[phone]
[phone]

Rr. Pjeter Bogdani Nr. 7 Tirane
Bergensesteenweg 719, 1502 Lembeek
Budějovická 3, Praha 4, 140 21
Sjællandsgade 2, 7000 Fredericia
Muggenhofer Str. 135, 90429 Nürnberg
Mustamäe tee 24, 10621 Tallinn
Carretera M-300, Km. 29,900 Alcalá de Henares Madrid

Addington Way, Luton, Bedfordshire LU4 9QQ
4, Limnou Str., 54627 Thessaloniki
Slavonska avenija 3, 10000 Zagreb
Longmile Road Dublin 12
C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Kr. Barona iela 130/2, LV-1012, Riga
Verkiu, 2 9, 09108 Vilnius, Lithuania
Rue de Bitbourg, 7, L-1273 Hamm
H-1142 Budapest XIV, Erzsébet királyné útja 87
Vennootsweg 1, 2404 CG - Alphen aan den Rijn
Risløkkvn. 2 , 0508 Oslo
Herziggasse 9, 1230 Wien
ul. Kolejowa 5/7, Warsaw
Quinta da Fonte - Edificio Gonçalves Zarco - Q35 -2774-518 Paço de Arcos
Str. Garii Progresului 2, S4, 040671 RO
Industriestrasse 10, CH-5506 Mägenwil
Tr aška 132, 1000 Ljubljana
Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiče SK, Seberíniho 1, 821 03 Bratislava

Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm
Tarlabași caddesi no : 35 Taksim Istanbul

129090 Москва, Олимпийский проспект, 16, БЦ «Олимпик»

58

www.electrolux.ch

ANC number: 132 967 260-00-402007
