H9705ED(EN).fm Page 1 Wednesday, March 17, 2004 4:55 PM
DVD/CD PLAYER & VIDEO
CASSETTE RECORDER
VCR-D 4507
Owner’s Manual
Table of Contents
Precautions ...........................................................................2
LASER SAFETY ..................................................................2
IMPORTANT........................................................................2
POWER SUPPLY ................................................................2
DEW WARNING ..................................................................2
CAUTION.............................................................................2
Positioning ...........................................................................2
A Note about Recycling .......................................................2
Playable Discs .....................................................................3
Unplayable Discs .................................................................3
Important Copyright Information ..........................................3
Symbols Used in this Manual...............................................3
Functional Overview ............................................................4
Front Panel ..........................................................................4
Display .................................................................................4
Remote Control....................................................................5
Loading Batteries.................................................................5
VCR/DVD Switching ............................................................5
Rear View ............................................................................6
Setting up Your DVD/VCR....................................................6
Before Connecting ...............................................................6
Connecting to a TV ..............................................................6
For Better Sound (for DVD Features) ..................................7
External Input Mode (for VCR Features) .............................8
Video Cassette Tape ...........................................................8
TV Colour System................................................................8
Turning on Your DVD/VCR..................................................8
Changing the Language.......................................................8
Video Channel Setting .........................................................8
Setting the Clock..................................................................9
Channel Presetting ..............................................................9
Automatic Channel Preset ...................................................9
Manual Channel Preset .....................................................10
To Skip a Preset Channel..................................................10
Channel Reprogramming...................................................10
VCR Operation ....................................................................11
VCR Features ....................................................................11
Playback ............................................................................11
Recording...........................................................................12
Hi-Fi Stereo Sound System ...............................................12
OTR (One Touch Recording).............................................13
Auto Repeat Playback .......................................................13
Picture Select.....................................................................13
Automatic Operations ........................................................13
Real Time Tape Counter................................................... 14
Timer Recording................................................................ 14
Auto Return ....................................................................... 15
Quick-Find......................................................................... 15
Index Search..................................................................... 15
Time Search...................................................................... 15
Recording from DVD to VCR ............................................ 15
Copying a Video Tape....................................................... 16
A Status Display................................................................ 16
DVD Operation ................................................................... 17
Basic Playback.................................................................. 17
Disc Menus ....................................................................... 17
Title Menu ......................................................................... 17
Calling up a Menu Screen During Playback...................... 17
MP3 Playback .................................................................. 17
Resume............................................................................. 18
Pause ................................................................................ 18
Step by Step Playback ...................................................... 18
Fast Forward / Reverse Search ........................................ 18
Slow Forward / Reverse.................................................... 18
Zoom ................................................................................. 18
Audio Language ................................................................ 18
Subtitle Language ............................................................. 18
Camera Angle ................................................................... 19
Stereo Sound Mode .......................................................... 19
Virtual Surround ................................................................ 19
Track Search..................................................................... 19
Title / Chapter Search ....................................................... 19
Time Search...................................................................... 19
Marker Setup..................................................................... 20
Repeat............................................................................... 20
Programmed Playback...................................................... 20
Random Playback ............................................................. 21
On-Screen Information...................................................... 21
DVD Setup .......................................................................... 22
Language Setting .............................................................. 22
Audio Setting..................................................................... 22
Display Setting .................................................................. 22
Parental Control ................................................................ 23
To Reset All the Settings of the SET UP screen............... 23
Troubleshooting Guide ..................................................... 25
Specifications .................................................................... 26
Maintenance ....................................................................... 27
Declaration of Conformity................................................. 27
Warranty .............................................................. Back cover
PAL
Supplied Accessories
• Remote control
• Two R6 (AA) batteries
•RF cable
• Scart cable
•Owner’s Manual
Model/Serial Number
This appliance has a serial number located on the rear panel.
Please note down the serial number and retain the information
for your records.
Model number: VCR-D 4507
Serial number:
EN
H9705ED(EN).fm Page 2 Wednesday, March 17, 2004 4:55 PM
Precautions
WARNING:TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO
.
RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
LASER SAFETY
This unit employs a laser. Only a qualified service person
should remove the cover or attempt to service this device, due
to possible eye injury.
CAUTION: USE OF CONTROLS OR
ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN
HAZARDOUS RADIATION
EXPOSURE.
CAUTION: VISIBLE LASER RADIATION WHEN
OPEN AND INTERLOCK
DEFEATED. AVOID EXPOSURE TO
BEAM.
LOCATION:
• PRINTED ON THE BACK
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
KLASS 1 LASER APPARAT
CLASSE 1 PRODUIT LASER
IMPORTANT
• Use only discs marked DVD or disc with this DVD.
• Use only cassettes with the VHS mark with this VCR.
POWER SUPPLY
The main power supply is engaged when the main plug is
plugged in a 220-240V, 50Hz AC outlet. To operate the unit,
FUNCTION to turn on the unit.
press
WARNING:LIVE PARTS INSIDE.
DO NOT REMOVE ANY SCREWS.
DEW WARNING
Moisture condensation may occur inside the unit when it is
moved from a cold place to a warm place, or after heating a
cold room or under conditions of high humidity. Do not use
the DVD/VCR at least for 2 hours until its inside is dry.
CAUTION
1) Do not attempt to open the cabinet. There are no parts
you can service inside. Refer all servicing to qualified
service personnel.
2) Slots and openings in the cabinet and the sides or bottom
are provided for ventilation. To ensure reliable operation
and to protect the unit from overheating, these openings
must not be blocked or covered.
Avoid installation in enclosed spaces such as bookcases
unless proper ventilation is provided.
3) Keep the unit away from radiators and other heat sources.
4) Avoid use near strong magnetic fields.
5) Do not push objects of any kind into the DVD/VCR
through the cabinet slots or openings as they could touch
electrically live parts or short circuit parts resulting in a
fire or electric shock.
6) Never spill liquid on this unit. If liquid is spilled and
penetrates into the unit, consult qualified service
personnel.
7) Use this unit in a horizontal (flat) position only.
8) Before attempting to operate the unit, make sure that the
timer recording mode is “OFF”.
9) This product is in Stand-by mode when it turns off while
the power cord is connected.
10)Do not place any combustible objects on the device
(candles, etc.).
Positioning
• Do not place the DVD/VCR directly on top of, or
underneath, your TV set. Ensure that there is at least 20 cm
between the DVD/VCR and the TV set, and that air can
circulate freely through the ventilation openings of the
DVD/VCR.
A Note about Recycling
This product’s packaging materials are recyclable and can be
reused. Please dispose of any materials in accordance with your
local recycling regulations.
Batteries should never be thrown away or incinerated but
disposed of in accordance with your local regulations
concerning chemical wastes.
2 EN
H9705ED(EN).fm Page 3 Wednesday, March 17, 2004 4:55 PM
Playable Discs
The following discs can be played back on this unit.
• DVD video with region code 2 or ALL (*1, 2, 5, 7)
• DVD+R/RW (*1, 3, 4, 5, 6, 7)
• DVD-R/RW (*1, 3, 4, 5, 6, 7)
• Audio CD (*5, 7)
• CD-R/RW with MP3 files (*5, 6, 7)
• DTS-CD (*5, 7)
Note:
*1: This unit conforms to the PAL colour system. Also you can
play discs recorded with the NTSC system via a PAL
system TV set.
*2: The region code 2 or ALL are marked on DVDs as follows.
2
*3: Certain DVD-Video discs do not operate as described in
this manual due to the intentions of the disc's producers.
*4: Only the discs recorded in the video format and finalized
can be played back.
Depending on the recording status of a disc, the disc may
not be played back at all or normally (the picture or sound
may not be smooth, etc.).
*5: Scratched or stained discs may not be played back.
*6: Some discs cannot be played back because of incompatible
recording conditions, characteristics of the recorder or
special properties of discs.
*7: You can play back discs which bear marks above. If you use
nonstandardized discs, this unit may not play them back.
Even if they are played back, the sound or video quality
will be compromised.
Unplayable Discs
• On the following discs, only the sound can
be heard (picture cannot be viewed).
CDV
CD-G
• NEVER play back the following discs.
Otherwise, malfunction may result!
DVD-RAM
CD-I
Photo CD
Video CD
DVD with region codes other than 2 or ALL
DVD-ROM for personal computers
CD-ROM for personal computers
• On the following disc, the sound MAY NOT
be heard.
Super Audio CD
Note: Only the sound recorded on the normal CD layer can
be delivered.
The sound recorded on the high density Super Audio
CD layer cannot be delivered.
• Any other discs without compatibility indications.
Important Copyright Information
DVD:
Unauthorized copying, broadcasting, public performance and
lending of discs are prohibited.
This product incorporates copyright protection technology
that is protected by method claims of certain U.S. patents and
other intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited
viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is
prohibited.
VCR:
Unauthorised recording or use of broadcast television
programming, video tape, film or other copyrighted material
may violate applicable copyright laws. We do not take
responsibility for the unauthorised duplication, use, or other
acts which infringe upon the rights of copyright owners.
Symbols Used in this Manual
The following symbols appear below in some headings and
notes in this manual, with the following meanings!
DVD-V
: Description refers to playback of DVD video discs.
CD
: Description refers to playback of audio CDs.
MP3
: Description refers to playback of MP3 discs.
QUICK
: Description refers to the items to be set in the QUICK
mode.
3 EN
H9705ED(EN).fm Page 4 Wednesday, March 17, 2004 4:55 PM
Functional Overview
Front Panel
1.
FUNCTION indicator
1 2 3 54
FUNCTION
VIDEO
L -AUDIO- R
REW F.FWD PLAY REC/OTRSTOP/EJECT
The indicator is on when this unit is turned on.
2. FUNCTION
To turn the unit ON or OFF.
3.
Cassette Compartment
4. OPEN/CLOSE (DVD)
To open or close the disc tray.
Disc tray
5.
6. PLAY (DVD)
To begin disc playback.
7.
STOP (DVD)
To stop playback.
8. DVD OUTPUT indicator (Green)
The indicator is on when this unit is in the DVD mode.
Make sure that this indicator is on before using the DVD
player.
9.
OUTPUT
To select the DVD mode or VCR mode.
10.
VCR OUTPUT indicator (Green)
The indicator is on when this unit is in the VCR mode.
Make sure that this indicator is on before VCR
operation.
11.
CHANNEL (VCR)
To change TV channels.
To adjust the tracking manually during playback.
OPEN/CLOSE
CHANNEL
12131415161718 9 876101120 19
12.
Display
13. Remote Sensor
14. REC/OTR (VCR)
Press once to start recording or repeatedly to start OneTou c h R e c o r d i n g .
15.
PLAY (VCR)
To begin tape playback.
16.
STOP/EJECT (VCR)
To stop playback.
To eject the tape in the Stop mode.
17.
F.FWD (VCR)
To fast forward the tape.
18.
REW (VCR)
To rewind the tape.
19. AUDIO in jacks
Connect audio cables coming from the audio out jacks of
a camcorder, another VCR, or an audio source here.
20.
VIDEO in jack
Connect a cable coming from the video out jack of a
camcorder, another VCR, or an audio-visual source (laser
disc player, video disc player, etc.) here.
OUTPUT
VCR DVD
STOP PLAY
Display
DVD-V
Lights up when
the A-B repeat
function is on.
Lights up when
the ALL repeat
function is on.
Lights up when the
inserted disc comes
to a pause.
Lights up when
the repeat function is on.
Lights up when
the playback is
Lights up when the inserted
disc is being played back.
in slow mode.
Displays a type of
disc on the tray.
• DVD : DVD disc
• CD : Audio CD, MP3
DVD
Displays how long
the current title or
track has been
played back. When
a chapter or track is
switched, the number
of a new title, chapter
or track is displayed.
No disc inserted or
displaying DVD menu
Opening the tray
Closing the tray
Loading the disc or
turning this unit on
CD
VCR
Lights up
when a tape is
in the DVD/VCR.
Lights up during
playback when
the repeat function
is on.
Lights up when
the playback is
in still or slow mode.
Lights up when the inserted
cassette is being played
back.
Lights up when
the timer recording or an
OTR recording has been set.
Lights up during a recording.
Flashes when a recording
is paused.
REC
Works as a tape counter(hour,minute,second).
Also displays a channel number,
tape speed, remaining time for OTR or
current time.
4 EN
H9705ED(EN).fm Page 5 Wednesday, March 17, 2004 4:55 PM
Remote Control
11
13
1
2
3
4
SPEED/
FUNCTION
SYSTEM
1 2 3
4 5 6
7 8 9
DISPLAY
AUDIO
0
VCR DVD
+10
OPEN/CLOSE
/EJECT
SKIP/CH.
CLEAR/
C.RESET
SLOW
PAUSE
5
REC/OTR
MENU
SETUP
MODE
SUBTITLE
T - SET
TOP MENU
ZOOM
ANGLE
PLAY
STOP
ENTER
SEARCH
MODE
REPEAT
RETURN
QUICK - FIND
A-B
6
7
8
9
10
12
14
31
30
29
27
25
23
21
19
17
15
SPEED/SYSTEM (VCR)
1.
To change th e r ec or d i n g speed.
(Only the function of SPEED is available for this unit.)
2. FUNCTION
To turn the unit ON or OFF.
3. 0-9 number buttons
To select numbered items on the menu screen. /
To select chapters, titles or tracks directly. (DVD)
To select a channel. (VCR)
+10 (DVD)
To enter 10 and over.
4. DISPLAY
To display the current playback mode. (DVD)
To display the current time, tape counter and channel number.
(VCR)
5. VCR
Press this button before using the remote control for VCR
features.
6. h
To search backward through the disc. (DVD)
To rewind the tape. (VCR)
7. STOP
To stop playback. (DVD)
To stop playback or recording. (VCR)
8. REC/OTR (VCR)
Press once to start recording or repeatedly to start One-Touch
Recording.
9. MENU
To call up the main menu on a DVD. /
To call up the MP3 menu. (DVD)
To call up the VCR menu. (VCR)
10. TOP MENU (DVD)
To call up the title menu on a DVD.
28
26
24
22
20
18
16
11. SETUP (DVD)
To access or remove the DVD setup menu.
12. ZOOM (DVD)
To magnify the part of picture.
13. MODE (DVD)
To set up programmed or random playback for Audio CDs and
MP3 files.
To set the Virtual Surround ON or OFF.
14. SUBTITLE (DVD)
To change subtitles on a DVD.
T-SET (VCR)
To put the VCR into Standby mode for a timer recording.
15. ANGLE (DVD)
To change camera angles on a DVD.
16. REPEAT (DVD)
To play the selected chapter, title, track, group or a whole disc
repeatedly.
17. A-B (DVD)
To repeat between your chosen point A and B.
18. SEARCH MODE
To search chapters, titles, tracks, markers or time. (DVD)
To call up the index or time search menu. (VCR)
19. QUICK-FIND (VCR)
To skip to the beginning of next programme.
20. RETURN (DVD)
To return to the previous menu.
21. Arrow ( s / B / K / L)
To move th e c u r s or.
22. ENTER (DVD)
To confirm your menu selections.
23. g
To search forward through the disc. (DVD)
To fast forward the tape. (VCR)
24. PLAY
To begin playback.
25. DVD
Press this button before using the remote control for DVD
features.
26. PAUSE
To pause p la yb a c k . /
To advance playback one frame at a time. (DVD)
To pause playback or recording. / To advance playback one
frame at a time. (VCR)
27. SLOW (VCR)
To view the tape in slow motion.
28. CLEAR (DVD)
To clear the markers. / To clear the incorrect input.
C.RESET (VCR)
To reset the tape counter.
29. SKIP H G (DVD)
To skip chapters or tracks.
CH. K/L (VCR)
To change TV channels. / To adjust the tracking manually
during playback.
30. OPEN/CLOSE (DVD)
To open or close the disc tray.
EJECT (VCR)
To eject the tape from the VCR.
31. AUDIO
To change audio languages on a DVD. / To change sound
modes of a CD. (DVD)
To change sound modes. (VCR)
Loading Batteries
1) Open the battery compartment cover.
2) Insert two R6 (AA) batteries, with each one
oriented correctly.
3) Close the cover.
Note: • Do not mix alkaline and manganese
batteries.
• Do not mix old and new batteries.
VCR/DVD Switching
Note: Since this product comprises VCR and DVD players, it
is necessary to select the correct output mode.
SWITCHING TO VCR MODE
Press VCR on the remote control or OUTPUT on the front
panel. (Make sure that the VCR OUTPUT indicator is lit.)
SWITCHING TO DVD MODE
Press DVD on the remote control or OUTPUT on the front
panel. (Make sure that the DVD OUTPUT indicator is lit.)
Note: Pressing only OUTPUT on the front panel does not
switch the mode of the remote control. To change the
mode of the remote control, press VCR or DVD on the
remote control.
5 EN
H9705ED(EN).fm Page 6 Wednesday, March 17, 2004 4:55 PM
Rear View
DVD
DIGITAL
ANALOG
S-VIDEO
AUDIO OUT
AUDIO OUT
OUT
VCR
AV2 (DECODER)
L
R
DVD/VCR AV1 (TV)
OPTICALCOAXIAL
123456 78
1.
Power Cord
AERIAL
RF OUT
Connect to a standard AC outlet
2.
DIGITAL AUDIO OUT (OPTICAL, COAXIAL ) jacks (DVD
only)
Connect to an amplifier with digital input jacks such as
Dolby Digital decoder, DTS decoder, etc.. Use a
commercially available optical or coaxial cable.
3.
ANALOG AUDIO OUT jacks (DVD only)
Connect to the audio input jacks of your TV or stereo
system. Use commercially available audio cables.
Setting up Your DVD/VCR
Before Connecting
• Please refer to the instruction books of your TV, DVD/
VCR, Stereo System or other devices as necessary to make
the best connections.
• Make one of the following connections, depending on the
capabilities of your existing equipment.
The following guidelines are options for the best picture and
sound quality available on your DVD/VCR.
1) Use SCART Output (DVD/VCR(AV1 TV)) for best
picture quality (for DVD and VCR features).
2) Use S-Video Output for the better picture quality (for
DVD features only).
3) If your TV only has a RF-style (Antenna IN or 75 ohm)
input, use the RF OUT for connection and set your TV
to channel 22 ~ 69 with the same channel for DVD/VCR
is set (for DVD and VCR features).
Note: • When your TV conforms to RGB input signal, the
Euro AV (scart) connection ensures you the best
picture and audio quality. However if your TV does
not conform to RGB input signal, the S-VIDEO
OUT and analog AUDIO OUT connection is better
(for DVD features only).
Sound
1) Use SCART Output (DVD/VCR(AV1 TV)) for best
sound quality (for DVD and VCR features).
2) Digital audio connections provide the clearest sound.
Connect the DVD/VCR’s DIGITAL AUDIO OUT
(either COAXIAL or OPTICAL) to your amplifier or
receiver (for DVD features only).
3) If digital connections are not possible, connect the DVD/
VCR’s ANALOG AUDIO OUT(Left and Right) to your
amplifier, receiver, stereo or TV (for DVD features only).
4.
S-VIDEO OUT jack (DVD only)
Connect to the S-VIDEO input jack on your TV. Use a
commercially available S-VIDEO cable.
5. AV1(TV) jack
Connect to the scart jack on your TV. Use the supplied
scart cable.
6. AV2(DECODER) jack (VCR only)
Connect a scart cable from another VCR, camcoder, or
an audio/video source.
7. AERIAL jack
Connect to an antenna or cable.
8. RF OUT jack
Connect to the antenna in jack of your TV, cable box or
direct broadcast system. Use the supplied RF cable.
CAUTION: Do not touch the inner pins of the
jacks on the rear panel.
Electrostatic discharge may cause
permanent damage to the unit.
• Do not connect the ANALOG AUDIO OUT of DVD/
VCR to PHONO IN of your amplifier or receiver.
• If you use the Euro audio/video cable, it is not necessary to
connect the analog audio cables.
Connecting to a TV
1) Disconnect the antenna or cable from your TV.
2) Connect that antenna or cable to the AERIAL jack of this
unit.
3) Connect the RF OUT jack of this unit to the antenna in
jack of your TV. Use the supplied RF cable.
4) Connect the AV1 (TV) scart jack of this unit to the scart
input jack of your TV. Use the supplied scart cable.
5) Plug in the TV and this unit.
Note: • The TV must be connected to this unit through AV1
(TV) jack. A connection to AV2 (DECODER) jack
will not function correctly.
VHF
UHF
VHF/UHF
MIXER
DVD
DIGITAL
AUDIO OUT
OPTICALCOAXIAL
scart cable
(supplied)
to 21-pin
scart jack
ANALOG
S-VIDEO
AUDIO OUT
OUT
VCR
AV2 (DECODER)
L
DVD/VCR AV1 (TV)
R
(TV)
to aerial socket
AERIAL
RF OUT
RF cable
(supplied)
WARNING!
• Never make or change connections with the power
switched on.
• Connect the DVD/VCR directly to your TV, instead of eg.
a VCR, to avoid distortion because DVD video discs are
copy protected.
6 EN
H9705ED(EN).fm Page 7 Wednesday, March 17, 2004 4:55 PM
If your TV has no scart input jack but has an
S-VIDEO input jack,
1) Follow the steps 1) to 3) above.
2) Connect the S-VIDEO OUT jack on this unit to the
S-VIDEO input jack on your TV.
3) Connect the analog AUDIO OUT jacks of this unit to
the analog audio input jacks of your TV.
4) Plug in the TV and this unit.
Note: The S-VIDEO connection only supplies video (picture)
in the DVD mode. Therefore, video channel setting is
necessary for watching videotapes. For more details,
refer to page 8.
TV
AUDIO
IN
L
S-VIDEO
R
IN
S-Video cable
DVD / VCR
DVD
DIGITAL
AUDIO OUT
OPTICAL COAXIAL
If your TV has no VIDEO input jacks,
1) Follow the steps 1) to 3) and 5) right under “Connecting
to a TV.”
2) Video channel setting is necessary. Refer to page 8.
For Better Sound (for DVD Features)
These 2 connections are optional for better sound.
1) For clear digital sound quality, use the DIGITAL AUDIO
OUT (either OPTICAL or COAXIAL) jack for the
connection to your digital audio system.
•If the audio format of the digital output does not match
the capabilities of your receiver, the receiver will produce
a strong, distorted sound or no sound at all.
Dolby Digital decoder,
DTS decoder, or
MPEG decoder etc.
DIGITAL
AUDIO OUT
DVD / VCR
OPTICALCOAXIAL
(not supplied)
ANALOG
S-VIDEO
AUDIO OUT
OUT
VCR
L
DVD/VCR AV1 (TV)
R
(Back of the unit)
Digital Audio
Input jacks
OPTICAL
Optical
cable
(not supplied)
AV2 (DECODER)
COAXIAL
or
Coaxial
cable
(not supplied)
Hints for connecting to a Dolby Digital
decoder, DTS decoder, or MPEG decoder
• By connecting this unit to a Multi-channel Dolby Digital
decoder, you can enjoy high-quality 5.1ch Dolby Digital
surround sound as heard in the movie theaters.
• When this unit is connected to a DTS decoder, you can
enjoy 5.1 channel surround system which reproduces the
original sound as truthfully as possible. 5.1 channel
surround system is developed by the Digital Theater
System, Inc.
• A digital component with a built-in MPEG 2, Dolby
DigitalTM, or DTS decoder allows you to enjoy the
surround sound while producing the effecting of being in a
movie theater or a concert hall.
• If output is Dolby Digital encoded audio, connect to a
Dolby Digital decoder, and set “DOLBY DIGITAL” to
“ON” in the AUDIO menu. (Refer to page 22.)
• If output is DTS encoded audio, connect to a DTS
decoder, and set “DTS” to “ON” in the AUDIO menu.
(Refer to page 22.)
• If output is MPEG encoded audio, connect to a MPEG
decoder, and set “MPEG” to “ON” in the AUDIO menu.
(Refer to page 22.)
Hints for connecting to an MD deck or DAT
deck
• The audio source on a disc in a Dolby Digital 5.1 channel
surround format cannot be recorded as digital sound by an
MD or DAT deck.
• Unless connected to a Dolby Digital decoder, set “DOLBY
DIGITAL” to “OFF” in the AUDIO menu. Playing a
DVD using incorrect settings may generate noise
distortion, and damage the speakers. (Refer to page 22.)
• Set “DOLBY DIGITAL”, “DTS”, and “MPEG” to
“OFF” in the AUDIO menu for connecting to an MD
deck or DAT deck. (Refer to page 22.)
2) For dynamic sound effects, use the analog AUDIO OUT
jacks for the connection to your audio system.
Audio
RL
AUDIO SYSTEM
Audio cables
ANALOG
(not supplied)
AUDIO OUT
L
DVD/VCR
“DTS” and “DTS Digital Out” are trademarks of
Digital Theater Systems, Inc.
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
R
7 EN
H9705ED(EN).fm Page 8 Wednesday, March 17, 2004 4:55 PM
External Input Mode (for VCR Features)
Connect an external device (a decoder, a camcorder, etc.) to
the AV2 (DECODER) jack. Press 0, 0, 2, with the number
buttons, so that “AV2” appears on the TV screen.
If you use the front AUDIO/VIDEO input jacks, press
with the
number buttons, so that “AV3” appears on the TV
0, 0, 3,
screen.
If you use the AV1 (TV) jack for connecting a device, press 0,
0, 1 with the number buttons, so that “AV1” appears on the
TV screen.
Video Cassette Tape
This DVD/VCR will operate with any cassette that bears the
VHS mark. For best results, we recommend the use of highquality tapes. Do not use poor quality or damaged tapes.
• You can prevent accidental erasing of a recording by
breaking off the erase-prevention tab on the back edge of
the cassette.
Ta b
• If you decide to record on the tape again, cover the hole
with plastic tape.
TV Colour System
Different countries use different television colour systems.
Tapes recorded in the PAL or NTSC system can be played
back on this unit. Usually, the picture on the TV screen will
be in black and white when you play back a tape that is
recorded in a different colour system.
Tapes recorded in the NTSC system can be played back on
this unit and a PAL system TV set. This feature is only
available in the SP mode. When playing back such tapes, the
picture may roll up or down, shrink vertically and black bars
may appear both at the top and bottom of the screen. Adjust
the vertical hold control on your TV, if the TV features this
control.
Turning on Your DVD/VCR
The following steps should only be performed if there is a
power failure or if this unit is unplugged for more than 30
seconds.
• Use the remote control for this procedure.
1) Turn on the TV and select the video channel on the TV.
2) Press
3) Press
4) Press
FUNCTION, then VCR.
K or L repeatedly to select your desired language.
MENU.
LANGUAGE
[ ]
ENGLISH
FRANÇAIS
ESPAÑOL
DEUTSCH
ITALIANO
SVENSKA
NEDERLANDS
Changing the Language
If you want to change the language used on the TV screen
menus, follow the steps below.
• Use the remote control for this procedure.
1) Press
2) Press
3) Press
4) Press
5) Press
VCR, then MENU.
K or L to select “INITIAL”, then press B.
K or L to select “LANGUAGE”, then press B.
K or L repeatedly to select your desired language.
MENU.
MENU
TIMER
SET UP
INITIAL
INITIAL
CH TUNING
CLOCK
RF OUT
LANGUAGE
LANGUAGE
[ ]
ENGLISH
FRANÇAIS
ESPAÑOL
DEUTSCH
ITALIANO
SVENSKA
NEDERLANDS
Video Channel Setting
Video channel setting will be necessary, if your DVD/VCR is
connected to the TV via the coaxial cable.
• Use the remote control for this procedure.
1) Press VCR.
2) Insert a pre-recorded tape into the DVD/VCR.
The DVD/VCR will start playback automatically.
If playback does not start, press
PLAY.
3) Select and adjust your TV to channel 36.
•If the playback picture appears on the TV screen,
continue with step
9).
•If channel 36 is set for broadcasting, or interference lines
appear on the picture, the RF converter must be set to a
different channel between CH22 and CH69. Continue
with step
4) Press
5) Press
press
6) Press
press
7) Press
4).
MENU.
K or L repeatedly to select to “INITIAL”. Then,
B.
K or L repeatedly to select to “RF OUT”. Then,
B. The RF OUT CH menu will appear.
K or L to select a channel which is not used for
broadcasted between channel 22 and channel 69 in your
area, then press
8) Press
MENU to exit.
B.
Set the TV channel to the RF OUT CHANNEL which
was selected on the DVD/VCR. A picture from the DVD/
VCR will appear on the TV screen. If a picture does not
appear, repeat steps
4) to 8) using a different channel
which is not used for broadcasting.
9) Press
Note: • You may also access the RF OUT CH menu by
STOP to stop the tape.
pressing and holding MENU on the remote control for
3 seconds during power off until the RF OUT CH
menu appears.
• If this unit and your TV are connected using a scart
cable, the RF converter may be switched off to avoid
any possibility of interference. To switch off the RF
converter, follow steps 1) and 4) to 6) above and press
L repeatedly until “- -” appears next to “RF OUT
CH.” Press B, then MENU to exit.
8 EN
H9705ED(EN).fm Page 9 Wednesday, March 17, 2004 4:55 PM
MENU
TIMER
SET UP
INITIAL
INITIAL
CH TUNING
CLOCK
RF OUT
LANGUAGE
RF OUT CH 36
Setting the Clock
This unit incorporates a 24-hour clock. The clock must be set
for the Timer Recording function to operate correctly.
• Use the remote control for this procedure.
1) Press
2) Press
3) Press
4) Press
5) Press
6) Press
7) Press
8) Press
9) Press
Note:
VCR, then MENU.
K or L to select “INITIAL”, then press B.
K or L to select “CLOCK”, then press B.
K or L until the relevant year appears, then press B.
K or L until the relevant month appears, then press
B.
K or L until the relevant day appears, then press B.
K or L until the relevant hour appears, then press B.
K or L until the relevant minute appears.
MENU to start the clock.
•Press s to go one step back from the current step during
steps
5) to 8).
• Although seconds are not displayed, they begin counting
from 00 when you exit by pressing MENU. Use this feature
to synchronize the clock with the correct time.
• If this unit is unplugged or if there is a power failure for
more than 30 seconds, you may have to reset the clock.
MENU
TIMER
SET UP
INITIAL
INITIAL
CH TUNING
CLOCK
RF OUT
LANGUAGE
Channel Presetting
Tuning of broadcast channels not already preset in the DVD/
VCR can be performed in two ways.
Automatic Channel Preset
•By “AUTOMATICALLY” tuning channels and placing
them in sequential order in the DVD/VCR’s memory i.e.
the first channel found will be memorized into the DVD/
VCR’s channel position 1, the second channel found will
be memorized into the DVD/VCR’s channel position 2
and so on.
• Execution of the “Automatic” channel presetting cancels all
the preset channels. DO NOT use this feature if you intend
to use some of the pre-tuned channels. Use the “Manual”
channel presetting function to tune in the additional
channels you require.
Manual Channel Preset
• Each channel is tuned manually and individually. Follow
the steps laid out in the “Manual Channel Preset”.
Before you preset Channel...
• It is necessary to set the video channel if this unit is
connected to the TV via the coaxial cable, and TV channel
36 is set for broadcasting, or interference lines appear on
the picture. Please refer to “Video Channel Setting”.
Automatic Channel Preset
You can programme the tuner to scan only the channels that
you can receive in your area.
• Use the remote control for this procedure.
1) Turn on the TV and select the TV channel to the video
channel on the TV.
2) Press
3) Press
4) Press
5) Press
VCR, then MENU.
K or L to select “INITIAL”, then press B.
K or L to select “CH TUNING”, then press B.
K or L to select “AUTO”, then press B.
• The tuner scans and memorizes all the active channels in
your area. After scanning, the tuner stops on the lowest
memorized channel.
MENU
TIMER
SET UP
INITIAL
INITIAL
CH TUNING
CLOCK
RF OUT
LANGUAGE
CLOCK
YEAR 2 0 0 4
MONTH 0 1
DAY 0 7 WE
HOUR
MINUTE
_ _
_ _
CH TUNING
AUTO
MANUAL
scanning
To Select a Desired Channel
MOVE
You can select a desired channel by using CH. (K/L), or
directly pressing the
number buttons on the remote control.
• Enter a channel numbers as a two-digit number for the
quickest results. For example, to select channel 6, press 0
6. If you only press 6, channel 6 will be selected after a
and
brief delay.
• You can only select channels 1–99.
9 EN
H9705ED(EN).fm Page 10 Wednesday, March 17, 2004 4:55 PM
Manual Channel Preset
• Use the remote control for this procedure.
1) Press
2) Press
3) Press
4) Press
5) Press
VCR, then MENU.
K or L to select “INITIAL”, then press B.
K or L to select “CH TUNING”, then press B.
K or L to select “MANUAL”, then press B.
K or L to select “POSITION”, then press B.
•When a weak signal is received in Manual Tuning mode,
you can change the background to solid blue or the
static screen by pressing
6) Press the
number buttons, K, or L to select your desired
position number, then press
C.RESET.
B.
•You can select position number 01-99.
•If [ON] appears on the right side of “SKIP”, press
L to point to “SKIP”. Then, press B to select [OFF].
•If you want to remove scrambled signals, press
K or L
repeatedly to point to “DECODER”. Then, press
select [ON].
7) Press
K or L to select “CHANNEL”, then press B.
Press
K or L. The DVD/VCR tuner will begin to search
up or down automatically. When a channel is found, the
DVD/VCR will stop searching and the picture will appear
on the TV Screen.
•You can select desired channel number by using
the
number buttons. You must refer to the following
Channel Plan table and press three digits to select the
channel number.
(To select channel 24, press “
press “
2” and “4”.)
•If this is the channel you want, press
0” button first and then
B.
Channel Plan
CH Indication TV Channel
02 – 12 E2 – E12
13 – 20 A – H (only ITALY)
21 – 69 E21 – E69
74 – 78 X, Y, Z, Z+1, Z+2
80 – 99,100 S1 – S20,GAP
121 – 141 S21 – S41
This DVD/VCR can receive Hyper and Oscar frequency
bands.
8) Press
Note: To confirm that a channel has been added, press
MENU to exit.
CH. (K/L).
MENU
TIMER
SET UP
INITIAL
MANUAL
POSITION
CHANNEL
DECODER
SKIP
P08
008
[OFF]
[OFF]
INITIAL
CH TUNING
CLOCK
RF OUT
LANGUAGE
CH TUNING
AUTO
MANUAL
MOVE
K or
B to
To Skip a Preset Channel
The channels you can no longer receive or seldom watch can
be set to be skipped when you access channels by pressing
CH. (K/L).
• Use the remote control for this procedure.
1) Press
2) Press
3) Press
4) Press
5) Press
6) Press the
7) Press
VCR, then MENU.
K or L to select “INITIAL”, then press B.
K or L to select “CH TUNING”, then press B.
K or L to select “MANUAL”, then press B.
K or L to select “POSITION”, then press B.
number buttons, K, or L to select relevant
position number, then press
B.
K or L to select “SKIP”, then press B to select
[ON].
•To memorize the channel again, press
B. “ON” will
change to “OFF”.
8) Press
Note: To confirm that a channel has been deleted, press
MENU to exit.
CH. (K/L).
MENU
TIMER
SET UP
INITIAL
MANUAL
POSITION
CHANNEL
DECODER
SKIP
P08
008
[OFF]
[ON]
INITIAL
CH TUNING
CLOCK
RF OUT
LANGUAGE
CH TUNING
AUTO
MANUAL
MOVE
Channel Reprogramming
You can replace two channels.
• Use the remote control for this procedure.
1) Press
2) Press
3) Press
4) Press
5) Press
VCR, then MENU.
K or L to select “INITIAL”, then press B.
K or L to select “CH TUNING”, then press B.
K or L repeatedly to select “MOVE”, then press B.
K or L repeatedly to select the position number you
want to change the channel, then press
B.
•You cannot select a position number where “- - -”
appears next to the number. This is because SKIP is set
to [ON] for this position number.
•When a weak signal is received in Channel
Reprogramming mode, you can change the background
to static blue by pressing
C.RESET.
If you press the button again, the background will return
to the static screen.
6) Press
K or L repeatedly until the channel move to another
position number, then press
B.
10 EN
H9705ED(EN).fm Page 11 Wednesday, March 17, 2004 4:55 PM
7) Press MENU.
MENU
TIMER
SET UP
INITIAL
MOVE
P01:
P02:
[ ]
P03:
P04:
P05:
Position
Number
MOVE
P01:
P02:
P03:
P04:
P05:
P06:
P07:
P08:
P09:
P10:
Channel
Number
P06:
P07:
P08:
P09:
P10:
07
08
09
10
11
07
08
09
10
[ ]
04
02
03
04
05
06
02
03
11
05
06
INITIAL
CH TUNING
CLOCK
RF OUT
LANGUAGE
CH TUNING
AUTO
MANUAL
MOVE
MOVE
P01:
02
P02:
03
P03:
11
P04:
05
P05:
06
P06:
P07:
P08:
P09:
P10:
07
08
09
10
04
VCR Operation
VCR Features
Ensure that all VCR setting begins in VCR mode by pressing
VCR.
(Make sure that the VCR OUTPUT indicator is lit.)
Playback
Tracking Adjustment
• Tracking adjustment will be activated automatically
(Digital Tracking function) when you start playback.
• When playing pre-recorded tapes or tapes recorded on units
other than your own, noise lines (black and white streaks)
may appear on the playback picture. If this occurs, you can
adjust the tracking control manually by pressing
CH. (K/L) until the streaks disappear. To return to the
DTR function, stop the tape once and start playback again.
• You can reduce the noise lines by pressing
Slow mode, too. Slow tracking adjustment is not set
automatically.
• In the Still mode, press
SLOW, and press CH. (K/L) until
the streaks disappear. To return to the Still mode, press
PAU SE again.
1) Turn on the TV and select the video channel on the TV.
2) Insert a prerecorded tape.
The DVD/VCR will turn on automatically. If the eraseprotection tab has been removed, the DVD/VCR will
start playback automatically.
•If the DVD/VCR power was already on, press
switch to VCR mode.
3) If playback does not start automatically, press
press
PLAY.
•Tracking adjustment will be activated automatically
(Digital Tracking function) when you start playback. To
adjust the tracking manually, press
CH. (K/L) in
VCR to
VCR, then
CH. (K/L).
<If a tape is already in the DVD/VCR...>
•Using the buttons on the DVD/VCR
Just press
PLAY on the DVD/VCR. Power will
automatically turn on and playback will start. (Direct
Button Operation)
•Using the buttons on the remote control
Press FUNCTION to turn on, and then press PLAY.
4) Press
Speed Search
STOP to stop playback.
1) Press D or h during playback to view a videotape at a
high speed in either a forward or reverse direction. In this
mode, the sound will be muted.
2) Press the button again, the DVD/VCR will now search in
super high speed. (This function will not operate for a
NTSC tape.)
3) Press
Still Picture
PLAY to return to normal playback.
Press PAUSE during playback to view a still picture on the TV
screen.
• When the picture begins to vibrate vertically, stabilize the
picture by pressing
CH. (K/L) in the Still mode.
• After the DVD/VCR has been in Still mode for 5 minutes,
it will stop automatically to protect the tape and the video
head.
<Note for “Speed Search” and “Still Picture”>
• Usually there will be video “noise” lines (black and white
streaks or dots) on the screen. This is normal.
The still picture will, in addition to containing the “noise”
lines, be black and white.
This is not a fault of the machine but merely a by-product
of the technology involved in producing a DVD/VCR with
LP mode.
11 EN
H9705ED(EN).fm Page 12 Wednesday, March 17, 2004 4:55 PM
Slow Motion
•Press SLOW to reduce the playback speed. The DVD/VCR
mutes the sound during slow motion. You can control the
speed by pressing D (faster) or h (slower). Press PLAY
to return to normal playback.
• If it is left in the Slow mode for more than five minutes, the
DVD/VCR will automatically switch to the Stop mode.
Recording
Viewing and Recording the Same Programme
1) Insert a cassette tape with its erase-prevention tab in place.
(If necessary, rewind or fast forward the tape to the point
at which you want to begin recording.) Press
2) Press the
number buttons or CH. (K/L) to select the
VCR.
channel to be recorded.
3) Press
4) Press
SPEED/SYSTEM to select the tape speed (SP/LP).
REC/OTR to begin recording.
•The REC indicator on the display comes on.
5) Press
Two Different Tape Speeds
STOP when recording is completed.
Before recording, select the tape speed : SP mode (Standard
Play) or LP mode (Long Play). The table below shows the
maximum recording/playback time using E-60, E-120, E-180
or E-240 tapes in each mode.
Tape Type Recording/Playback Time
Tape Speed SP Mode LP Mode
E-60 1 hour 2 hours
E-120 2 hours 4 hours
E-180 3 hours 6 hours
E-240 4 hours 8 hours
Skipping Unwanted Programme Material During
Recording
1) Press PAUSE when you want to temporarily halt
recording.
You can check the remaining pause time with
C
the TV screen. Each
mark represents 1 minute. After 5
C
marks on
minutes, the DVD/VCR will automatically switch to the
Stop mode to prevent tape damage.
2) Press
Recording One Programme While Viewing Another
PAUSE or REC/OTR to resume recording.
You can record one programme while viewing another. To
start recording, follow steps
1) to 4) under “Viewing and
Recording the Same Programme”. Then, set the TV to the
channel you want to watch.
To Monitor the Progress of Your Recording
Select the video channel on the TV.
Assemble Function
• You can record in continuation from previous programme
on a pre-recorded tape.
1) Insert a pre-recorded tape. Press
2) Press
3) Press
PAUSE at the desired point on the tape.
REC/OTR. The DVD/VCR will be in the Recording
PLAY to start playback.
Pause mode.
4) Press CH. (K/L) to select the channel to be recorded.
5) Press
6) Press
REC/OTR or PAUSE. The recording will begin.
STOP when recording is completed.
Hi-Fi Stereo Sound System
This DVD/VCR will record and playback Hi-Fi stereo sound.
In addition it has an A2 stereo sound decoder.
This equipment will receive stereo and bilingual broadcasts
and it is possible the several ways of recording and playing back
the sound.
Selecting the Sound Mode
You can select each mode by pressing AUDIO on the remote
control. Each mode is indicated on the TV screen as following.
• During playback of the recorded tape in Hi-Fi mode:
Mode AUDIO OUTPUT
Stereo
L
R
Normal
L Hi Fi L Audio
R Hi Fi R Audio
L Hi Fi L Audio
R Hi Fi L Audio
L Hi Fi R Audio
R Hi Fi R Audio
L Normal Audio
R Normal Audio
Display on
the TV screen
STEREO
LEFT
RIGHT
-None-
• Reception of stereo broadcasts:
Mode AUDIO OUTPUT
Stereo
L
R
Monaural
L L Audio
RR Audio
L L Audio
R L Audio
LR Audio
RR Audio
LL+R Audio
RL+R Audio
Display on
the TV screen
STEREO
LEFT
RIGHT
-None-
• During reception of bilingual broadcasts:
Mode AUDIO OUTPUT
MAIN
SUB
MAIN L Main Audio MAIN
SUB R Sub Audio SUB
Note: • If you play non-Hi-Fi tapes, the DVD/VCR will play
L Main Audio
R Main Audio
L Sub Audio
R Sub Audio
Display on
the TV screen
MAIN
SUB
automatically in monaural even if you select any
mode.
• If the stereo signal becomes weak, the broadcast is
automatically recorded in monaural.
12 EN
H9705ED(EN).fm Page 13 Wednesday, March 17, 2004 4:55 PM
OTR (One Touch Recording)
This function enables you to set the duration of a recording
simply by pressing REC/OTR.
1) Follow steps
1) to 3) in “Viewing and Recording the Same
Programme”.
2) Press REC/OTR repeatedly until the desired recording
length appears in the upper left corner of the TV screen.
I I [0:30] I[1:00]... I[7:30] I[8:00]
(Normal (OTR:
recording) 30 minutes)
Recording stops when 0:00 is reached.
• To check time remaining during an OTR
Press
DISPLAY.
• To change the recording length during an OTR
Press REC/OTR repeatedly until the desired length appears.
• To stop an OTR before recording is finished
Press
STOP.
• To cancel the OTR but continue recording
Press REC/OTR repeatedly until “I” appears without the
recording length.
• When OTR is finished, the VCR turns off automatically.
To use the VCR again, press T-SE T on the remote control,
or STOP/EJECT on the front panel.
Auto Repeat Playback
The DVD/VCR has an auto repeat function that allows you to
repeat a tape indefinitely without touching
PLAY.
• Use the remote control for this procedure.
• Insert a pre-recorded tape.
1) Press
VCR, then MENU.
2) Press K or L to select “SET UP”, then press B.
3) Press K or L to select “AUTO REPEAT”.
4) Press B so that “ON” appears next to “AUTO REPEAT”
on the TV screen.
When in Stop mode, Auto Repeat mode will start
automatically.
If the on-screen menu still remains, press
then press
Note: Once you select the Auto Repeat mode, it stays in effect
PLAY.
MENU to exit,
even after you turn off the DVD/VCR.
To Stop Playback
Press STOP.
To Exit the Auto Repeat Mode
Repeat steps 1) to 3). Then, press B.
“OFF” will appear next to “AUTO REPEAT” on the TV
screen. Press
MENU
TIMER
SET UP
INITIAL
MENU to exit.
MENU
TIMER
SET UP
INITIAL
SET UP
AUTO RETURN[ON
AUTO REPEAT[ON
PICTURE[NORMAL
]
]
]
Picture Select
This function enables you to select the picture quality of a
tape.
• Use the remote control for this procedure.
1) Press
2) Press
3) Press
4) Press
VCR, then MENU.
K or L to select “SET UP”, then press B.
K or L to select “PICTURE”.
B until the desired mode (NORMAL, SOFT, or
SHARP) is indicated on the TV screen.
5) Press MENU to exit.
Note: Once you select the Picture Select mode, it stays in
effect even after you turn off the DVD/VCR.
MENU
TIMER
SET UP
INITIAL
MENU
TIMER
SET UP
INITIAL
SET UP
AUTO RETURN[ON
AUTO REPEAT[ON
PICTURE[NORMAL
]
]
]
Automatic Operations
Automatic Rewind, Eject
When the end of a tape is reached during recording, playback,
or fast-forward, the tape will automatically rewind to the
beginning. After that, the DVD/VCR will eject the tape.
• The tape will not auto-rewind during timer recording or
One Touch Recording.
Tape Eject
A tape can be ejected with the DVD/VCR power on or off
(but the DVD/VCR must be plugged in).
• If a timer recording is set, press
STOP/EJECT twice to eject
a tape.
13 EN
H9705ED(EN).fm Page 14 Wednesday, March 17, 2004 4:55 PM
Real Time Tape Counter
• This shows the elapsed recording or playback time in
hours, minutes, and seconds on screen. (Nothing is shown
in the case of blank portion.)
• Display on the front panel shows elapsed time in hours and
minutes.
• The “ – ” indication will appear when the tape is rewound
further than the tape counter position “0:00:00”.
Timer Recording
You may programme the DVD/VCR to start and end a
recording while you are away. You can set 8 programmes to
record on specific days, daily or weekly within a 1-year period.
• Use the remote control for this procedure.
• Insert a cassette tape with its erase-prevention tab in place.
(If necessary, rewind or fast forward the tape to the point at
which you want to begin recording.)
1) Press
2) Press
Note: If you have not set the clock yet, “CLOCK” setting
VCR, then MENU.
K or L to select “TIMER”, then press B.
menu appears. If so, follow the steps outlined in the
“Setting the Clock”. Then, set the timer.
•When you press
9), the input mode will move to the next step.
• If you do not press
B after pressing K or L during steps 3) to
B within 5 seconds of setting an item,
the input mode will move to the next step.
•Press
s to go back one step from the current setting during
steps
4) to 9). If s is pressed when the TIMER NUMBER
is flashing, the entire programme contents will be erased.
3) Programme number flashes. Press
the desired programme number appears. Then, press
K or L repeatedly until
B.
4) For once-only recording : Press K or L repeatedly until
the relevant month appears.
For daily recording : To record a TV programme at the
same time on the same channel from Monday through
Friday. While the month digit is flashing, press
K or L
repeatedly to select “MO-FR”.
For everyday recording : To record a TV programme at
the same time on the same channel everyday. While the
month digit is flashing, press
K or L repeatedly to select
“MO-SU”.
For weekly recording : To record a TV programme at the
same time on the same channel every week. While the
month digit is flashing, press
K or L repeatedly to select
“W-MO” (Example: every monday).
5)
For once-only recording only : Press K or L repeatedly
until your desired day appears.
6) Press
K or L repeatedly until the relevant start hour
appears. Next, enter the minute digit.
7) Press
K or L repeatedly until the relevant end hour
appears. Next, enter the minute digit.
8) Press
K or L repeatedly until the relevant channel number
appears.
9) Press
K or L repeatedly until the desired tape speed
appears.
10)Press
11)Press
B. Programme 1 is now completed.
•To set another timer programme, repeat steps
MENU to exit.
3) to 10).
12)Press
To Stop a Timer Programme Which Has Already
Started
T-SET to activate a timer recording.
The VCR goes into timer-standby mode.
MENU
TIMER
SET UP
INITIAL
TIMER NUMBER
DATE
START
END
CHANNEL
SPEED
1
--
--
--/--
--:--
--:--
Press STOP/EJECT on the DVD/VCR.
Note: STOP on the remote control will not function in the
Timer Recording mode.
To Correct Timer Programmes
If the unit is already in timer standby mode, press
STOP/EJECT on the unit or T-S ET to exit from the standby
mode.
1) Repeat steps
2) Select the setting you want to change using
3) Enter the correct numbers using
4) Press
5) Press
To Cancel or Check the Start/End Time
1) to 3) in the “Timer Recording”.
B or s.
K or L, then press B.
MENU to exit.
T-SET to return to timer standby mode.
If the unit is already in timer standby mode, press
STOP/EJECT on the unit or T-S ET to exit from the standby
mode.
1) Repeat steps
2) Select a programme number you want to check using
L. The details of selected programme appears on the TV
1) to 2) in the “Timer Recording”.
K or
screen. You may cancel the entire programme by pressing
s.
3) Press MENU to exit.
Avoid Overlap of TIMER Programmes...
A timer programme does not work while another programme
is under execution.
Programme 1
Programme 2
Programme 3
9:00 10:00 11:00
Hint for Timer Recording
• If either there is a power failure or this unit is unplugged for
more than 30 seconds, clock and all timer settings are lost.
• If a tape runs out before a timer recording is finished, the
unit ejects the tape and switches into DVD mode
automatically. Press
T-SET to activate VCR function.
• Once the unit goes into Timer- standby mode, no VCR
functions are available until T-SET is pressed. (OUTPUT on
the front panel and
VCR on the remote control will not
function.)
•Press T- SET to activate VCR functions after your timer
recording is finished.
• DVD functions are available during Timer-standby mode
and Timer recording. You don’t have to stop your timer
recording.
14 EN
H9705ED(EN).fm Page 15 Wednesday, March 17, 2004 4:55 PM
Auto Return
If there are any remaining programmes including Daily,
Everyday, & Weekly, AUTO RETURN will not operate.
1) Press
2) Press
3) Press
VCR, then MENU.
K or L repeatedly to point to “SET UP”, then press
B.
K or L to point to “AUTO RETURN”, then press
B.
[ON] will appear next to “AUTO RETURN”.
4) Press MENU.
Watch the Recorded Timer Programme
Press T-SET to turn on the DVD/VCR, then press PLAY.
Quick-Find
This function enables you to search and confirm the contents
of the recorded programme(s) using the index mark.
• Use the remote control for this procedure.
• The tape must be fully rewound.
1) Press
To Skip to the Beginning of Next Programme
VCR, then QUICK-FIND.
1) Press QUICK-FIND.
To View at Normal Speed
1) Press PLAY. The Quick-Find is cancelled.
Note: • This function will not operate in the Recording mode.
• When you want to cancel the Quick-Find while in
progress, press STOP.
• When the end of a tape is reached during the Quick-
Find, the tape will automatically rewind to the
beginning. After rewinding finishes, the DVD/VCR
will eject the tape.
Index Search
• The index mark will be made automatically when
REC/OTR is pressed. It will also be marked at the starting
point of Timer recording and OTR.
• The index mark is not recorded if PAUSE is pressed and
released during recording.
• The time gap between index marks on the tape should be
greater than 1 minute for SP recording and 2 minutes for
LP recording.
• Use the remote control for this procedure.
1) Press
2) Press
VCR, then SEARCH MODE.
K, L repeatedly until the number of programmes
that you want to skip appears.
3) Press
s or B.
The DVD/VCR begins rewinding or fast forwarding to
the beginning of desired programme.
When the preset programme is reached, the DVD/VCR will
start playback automatically.
Note: • Index Search can be set up to 20.
• This function will not operate in the Recording mode.
• Operations must be followed up within 30 seconds,
from steps 2) to 3). Otherwise the Index Search mode
will be cancelled.
• To exit the Index Search mode, press MENU in step 2).
Or press STOP after step 3).
Time Search
If a tape includes both programmes recorded in the PAL
system and ones recorded in the NTSC system, this function
may not be operated correctly.
• Use the remote control for this procedure.
1) Press VCR, then SEARCH MODE twice.
2) Press
3) Press
K, L repeatedly until the desired time appears.
s or B.
The DVD/VCR begins rewinding or fast forwarding to
the specified point.
When 0:00 is reached, the DVD/VCR will start playback
automatically.
Note: • Time Search can be set up to 9 hours 59 minutes
(9:59).
• This function will not operate in the Recording mode.
• Operations must be followed up within 30 seconds,
from steps 2) to 3). Otherwise the Time Search mode
will be cancelled.
• To exit the Time Search mode, press MENU in step 2).
Or press STOP after step 3).
Recording from DVD to VCR
1) To activate DVD function, press DVD.
2) Insert a non-copyright-protection DVD, then press
PAUSE at the point where you want to start recording.
3) Press
VCR, then insert a tape with its erase-prevention tab
in place. Make sure the VCR is in Stop mode after you
find your recording point.
4) Press
SPEED/SYSTEM to choose your recording speed.
“SP” or “LP” appears on the front panel display.
5) Press 0, 0, 4, with number buttons, then “disc” briefly
appears on the front panel display.
6) Press
7) Press
8) To s t o p re c o rd i n g , pr e ss
REC/OTR.
DVD, then press PLAY.
VCR, then STOP.
15 EN
H9705ED(EN).fm Page 16 Wednesday, March 17, 2004 4:55 PM
Copying a Video Tape
Connect the recording DVD/VCR (this unit), playing VCR
(another VCR) and your TV as outline in the following
diagrams.
Using scart jacks
Playing VCR
to 21-Pin Scart jack
Recording DVD/VCR
(this unit)
AUDIO OUT
OPTICALCOAXIAL
DVD
DIGITAL
ANALOG
S-VIDEO
AUDIO OUT
OUT
VCR
AV2 (DECODER)
L
DVD/VCR AV1 (TV)
R
AERIAL
RF OUT
to 21-Pin Scart jack
(TV)
Using AV front terminals
to the video output jack
to the audio output jack
Playing VCR
7) To s t o p re c o rd i n g , pr e ss STOP/EJECT on the recording
DVD/VCR, then stop playback of the tape in the playing
VCR.
Note: • For best results during dubbing, use the DVD/VCR’s
front panel controls whenever possible. The remote
control might affect the playing VCR's operation.
• If video or colour fades in and out, you may be
copying a copy guarded video tape.
• Unauthorised recording of copyrighted materials may
infringe on the rights of copyright owners, violate
copyright laws and may not record clearly.
A Status Display
To check the Counter, or Clock & Channel number, press
DISPLAY. Each time you press DISPLAY, TV screen will
change as illustrated:
When you select the channel using the
number buttons, select
the desired channel (position number).
<OFF mode>
<COUNTER mode>
■
SP
Press once. Press once.
0:12:34
Press once.
Note: If the on screen display or indicators on the front panel
<CLOCK and CHANNEL
NUMBER mode>
■
17:40
SP
P02
show an abnormal reading or no reading, unplug this
unit for 30 seconds, then replug it again.
Please note that language, clock, and timer settings will
be cleared after disconnection.
Recording DVD/VCR (this unit)
OPEN/CLOSE
FUNCTION
REW F.FWD PLAY REC/OTRSTOP/EJECT
VIDEO
L
-A
U
D
IO
-
R
OUTPUT
VCR DVD
CHANNEL
STOP PLAY
to AV1 (TV)
Scart jack on
the back of the
DVD/VCR
to 21-Pin Scart jack
(TV)
1) Insert a pre-recorded videocassette into the playing VCR.
2) Insert video cassette tape with its erase prevention tab in
place into the cassette compartment of the recording
DVD/VCR.
3) Press
SPEED/SYSTEM to select the desired recording
speed (SP/LP).
4) Select “AV2” or “AV3” position on the recording DVD/
VCR.
See “External Input Mode (for VCR features)” (Refer to
page 8).
5) Press
REC/OTR on the recording DVD/VCR.
6) Begin playback of the tape in the playing VCR.
16 EN
H9705ED(EN).fm Page 17 Wednesday, March 17, 2004 4:55 PM

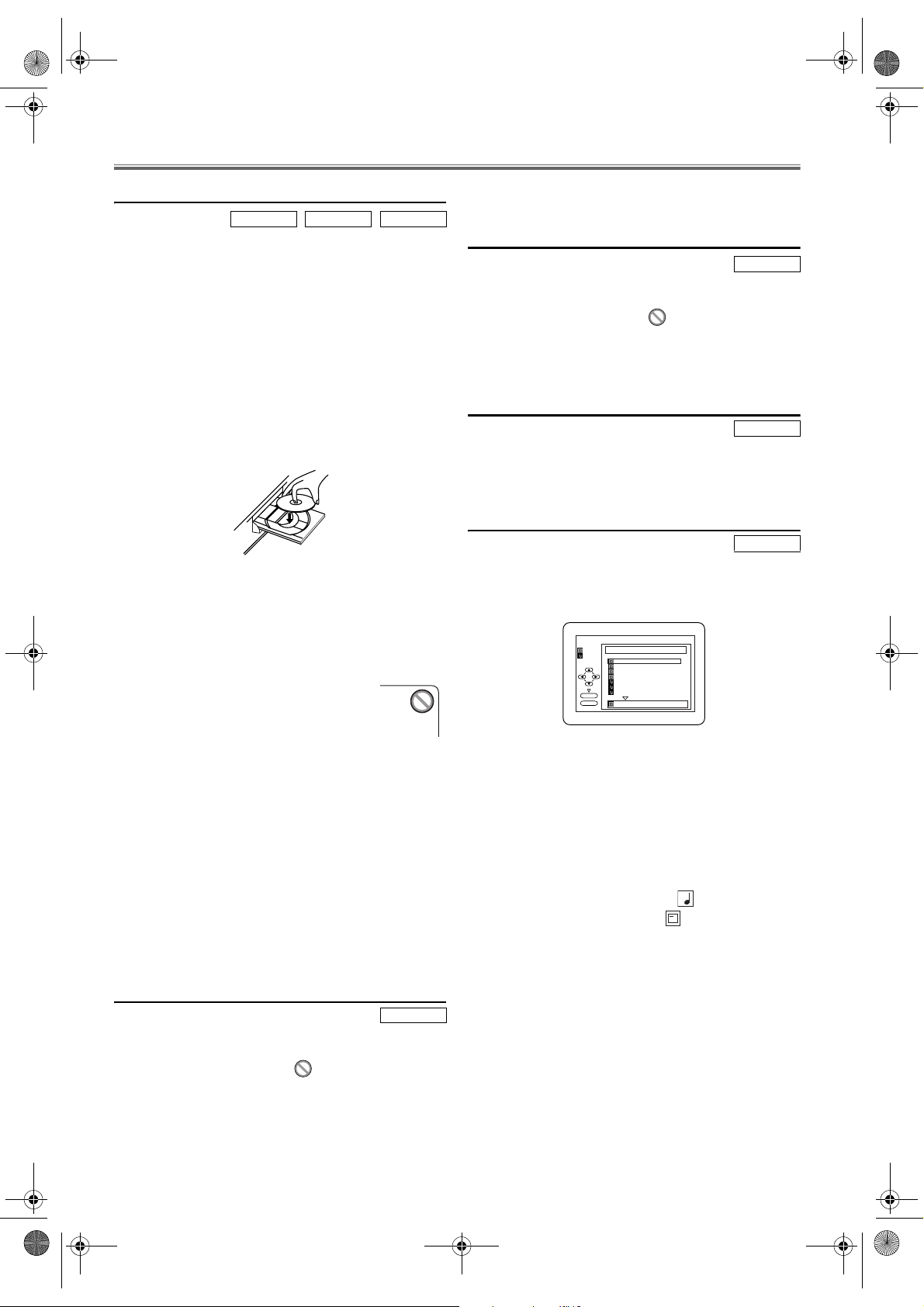

DVD Operation
Basic Playback
DVD-V CD MP3
Getting started
• Turn on the power of the TV, amplifier and any other
components which are connected to this unit.
• Make sure the TV and audio receiver (commercially
available) are set to the correct channel.
• Make sure that the DVD OUTPUT indicator is lit. If not,
press
DVD to switch to DVD mode.
• Unless stated, all operations described are based on remote
control use. Some operations can be carried out on main
unit.
1) Press
FUNCTION.
•Make sure that the DVD OUTPUT indicator is lit. If
not, press
2) Press
DVD to switch to DVD mode.
OPEN/CLOSE to open disc loading tray.
3) Place the chosen disc on the tray, with the label facing up.
4) Press
PLAY.
•The tray will close automatically, and playback will then
start from the first chapter or track of the disc.
•When you play back a DVD with a title menu
recorded, it may appear on the screen. In this case, refer
to “Title Menu”.
5) Press
Note: • A “prohibited icon” may appear at the
STOP to stop playback.
top-right on the TV screen during
operation, warning that a prohibited
operation has been encountered by this
unit or the disc.
• Some DVDs may be played from title 2 or 3 due to
specific programs.
• During the playback of two layered disc, pictures may
stop for a moment. This happens while the 1st layer is
being switched to the 2nd layer. This is not a
malfunction.
• DVDs recorded with the NTSC system can be viewed
on PAL, NTSC or Multi system TV. (Refer to page
23.)
• Depending on the TV, when playing back a NTSC
DVD on a PAL TV, the picture may roll up or down,
shrink vertically and black bars may appear at the both
top and bottom of the screen.
• It may take a time to deliver the picture or the sound.
This is not a malfunction.
Disc Menus
DVD-V
1) Press
MENU.
•The DVD main menu will appear.
2) If the feature is not available, symbol may appear on
the TV screen.
3) If disc menu is available on the disc, audio languages,
subtitle options, chapters for the title and other options
will appear for selection.
4) Press
Arrow ( s / B / K / L) to select an item, and ENTER
to confirm selection.
Title Menu
DVD-V
1) Press
TOP MENU.
•The title menu will appear.
2) If the feature is not available, symbol may appear on
the TV screen.
3) Press
Arrow ( s / B / K / L) to select an item, and ENTER
to confirm selection.
•Playback will begin at the selected Title.
Calling up a Menu Screen During Playback
•Press MENU to call up the DVD main menu.
DVD-V
•Press
TOP MENU to call up the title menu.
Note: Menu operations may vary depending on the disc. Refer
to the manual included in the disc for details.
MP3 Playback
MP3
Insert an MP3-format disc, then press
MENU to call up the
MP3 menu on the TV screen, and the number of tracks is
displayed on the front panel.
1) Press
K or L to select the desired group or track.
FILE LIST
DISC NAME
FOLDER
MP3
folder name 1
folder name 2
folder name 3
folder name 4
file name 1
file name 2
file name 3
ENTER
PLAY
folder name 1
•If a group is selected, press
track selection screen. Press
then press
PLAY or ENTER.
•If a track is selected, press
1/2
B or ENTER to go on to the
K or L to choose a track,
PLAY or ENTER to start
playing the track, and the subsequent tracks will be
played.
s to go back to the previous hierarchy.
•Press
TOP MENU to return to the first item.
•Press
2) Press
Note: • Folders are known as Groups, and files are known as
STOP to stop playback.
Tracks.
• MP3 files are accompanied by icon.
• Folders are accompanied by icon.
• A maximum of 255 folders can be recognized.
• A maximum of 512 files can be recognized.
• Up to 8 hierarchies can be created.
• The name of group and track can be displayed in up
3
to 25 characters. Unrecognizable characters will be
replaced with asterisks.
• Unplayable groups or tracks may be displayed
depending on the recording conditions.
This unit recommends the files recorded under the following
circumstances:
• Sampling frequency: 44.1kHz or 48kHz
• Constant bit rate: 112kbps ~ 320kbps
17 EN
H9705ED(EN).fm Page 18 Wednesday, March 17, 2004 4:55 PM
Resume
DVD-V CD MP3
1) During playback, press STOP.
•Resume message will appear on the TV screen.
2) Press PLAY. Playback will resume from the point at which
playback was stopped.
•To cancel resume, press
Note: • For MP3 files, playback will resume from the
STOP twice.
beginning of the track at which playback was stopped.
• The resume information stays on even when the
power is turned off.
Pause
DVD-V CD MP3
1) During playback, press PAUSE.
•Playback will be paused and sound will be muted.
2) To continue playback, press PLAY.
Note: Set “STILL MODE” to “FIELD” in the DISPLAY
menu if pictures in the pause mode are blurred. (Refer
to page 23.)
Step by Step Playback
DVD-V
1) During playback, press
PAU SE.
•Playback will be paused and sound will be muted.
2) The disc advances by one frame each time PAUSE is
pressed.
3) To exit step by step playback, press
Note: Set “STILL MODE” to “FIELD” in the DISPLAY
PLAY.
menu if pictures during step by step playback are
blurred. (Refer to page 23.)
Fast Forward / Reverse Search
DVD-V CD MP3
1) During playback, press
g or h repeatedly to select the
required forward or reverse speed.
•For DVDs, fast forward or reverse search speed is
different depending on the disc.
•For DVDs, approximate speed is 1(x2), 2(x8), 3(x50),
and 4(x100).
•For Audio CDs, approximate speed is x16.
•For MP3, approximate speed is x8.
2) To return to normal playback, press
Note: Set “STILL MODE” to “FIELD” in the DISPLAY
PLAY.
menu if pictures during fast forward and reverse search
are blurred. (Refer to page 23.)
Slow Forward / Reverse
DVD-V
1) During playback, press
2) Press
g or h.
PAU SE.
•Slow motion playback will begin and sound will be
muted.
3) Press g or h repeatedly to select the required speed.
Slow forward or reverse speed varies with the disc.
Approximate speed is 1(1/16), 2(1/8), and 3(1/2).
4) To return to normal playback, press
Note: • Set “STILL MODE” to “FIELD” in the DISPLAY
PLAY.
menu if pictures in the slow motion playback mode
are blurred. (Refer to page 23.)
Zoom
DVD-V
The Zoom function allows you to enlarge the video image and
to pan through the enlarged image.
1) Press
ZOOM during playback.
•Playback will continue.
2) Press ZOOM repeatedly to select the required zoom factor:
x2, x4 or OFF.
Arrow ( s / B / K / L) to slide the zoomed picture
3) Use
across the screen.
4) To exit Zoom mode, press
Note: • If you press ENTER, the zoom position window
ZOOM to set to OFF.
appears at the bottom-right on the TV screen. If you
press it again, that (the zoom position) window
disappears.
• Zooming function does not work while the disc menu
is showing up.
• x4 zoom is not available on some discs.
Audio Language
DVD-V
This unit allows you to change audio languages during DVD
disc (if multi language available) playback.
1) Press
2) Press
Note: • If your language is not shown after pressing AUDIO
AUDIO during playback.
AUDIO repeatedly to select your desired language.
several times, the disc may not have that language.
However, some discs allow you to change audio
language setting in the disc menu. (Operation varies
with the disc, so refer to the manual included in the
disc.)
• If you choose a Language that has a 3-letter
abbreviation, the abbreviation will be displayed every
time you change the Audio language setting. If you
choose any other languages, ‘---’ will be displayed
instead. (Refer to page 24.)
Subtitle Language
DVD-V
This unit allows you to change languages for subtitle during
DVD disc (if available) playback.
1) Press
2) Press
SUBTITLE during playback.
SUBTITLE repeatedly to select your desired subtitle
language.
•The selected language will be displayed on the display
bar at the top of the screen.
3) To turn off subtitles, press SUBTITLE repeatedly until
“OFF” appears.
Note: • If your language is not shown after pressing SUBTITLE
several times, the disc may not have that language.
However, some discs allow you to change subtitle
language setting in the disc menu. (Opetation varies
with the disc, so refer to the manual included in the
disc.)
• When “NOT AVAILABLE” appears on the TV
screen, it means no subtitle is recorded on the scene.
• If you choose a Language that has a 3-letter
abbreviation, the abbreviation will be displayed every
time you change the Subtitle language setting. If you
choose any other languages, ‘---’ will be displayed
instead. (Refer to page 24.)
18 EN
H9705ED(EN).fm Page 19 Wednesday, March 17, 2004 4:55 PM
Camera Angle
DVD-V
Some DVD discs contain scenes which have been shot
simultaneously from various angles. You can change the
camera angle when the ( ) icon appears on the screen.
1) Press
ANGLE during playback.
•The selected angle will be displayed on the display bar at
the top of the screen.
2) Press
Note: If the ANGLE ICON setting is “OFF” in the DISPLAY
ANGLE repeatedly to select your desired angle.
menu, the ( ) icon will not appear.
Stereo Sound Mode
CD
1) Press
AUDIO repeatedly during playback to select one
among “STEREO”, “L-CH” and “R-CH”.
STEREO - both right and left channels are active (stereo)
L-CH - only left channel is active
R-CH - only right channel is active
Note: If the Virtual Surround setting is “ON” or during a
DTS CD is being played back, the sound mode is fixed
to “STEREO”, and can not be changed.
Virtual Surround
You can enjoy stereophonic virtual surround effects on your
existing stereo system.
DVD-V CD MP3
1) Press
MODE during playback.
OFF
2) Press ENTER to change a value to “1”(Natural effect),
“2”(Emphasized effect) or “OFF”(original sound).
3) Press
Note :
MODE or RETURN to exit.
• Virtual Surround will not be effective if the sound mode is
set to something other than “STEREO” (for audio CDs
only).
• Turn down the level or turn it “OFF” if the sound is
distorted.
Track Search
CD MP3
There are three ways to begin the playback of a specific track.
Using the number buttons
1) Press the number buttons to enter the desired Track
number.
•Playback will start at the selected track.
•For single digit tracks (1-9), press a single number (e.g.
To play track 3, press
•To play track 26, press
Using SEARCH MODE
3).
+10, 2, 6.
1) Press SEARCH MODE.
•The Track Search display appears.
2) Within 30 seconds, select a desired track number using
the
number buttons. For single digit track number, press 0
first when there are 10 or more tracks in the disc.
•Playback will start at the selected track.
Using SKIP H ,G
During playback, press SKIP G to move to the next track.
Press it repeatedly to skip subsequent tracks.
Press SKIP H to go back to the beginning of the current
track. Press it repeatedly to go back to the previous tracks.
•Track number will appear briefly on the front panel
display.
•If SKIP H,G are pressed while the playback is paused,
the playback will be paused again after skipping to the
next track.
Note: SKIP H,G are not available when playback is
stopped.
Title / Chapter Search
DVD-V
Using SEARCH MODE
1) During playback, press SEARCH MODE once for the
“Chapter Search”, twice
2) Enter the desired chapter/title number using the
buttons.
Using the number buttons
for the “Title Search”.
/2
number
1) During playback, press the number buttons to enter the
desired chapter number.
•Playback will start at the selected chapter.
•For single digit chapters (1-9), press a single number
(e.g. To play chapter 3, press
•To play chapter 26, press
Note: • Depending on the disc being played, using the
number buttons cannot be performed.
Using SKIP H ,G
3).
+10, 2, 6.
During playback, press SKIP G to go to the next chapter.
Press it repeatedly to skip subsequent chapters.
Press SKIP H to go back to the beginning of the current
chapter. Press it repeatedly to go back to the previous chapter.
Time Search
DVD-V CD
1) During playback, press
SEARCH MODE repeatedly until
the “Time Search” screen appears on the TV screen.
TOTAL
1:29:00
2) Within 30 seconds, enter a desired disc time using the
number buttons.
•Playback will start at the specified time.
•For DVDs, enter a desired time of the current title.
•For audio CDs, enter a desired time of the current track.
3) Press
Note: • “0” appears automatically when there is no need to
CLEAR to erase the incorrect input.
enter a number. For example, “0:0_:_ _” appears
automatically in the Time Search display if the total
time of the disc is less than 10 minutes.
• Time Search is not available on some discs.
19 EN
H9705ED(EN).fm Page 20 Wednesday, March 17, 2004 4:55 PM

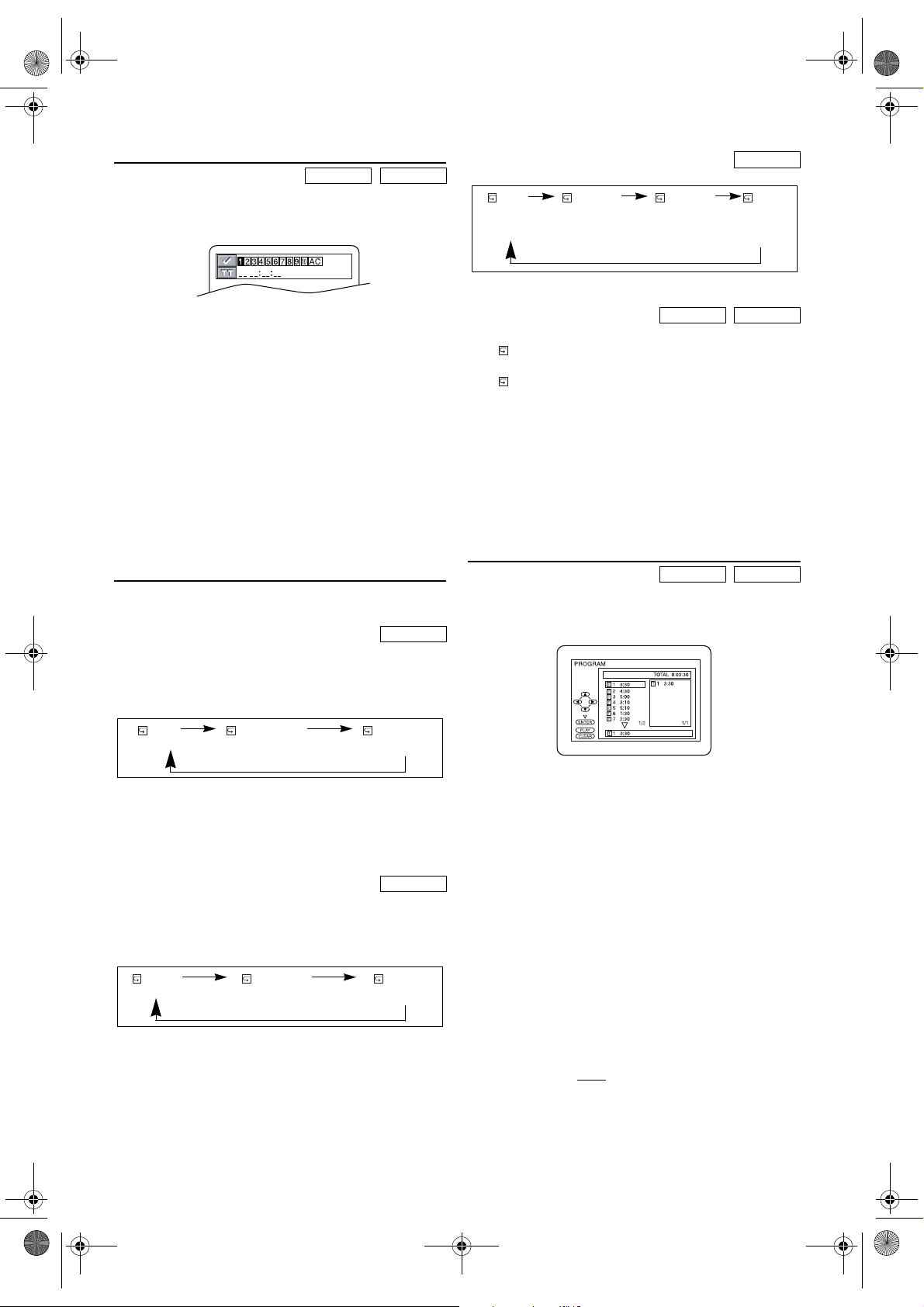

Marker Setup
DVD-V CD
Use markers to memorise your favourite places on a disc.
1) During playback, press SEARCH MODE repeatedly until
the “Marker Setup” screen appears on the TV screen.
2) Press
s or B to select 1, 2, 3, 4, 5, 6, 7, 8, 9, or 10 and
ensure that “_ _ _ _:_ _:_ _” appears in the display.
3) When you reach the desired point, press
ENTER.
•The Title or Track and elapsed time will appear on the
TV screen.
4) To return to a marker later, press
repeatedly until the Marker Setup screen appears and
B to choose the desired marker, then press ENTER.
Note: • Opening the disc tray, turning off the power or
SEARCH MODE
s or
selecting “AC” at step 2) and press ENTER will erase all
markers.
• To clear a marker, using s or B, position the cursor
on to the marker number to be cleared and press
CLEAR.
• You can mark up to 10 points.
• Press SEARCH MODE or RETURN to exit.
Repeat
REPEAT is available only during playback.
•
REPEAT TITLE / CHAPTER
DVD-V
To activate the repeat function, press REPEAT during
playback.
• The Repeat mode changes as described below every time
you press the button.
OFF CHAPTER TITLE
(repeat off)(current chapter repeat) (current title repeat)
MP3
OFF TRACK GROUP ALL
(repeat off)(current (current (entire
REPEAT A-B
track folder disc
repeat) repeat) repeat)
DVD-V CD
1) Press A-B at your chosen starting point.
•
A- appears briefly on the TV screen.
2) Press
A-B again at your chosen end point.
•
A-B appears briefly on the TV screen, and the repeat
sequence begins.
3) To exit the sequence, press
Note: • The repeat A-B section can only be set within the
A-B.
current title (for DVDs), or the current track (for
audio CDs).
• Repeat A-B is not available with some scenes in DVD.
• To cancel the point A which was set, press CLEAR.
• Repeat A-B playback does not function during
chapter, title, track or all repeat playback.
Programmed Playback
CD MP3
You may determine the order in which tracks will be played.
1) In Stop mode, press
MODE.
•The PROGRAM screen will appear.
CD-DA
Note: • Repeat Title/Chapter is not available with some
scenes.
• Repeat playback does not function during repeat A-B
playback.
REPEAT TRACK
CD
To activate the Repeat function, press REPEAT during
playback.
• The Repeat mode changes as described below every time
you press the button.
OFF TRACK ALL
(repeat off)(current track repeat) (entire disc repeat)
Note: • Repeat playback does not function during repeat A-B
playback.
2) Press
K or L to select a track, then press ENTER.
•Up to 99 programmes can be stored.
•Press
CLEAR to erase the most recently entered
programme.
•To erase all programmes at once, select “ALL CLEAR”
at the bottom of the list and press
•When selecting an MP3 file or folder, use
ENTER.
Arrow as
follows:
Press
B to go the next hierarchy.
Press
s to go back to the previous hierarchy.
•When more than 8 tracks or files are programmed, press
SKIP H,G to see all the pages.
3) Press
Note: • While a programme is being played back, STOP works
PLAY to start the programmed playback.
as follows:
STOP, and then PLAY next, so that the
Press
programmed playback restarts.
(CD playback restarts from the current position. MP3
playback restarts from the beginning of the current
track.)
STOP twice and PLAY next, so that playback
Press
restarts from the first track in the original order.
However, your programmed playback can be restarted
when you follow the above steps. (Your programmes
are still stored unless either the disc tray is open or the
unit is turned off.)
20 EN
H9705ED(EN).fm Page 21 Wednesday, March 17, 2004 4:55 PM
• To repeat the current track in the program, press
REPEAT repeatedly until TRACK appears during
playback.
• To repeat the entire programme press REPEAT
repeatedly until
ALL appears during playback.
Random Playback
CD MP3
This shuffles the playing order of tracks instead of playback in
the sequence.
1) In Stop mode, press
MODE repeatedly until the
“RANDOM” screen appears on the TV screen.
RANDOM
CD-DA TOTAL 0:45:55
RANDOM PROGRAM
--no indication--
PLAY
2) Press
Note: • If you like to repeat the current track in the random
PLAY to start random playback.
selections, press REPEAT repeatedly until TRACK
appears during playback. If you like to repeat the
entire random selections, press REPEAT repeatedly
until ALL appears during playback.
On-Screen Information
You can check the information about the current playback by
pressing DISPLAY.
DVD-V
1) Press DISPLAY during playback.
•Current chapter number/ total chapters, elapsed time
and remaining time of the current chapter , and current
playback status will be displayed.
11/16 0:00:00 - 0:03:30
2) Press
DISPLAY again.
•Current title number/ total titles, elapsed time and
remaining time of the current title, and current playback
status will be displayed.
3) Press DISPLAY the third time.
•The bit rate (the amount of audio and video data
currently being read) and current playback status will be
displayed.
•Current repeat setting appears only when the repeat
setting is active.
•( C: Chapter repeat/ T: Title repeat/ A B: A-B
repeat)
•If you are playing a 2-layered disc, the layer number will
also be displayed.
•(L0: Layer 0 is playing, L1:Layer 1 is playing)
4) Press
DISPLAY repeatedly untill on-screen information
disappears.
1) Press
DISPLAY during playback.
•Current track number/ total tracks, elapsed time and
remaining time of the current track, and current
playback status will be displayed.
•Current repeat setting appears only when the Repeat
setting is active.
( T:Track repeat/ A:All Tracks repeat/ A B:A-B
repeat)
4/12 0:03:21 - 0:02:15
T
2) Press DISPLAY again.
•Current track number/ total tracks, elapsed time and
remaining time of the current disc, and current playback
status will be displayed.
•Current repeat setting appears only when the Repeat
setting is active.
3) Press
DISPLAY repeatedly until on-screen information
disappears.
1) Press
DISPLAY during playback.
•The name of the file currently in play and current
playback status will be displayed.
TRACK 01
2) Press DISPLAY again.
• Current track number/ total tracks, elapsed time of the
current track, and current playback status will be
displayed.
• Current repeat setting appears only when the Repeat
setting is active. ( T:Track repeat/ G:Group repeat/
A:Disc repeat)
3) Press
DISPLAY repeatedly until on-screen information
disappears.
CD
MP3
21 EN
H9705ED(EN).fm Page 22 Wednesday, March 17, 2004 4:55 PM
DVD Setup
Language Setting
Language setting may be available with some DVDs.
1) Press
2) Press
SETUP in Stop mode.
s or B to select “CUSTOM”, then press ENTER.
• CUSTOM mode screen will appear.
3) Press s or B to select “LANGUAGE”, then ENTER to
confirm.
LANGUAGE
AUDIO ORIGINAL
SUBTITLE OFF
DISC MENU ENGLISH
PLAYER MENU ENGLISH
4) Press K or L to select the below items, then press ENTER.
5) Press
6) Press
AUDIO : *1*2*3 :
K or L to select an option, then press ENTER.
SETUP to exit.
• Sets the audio language.
• The default setting is “ORIGINAL” (original audio
language of the disc.)
SUBTITLE : *1*2*3 :
• Sets the subtitle language.
• The default setting is “OFF”.
DISC MENU :*1*2 :
• Sets the DVD menu language.
• The default setting is “ENGLISH”.
PLAYER MENU :
QUICK
• Sets the language of the On-Screen display of the DVD
player.
• The default setting is “ENGLISH”.
Note:
*1 : If “OTHER” is selected in the “AUDIO”, “SUBTITLE”
or “DISC MENU” screen, press 4-digit number to enter
the code for a language you choose. (Refer to the
language code list on page 24.)
*2 : Only the languages supported by the disc can be selected.
*3 : Even if DVDs contain multiple audio or subtitle
languages, “LANGUAGE” setting screen for “AUDIO”
or “SUBTITLE” may not be available with some discs.
Then, use
AUDIO or SUBTITLE. Details are on page 18.
DRC (Dynamic Range Control) :
ON: to compress the sound range.
OFF: to output an original sound range.
• This function is only available on DVDs recorded in the
Dolby Digital format.
• The default setting is “ON”.
DOWN SAMPLING :
ON: to convert 96kHz format into 48kHz.
OFF: to output the original sound.
• This function is only available when this unit is connected
to another source using one of the DIGITAL OUT jacks.
• When playing a disc with copyright protection, the sound
will be down sampled at 48kHz, even if you set to “OFF”.
• The default setting is “ON”.
DOLBY DIGITAL :
QUICK
ON : to output Dolby Digital signals.
OFF : to convert Dolby Digital signals to PCM (2 channel)
signals.
• Set to “ON” when this unit is connected to a Dolby Digital
decoder.
• The default setting is “ON”.
DTS :
QUICK
ON : to output DTS sound
OFF : not to output DTS sound.
• Set to “ON” when this unit is connected to a DTS decoder.
• The default setting is “OFF”.
MPEG :
QUICK
ON : to output MPEG formatted sound.
OFF : to convert MPEG signals to PCM signals.
• Set to “ON” when this unit is connected to a MPEG
decoder.
• The default setting is “OFF”.
Display Setting
You can change the display functions.
1) Press
2) Press
SETUP in Stop mode.
s or B to select “CUSTOM”, then press ENTER.
•CUSTOM mode screen will appear.
3) Press
s or B to select “DISPLAY”, then ENTER to
confirm.
Audio Setting
Choose the appropriate audio settings for your equipment. It
only affects during the playback of DVDs.
1) Press
2) Press
SETUP in Stop mode.
s or B to select “CUSTOM”, then press ENTER.
• CUSTOM mode screen will appear.
3) Press
s or B to select “AUDIO”, then ENTER to
confirm.
AUDIO
DRC ON
DOWN SAMPLING ON
DOLBY DIGITAL ON
DTS OFF
MPEG OFF
4) Press K or L to select the below items.
5) Press
6) Press
ENTER repeatedly to select “ON” or “OFF”.
SETUP to exit.
DISPLAY
4) Press
TV ASPECT
STILL MODE AUTO
ANGLE ICON ON
AUTO POWER OFF ON
VIDEO OUT AUTO
K or L to select the below items, then press ENTER.
4:3 LETTER BOX
Select options following instructions below.
5) Press
TV ASPECT :
SETUP to exit.
QUICK
4:3 LETTER BOX : When viewing a 16:9 picture on a 4:3
aspect TV screen, black bars appear on
the top and bottom of the screen.
4:3 PAN & SCAN : When viewing a 16:9 on a 4:3 aspect TV
screen, a full height picture with both
sides trimmed is presented.
16:9 WIDE : if a wide-screen TV is connected to this
unit, select this setting.
•Press
K or L to select a setting, then press ENTER.
• The default setting is “4:3 LETTER BOX”.
22 EN
H9705ED(EN).fm Page 23 Wednesday, March 17, 2004 4:55 PM
STILL MODE :
AUTO : select it usually.
FIELD : pictures in the Still mode will be stabilized although
they will be coarse due to a little amount of data.
FRAME : pictures in the Still mode will be highly defined
although they will be blurred due to outputting two
fields at the same time.
•Press
K or L to select an option, then press ENTER.
• The default setting is “AUTO”.
ANGLE ICON :
ON : to show the angle icon when multiple camera angles
are available during DVD playback.
OFF : to hide the angle icon.
•Press
ENTER repeatedly to select “ON” or “OFF”.
• The default setting is “ON”.
AUTO POWER OFF :
ON : to turn off the unit automatically after 35 minutes of
no use.
OFF : to keep this unit on.
•Press
ENTER repeatedly to select “ON” or “OFF”.
• The default setting is “ON”.
VIDEO OUT :
AUTO : to change video out system (PAL/NTSC)
automatically according to the format of an inserted
disc.
• For the discs recorded with NTSC system, the
NTSC signal will be output and pictures of the
discs can be viewd on an NTSC or Multi system
TV.
• For the discs recorded with PAL system, the PAL
signal will be output and pictures of the discs can
be viewed on a PAL system TV.
PAL : to view pictures of the discs recorded with NTSC
system on a PAL system TV. The modified PAL
signal will be output.
Note: • The discs of recorded with PAL system cannot be
viewed on an NTSC system TV.
•Press ENTER repeatedlly to select “PAL” or “AUTO”.
• The default setting is “AUTO”.
Parental Control
Parental Control limits the DVD viewing that exceeds your
settings. The password is required to change the “PARENTAL
LEVEL”.
This feature prevents your children from viewing
inappropriate materials.
1) Press
2) Press
SETUP in Stop mode.
s or B to select “CUSTOM”, then press ENTER.
• CUSTOM mode screen will appear.
3) Press
s or B to select “PARENTAL”, then press ENTER.
•If you forget the password, press 4, 7, 3, 7. The original
password will be cleared and parental levels will be set to
“ALL”. Enter a new 4-digit password, then press
5) Press
6) Press
K or L to select “PARENTAL LEVEL”, then press
ENTER.
K or L to select the desired level, then press ENTER.
ENTER.
For details, see below.
7) Press SETUP to exit.
PARENTAL LEVEL
“ALL” : All parental locks are cancelled.
“8” : DVD softwares of any grades (adult/general/
children) can be played back.
“7 to 2” : Only DVD softwares intended for general use
and children can be played back.
“1” : Only DVD softwares intended for children can be
played back.
Note: • This function may not work on some DVDs. Make
sure if the parental lock function operates in the way
you have set.
To Change the Password
1) Follow the steps 1) to 4) above.
2) Press
3) Enter a new 4-digit password, then press
4) Press
K or L to select “CHANGE”, then press ENTER.
ENTER.
SETUP to exit.
To Reset All the Settings of the SET UP
screen
1) Press
2) Press
3) Press
SETUP in Stop mode.
s or B to select “INIT.”, then press ENTER.
INITIALIZE
Initialize?
NO
YES
K or L to select “YES”, then press ENTER twice. All
the settings (except for “PARENTAL”) will be cleared.
•To cancel the initialization, select “NO”.
4) Press
SETUP to exit.
PARENTAL
PARENTAL LEVEL ALL
4) Press the number buttons to enter your 4-digit password.
•When doing this for the first time, enter any 4-digit
number by pressing the number buttons (except for
4737), then press
ENTER. That number will be used as
the password from the second time onward. Record your
password in case you forget it.
23 EN
A
A
A
A
A
A
A
A
A
A
E
E
E
H9705ED(EN).fm Page 24 Wednesday, March 17, 2004 4:55 PM
Language Code Language Code Language Code Language Code
bkhazian 4748
A-B
far 4747
frikaans 4752
lbanian 6563
mharic 4759
rabic 4764
rmenian 5471
ssamese 4765
ymara 4771
zerbaijani 4772
Bashkir 4847
Basque 5167
Bengali;Bangla 4860
Bhutani 5072
Bihari 4854
Bislama 4855
Breton 4864
Bulgarian 4853
Burmese 5971
Byelorussian 4851
Cambodian 5759
C-E
Catalan 4947
Chinese [CHI] 7254
Corsican 4961
Croatian 5464
Czech 4965
Danish [DAN] 5047
Dutch [DUT] 6058
nglish [ENG] 5160
speranto 5161
stonian 5166
Faroese 5261
F-H
Fiji 5256
Finnish [FIN] 5255
French [FRE] 5264
If you choose a Language that has a 3-letter abbreviation, the abbreviation will be displayed every time you change the Audio
or Subtitle language setting on pages 18. If you choose any other languages, ‘---’ will be displayed instead. (3-letter
abbreviations are written in brackets.)
Frisian 5271
Galician 5358
Georgian 5747
German [GER] 5051
Greek [GRE] 5158
Greenlandic 5758
Guarani 5360
Gujarati 5367
Hausa 5447
Hebrew 5569
Hindi 5455
Hungarian [HUN] 5467
I-K
Icelandic [ICE] 5565
Indonesian 5560
Interlingua 5547
Interlingue 5551
Inupiak 5557
Irish [IRI] 5347
Italian [ITA] 5566
Japanese [JPN] 5647
Javanese 5669
Kannada 5760
Kashmiri 5765
Kazakh 5757
Kinyarwanda 6469
Kirghiz 5771
Kirundi 6460
Korean [KOR] 5761
Kurdish 5767
L-N
Laothian 5861
Latin 5847
Latvian;Lettish 5868
Lingala 5860
Lithuanian 5866
Macedonian 5957
Malagasy 5953
Malay 5965
Malayalam 5958
Maltese 5966
Maori 5955
Marathi 5964
Moldavian 5961
Mongolian 5960
Nauru 6047
Nepali 6051
Norwegian [NOR] 6061
O-R
Occitan 6149
Oriya 6164
Oromo(Afan) 6159
Panjabi 6247
Pashto;Pushto 6265
Persian 5247
Polish 6258
Portuguese [POR] 6266
Quechua 6367
Rhaeto-Romance 6459
Romanian [RUM] 6461
Russian [RUS] 6467
S
Samoan 6559
Sangho 6553
Sanskrit 6547
Scots Gaelic 5350
Serbian 6564
Serbo-Croatian 6554
Sesotho 6566
Setswana 6660
Shona 6560
Sindhi 6550
Singhalese 6555
Siswat 6565
Slovak 6557
Slovenian 6558
Somali 6561
Spanish [SPA] 5165
Sundanese 6567
Swahili 6569
Swedish [SWE] 6568
Tagalog 6658
T
Tajik 6653
Tamil 6647
Tatar 6666
Telugu 6651
Thai 6654
Tibetan 4861
Tigrinya 6655
Tonga 6661
Tsonga 6665
Turkish [TUR] 6664
Turkmen 6657
Twi 6669
Ukrainian 6757
U-Z
Urdu 6764
Uzbek 6772
Vietnamese 6855
Volapuk 6861
Welsh 4971
Wolof 6961
Xhosa 7054
Yiddish 5655
Yoruba 7161
Zulu 7267
24 EN
H9705ED(EN).fm Page 25 Wednesday, March 17, 2004 4:55 PM
Troubleshooting Guide
WARNING:Under no circumstances should you try to repair the system yourself, as this will
invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for
repair.
Problem Solution
No power • Check if the AC power cord is properly connected.
No picture • Check if the TV is switched on.
Distorted picture • Sometimes a small amount of picture distortion may
Completely distorted picture or black/white picture
with DVD
No sound or distorted sound • Adjust the volume.
No audio at digital output • Check the digital connections.
No sound and picture • Check that the VIDEO/AUDIO cable is connected to the
Picture freezes momentarily during playback. • Check the disc for fingerprints/scratches and clean with a
Disc cannot be played.
No return to start-up screen when disc is removed. • Reset the unit by turning it off and on again.
This unit does not respond to the remote control. • Aim the remote control directly at the sensor on the front
Buttons do not work or this unit stops responding. • To completely reset this unit, unplug the AC power cord
This unit does not respond to some operating
commands during playback.
This unit cannot read CDs/DVDs. • Use a commonly available cleaning CD/DVD to clean the
This unit switches from DVD mode to VCR mode
automatically.
The VCR does not record a TV programme.
The VCR does not perform a timer recording.
The motor (cylinder) rotates even when tape
playback is stopped.
You cannot insert a tape.
You cannot remove a tape.
• Check the video connection.
appear. This is not a malfunction.
• Connect this unit directly to the TV.
• Make sure the disc is compatible with this unit.
• Check that the speakers are connected correctly.
• Analog AUDIO OUT and Euro AV (scart) jack of this unit
are not available on the DTS audio.
• Check if the audio format of the selected audio language
matches your receiver capabilities.
correct device (Refer to pages 6 and 7).
soft cloth wiping from center to edge.
• Ensure the disc label is facing up.
• Check if the disc is defective by trying another disc.
• Handle a disc with special care so that it does not have
fingerprints, scratches, or dusts on its surface.
panel.
• Reduce the distance to this unit.
• Replace the batteries in the remote control.
• Re-insert the batteries with their polarities (+/– signs) as
indicated.
from the AC outlet for 5-10 seconds.
• Operations may not be permitted by the disc.
Refer to the instructions of the disc.
lens before sending this unit for repair.
• This occurs 35 minutes after no DVD operation is in
progress. This is not a malfunction.
• Make sure the tape has a erase-prevention tab.
• Make sure this unit is in VCR mode.
• Make sure the start and the stop recording times are set
correctly.
• Make sure the tape has a erase-prevention tab.
• Make sure the clock is set.
• This unit may not perform or continue a timer recording if
the power fails for more than 30 seconds.
• To enable quick play mechanism, the cylinder will rotate for
about five minutes. This is normal.
• Insert a tape with window side up and the erase-prevention
tab facing you.
• Gently push the center of the tape when putting into the
cassette compartment.
• Make sure the power plug is completely connected to a
power outlet.
• Some functions are prohibited on some discs.
If you are unable to remedy a problem by following these hints, consult your dealer or service centre.
25 EN
H9705ED(EN).fm Page 26 Wednesday, March 17, 2004 4:55 PM
Specifications
PRODUCT TYPE
DVD Player with Video Cassette Recorder
DISCS
DVD video
Audio CD
CD-R
CD-RW
Video Cassette tape
OUTPUT SIGNAL FORMAT
PAL colour
FREQUENCY RESPONSE
DVD (linear sound) : 20 Hz to 22 kHz (sample rate: 48 kHz)
20 Hz to 44 kHz (sample rate: 96 kHz)
CD : 20 Hz to 20 kHz (JEITA)
SIGNAL-TO-NOISE RATIO (S/N RATIO)
CD : 70 dB (JEITA)
DYNAMIC RANGE
DVD (linear sound) : 70 dB
CD : 70 dB (JEITA)
TOTAL DISTORTION FACTOR
DVD : 0.1%
CD : 0.1% (JEITA)
WOW AND FLUTTER
Below the measurement limitation (+/-0.001% W PEAK)
(JEITA)
CONNECTIONS
Front Panel:
Video input RCA connector x 1
Audio input RCA connector x 2
Rear Panel:
AERIAL Coaxial type, female
RF OUT Coaxial type, male
AUDIO/VIDEO 21 pin scart jack x 2
S-Video output Mini DIN 4-pin jack
(75 ohm)
Analog audio output Two RCA connectors
(one left channel, one right
channel)
2 Vrms (100 kilo-ohm)
Coaxial digital audio output One pin jack, 500mVpp
(75 ohm)
Optical digital audio output Optical connector
POWER SOURCE
220-240 V ~ +/- 10%, 50 Hz +/- 0.5%
POWER CONSUMPTION
30 W (standby: 5W)
OPERATING TEMPERATURE
5°C to 40°C
DIMENSIONS
W 435mm
H 94mm
D 233mm
WEIGHT
Approx. 3.2kg
• Designs and specifications are subject to change without
notice.
26 EN
H9705ED(EN).fm Page 27 Wednesday, March 17, 2004 4:55 PM
Maintenance
Cleaning the Cabinet
• Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia
or abrasives.
Cleaning Discs
• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the centre out. Do not wipe in a circular
motion.
• Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analogue
records.
Cleaning the disc lens
• After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with
CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with the cleaner.
Auto Head Cleaning
• This feature automatically cleans the heads as you insert or remove a cassette to ensure a clear picture.
• The playback picture may become blurred or interrupted even if the TV programme received is clear. This does not mean that
the recorded programme has been erased. This problem is caused by dirt accumulated on the head after long periods of use, or
usage of rental or old tapes. In this case, head cleaning requires highly technical expertise and the nearest dealer should
therefore be consulted. Clean heads only when problems occur.
Service
• Should your DVD/VCR become inoperative, do not try to correct the problem by yourself. There are no user-serviceable
parts inside. Turn the unit off, unplug the power cord, and take the unit to a Service Centre for servicing.
Make your contribution to the environment
• Spent batteries do not belong in the dustbin.
• You can dispose of them at a collection point for spent batteries or special waste.
Contact your council for details.
Declaration of Conformity
This product complies with the requirement of the directives
EMC-Directive: 89 / 336 / EEC
Low Voltage Directive: 73 / 23 / EEC
CE Marking: 93 / 68 / EEC
We declare that the following product:
DVD/VCR, Model VCR-D 4507
is in compliance with following Regulations.
EN 55013: 2001, EN55020: 2002,
EN61000-3-2: 2000, EN61000-3-3: 1995 + A1: 2001
EN60065: 1998
EN60825-1: 1994 + A1: 1996 + A2: 2001
27 EN
H9705ED(EN).fm Page 28 Wednesday, March 17, 2004 4:55 PM
Warranty
Warranty
This device is warranted for 24 months from the date of
purchase (receipt).
During the warranty period, we will either repair or replace
free of charge the device or its accessories*) if they are found to
be defective due to faulty design or workmanship. Any
warranty performances do not imply an extension of the
Warranty or a claim on a new warranty!
The receipt serves as a proof of purchase. Without such proof,
the product cannot be repaired or replaced free of charge.
To obtain warrantee service, please send the main appliance in
its original packaging, together with the receipt, to your
retailer.
*) Defective accessories do not necessarily imply the
replacement of the whole appliance free of charge.
In this case, please call our hotline!
Broken glass or plastic parts are usually subject to charges!
Defective accessories or worn parts (e.g., motor electrodes,
dough hooks, driving belts, spare remote control, spare tooth
brushes, sawing blades, etc.), as well as cleaning, maintenance
or replacement of worn parts are not covered by this Warranty
and are therefore subject to charges!
Any unauthorized attempts to repair the product will void the
Warranty.
After the Warranty expires
After the Warranty expiration date, any repairs performed by
servicing or repair centres will be subject to charges.
0VMN04138
H9705ED*****
EN
Loading...
