Page 1

user manual

ProSteam condenser dryer

TK SL5 E

Page 2

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

Contents

Important safety information 2 Environment 4 Product description 5 Control panel 6 First start-up 7 Sorting and preparing laundry 8 ProSteam system 10 Drying 16

Subject to change without notice

Drying rack 19 Care and cleaning 20 What to do if ... 24 SETTINGS 26 Technical data 27 Hints for test institutes 28 Installation 28 Service 31

Important safety information

Important! Only operate the ProSteam programmes with distilled water! Mains water causes damage to the appliance.

Important! In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

General safety

• It is dangerous to alter the specifications or attempt to modify this product in any way.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Make sure that small pets do not climb into the drum. To avoid this, please check into the drum before using.

• Any objects such as coins, safety pins, nails, screws, stones or any other hard,

sharp material can cause extensive damage and must not be placed into the machine.

• In order to avoid danger of fires caused by excessive drying, do not use appliance to dry the following items: cushions, quilts and the like (these items accumulate heat).

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

• Always unplug the appliance after use, clean and maintenance.

• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts.

• Items that have been soiled with substances such as cooking oil acetone, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

•

Danger of explosion: never tumble dry items that have been in contact with inflammable solvents (petrol, methylated spirits, dry cleaning fluid and the like). As these substances are volatile, they could cause an explosion. Only tumble dry items washed with water.

Page 3

electrolux 3

•

Risk of fire: items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tumble dryer.

• If you have washed your laundry with stain remover you must execute an extra rinse cycle before loading your tumble dryer.

• Please make sure that no gas lighters or matches have accidentally been left in pockets of garments to be loaded into appliance

• When removing from the socket, never pull the mains plug by the cable, instead take a hold of the plug.

• The height adjustable screw feet must never be removed.

• The plug must be accessible after installing the machine

• Manifold plugs, couplings and extension cables must not be used. Risk of fire from overheating!

• Do not spray down the appliance with jets of water. Risk of electric shock!

• Do not lean on the open door. The appliance may tip over.

• Once the drying cycle or ProSteam programme has been interrupted, the laundry and drum may be hot. Risk of burns! Take care when removing the laundry.

• Take care when interrupting the ProSteam programme: Do not open the machine door during the steam phase. Hot steam may result in burns. The display shows a message to indicate the steam phase.

• The final part of a drying cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

•

Caution – Hot surface: Do not touch the back of the appliance while it is operating.

Warning! Never stop a tumble dry before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. Risk of fire!

• Risk of electric shock! Do not spray

down the appliance with jets of water.

Installation

• Note the "Installation" instructions.

• Important! Appliance must be moved in

vertical position for transport.

• This appliance is heavy. Care should be taken when moving it.

• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

• All packing must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual.

• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

• Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely under the appliance.

• After having installed the appliance, check that it is not pressing or standing on its electrical supply cable.

• If the tumble dryer is placed on top of a washing machine, it is compulsory to use the stacking kit (optional accessory).

Use

• The appliance is intended for drying and steam treatment of standard laundry in domestic applications.

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.

• Only wash fabrics which are designed to be machine dried. Follow the instructions on each garment label.

• Do not dry unwashed items in the tumble dryer.

• Do not overload the appliance. See the relevant section in the user manual.

• Clothes which are dripping wet should not be placed in the dryer.

• Garments which have been in contact with volatile petroleum products should not be machine dried. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.

• When using dry-cleaning sets: only use those products which are declared as suitable for the dryer by the manufacturer.

• Clean the micro-fine filter and fine strainer after each drying cycle or ProSteam programme.

Page 4

4 electrolux

• Do not use the machine without a lint filter or with a damaged lint filter. Risk of fire!

• Only fill the water reservoir for steam treatment with distilled water. Do not use tap water or any additives! The condensed water from this appliance’s condensed water container can also be used, if it is filtered first (e. g. with a coffee filter).

• Clean the heat exchanger regularly.

• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.

• Never use the tumble dryer if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the tumble dryer is accessible.

• With stacked washer and ProSteam appliance: do not place objects on the appliance. These may fall off during operation.

•The lamp cover for the interior light must be screwed down tightly.

• Fabric softeners, or similar products should be used as specified by the fabric softener instructions.

Environment

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Environmental tips

• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not therefore needed when washing.

• Filtered condensed water can be used for ProSteam programmes.

• Your dryer will function most economically if you: – always keep the ventilation slots on the

base of the dryer unobstructed;

•

Caution - hot surface : Do not touch the door light cover surface when the light is switched on.

Child safety

• This machine is not intended for use by young children or infirm persons without supervision.

• Children often do not recognise the hazards associated with electrical appliances. Children should be supervised to ensure that they do not play with the appliance.

• Make sure that children and small animals cannot climb into the appliance’s drum. Could endanger life! Keep the appliance door shut whenever it is not being used.

• Keep all detergents in a safe place out of children’s reach.

• When discarding the appliance, cut the electrical supply cable and destroy the plug with the remaining cable. Disable to door catch in order to prevent young children from becoming trapped inside the machine while playing.

– use the loading volumes specified in the

programme overview;

– ensure you have good ventilation in the

installation room;

– clean micro filter and fine filter after every

drying or ProSteam programme;

– spin the laundry well before drying.

Energy consumption depends on spinning speed set in washing machine. Higher spinning speed - lower energy consumption.

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Page 5

electrolux 5

Warning! When disposing of old appliances, remove the mains cable and dispose of together with the plug.

Product description

Remove the door hook and ensure it is no longer lockable to prevent young children being trapped inside.

1 Control panel 2 Water recirculation valve/filter 3 Filler neck for steam water tank 4 Water reservoir 5 Fine fluff filters 6 Drum light 7 Drying rack 8 Loading door (reversible) / course fluff fil-

ters

9 Fluff filters 10 Rating plate 11 Button for opening door in plinth 12 Heat exchanger 13 Ventilation grille 14 Heat exchanger door 15 Adjustable feet 16 Drainage hose for water tank

Page 6

6 electrolux

Control panel

6 5 4

1 2 3

1 Programme knob and Aus (OFF) switch 2 Function buttons 3 Start / Pause button

Display

COTTONS EXTRA DRY

MIN

---

800

4:02

16:05

The display can show the following basic messages:

1 Currently set ProSteam or drying pro-

gramme name and cycle duration.

2 Expected time of cycle end. 3 Option icon after option selection. 4 Visualization of additional functions.

Display description

STEAM LOAD not se-

lectable

minimal STEAM LOAD medium STEAM LOAD maximal STEAM LOAD

4 Zeitvorwahl (DELAY START) button 5 Status led 6 Display

COTTONS EXTRA DRY

MIN

1200

2:00

14:17

Drying

Each time when the cycle is performed, you are informed by animated progress bar about cycle status. In some cases you might be also guide and warn by displayed messages.

DRYNESS not selecta-

ble

minimal DRYNESS medium DRYNESS maximal DRYNESS

Page 7

Display description

electrolux 7

SPIN SPEED not se-

lectable

BUZZER DELICATE LONG ANTI-CREASE SENSITIVE

CHILD LOCK cycle duration cycle finish time delay time

minimal SPIN SPEED

SPIN SPEED scope

(100 rpm step)

maximal SPIN SPEED

Option DELICATEand SENSITIVE cannot be selected together

First start-up

Switching machine on / switching light on

Turn the programme selector to any programme or turn it to Beleuchtung (DRUM LIGHT). The machine has been switched on. When the loading door is opened, the drum is illuminated.

Setting the language

If you want to keep the language: press

the OK button.

If you want to change the language:

1. Press the Option button repeatedly, until the desired language appears in the display.

SETTINGS

Back LANGUAGE CLOCK

ENG

Once the programme knob is set to any programme, e. g. Hemden Baumwolle (COTTON SHIRTS), the display lights up and should look like the illustration opposite. The first time the appliance is used a brief introduction is activated in order to help you make the necessary introductory settings. Short help-text will change into the language setting view as soon as you press the Option or OK button.

2. To confirm the choice press the OK button. After this a text appears asking you again to confirm the set language. This step is added to ensure that you did not set a language by mistake. To confirm the choice press the OK button again.

Page 8

8 electrolux

Important! In case of mistake or at any time

after the first time use a short-cut is provided to avoid going through the SETTINGS. Keeping pressed together the buttons Dampfmenge (STEAM LEVEL) and Trockengrad (DRYNESS) for about 5 seconds the language setting view appears.

Setting the time

Just after setting the language you are asked to set the time. Short help-text will change into the time setting view as soon as you press the Option or OK button. So that the time and the end of the programme are correctly displayed, please check the time shown in the display and set the current time if necessary.

SETTINGS

LANGUAGE CLOCK BRIGHTNESS

9:21

To select the time please use Option button to confirm press OK. See also the chapter " SETTINGS".

Before first use

In order to remove any residues which may have been produced during production, wipe the dryer drum with a damp cloth or carry out a brief drying cycle (30 MIN) with damp cloths in the machine.

1. Turn the programme knob to Zeitprogramm (TIME).

2. Press the Zeitwahl (TIME) button repeatedly until 30' appears in the display.

3. Press the Start / Pause button.

Sorting and preparing laundry

Sorting laundry

• Sort by fabric type: – Cotton/linen for programmes in Baum-

wolle (COTTONS) pogramme group.

– Mixtures and synthetics for pro-

grammes in Mischgewebe (SYNTHET- ICS ) programme group.

• Sorting by care label. The care labels mean:

Drying in the tumble dryer

possible

in princi-

ple

Dry at

normal

tempera-

ture

Dry at re-

duced

tempera-

ture

(choose

DELI-

CATE

option!)

Drying in the tumble dryer not pos-

sible

Important! Do not place in the appliance any wet laundry which is not specified on the care label as being suitable for tumble-drying. This appliance can be used for all wet laundry items which are labelled as suitable for tumble-drying.

• Do not dry new, coloured textiles together with light-coloured laundry items. Textile colours may bleed.

• Do not dry cotton jersey and knitwear with the Extratrocken (EXTRA DRY) programme. Items may shrink!

• Wool and wool-like textiles can be dried using the Wolle (WOOL) programme. Before the drying cycle spin the woollen textiles as well as possible (max. 1200 rpm). Only dry woollen textiles together which are similar or the same with respect to material, colour and weight. Please dry heavy laundry items made of wool separately.

Special notes about ProSteam

Page 9

electrolux 9

Important!

• The following textiles cannot be treated using a ProSteam programme: leather, textiles with large metal, wooden or plastic parts, textiles with rusting metal parts, oilskins or wax cotton garments.

Important!

• To smooth or freshen laundry with a ProSteam programme, sort laundry by size, weight, material and colour. Only smooth textiles together that are similar in terms of size, weight, material and colour.

Important!

• Do not dry new, coloured textiles together with light-coloured laundry items. Colours may fade (check colour fastness of fabric

Important!

• Do not use dry cleaning sets in combination with ProSteam programmes.

Preparing laundry

• To avoid laundry becoming tangled: close zips, button up duvet covers and tie loose ties or ribbons (e.g. of aprons).

• Empty pockets. Remove metal items (paper clips, safety pins, etc).

• Turn items with double-layered fabrics inside out (e.g. with cotton-lined anoraks, the cotton layer should be outermost). These fabrics will then dry better.

Special notes about ProSteam

• Before treating garments with a ProSteam programme, remove stains by washing or using localized stain removal

when damp in an inconspicuous area).

Laundry weights

Type of laundry Weight

Bathrobe 1200 g

Napkin 100 g

Quilt cover 700 g

Sheet 500 g

Pillow case 200 g

Tablecloth 250 g

Towelling towel 200 g

Tea cloth 100 g

Night dress 200 g

Ladies' briefs 100 g

Man's work shirt 600 g

Man's work shirt 200 g

Man's pyjamas 500 g

Blouse 100 g

Men's underpants 100 g

Page 10

10 electrolux

Opening loading door / loading laundry

ProSteam system

Fill steam water tank

You must fill up the steam water tank before using a ProSteam programme for the first time. Use the distilled water provided if there is not yet any condensed water from previous drying programmes (see chapter on ‘Care and cleaning, Emptying condensed water container’). If, after a ProSteam programme is selected, following message The steam

water tank is empty. Please fill it and then press START on the display appears, you will

need to fill up the steam water tank with distilled water. Otherwise, you will not be able to start any ProSteam programme.

Pull drawer containing condensed water container out a little 1 , then pull the water tank’s filler neck 2

Important! Important! Only fill the water tank with distilled or fully desalinated water. Do not use tap water or additives! You can also use the condensed water from the tank, as long as you filter it first (use the canister supplied with the filter fitted: see picture opposite).

1. Open loading door:

Use force to push against the loading door (push point - see picture)

2. Load your laundry (do not force it in).

Caution! Do not jam laundry in between the loading door and rubber seal.

3. Close loading door securely. Lock must

audibly lock.

max.

Fill with distilled water from the canister provided, up to the MAX mark inside the container. Push filler neck and drawer with condensed water container back in.

When dry, all textiles not specifically prohibited in the chapter ‘Sorting and preparing laundry’ may be treated with the ProSteam System. Wet textiles may only be treated if they are labelled as suitable for dry programmes.

Water recirculation system

This system allows you to use for a ProSteam cycle automatically the condensed water collected in the condense water tank during a drying cycle.

The water in the condense water tank will never automatically fill the steam water tank. The water recirculation system works only if it is supplied by water arising during standard drying cycles.

Page 11

electrolux 11

To activate this system turn the valve in ON position. When the valve is ON the steam water tank will be filled during the next drying cycle. Water will be supplied by the water circuit directly to the steam water tank filling it automatically. To activate recirculation set valve in ON position. To do that:

1 2

OFF

1. Pull drawer containing condensed water container out a little. Behind the drawer there are two elements:

Overview of ProSteam programmes

max.

Programmes

Hemden Baumwolle (COTTON SHIRTS)

Hemden Misch. (SYNTHETIC SHIRTS)

Baumwolle (COTTONS) 3.0 kg

Mischgewebe (EASY CARE)

Wolle im Korb (WOOL REFRESH RACK) (rack)

Legere Kleidung (CASUAL REFRESH)

Business Kleidung (BUSINESS REFRESH)

1) only with drying rack installed

2) SPIN SPEED not selectable

3) LONG ANTI-CREASE not selectable

4) for more details refer to Textile Guide leaflet.

All information on applications is for guidance only. Smoothing results

load

(weight

when

dry)

1.0 kg

1.5 kg

1-2 items

2.5 kg

For 1- 5 cotton shirts. Min. 80% natural fibres (cotton, linen etc).

For 1- 5 synthetic shirts. Max. 20% natural fibres (cotton, linen etc).

For smoothing cotton garments. Min. 80% natural fibres (cotton, linen etc).

For smoothing easy-care garments. Max. 20% natural fibres (cotton, linen etc).

For refresh and odour removal, up to two items. Only for dry garments.

For casual refresh like T-shirts, trousers, skirts etc.

2) 4)

For suits, jacket suits and trousers refresh

1 steam water inlet - for manual refilling

of steam water container.

2 water recirculation system valve/filter.

2. turn the valve in ON position. Water will be supplied by the water circuit directly to the steam water tank filling it automatically during the next drying cycle.

The steam water tank is empty. Please fill it and then press START

If valve is closed (OFF position) - recirculation system does not work.

Application/properties

wet,

dry

wet,

dry

wet,

dry

wet,

dry

2) 3)

dry

may vary depending on the selected programme and especially the fit-

Page 12

12 electrolux

tings and material properties of the textile. The results can be improved if necessary by using different programmes and steam volumes. For example, some textiles containing more than 20% synthetic but with the right fittings may behave more like cotton textiles in a ProSteam programme. You may therefore get better smoothing results by selecting a cotton ProSteam programme.

Given the wide range of different textile grades and properties that can be manufactured today using

processes, we recommend running the first few ProSteam programmes at low steam levels and with a small number of garments that are as similar as possible. Later, you can carefully start to vary the conditions of ProSteam programmes to learn from experience how to get the best results from the volume of laundry loaded, the quality of the textiles and the most suitable steam levels and ProSteam programmes. Please also note the accompanying "Textile Guide".

different mechanical and chemical

Damp-

Programme

Hemden Baumwolle (COTTON SHIRTS)

Hemden Misch. (SYNTHETIC SHIRTS)

Baumwolle (COTTONS)

Mischgewebe (EASY CARE)

Wolle im Korb (WOOL REFRESH

RACK) (rack)

Legere Kleidung (CASUAL REFRESH)

Business Kleidung (BUSINESS REFRESH)

1) exact programme times appear in the display once the machine has performed wet/dry recognition (approx. 2 min.)

fmenge (STEAM LEVEL)

MIN 1 - 2 items 19

MAX 5 items 22

MIN 1 - 2 items 13

MAX 5 items 16

MIN 0.5 - 1 kg 12

MAX 2 - 3 kg 15

MIN 0,2 - 0,5 kg 12

MAX 1 – 1.5 kg 15

MIN 1 item 15 -

MED 1- 2 items 16 -

MAX 2 items 19 -

MIN 1- 2 items 18 -

MED 3- 4 items 18 -

MAX 5 items 19 -

MIN

MED 1 jacket 13 -

MAX 1 suit 15 -

Loading vol-

ume

1 pair of trou-

sers

All information provided on selecting the steam level and corresponding load are suggestions only. In some cases, using a higher steam

[min.]

Duration dry

[min.]

Duration wet

40 +/-10MED 3 - 4 items 21

30 +/-5MED 3 - 4 items 14

40 +/-10MED 1 - 2 kg 13

30 +/-5MED 0.5 - 1 kg 13

level or smaller load may give better results. The refresh programmes are gentle ProSteam programmes for non-washable textiles. Any dis-

Page 13

electrolux 13

tortion to the shape of a garment which might occur in few cases, can be remedied by ironing.

Selecting the programme

Use the programme selector to set the programme you require. The estimated programme duration (in hours and minutes) appears in the multi-display as well as cycle finish time.

Select Dampfmenge (STEAM LEVEL) To achieve the best results, different

steam levels are required for different volumes of laundry. The Dampfmenge (STEAM LEVEL) button is used to set the required steam quantity of: MIN, MED or MAX.

All ProSteam programmes, apart from the REFRESH programmes, automatically recognize the remaining dampness in clothes. When laundry is wet, a drying cycle is activated first if required. The table shows the steam levels appropriate for the selected load, under Dampfmenge (STEAM LEVEL). Press the Dampfmenge (STEAM LEVEL) button repeatedly until the desired steam level (MIN, MED or MAX) is shown in the display. If the Dampfmenge (STEAM LEVEL) button is not pressed after a ProSteam programme is selected, the medium steam level (MED) is selected automatically. If you select a REFRESH programme, MIN is selected automatically.

Important! If in doubt, always select a lower steam level first until you have more experience with load volumes, fabric types and the corresponding optimum steam level. If too high steam

level is selected, garments may lose their shape. If too low steam level is selected, creases may remain.

Selecting additional options

The additional options available for the ProSteam programmes are LONG ANTICREASE,

BUZZER, SPIN SPEED

and the CHILD

LOCK.

1. By turning the knob choose a ProSteam programme.

2. To set the option press Option button. you will see available options on the screen.

3. Press repeatedly Option button to select proper option. Selection is marked by rectangular border.

4. Press OK button to activate it. Suitable icon should appear on the right side of the screen.

To deselect an option follow the same steps. Option icon should disappear.

LONG ANTICREASE

A 90 minute anti-crease phase is set. The display now shows the long anti-crease icon. If this additional option is selected, the anti-crease phase (30 min.) at the end of the

ProSteam cycle is lengthened by 60 minutes. The laundry can be removed at any time during the anti-crease phase.

BUZZER

The appliance is supplied with the BUZZER function deactivated. The button is used to switch the function on or off. When the function is active, the BUZZER symbol appears in the display. The buzzer sounds or plays a tune during: –cycle end – anti-crease phase and when phase starts

or ends – cycle interruption by a warning –alarm

CHILD LOCK

The child lock can be set to prevent a programme being accidentally started or a programme in operation being accidentally changed. The child safety device locks all buttons and the programme knob. The child safety device can by deactivated by holding

1) available with cotton/easy care and cotton/synthetic shirts programmes

Page 14

14 electrolux

down the Option and OK buttons simultaneously for 5 seconds. – Before programme is started: appliance

cannot be used

– After programme is started: programme in

operation cannot be changed

The child lock to indicate that the child lock is activated. The child lock is not deactivated once the programme comes to an end. If you want to set a new programme, you must first deactivate the child lock.

SPIN SPEED

If the washing in the washing machine was initially drained prior to the ProSteam cycle, the dryer can be set according to the spin speed of the initial drainage procedure. The higher the spin speed was, the shorter the programme length for the drying cycle. Activate the SPIN SPEED option and then number of times press Option button until the desired spin speed of the initial drainage is displayed. No value is shown if no spin speed is selected. In certain programmes the spin speed has not effect (time controlled cycles), its selection can be not selectable and only three dashes are visualized. Available selections: from 800 to 1800 rpm's in 100 rpm's intervals. The maximum value depends by selected program, the minimum is always 800 rpm For those programs where the spin speed has no effect (time controlled cycles), the selection is not allowed and three dashes “- -

-” are displayed that has the meaning of not set or unknown. The user interface always remembers last spin selection, and proposes it as default for all new selected programs. If memorized spin speed is greater than maximum allowed value it will be automatically reduced to max spin speed available for the selected program.

Setting Zeitvorwahl (DELAY START) function

With the Zeitvorwahl (DELAY START) button, you can delay the start of a ProSteam programme by between 30 minutes and a maximum of 20 hours.

icon appears in the display

1. Select the programme and additional

functions/options if necessary.

2. Press the Zeitvorwahl (DELAY START)

button as many times as necessary. During selection, END TIME of the cycle increases in the display and delay icon

is on.

If you reach 20 hours of start delay and you press the button again, the time delay is cancelled and delay icon disappears.

3. To activate the delay timer, press the

Start / Pause button. The amount of time remaining until the programme is set to start is continuously displayed (e.g. 5:00 hours, 4:59… 0:30 minutes etc). The message Delay Start and delay icon

is on.

Starting the ProSteam programme

COTTON SHIRTS

Press START to run programme.

MED

Press the Start / Pause button. The programme starts. The progress bar and the name of currently performed phase, above it, show stage of the cycle. With wet laundry, after a few minutes the appliance will show the correct programme duration for the ProSteam programme including the preceding drying programme. As soon as the right level of dryness is reached, the ProSteam programme will start automatically. Alternately Steam Treatment and Steam Injection phases names are dis- played.

Important! During the steam phases that form part of the ProSteam programme and also the anti-crease phase the loading door cannot be opened. Risk of burns!

---

0:21

13:22

Page 15

The steam water tank is empty. Please fill

it and then press START.

If the steam water tank is empty when you select a ProSteam programme the following message will appear on the display (see picture). The programme cannot be started. You will need to fill the water tank first (see chapter ProSteam system - section Filling steam water tank )

It is normal for the appliance to make noises during a ProSteam or drying programme if garments with hard parts, such as metal buttons, are put in the drum.

Changing a programme

To change a programme which has been selected by mistake once the programme has started, first turn the programme selector to Aus (OFF) and then reset the programme.

The programme can no longer be changed directly once the programme has started. If you nevertheless attempt to change the programme with the programme knob the following message is shown:

Please turn programme selector to the last used position.

The drying programme is not however affected by this.

Putting in extra items or taking items out before end of programme

1. Open loading door.

Warning! Laundry and drum can become hot. Risk of burns!

2. Load or remove laundry items.

3. Close loading securely. Lock must audibly lock.

4. Press the Start / Pause button to continue the drying cycle.

electrolux 15

ProSteam programme complete / removing laundry

After the ProSteam cycle is completed , 0:00 starts flashing and alternatively the messages: Finished. Please remove the laundry and Anti-crease appear in the display. If the buzzer has been activated, an audible signal sounds at regular intervals.

The ProSteam programme is automatically followed by an anti-crease phase, including brief steam phases, which lasts around 30 minutes.

The drum rotates during the anti-crease phase. This keeps the laundry loose and free of creases. It can be removed at any time during the anti-crease phase, except during steam injection phases (look for Steam Injection message in the display !). Laundry should be removed as quickly as possible.

1. Open the loading door to remove the laundry.

2. Before removing the laundry, remove fluff from the micro-fine filter. It is best to use a damp hand for this purpose. (See “Care and cleaning” chapter.)

3. Remove laundry one garment at a time.

Important! To retain the effects of the ProSteam treatment, clothes must be removed one garment at a time during the anti-crease phase and hung immediately on a clothes hanger to dry (for at least 5-15 mins, depending on fabric and selected steam level). Do up the buttons and tug the garment into shape, paying particular attention to cuffs and seams.

4. Turn the programme knob to Aus (OFF).

Important! After each drying cycle – Clean the micro-fine filter and fine filter – Drain the condensed water container if you

do not use water recirculation system (See chapter “Care and Cleaning”.)

5. Close door.

Page 16

16 electrolux

Drying

Drying programmes overview

Programme

Extratrocken (EXTRA DRY)

Schranktrocken (CUPBOARD DRY)

Leichttrocken (DAMP)

Extratrocken (EXTRA DRY)

Schranktrocken (CUPBOARD DRY)

Leichttrocken (DAMP)

Zeitprogramme (TIMED PROGRAMME)

Sport (SPORTS LIGHT)

Application/properties

max. load

(weight when dry)

Baumwolle (COTTONS)

Thorough drying of thick or multi- layered fabrics, e.g. terry towelling

7 kg

items, bathrobes.

Thorough drying of fabrics of even thicknesses, e.g. terry towelling

7 kg

items, knitwear, towels.

7 kg For normal thickness cotton or linen laundry, e.g. bedding, table linen.

Mischgewebe (SYNTHETICS)

Thorough drying of thick or multi-layered fabrics, e.g. pullovers, bed-

3 kg

ding, table linen.

For thin fabrics which are not ironed, e.g. easy care shirts, table linen,

3 kg

baby clothes, socks, lingerie with bones or wires.

3 kg For thin fabrics which are also to be ironed, e.g. knitwear, shirts.

For further drying of individual items of laundry. Press the TIME button

7 kg

to set the cycle duration (scope 30-180 min.).

2 kg

For sportswear, thin fabrics, polyester, which are not ironed. 5)

2) 3) 4)

Care mark

Bettwäsche (BED-LINEN)

3 kg

Jeans 7 kg

Seide (SILK) 1 kg

Bed linen (single and double sheet, pillowcase, bedspread, duvet cover).

For leisure clothing, such as jeans, sweat-shirts, etc., of different material thicknesses (e.g. at the neck, cuffs and seams).

For drying silk using warm air and gentle movement. 3) 5)

Page 17

electrolux 17

Programme

max. load

(weight when dry)

For drying woollen fabrics after they have been washed, using warm air at minimum mechanical load (Follow section “Sorting and preparing

Wolle/Sportschuhe Korb (WOOL / SHOE RACK)

1) select DELICATE

2) Trockengrad (DRYNESS) not selectable

3) SPIN SPEED not selectable

4) SENSITIVE not selectable

5) DELICATE set as default

6) LONG ANTI-CREASE not selectable

washing”). Recommendation: Remove fabrics immediately after drying, as no anti-crease programme follows. /

1 kg

For gentle drying of one pair of sport shoes, washed and spin-dried at 1000 rpm. Programme run times: between 30 and 180 minutes. Press the TIME button to set the cycle duration (scope 30-180 min.)

2) 3) 5) 4)6)

Option DELICATE and SENSITIVE cannot be selected together

Selecting the programme

Application/properties

the related program, message Not Selectable is shown.

If wool or silk comes out of the machine too damp at the end of a WOOL or Seide (SILK) programme, you can dry it again by restarting the appropriate programme, this time with the Trockengrad (DRYNESS) function selec-

ted and dryness level the case of a drying cycle with relatively dry laundry, the end of the programme cycle displayed at the beginning is corrected after a while.

Caution! Make sure that by selecting the Trockengrad (DRYNESS) function, you do not over-dry your

Use the programme selector to set the programme you require. The estimated programme duration (in hours and minutes) appears in the multi-display as well as cycle finish time.

Setting Trockengrad (DRYNESS)

This function improves the dryness of the laundry. Laundry becomes drier as you move from

to Press the Trockengrad (DRYNESS) button repeatedly until the desired dryness level

, or ) is shown in the display.

(

wool or silk.

Selecting additional options

The additional options available for the drying programmes are DELICATE, SENSITIVE, LONG ANTICREASE, BUZZER, SPIN

SPEED

and the CHILD LOCK.

1. By turning the knob choose a drying programme.

2. To set the option press Option button. you will see available options on the screen.

When humidity adjustment is not foreseen on

2) available with cotton/easy care and cotton/synthetic shirts programmes

Care mark

, or . In

Page 18

18 electrolux

3. Press repeatedly Option button to select proper option. Selection is marked by rectangular border.

4. Press OK button to activate it. Suitable icon should appear on the right side of the screen.

To deselect an option follow the same steps. Option icon should disappear.

DELICATE

For especially gentle drying of sensitive fabrics with the care label:

and for temperature-sensitive textiles (e.g. acrylic, viscose). Programme is executed with reduced heat. DELICATE is only suitable for use with loads of up to 3kg. When the option is active, the DELICATE

icon is on.

SENSITIVE

For gentle drying of fabrics that are frequently worn. Programme starts on full heat setting, which is then reduced as the programme progresses to be kind to the washing. When the option is active, the SENSITIVE

icon is on.

LONG ANTICREASE

A 90 minute anti-crease phase is set. The display now shows the long anti-crease icon. If this additional option is selected, the anti-crease phase (30 min.) at the end of the drying cycle is lengthened by 60 minutes. The laundry can be removed at any time during the anti-crease phase.

BUZZER

or ends – cycle interruption by a warning –alarm

CHILD LOCK

down the Option and OK buttons simultaneously for 5 seconds. – Before programme is started: appliance

cannot be used

– After programme is started: programme in

operation cannot be changed

The child lock

icon appears in the display to indicate that the child lock is activated. The child lock is not deactivated once the programme comes to an end. If you want to set a new programme, you must first deactivate the child lock.

SPIN SPEED

If the washing in the washing machine was initially drained prior to the drying cycle, the dryer can be set according to the spin speed of the initial drainage procedure. The higher the spin speed was, the shorter the programme length for the drying cycle. Activate the SPIN SPEED option and then number of times press Option button until the desired spin speed of the initial drainage is displayed. No value is shown if no spin speed is selected. In certain programmes the spin speed has not effect (time controlled cycles), its selection can be not selectable and only three dashes are visualized. Available selections: from 800 to 1800 rpm's in 100 rpm's intervals. The maximum value depends by selected program, the minimum is always 800 rpm For those programs where the spin speed has no effect (time controlled cycles), the selection is not allowed and three dashes “- -

Selecting Zeitwahl (TIME)

To select the programme duration after setting the Zeitprogramme (TIMED PROGRAMME) programme. You can select a programme duration from 10 minutes to 3 hours in 10-minute steps.

1. Turn the programme knob to the Zeit-

programme (TIMED PROGRAMME). The

Page 19

electrolux 19

0:10 minutes is in the display (corresponding to the cooling phase).

2. Press the Zeitwahl (TIME) button repeatedly until the desired programme duration is shown in the display, e.g. 0:20 for a programme of 20 minutes.

If the programme duration is not selected, the duration is automatically set to 10 mins.

Selecting Zeitvorwahl (DELAY START)

See chapter ProSteam system , section Selecting Zeitvorwahl (DELAY START).

Starting the drying programme

It is normal for the appliance to make noises during drying programme if garments with hard parts, such as metal buttons, are put in the drum.

Changing a programme

To change a programme which has been selected by mistake once the programme has started, first turn the programme selector to Aus (OFF) and then reset the programme.

The programme can no longer be changed directly once the programme has started. If you nevertheless attempt to change the programme with the programme knob the following message is shown:

Please turn programme selector to the last used position.

The drying programme is not however affected by this.

Putting in extra items or taking items out before end of programme

1. Open loading door.

Warning! Laundry and drum can become hot. Risk of burns!

2. Load or remove laundry items.

3. Close loading securely. Lock must audibly lock.

4. Press the Start / Pause button to continue the drying cycle.

Drying programme complete / removing laundry

After the drying cycle is completed , 0:00 starts flashing and alternatively the messages: Finished. Please remove the laundry and Anti-crease appear in the display. If the buzzer has been activated, an audible signal sounds at regular intervals.

The drying programme is automatically followed by an anti-crease phase, including brief steam phases, which lasts around 30 minutes.

The drum rotates during the anti-crease phase. This keeps the laundry loose and free of creases. It can be removed at any time during the anti-crease phase. Laundry should be removed as quickly as possible to prevent creases from forming.

1. Open the loading door to remove the laundry.

2. Before removing the laundry, remove fluff from the micro-fine filter. It is best to use a damp hand for this purpose. (See “Care and cleaning” chapter.)

3. Remove laundry.

4. Turn the programme knob to Aus (OFF).

Important! After each drying cycle – Clean the micro-fine filter and fine filter – Drain the condensed water container (See

chapter “Care and Cleaning”.)

5. Close door.

Drying rack

Special equipment for gentle drying washable woollens and sport shoes. Incomparable for drying wet woollens - eliminated movement, protection from matting.

For drying rack unpacking see Installa- tion chapter.

Page 20

20 electrolux

Important! Before drying rack installation

check the dryer drum. It must be empty! Sport shoes cannot be dry without the drying rack - drum damage.

Installation and use

1. Open the loading door.

Insert the rack carefully resting its two support brackets on the front of plastic flange.

Drying tips

•

for the best drying result spread the woollens out loosely on the drying rack and roll it up

• do not squash and fold the woollens

•

open support and put sport shoes on it

3. Place the woollens or pair of sport shoes on the rack.

4. Select the suitable rack drying programme and drying time.

5. Press the START PAUSE button.

6. When cycle is finished open the loading door and remove the woollens or shoes.

7. Turn the programme selector to OFF.

8. Take out the drying rack of the drum.

Care and cleaning

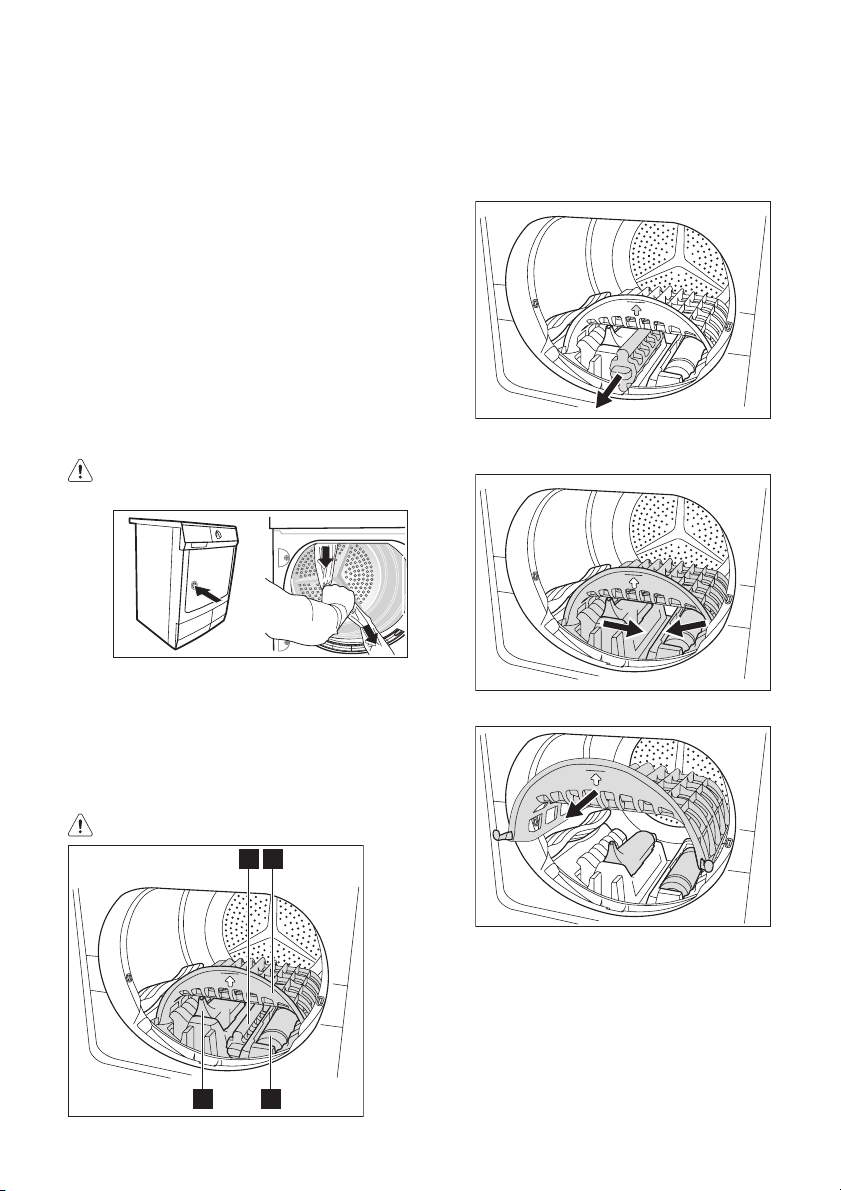

Cleaning fluff filter

The filters collect all the fluff which accumulates during drying. To ensure that the dryer works perfectly, the fluff filters (micro-fine filter and fine strainer) must be cleaned after every drying cycle. The message Please clean the filters. is shown in the display to remind you this operation.

• the insoles should be placed beside the shoes on the drying rack and the shoelaces should be tied

Caution! Never operate the dryer without fluff filters or with damaged or blocked fluff filters.

1. Open loading door

Page 21

2. Use a damp hand to clean the micro- fine filter, which is built into the lower part of the loading aperture.

3. After a period of time, a patina due to detergent residue on laundry forms on the filters. When this occurs, clean the filters with warm water using a brush. Remove the filter from the door pulling it out. It can be positioned with the tooth facing to the left or to the right). After cleaning do not forget to put it back.

electrolux 21

6. Remove fluff from fine strainer. It is best to use a damp hand for this purpose.

Clean the entire filter area

The strainer area does not have to be cleaned after every drying cycle, but should be checked regularly and cleaned of fluff if necessary.

7. To do this, grip the top of the large mesh filter and pull it forwards until it comes loose from the two brackets.

8. Remove fluff from the entire filter area. It is best to use a vacuum cleaner for this purpose.

4. Pus h dow n unl ock b utto n on large m esh filter. Large mesh filter jumps up.

5. Take out fine strainer.

9. Press both journals of the large mesh filter into the brackets on the loading door until they snap into place.

10. Re-insert fine strainer.

11. Press against the large mesh filter until it locks into the interlock.

Page 22

22 electrolux

If the fine strainer is not fitted, the large mesh filter will not snap into place and the loading door cannot be closed.

Cleaning the door seal

Wipe the door seal with a damp cloth immediately after the drying cycle has finished.

Emptying the condensate tank

Empty condensed water container after every drying cycle.

Emptying of condensate water tank can be limited or fully eliminated in case of: – open recirculation system if you use

Pro Steam programmes (See section Water recirculation system )

– direct drain system installation (See

section Special accessories )

If the condensate tank is full, an active programme will break off automatically and the message The tank is full. Please empty it and then press START. is shown in the display. In order to continue the programme, the condensate tank must first be emptied.

Warning! The condensate is not suitable for drinking or for preparing foodstuffs.

1. Take out drawer containing condensed

water container completely 1 and pull up the condensed water container’s drainage pipe as far as it will go 2 .

2. Pour condensed water out into a basin or

similar receptacle.

3. Slide outlet connections in and refit con-

densate tank. If the programme has been interrupted as a result of the condensate tank being full: Press the Start / Pause button to continue the drying cycle.

The condensate tank has a volume of approx. 4 litres. This is sufficient for around 7 kg of laundry which has previously been spun at 1000 revolutions/ minute.

4. The condensed water can be used as

distilled water, e.g. for steam programmes. However, first filter the condensed water to remove any residues and small pieces of fluff.

Page 23

Using the attached canister to filter: Pour the water out of the container straight through the filter at the top of the canister.

Cleaning heat exchanger

If the message: Please clean the condenser is shown in the display, the heat exchanger needs to be cleaned.

Caution! Operating when the heat exchanger is blocked with fluff can damage the dryer. This also increases energy consumption.

1. Open door.

2. Open door in plinth. To do this, press the release button on the bottom of the door aperture and open the door in the plinth to the left.

3. Clean fluff from the inside of the door and the heat exchanger front chamber. Wipe the door seal with a damp cloth.

4. Turn both lock washers inwards.

electrolux 23

6. To empty the heat exchanger, hold vertically over a washing-up bowl.

Caution! Do not use sharp objects to clean. The heat exchanger could develop leaks.

7. Clean heat exchanger. It is best to use a brush or to rinse thoroughly with a hand-held shower.

8. Replace heat exchanger and lock into place (turn both lock washers outwards until they snap into place).

9. Close door in plinth.

Caution! Never operate the dryer without the heat exchanger.

Cleaning the water recirculation valve/ filter

If the message Please clean the water recirculation filter is shown in the display, the re-

circulation filter needs to be cleaned. The valve/filter is placed behind the tank handle see chapter "Product description".

1. Pull out completely the drawer containing condensed water container.

5. Use the handle to pull the heat exchanger out of the base and carry it horizontally to prevent any remaining water from spilling.

2. Turn the valve/filter to the OFF position.

3. Wait a few seconds to allow the correct emptying of the valve/filter.

4. Pull out the valve/filter.

5. Clean the valve/filter under warm water.

6. Re-insert the valve/filter.

Page 24

24 electrolux

Turn the valve/filter in ON position.

Cleaning the drum

Caution! Do not use abrasives or steel

wool to clean the drum.

Lime in the water or cleaning agents may form a barely visible lining on the inside of the drum. The degree to which the laundry has been dried is then no longer detected reliably. The laundry is damper than expected when removed from the dryer.

What to do if ...

Troubleshooting by yourself

If, during operation, the warning message appears on the LCD follow strictly guides in-

Problem Possible cause Remedy

Mains plug is not plugged in or fuse is not working correctly.

Dryer does not work.

ProSteam programme does not start. Message on the display:

The steam water tank is empty. Please fill it and then press START.

After a ProSteam programme, garments are not sufficiently smooth.

After a ProSteam programme, there are no creases left in the garments.

Loading door is open. Close loading door.

Have you pressed the Start / Pause button?

Water tank is empty. Fill water tank.

Recirculation valve is closed (OFF position)

Wrong programme selected (e.g. Mischgewebe (SYNTHETICS) instead of Baumwolle (COTTON)).

Too low a steam level set. Set a higher steam level.

Too many garments in machine, or garments that are too different.

Clothes are not removed until the anti-crease phase is finished.

Garments not hung on clothes hangers and/or not tugged into shape.

Multi-layered garments tend to lose their shape.

The ProSteam programme has the effect of smoothing garments.

Use a standard domestic cleaner (e.g. vinegar-based cleaner) to wipe down the inside of the drum and drum ribs.

Clean operating screen and housing

Caution! Do not use furniture cleaners

or aggressive cleaning agents to clean the machine. Use a damp cloth to wipe down the operating screen and housing.

cluded in the massage on the display. If you are not able to solve the problem, please inform your local service force centre.

Plug in at mains socket. Check fuse in fuse box (domestic installation).

Press the Start / Pause button again.

Turn the recirculation valve to ON position.

Note the composition of the fabric.

Load the machine with fewer garments, or only similar ones.

Remove clothes quickly one at a time from the machine as soon as possible after the start of the anti-crease phase.

Hang garments on clothes hangers, do up buttons and tug garments into shape.

Reshape multi-layered garments by ironing after they come out of the machine.

Iron creases in again after the ProSteam programme.

Page 25

Drying results unsatisfactory.

Loading door does not close. Message on the display: Please

check if the door is closed properly and then press START.

When a button is pressed - no reaction of the machine.

Drum light does not work.

Displayed programme time changes erratically or stays unchanged for a long time.

Programme inactive, massages:

The tank is full. Please empty it and then press START or Please empty the tank. are displayed.

Drying cycle ends shortly after programme starts. Finished message is displayed.

Drying cycle lasts an unusually long time. Note: After around 5 hours the drying cycle ends automatically (see „Drying cycle complete ”).

Select a different programme

Wrong programme selected.

the next time you dry (see “Programme chart” chapter).

Lint filters clogged. Clean lint filters.

Fluff filter clogged. Clean fluff filter.

Heat exchanger clogged with lint.

Overloading of laundry.

Ventilation slots in base area covered up.

Clean heat exchanger.

Observe recommended loading volumes.

Uncover ventilation slots in base area.

Clean inside surface of drum

Residue on inside surface of drum or drum ribs.

and drum ribs.

Make an adjustment using the Trockengrad (DRYNESS) function (see chapter ”Drying”)

Conductance of water at installation site differs from standard setting of machine.

Fine strainer not in place and/or mesh filter not locked in place.

Drying protection. After the start of the programme, the option can no longer be set.

Programme selector in Aus (OFF) position.

Defective light bulb.

Re-programme standard setting for degree of drying (see ‘Programming options’ chapter).

Install fine strainer and/or snap large mesh filter into place.

Turn the programme knob to Aus (OFF). Set the programme again.

Turn programme selector to Beleuchtung (DRUM LIGHT) or to any programme.

Replace light bulb (see next section).

Programme time is corrected automatically depending on type and volume of laundry and

Automatic process; this is not a machine fault.

level of dampness.

Empty condensate tank, then

Condensate tank is full.

start programme with Start / Pause button.

Not enough washing loaded or washing loaded is too dry for selected programme.

Select time programme or higher drying level (e.g. Schranktrocken (CUPBOARD DRY) instead of Leichttrocken (DAMP)).

Lint filter clogged. Clean lint filter.

Fluff filter clogged. Clean fluff filter.

Load volume too big. Reduce load volume.

Laundry insufficiently spun.

Laundry must be adequately spun.

electrolux 25

Page 26

26 electrolux

Particularly high room temperature.

Discoloration Colour fastness of textiles.

Changing the bulb for interior lighting

Only use a special bulb which is designed specially for dryers. The special bulb can be obtained from your local service centre.

Important! When the appliance is switched on, the interior lighting switches itself off after 4 minutes when the door is open.

Warning! Do not use standard bulbs! These develop too much heat and may

1. Unscrew cover above the bulb (this can be found directly behind the loading aperture, at the top; refer to “Description of machine” section.)

2. Replace defective bulb.

3. Screw cover back down.

Check the correct positioning of o-ring gasket before screwing back the door light cover. Do not operate the dryer when missing oring gasket on door light cover.

damage the machine! Before replacing the bulb, disconnect the mains plug; with a permanent connection: fully unscrew or deactivate the fuse.

SETTINGS

LANGUAGE

Language setting is always first as a default.

1. Press OK button - frame above language abbreviation starts blinking.

2. Press Option button until you set requested language.

3. Press OK to confirm.

TIME

1. Press Option button until TIME selected.

2. Press OK to confirm - hour indication

The special options that can be set under SETTINGS remain permanently stored independent of each drying cycle – even after the appliance has been switched off or the mains plug has been removed from the socket. To enter the settings:

1. Press Option button repeatedly until selection frame marks SETTINGS.

2. Press OK button to confirm.

3. Use Option button to scroll through the list.

After few seconds of inaction settings view comes back to main view. You can get back to previous view each time if you select Back and confirm OK.

starts blinking.

3. Press Option until you set the right hour.

4. Press OK to confirm - minutes indication starts blinking.

5. Press Option until you set right minutes.

6. Press OK to confirm.

BRIGHTNESS

1. Press Option button until BRIGHTNESS selected.

2. Press OK to confirm - frame around bar indicator starts blinking.

3. Press Option until you set right brightness level.

4. Press OK to confirm.

Automatic process, there is no fault with the appliance. If possible, lower the room temperature.

Check colour fastness of textiles. Only treat textiles together if they are a similar colour.

Warning! For safety reasons, the cover must be screwed down tightly. If this is not done, the dryer must not be operated.

Page 27

electrolux 27

CONTRAST

1. Press Option button until CONTRAST selected.

2. Press OK to confirm - frame around bar indicator starts blinking.

3. Press Option until you set right contrast level.

4. Press OK to confirm.

WATER HARDNESS

Water contains, a variable quantity of limestone and mineral salts of which quantities vary according to geographical locations thus varying its conductivity values. Relevant variations of the conductivity of the water compared to those prefixed by the factory could slightly influence the residual humidity of the laundry at the end of the cycle. Your dryer allows you to regulate the sensitivity of the drying sensor based on conductivity values of the water.

1. Press Option button until WATER HARDNESS selected.

2. Press OK to confirm - frame around bar indicator starts blinking.

Technical data

This appliance conforms with the following EU Directives: – 2006/95/EC dated 12.12.2006 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive

92/31/EEC

– 93/68/EEC dated 22.07.1993 CE Marking Directive

Height x width x depth 85 x 60 x 58 cm

Drum volume 108 l

Depth with loading door open 109 cm

Height can be adjusted by 1.5 cm

Weight when empty approx. 48 kg

Loading volume (depends on programme)

Voltage 220-230 V

Required fuse 10 A

Total power 2350 W

Energy efficiency class B

Energy consumption (7 kg of cotton, predrained at 1000 rpm)

Average annual energy consumption 284.1 kWh

3. Press Option until you set right hardness level.

4. Press OK to confirm.

available selections: –

- low conductivity <300 μS/cm

–

- medium conductivity 300-600

μS/cm

–

- high conductivity >600 μS/cm

is set as default.

FULL TANK WARNING - ON/OFF

The container indicator at the end of the programme can be deactivated, for example, if an external condensed water drain is installed.

1. Press Option button until FULL TANK WARNING selected.

2. Press OK to confirm - frame around bar indicator starts blinking.

3. Press Option until you set right status.

4. Press OK to confirm.

Warning is set to ON as default.

max. 7 kg

3.92 kWh

Page 28

28 electrolux

Use Domestic

Permissible ambient temperature + 5°C to + 35°C

The consumption values have been established under standard conditions. They may de-

Baumwolle (COTTON) Schranktrocken (CUPBOARD DRY)

Baumwolle (COTTON) IRON DRY

Mischgewebe (SYNTHETICS) Schranktrocken (CUPBOARD DRY)

1) Different loading volume data may be needed in some countries as a result of different measuring methods.

2) in accordance with EN 61121

viate when the machine is operated in domestic circumstances.

Programme

2) 3)

Consumption values

Energy consumption in kWh / average

3.92 / 125 (7 kg load pre-drained at 1000

rpm)

3,75 (7 kg load pre-drained at 1200 rpm) 3,60 (7 kg load pre-drained at 1400 rpm) 3,20 (7 kg load pre-drained at 1800 rpm)

3.34 / 107 (7 kg load pre-drained at 1000 rpm)

1.33 / 48 (3 kg load pre-drained at 1200 rpm)

drying time in min.

Hints for test institutes

Parameters possible to be checked by the Test Institutes:

• Energy consumption (corrected with final

humidity) during the cupboard dry cotton cycle with nominal load.

• Energy consumption (corrected with final

humidity) during the cupboard dry cotton cycle with half load.

• Final humidity (during cupboard dry cot-

ton, iron dry cotton and cupboard dry easy care)

• Condensation efficiency (corrected with final humidity) during cupboard dry cotton cycle with nominal and half load (with valve/filter of the water recirculation system in OFF position).

All the cycles have to be checked in accordance with EN 61121 (Tumble dryers for household use – Methods for measuring the performance).

Installation

Appliance positioning

• It is recommended that, for your convenience, the machine is positioned close to your washing machine.

• The tumble dryer must be installed in a clean place, where dirt does not build up.

• Air must be able to circulate freely all round the appliance. Do not obstruct the front ventilation grille or the air intake grilles at the back of the machine.

• To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm, level surface.

• Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, raise or lower the feet until it is.

• The feet must never be removed. Do not restrict the floor clearance through deep pile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.

Page 29

electrolux 29

Important!

• The hot air emitted by the tumble dryer can reach temperatures of up to 60°C. The appliance must therefore not be installed on floors which are not resistant to high temperatures.

• When operating the tumble dryer, the room temperature must not be lower than +5°C and higher than +35°C, as it may affect the performance of the appliance.

• Should the appliance be moved, it must be transported vertically.

• The appliance must not be installed behind a lockable door, a sliding door a door with a hinge on the opposite side to that of the appliance in such a way that a full opening of the dryer is restricted.

Removing transport safety packaging

Caution! Before use all parts of the

transport packaging must be removed.

Before appliance use all packaging parts and drying rack must be removed from the drum. The inside of the drum must be clean.

To unpack the rack:

Remove middle polystyrene part by pulling it.

Open loading door

2. Pull off adhesive strips from inside ma-

chine on top of drum.

3. Remove foil hose and polystyrene pad-

ding from the machine.

Drying rack unpacking

Caution!

1 2

4 3

Loosen polystyrene parts 3 and 4.

Lift slightly rack and take it carefully out from the drum.

Page 30

30 electrolux

Remove right polystyrene part by pulling it. Inside this part there is a bottle of distilled water for steam programme purposes.

Remove left polystyrene part by pulling it. Inside this part there is a canister for filling distilled water tank for steam programme purposes.

Electrical connection

Details on mains voltage, type of current and the fuses required should be taken from the type plate. The type plate is fitted near the loading aperture (see “Product description” chapter).

Connect the machine to an earthed socket, in accordance with current wiring regulations.

Warning! The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precautions. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Center.

Warning! The plug must be accessible after installing the machine.

Changing door stop

Warning! Before changing the door

stop, disconnect the mains plug.

Open loading door.

2. Unscrew hinge A from the front of the

machine and take off the loading door.

3. Remove cover plates B . To do this, in-

sert a thin screwdriver into the slots as shown in the illustration, press downwards slightly and pry out the cover plates.

4. Use an appropriate tool and exert pres-

sure to unfasten locking block C from the snap-on fixture, take out and re-insert on the other side having rotated the block through 180°.

5. Unscrew hinge A from the loading door,

rotate through 180°, re-insert on the opposite side and screw down.

Re-insert cover plates B on the opposite site having first rotated them through 180°.

Unscrew cover plates D from the front of the machine, rotate through 180°, screw on the opposite side.

8. Unscrew door lock E , push down slight-

ly and remove from the front of the machine.

9. Press snap-in button F in and down,

press cover down slightly and remove from front of the machine.

10. Change door lock E over to the opposite

side, screw down the door interlock.

11. On the other side, insert cover F and al-

low snap-in button to lock into place.

12. Insert loading door and hinges into recesses on the front of the machine and screw down.

Page 31

electrolux 31

Note regarding contact protection: The machine is only secure for operations again once all plastic parts have been inserted.

Special accessories

• Stacking kit

These intermediate installation kits can be used to arrange the dryer and a washing machine (60 cm wide, front loaded) as a space-saving washer/dryer stack. The washing machine is at the bottom and the dryer is at the top. Read carefully the instructions supplied with the kit.

Available from your Service Force Centre or your specialist dealer

• Draining kit

Installation kit for direct draining of the condensed water into a basin, siphon, gully, etc. The water reservoir then no longer has

Service

In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instructions (Chapter “What to do if…”). If you were not able to remedy the problem yourself, please contact your local service centre.

to be drained, it must however remain in its intended position in the machine. Fixed hose has to be on the suitable height from minimum of 50 cm to maximum of 1 m from floor level and cannot be looped. If possible shorten the draining hose. Read carefully the instructions supplied with the kit.

Available from your Service Force Centre or your specialist dealer

• Pedestal with the drawer

To situate the dryer at the optimal height and have some additional space to store (e.g. laundry). Read carefully the instructions supplied with the kit.

Available from your Service Force Centre or your specialist dealer

In order to be able to assist you quickly, we require the following information: – Model description – Product number (PNC) – Serial number (S No.) (for numbers, see rating plate) – Type of fault – Any error messages displayed by the appliance So that you have the necessary reference numbers from your appliance at hand, we recommend that you write them in here:

Model description: ..................................................................................................

PNC: ..................................................................................................

S No.: ..................................................................................................

Page 32

www.electrolux.com

136907191-00-03092009

AEG-Electrolux TKSL5E101 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
