user manual
Condenser Dryer
TK SL2 E
We were thinking of you
when we made this product
Welcome to the world of Electrolux
You’ve chosen a first class product from Electrolux,
which hopefully will provide you with lots of pleasure in
the future. Electrolux ambition is to offer a wide variety of
quality products that would make your life even more
comfortable. You can look at some examples on the
cover in this manual. But now it’s time to study this
manual and start using and enjoying the benefits from
your new machine. We promise that it’ll make your life a
little easier. Good luck!
electrolux 3
136901740-00-11102007
4 electrolux
Contents
Operating Instructions 5
Important safety information 5
Product description 8
Control panel 9
Before first use 10
Sorting and preparing laundry 11
Programme overview 12
Daily use 17
Care and cleaning 27
What to do if ... 34
Machine settings 38
Technical data 40
Consumption values 41
Hints for test institutes 41
Installation 42
Environment 47
Service 49
important safety information electrolux 5
Operating Instructions
Important safety information
In the interest of your safety and to ensure the correct use, before installing
and first using the appliance, read this user manual carefully, including its
hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar
with its operation and safety features. Save these instructions and make
sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use
and safety.
General safety
• It is dangerous to alter the specifications or attempt to modify this product in any
way.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Make sure that small pets do not climb into the drum. To avoid this, please check
into the drum before using.
• Any objects such as coins, safety pins, nails, screws, stones or any other hard,
sharp material can cause extensive damage and must not be placed into the
machine.
• In order to avoid danger of fires caused by excessive drying, do not use appliance
to dry the following items: Cushions, quilts and the like (these items accumulate
heat).
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
• Always unplug the appliance after use, clean and maintenance.
• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts.
6 electrolux important safety information
• Items that have been soiled with substances such as cooking oil acetone, petrol,
kerosene, spot removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent before being dried in the
tumble dryer.
• Danger of explosion: Never tumble dry items that have been in contact with
inflammable solvents (petrol, methylated spirits, dry cleaning fluid and the like).
As these substance are volatile, they could cause an explosion. Only tumble dry
items washed with water.
• Risk of fire: items that have been spotted or soaked with vegetable or cooking
oil constitute a fire hazard and should not be placed in the tumble dryer.
• If you have washed your laundry with stain remover you must execute an extra
rinse cycle before loading your tumble dryer.
• Please make sure that no gas lighters or matches have accidentally been left in
pockets of garments to be loaded into appliance
Never stop a tumble dry before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat is dissipated.
Installation
• This appliance is heavy. Care should be taken when moving it.
• When unpacking the appliance, check that it is not damaged. If in doubt, do not
use it and contact the Service Centre.
• All packing and transit bolts must be removed before use. Serious damage can
occur to the product and to property if this is not adhered to. See relevant section
in the user manual.
• The final part of a tumble dryer cycle occurs without heat ( cool down cycle ) to
ensure that the items are left at a temperature that ensures that items will not be
damaged.
• Any electrical work required to install this appliance should be carried out by a
qualified electrician or competent person.
• Care must be taken to ensure that the appliance does not stand on the electrical
supply cable.
• If the machine is situated on a carpeted floor, please adjust the feet in order to
allow air to circulate freely.
• After having installed the appliance, check that it is not pressing or standing on
its electrical supply cable.
important safety information electrolux 7
• If the tumble dryer is placed on top of a washing machine, it is compulsory to use
the stacking kit (optional accessory).
Use
• This appliance is designed for domestic use. It must not be used for purposes
other than those for which it was designed.
• Only wash fabrics which are designed to be machine dried. Follow the instructions
on each garment label.
• Do not dry unwashed items in the tumble dryer.
• Do not overload the appliance. See the relevant section in the user manual.
• Clothes which are dripping wet should not be placed in the dryer.
• Garments which have been in contact with volatile petroleum products should
not be machine dried. If volatile cleaning fluids are used, care should be taken to
ensure that the fluid is removed from the garment before placing in the machine.
• Never pull the power supply cable to remove the plug from the socket; always
take hold of the plug itself.
• Never use the tumble dryer if the power supply cable, the control panel, the
working surface or the base are damaged so that the inside of the tumble dryer
is accessible.
• Fabric softeners, or similar products should be used as specified by the fabric
softener instructions.
• Caution - hot surface : Do not touch the door light cover surface when the light
is switched on.
1)
Child safety
• This machine is not intended for use by young children or infirm persons without
supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• The packaging components (e.g. plastic film, polystyrene) can be dangerous to
children - danger of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s reach.
• Make sure that children or pets do not climb into the drum.
1) Only dryers equipped with internal drum light.
8 electrolux product description
Product description
2
3
6
7
9
12
1 Control panel
2 Drawer with condensed water container
3 Lamp for inside light
4 Fine strainer (lint filter)
5 Large mesh filter (lint filter)
6 Micro-fine filter (lint filter)
7 Rating plate
8 Loading door (reversible)
9 Base door upstream of heat exchanger
10 Button for opening door in plinth
11 Air slots
1
4
5
8
10
11
12 Screwed feet (with height adjustment)
Control panel
control panel electrolux 9
456
1
1 Programme knob and OFF Aus switch
2 Function buttons
3 Start/Pause button
4 DELAY START Zeitvorwahl button
5 Status led
6 Display
2
3
10 electrolux before first use

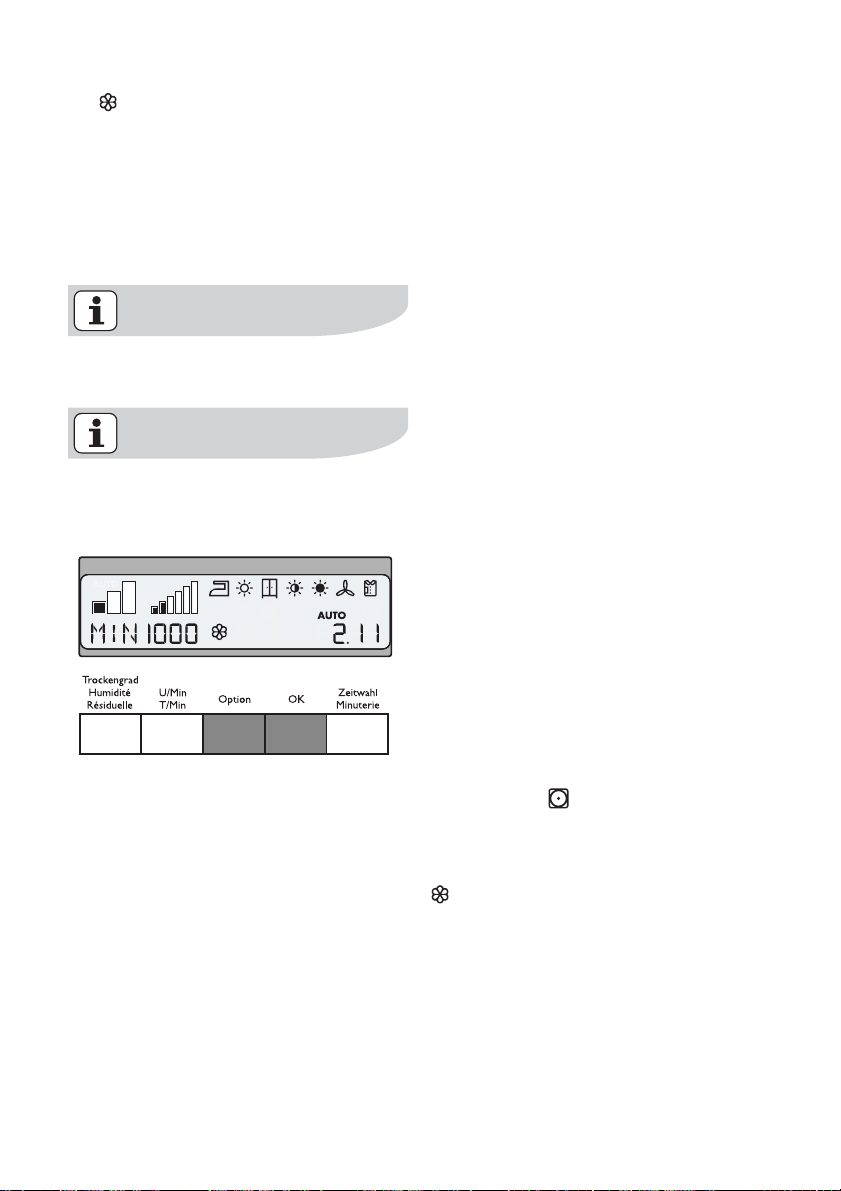

What is shown in the display
4 2
1 time to end / error message
2 cycle phase status
3 options
4 warnings
5 spin speed selection
6 dryness selection
1356
Before first use
In order to remove any residues which may have been produced during production,
wipe the dryer drum with a damp cloth or carry out a brief drying cycle (30 MIN) with
damp cloths in the machine.
sorting and preparing laundry electrolux 11
Sorting and preparing laundry
Sorting laundry
• Sort by fabric type:
– Cotton/linen for programmes in COTTONS Baumwolle programme group.
– Mixtures and synthetics for programmes in SYNTHETICS Mischgewebe pro-
gramme group.
• Sorting by care label. The care labels mean:
Drying in the tumble dryer possible
in principle
Do not place in the appliance any wet laundry which is not specified on the
care label as being suitable for tumble-drying.
This appliance can be used for all wet laundry items which are labelled as
suitable for tumble-drying.
• Do not dry new, coloured textiles together with light-coloured laundry items. Textile colours may bleed.
• Do not dry cotton jersey and knitwear with the EXTRA programme. Items may
shrink!
• Do not dry wool in the dryer. May become entangled! After air-drying, wool may
be dried with the WOOL CARE Wollpflege programme.
Preparing laundry
• To avoid laundry becoming tangled: close zips, button up duvet covers and tie
loose ties or ribbons (e.g. of aprons).
• Empty pockets. Remove metal items (paper clips, safety pins, etc).
• Turn items with double-layered fabrics inside out (e.g. with cotton-lined anoraks,
the cotton layer should be outermost). These fabrics will then dry better.
Dry at normal
temperature
Dry at reduced
temperature
(press DELICATE
option!)
Drying in the tumble dryer not pos-
sible
12 electrolux programme overview
Programme overview
Additional functions/
options
1)
1)
Application/properties
Programmes
EXTRA
Extratroc
ken
STRO
NG
Starktroc
ken
COTTONS Baumwolle
CUPBOARD
Schrankt
rocken
DAMP
Leichttro
cken
IRON
Bügeltro
cken
RPM U/Min
DELICATE
max. load (weight when dry)
DRYNESS Trockengrad
7
• • • • • • - •
kg
7
• • • • • • - •
kg
7
• • • • • • - •
kg
7
• • • • • • - •
kg
7
• • • • • • - •
kg
LONG ANTI-CREASE
BUZZER
SENSITIVE
TIME Zeitwahl
Care mark
DELAY START Zeitvorwahl
Thorough drying of thick or
multi- layered fabrics, e.g.
terry towelling items, bathrobes.
Thorough drying of thick
fabrics, e.g. terry towelling
items, towels.
Thorough drying of fabrics
of even thicknesses, e.g.
terry towelling items, knitwear, towels.
For thin fabrics which are
also to be ironed, e.g. knitwear, cotton shirts.
For normal thickness cotton or linen laundry, e.g.
bedding, table linen.
programme overview electrolux 13
Additional functions/
options
1)
1)
Application/properties
Programmes
EXTRA
Extratroc
ken
CUPBOARD
Schrankt
rocken
SYNTHETICS Mischgewebe
IRON
Bügeltro
cken
TIME
TIME
Zeitprogramm
FRESHE
N UP
Auffrischen
RPM U/Min
DELICATE
max. load (weight when dry)
DRYNESS Trockengrad
3
• • • • • • - •
kg
3
• • • • • • - •
kg
3
• • • • • • - •
kg
7
- - • • - • • •
kg
1
- - • • - • - •
kg
LONG ANTI-CREASE
BUZZER
SENSITIVE
TIME Zeitwahl
DELAY START Zeitvorwahl
Thorough drying of thick or
multi-layered fabrics, e.g.
pullovers, bedding, table
linen.
For thin fabrics which are
not ironed, e.g. easy care
shirts, table linen, baby
clothes, socks, lingerie
with bones or wires.
For thin fabrics which are
also to be ironed, e.g. knitwear, shirts.
For further drying of
individual items of laundry
or for volumes of less than
7 kg.
For refreshing or gently
cleaning textiles with
commercially available dry
cleaning products.
Care mark
2)
2)
2)
14 electrolux programme overview
Additional functions/
options
1)
1)
Application/properties
Programmes
MICROFIBER
Mikrofas
SPECIAL
er
MIXED
Mix-Programm
BED
LINEN
Bettwäsche
VISCOSE
Viskose
Jeans
SPORTS
LIGHT
Sport
RPM U/Min
DELICATE
max. load (weight when dry)
DRYNESS Trockengrad
1
• •
kg
3
• •
kg
3
• • • • - • - •
kg
1
• •
kg
7
• • • • • • - •
kg
2
• •
kg
LONG ANTI-CREASE
•
• - • - •
3)
•
• - • - •
3)
•
• - • - •
3)
•
• - • - •
3)
BUZZER
SENSITIVE
TIME Zeitwahl
DELAY START Zeitvorwahl
For thin fabrics, polyester
and polyamide, which are
not ironed.
For drying cotton and
synthetic fabrics, uses low
temperature.
Bed linen (single and double sheet, pillowcase, bedspread, duvet cover).
For thin fabrics, viscose,
and polyester, which are
not ironed.
For leisure clothing, such
as jeans, sweat-shirts, etc.,
of different material
thicknesses (e.g. at the
neck, cuffs and seams).
For sportswear, thin fabrics, polyester, which are
not ironed.
Care mark
programme overview electrolux 15
Additional functions/
options
1)
1)
Application/properties
Programmes
SHIRTS
Hemden
EASY
IRON
PLUS
Leichtbügeln
Plus
max. load (weight when dry)
1.5
kg
(or
• •
7
shir
ts)
1
kg
(or
• •
5
shir
ts)
DRYNESS Trockengrad
RPM U/Min
DELICATE
•
• - • - •
3)
•
• - • - •
3)
SENSITIVE
LONG ANTI-CREASE
BUZZER
Care mark
TIME Zeitwahl
DELAY START Zeitvorwahl
Special program with anticrease mechanism for
easy care fabrics such
shirts and blouses; for
minimum ironing effort. The
results depends on the
type of fabric and its finish.
Place fabrics in the dryer
straight after spinning;
once dried, immediately remove fabrics and place on
a clothes hanger.
Special program with anticrease mechanism for
easy care fabrics such
shirts and blouses; for
minimum ironing effort. The
results depends on the
type of fabric and its finish.
Place fabrics in the dryer
straight after spinning;
once dried, immediately remove fabrics and place on
a clothes hanger.
16 electrolux programme overview
Additional functions/
options
1)
1)
Application/properties
Programmes
max. load (weight when dry)
DRYNESS Trockengrad
RPM U/Min
DELICATE
SENSITIVE
LONG ANTI-CREASE
BUZZER
TIME Zeitwahl
WOOL
CARE
Wollp-
1
- - • - - • - •
kg
flege
1) DELICATE and SENSITIVE cannot be selected together
2) select DELICATE
3) set by default
DELAY START Zeitvorwahl
Special programme for
briefly treating woollens
with warm air, after they
have been dried naturally,
worn or stored for long periods. Wool fibres stand up
and the wool becomes soft
and cosy. Recommenda-
tion: Remove fabrics
immediately after drying.
Care mark
daily use electrolux 17
Daily use
Switching machine on / switching light on
Turn the programme selector to any programme or turn it to LIGHT Beleuchtung.
The machine has been switched on. When the loading door is opened, the drum is
illuminated.
Opening loading door / loading laundry
1.
Open loading door:
Use force to push against the loading door (push point)
2. Load your laundry (do not force it in).
Do not jam laundry in between the loading door and rubber seal.
3. Close loading door securely. Lock must audibly lock.
Selecting the programme
18 electrolux daily use
Use the programme selector to set the programme you require. The estimated time
to end of the programme appears in the LCD in h:mm format (hours:minutes).
During the cycle time elapses by steps of one minute; less than 1 hour the leading
zeros are not shown (ex. “59”, “5”, “0”).
Setting dryness level
If laundry comes out of the machine too damp after a standard drying programme,
you can increase the drying result by using the DRYNESS Trockengrad function.
Laundry becomes drier as you move from MIN to MAX.
Press the DRYNESS Trockengrad button repeatedly until the desired dryness level
(MIN, MED or MAX) is shown in the display. When humidity adjustment is not
foreseen on the related program, bar frame with AUTO text is shown.
daily use electrolux 19
Setting the pre-drainage spin speed
If the washing in the washing machine was initially drained prior to the drying cycle,
the dryer can be set according to the spin speed of the initial drainage procedure.
The higher the spin speed was, the shorter the programme length for the drying
cycle.
Press the RPM U/Min button a number of times until the desired spin speed of the
initial drainage is displayed. No value is shown if no spin speed is selected.
In certain programmes the spin speed has not effect (time controlled cycles), its
selection can be not selectable and only three dashes are visualized. Available selections:
Selecting additional options
The additional options available for the drying programmes are DELICATE, LONG
ANTI-CREASE, SENSITIVE and BUZZER
1. By turning the knob choose a drying programme.
2. To set the option press Option button. You will see available options shown as
icons on the screen:
DELICATE LONG ANTI-
CREASE
SENSITIVE BUZZER
20 electrolux daily use
DELICATE icon flashes. Flashing icon means: selected but not active. To
activate selected Option press OK button. Activated option is visible as flashing
icon with dash beneath.
3. Press alternately Option button to select appropriate options an OK button to
activate it. Active options are always on as icons with dash beneath.
4. Option selection mode is finished when you go trough all of them or you stop
selecting. Only activated option icons are on.
Some options cannot be selected together as DELICATE and SENSITIVE.
Some of them are not selectable with certain programmes
To deselect an option follow the same steps. Option icon should disappear.
DELICATE
For especially gentle drying of sensitive fabrics with the care label and for
temperature-sensitive textiles (e.g. acrylic, viscose). Programme is executed with
reduced heat.
DELICATE is only suitable for use with loads of up to 3kg.
When the option is active, the DELICATE
icon is on.
daily use electrolux 21
LONG ANTI-CREASE
A long anti-crease phase lengthen the anti-crease phase (30 min.) at the end of the
drying additionally by 60 minutes. The drum rotates at intervals during this phase.
This keeps the laundry loose and free of creases. Phase lasts in total 90 minutes.
The laundry can be removed at any time during the anti-crease phase.
When the option is active, the LONG ANTI-CREASE
SENSITIVE
icon is on.
For gentle drying of fabrics that are frequently worn. Programme starts on full heat
setting, which is then reduced as the programme progresses to be kind to the
washing.
When the option is active, the SENSITIVE
icon is on.
22 electrolux daily use
BUZZER
The appliance is supplied with the BUZZER function deactivated.
To activate buzzer choose BUZZER option.
When the option is active, the BUZZER
The buzzer sounds or plays a tune during:
– cycle end
– anti-crease phase and when phase starts or ends
– cycle interruption by a warning
–alarm
icon is on.
Time
To select the programme duration after setting the TIME programme Zeitprog-
ramm. You can select a programme duration from 10 mins to 3 hrs in 10-minute
steps.
1. Turn the programme knob to the TIME programme. The blinking 10' above TIME
Zeitwahl button is on.
2. Press the TIME Zeitwahl button repeatedly until the desired programme duration
is shown in the display, e.g. 20 for a programme of 20 minutes.
daily use electrolux 23
If the programme duration is not selected, the duration is automatically set to 10
mins.
Setting delay timer
With the DELAY Zeitvorwahl button, you can delay the start of a programme
by between 30 minutes (30') and a maximum of 20 hours (20h).
1. Select the programme and additional functions.
2. Press the DELAY Zeitvorwahl button as many times as necessary until the required start delay appears on the display, e.g. 12h if the programme is to be
started in 12 hours.
If the display is showing 20h and you press the button again, the time delay
will be cancelled. The display will show 0'and then the duration of the selected programme.
3. To activate the delay timer, press the Start/Pause button. The amount of time
remaining until the programme is set to start is continuously displayed (e.g. 15h,
14h, 13h, … 30' etc).
Setting child lock
The child lock can be set to prevent a programme being accidentally started or a
programme in operation being accidentally changed. The child lock function locks
all buttons and the programme knob. The child lock can be activated or deactivated
by holding down the Option and OK buttons simultaneously for 5 seconds.
24 electrolux daily use
– Before programme is started: Appliance cannot be used
– After programme is started: Programme in operation cannot be changed
The
vated.
The child safety device is not deactivated once the programme comes to an end.
If you want to set a new programme, you must first deactivate the child safety device.
icon appears in the display to indicate that the child safety device is acti-
Starting the programme
Press the Start/Pause button. The programme is started.
The programme progress is shown in LCD by appropriate set of icons. From left to
the right, from IRON DRY
cycle chosen. E. g. in case of CUPBOARD programme the following status icons
are visible:
under status icon. When appropriate part of drying cycle is accomplished dash
becomes steady and appears flashing under next status icon.
. Current cycle progress is marked by flashing dash
to ANTI-CREASE icon depends on the drying
Changing programme
To change a programme which has been selected by mistake once the programme
has started, first turn the programme selector to OFF Aus and then reset the programme.
daily use electrolux 25
The programme can no longer be changed directly once the programme
has started. If nevertheless there is an attempt to change the programme
on the programme knob, the programme progress display and the maintenance indicators flash. If an option button (excluding the BUZZER option)
is pressed, Err appears in the multidisplay. The drying programme is not
however affected by this (laundry protection).
Putting in extra items or taking items out before end of programme
1. Open loading door.
Laundry and drum can become hot. Risk of burns!
2. Load or remove laundry items.
3. Close loading securely. Lock must audibly lock.
4. Press the Start/Pause button to continue the drying cycle.
Drying cycle complete / removing laundry
Once the drying cycle is complete, display shows a blinking "0", under anticrease
signal sounds intermittently for about one minute.
icon appear dash. If the BUZZER option has been chosen, an acoustic
The drying cycles are automatically followed by an anti-crease phase which
lasts around 30 minutes. The drum rotates at intervals during this phase.
This keeps the laundry loose and free of creases. The laundry can be removed at any time during the anti-crease phase. (The laundry should be
taken out towards the end of the anti-crease phase at the latest to prevent
creases from forming.) If LONG ANTI-CREASE
lected, the anti-crease phase is lengthened by 60 minutes.
1. Open door.
2. Before removing the laundry, remove fluff from the micro-fine filter. It is best to
use a damp hand for this purpose. (See “Care and cleaning” chapter.)
3. Remove laundry.
function has been se-
26 electrolux daily use
4. Turn the programme selector to OFF Aus.
After each drying cycle:
- Clean the micro-fine filter and fine filter
- Drain the condensed water container
(See chapter “Care and cleaning”.)
5. Close the door.
care and cleaning electrolux 27
Care and cleaning
Cleaning fluff filter
The filters collect all the fluff which accumulates during drying. To ensure that the
dryer works perfectly, the fluff filters (micro-fine filter and fine strainer) must be
cleaned after every drying cycle.
The warning icon
Never operate the dryer without fluff filters or with damaged or blocked fluff
filters.
1.
is on to remind you this operation.
Open loading door
2. Use a damp hand to clean the micro- fine filter, which is built into the lower part
of the loading aperture.
3.
After a period of time, a patina due to detergent residue on laundry forms on
the filters. When this occurs, clean the filters with warm water using a brush.
28 electrolux care and cleaning

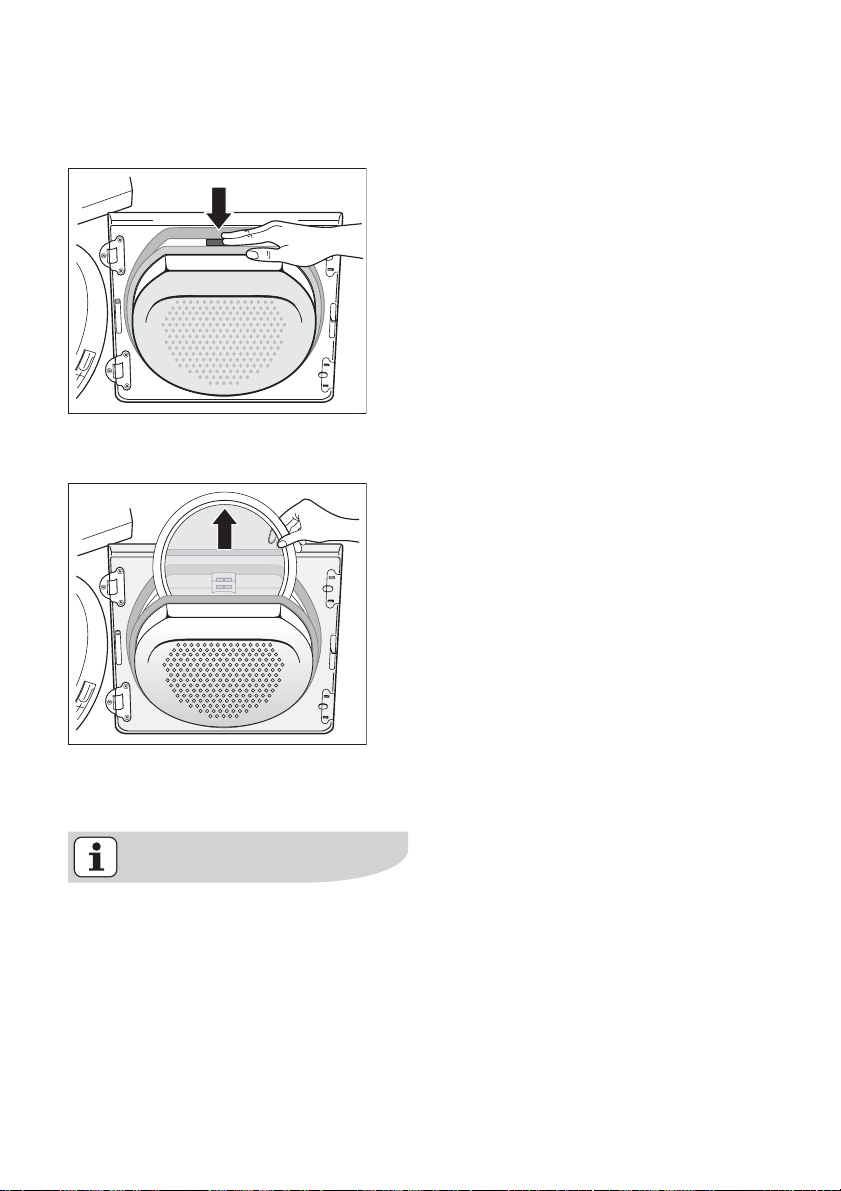

Remove the filter from the door pulling it out. It can be positioned with the tooth
facing to the left or to the right).
After cleaning do not forget to put it back.
4.
Push down unlock button on large mesh filter.
Large mesh filter jumps up.

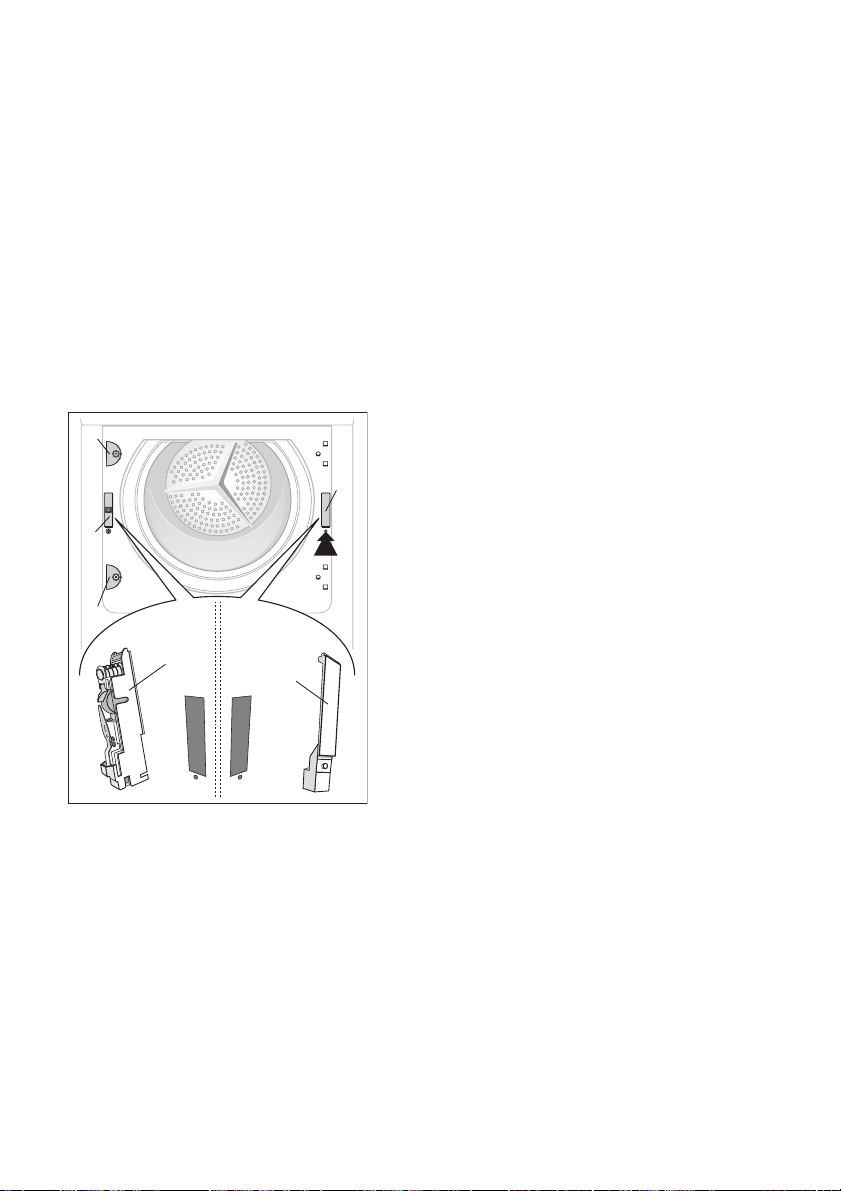

5.
Take out fine strainer.
6. Remove fluff from fine strainer. It is best to use a damp hand for this purpose.
Clean the entire filter area
The strainer area does not have to be cleaned after every drying cycle, but
should be checked regularly and cleaned of fluff if necessary.
7. To do this, grip the top of the large mesh filter and pull it forwards until it comes
loose from the two brackets.
care and cleaning electrolux 29
8.
Remove fluff from the entire filter area. It is best to use a vacuum cleaner for this
purpose.
9. Press both journals of the large mesh filter into the brackets on the loading door
until they snap into place.
10. Re-insert fine strainer.
11. Press against the large mesh filter until it locks into the interlock.
If the fine strainer is not fitted, the large mesh filter will not snap into place
and the loading door cannot be closed.
Cleaning the door seal
Wipe the door seal with a damp cloth immediately after the drying cycle has finished.
Emptying the condensate tank
Empty condensate tank after every drying cycle.
30 electrolux care and cleaning
If the condensate tank is full, an active programme will break off automatically and
the EMPTY CONTAINER
the programme, the condensate tank must first be emptied.
The condensate is not suitable for drinking or for preparing foodstuffs.
icon on the display will light up. In order to continue
1.
2
1

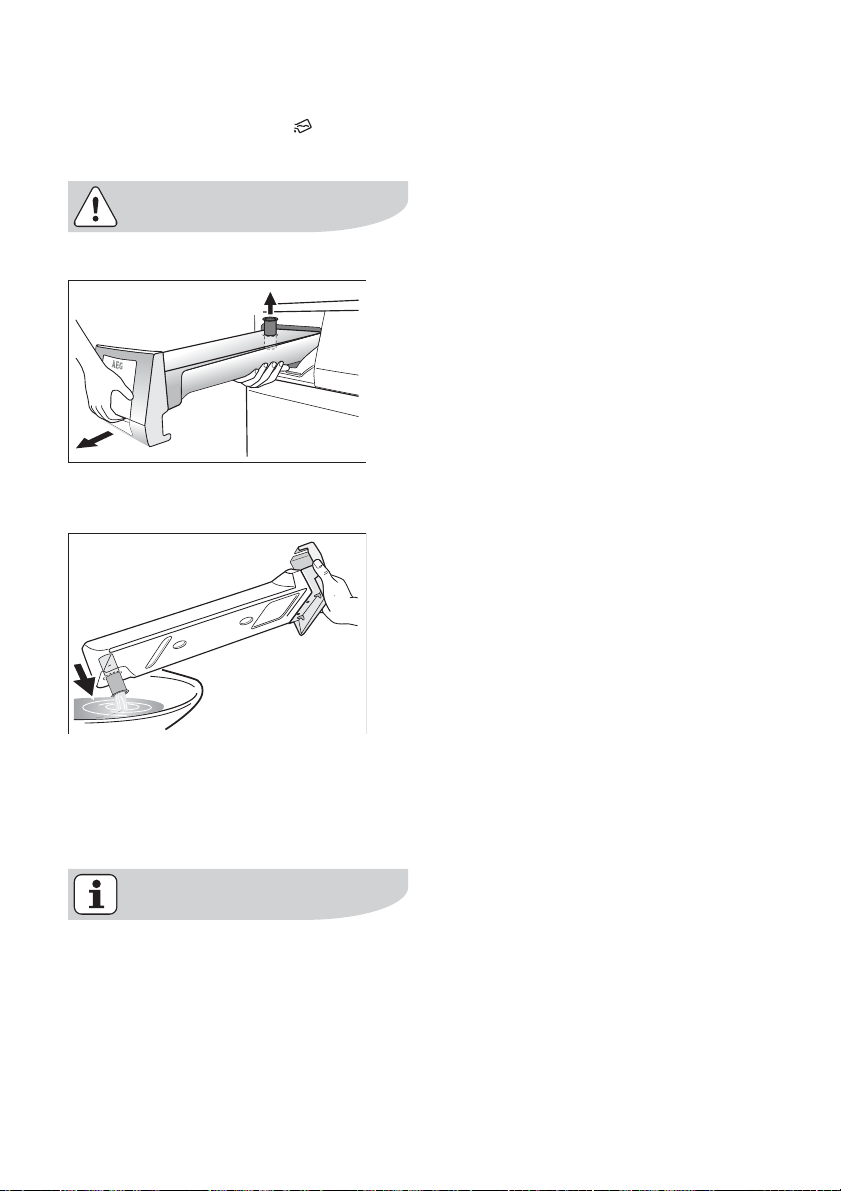

Take out drawer containing condensed water container completely 1 and pull
up the condensed water container’s drainage pipe as far as it will go 2.
2.
Pour condensed water out into a basin or similar receptacle.
3. Slide outlet connections in and refit condensate tank.
If the programme has been interrupted as a result of the condensate tank being
full: Press the Start/Pause button to continue the drying cycle.
The condensate tank has a volume of approx. 4 litres. This is sufficient for
around 7kg of laundry which has previously been spun at 1000 revolutions/
minute.
care and cleaning electrolux 31
The condensate can be used as distilled water, e.g. for steam ironing.
However first filter the condensate (e.g. with a coffee filter) to remove any
residue and small pieces of fluff.
Cleaning heat exchanger
If the HEAT EXCHANGER is displayed, the heat exchanger needs to be cleaned.
Operating when the heat exchanger is blocked with fluff can damage the
dryer. This also increases energy consumption.
1. Open door.
2.
Open door in plinth. To do this, press the release button on the bottom of the
door aperture and open the door in the plinth to the left.
3. Clean fluff from the inside of the door and the heat exchanger front chamber.
Wipe the door seal with a damp cloth.
4.
Turn both lock washers inwards.
32 electrolux care and cleaning
5.

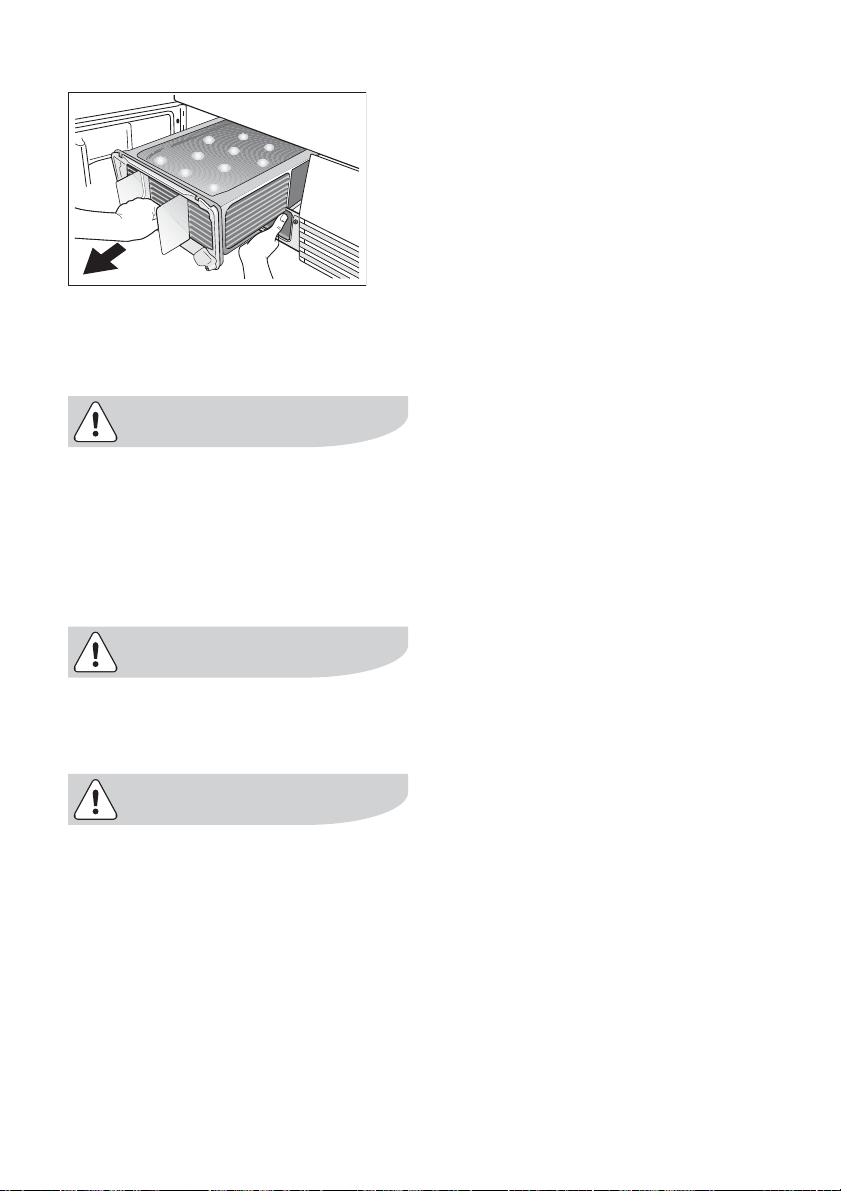

Use the handle to pull the heat exchanger out of the base and carry it horizontally
to prevent any remaining water from spilling.
6. To empty the heat exchanger, hold vertically over a washing-up bowl.
Do not use sharp objects to clean. The heat exchanger could develop leaks.
7. Clean heat exchanger.
It is best to use a brush or to rinse thoroughly with a hand-held shower.
8. Replace heat exchanger and lock into place (turn both lock washers outwards
until they snap into place).
9. Close door in plinth.
Never operate the dryer without the heat exchanger.
Cleaning the drum
Do not use abrasives or steel wool to clean the drum.
care and cleaning electrolux 33
Lime in the water or cleaning agents may form a barely visible lining on the
inside of the drum. The degree to which the laundry has been dried is then
no longer detected reliably. The laundry is damper than expected when removed from the dryer.
Use a standard domestic cleaner (e.g. vinegar-based cleaner) to wipe down
the inside of the drum and drum ribs.
Clean operating screen and housing
Do not use furniture cleaners or aggressive cleaning agents to clean the
machine.
Use a damp cloth to wipe down the operating screen and housing.
34 electrolux what to do if ...
What to do if ...
Troubleshooting by yourself
If, during operation, the error code E... plus number or letter) appears on the LCD:
Switch the machine off and on again. Reset programme. Press the Start/Pause
button If the error is still displayed, please inform your local Service Force Centre
and quote the error code.
Problem Possible cause Remedy
Dryer does not work.
Drying results
unsatisfactory.
Mains plug is not plugged in
or fuse is not working
correctly.
Loading door is open. Close loading door.
Have you pressed the Start/
Pause button?
Wrong programme selected.
Lint filters clogged. Clean lint filters.
Fluff filter clogged. Clean fluff filter.
Heat exchanger clogged
with lint.
Overloading of laundry.
Ventilation slots in base area
covered up.
Residue on inside surface of
drum or drum ribs.
Plug in at mains socket.
Check fuse in fuse box
(domestic installation).
Press the Start/Pause button again.
Select a different programme the next time you
dry (see “Programme chart”
chapter).
Clean heat exchanger.
Observe recommended
loading volumes.
Uncover ventilation slots in
base area.
Clean inside surface of drum
and drum ribs.
Make an adjustment using
the DRYNESS Trockengrad
function (see chapter ”Daily
use”)
what to do if ... electrolux 35
Loading door does
not close.
When a button is
pressed, Err appears on the LCD.
Drum light does not
work.
Displayed programme time
changes erratically
or stays unchanged
for a long time.
Programme inactive,
empty water tank
icon is on.
Drying cycle ends
shortly after programme starts.
Drying cycle lasts an
unusually long time.
Note: After around 5
hours the drying cycle ends
automatically (see
„Drying cycle complete ”).
Conductance of water at installation site differs from
standard setting of machine.
Fine strainer not in place
and/or mesh filter not locked
in place.
Washing protection. After
the start of the programme,
the option can no longer be
set.
Programme selector in OFF
Aus position.
Defective light bulb.
Re-programme standard
setting for degree of drying
(see ‘Programming options’
chapter).
Install fine strainer and/or
snap large mesh filter into
place.
Turn the programme knob
to OFF Aus. Set the programme again.
Turn programme selector to
LIGHT Beleuchtung or to
any programme.
Replace light bulb (see next
section).
Programme time is corrected automatically depending
on type and volume of laun-
Automatic process; this is
not a machine fault.
dry and level of dampness.
Empty condensate tank,
Condensate tank is full.
then start programme with
Start/Pause button.
Select time programme or
Not enough washing loaded
or washing loaded is too dry
for selected programme.
higher drying level (e.g. IN-
TENSIVE DRY Starktrocken
instead of STORAGE DRY
Schranktrocken).
Lint filter clogged. Clean lint filter.
Fluff filter clogged. Clean fluff filter.
Load volume too big. Reduce load volume.
Laundry insufficiently spun.
Laundry must be adequately
spun.
36 electrolux what to do if ...
Particularly high room
temperature. Temporary
switching off of the compressor to avoid overload.
Automatic process, there is
no fault with the appliance. If
possible, lower the room
temperature.
what to do if ... electrolux 37
Changing the bulb for interior lighting
Only use a special bulb which is designed specially for dryers. The special bulb can
be obtained from the Customer Care Department, ET no. 112 552 000-5.
When the appliance is switched on, the interior lighting switches itself off
after 4 minutes when the door is open.
Do not use standard bulbs! These develop too much heat and may damage
the machine!
Before replacing the bulb, disconnect the mains plug.
1. Unscrew cover above the bulb (this can be found directly behind the loading
aperture, at the top; refer to “Description of machine” section.)
2. Replace defective bulb.
3. Screw cover back down.
Check the correct positioning of o-ring gasket before screwing back the door light
cover. Do not operate the dryer when missing o-ring gasket on door light cover.
For safety reasons, the cover must be screwed down tightly. If this is not
done, the dryer must not be operated.
38 electrolux machine settings
Machine settings
Setting Implementation
BUZZER permanent off
Water hardness
Water contains, a variable
quantity of limestone and
mineral salts of which quantities vary according to
geographical locations thus
varying its conductivity values.
Relevant variations of the
conductivity of the water compared to those prefixed by the
factory could slightly influence
the residual humidity of the
laundry at the end of the cycle.
Your dryer allows you to regulate the sensitivity of the drying
sensor based on conductivity
values of the water.
1. Turn the programme selector to any programme.
2. Press simultaneously the DRYNESS
Trockengrad and RPM U/Min buttons
and hold down for approx. 5 seconds.
3. The buzzer is by default always off. You
can use BUZZER option to activate or
deactivate sound but machine does not
memorize your selection.
1. Turn the programme selector to any programme.
2. Press simultaneously the DRYNESS
Trockengrad and TIME Zeitwahl buttons
and hold down for approx. 5 seconds.
The current setting is on the display:
–
–
–
3. Press the Start/Pause button
sequentially until you set desired level.
4. To memorize setting press
simultaneously the DRYNESS Trocken-
grad and TIME Zeitwahl buttons or turn
knob to OFF Aus position
low conductivity <300 micro S/
cm
medium conductivity 300-600
micro S/cm
high conductivity >600 micro
S/cm
machine settings electrolux 39
Emptying water tank - warning
message permanent off
When using an external drain
for the condensed water.
1. Turn the programme selector to any programme.
2. Press simultaneously the RPM U/Min
and TIME Zeitwahl buttons and hold
down for approx. 5 seconds.
The current setting is on the display:
– warning
icon and - warning
message is off
– warning
icon and - warning
message is switched on
By default the warning message is
switched on and displayed always at the
end of the drying cycle or during the cycle if the water container is full.
40 electrolux technical data
Technical data
This appliance conforms with the following EU Directives:
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Di-
rective 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Height x width x depth 85 x 60 x 58 cm
Depth with loading door open 109 cm
Height can be adjusted by 1.5 cm
Weight when empty approx. 40 kg
Loading volume (depends on programme)
1)
Energy consumption in accordance
with IEC 61121 s. e. (7kg of cotton,
pre-drained at 1000 rpm, COTTON
CUPBOARD DRY Baumwolle
Schranktrocken programme)
Use Domestic
Permissible ambient temperature + 5°C to + 35°C
1) Different loading volume data may be needed in some countries as a result of different measuring
methods.
max. 7kg
3,92 kWh
consumption values electrolux 41
Consumption values
The consumption values have been established under standard conditions. They
may deviate when the machine is operated in domestic circumstances.
Programme Loading volume in kg
Energy consumption
in kWh
COTTON CUPBOARD
DRY
1)
Baumwolle
7 3.92
Schranktrocken
COTTON IRON DRY1) Baumwolle Bügeltrocken
7 3.34
SYNTHETICS CUPBOARD
2)
DRY
Mischgewebe
3 1.33
Schranktrocken
1) pre-drained at 1000 rpm
2) pre-drained at 1200 rpm
Hints for test institutes
Parameters possible to checked by the Test Institutes:
• Energy consumption (corrected with final humidity) during the cupboard dry cot-
ton cycle with nominal load.
• Energy consumption (corrected with final humidity) during the cupboard dry cot-
ton cycle with half load.
• Final humidity (during Cupboard dry cotton, Iron dry cotton and Cupboard dry
Easy care)
• Condensation efficiency (corrected with final humidity) during cupboard dry cot-
ton cycle with nominal and half load
All the cycles have to be checked in accordance with IEC 61121 (Tumble dryers for
household use – Methods for measuring the performance).
42 electrolux installation
Installation
Appliance positioning
• It is recommended that, for your convenience, the machine is positioned close to
your washing machine.
• The tumble dryer must be installed in a clean place, where dirt does not build up.
• Air must be able to circulate freely all round the appliance. Do not obstruct the
front ventilation grille or the air intake grilles at the back of the machine.
• To keep vibration and noise to a minimum when the dryer is in use, it should be
placed on a firm, level surface.
• Once in its permanent operating position, check that the dryer is absolutely level
with the aid of a spirit level. If it is not, raise or lower the feet until it is.
• The feet must never be removed. Do not restrict the floor clearance through
deeppile carpets, strips of wood or similar. This might cause heat built-up which
would interfere with the operation of the appliance.
The hot air emitted by the tumble dryer can reach temperatures of up to 60°
C. The appliance must therefore not be installed on floors which are not
resistant to high temperatures.
When operating the tumble dryer, the room temperature must not be lower
than +5°C and higher than +35°C, as it may affect the performance of the
appliance.
Should the appliance be moved, it must be transported vertically.
The appliance must not be installed behind the lockable door, a sliding door
a door with a hinge on the opposite side to that of the appliance.
installation electrolux 43
Removing transport safety packaging
Before use all parts of the transport packaging must be removed.
1. Open loading door
2. Pull off adhesive strips from inside machine on top of drum.
3.
Remove foil hose and polystyrene padding from the machine.
Electrical connection
Details on mains voltage, type of current and the fuses required should be taken
from the type plate. The type plate is fitted near the loading aperture (see “Product
description” chapter).
Connect the machine to an earthed socket, in accordance with current wiring regulations.
44 electrolux installation
The manufacturer declines any responsibility for damage or injury through
failure to comply with the above safety precautions. Should the appliance
power supply cable need to be replaced, this must be carried out by our
Service Center.
The power supply cable must be accessible after installing the machine.
Changing door stop
The door stop may only be changed by a specialist. If necessary, please contact
our after-sales service or your specialist dealer.
Before changing the door stop, disconnect the mains plug.
AC
B
A
D
C
installation electrolux 45
1. Open loading door.
2. Unscrew hinge A from the front of the machine and take off the loading door.
3. Remove cover plates B and C. To do this, insert a thin screwdriver into the slots
as shown in the illustration, press downwards slightly and pry out the cover
plates.
4.
Use an appropriate tool and exert pressure to unfasten locking block D from
the snap-on fixture, take out and re-insert on the other side having rotated the
block through 180°.
5. Unscrew hinge A from the loading door, rotate through 180°, re-insert on the
opposite side and screw down.
6. Re-insert cover plates B and C on the opposite site having first rotated them
through 180°.
E
G
F
E
F
G
7. Unscrew cover plates E from the front of the machine, rotate through 180°,
screw on the opposite side.
8. Unscrew door lock F, push down slightly and remove from the front of the
machine.
9.
Disconnect cable connector from door lock F.
10.
Press snap-in button G in and down, press cover down slightly and remove
from front of the machine.
11. Disconnect cable connector from cover G.
46 electrolux installation
12.
Change door lock F over to the opposite side, insert the cable connector and
screw down the door interlock.
13. On the other side, insert the cable connector in cover G, insert cover and allow
snap-in button to lock into place.
14. Insert loading door and hinges into recesses on the front of the machine and
screw down.
Note regarding contact protection:The machine is only secure for operations
again once all plastic parts have been inserted.
Special accessories
Intermediate installation kit for stacked washer and dryer:
Available from your Service Force Centre or your specialist dealer
These intermediate installation kits can be used to arrange the dryer and an
automatic Electrolux washing machine (60cm wide, front loading) as a space-saving
washer/dryer stack. The automatic washing machine is at the bottom and the dryer
is at the top.
Version to be supplied:
– with extractable stacker plate 916.018 903
Read carefully the instructions supplied with the kit.
Installation kit for external condensate drain
Attached to your product
Installation kit 125 122 510 for direct draining of condensate into a basin, siphon,
gully, etc. The condensate tank then no longer has to be drained, it must however
remain in its intended position in the machine. Refer to the “Programme options”
section for how to deactivate the EMPTY WATER TANK
Max. displacement height: 1m from the base of the dryer; max. displacement length:
3m
Read carefully the instructions supplied with the kit.
alert.
environment electrolux 47
Environment
Packaging material
The packaging materials are environmentally friendly and can be recycled. The
plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community
waste disposal facilities.
Old appliance
The symbol on the product or on its packaging indicates that this product may
not be treated as household waste. Instead it should be taken to the appropriate
collection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be
caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your
household waste disposal service or the shop where you purchased the product.
Remove mains plug from socket when you have no further use for the machine. Cut off mains cable and dispose of together with plug. Destroy
loading door hook. Children cannot then lock themselves in the machine
and put their lives at risk.
48 electrolux
Environmental tips
• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not therefore
needed when washing.
• Your dryer will function most economically if you:
– always keep the ventilation slots on the base of the dryer unobstructed;
– use the loading volumes specified in the programme overview;
– ensure you have good ventilation in the installation room;
– clean the micro-fine filter and fine strainer after each drying cycle;
– spin the laundry well before drying. Example: Consumption data – depending
on spinning speed – for 7kg of laundry, dried using the COTTONS CUPBOARD
DRY Baumwolle Schranktrocken programme.
Pre-draining Drying cycle
Revolutions per
minute
1000 4.20 60 3,92
1200 3.92 56 3,75
1400 3.64 52 3,60
1800 3.15 45 3,20
Residual dampness
in litres as a %
Energy in kWh
electrolux 49
Service
In the event of technical faults, please first check whether you can remedy the
problem yourself with the help of the operating instructions (Chapter “What to do
if…”).
If you were not able to remedy the problem yourself, please contact the Customer
Care Department or one of our service partners.
In order to be able to assist you quickly, we require the following information:
– Model description
– Product number (PNC)
– Serial number (S No.) (for numbers, see rating plate)
– Type of fault
– Any error messages displayed by the appliance
So that you have the necessary reference numbers from your appliance at hand,
we recommend that you write them in here:
Model description: ................................................................................
PNC: .....................................................................................................
S No.: ...................................................................................................
50 electrolux
www.electrolux.com
www.electrolux.ch
136901740-00-11102007
Loading...
