TK14014
ERT1500FW
.................................................. ...............................................
EN REFRIGERATOR USER MANUAL
www.electrolux.com
2
CONTENTS
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
WHAT TO DO IF… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

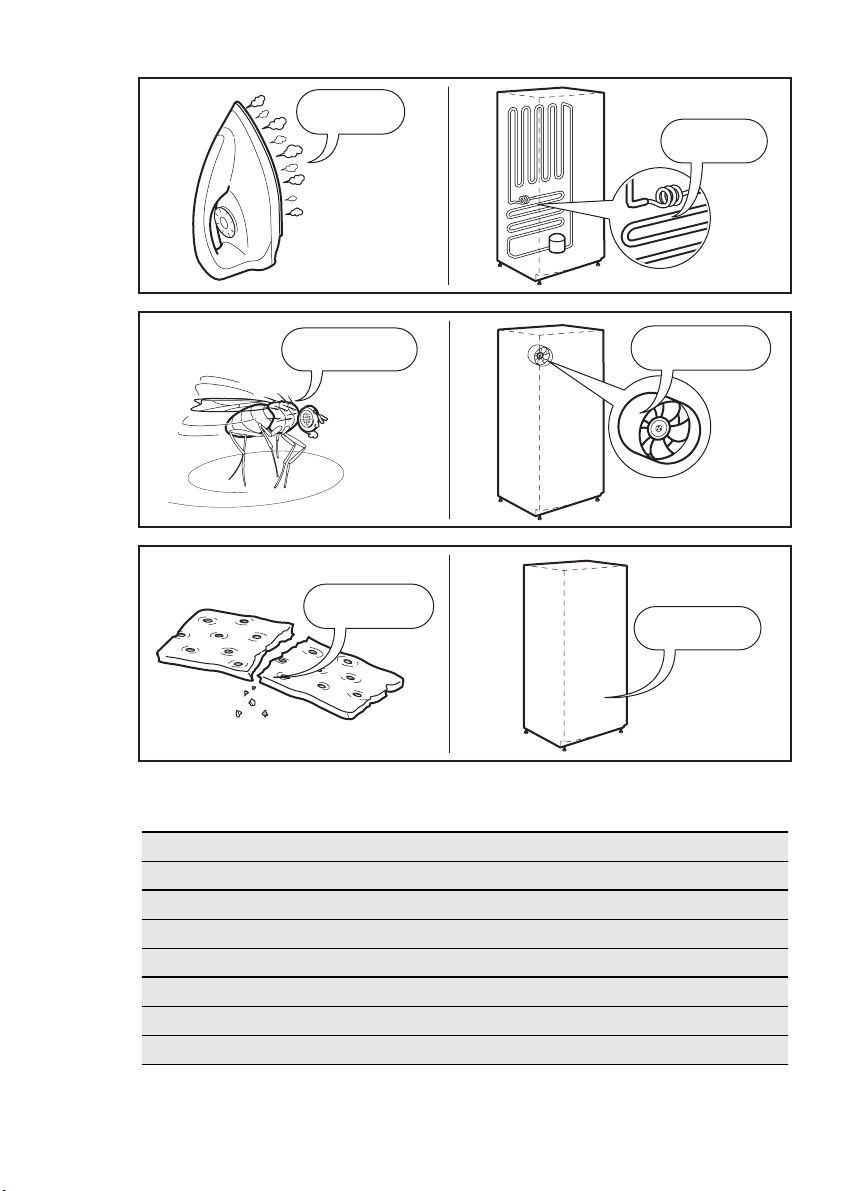

NOISES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed with
you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results
every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
SAFETY INFORMATION
ENGLISH 3
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
Save these instructions and make sure that
they remain with the appliance if it is moved
or sold, so that everyone using it through
its life will be properly informed on appliance use and safety.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for
damages caused by omission.
CHILDREN AND VULNERABLE
PEOPLE SAFETY
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull
the plug out of the socket, cut the connection cable (as close to the appliance
as you can) and remove the door to prevent playing children to suffer electric
shock or to close themselves into it.
• If this appliance featuring magnetic door
seals is to replace an older appliance
having a spring lock (latch) on the door
or lid, be sure to make that spring lock
unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
GENERAL SAFETY
WARNING!
Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear
of obstruction.
• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.
• Do not use a mechanical device or any
artificial means to speed up the thawing
process.
• Do not use other electrical appliances
(such as ice cream makers) inside of refrigerating appliances, unless they are
approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the
appliance, a natural gas with a high level
of environmental compatibility, which is
nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit become damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of igni-
tion
– thoroughly ventilate the room in which
the appliance is situated
• It is dangerous to alter the specifications
or modify this product in any way. Any
damage to the cord may cause a shortcircuit, fire and/or electric shock.
WARNING!
Any electrical component (power
cord, plug, compressor) must be
replaced by a certified service
agent or qualified service personnel
to avoid hazard.
1.
Power cord must not be lengthened.
2.
Make sure that the power plug is not
squashed or damaged by the back
of the appliance. A squashed or
damaged power plug may overheat
and cause a fire.
3.
Make sure that you can come to the
mains plug of the appliance.
4.
Do not pull the mains cable.
www.electrolux.com
4
• This appliance is heavy. Care should be
• Do not remove nor touch items from the
• Avoid prolonged exposure of the appli-
• Bulb lamps (if foreseen) used in this ap-
DAILY USE
• Do not put hot pot on the plastic parts in
• Do not store flammable gas and liquid in
• Do not place food products directly
• Frozen food must not be re-frozen once
• Store pre-packed frozen food in accord-
• Appliance's manufacturers storage rec-
• Do not place carbonated or fizzy drinks
• Ice lollies can cause frost burns if con-
CARE AND CLEANING
• Before maintenance, switch off the appli-
• Do not clean the appliance with metal
5.
If the power plug socket is loose, do
not insert the power plug. There is a
risk of electric shock or fire.
6.
You must not operate the appliance
without the lamp cover (if foreseen)
of interior lighting.
taken when moving it.
freezer compartment if your hands are
damp/wet, as this could cause skin
abrasions or frost/freezer burns.
ance to direct sunlight.
pliance are special purpose lamps selected for household appliances use only.
They are not suitable for household room
illumination.
the appliance.
the appliance, because they may explode.
against the air outlet on the rear wall. (If
the appliance is Frost Free)
it has been thawed out.
ance with the frozen food manufacturer's
instructions.
ommendations should be strictly adhered to. Refer to relevant instructions.
in the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.
sumed straight from the appliance.
ance and disconnect the mains plug
from the mains socket.
objects.
• Do not use sharp objects to remove frost
from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary,
clean the drain. If the drain is blocked,
water will collect in the bottom of the appliance.
INSTALLATION
For electrical connection carefully
follow the instructions given in specific paragraphs.
• Unpack the appliance and check if there
are damages on it. Do not connect the
appliance if it is damaged. Report possible damages immediately to the place
you bought it. In that case retain packing.
• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.
• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient ventilation follow the instructions relevant to
installation.
• Wherever possible the back of the product should be against a wall to avoid
touching or catching warm parts (compressor, condenser) to prevent possible
burn.
• The appliance must not be located close
to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If
a water connection is foreseen).
SERVICE
• Any electrical work required to do the
servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.
ENVIRONMENT PROTECTION
This appliance does not contain
gasses which could damage the
ozone layer, in either its refrigerant
circuit or insulation materials. The
appliance shall not be discarded
together with the urban refuse and
rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according
to the applicable regulations to obtain from your local authorities.
Avoid damaging the cooling unit,
especially at the rear near the heat
exchanger. The materials used on
this appliance marked by the sym-
are recyclable.
bol
ENGLISH 5
www.electrolux.com
6
PRODUCT DESCRIPTION
1
2
7
6
5
Freezing compartment
1
Butter compartment
2
Door shelf
3
Bottle shelf
4
Rating plate (inside)
5
Vegetable drawer
6
Glass shelves
7
3
4
OPERATION
SWITCHING ON
Insert the plug into the wall socket.
Turn the Temperature regulator clockwise
to a medium setting.
SWITCHING OFF
To turn off the appliance, turn the Temperature regulator to the "O" position.
TEMPERATURE REGULATION
The temperature is automatically regulated.
To operate the appliance, proceed as follows:
• turn the Temperature regulator toward
lower settings to obtain the minimum
coldness.
• turn the Temperature regulator toward
higher settings to obtain the maximum
coldness.
However, the exact setting should be
chosen keeping in mind that the temperature inside the appliance depends on:
• room temperature
• how often the door is opened
• the quantity of food stored
• the location of the appliance.
ENGLISH 7
A medium setting is generally the
most suitable.
If the ambient temperature is high
or the appliance is fully loaded, and
the appliance is set to the lowest
temperatures, it may run continuously causing frost to form on the
rear wall. In this case the dial must
be set to a higher temperature to
allow automatic defrosting and
therefore reduced energy consumption.
www.electrolux.com
8
FIRST USE
CLEANING THE INTERIOR
Before using the appliance for the first time,
wash the interior and all internal accessories with lukewarm water and some neutral
soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.
Do not use detergents or abrasive
powders, as these will damage the
finish.
DAILY USE
ENGLISH 9
FREEZING FRESH FOOD
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh foods it is not necessary to
change the medium setting.
However, for a faster freezing operation,
turn the temperature regulator toward higher settings to obtain the maximum coldness.
In this condition, the refrigerator
compartment temperature might
drop below 0°C. If this occurs reset
the temperature regulator to a
warmer setting.
STORAGE OF FROZEN FOOD
When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours on the higher settings.
MOVABLE SHELVES
In the event of accidental defrosting, for example due to a power
failure, if the power has been off for
longer than the value shown in the
technical characteristics chart under "rising time", the defrosted food
must be consumed quickly or
cooked immediately and then refrozen (after cooling).
THAWING
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer: in this case,
cooking will take longer.
The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
POSITIONING THE DOOR SHELVES
To permit storage of food packages of various sizes, the door shelves can be placed
at different heights.
To make these adjustments proceed as follows:
gradually pull the shelf in the direction of
the arrows until it comes free, then reposition as required.
www.electrolux.com
10
HELPFUL HINTS AND TIPS
NORMAL OPERATING SOUNDS
• You may hear a faint gurgling and a bubbling sound when the refrigerant is pumped through the coils or tubing. This is
correct.
• When the compressor is on, the refrigerant is being pumped around and you will
hear a whirring sound and a pulsating
noise from the compressor. This is correct.
• The thermic dilatation might cause a
sudden cracking noise. It is natural, not
dangerous physical phenomenon. This is
correct.
• When the compressor switches on or
switches off, you will hear a faint "click"
of the temperature regulator. This is correct.
HINTS FOR ENERGY SAVING
• Do not open the door frequently or leave
it open longer than absolutely necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully
loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to
allow automatic defrosting and so a saving in electricity consumption.
HINTS FOR FRESH FOOD
REFRIGERATION
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly if
it has a strong flavour
• position food so that air can circulate
freely around it
HINTS FOR REFRIGERATION
Useful hints:
Meat (all types) : wrap in polythene bags
and place on the glass shelf above the vegetable drawer.
For safety, store in this way only one or two
days at the most.
Cooked foods, cold dishes, etc..: these
should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude
as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.
HINTS FOR FREEZING
To help you make the most of the freezing
process, here are some important hints:
• the maximum quantity of food which can
be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No
further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable
it to be rapidly and completely frozen
and to make it possible subsequently to
thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages
are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the latter;
• lean foods store better and longer than
fatty ones; salt reduces the storage life of
food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be
freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to enable
you to keep tab of the storage time.
HINTS FOR STORAGE OF
FROZEN FOOD
To obtain the best performance from this
appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer
in the shortest possible time;
• not open the door frequently or leave it
open longer than absolutely necessary;
• once defrosted, food deteriorates rapidly
and cannot be refrozen;
• do not exceed the storage period indicated by the food manufacturer.
ENGLISH 11
www.electrolux.com
12
CARE AND CLEANING
CAUTION!
Unplug the appliance before carrying out any maintenance operation.
This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.
PERIODIC CLEANING
The equipment has to be cleaned regularly:
• clean the inside and accessories with
lukewarm water and some neutral soap.
• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
• rinse and dry thoroughly.
Do not pull, move or damage any
pipes and/or cables inside the cabinet.
Never use detergents, abrasive
powders, highly perfumed cleaning
products or wax polishes to clean
the interior as this will damage the
surface and leave a strong odour.
Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush. This operation will improve
the performance of the appliance and save
electricity consumption.
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason it is recommended that the outer
casing of this appliance is only cleaned with
warm water with a little washing-up liquid
added.
After cleaning, reconnect the equipment to
the mains supply.
DEFROSTING OF THE REFRIGERATOR
Take care of not to damage the
cooling system.
DEFROSTING THE FREEZER
A certain amount of frost will always form on the freezer shelves
and around the top compartment.
Defrost the freezer when the frost
layer reaches a thickness of about
3-5 mm.
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops,
during normal use. The defrost water drains
out through a trough into a special container at the back of the appliance, over the
motor compressor, where it evaporates.
It is important to periodically clean the defrost water drain hole in the middle of the
refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside. Use the special cleaner
provided, which you will find already inserted into the drain hole.
To remove the frost, do these steps:
1.
Switch off the appliance.
2.
Remove any stored food, wrap it in
several layers of newspaper and put it
in a cool place.
3.
Leave the door open.
4.
When defrosting is completed, dry the
interior thoroughly and refit the plug.
5.
Switch on the appliance.
6.
Set the temperature regulator to obtain
the maximum coldness and run the
appliance for two or three hours using
this setting.
7.
Reload the previously removed food into the compartment.
Never use sharp metal tools to
scrape off frost from the evaporator
as you could damage it. Do not
use a mechanical device or any artificial means to speed up the
thawing process other than those
recommended by the manufacturer. A temperature rise of the frozen
food packs, during defrosting, may
shorten their safe storage life.
PERIODS OF NON-OPERATION
When the appliance is not in use for long
periods, take the following precautions:
• disconnect the appliance from elec-
tricity supply
• remove all food
• defrost (if foreseen) and clean the appliance and all accessories
• leave the door/doors ajar to prevent unpleasant smells.
If the cabinet will be kept on, ask somebody to check it once in a while to prevent
the food inside from spoiling in case of a
power failure.
ENGLISH 13
www.electrolux.com
14
WHAT TO DO IF…
WARNING!
Before troubleshooting, disconnect
the mains plug from the mains
socket.
Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.
There are some sounds during normal use (compressor, refrigerant
circulation).
Problem Possible cause Solution
The appliance is
noisy
The appliance is not supported properly
Check if the appliance
stands stable (all the four
feet should be on the floor)
The appliance does
not operate. The
The appliance is switched
off.
Switch on the appliance.
lamp does not operate.
The mains plug is not con-
nected to the mains socket
Connect the mains plug to
the mains socket correctly.
correctly.
The appliance has no pow-
er. There is no voltage in
the mains socket.
Connect a different electrical
appliance to the mains socket.
Contact a qualified electrician.
The lamp does not
The lamp is in stand-by. Close and open the door.
work.
The lamp is defective. Refer to "Replacing the
lamp".
The compressor operates continually.
The door is not closed cor-
The temperature is not set
correctly.
Set a higher temperature.
Refer to "Closing the door".
rectly.
The door has been opened
too frequently.
The product temperature is
too high.
Do not keep the door open
longer than necessary.
Let the product temperature
decrease to room temperature before storage.
The room temperature is
too high.
Water flows on the
rear plate of the refrigerator.
Water flows into the
During the automatic defrosting process, frost defrosts on the rear plate.
The water outlet is clogged. Clean the water outlet.
Decrease the room temperature.
This is correct.
refrigerator.
Problem Possible cause Solution
Products prevent that wa-
ter flows into the water col-
Make sure that products do
not touch the rear plate.
lector.
Water flows on the
ground.
The melting water outlet
does not flow in the evaporative tray above the com-
Attach the melting water
outlet to the evaporative
tray.
pressor.
The temperature in
the appliance is too
The temperature regulator
is not set correctly.
Set a higher temperature.
low.
The temperature in
the appliance is too
The temperature regulator
is not set correctly.
Set a lower temperature.
high.
The door is not closed cor-
Refer to "Closing the door".
rectly.
The product temperature is
too high.
Let the product temperature
decrease to room temperature before storage.
Many products are stored
at the same time.
The temperature in
the refrigerator is too
There is no cold air circulation in the appliance.
high.
The temperature in
the freezer is too
Products are too near to
each other.
Store less products at the
same time.
Make sure that there is cold
air circulation in the appliance.
Store products so that there
is cold air circulation.
high.
There is too much
frost.
The door is not closed cor-
Food is not wrapped correctly.
Wrap the food correctly.
Refer to "Closing the door".
rectly.
The temperature regulator
Set a higher temperature.
is not set correctly.
ENGLISH 15
www.electrolux.com
16
REPLACING THE LAMP
CLOSING THE DOOR
1.
2.
3.
Clean the door gaskets.
If necessary, adjust the door. Refer to
"Installation".
If necessary, replace the defective door
gaskets. Contact the Service Center.
1.
Disconnect the mains plug from the
mains socket.
2.
Remove the screw from the lamp cover.
3.
Remove the lamp cover (refer to the illustration).
4.
Replace the used lamp with a new
lamp of the same power and specifically designed for household appliances. (the maximum power is shown on
the lamp cover).
5.
Install the lamp cover.
6.
Tighten the screw to the lamp cover.
7.
Connect the mains plug to the mains
socket.
8.
Open the door. Make sure that the
lamp comes on.
INSTALLATION
ENGLISH 17
WARNING!
Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.
POSITIONING
This appliance can be installed in a dry,
well ventilated indoor (garage or cellar) also,
but for optimum performance install this
appliance at a location where the ambient
temperature corresponds to the climate
LEVELLING
LOCATION
class indicated on the rating plate of the
appliance:
Cli-
Ambient temperature
mate
class
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
When placing the appliance ensure that it
stands level. This can be achieved by two
adjustable feet at the bottom in front.
100 mm
15 mm 15 mm
The appliance should be installed well away
from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can
circulate freely around the back of the cabinet.To ensure best performance, if the appliance is positioned below an overhanging wall
unit, the minimum distance between the top
of the cabinet and the wall unit must be at
least 100 mm . Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the
base of the cabinet. If the cabinet is placed in
a corner and the side with the hinges facing
the wall, the distance between the wall and
the cabinet must be at least 10 mm to allow
the door to open enough so that the shelves
can be removed.
WARNING!
It must be possible to disconnect the
appliance from the mains power supply; the plug must therefore be easily
accessible after installation.
www.electrolux.com
18
INSTALLING UNDER A CONTINUOUS WORKTOP
200 cm
93-103 mm
105 mm
570 mm
550 mm
min. 820 mm
500/550/600 mm
A
2
DETACHING THE WORKTOP
2
1
3
If your refrigerator is installed under a continuous worktop, an air outlet opening of at
least 200cm
2
and a ventilation grille matching the worktop design should be installed
at the rear of the worktop.
The cut surfaces of the worktop should be
varnished to avoid swelling due to penetration of moisture.
The appliance wall distance must be at
least 30 mm and should be checked before
the ventilation grille is inserted.
To remove the worktop, please proceed as
follows:
• Unscrew left and right screws at the
back.
• Lift the worktop slightly at the front, push
back about 20 mm and lift off from the
front.
• Unscrew left and right screws at the
front.
• Store the screws in a safe place together
with the worktop.
FITTING AND MOUNTING TO CONTINUOUS WORKTOP
Before fitting, change the door opening direction if necessary (see: Door reversibility).
• Push the appliance carefully into the ni-
che.
• Take care that the mains cable is not
jammed in.
• Check distance from wall (see: Installing
under a continuous worktop).
• Level the appliance by screwing the two
adjustable feet at the front in or out, thus
ensuring a stable position.

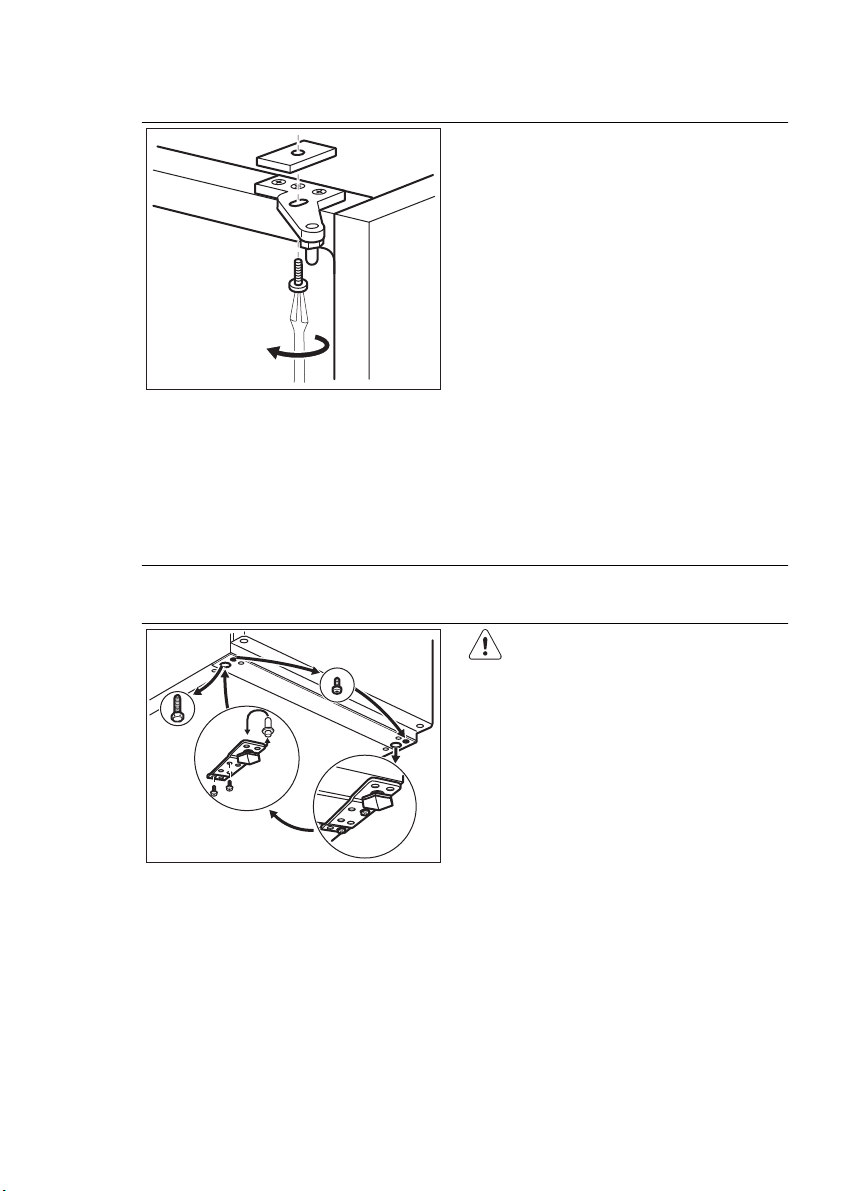

• With a suitable screws (depending on
the design of the worktop and the distance between the appliance and the
worktop, not supplied), fix the appliance
under the worktop through the upper
door hinge. If necessary, equalise the
gap between the door hinge and the
worktop with a suitable washer (plastic
or wood, not supplied). This will prevent
bending of the hinge and possible failure
of door function.
DOOR REVERSIBILITY
ENGLISH 19
To carry out the following operations, we suggest that this be
made with another person that will
keep a firm hold on the doors of
the appliance during the operations.
To change the opening direction of the
door, do these steps:
• Remove the plug from the power socket.
• Tilt back the appliance carefully so that
the compressor cannot touch the floor.
• Unscrew the left adjustable foot.
• Unscrew the screws of the door bottom
hinge. Remove the hinge. Put over the
pin in the direction of the arrow.
• Install the hinge on the opposite side.
www.electrolux.com
20
• Remove the door by pulling it down-
wards while keeping it slightly opened.
• Unscrew the upper door hinge, and
screw it in on the opposite side.
• Put the door back in its place.
2
1
1
2
• Relocate the door holder pin in the door
hinge as per the figure.
• Place the door holder pin in the door at
the bottom on the left side, and fix the
door hinge with the screw.
• Screw the right foot.
• Raise the appliance in the upright posi-
tion.
• Remove and install the handle (if fore-
seen) on the opposite side.
• Reposition, level the appliance, wait for
at least four hours and then connect it to
the power socket.
Do a final check to make sure that:
•All screws are tightened.
• The door opens and closes correctly.
If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to
the cabinet. In that case, wait for the natural fitting of the gasket.
In case you do not want to carry out the
above mentioned operations, contact the
nearest After Sales Service Force. The After
Sales Service specialist will carry out the
reversibility of the doors at your cost.
REVERSIBILITY OF THE
FREEZER DOOR
2
1
180˚
ENGLISH 21
1
2
PLUG SOCKET
ELECTRICAL CONNECTION
Before plugging in, ensure that the voltage
and frequency shown on the rating plate
correspond to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact for this purpose. If the domestic power
supply socket is not earthed, connect the
appliance to a separate earth in compliance with current regulations, consulting a
qualified electrician.
CAUTION!
Make sure that the mains cable
can move freely.
The plug socket necessary for connection
of your appliance to the electricity supply
should be positioned so that it is possible
to pull out the appliance plug.
If your appliance is installed under a continuous worktop, the plug socket should be
provided as shown.
The manufacturer declines all responsibility
if the above safety precautions are not observed.
This appliance complies with the E.E.C. Directives.
www.electrolux.com
22
NOISES
There are some sounds during normal running (compressor, refrigerant circulation).
SSSRRR!
HISSS!
CLICK!
BRRR!
OK
CLICK!
BRRR!
CRACK!
BLUBB!
CLICK!
BRRR!
BLUBB!
BLUBB!
HISSS!
ENGLISH 23
HISSS!
TECHNICAL DATA
Dimension
Height 850 mm
Width 550 mm
Depth 612 mm
Rising Time 11 h
Voltage 230 V
Frequency 50 Hz
The technical information are situated in the
rating plate on the internal left side of the
appliance and in the energy label.
SSSRRR!
CRACK!
SSSRRR!
CRACK!
www.electrolux.com
24
ENVIRONMENT CONCERNS
Recycle the materials with the symbol
Put the packaging in applicable containers
to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
.
appliances marked with the symbol
the household waste. Return the product
to your local recycling facility or contact
your municipal office.
with
ENGLISH 25
www.electrolux.com
26
ENGLISH 27
www.electrolux.com/shop 200383991-A-432011
Loading...
