AEG-Electrolux NF4065W, NF4061BR, NF4065B, NF4061W User Manual

Specifications and Main Features

  • Conformed to the standards set out in the British Standards.
  • Fulfill the CE mark requirements.
  • This appliance is designed solely for home usage and not for business usage.
  • Hotplate height adjustment ranges from: 898mm - 920mm.
  • Width: 594mm.
  • Depth: 600mm (to the front side of the door panel).
  • Weight: 64.5 kilograms.
  • Electrical requirements: Ordinary voltage not exceeding 230V, 50 Hz electricity; requires a 3 Amp fuse.
  • Ignition System: Spark generator, APCO 6+1.
  • Grill heat input: rated heat output 3.3kW (11263 Btu/h).
  • Hotplate configurations:
  • Highest capacity (Rapid): 2.8kW (9554 Btu/h).
  • Middle size pots (Normal): 2.0kW (6824 Btu/h).
  • Smallest kettle heater (Simmer): 1.0kW (3412 Btu/h).
  • Main oven heating capacity: 2.4kW (8189 Btu/h).
  • Second oven power input rating: 0.53kW (1808 Btu/h).
  • Have installed the flame supervision devices.
  • There is an electronic timer operable using a 24 hr clock.
  • A slow cooking function is available.
  • Several cooking positions are available in the first oven, the second oven having two positions, five in the two ovens overall.
  • This appliance has been designed such that it must be properly ventilated in accordance with the British Standards.

Frequently Asked Questions

Q: Would it be acceptable to use the cooker for business purposes?

A: It would not be alright, since this was made for domestic purposes only.

Q: How do I relight the stove when it goes out?

A: For lighting the burners during a power outage, make sure you reinstall the parts properly, and then use a match to assist you with that.

Q: Would it be ok to use aluminum foil on the oven?

A: The answer is no, do not use aluminum foil on any part of the aluminum foil lined cookware.

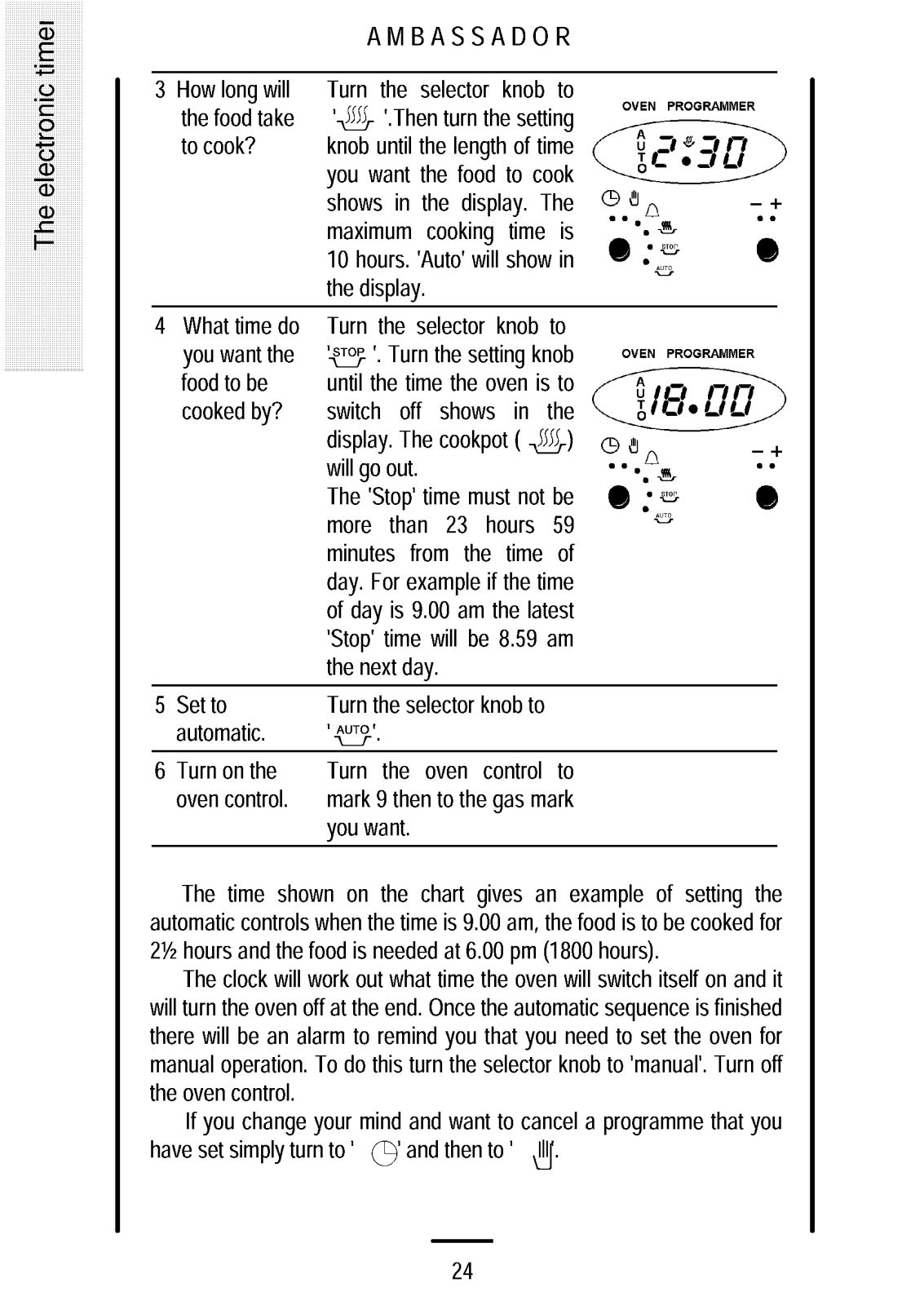

Q: How do I go about setting the electronic timer on the device?

A: In order to set the time on the device, enable the setting knob to change the selector knob and set it on clock mode.

Q: Is there a slow cooking option available on the cooker?

A: The cooker comes equipped with the option to slow cook, however it is available only for the main oven.

Q: How much time is the cooker able to remain set on for with automatic controls?

A: When automatic controls are on, the cooker maximum time limit is able to be set to 10 hours.

Q: If i notice condensation inside the cooker, what should i do?

A: Seeing condensation buildup inside the cooker when cooking can be considered as a normal activity, however if you do see then you can wipe it off.

Q: How often should I sanitize the oven?

A: It is strongly urged that you clean the oven on a regular basis to prevent grease from building up inside it as that can be detrimental and potentially lead to a fire starting.
