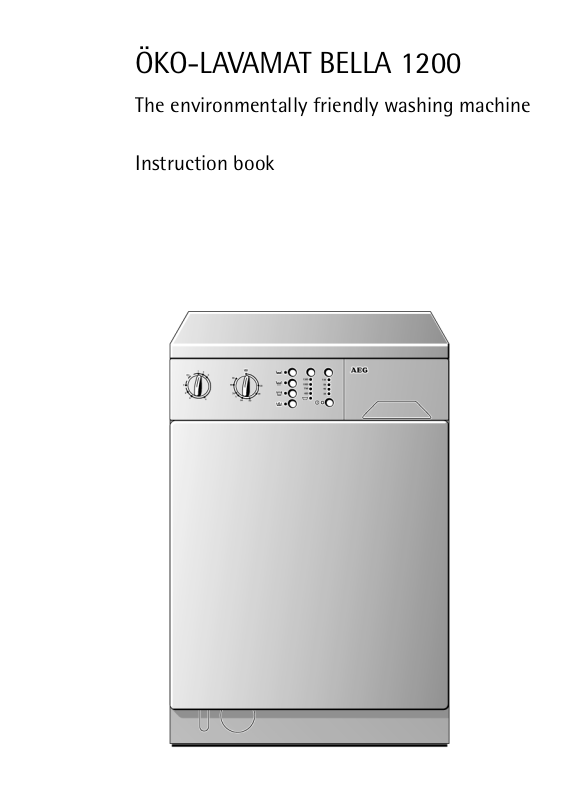

Page 1
ÖKO-LAVAMAT BELLA 1200
The environmentally friendly washing machine
Instruction book
Page 2
Dear customer,
f
Please read these user instructions carefully.
Above all, observe the "Safety" section in the first pages. Keep these
user instructions in a safe place for future reference. Please pass them
along to future owners of the appliance.
Important information concerning your safety and proper functioning
1
of the appliance is highlighted with the warning triangle or the signal
words (Warning!, Caution!, Attention!). Please observe carefully.
0 1. This symbol guides you step by step when operating the appliance.
2. ...
Next to this symbol you receive additional information and practical
3
tips on using the appliance.
Tips and information about the economical and environmentally
2
friendly use of the machine are marked with the clover.
These user instructions include tips for the correction of possible malfunctions by the user. See the section "What to do when...".
Our customer service department is at your disposal should technical
problems occur. See also the "Service" section.
Printed on paper manu
He who thinks ecologically acts accordingly ...
2
actured with environmentally sound processes.
Page 3
Contents
CONTENTS
Operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Environmental protection tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Appliance Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Drawer for detergent and conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Program Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Temperature Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Washing Type Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
M (ON/OFF) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Consumption Data and Time Required . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before Washing for the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Prepare washing cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Sort washing and prepare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Washing Types and Care Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Detergent and conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Which detergent and conditioner? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
How much detergent and conditioner? . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Performing A Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Brief Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Loading the Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Adding Detergent/Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setting the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Starting the Washing Program/Setting the Delay Timer . . . . . . . . . . . . . . . 21
Changing the Spin Speed/Selecting Rinse Hold . . . . . . . . . . . . . . . . . . . . . . 21
During the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Wash Complete/Removing the Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3
Page 4
Contents
Program Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Separate Soaking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Separate Conditioning/Starching/Treatment . . . . . . . . . . . . . . . . . . . . . . . 26
Separate Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Separate Spinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning and Caring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Detergent drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Washing drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Fill-in door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
What to do when… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
If the washing results are not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Performing an Emergency Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Cleaning the Circulation Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Additional Rinse/Water Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Installation and Connection Instructions . . . . . . . . . . . . . . . . 37
Installation Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Dimensions of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Niche measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Installation of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Transporting the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Remove transportation protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Prepare the installation place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Installation on a concrete base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Installation on vibrating floors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Levelling on uneven floors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
4
Page 5
Contents
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Water connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Permissible water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Water feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Water drain-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Delivery head above 1m . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Changing Over The Door Hinges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Incorporating in Kitchens (Built-In) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Protection Against Touching Under Work Surfaces . . . . . . . . . . . . . . . . . . . 47
Removing the Worktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Fitting and Earthing the Sheet Metal Cover . . . . . . . . . . . . . . . . . . . . . . 48
Water Vapour Protection for Work Surfaces . . . . . . . . . . . . . . . . . . . . . . . . 48
Sliding Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Connections For Built-In Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Fitting a Decor Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Incorporating in Kitchens with 90cm High Work Surfaces . . . . . . . . . 52
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Guarantee/Service departments . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
5
Page 6
OPERATING INSTRUCTIONS
1 Safety
The safety standards of AEG electric appliances are in keeping with the
recognised rules of technology and the law governing the safety of
appliances. Nevertheless as a manufacturer we are committed to familiarise you with the following safety instructions:
Prior to initial start-up
• Observe the "Installation and Connection Instructions" below in
these user instructions.
• If the appliance is delivered during the winter and temperatures are
below freezing, allow the appliance to stand at room temperature for
24 hours before operation
Intended use
• The washing machine is intended exclusively for the washing of normal household washing in the home. If the appliance is used for purposes other than those intended, or if it is improperly operated, the
manufacturer can assume no liability for damages which may occur.
• Additions or modifications to the washing machine are strictly forbidden due to safety reasons.
• Use only those detergents which are suitable for the washing
machine. Observe instructions provided by the detergent manufacturer.
• Laundry to be washed may not contain any flammable solvents. This
must also be taken into consideration when washing pre-washed
laundry.
• Do not use the washing machine for dry-cleaning.
• Dyes and bleaches may only be used in the washing machine if such
use has been expressly endorsed by the manufacturer of these products. We can assume no liability for damages which may occur.
• Use tap water only. Rain water and industrial water may only be used
if they fulfil requirements in accordance with DIN1986 and DIN1988.
• Damage due to frost is not covered by the guarantee! If the washing
machine is located in a room in which below freezing temperatures
might occur, emergency draining must be carried out if danger of
freezing occurs (see "Emergency Draining"). Furthermore, the inlet
hose must be disconnected from the tap and laid on the floor.
6
Page 7
Operating instructions
Safety of children
• Packaging materials (e.g. sheet and Styrofoam) can be dangerous for
children. Danger of asphyxiation! Keep packaging materials at a safe
distance from children.
• Children are often unable to recognise the dangers involved with
electrical appliances. Provide for proper supervision during operation,
and do not allow children to play with the washing machine – the
danger exists that a child might lock itself into the appliance.
• Make certain that children or small animals do not climb into the
drum of the washing machine.
• If the washing machine needs to be disposed of, remove the mains
plug, destroy the door lock, cut off the electrical cable and dispose of
the plug and remaining cable separately. In this way children are prevented from locking themselves in and are not exposed life threatening danger.
General Safety
• Repairs to the washing machine may only be carried out by trained
personnel. Improper repairs can give rise to significant hazards. If
repairs are required, contact customer service or your dealer.
• Never use the washing machine if the mains cable is damaged or the
control panel, the work surface, or the plinth are damaged to such an
extent that components inside the machine are openly accessible.
• Switch off the washing machine before cleaning, maintenance and
servicing. In addition, unplug from the mains or – in the case of permanent connection – pull the circuit breaker, or completely remove
screw type fuses.
• Never remove the mains plug by pulling on the cable. Always grip the
plug.
• Multi-way plugs / connectors and extension cables must not be used.
This could constitute a safety hazard!
• Do not clean the washing machine with a jet of water. There is a risk
of electric shock!
• When high temperature washing programs are selected, the glass in
the door becomes hot. Do not touch!
• Leave the water in the machine to cool down before performing an
emergency drain or cleaning the circulation pump.
• Small animals may gnaw at electrical power cables and water hoses.
There is a risk of electric shock and damage from water leaks! Keep
small animals away from the washing machine.
7
Page 8
Operating instructions
2 Disposal
Dispose of the packaging!
Dispose of washing machine packaging materials properly. All packaging materials are environmentally sound and can be safely disposed of,
or burned in a refuse incineration plant.
The plastic parts can be reused:
• The external plastic cover and the bags inside are made of polyethylene (marking >PE<).
• The padding is made of CFC free expanded polystyrene
(marking >PS<).
Corrugated components are made from recycled paper and should be
disposed of at a paper recycling station.
Dispose of your old appliance!
If, at some point in time, the service life of the appliance has expired,
please take it to your nearest recycling centre, or to your appliance
dealer, who will accept the old appliance for a minimal fee.
2 Environmental protection tips
• No pre-wash is required for normally soiled washing. This saves you
detergent, water and time (and is good for the environment!).
• If the indicated load capacities are taken full advantage of, the washing machine is especially efficient.
• For small loads, use only one half to one third of the recommended
detergent quantity.
• Stains and soiling confined to given areas can be removed by means
of appropriate pre-treatment. You can then wash at lower temperatures.
• Wash lightly to medium soiled cottons with the energy saving program.
• Softeners are often not required. Try it! If you use a dryer, your washing will be soft and fluffy, even without softeners.
• A water softener should be used for water within a hardness range of
mid to high (as of hardness level II, see "Detergents and Conditioners"). Detergent can then always be dosed for water hardness level I
(= soft).
8
Page 9
Appliance Description
Front view
Control panel
Main door
Emergency drain
hose
Operating instructions
Drawer for
detergent and
softener
Outer
door
Circulation
pump cover
Rating plate
(on the rear of the main door)
Threaded feet
(height adjustable)
Drawer for detergent and conditioner
k Pre-wash detergent/
detergent for soaking or
water softener
l Main wash detergent
(powder) and water softener if required
m In-wash stain treatment
w Liquid conditioner
(softener, finisher,
starch)
Suction cap
(must be
securely in
place)
9
Page 10
Operating instructions
Control Panel
Spin Speed/RINSE HOLD
Button
Program Selector
Temperature Selector
Washing Type Buttons
Delay Timer
Button
ON/OFF
Button
Program Selector
You define the type of wash using the
program selector.
Attention! Program selector may only
be rotated clockwise!
The various positions have the following effect:
Position k (PRE WASH)
Cold pre wash prior to the main wash, the main wash follows automatically. (Not for washing type s/WOOLLENS.)
10
Position 1 (STAIN)
For treating heavily soiled or stained washing. Lengthened main wash,
stain remover is washed in at the optimal point in the program cycle.
(Not for washing type s/WOOLLENS.)
Position 2 (MAIN WASH)
Main wash for normally soiled washing.
Position 3 (QUICK WASH)
Shortened main wash for lightly soiled washing.
Position 4 (RINSE)
Separate rinse, e.g. for rinsing hand washed fabrics (spinning in accordance with the selected washing type or rinse hold).
Page 11
Operating instructions
Rinse hold (o) means: the washing is left in the last rinse water, it is
3
not spun.
Position 5 (CONDITIONER)
Separate conditioning, separate starching, separate treatment of wet
cotton/linen or easy-care washing (1 rinse, liquid conditioner is washed
in from the w compartment, spinning in accordance with the selected
washing type or rinse hold).
Position 6 (SPIN)
Spinning after a rinse hold or separate spinning of hand washed fabrics
in accordance with the selected washing type.
Position 7 (SOAKING)
Separate soaking (temperature automatically limited to a maximum of
40°C), the washing is left in the water at the end of the program
(Not for washing type s/WOOLLENS).
After soaking the required main wash must be set, the program does
3
automatically continue.
Position 8 (PUMP OUT)
Pumps out the water after a rinse hold (without spinning).
Temperature Selector
You can set the following temperature levels on the temperature selector:
r (COLD), 30, 40, 50, 60, E, 70, 80, 95
The E setting (Energy Saving Program) is
2
suitable for lightly to normally soiled cottons; temperature reduced to approx. 67 °C.
Washing Type Button
The program sequence (e.g. max. possible temperature, water level, drum movement, number
of rinses, spin speed) is altered to suit the type of
washing using the washing type buttons.
t (COTTONS/LINEN)
For cottons and linen.
} (EASY-CARES)
For easy-care washing (mixed fabrics). Temperature automatically limited to a maximum of
60°C.
11
Page 12
Operating instructions
à (DELICATES)
For delicate washing (temperature automatically limited to a maximum
of 40°C).
s (WOOLLENS)
For machine washable woollens and particularly delicate fabrics (temperature automatically limited to a maximum of 40°C).
M (ON/OFF) Button
This button is used to switch on the washing
machine and start the selected program, or to
switch off the washing machine.
Consumption Data and Time Required
The values given in the following table for selected programs were calculated under standard conditions. They provide a useful guide for
operation in the home.
Program
Selector
Position 2
(MAIN
WASH)
1) Note: program setting for testing in accordance with EN 60 456
Temperature
Selector
95
1)
60
40
40
30
30
Washing Type
Button
t
(COTTONS/
LINEN)
t
(COTTONS/
LINEN)
t
(COTTONS/
LINEN)
}
(EASY CARES)
Ã
(DELICATES)
s
(WOOLLENS)
Load
in kg
Water
in Litres
5 54 1.70 139
5 54 1.05 127
5 54 0.63 127
2.5 50 0.43 92
2.5 52 0.43 82
2 51 0.32 57
Energy
in kWh
Time in
minutes
12
Page 13
Operating instructions
Before Washing for the First Time
0 1. Pull the detergent drawer out from the control panel a little.
2. Pour around 1 litre of water into the washing machine via the detergent drawer. This will ensure when the washing machine is started that
the water container is closed and that the ECO valve can function correctly.
3. Perform a washing cycle without any washing, position 2 (MAIN WASH)
95, with half the normal dose of detergent.
This serves to remove residues resulting from production of the appliance from the drum and the water container.
13
Page 14
Operating instructions
Prepare washing cycle
Sort washing and prepare
• Sort washing according to care symbol and type (see "Washing types
and care symbols").
• Empty all pockets.
• Remove metal objects (paper clips, safety pins etc.).
• In order to prevent bunching up of washing and damage to washing,
close zippers, button up duvets and pillow cases, and tie up loose
ends from, for example, aprons.
• Turn articles with double layered textiles inside out (sleeping bags,
anoraks etc.).
• Coloured, knitted fabrics, as well as wool and textiles with appliqués
should be turned inside out.
• Place small and delicate articles (baby booties, stockings, bras etc.)
into a washing net, a pillow case with zipper, or in large socks before
washing.
• Treat net curtains particularly carefully. Remove metal curtain rail
rollers or burred plastic rollers, or wrap these in a net or bag.
We cannot accept any liability for damage.
• Do not wash coloured and white washing together. White washing
will otherwise turn grey.
• New, coloured washing often contains excessive dye. Wash these
items separately the first time.
• Mix small and large articles of washing! This improves washing effi-
ciency, and the washing is more favourably distributed during the
spin cycle.
• Fluff washing before placing into the washing machine.
• Do not place folded washing into the drum.
• Observe tips for proper care such as "wash separately" and "wash sep-
arately several times"!.
14
Page 15
Operating instructions
Washing Types and Care Symbols
Care symbols assist in the selection of the correct washing program.
Washing should be sorted according to type and care symbol. The temperatures indicated in the care symbols are maximum temperatures.
Cottons ç
Cotton and linen fabrics with this care symbol are resistant to the
mechanical action of the washing machine and high temperatures. The
t (COTTONS/LINEN) program is suitable for this type of washing.
Linen èë
Cotton and linen fabrics with this care symbol are resistant to the
mechanical action of the washing machine. The t (COTTONS/LINEN)
program is suitable for this type of washing.
Easy-care washing êíî
Fabrics such as treated cottons, cotton mixtures and synthetics with
this care symbol need careful handling. The } (EASY-CARES) program
is suitable for this type of washing.
Delicates ì
Fabrics such as those with layered fibres, micro-fibres, as well as synthetics and net curtains with this care symbol need particularly careful handling. The à (DELICATES) program is suitable for this type of
washing.
Woollens and particularly delicate washing 9 ì
Fabrics such as woollens, wool mixtures and silk with this care symbol
are particularly delicate in respect of the mechanical action of the
washing machine. The s (WOOLLENS) program is suitable for this type
of fabrics.
Important! Fabrics with the
ï (hand washing) or ñ (do not wash!)
care symbols must not be washed in the washing machine!
15
Page 16
Operating instructions
Detergent and conditioner
Which detergent and conditioner?
Use only detergents and conditioners which are suitable for use in
washing machines. Always observe the manufacturer’s instructions.
How much detergent and conditioner?
The required quantity depends upon:
• the amount of washing
If the detergent manufacturer does not include dosing instructions for
2
reduced loads, use one third less for half loads and only half of the full
load detergent quantity for very small loads.
• extent of soiling of the washing
• hardness of tap water
Observe instructions for use and dosing provided by the detergent and
conditioner manufacturer.
Using Water Softener
In the case of medium to very hard water (from hardness band II) water
softener should be used. Observe the manufacturer’s instructions! Then
always use detergent dosing for hardness band I (= soft). Information
on the hardness of the water in your area is provided by your local
water board.
16
Due to the fact that the water softener is added before the main wash
2
detergent (pre-softening of the water), only eighty percent of the
quantity of water softener indicated on the package is required.
Information on Water Hardness
Hardness Band
I – soft 0 – 7 to 1.3
II – medium-hard 7 – 14 1.3 – 2.5
III – hard 14 – 21 2.5 – 3.8
IV – very hard greater than 21 greater than 3.8
Water hardness in °dH
(German hardness scale)
Water hardness in mmol/ l
(millimol per litre)
Page 17
Operating instructions
Performing A Wash
Brief Instructions
A wash is performed in the following steps:
0 1. Open the door, load the washing.
2. Close the door.
3. Add detergent/conditioner.
4. Set the correct washing program:
– Set the program on the program selector;
– Set the temperature on the temperature selector;
– Select the washing type using the washing type buttons.
5. Press the M (ON/OFF) button.
The washing machine is switched on. The washing program starts automatically after approx. six seconds.
During these six seconds:
6. Set the delay timer if necessary.
7. If necessary, change the spin speed or select rinse hold.
You can alter this setting and the temperature at any time during the
wash.
At the end of the washing program:
The washing program is finished when the M (ON/OFF) button indicator lamp extinguishes.
Important! If the washing cycle ends with rinse hold, perform either
PUMP OUT (position 8) or SPIN (position 6) before opening the door.
8. Open the door, remove the washing.
9. Press the M (ON/OFF) button. The washing machine is switched off.
17
Page 18
Operating instructions
Loading the Washing
For maximum loads see the "Program Tables". For notes on the correct
3
preparation of the washing, see "Washing Types and Care Symbols".
0 1. Sort and prepare washing according to type.
2. Press and release the outer door in area of the sticker on the top
left (top right for doors hinged on the left). The outer door will spring
open.
3. With your hand, take hold of the rear of the
handle on the main door.
4. Move the sliding button on the handle to the
right with your thumb and hold it there (1).
5. Pull the door handle (2).
6. Load the washing.
Attention! Do not trap any washing when
closing the door! The fabrics and the machine
could be damaged!
7. Close the main door firmly and close the outer door.
18
Page 19
Adding Detergent/Conditioner
For information on detergents and condi-
3
tioners see "Detergents and Conditioners"
section.
0 1. Open the drawer: press in the flap on the
drawer so as to be able to grasp the handle
(1), pull out the drawer (2).
2. Add detergent/conditioner.
Operating instructions
k
l
m
w
Pre wash detergent/ detergent for soaking
(only for the PRE WASH or SOAKING program), or water softener
Powdered detergent
(If you use water softener and need the k
compartment for detergent for pre
washing/soaking, add the water softener
to the detergent in the l compartment.)
Stain remover
(only for the STAIN program)
Liquid conditioner (softener, finisher, starch).
Important! Do not fill the compartment beyond the MAX mark. Thick
liquid detergents can be diluted up to the MAX mark, powdered starch
can be dissolved.
3. Push the drawer fully home.
When using liquid detergents:
Add liquid detergent using the dosing containers provided by the
detergent manufacturer. Observe the instructions on detergent pack.
19
Page 20
Operating instructions
Setting the Washing Program
For suitable programs and the right temperature for the relevant type
3
of washing, see "Program Tables".
Important! Only turn the pro-
gram selector clockwise!
0 1. Set the program selector to the
desired washing program.
2. Set the temperature selector to the
required temperature.
3. Select the washing type.
– The display for the chosen washing type illumi-
nates.
– To change the selection, press another button.
20
Page 21
Operating instructions
Starting the Washing Program/Setting the Delay Timer
0 1. Check whether the water tap is open.
2. Switch on the washing machine: Press the M (ON/OFF)
button.
– The washing program starts automatically after
approx. six seconds.
– During these six seconds you can set a time delay to postpone the
start of the washing program.
– The door is locked at the latest 15 seconds after program start.
The M (ON/OFF) indicator illuminates.
Set the Delay Timer if necessary:
0 Keep pressing the delay timer button until the indicator
lamp for the required delay (2, 4, 8, or 12 hours) illuminates.
– The time remaining until the start of the program is dis-
played (in the following steps: 12, 8, 4, 2 hours).
– During the delay period you can open the door to add
washing.
Changing or Stopping the Delay Timer:
0 Keep pressing the button until the indicator lamp for the required time
delay illuminates. If no indicator lamps are left illuminated, the washing program is started.
Changing the Spin Speed/Selecting Rinse Hold
0 If necessary change the spin speed for the final spin/
select rinse hold:
keep pressing the spin speed/o (RINSE HOLD) button
until the indicator for the required spin speed (or o)
illuminates.
If o (RINSE HOLD) is selected, the washing is left in
the last rinse water, it is not spun.
If you do not change the spin speed, the final spin will
3
be automatically adjusted to suit the washing program:
– t (COTTONS/ LINEN) 1200 revolutions per minute
– } (EASY CARES) 1000 revolutions per minute
– Ã (DELICATES) 1000 revolutions per minute
– s (WOOLLENS) 1000 revolutions per minute
The speed for the intermediate spin is depending on the program
selected and cannot be changed.
21
Page 22
Operating instructions
During the Washing Program
Program Progress Indicator
The program selector serves as a program progress indicator by rotating
in a clockwise direction to the end of the program.
In the case of the STAIN (position 1), MAIN WASH (position 2) and
3
QUICK WASH (position 3) programs, immediately after program start
the program selector moves to a position directly behind QUICK WASH
(position 3). The program selector then indicates the progress of the
program as usual.
Changing Settings
During the washing program you can:
– Change the spin speed
– Select o (RINSE HOLD)
– Change the temperature setting
Other settings cannot be altered.
Stopping the Program Early
0 1. Press the M (ON/OFF) button.
2. Turn the program selector clockwise to position 8 (PUMP OUT).
3. Press the M (ON/OFF) button again.
The water is pumped out.
22
Page 23
Operating instructions
Wash Complete/Removing the Washing
The washing program is finished when the M (ON/OFF) button indicator lamp extinguishes.
After a Rinse Hold:
After a rinse hold the water must be pumped out first, or the washing
spun:
0 Either keep pressing the final spin speed/o (RINSE HOLD) button
until the indicator lamp for the required spin speed illuminates,
or
turn the program selector clockwise to position 6 (SPIN),
(washing is spun according to the program just completed),
or
turn the program selector clockwise to position 8 (PUMP OUT)
(water is pumped out).
Once the Program is Finished:
0 1. Open the outer door and the main door.
2. Remove the washing.
Important! The washing machine still needs to be switched off.
3. Press the M (ON/OFF) button.
4. Close the water tap.
5. Pull out the detergent drawer a little, so that it can dry out. Leave the
door slightly ajar so that air can circulate in the washing machine.
Important! If the washing machine is not to be used for a long period:
close the tap and isolate the washing machine from the mains.
23
Page 24
Operating instructions
Program Tables
Washing
Not all possible settings are listed in the following, but only those that
are useful and meaningful in everyday use.
Washing Type,
Care Symbol
Cottons
ç
Energy Saving
Program:
Cottons
ç
Linen
èë
Max. Load
(weight dry)
5kg
5kg
5kg
Program
1)
Selector
Position 2
(MAIN WASH)
Position k
(PRE WASH)
Position 1
(STAIN)
Position 3
(QUICK WASH)
Position 2
(MAIN WASH)
Position k
(PRE-WASH)
Position 2
(MAIN WASH)
Position k
(PRE-WASH)
Position 1
(STAIN)
Position 3
(QUICK WASH)
Temperature
Selector
70 to 95
E
30 to 60
Washing Type
Button
t
(COTTONS/
LINEN)
t
(COTTONS/
LINEN)
t
(COTTONS/
LINEN)
24
Page 25
Operating instructions
Washing Type,
Care Symbol
Easy-Cares
êíî
Delicates
ì
Woollens
2)
9 ì
Max. Load
(weight dry)
2.5kg
2.5kg
(or 15-20m
net curtains)
2kg
Program
1)
Selector
Position 2
(MAIN WASH)
Position k
(PRE WASH)
Position 1
(STAIN)
Position 3
(QUICK WASH)
Position 2
(MAIN WASH)
Position k
(PRE-WASH)
2
Position 1
(STAIN)
Position 3
(QUICK WASH)
Position 2
(MAIN WASH)
Position 3
(QUICK WASH)
Temperature
Washing Type
Selector
30 to 60
}
(EASY CARES)
r (COLD)
to 40 Ã(DELICATES)
r (COLD)
to 40 s(WOOLLENS)
Button
1) A 10-litre bucket contains about 2.5kg of dry washing (cotton).
2) Only wash woollen garments with the woolmark in the machine if they are also
marked with "does not produce fluff", "non-fluffing" or "washing machine-safe".
25
Page 26
Operating instructions
Separate Soaking
Type of
Washing
Cottons/Linen 5kg
Easy-Cares 2.5kg } (EASY-CARES)
Delicates 2.5kg à (DELICATES)
Max. Load
(weight dry)
Program
Selector
Position 7
(SOAKING)
Temperature
Selector
r (COLD) to
40
Washing Type Button
t (COTTONS/LINEN)
Separate Conditioning/Starching/Treatment
Type of
Washing
Cottons/Linen 5kg
Easy-Cares 2.5kg } (EASY-CARES)
Delicates 2.5kg à (DELICATES)
Woollens 2kg s (WOOLLENS)
Max. Load
(weight dry)
Program Selector Washing Type Button
t (COTTONS/LINEN)
Position 5
(CONDITIONER)
Separate Rinsing
Type of
Washing
Cottons/Linen 5kg
Easy-Cares 2.5kg } (EASY-CARES)
Delicates 2.5kg à (DELICATES)
Woollens 2kg s (WOOLLENS)
Max. Load
(weight dry)
Program Selector Washing Type Button
t (COTTONS/LINEN)
Position 4
(RINSE)
Separate Spinning
Type of
Washing
Cottons/Linen 5kg
Easy-Cares 2.5kg } (EASY-CARES)
Delicates 2.5kg à (DELICATES)
Woollens 2kg s (WOOLLENS)
26
Max. Load
(weight dry)
Program Selector Washing Type Button
t (COTTONS/LINEN)
Position 6
(SPIN)
Page 27
Operating instructions
Cleaning and Caring
Control panel
Attention! Do not use furniture care products or aggressive cleansers
for cleaning control panels and control elements.
0 Wipe control panels with a moist cloth. Use warm water.
Detergent drawer
The detergent drawer should be cleaned from time to time.
0 1. Pull the detergent drawer out as far as it will go.
2. Remove the detergent drawer by pulling sharply.
3. Remove siphon cap.
4. Clean the siphon cap under running
water.
5. Clean compartments with warm water
from the rear. For best results use a
bottle brush.
6. Push the siphon cap all the way on so
that it is securely seated.
7. Clean the entire compartment area of
the washing machine with a brush.
8. Set the detergent drawer into the guide tracks and push in.
27
Page 28
Operating instructions
Washing drum
The washing drum is made of rust-free stainless steel. Rusty objects in
the washing drum may lead to rust deposits on the drum.
Attention! Do not clean the stainless steel drum with acid containing
decalcifying agents, abrasives containing chlorine or iron, or steel wool.
Appropriate cleansers are available from our customer service department.
0 Remove rust deposits at the drum with a stainless steel cleanser.
Fill-in door
0 Check on a regular basis to see if deposits or foreign objects are present
in or at the rubber sleeve behind the door, and remove.
28
Page 29
Operating instructions
What to do when…
The somewhat different, in comparison to older wash-
3
ing machines, whistling noise during spinning is due to
the modern drive system.
A rattling sound on startup – in particular when using
for the first time – is caused by the circulation pump
and is due to the design.
Trouble Shooting
In the case of a malfunction try to solve the problem with the aid of
the notes given here. If you call in customer service to resolve one of
the malfunctions listed here, or rectify an error made in the operation
of the appliance, the customer service engineer’s visit is not free of
charge, even during the period of guarantee.
29
Page 30
Operating instructions
Malfunction Possible Cause Remedy
Washing machine does
not work.
The machine does not
take in water.
Washing machine
vibrates during operation or is unstable.
Excessive foaming during the main wash.
Mains plug is not plugged in. Insert mains plug.
House fuse in defective.
Door is not closed properly.
Tap is closed.
Sieve in the threaded fitting
on the water inlet hose is
blocked.
The height adjustable
threaded feet are not correctly adjusted.
There is only very little washing in the drum (e.g. only a
towelling dressing gown).
Water cannot be completely
pumped out because the
drain hose is kinked
or
the circulation pump is
blocked.
Probably too much detergent
was used
Replace fuse or switch on
trip.
Close door, lock must engage
audibly
Press the M (ON/OFF) button;
Open tap;
Reselect program;
Press the M (ON/OFF) button
again.
Unscrew the hose from the
tap, remove the sieve and
clean under running water
Adjust threaded feet as per
the installation instructions.
Function is not impaired.
Check the drain hose and if
necessary remove any kink or
clean the circulation pump
and remove any foreign bodies from the pump housing.
Dose detergent exactly in
accordance with the manufacturer’s instructions.
30
Page 31
Operating instructions
Malfunction Possible Cause Remedy
Water runs out from
under the washing
machine.
Softener is not washed
in, w compartment
for conditioner is full
with water.
Appliance does not
spin, water in the
drum.
Washing is not spun
properly, water is still
visible in the drum.
It is not possible to
open the door.
Rinse water is cloudy.
Threaded fitting on the
water inlet hose is leaking.
Drain hose is leaking.
Circulation pump cover is
not closed properly.
Washing is trapped in the
door.
Suction cap in the compartment for conditioner is not
correctly positioned or is
blocked.
o (RINSE HOLD) selected. Deselect o (RINSE HOLD).
Soaking program is finished.
Drain hose is kinked. Remove kink.
Maximum pumping height
(drain height 1m above the
floor on which the machine
is standing) exceeded.
Circulation pump is blocked.
In the case of siphon connection: siphon is blocked.
Program is not yet finished;
M (ON/OFF) indicator lamp is
illuminated.
This is probably due to using
a detergent with a high silicate content.
Tighten the water inlet hose
Check drain hose and if necessary replace.
Close cover properly.
Stop program, remove washing from the door, start a
new program.
Clean detergent drawer,
place suction cap firmly in
position.
Pump out the water and set
the main wash cycle as
desired.
Please contact customer
service who have a retrofit
kit for pumping to heights of
greater than 1m.
Switch off the machine and
unplug from the mains, clean
the circulation pump.
Clean siphon.
Wait until the M (ON/OFF)
indicator lamp extinguishes.
No negative impact on the
rinsing results, possibly use
liquid detergent.
31
Page 32
Operating instructions
Malfunction Possible Cause Remedy
Tap is not fully open. Open tap fully.
The sieve in the threaded fitRemnants of detergent
are building up in the
detergent drawer.
Program selector skips
k (PRE WASH).
Program selector
remains stationary at
position 7 (SOAKING).
Stain remover is not
washed in.
ting on the water inlet hose
at the tap is blocked.
Sieve on threaded fitting for
the water inlet hose on the
machine is blocked.
k (PRE WASH) combined
with s (WOOLLENS).
Position 7 (SOAKING) is com-
bined with s (WOOLLENS).
Position 1 (STAIN) is com-
bined with s (WOOLLENS).
Clean sieve.
Clean sieve.
k (PRE WASH) cannot be
combined with s
(WOOLLENS).
Position 7 (SOAKING) cannot
be combined with
s (WOOLLENS).
Position 1 (STAIN) cannot be
combined with s
(WOOLLENS).
If the washing results are not satisfactory
32
If the washing is grey and there are calcium deposits in the drum
• Too little detergent was used.
• The wrong detergent was used.
• Special soiling was not pre-treated.
• Program or temperature not set correctly.
• When using component detergents, the individual components were
not used in the correct proportions.
Page 33
Operating instructions
If there are still gray stains on the washing
• Washing soiled with ointments, grease or oils was washed with too
little detergent.
• Too lower temperature was used for washing.
• A common cause is that softener – particularly that in concentrated
form – has got onto the washing. Wash out any such spots as quickly
as possible and use that particular softener carefully.
If at the end of the last rinse foam is still visible
• Modern detergents can cause foam also in the last rinse. The washing
is however sufficiently rinsed.
If there are white remnants on the washing
• This is an insoluble material contained in modern detergents.
This is not the result of unsatisfactory rinsing.
Shake or brush the washing. Perhaps you should turn the washing
inside out before washing in future. Reconsider choice of detergent,
possibly use liquid detergent.
33
Page 34
Operating instructions
Performing an Emergency Drain
• If the washing machine no longer pumps out the water then an
emergency drain must be performed.
• If the washing machine is installed in a room subject to frost, an
emergency drain must be performed if there is a danger of frost.
In addition: unscrew the water inlet hose from the tap and lay on the
floor.
Warning! Switch the washing machine off and pull the mains plug
1
prior to emergency draining!
Attention! The water which runs out of the emergency draining hose
can be hot. There is a danger of scolding! Before an emergency drain
first allow the water to cool down!
0 1. Have a flat container on hand to catch the water.
2. Pull the rotating toggle a little from the
housing base and turn a quarter of a turn
in an anticlockwise direction until it can be
removed from the housing base.
3. Pull out the rotating toggle with the
emergency drain hose.
Rotating Toggle
4. Place the container under the hose.
5. Detach the rotating toggle from the emer-
gency drain hose.
Emergency Drain
Hose
The water runs out. Depending on the
amount of water, it may be necessary to
empty the container several times. Temporarily close the emergency drain hose in
between with the rotating toggle.
When the water is completely drained:
6. Press the rotating toggle firmly into the emergency drain hose.
7. Push in the rotating toggle with the emergency drain hose and tighten
by turning a quarter of a turn in a clockwise direction.
34
Page 35
Operating instructions
The ECO valve does not function when the machine has been fully
3
emptied. Therefore add approx. 1liter of water before the next wash
(pour in through the detergent drawer).
Cleaning the Circulation Pump
Warning! Switch the washing machine off and unplug
1
from the mains before cleaning the circulation pump!
0 1. First perform an emergency drain (see "Performing an Emergency
Drain" section above).
2. Take hold of the tab on the outer cover and
pull off.
3. Put a cloth on the floor in front of the circu-
Outer Cover
35
Page 36
Operating instructions
lation pump cover. Some water may run out.
4. Unscrew the circulation pump cover
in an anticlockwise direction and
remove.
5. Remove foreign body from the
pump housing.
6. Check whether it is possible to turn the
pump impeller. (Jerky pump movement is
normal.) If it is not possible to turn the
impeller, contact customer service.
7. Replace cover (insert stud on the cover into
the guide slot) and tighten in a clockwise
direction.
8. Press the rotating toggle firmly into the emergency drain hose.
9. Push in the rotating toggle together with the
emergency drain hose and tighten by turning
a quarter of a turn to the left.
10. Replace the outer cover.
Additional Rinse/Water Cooling
The washing machine is set up for extremely low water consumption.
• For people who suffer from an allergy to detergents, it can be useful
to rinse with more water (additional rinse).
• It may be necessary to cool the water before it is pumped out in order
to prevent damage to plastic waste pipes (water cooling).
You can activate these functions using the More Water Switch.
36
Page 37
Operating instructions
The program duration and water consumption are increased by water
3
cooling and/or the additional rinse.
Position "1": Water Cooling
At the end of the main wash, the water is cooled (by adding cold water)
prior to pumping out.
This setting is only effective for t (COTTONS/LINEN) with a temperature above 40 °C.
Position "2": Water Cooling and Additional Rinse
The water is cooled as in position 1, and an additional
rinse is also performed during the t (COTTONS/LINEN),
} (EASY-CARES) and à (DELICATES) programs.
As supplied the More Water Switch is set to position 0.
3
Make the Adjustment:
0 1. Pull out the detergent drawer until the More
Water Switch is accessible in the frame on the left.
2. Set the More Water Switch to
"1" (water cooling) or
"2" (water cooling and additional rinse).
37
Page 38
Installation and Connection Instructions
INSTALLATION AND CONNECTION
INSTRUCTIONS
1 Installation Safety Precautions
• Do not tip the washing machine on its front or left side (seen from
the front). Electrical components could become wet!
• Check the washing machine for transport damage. You should never
connect a damaged appliance. In the event of damage consult your
dealer.
• Ensure that all parts of the transport bracing have been removed and
that the appliance is water splash protected, see "Removing Transport
Bracing". Otherwise the appliance or neighbouring units may be
damaged during spinning.
• The plug may only be inserted into a properly installed earthed
socket. Extension cables, multiway plugs or adapters may not be used.
• In the case of permanent connection, means must be provided to
enable the appliance to be fully isolated from the mains through the
fitting of an isolation device in the electrical installation (fuse, circuit
breaker, earth leakage trip or the like) that has a contact separation
of at least 3 mm. Permanent connection may only be carried out by
an authorised electrician.
• Before using your appliance for the first time, please ensure that the
nominal voltage and type of current specified on the type plate are
the same as those used at the place where the appliance is installed.
Please also refer to the type plate for the type of fuse to be used.
• If the washing machine is built-in by removing the worktop, an
earthed cover plate must be installed for protection against touching
prior to using for the first time.
• If the washing machine is built under a worktop, the mains plug must
remain accessible once the machine has been correctly positioned.
• Prior to carrying out modifications on the appliance (on the worktop
or front door) pull out the mains plug.
• The mains lead may only be replaced by the customer service or by an
authorised electrician.
38
Page 39
Installation and Connection Instructions
Dimensions of the appliance
Niche measurements
39
Page 40
Installation and Connection Instructions
Installation of the appliance
Transporting the appliance
• Do not lay the washing machine on the front or on the left side (seen
from the front); otherwise the electrical components could become
wet!
• Never transport the appliance without transportation protection.
Remove the protection only at the place of installation! Transportation without protection can lead to damages to the appliance.
• Neither lift the appliance by an open door nor by the base.
• The appliance weighs approx. 85kg.
• By transportation with a trolley: Place the trolley only sidewise.
40
Page 41
Installation and Connection Instructions
Remove transportation protection
Attention! Be absolutely certain that all shipping braces have been
removed before installing the appliance.
Store all shipping braces in a safe place in case they are required for
future transport (moving).
Special spanner H and cover caps E (2 off) and G (1 off) are supplied
3
with the appliance.
0 1. Remove flexible tubing holder A.
2. Remove the two screws B with special spanner H.
3. Remove the four screws C.
4. Detach transportation rail D.
5. Close the two large openings with the cover caps E.
Attention! Press cover caps forcefully in, so that they snap into the
rear wall (protecting the interior of the appliance against sprayed
water).
6. Drive in the screws C into the four small holes again.
7. Remove the screw and compression spring F with special spanner H,
cover the hole with caps G.
Attention! Press cover caps forcefully in, so that they snap into the
rear wall (protecting the interior of the appliance against sprayed
water).
41
Page 42
Installation and Connection Instructions
Prepare the installation place
• The installation surface must be clean and dry, free of floor wax and
other smearing substances, so that the appliance does not slip off. Do
not use any lubricant as sliding aid.
• Installation on a high-veil carpet or floor tiles with soft sponge backs
is not recommended because the standing safety of the appliance is
then no longer ensured.
• By installation surfaces with small-format tiles, lay a conventional
rubber mat underneath.
• Small unevenness of the floor surface should never be levelled out by
laying pieces of wood, carton or similar elements, but rather basically
compensated by adjusting the screw feet.
• When it is unavoidable to install the appliance besides a gas or a
coal-fuelled cooker, due to spatial reasons: insert a piece of heatinsulating board (85 x 57 cm) between the cooker and the washing
machine; the board side facing the cooker must be provided with an
aluminium foil.
• The washing machine may not be installed in a frost-endangered
room. Frost-caused damages!
• Flexible feed and drain tubings may not be crinkled or squeezed.
Installation on a concrete base
When installing on a concrete base,
for safety reasons it is imperative
that steel plates are installed, the
washing machine is then installed
in these plates. The steel plates are
available from customer service
under ET-No. 645 425 058.
Installation on vibrating floors
In the case of floors that vibrate, especially wooden floors with floorboards that flex, a water-proof wooden panel of at least 15 mm thickness must be firmly screwed to at least 2 floor beams. If possible, install
the appliance in a corner of the room: the wooden floor is more firmly
supported in the corners and thus has less tendency to resonant vibration.
42
Page 43
Installation and Connection Instructions
Levelling on uneven floors
Using the four adjustable threaded feet, compensation can be made for
unevenness in the floor and the height of the appliance adjusted. The
height can be adjusted over the range +10... -5 mm.
To adjust the feet use the special spanner supplied for removing the
transport braces.
0 1. Slide the special key firmly onto the hexagon head of the threaded foot
all the way to the stop.
2. Adjust the threaded feet so that the appliance is level and sits stably.
The appliance must not rock across the corners when operating under
load.
3. If necessary, check positioning with a spirit level.
Important! Never compensate for small areas of unevenness in the
floor through the use of wooden wedges, cardboard or the like. Levelling should only ever be performed by adjusting the feet.
43
Page 44
Installation and Connection Instructions
Power supply
Details on the mains voltage,
type of current and the necessary fuse protection are to be
found on the rating plate. The
rating plate is above and
behind the door.
For permanent electrical connection within the electrical
circuit, provisions must be made which allow for electrical disconnection of the appliance from the mains with a contact opening of at least
3 mm at all poles. Suitable devices include circuit breakers, fuses
(threaded fuses must be entirely removed from the socket), ground
fault circuit interrupters and contactors. Permanent connection may
only be carried out by an authorised electrician.
;
This appliance conforms to the following EC directives
– "Low-Voltage Directive" 73/23/EWG dated 19 February 1973
and Directive amendment 93/68/EWG
– "EMC Directive" 89/336/EWG dated 3 May 1989
and Directive amendment 93/68/EWG
Water connection
The washing machine is provided with safety devices which prevent
3
reverse pollution of drinking water and conform to the State regulations issued by water supply authorities (e.g. in Germany: DVGW Directives). Further protective measures in the installation are hence
unnecessary.
Attention! Appliances for cold water connection may not be connected to warm water!
44
Page 45
Permissible water pressure
Installation and Connection Instructions
Water pressure must be equal to a least 1 bar (= 10N/cm2 = 0.1 MPa),
and no more than 10 bar (= 100N/cm
• By more than 10 bar: connect a pressure reduction valve upstream.
• By less than 1 bar: Unscrew the flexible inlet tubing on the magnetic
inlet valve on one side of the appliance and remove the flow meter
(thereby remove the sieve by means of a pair of pointed pliers and
then remove the rubber washer behind it). Remount the sieve.
2
= 1 MPa).
Water feed
A flexible pressure tubing of 1.3m length is supplied.
If a longer feed tubing is needed, a complete VDE-approved tubing set
with mounted screw connections, supplied by our customer service,
should be used exclusively.
– For washing machines without Aqua-Control, tubing sets are
available in lengths of 2.2m, 3.5m and 5m.
– For washing machines with Aqua-Control, tubing sets are available
in lengths of 2.0m, 2.9m and 3.9m.
Attention! Under no circumstances may tubing be pieced together for
the purpose of lengthening!
Sealing rings are either inserted in plastic nuts of the tubing screw con-
3
nection or contained in an accompanying packet. Do not use other
seals.
0 1. Connect the angled hose connector to the
machine.
Attention! Plastic nut at the tube coupling
may only be hand tightened.
45
Page 46
Installation and Connection Instructions
2. Connect the straight hose connector to a water tap
with an R 3/4 (inch) thread.
Attention! Only tighten the plastic nuts on the
hose connectors by hand.
3. By opening the water tap slowly prior to the initial
operation, check whether the connection is tight.
Water drain-off
The drain-off tubing can be connected either to a siphon or be hanged
in a washing or sink basin or in a bathtub.
For extension (max. 3 m floor length and up to 80 cm high) only original tubing may be used. The customer service supplies drain-off tubing
of 2.7 and 4m lengths.
Water drain-off inside a siphon
The spout at the end of the tubing fits all common siphon types.
0 Make the connection spout/siphon secure with a tubing clip.
Water drain-off inside a basin
For hanging in a wash basin, sink or bath,
the drain hose must be prevented from
moving using the detachable elbow supplied.
The tube could otherwise be pushed out of
the basin by the reactive force imparted by
draining water.
Small sink basins are not suitable!
0 Fasten the elbow on the water tap or on
the wall by means of the hole.
Delivery heights above 1m
Every washing machine is provided with a suds pump for draining the
washing/rinsing suds, which can deliver liquids via the drain-off tubing
up to a height of 1m, measured from the standing level of the machine.
For delivery heights above 1m please establish contact with the AEG
customer service.
46
Page 47
Installation and Connection Instructions
Changing Over The Door Hinges
0 1. Remove the screws (1) on the inside of the door.
2. Detach the door by pushing it horizontally (2).
3. Remove 3 screws (3) at the front of the appliance.
4. In order to release the plastic cover (4) from the appliance:
press in the spherical knob with a pointed object and at the same time
slide the plastic cover parallel to the front of the appliance.
5. Replace the upper door hinge with the door lock, and the bottom hinge
with the plastic cover from the other side of the door.
6. Refit the 3 screws (3).
7. Clip in the plastic cover.
8. Remove the retaining screws from the door bracket for the inner door
(5).
9. Remove the door bracket, place it on the other side and screw in place.
10. Transfer lower cover (6) to the other side.
11. Hang the door with hinges and tighten firmly.
47
Page 48
Installation and Connection Instructions
Incorporating in Kitchens (Built-In)
To build-in your washing machine you will need the Built-In Installation Kit (E No. 605 898 832).
Protection Against Touching Under Work Surfaces
Warning! When the appliance is built-in, the top of the appliance must
1
be fitted with an earthed sheet metal cover (E No. 605 898 832). Only
then may the washing machine be connected to the mains and put into
use.
Free-standing models can be built-in underneath the work surface
after removal of the worktop fitted to the appliance. This results in the
height of the appliance being reduced to 82cm (see "Appliance Dimensions").
Removing the Worktop
0 1. Remove the screws (1) on the rear of the
appliance.
2. Pull the worktop to the rear to the stop (2)
and lift off.
3. Press in the catches on the guides (3) and
remove the guides by twisting (4).
48
Page 49
Installation and Connection Instructions
Fitting and Earthing the Sheet Metal Cover
0 1. Insert the cover from behind, fitting the
slots in the worktop brackets (5), and
slide forwards.
Important! The four metal tags must
slide underneath the mounting plate at
the front (6).
2. Screw the cover in place using the serrated lock washers (7) and screws (8)
included in the built-in installation kit.
Warning! It is essential that the screws
1
(8) are earthed and secured through the
serrated lock washers (7).
Water Vapour Protection for Work Surfaces
The built-in installation kit includes a piece of protective foil for protecting the work surface around the switch panel and the detergent
drawer from water vapour.
When applying, ensure that the edge of the foil is exactly aligned with
the front edge of the work surface.
Sliding Rails
Sliding rails on the left and right provide assistance when sliding the
appliance into the niche and prevent the floor being damaged.
Sliding rails are included in the built-in installation kit.
49
Page 50
Installation and Connection Instructions
Connections For Built-In Appliances
The water feed, drain and mains power connections must always be to
the side of the appliance. There is no room for these connections
behind the appliance. The connections must remain accessible for
servicing purposes even when the appliance is installed.
In the above figure you can see an example of how the appliance
should be installed when built-in. It must always be possible to isolate
the appliance from the mains and it must be possible to shut the water
tap.
The particular situation at the place where the appliance is to be
installed, the position of existing supply connections, and also any
national or local connection regulations will define the actual installation.
For Correct and Safe Guidance of the Hoses:
0 1. Prior to pushing the machine into the niche, screw retaining straps to
the left and right of the rear wall and use them to fasten the hoses and
mains cable.
2. When pushing the appliance into a niche between units, first pass the
hoses and mains cable through the plinth of the unit and then pull
them through progressively as the appliance is pushed into place. During this process it is imperative that the hoses are laid without kinks.
Important! Under no circumstance is the machine to be screwed to the
work surface above it or to neighbouring units. Vibration will be transferred!
50
Page 51
Installation and Connection Instructions
Fitting a Decor Panel
Free-standing front loading models equipped with decor frames can be
fitted with decor panels. Only the supplier of the kitchen units can supply decor panels.
Decor Panel Dimensions (with 100mm high plinth)
Width 585
Height 585
Max. thickness (D) that can be clamped in the decor frame 4mm
Max. panel thickness with rebate 10mm
Panel corner radius R12
For retrofitting front loading appliances capable of being built-in that
3
do not have a decor frame, a white decor frame is available as special
accessory (E No. 605 898 833).
+1
+1
mm
mm
51
Page 52
Installation and Connection Instructions
0 1. Remove the screws (1) on the inside of the door.
2. Detach the door by pushing it horizontally (2).
3. Loosen screws (3).
4. Remove the bottom part of the frame (4).
5. Remove the front panel (5).
6. Push in the decor panel (6).
7. Fit the door, hang it and fasten it again with the retaining screws (1).
52
Page 53
Installation and Connection Instructions
Incorporating in Kitchens with 90cm High
Work Surfaces
A special base is used to adapt the height of the appliance, this is to be
provided by the kitchen manufacturer.
Dimensions: Width x Height x Depth = 600 x 50 x 490mm.
Material: work surface 30, 33 or 40mm thick, normally coated, with
reinforcing (if possible made of solid wood) to create a platform
40-50mm high. The reinforcement should be in the form of a frame to
make it easier to compensate for unevenness in the floor. Two holes
(diameter 8-10mm) are required on the left and right for fixing the
base to the floor using plugs and screws. For safety reasons it is recommended to also fit a 5-10mm high edge to the front of the base.
53
Page 54
Installation and Connection Instructions
Technical data
Height x Width x Depth 85x60x60cm
Depth with open door 114cm
Height adjustment approx. +10/-5mm
Weight when empty approx. 85kg
Load (depending on the program) max. 5kg
Area of use Household
Wash cycle drum speed max. 53min
Spin cycle drum speed see type plate
Water pressure 1-10 bar
(=10–100N/cm
2
= 0.1 – 1.0MPa)
-1
r.p.m.
54
Page 55
Guarantee/Service departments
GUARANTEE/SERVICE DEPARTMENTS
Weitere Kundendienststellen im Ausland
In diesen Ländern gelten die Garantiebedingungen der örtlichen Partner. Diese können dort eingesehen werden.
Further after-sales service agencies overseas
In these countries our AEG agents’ own guarantee conditions are applicable. Please obtain further details direct.
Autres agences étrangères assurant le service après-vente
Dans ces pays, les conditions de garantie des concessionnaires de la
région sont valables. Vous pouvez les consulter sur place.
Otros puntos de Postventa en el extranjero
En estos países rigen las condiciones de nuestros representantes locales.
las cuales pueden ser consultadas allí mismo.
Ulteriori uffici del servizio tecnico assistenza clienti all’estero
In questi paesi sono valide le condizioni di garanzia dei partner locali.
Queste condizioni possono essere esaminante sul luogo.
Serviços de assistência técnica no estrangeiro
Nestes países são válidas as condições de garantia dos concessionários
locais, podendo aí ser consultadas.
U.A.E. Abu Dhabi
Universal Trading Company
P.O. Box 43 99
Tel.: 335331
Jordan
Jordan Household
Supply Co. Ltd.
P.O. Box 3/68
Amman/Tel.: 69 70 50
Malta
ITC
International Trading Company
White House Building
Mountbatte Street
Blata L-Bajda/Tel.: 220644
Egypt
Middle East Commercial
Center
P.O. Box 19
Kairo-Heliopolis
Tel.: 29917/31634
Kanada
EURO-LINE Appliances
2150 Winston PARK Drive 20
Oakville, Ontario L6H 5V1
Tel.: 905 829 3980
Fax: 905 829 3985
Mauritius
Happy World Centre Ltd.
P.O. 7 54
1 Chausee Street
Port Louis
Tel.: 25355
55
Page 56
Guarantee/Service departments
Australia
ANDI-Co Pty. Ltd
9 Kingston Town Close
Oakleigh VIC 3166
Tel.: (03) 9569 1235
Fax: (03) 9569 1450
Bahrain/Arabian Gulf
A.A. Zayani & Sons
P.O. Box 9 32
Bahrain
Tel.: 261060
Bulgaria
Electrolux Bulgaria E.O.O.D.
91 Levski Blvd.
1000 Sofia
Tel.: 2 806676
Fax. 2 980 5276
Cyprus
Servilan Co. Ltd.
P.O. Box 36 05
77, Kennedy Ave.
Nicosia
Tel.: 311 477
Estonia
Electrolux Estonia Ltd.
Mustamäe tee 24
EE0006 Tallinn
Tel.: (372) 6 650 090
Fax: (372) 6 650 092
Korea (South)
Core Incorp.
3/F Chewoo Bldg.
200 Nonhyun-Dong
Kangnam-Ku
Seoul
Telefon 82 2 549 89 61
Croatia
Electrolux D.O.O.
Suplova 7
10000 Zagreb
Tel.: 1 61 19512
Fax: 1 61 19513
Kuwait/Arabian Gulf
Ali Al-Ghanim Est.
P.O. Box 10 83
Tel.: 5322463
Fax: 5242114
Lebanon
Adib & Assaferi
P.O. Box 539
Tripoli
Latavia
Electrolux Latavia Ltd.
Terlaton Street 42/44
1011 Riga
Tel.: 371 2 297821
Fax: 371 2 821286
Namibia
AEG NAMIBIA (PTY) LIMITED-Jeppe Street
Northern Industrial Area
Windhoek
Tel.: (061) 21-6082/4
Fax: (061) 217838
New Zealand
Euro-Life New Zealand Ltd.
Privat Bag
58 Symonds Street
Auckland
Tel.: (09) 525 2222
Nouvelle Caledonie
Socometra N.C.
B.P. 483
Nouman
Tel.: 275444
Oman
Moshin Haider Darwish
P.O. Box 1 35
Muscat
Tel.: 703743
Poland
Electrolux Poland Sp. zo.o.
ul. Domaniewska 41
02-034 Warszawa
tel.: 022 874 33 33
fax: 022 874 33 00
56
Hongkong
Wo Kee Services Ltd.
585-609 Castle Peak Road
Kwai Chung N.T.
Hongkong
Tel.: 2494 4000
Lthuania
Electrolux Lthuania
Verkui 29
2600 Vilnus
Tel.: 372 272 3326
Fax: 372 272 3366
Russia
Electrolux Russia Ltd.
16 Olympiysky prospekt
129090 Moscow
Tel.: (095) 937 7837
Fax: (095) 926 5513
Page 57
Israel
Evis Ltd.
P.O. Box 70 39
Tel-Aviv – 67013
Tel.: 3257311
Malaysia
Arzbergh Engineering
No. 49A/B, Jalan Petaling
Utama 7
4600 Petaling Jaya
Tel.: 3 795 1084
Fax: 3 795 1082
Saudi Arabia
Alia Trading Corporation
P.O. Box 4101
King Abdul Aziz Street
Riyadh
Tel.: 4645977
Al Nahas Est.
Musaidia Market I
P.O. Box 1 15 29
Jeddah
Tel.: 6606852
Japan
Electrolux Japan Ltd.
Yasuda Warehouse 4F 3-3-12
Heiwajima Ota-Ku
Tokyo
Tel.: 81 3 3544 3363
Fax: 81 3 3763 6143
Thailand
OLYMPIA Thai Ltd.
44 Ratchadapisek Road
10320 Bangkok
Tel.: 2 513 6111
Fax: 2 513 2574
Hungary
Electrolux Lehel KFT
(AEG Div)
Erzsebet’Kiralyne Utja 87
1142 Budapest
Tel.: 00361/251 84 44
Singapore
Arzbergh Engineering
19 Tanglin Road 06-07
Singapore 247909
Tel.: 65 7356572
Fax: 7351124
Slovakia Rep.
Electrolux Slovakia S.R.O.
Seberiniho 1
821 03 Bratislava
Tel.: 7 4333 9745
Fax: 7 4333 6976
USA
ANDI Co. Appl. Inc. East
65 Campus Plaza
Edison, New Jersey 0837
USA/Tel.: (201) 2258839
Slovenia
Electrolux Slovenia D.O.O.
Traska Ul. 132
1000 Ljubljana
Tel.: 61 1234 137
Fax: 61 1234 238
South Africa
AEG (Pty) Ltd.
55, 12th Road
P.O. Box 1 02 64
Kew/Johannesburg 2000
Tel.: 8069111
Syria
Masri & Shami
P.O. Box 24 96
Damascus
Tel.: 214080
57
Page 58
Index
INDEX
C
Calcium . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Conditioner . . . . . . . . . . . . . . . 9
liquid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Conditioning . . . . . . . . . . . . . . . . . . . . . . . . 26
Cotton Mixtures . . . . . . . . . . . . . . . . . . . . . 15
Cottons . . . . . . . . . . . . . . . . . . 11
Customer Service . . . . . . . . . . . . . 28
, 11, 16, 19
, 15, 24, 26
, 29, 59
D
Danger of Frost . . . . . . . . . . . . . . . . . . . .6, 33
Delay Timer . . . . . . . . . . . . . . . . . . . . . . . . . 21
Delicates . . . . . . . . . . . . . . . . . 12
Detergent . . . . . . . . . . . . . . . . . . . . . . . . .9
liquid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Detergent for Soaking . . . . . . . . . . . . . .9
, 15, 25, 26
, 16
, 19
E
Easy-Cares . . . . . . . . . . . . . . . 11, 15, 25, 26
ECO Valve . . . . . . . . . . . . . . . . . . . . . . . .13
, 34
G
Guarantee . . . . . . . . . . . . . . . . . . . . . . . .6, 29
L
Linen . . . . . . . . . . . . . . . . . . . . 11, 15, 24, 26
Liquid detergent . . . . . . . . . . . . . . . . . . . . . 19
M
Main Wash . . . . . . . . . . . . . . . . . . . 10, 24, 25
N
Net Curtains . . . . . . . . . . . . . . . . . . 14, 15, 25
O
Open Door . . . . . . . . . . . . . . . 17, 18, 23, 31
P
Pre Wash . . . . . . . . . . . . . . . . . . . . 10, 24, 25
Pre Wash Detergent . . . . . . . . . . . . . . . . . . 19
Program Progress . . . . . . . . . . . . . . . . . . . . 22
Pump Out . . . . . . . . . . . . . . . . . . . . . . . .11
, 23
Q
Quick Wash . . . . . . . . . . . . . . . . . . 10, 24, 25
R
Rating Plate . . . . . . . . . . . . . . . . . . .9, 43, 59
Rinse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
additional rinse . . . . . . . . . . . . . . . . . . . .36
Rinse Hold . . . . . . . . . . . . . . . . 10
, 11, 21, 23
S
Saving Energy . . . . . . . . . . . . . . . . . . . . 11, 24
Silk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Soaking . . . . . . . . . . . . . . . . . . . . . . . . . 11
Softener . . . . . . . . . . . . . . . . . . . . . . .8
Spin . . . . . . . . . . . . . . . . . . . . . 10
Stain . . . . . . . . . . . . . . . . . . . . . 9
Stain Remover . . . . . . . . . . . . . . . . . . . 10
Stains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Starching . . . . . . . . . . . . . . . . . . . . . .9
Stopping the Program . . . . . . . . . . . . . . . . .22
, 26
, 9, 19
, 11, 21, 26
, 10, 24, 25
, 19
, 32
, 11, 26
W
Washing
coloured . . . . . . . . . . . . . . . . . . . . . . . . . .14
delicate . . . . . . . . . . . . . . . . . . . . . . . 14
easy-care . . . . . . . . . . . . . . . . . . . . . . . . . .15
lightly soiled . . . . . . . . . . . . . . . . . . . . . . . .8
normally soiled . . . . . . . . . . . . . . . . . . . . . . 8
starch . . . . . . . . . . . . . . . . . . . . . . . . . 9
Water
circulation pump . . . . . . . . . . . . . . . . 9
emergency drain . . . . . . . . . . . . . . . . . . .33
hardness . . . . . . . . . . . . . . . . . . . . . . . 8
pump out . . . . . . . . . . . . . . . . . . . . . 11
softener . . . . . . . . . . . . . . . . . . 8
water cooling . . . . . . . . . . . . . . . . . . . . . .36
Woollens . . . . . . . . . . . . . . . . . 12
, 15
, 19
, 34
, 16
, 23
, 9, 16, 19
, 15, 25, 26
58
Page 59
SERVICE
If a malfunction should occur at the appliance, refer first to the section
"What to do when ..." in these user instructions. If you do not find any
applicable instructions there, contact your customer service centre.
(Addresses and telephone number can be found in the "Service Departments" section.)
Be well prepared before you phone. This facilitates the diagnosis and
the decision as to whether a customer service visit is necessary. With
our checklist you can gather important information before making
your call:
Make a note of the PNC number
and the S-number.
Both of these number can be
found on the rating plate on the
inside of the door of your washing
machine.
......................................................
PNC
......................................................
S-No.
In addition to this please establish if possible:
• How is the malfunction noticeable ?
• Under what circumstances does the malfunction occur?
Service
You will be charged even during the warranty period
– if you could have corrected the malfunction yourself with the help of
the malfunctions table (see "What to do when ..." section),
– if the customer service technician is required to make several trips
because he had not received all relevant information before his visit,
and must return, for example, to pick up replacement parts. This
additional driving can be avoided if your telephone call is well prepared, as described above.
59
Page 60
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
H 243 288 640 - 01 - 0900
Loading...
