Page 1
FACTORY PARTS CATALOG
DISHWASHER
PRODUCT NO. BASE MODEL NO. SERIES COLOR
GLDB957JB0 GLDB957J GALLERY black
GLDB957JS0 GLDB957J GALLERY white
MARKET
North America
SERVICE DATA SHEET # - 154371501
OWNER’S GUIDE # - 154375101
WIRING DIAGRAM # - 154371501
101 Masters Blvd.
Anderson, SC 29624
Publication No.
5995337309
000503
-EN/SERVICE /ECL
821
24" BUILT IN
DISHWASHER
Model No.
GLDB957J
©2000 White Consolidated Industries, Inc.
All rights reserved
Page 2
Publication No. GLDB957J
5995337309
CONTROL PANEL
05/00 2
Page 3
A = GLDB957J (GLDB957JB0)
B = GLDB957J (GLDB957JS0)
POS. NO PART NO DESCRIPTION
1 154370303 A - Panel-control,black
1 154370301 - B Panel-control,white
2 154370103 A - Insert-control pnl,black
2 154370101 - B Insert-control pnl,white
3 # 154362805 A B Control
3* 154200401 A B Screw,6-10 x 3/8 ,pan plask
4 154287901 A B Cover-control
4* 5303322387 A B Screw,truss head ,#8,1.5" ,stainless steel
18 154302303 A - Nameplate Assy,black
18 154302301 - B Nameplate Assy,white
20 154228301 A B Duct-dynamic
25 154229201 A B Seal-chamber
26 154303901 A B Gasket-vent
27 154226701 A B Actuator-wax
28 154226901 A B Valve-vent
29 154226403 A B Gasket-valve
30 154226802 A B Blower-crossflow
31 154228101 A B Chamber-vapor
34 # 154369801 A B Keypad,10pad
GLDB957J Publication No.
5995337309
CONTROL PANEL
* 154283901 A B Screw,#8-10 ,3/8 phillips
* # 154366001 A B Wiring Harness
# = Fast Moving Part 3 05/00
* = Non-Illustrated Part
Page 4
Publication No. GLDB957J
5995337309
DOOR
05/00 4
Page 5
A = GLDB957J (GLDB957JB0)
B = GLDB957J (GLDB957JS0)
POS. NO PART NO DESCRIPTION
1 154365701 A B Spring-door,(2)
1A 154325201 A B Spring linkage,(2)
2 154093301 A B Screw-arm assy,(4)
3 154325304 A B Arm Assy,LH
3A 154325303 A B Arm Assy,RH
* 154211501 A B Pin-arm
5 154079601 A B Nut-arm assy,(4)
7 154299002 A B Door-inner assy
7A 154226601 A B Liner grate
9 154230101 A B Dispenser-det/rinse aid
9* 154294701 A B Screw,#7 plas .375 ,(6) ,disp. assy.
10 154304301 A B Screw-latch mtg,(2)
12 # 154308103 A - Latch assy,black
12 # 154308101 - B Latch assy,white
20 154359003 A - Door,black
20 154359001 - B Door,white
49 154297602 A B Gasket-door,bottom
50 154211401 A B Support-door hinge
* 154227501 A B Thermister
* 154253201 A B Insulation,door
* 154320301 A B Clamp-wire,drip loop
GLDB957J Publication No.
5995337309
DOOR
# = Fast Moving Part 5 05/00
* = Non-Illustrated Part
Page 6
Publication No. GLDB957J
5995337309
TUB
05/00 6
Page 7
A = GLDB957J (GLDB957JB0)
B = GLDB957J (GLDB957JS0)
POS. NO PART NO DESCRIPTION
1 # 154209301 A B Tub assy,w/frame parts
2 154211601 A B Strike-door
3 # 154211801 A B Gasket-tub
4 154200602 A B Screw,10-16 x 3/8 ,hex
5 154333901 A B Roller-tub
6 5303943103 A B Screw w/washer,(8)
22 154239801 A B Tubing-water inlet
23 5303318539 A B Clamp-tubing,(2)
24 # 154225602 A B Hose-drain
25 # 154209701 A B Float
28 # 154225501 A B Switch-float
28A 154209801 A B Bracket-float switch
28A* 154333301 A B Screw,bracket mtg ,ph truss head
29 # 154290204 A B Thermostat,re-settable
30 154241101 A B Retainer-thermostat
30* 154297701 A B Screw,retainer-thermo
* 154041001 A B Screw,plask #1 ,10-10 x 9/16
* 154238304 A B Insulation,tub
* 154360201 A B Insulation,blanket ,back
GLDB957J Publication No.
5995337309
TUB
# = Fast Moving Part 7 05/00
* = Non-Illustrated Part
Page 8
Publication No. GLDB957J
5995337309
MOTOR & PUMP
05/00 8
Page 9
A = GLDB957J (GLDB957JB0)
B = GLDB957J (GLDB957JS0)
POS. NO PART NO DESCRIPTION
1 # 154247601 A B Heater
1* 154106201 A B Nut-heater,(2)
1* 154289801 A B Shield-heater terminal
2 154359701 A B Bracket-heater,(2)
7 154245901 A B Macerator
10 154245501 A B Cover-volute
12 154245801 A B Impeller
12* 154282701 A B Screw,ss impeller
13 154246801 A B Gasket-sump
14 154365901 A B Housing-sump
15 154246701 A B Check valve
16 154246502 A B Retainer,sump
24 154250801 A B Spray arm-lower
24A 154313601 A B Spray arm-center
24A* 154252001 A B Nut-spray arm
32 154251701 A B Tube-delivery
32A 154358901 A B Gasket-delivery tube
34 154064901 A B Washer-insulating
40 154348401 A B Clamp,red ,pump
40 154348501 A B Clamp,silver ,pump
40* 154106801 A B Clamp-hose,(2)
54 154234401 A B Hose-connector
55 154325701 A B Bracket-motor
55* 5303316032 A B Screw,truss ss ,8 .625
55A 154246201 A B Bracket-motor,front
57 154246001 A B Barrel,front
57* 154246101 A B Barrel,rear
58 154246402 A B Check ball
59 154246901 A B O-ring,rear
59A 154247001 A B O-ring,front
60 154247502 A B Drain Pump Assy
60* 154234501 A B Bracket-motor,drain
61 154359601 A B Nozzle,3rd level ,spray arm
62 154294101 A B Support-spray arm
63 154252201 A B Base-soil director
64 154252301 A B Filter-soil director
65 154283004 A B Filter Assy
66 154252701 A B Trap-glass
67 154246601 A B Hose-drain,shunt
70 # 154291504 A B Motor & Pump Assy,includes#7,#12 ,
71 154366101 A B Sensor,turbidity
71* 154376001 A B O-ring,turbidity
GLDB957J Publication No.
5995337309
MOTOR & PUMP
#55A,#57,#59,,#59A
* 154338601 A B Clamp-P,nylon
# = Fast Moving Part 9 05/00
* = Non-Illustrated Part
Page 10
Publication No. GLDB957J
5995337309

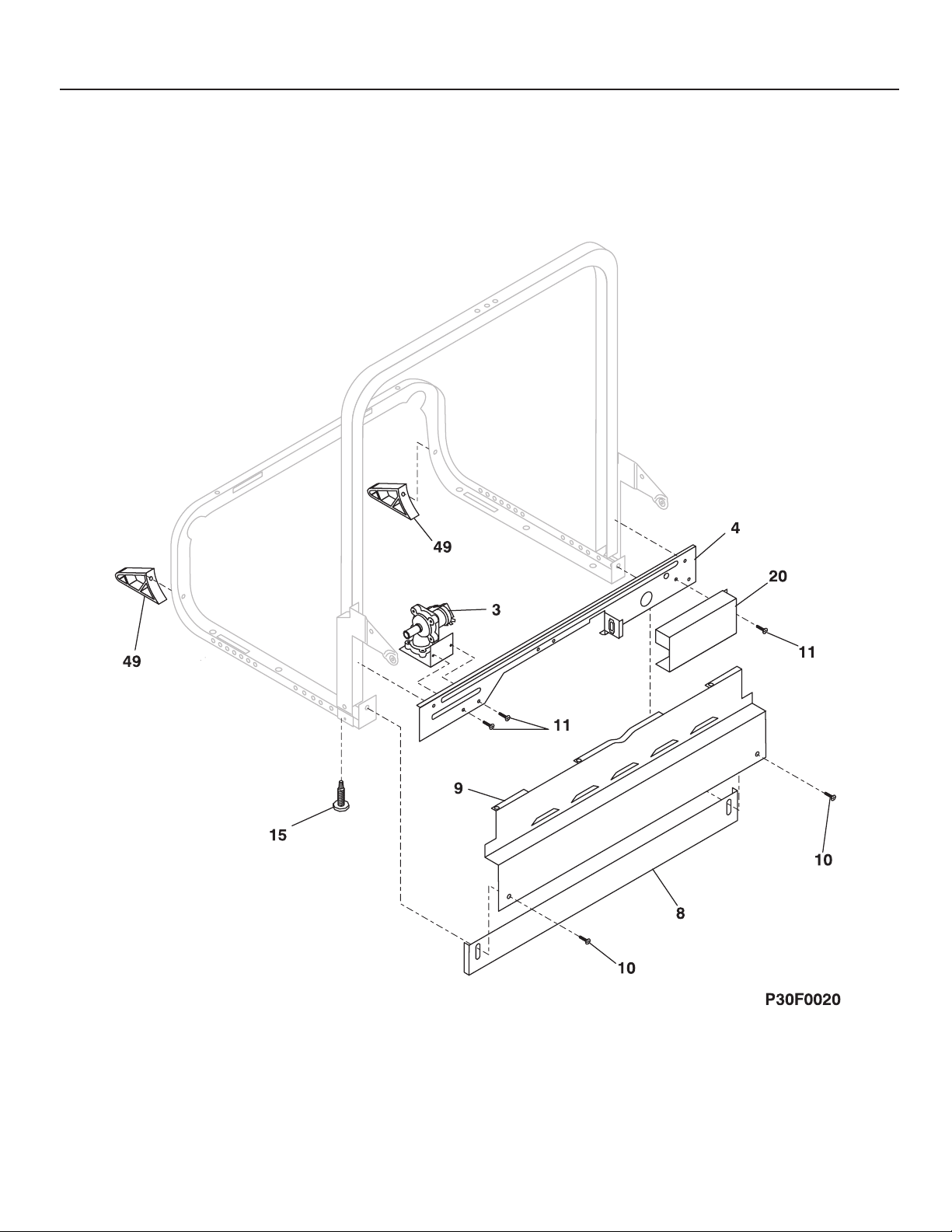

FRAME
05/00 10
Page 11
A = GLDB957J (GLDB957JB0)
B = GLDB957J (GLDB957JS0)
POS. NO PART NO DESCRIPTION
3 # 154359801 A B Valve-water
4 154208701 A B Brace-front
8 154322903 A B Toeplate-adjustable
9 154370703 A B Kickplate/Baffle Assy,black
9* 154249301 A B Insulation,kickplate
10 5300808658 A B Screw,#8A x .375"
11 154200601 A B Screw-#10-16 x 3/8
15 154210901 A B Screw-leveling
20 154209601 A B Cover-junction box
49 154227401 A B Guard-motor
* 154321801 A B Baffle-sound
* 154290001 A B Insulation-baffle,side
* 154290101 A B Guard-wire,baffle
GLDB957J Publication No.
5995337309
FRAME
# = Fast Moving Part 11 05/00
* = Non-Illustrated Part
Page 12
Publication No. GLDB957J
5995337309
RACKS
05/00 12
Page 13
A = GLDB957J (GLDB957JB0)
B = GLDB957J (GLDB957JS0)
POS. NO PART NO DESCRIPTION
1 154320906 A B Rack assy-lower
2 154295201 A B Basket-Silverware
3 154321107 A B Rack assy-upper
4 5304407064 A B • Wheel & bushing assy,upper rack
5 5300809927 A B Cap-slide,(4)
6 154232701 A B Slide-rack,(2)
7 154174501 A B Wheel & bracket assy,lower rack
8 154304001 A B Base-funnel
9 154251801 A B Funnel
10 154238801 A B Basket-utility,white
11 154280303 A B Cup/Stemware holder
12 154352401 A B Bracket-shelf cup
13 154224902 A B Fence,fold down ,white ,lower rack ,(2)
14 154376501 A B Bracket-fence,fold down ,lower rack ,(4)
15 154254001 A B Handle-siverware basket
GLDB957J Publication No.
5995337309
RACKS
# = Fast Moving Part 13 05/00
* = Non-Illustrated Part
